Summary

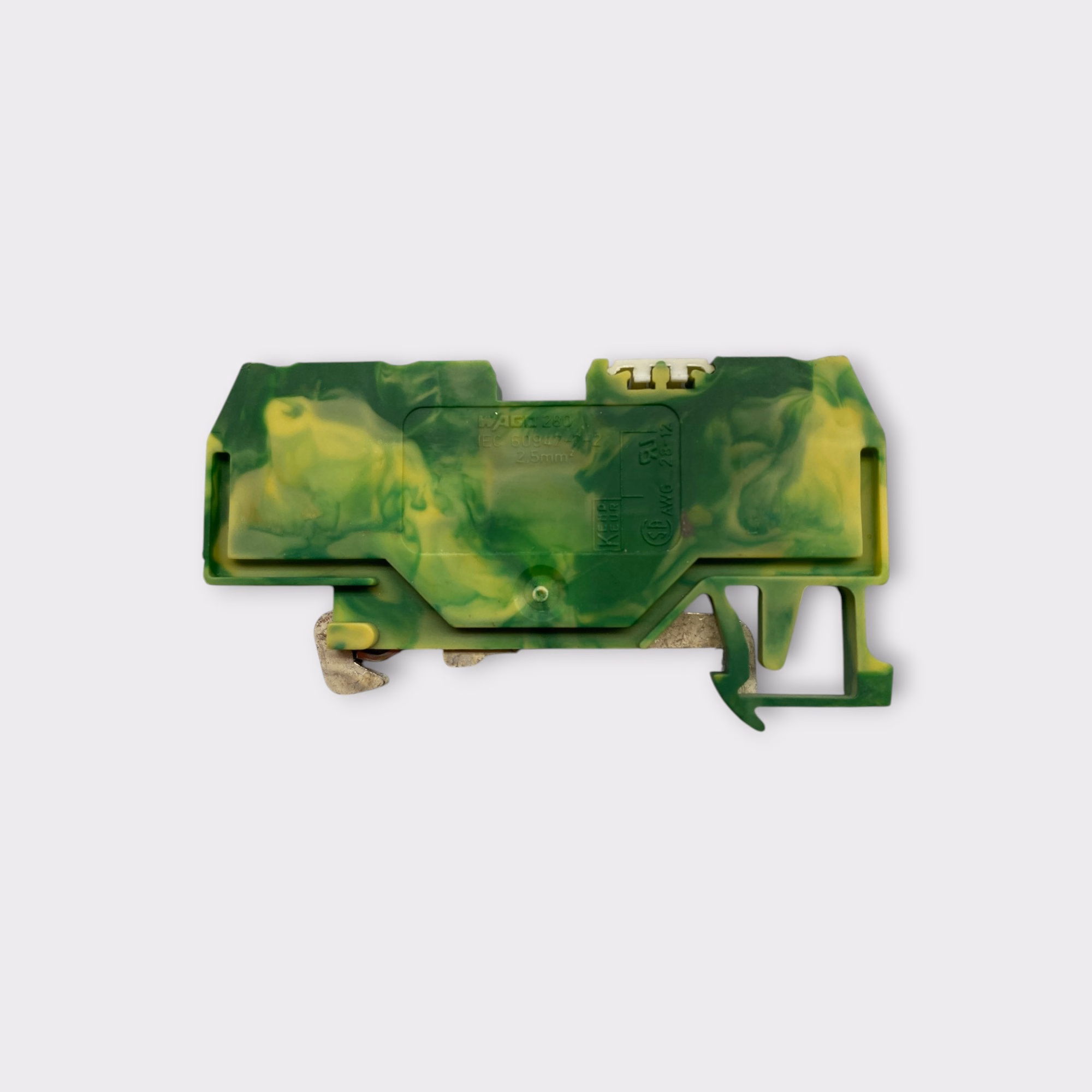

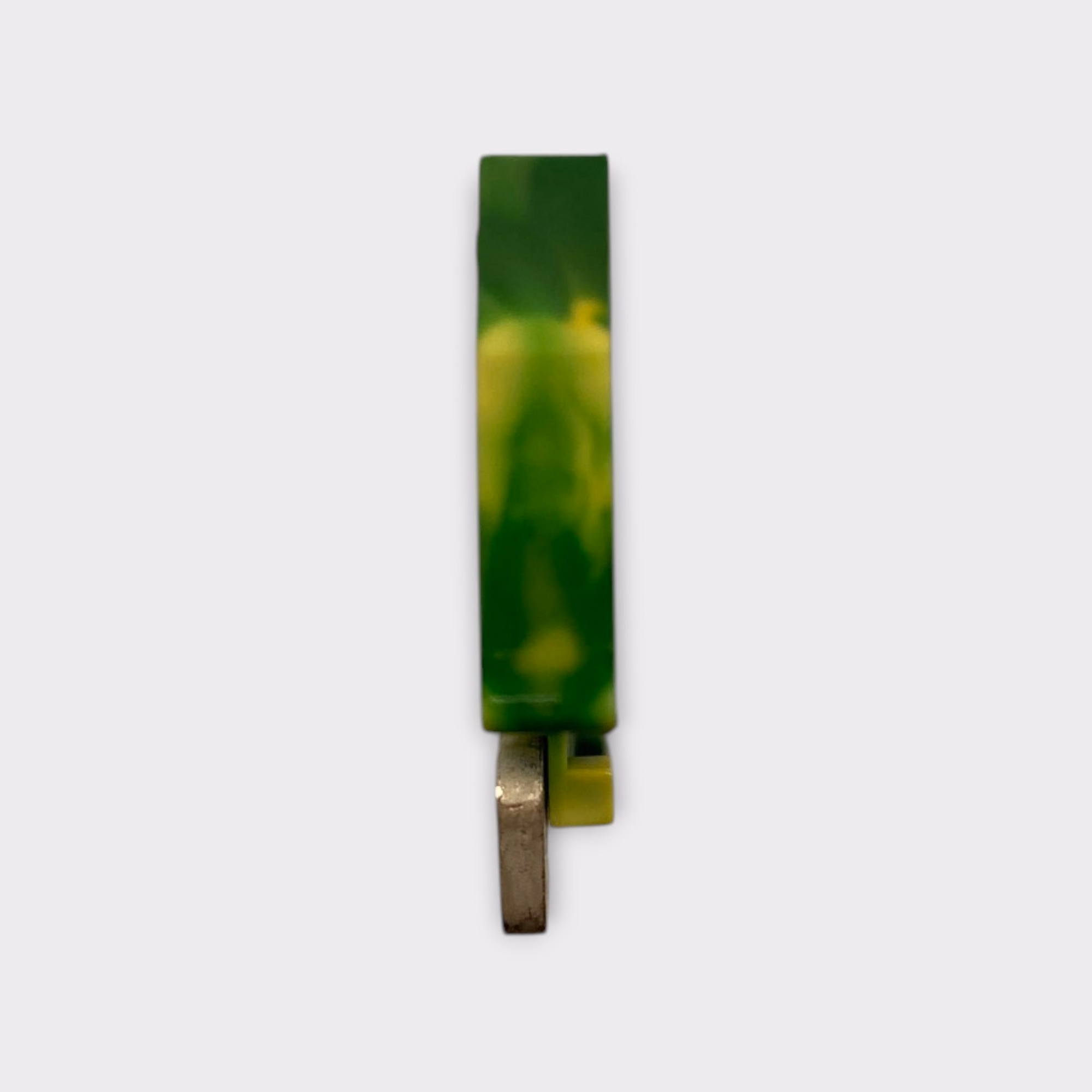

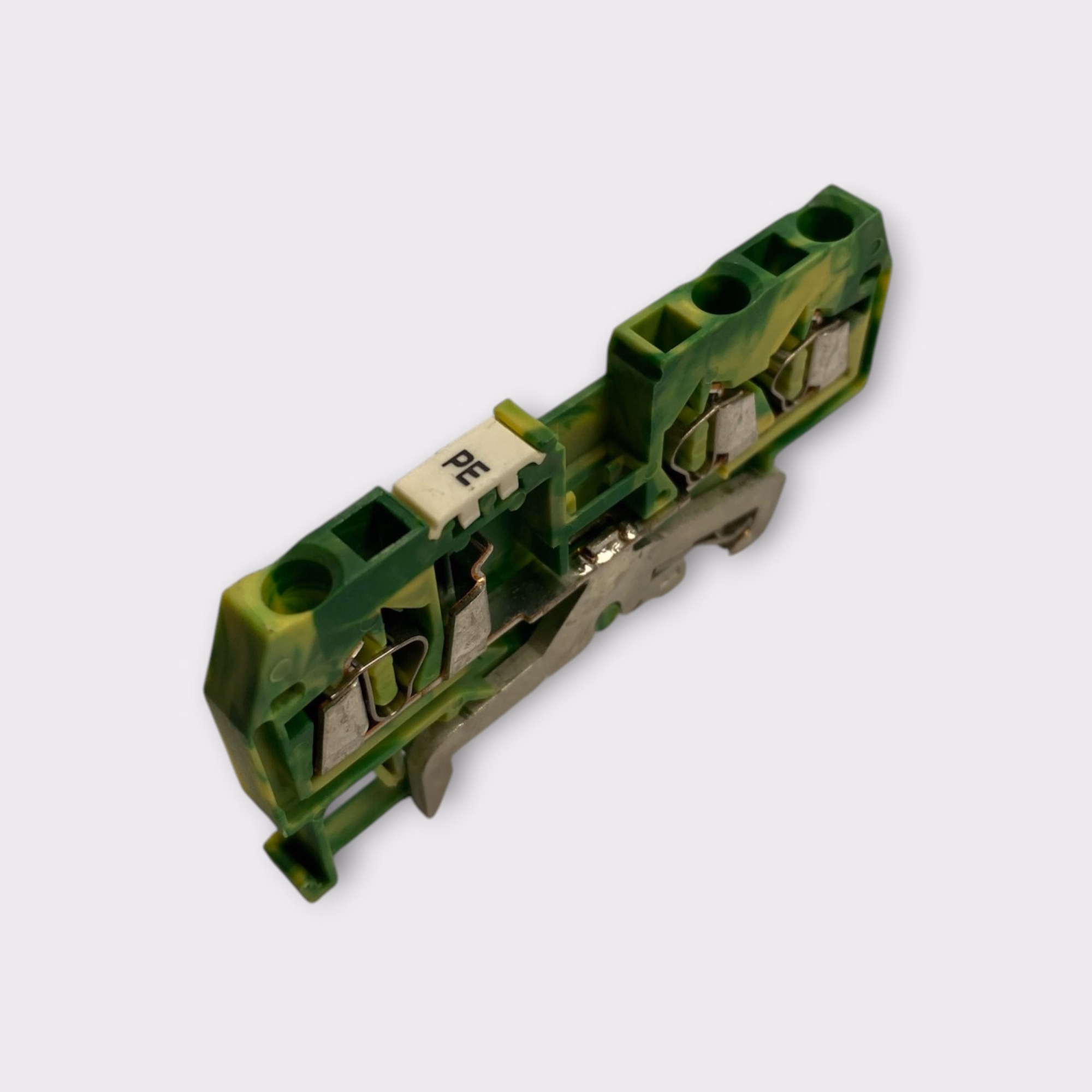

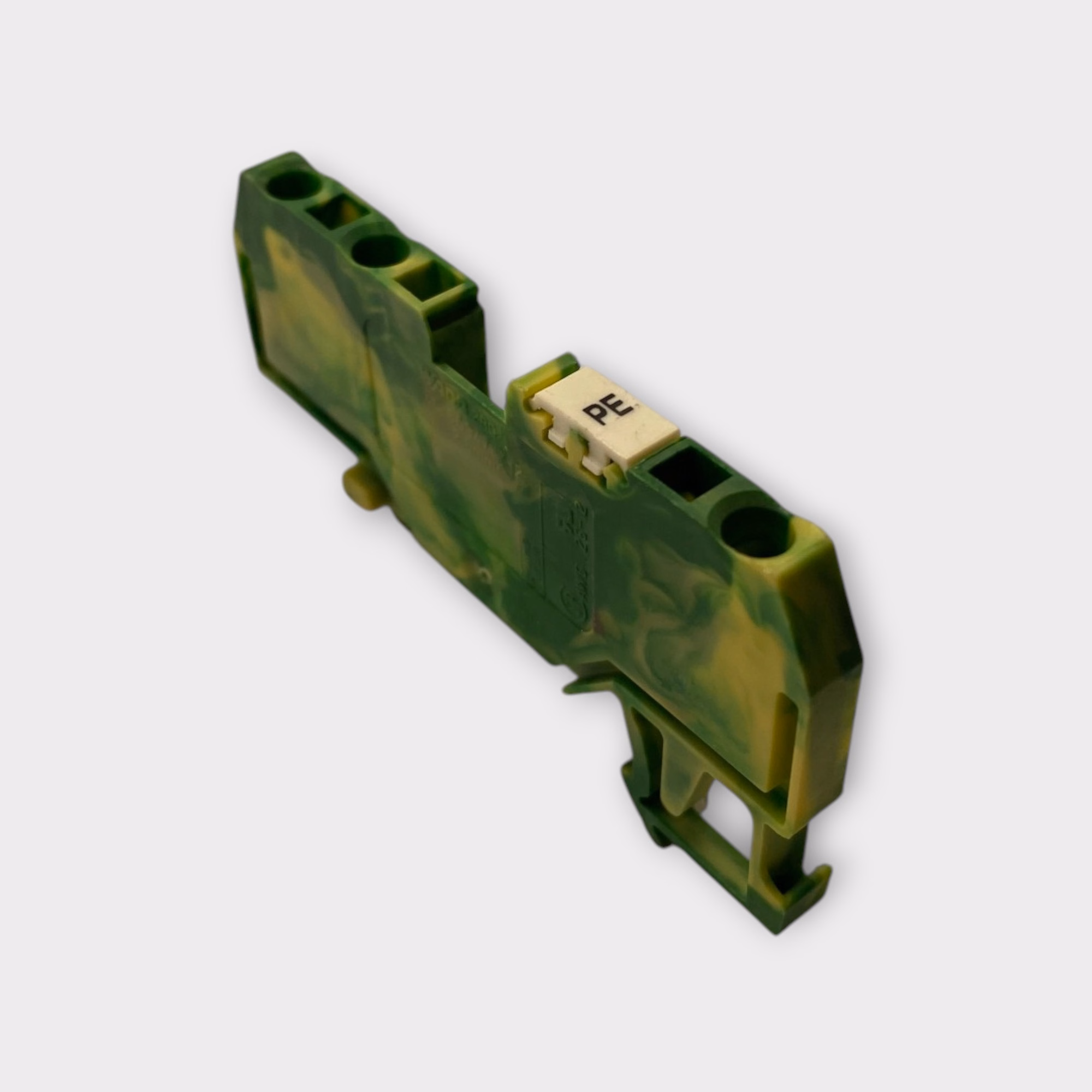

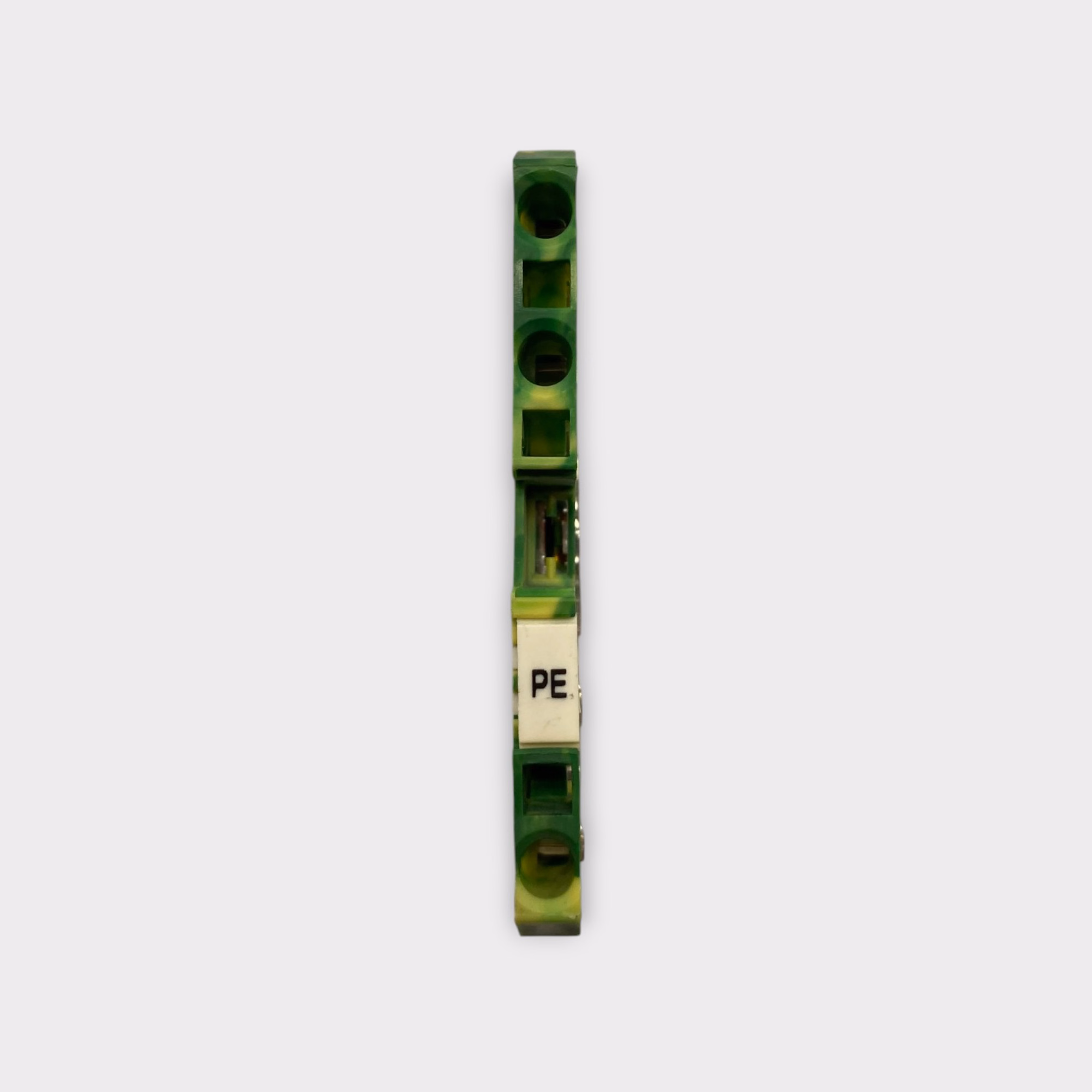

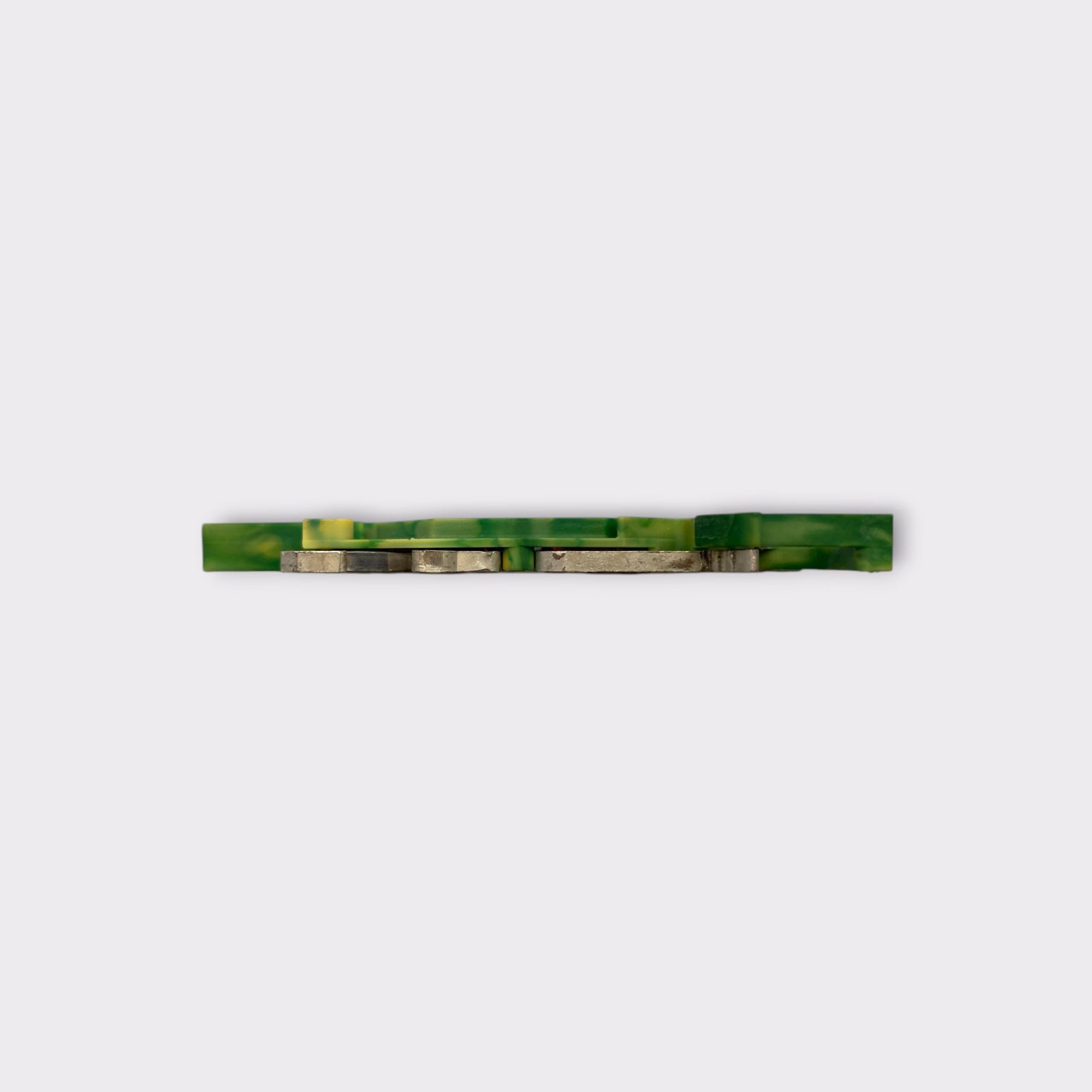

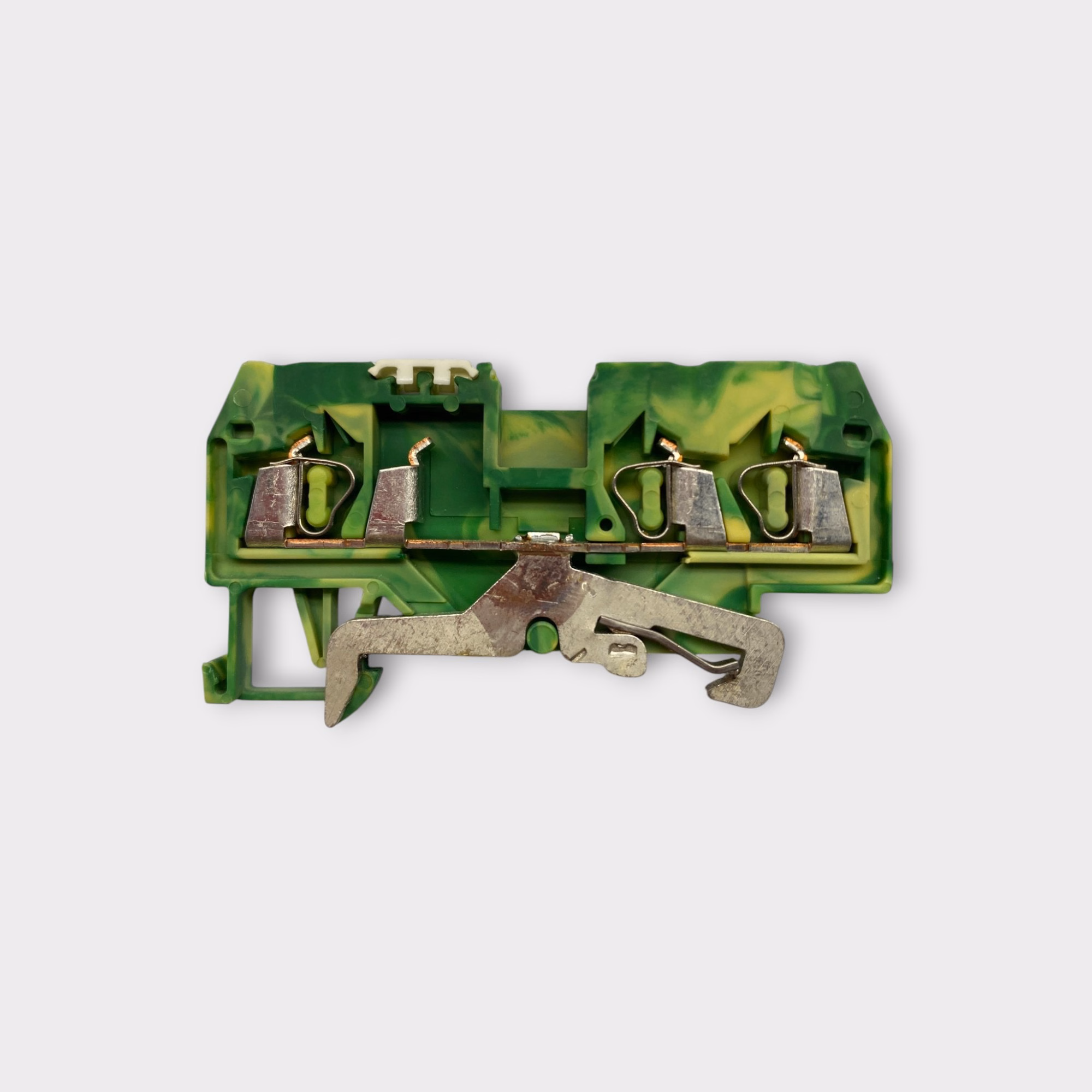

• WAGO 280-687 three-conductor ground terminal block, featuring CAGE CLAMP spring-pressure connection technology, a 2.5 mm² nominal conductor cross-section, and a green/yellow insulating housing for protective earth grounding applications.
• Designed for installation on standard 35 mm DIN rails, this 280 Series terminal block provides three conductor connection points for organizing protective earth connections within industrial electrical control panels and distribution systems.
• This listing includes 1 WAGO 280-687 ground terminal block only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The WAGO 280-687 is a three-conductor protective earth terminal block designed to provide secure grounding connections in industrial electrical control panels, machinery, and electrical distribution equipment.
• Each terminal block features three CAGE CLAMP spring-pressure connection points, allowing multiple protective earth conductors to be connected to a common grounding potential.
• WAGO's CAGE CLAMP connection technology provides secure conductor retention without conventional screw-tightened wire connections, helping maintain reliable electrical contact in demanding industrial environments.
• Designed for standard 35 x 7.5 mm and 35 x 15 mm DIN rails, this terminal block features a compact 5 mm width, allowing organized grounding arrangements alongside compatible DIN rail terminal blocks.
• The green/yellow housing provides standardized visual identification for protective earth connections. The insulating body is manufactured from polyamide (PA66) with a UL 94 V-0 flammability rating.
• The terminal block supports conductor sizes from 0.08 mm² to 2.5 mm² (28–12 AWG) and features front-entry wiring with an 8–9 mm conductor stripping length.
• Suitable for industrial automation, electrical control cabinets, machinery wiring, protective earth terminal assemblies, and compatible marine electrical installations.

Product Information

- Brand: WAGO
- Model Number: 280-687
- Series: 280 Series
- MPN: 280-687
- Type: Ground Terminal Block / Protective Earth Terminal Block
- Quantity Included: 1
- Number of Ports: 3
- Number of Poles: 1 (Protective Earth)
- Number of Levels: 1
- Connector Style: DIN Rail Terminal Block
- Termination Type: CAGE CLAMP Spring Clamp
- Compatible Mounting Type: DIN Rail
- Compatible DIN Rails: 35 x 7.5 mm / 35 x 15 mm
- Material: Polyamide (PA66)
- Color: Green / Yellow
- Nominal Conductor Cross-Section: 2.5 mm²
- Compatible Wire Gauge (AWG): 12–28 AWG
- Conductor Size Range: 0.08–2.5 mm²
- Wiring Type: Front Entry
- Clamping Points: 3
- Electrical Potentials: 1 (Protective Earth)
- Item Length: 28 mm
- Item Width: 5 mm
- Item Height: 64 mm
- Wire Stripping Length: 8–9 mm
- Flammability Rating: UL 94 V-0
- Country of Origin: Germany
- EAN / GTIN: 4045454100148

Package Contents

- 1x WAGO 280-687 Three-Conductor Ground Terminal Block

Total: 1 Ground Terminal Block.
