Summary

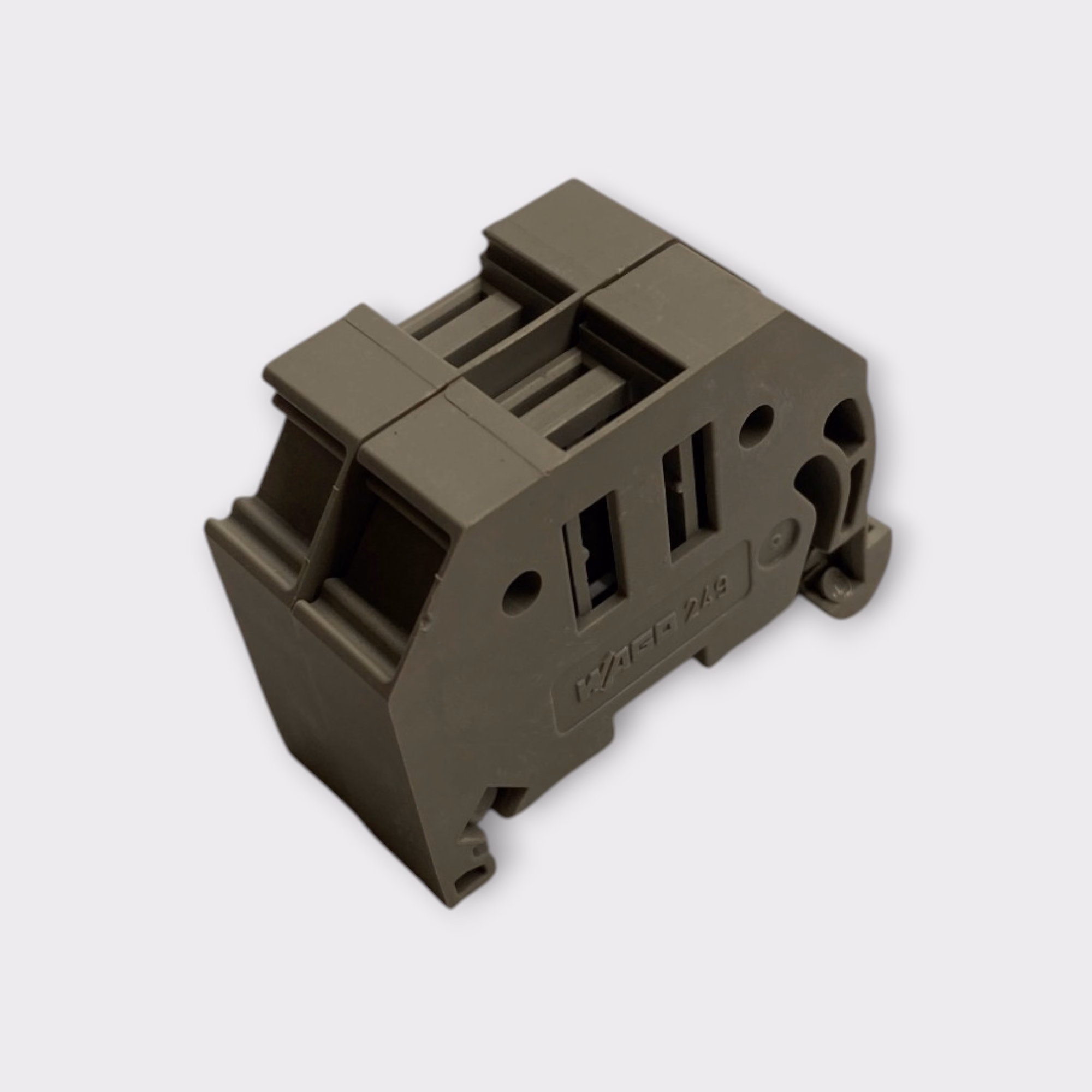

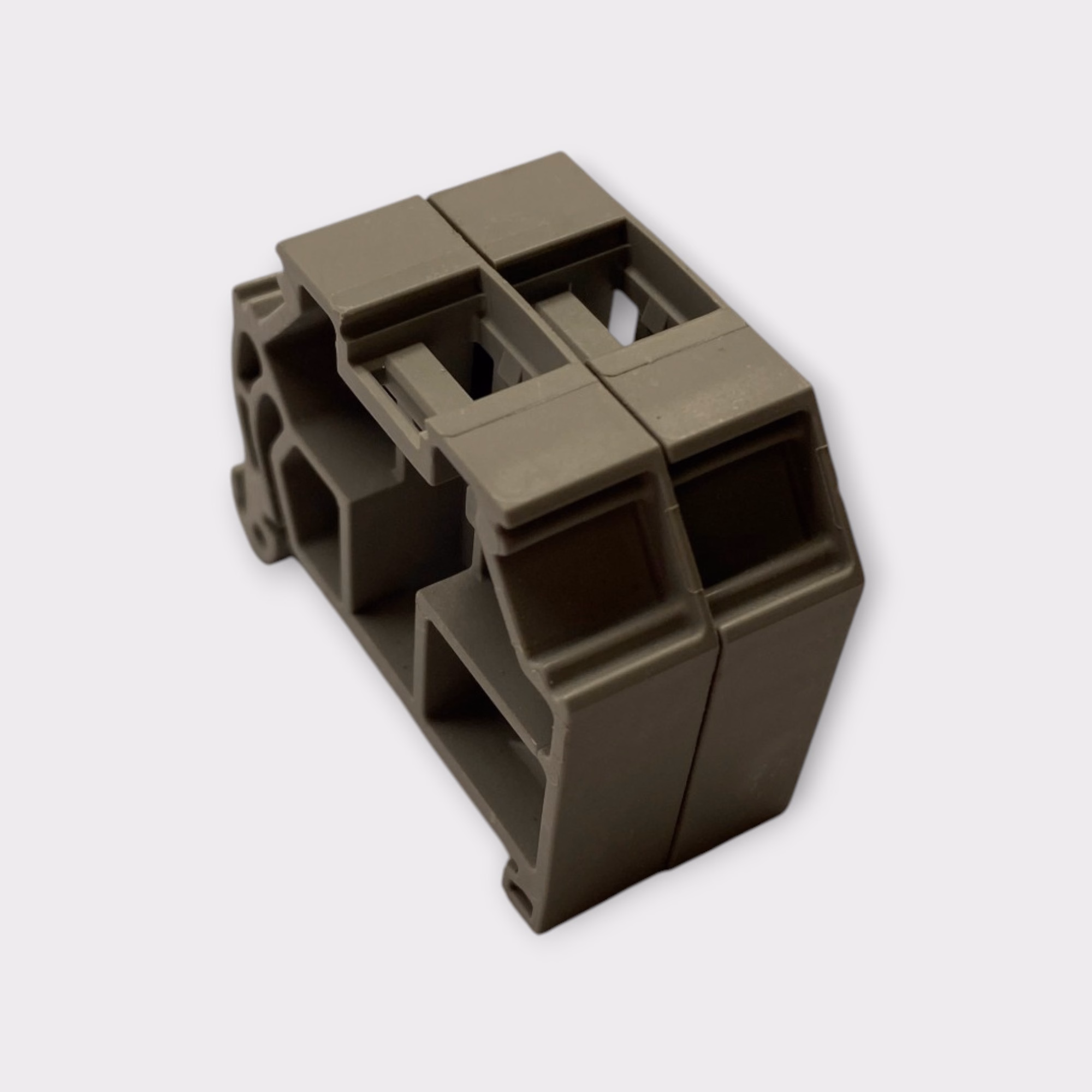

• WAGO 249-117 screwless DIN rail end stops, sold as a pack of 2. These gray 249 Series end brackets feature a tool-free snap-on mounting design, a 10 mm housing width, and compatibility with standard 35 x 7.5 mm and 35 x 15 mm DIN rails.
• Designed to secure terminal block assemblies against movement along the mounting rail, these end stops provide a compact solution for industrial electrical control panels, automation systems, and distribution cabinets.
• This listing includes 2 WAGO 249-117 screwless DIN rail end stops only. No original box, instructions, manuals, DIN rail, terminal blocks, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The WAGO 249-117 is a screwless DIN rail end stop designed to securely retain terminal blocks and other compatible DIN rail components within electrical control panels and industrial equipment enclosures.
• Each end stop features a tool-free snap-on mounting mechanism, allowing quick installation onto standard 35 mm DIN rails without requiring additional fastening screws or tools.

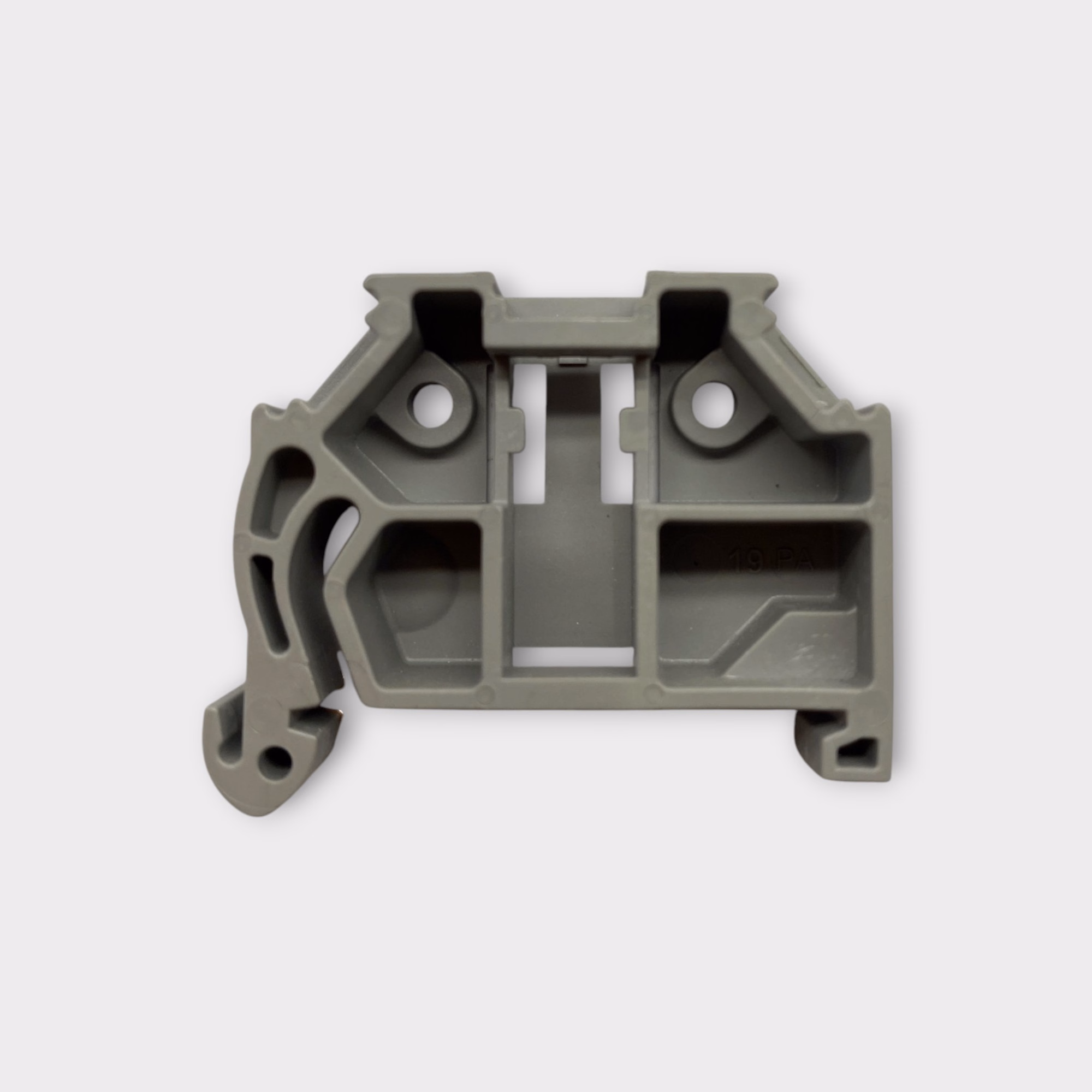

• The integrated clamping plates help maintain a secure position on the rail, preventing terminal block assemblies from shifting during installation, maintenance, or normal operation.
• Compatible with both 35 x 7.5 mm and 35 x 15 mm DIN rails conforming to DIN EN 60715, these end stops are suitable for horizontal and vertical rail installations.
• The gray insulating housing is manufactured from polyamide (PA66) and features a UL 94 V-0 flammability classification.

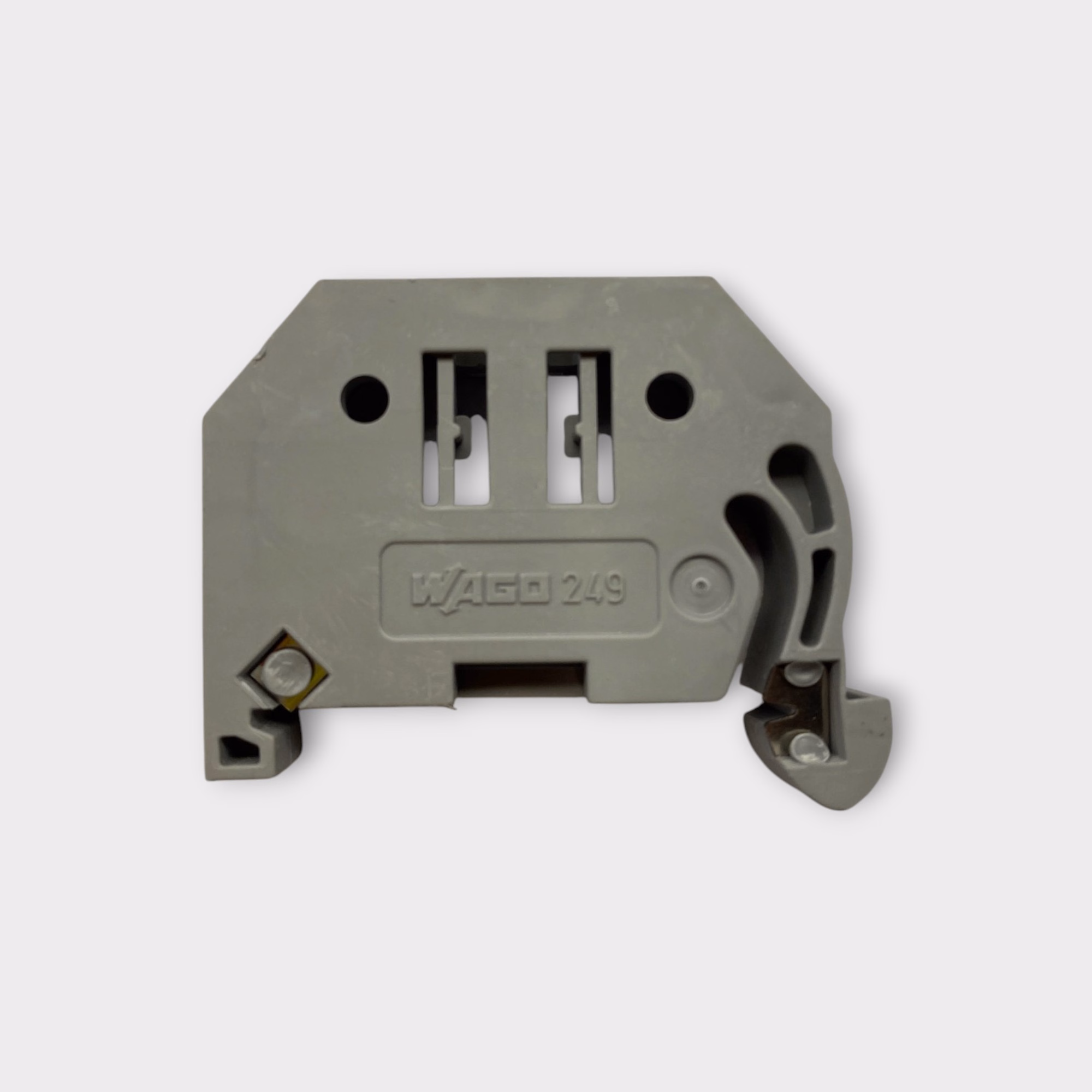

• Each end stop also features three marker slots and a mounting hole for compatible WAGO group marker carriers, providing additional identification and organization options for terminal strip assemblies.
• With a compact 10 mm width and a screwless installation design, the WAGO 249-117 is suitable for industrial automation, electrical distribution cabinets, machinery wiring, and compatible marine electrical control systems.

Product Information

- Brand: WAGO
- Model Number: 249-117
- Series: 249 Series
- MPN: 249-117
- Type: Screwless DIN Rail End Stop / Terminal Block End Bracket
- Number in Pack: 2
- Compatible Mounting Type: DIN Rail
- Mounting Type: Snap-On / Screwless
- Compatible DIN Rails: 35 x 7.5 mm / 35 x 15 mm
- DIN Rail Standard: DIN EN 60715
- Material: Polyamide (PA66)
- Color: Gray
- Width: 10 mm (0.394")
- Height: 44 mm (1.732")
- Depth: 35 mm (1.378")
- Depth from Upper Edge of DIN Rail: 28 mm (1.102")
- Weight: Approximately 4.9 g Each
- Installation Method: Tool-Free Snap-On
- Locking Mechanism: Integrated Clamping Plates
- Marker Slots: 3
- Group Marker Carrier Mounting: Supported
- Flammability Rating: UL 94 V-0
- RoHS Compliance: Compliant Without Exemption
- EAN / GTIN: 4055143314169

Package Contents

- 2x WAGO 249-117 Screwless DIN Rail End Stops

Total: 2 Screwless End Stops, Sold as One 2-Pack Listing.
