Manufacturer: Garmin / Airmar

Model Number: B175M-20

Series: Transducer

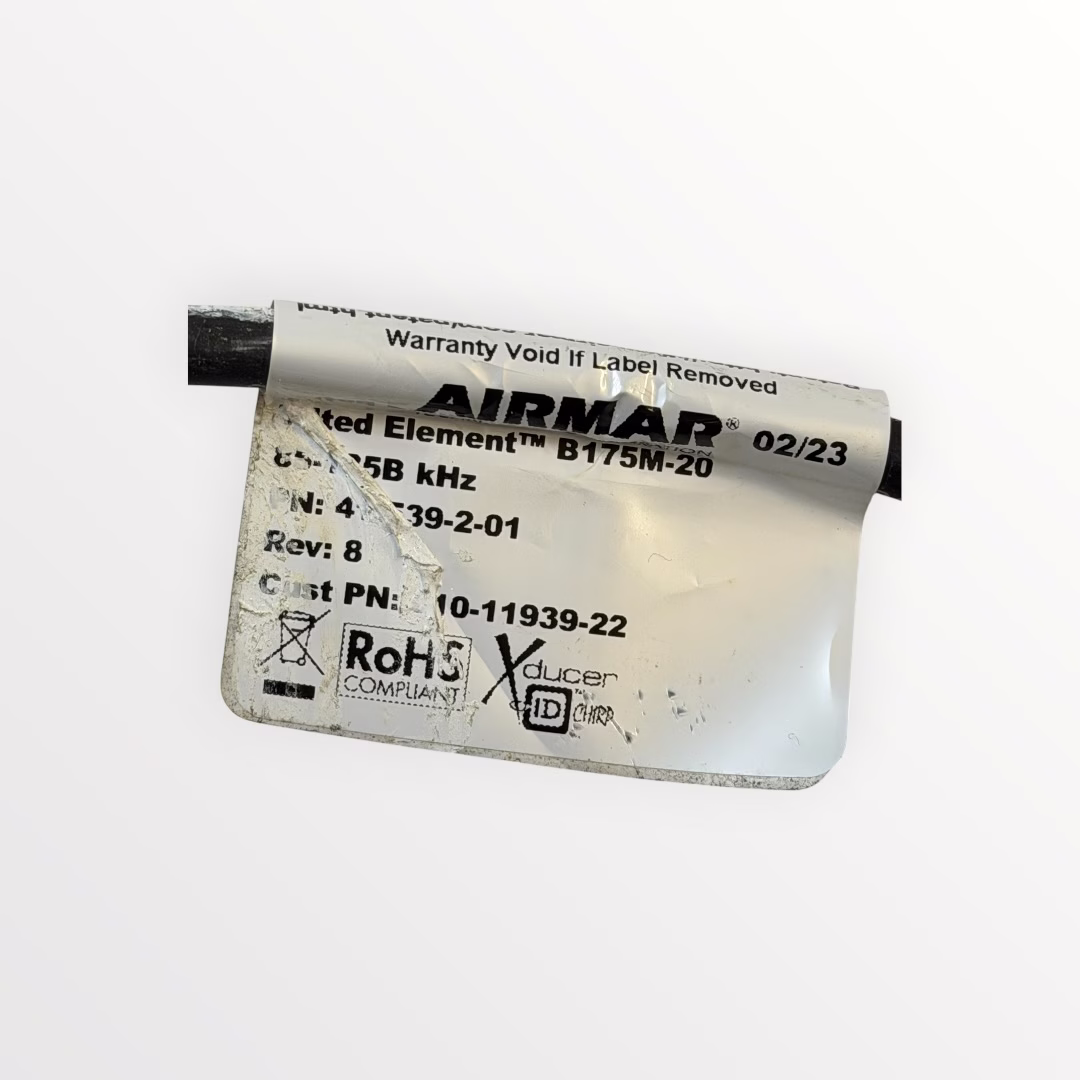

MPN: 010-11939-22

Listed Item Condition: Used

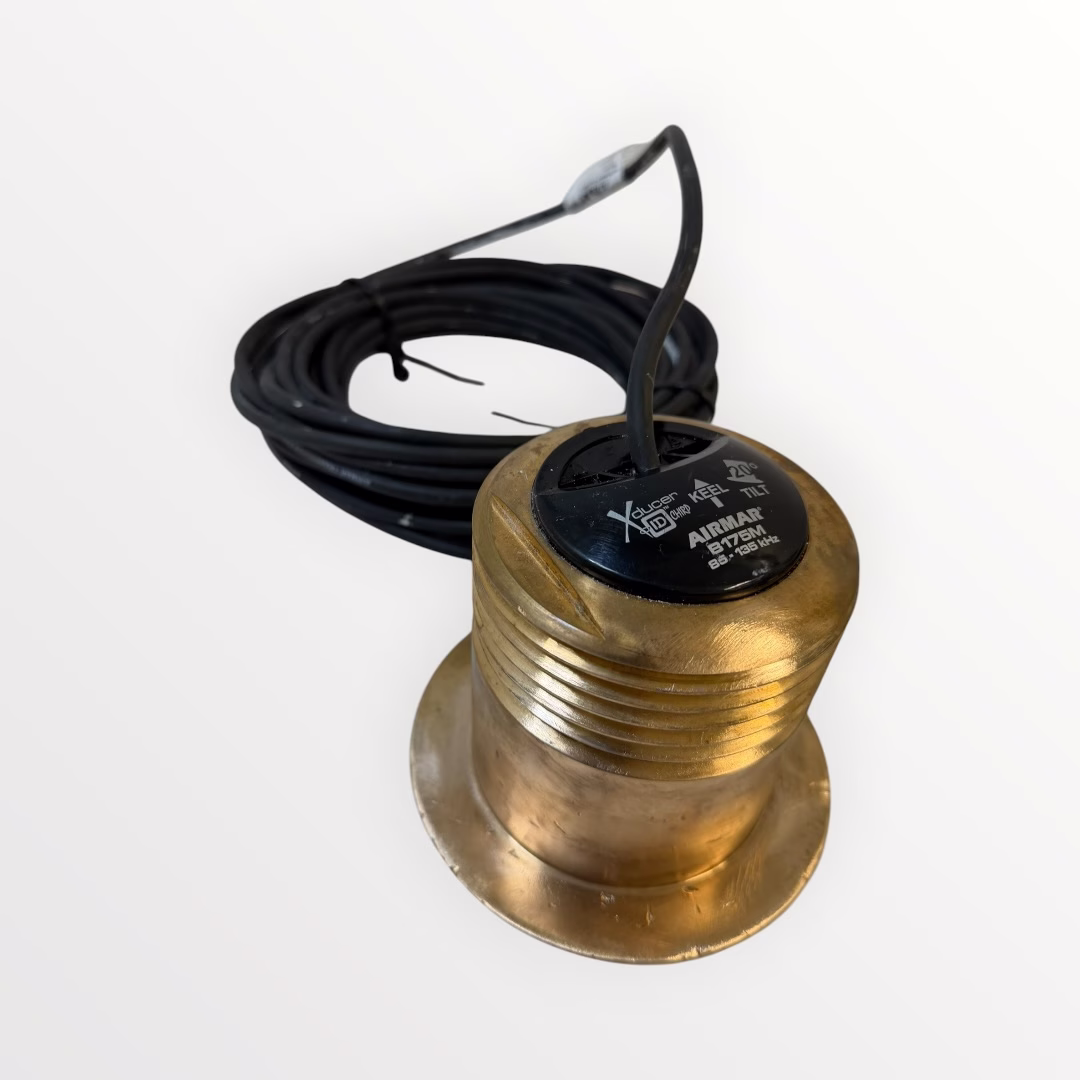

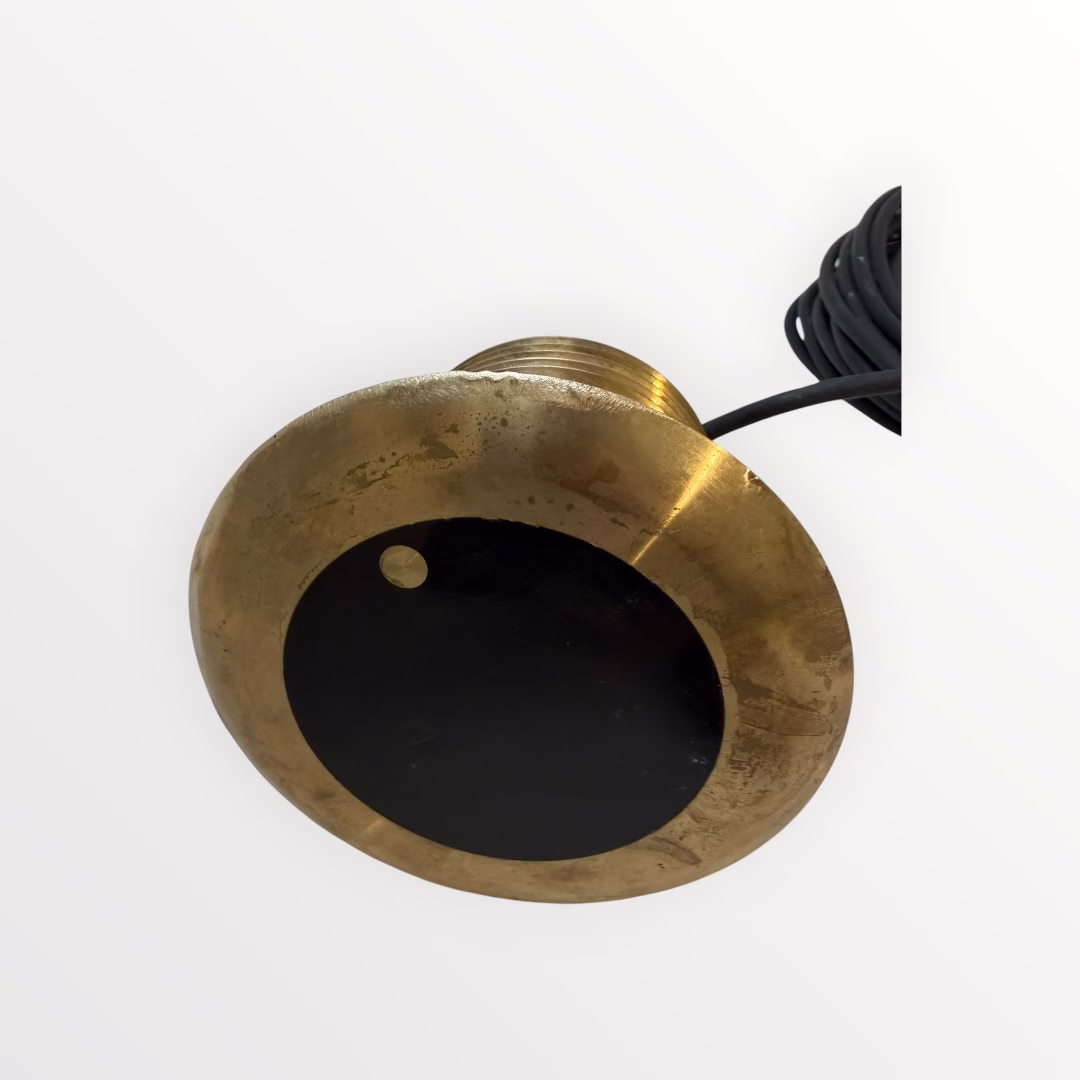

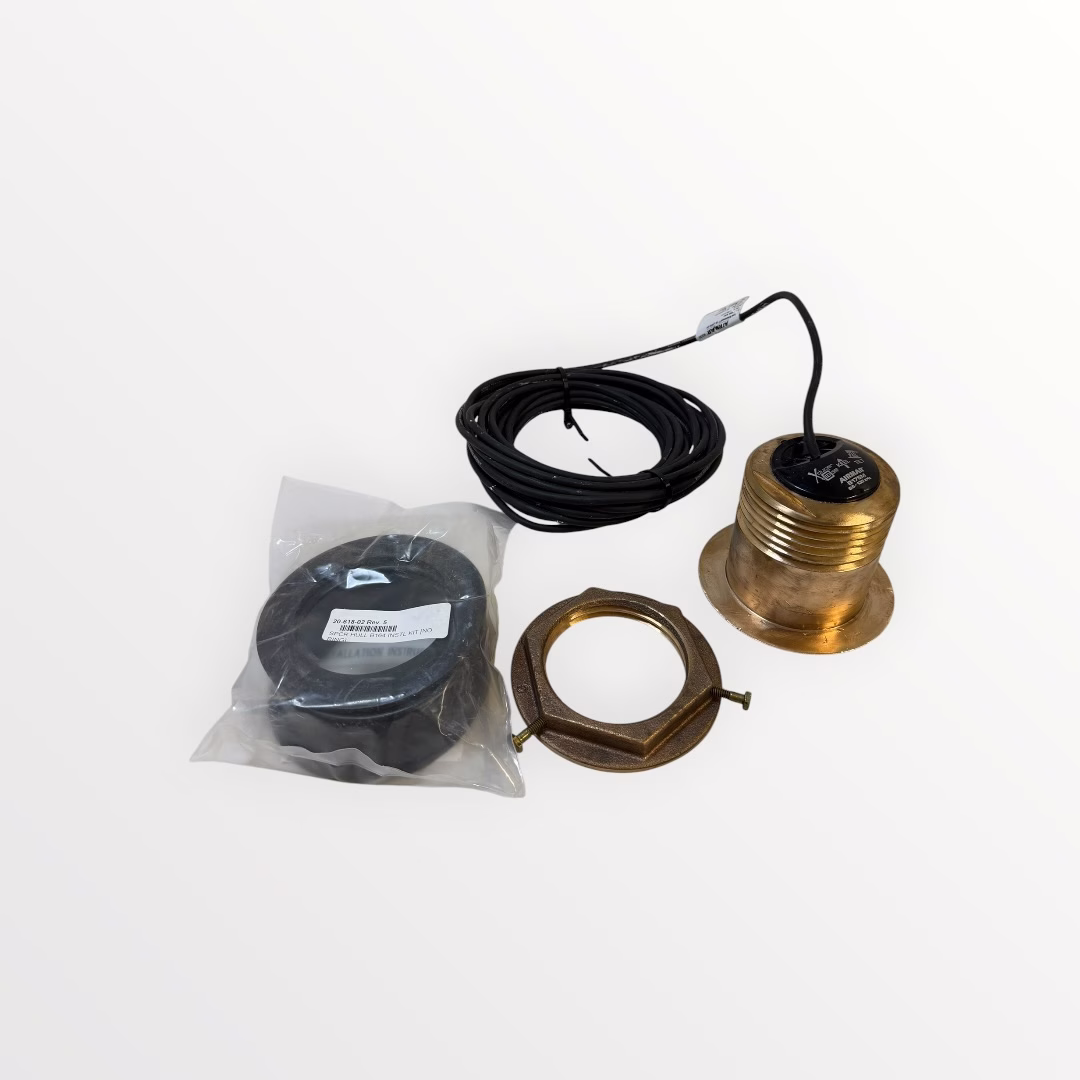

Additional Notes: This Airmar/Garmin B175M-20 20-degree thru-hull transducer is in great condition overall and is ready for installation. It comes as shown, complete with a hull nut & two set screws, a spacer, two rubber washers, and a threaded collar kit for the connector. The transducer has an internal hour-meter that shows 0 hours. We believe this was installed in error and removed before actually having been splashed or used. As such, while the internal elements of the transducer are “new,” the transducer presents in used condition. There are a few very small areas of edge wear on the lip of the transducer from prying it out – these will not affect functionality and when bedded in sealant, will be relatively inconspicuous but are mentioned in the spirit of full disclosure.

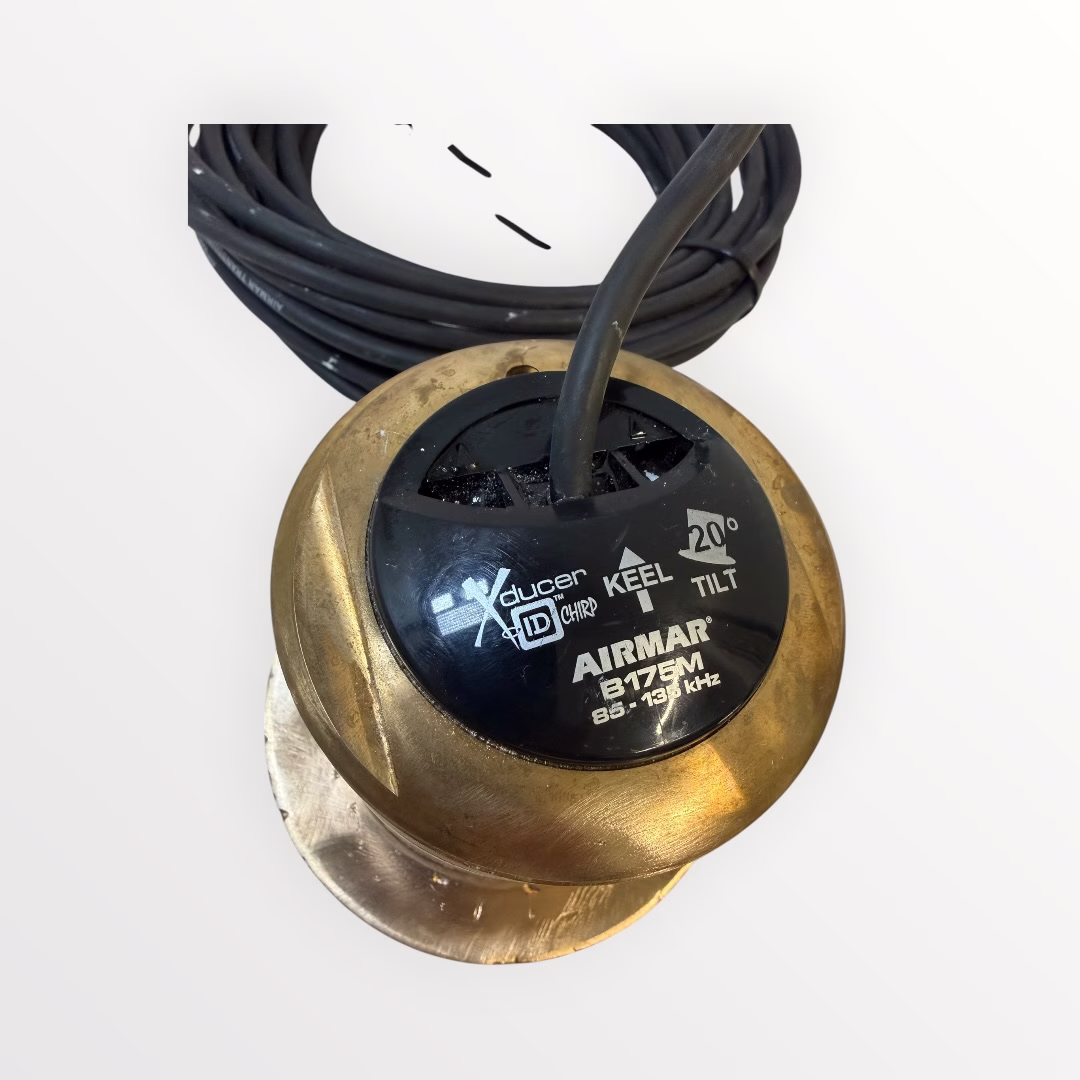

This transducer is 1000w Medium Band CHIRP, 20 degree tilt, operating at a frequency range of 85 to 135 kHz.

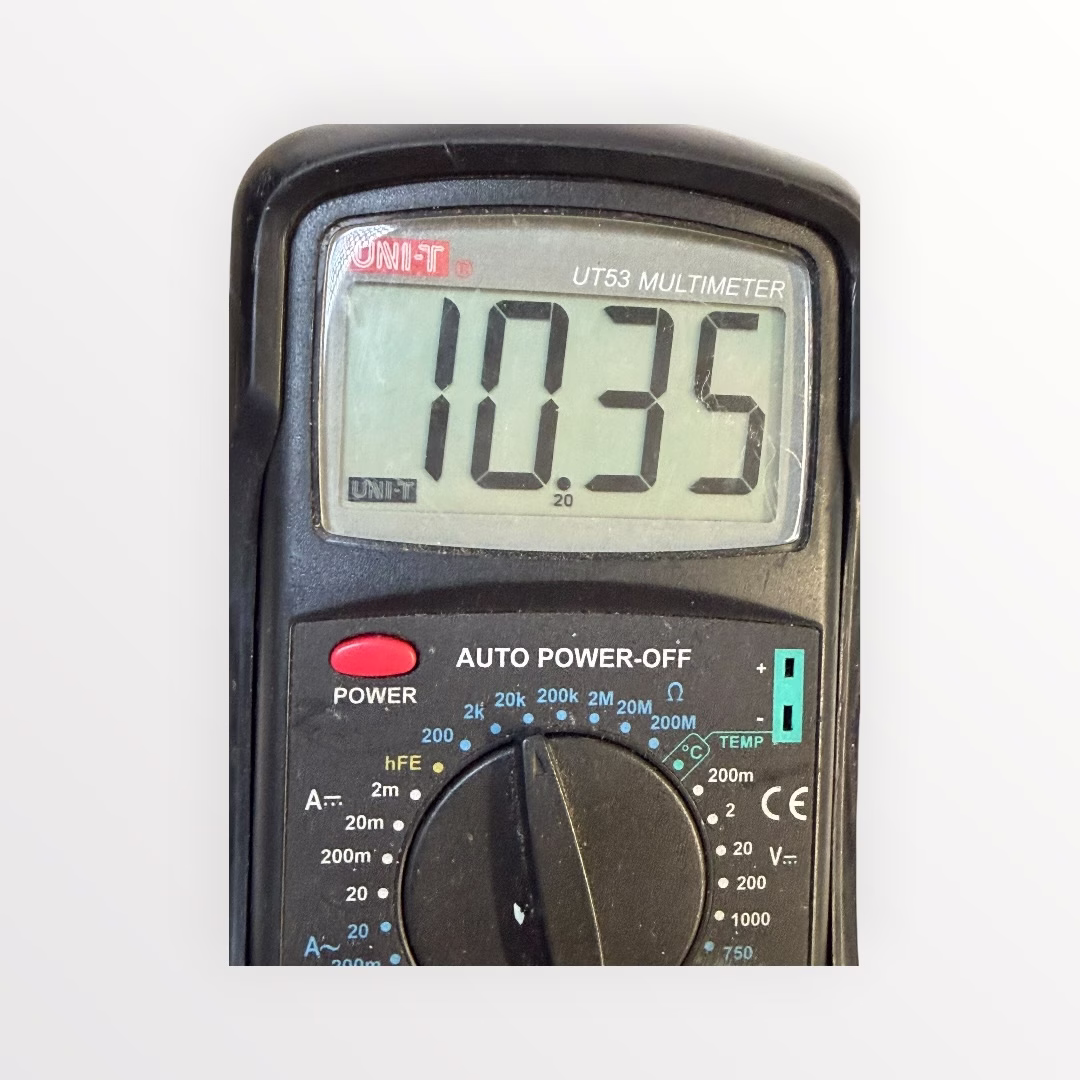

The transducer was tested on a TDT1000 transducer test set, the gold standard in transducer testing. All testing results are passing and included in the listing photos. Analog temp sensor also tested and working great (see multimeter photo)

Please note: This is the 20 degree version of the B175, it can be installed on deadrises of 16-24 degrees. Anything above or below those numbers will result in reduced performance.

What’s Included:

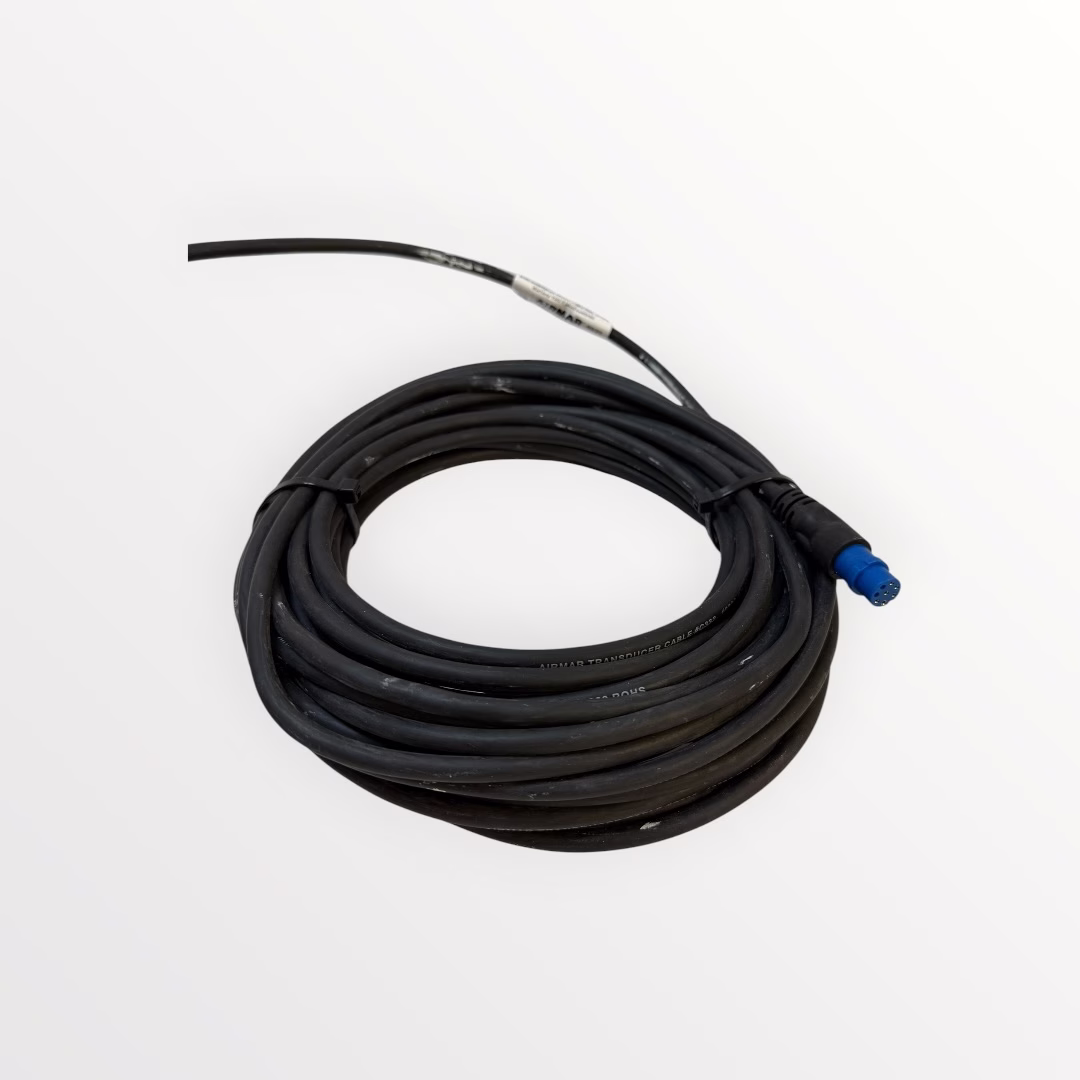

• B175C-M-20 w/8-Pin Garmin Connector

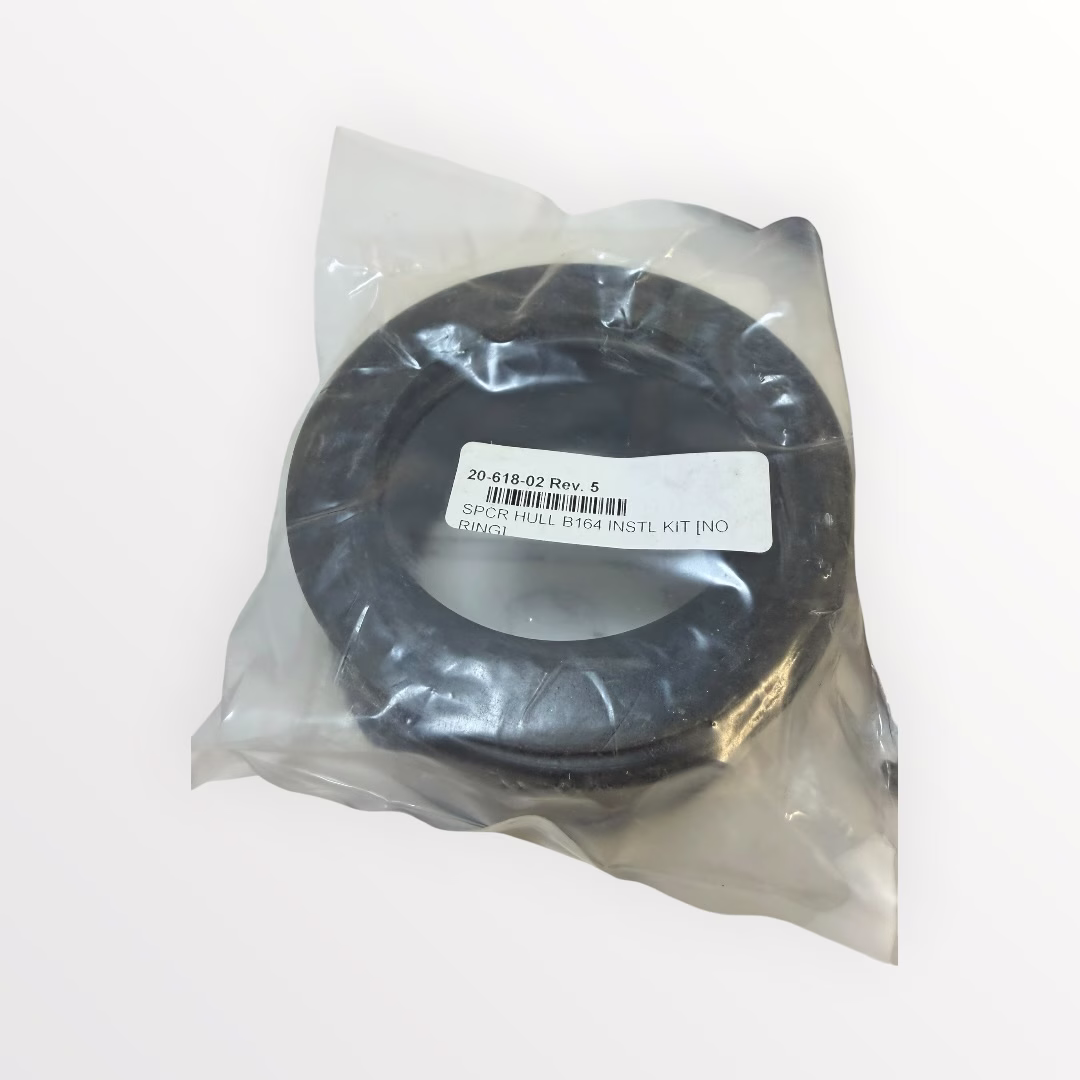

• Hull Spacer
• 2x Hull Washers

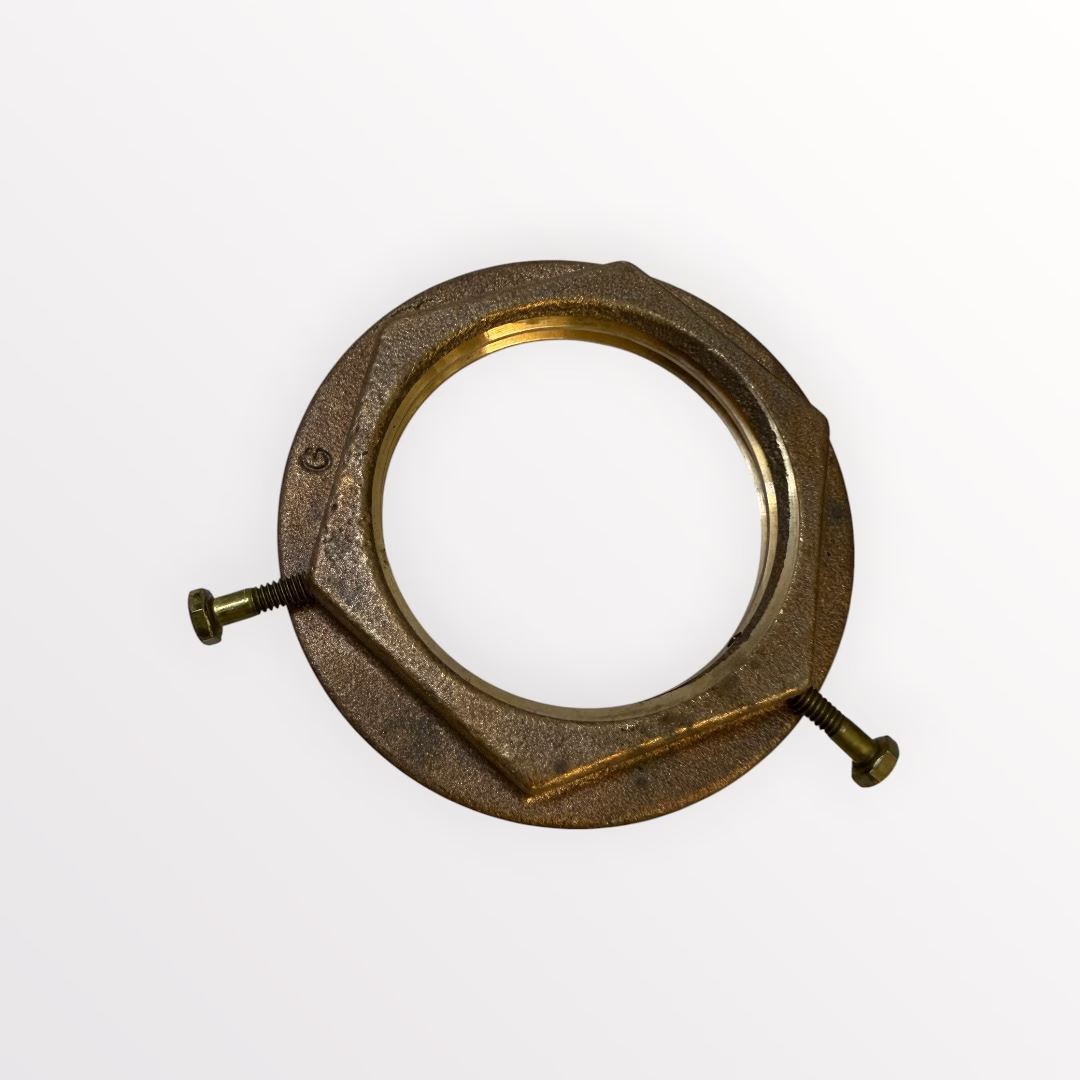

• Hull Nut
• Connector Collar Kit

Compatible Parts: Garmin 8-Pin Blue Sounders, includings most, if not all XS/XSV units, GSD25
For Garmin units using a 12-Pin Orange Connection, a 010-12122-10 adapter is required

Dimensions (L x W x H): 14 x 14 x 8 in, Weight: 15 lbs
