Vimar Eikon 20015 Grey 1-Way Rocker Switch 16AX/250V w/ Replaceable Button – NOS

$26.99

This item is new and has never been used. It may be unused in its original packaging, be old stock, new open-box, new out of box, or never installed. Packaging might be missing, opened, or show minor damage. The item is fully functional and includes all accessories shown in the listing and images, unless otherwise noted.
SKU: 855589
In stock (1 available)
  • Free Shipping Lower 48

    Free Shipping Lower 48

  • 30-Day Returns

    30-Day Returns

  • Not Applicable (Warranty information not included in product description)

    Not Applicable (Warranty information not included in product description)

Manufacturer:

Model Number: Grey Rocker Switch

Series: Eikon

MPN: 20015

Listed Item Condition: New/New Other

Product Details:

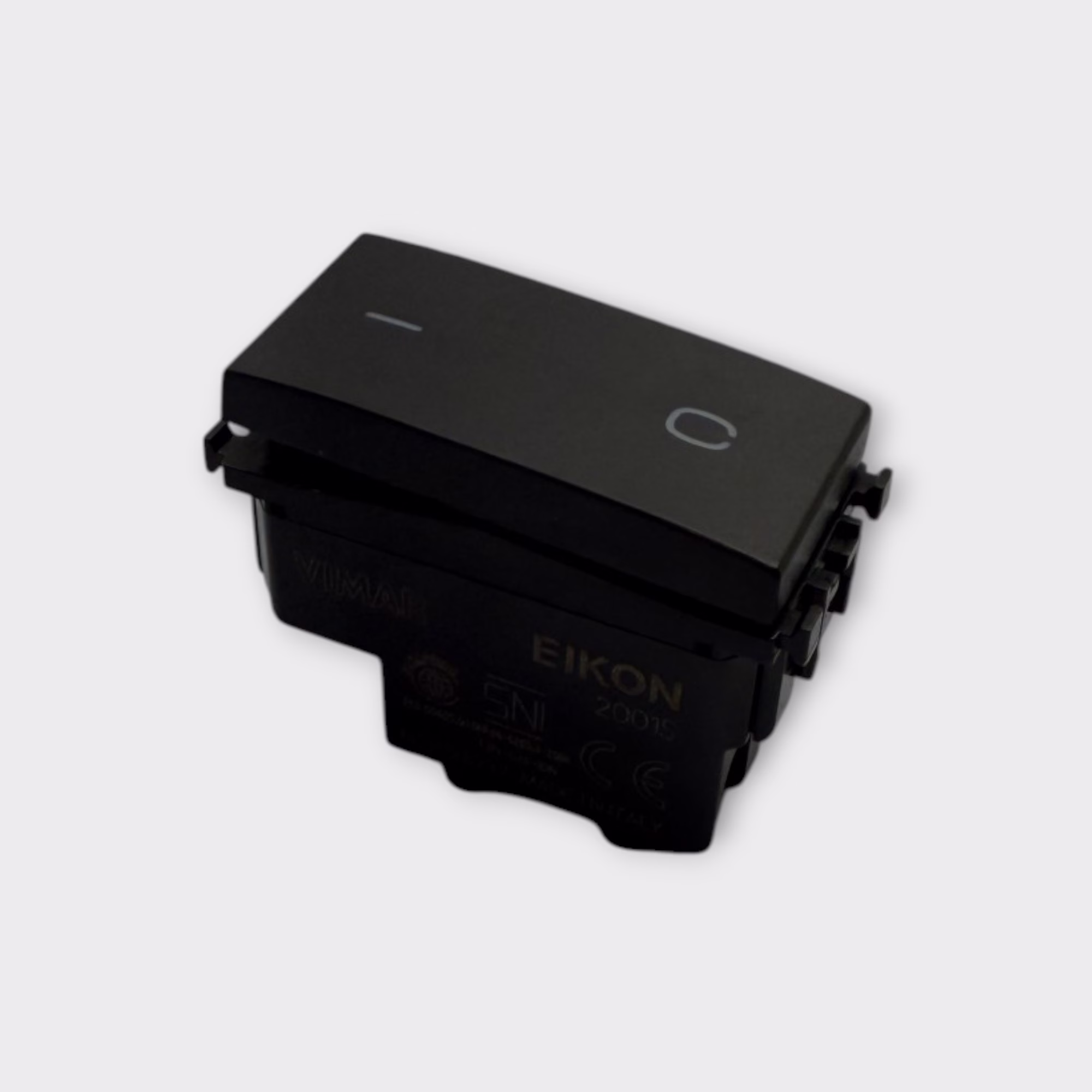

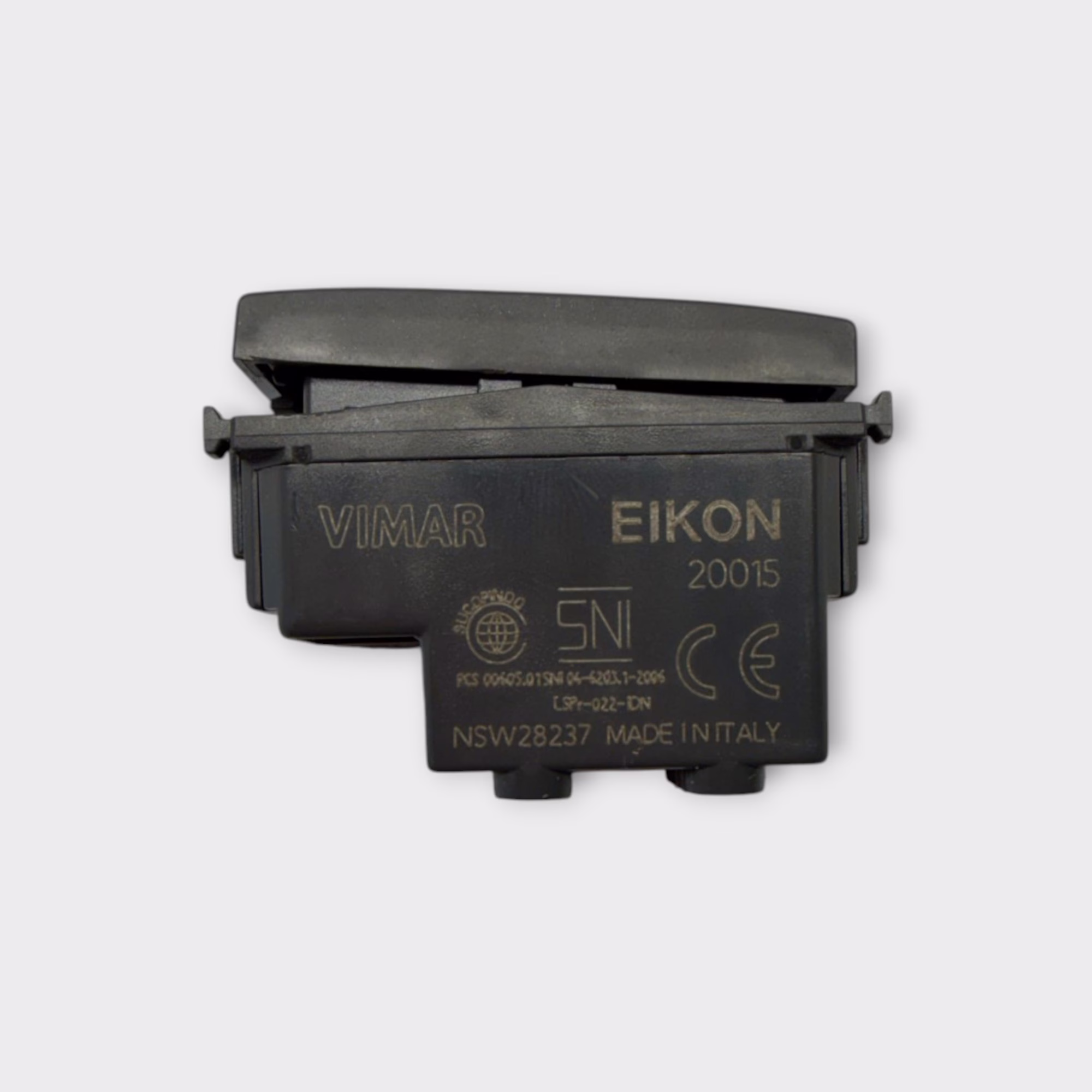

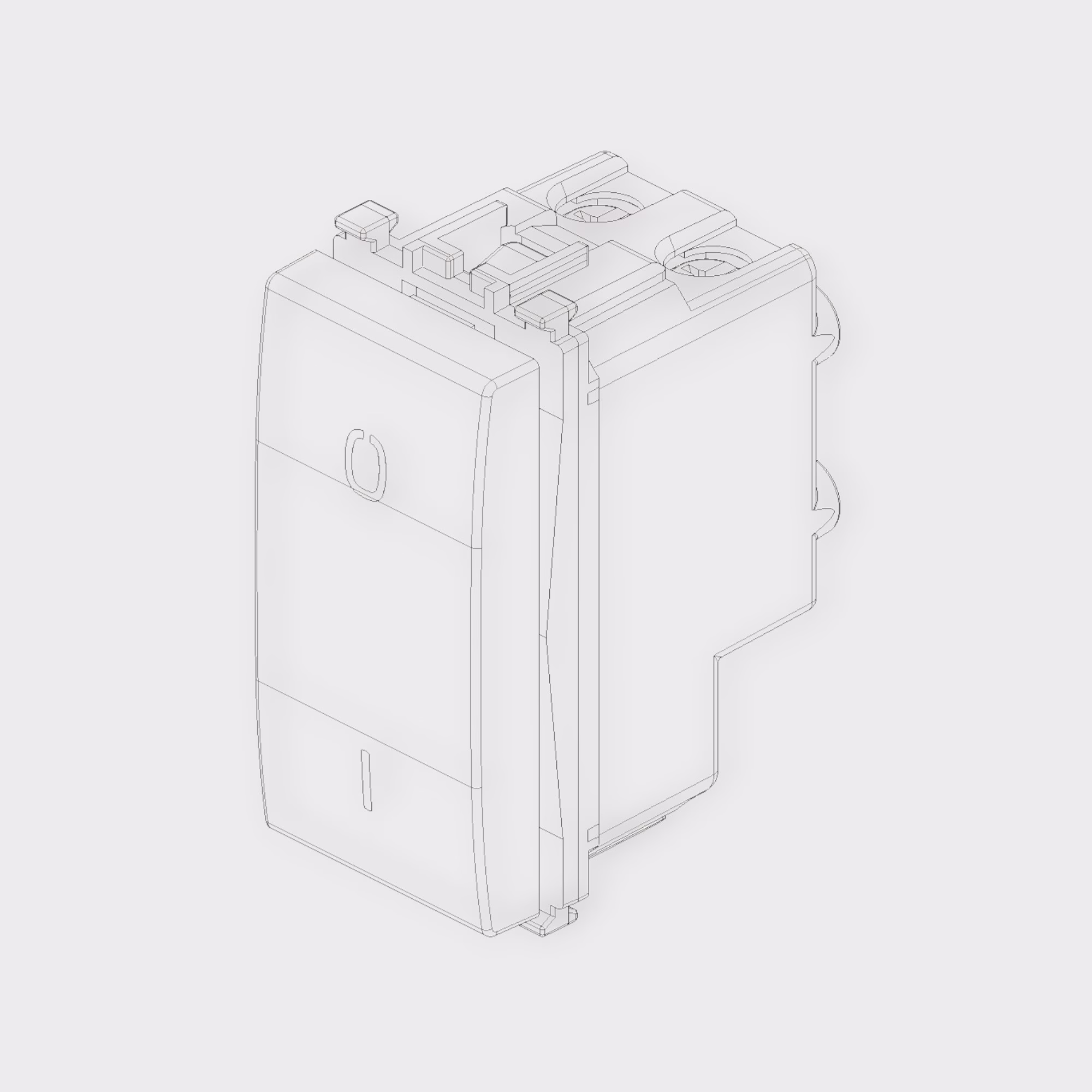

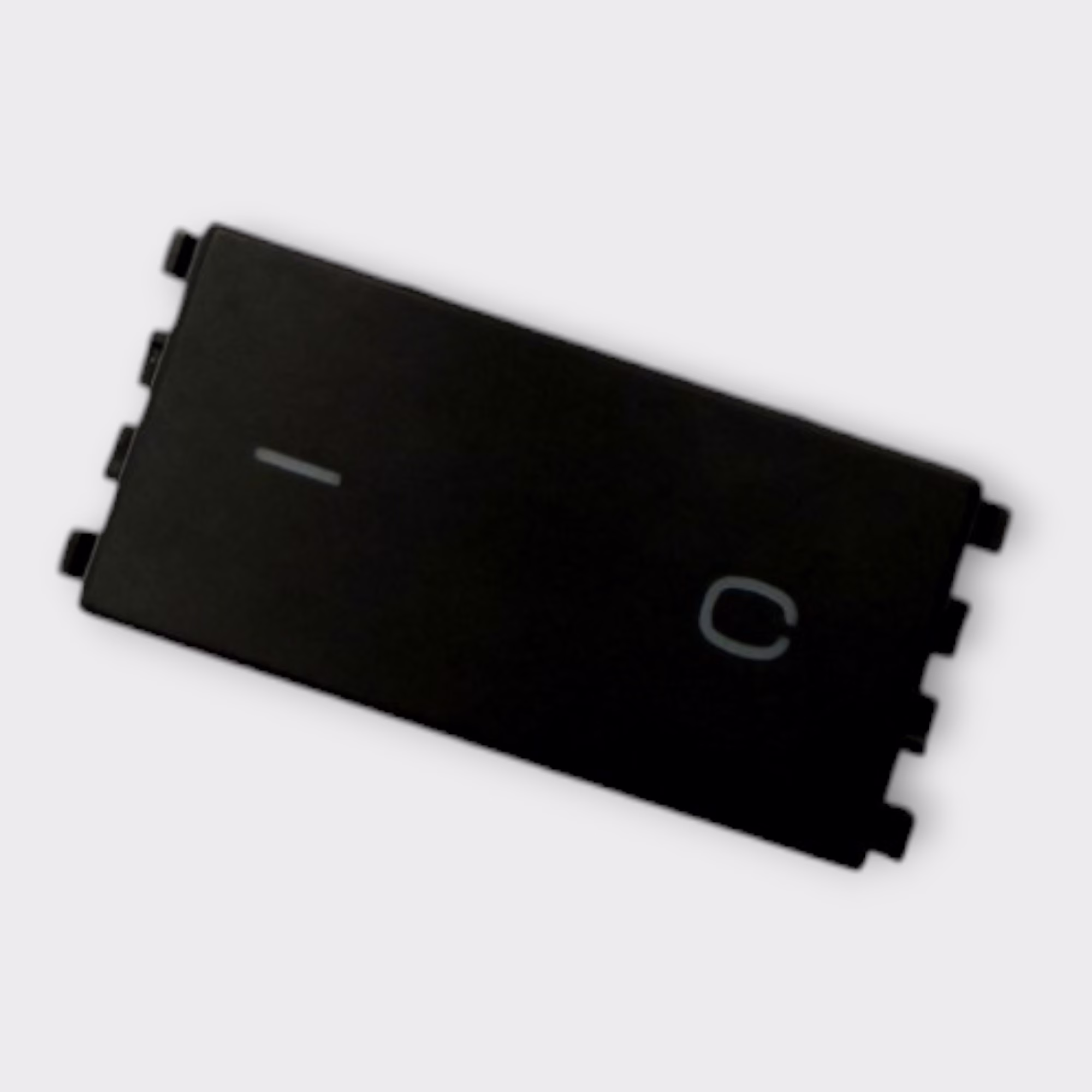

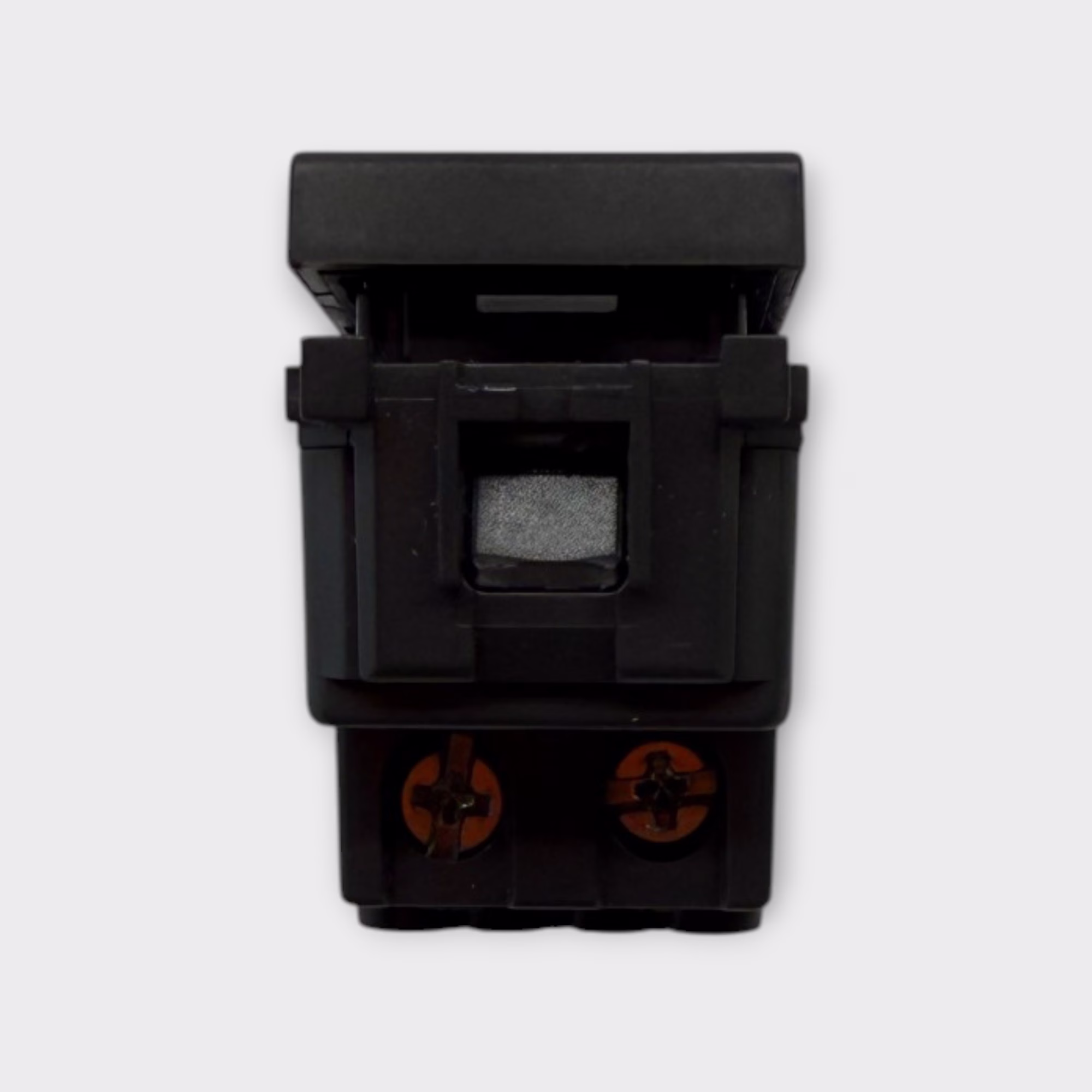

This is a Vimar Eikon 20015 1-way grey rocker switch with replaceable face. Runs at 250 volts and 16 amps. This product is new old stock, may show signs of wear from shelf life. Only Switch is included, no box. Made it Italy

Product Information:
Class group - Domestic switching devices
Class - Installation switch
Wiring system - Switch 2-pole
Operating method - Rocker/button
Assembly arrangement - Modular device for domestic switching devices
Number of modules (module system) - 1
Push button switch - Yes
Number of rockers - 1
Mounting method - Flush-mounted
Type of fastening - Engage (snap)
With mounting plate - No
Material - Plastic
Material quality - Thermoplastic
Halogen free - Yes
Surface protection - Untreated
Surface finishing - Matt
Color - Grey
RAL-number (similar) - 7024
Label space/information surface - Yes
Lighting - Optional
Function lighting - Control and orientation
Type of lighting - LED exchangeable
Suitable for degree of protection (IP) - IP40
Nominal voltage - 250 V
Rated current - 16,00 A
Monitoring contact - No

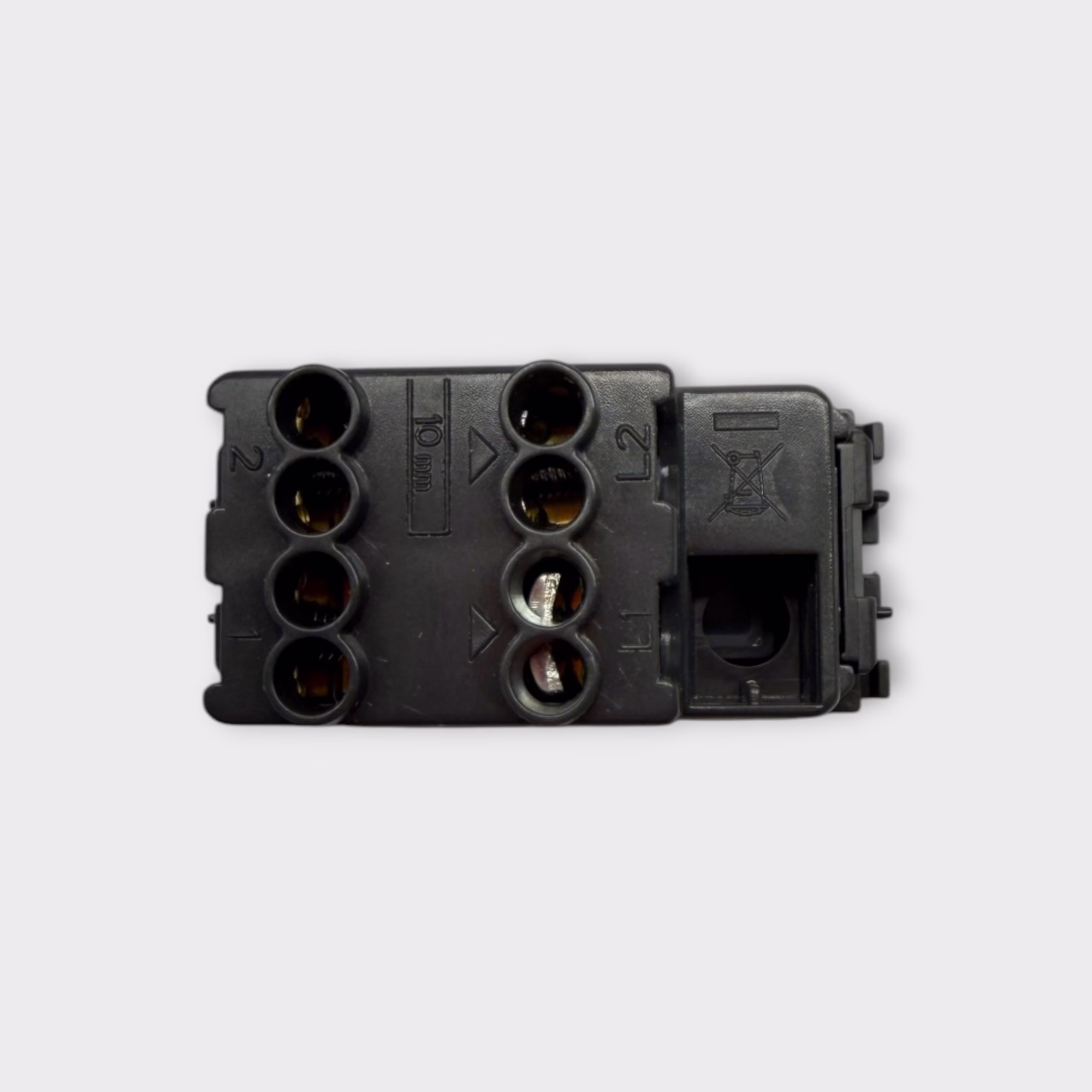

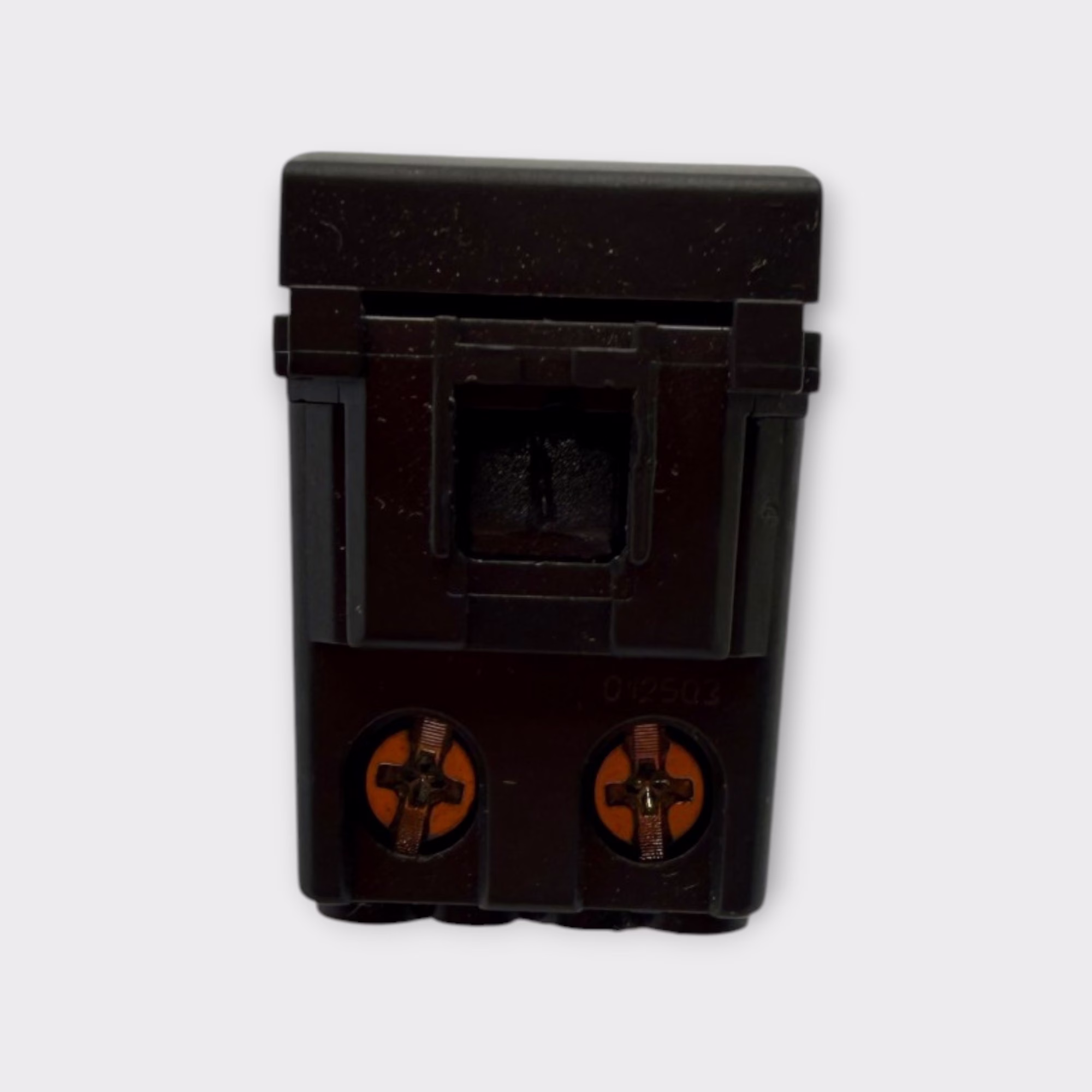

Connection type - Screwed terminal
Washing machine switch - Yes

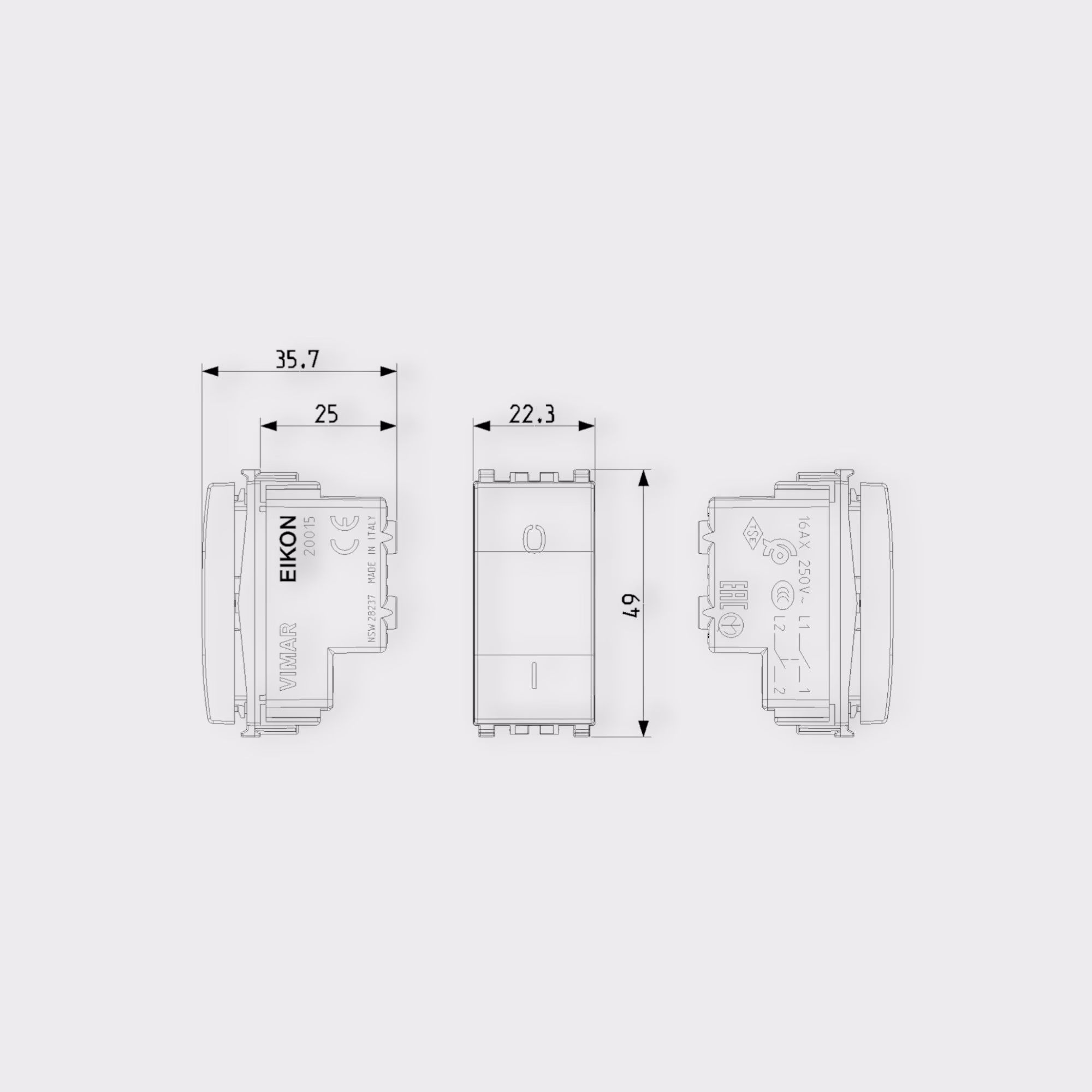

Device width - 22,30 mm
Device height - 49,00 mm
Device depth - 36,80 mm
Built-in depth - 25,00 mm

Manufacture Notes:
2P 16AX 1-way switch grey

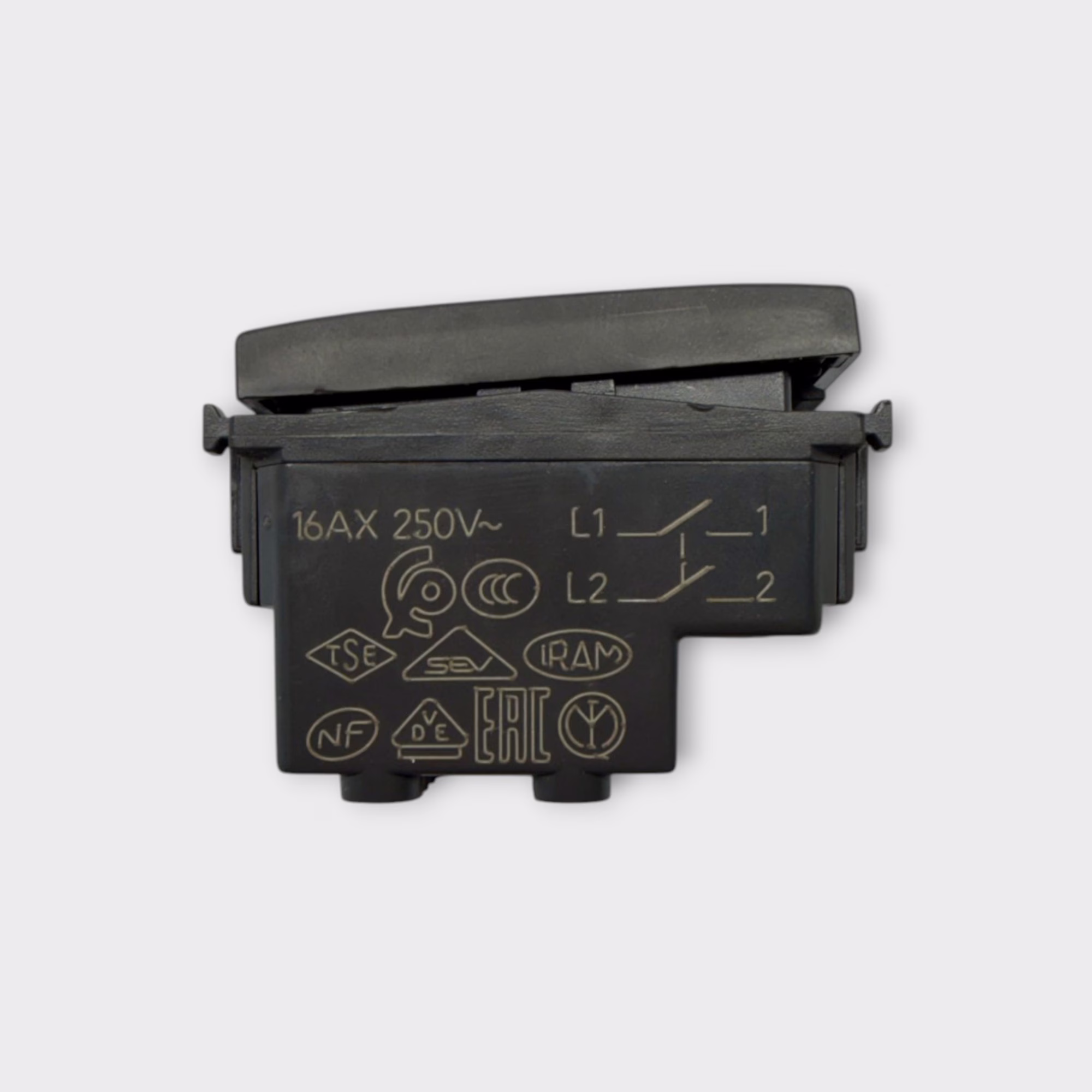

2P 16 AX 250 V~ 1-way switch, lightable, replaceable button, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

What's Included:

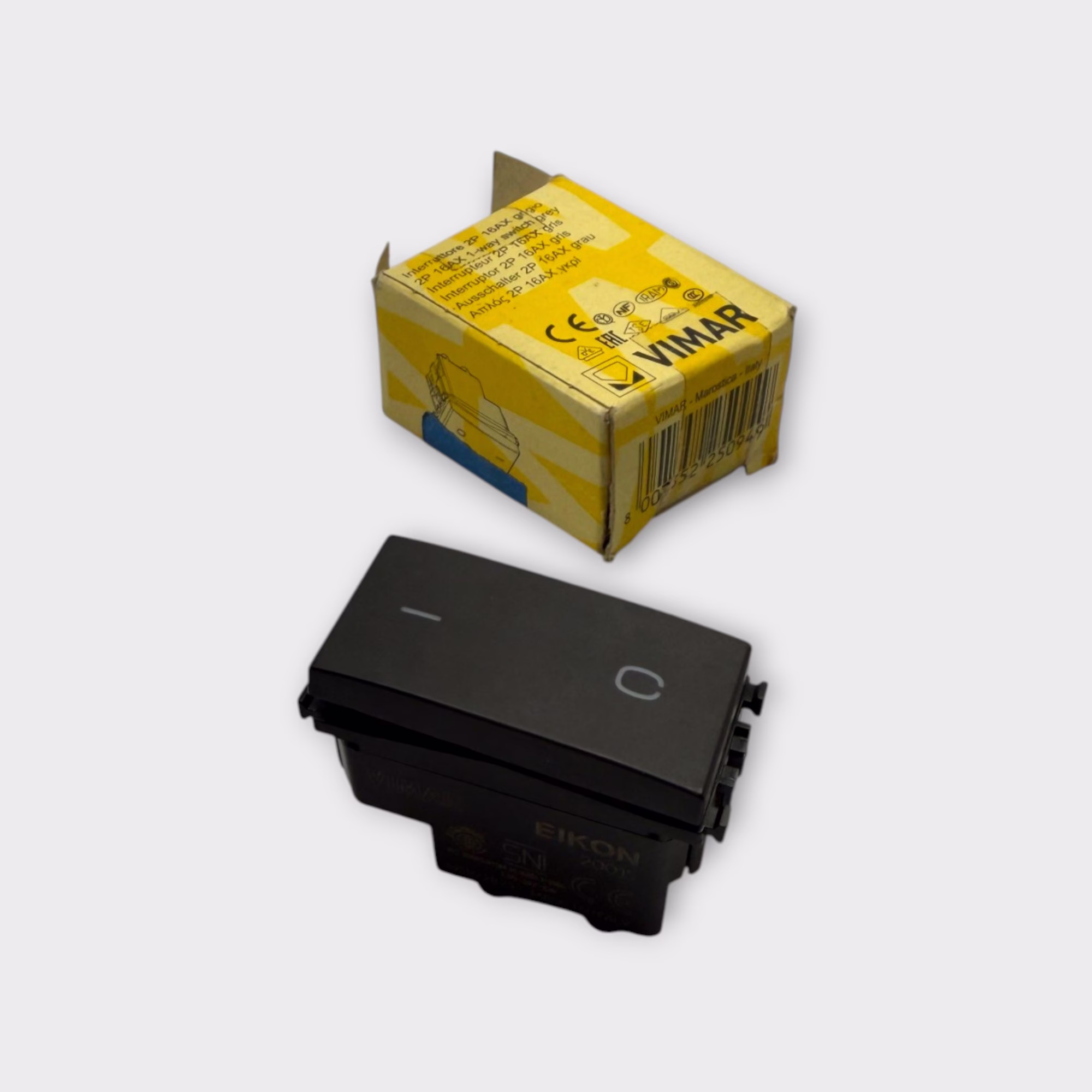

  • Vimar Eikon 20015 1- Way Grey Rocker Switch with Replaceable Face

Compatible Parts:

Return Info: 30-Day Returns

Warranty Info: Not Applicable (Warranty information not included in product description)

Dimensions: 3 × 2 × 2 in, Weight: 0.15 lbs
