Manufacturer: Vimar
Model Number: White Rocker Switch
Series: Idea
MPN: 16140.B
Listed Item Condition: New/New Other

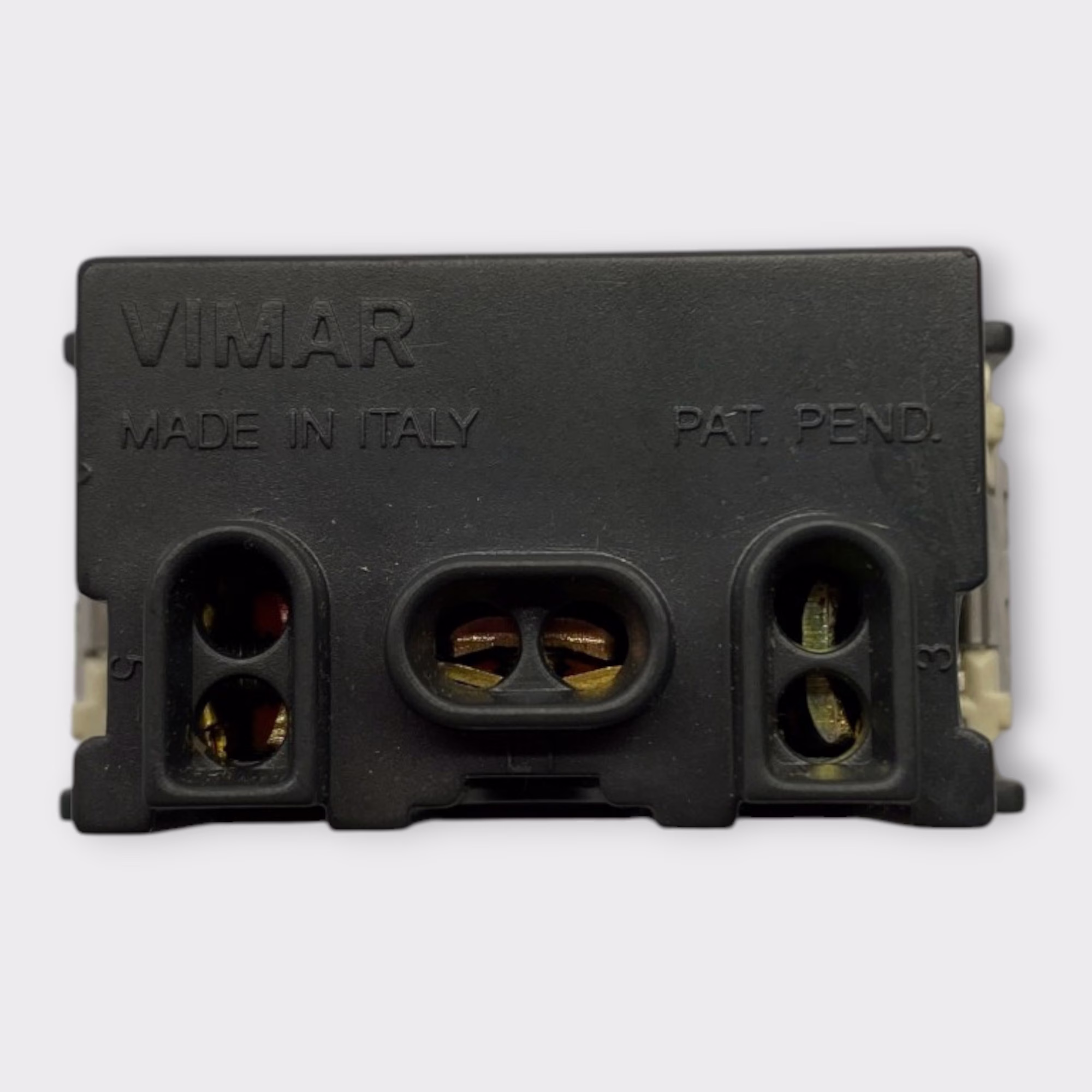

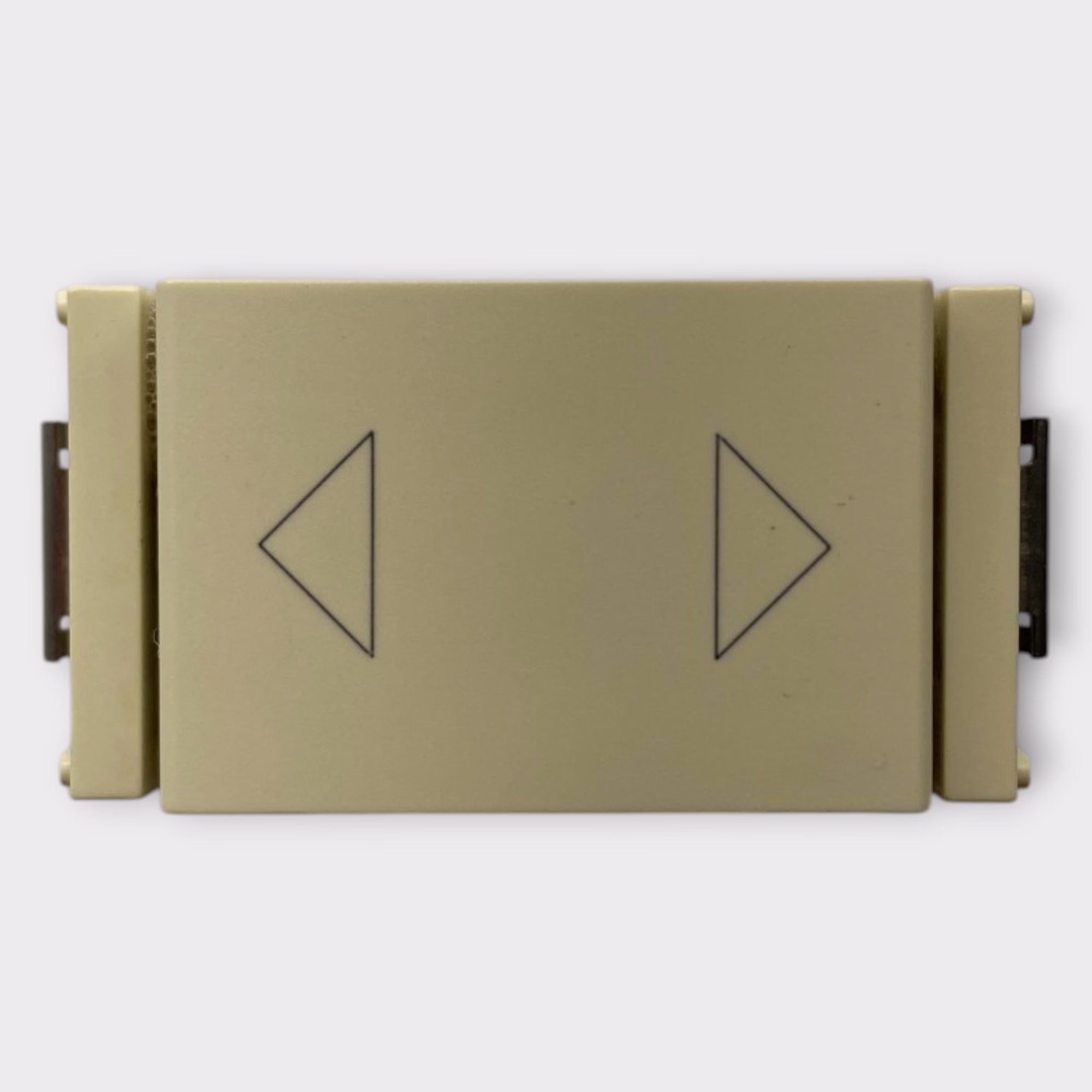

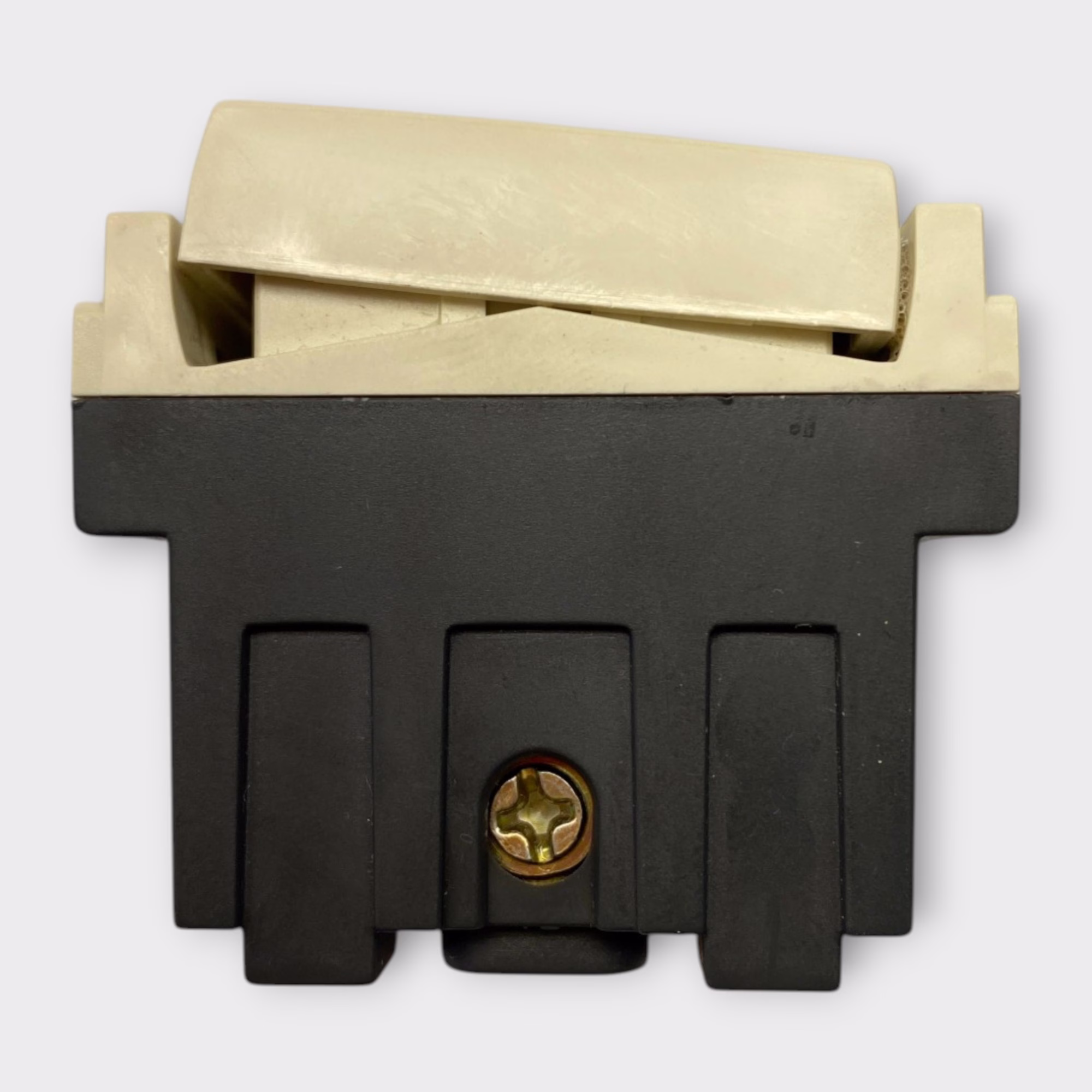

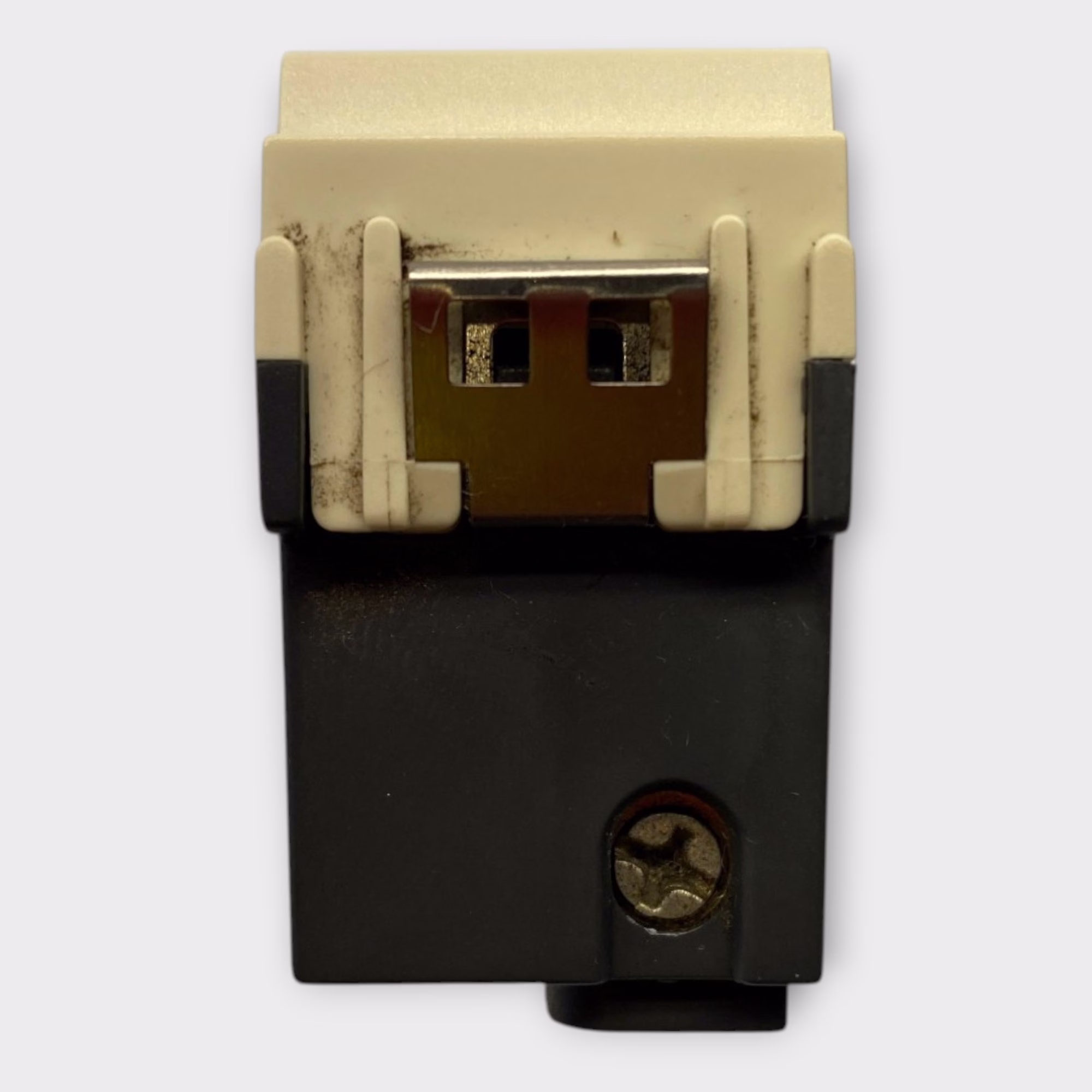

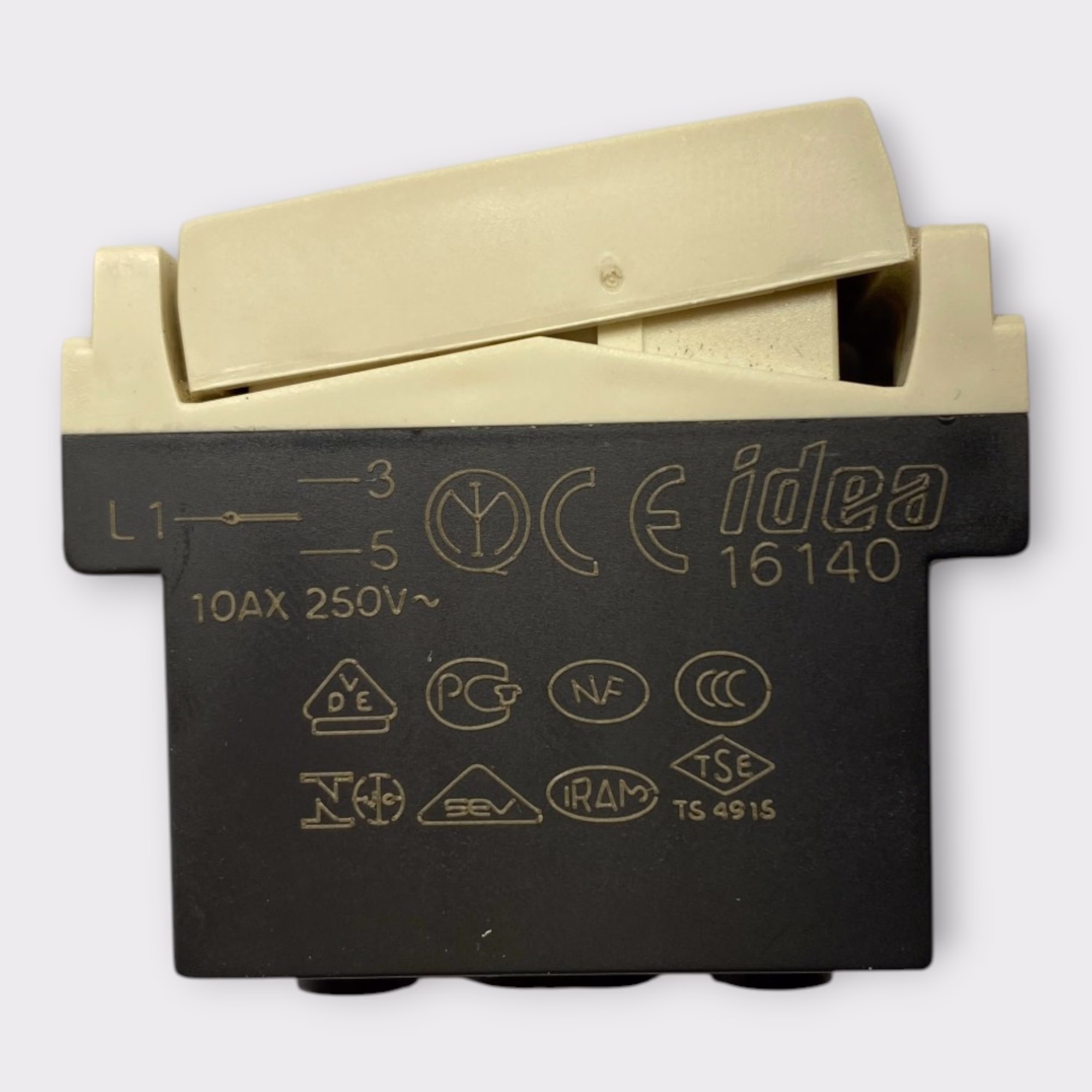

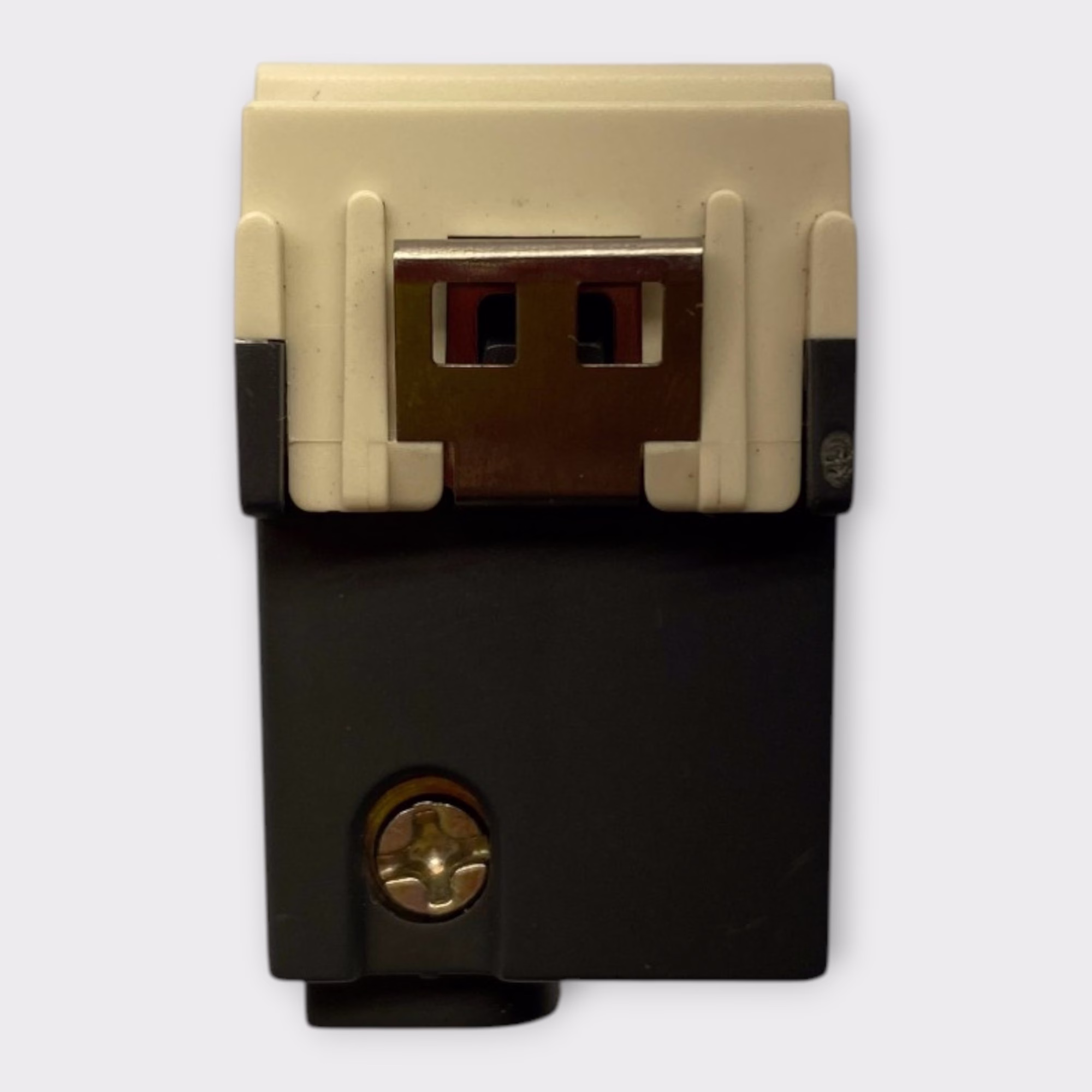

This is a Vimar 16140.B white on/off/on rocker switch with directional arrows. The Switch comes with 3 Terminals and works at 250 Volts, max 100 Watts for self-ballasted lamps (IEC 60669-1:2017). The item is new old stock and remains in great condition, please see photos for item condition and included contents.
Product Information:
Class group - Domestic switching devices
Class - Push button
Assembly arrangement - Modular device for domestic switching devices
Model - Other
Operating method - Rocker
Number of rockers - 1
Number of modules (module system) - 100
Number of poles - 1
Nominal voltage - 250 V
Rated current - 10,00 A
With lighting - No
Monitoring contact - No
Mounting method - Built-in
Type of fastening - Engage (snap)
Material - Plastic
Material quality - Thermoplastic
Halogen free - Yes
Surface protection - Untreated
Surface finishing - Matt
Colour - White
RAL-number (similar) - 9001
Transparent - No
Label space/information surface - Yes
Suitable for degree of protection (IP) - IP40

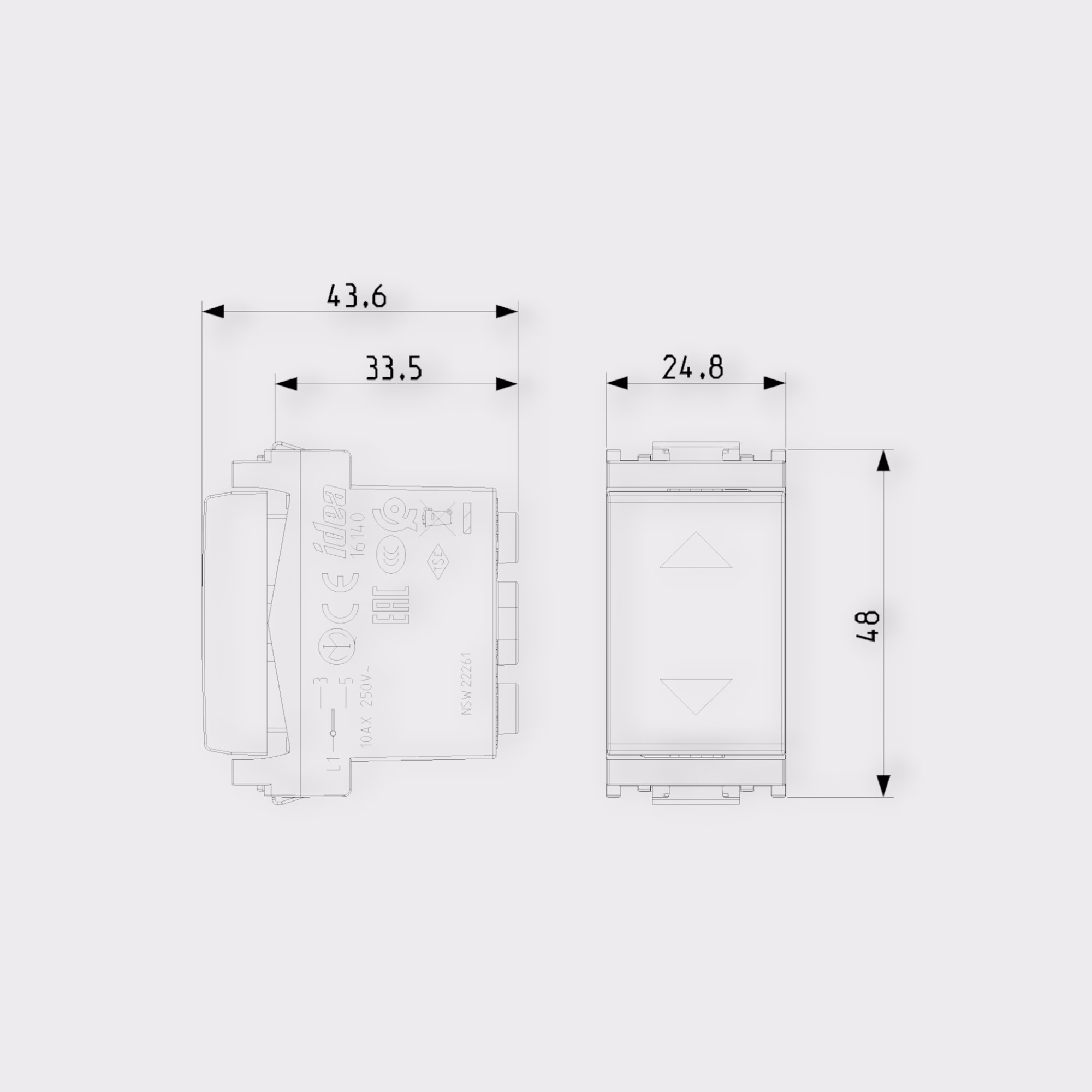

Device width - 24,80 mm
Device height - 48,00 mm
Device depth - 43,60 mm
Manufacture Product Information:
1P 10AX 2-way switch white
1P 10 AX 250 V~ 2-way switch (3 terminals) with directional arrows and central OFF position, white. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

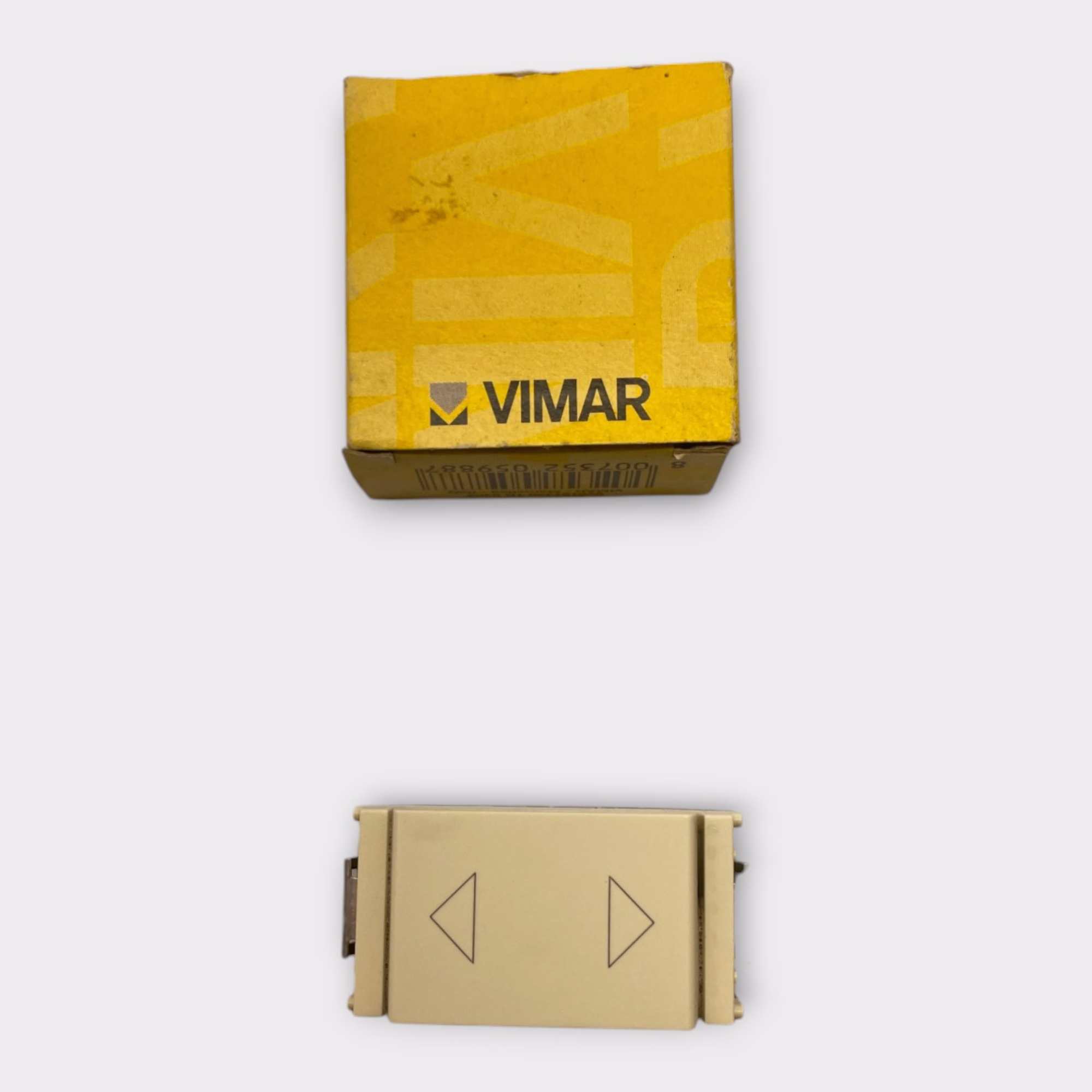

What's Included:
- Vimar Idea 16140.B White Rocker Switch with Directional Arrows
