Manufacturer: Vimar
Model Number: Grey Rocker Switch
Series: Idea
MPN: 16005
Listed Item Condition: New/New Other

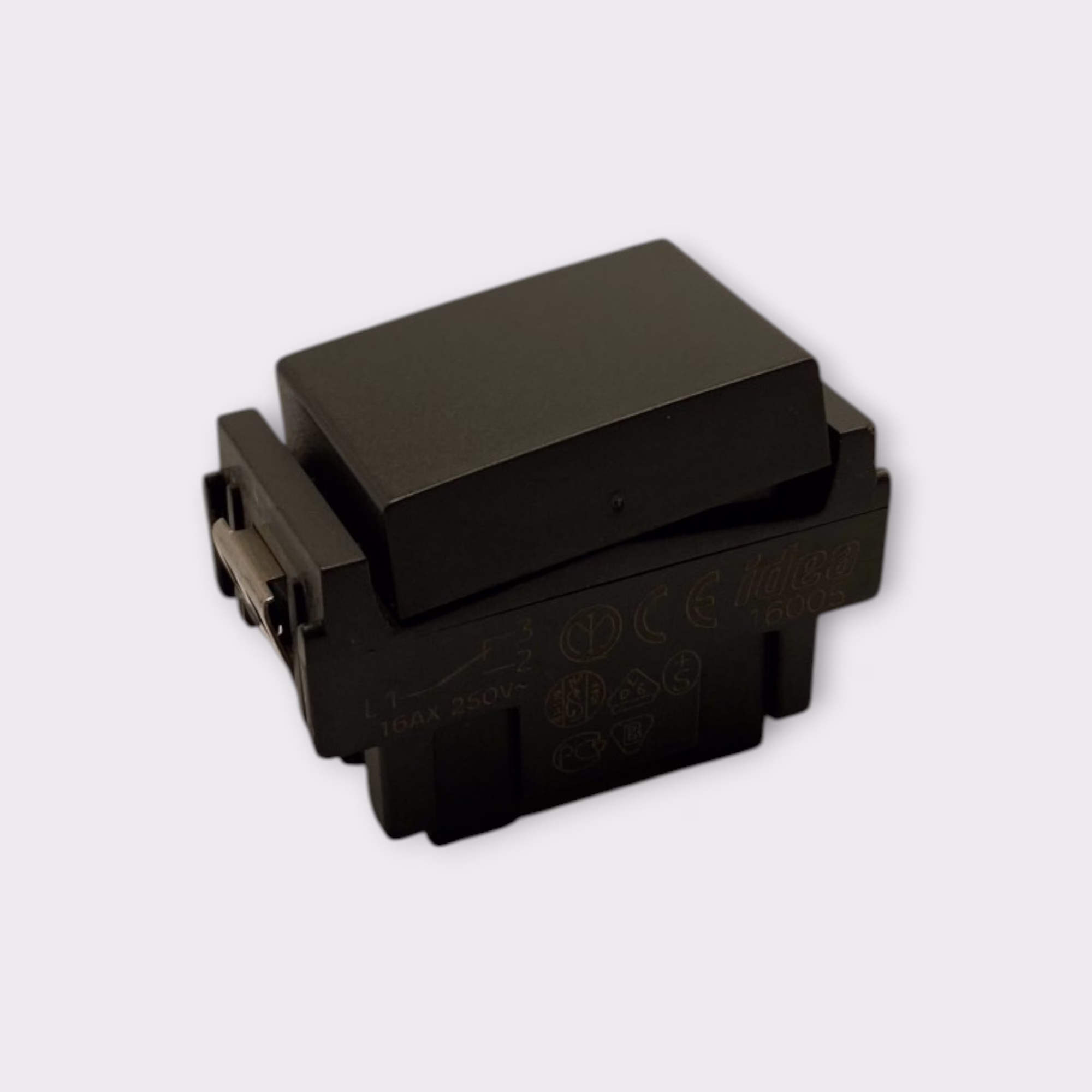

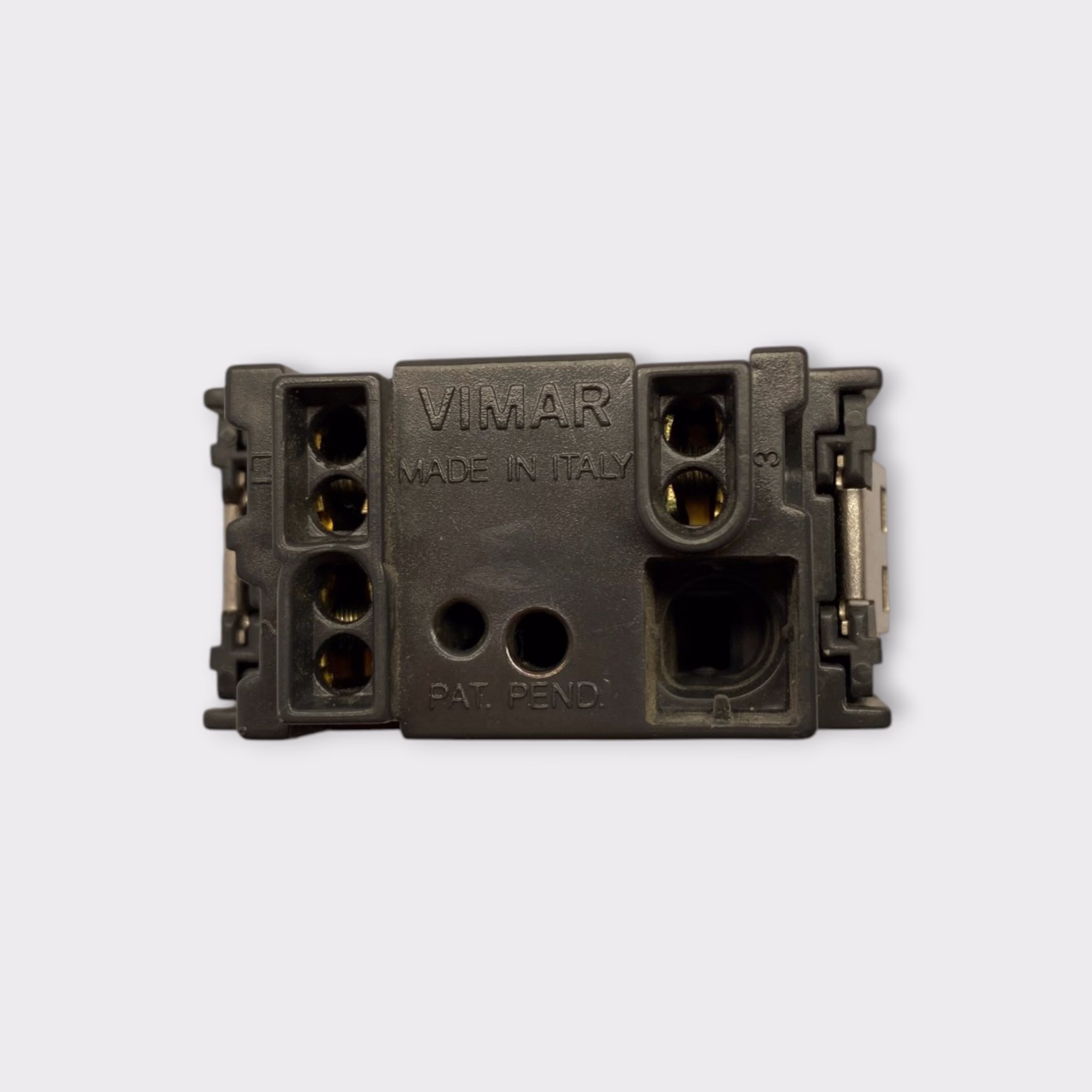

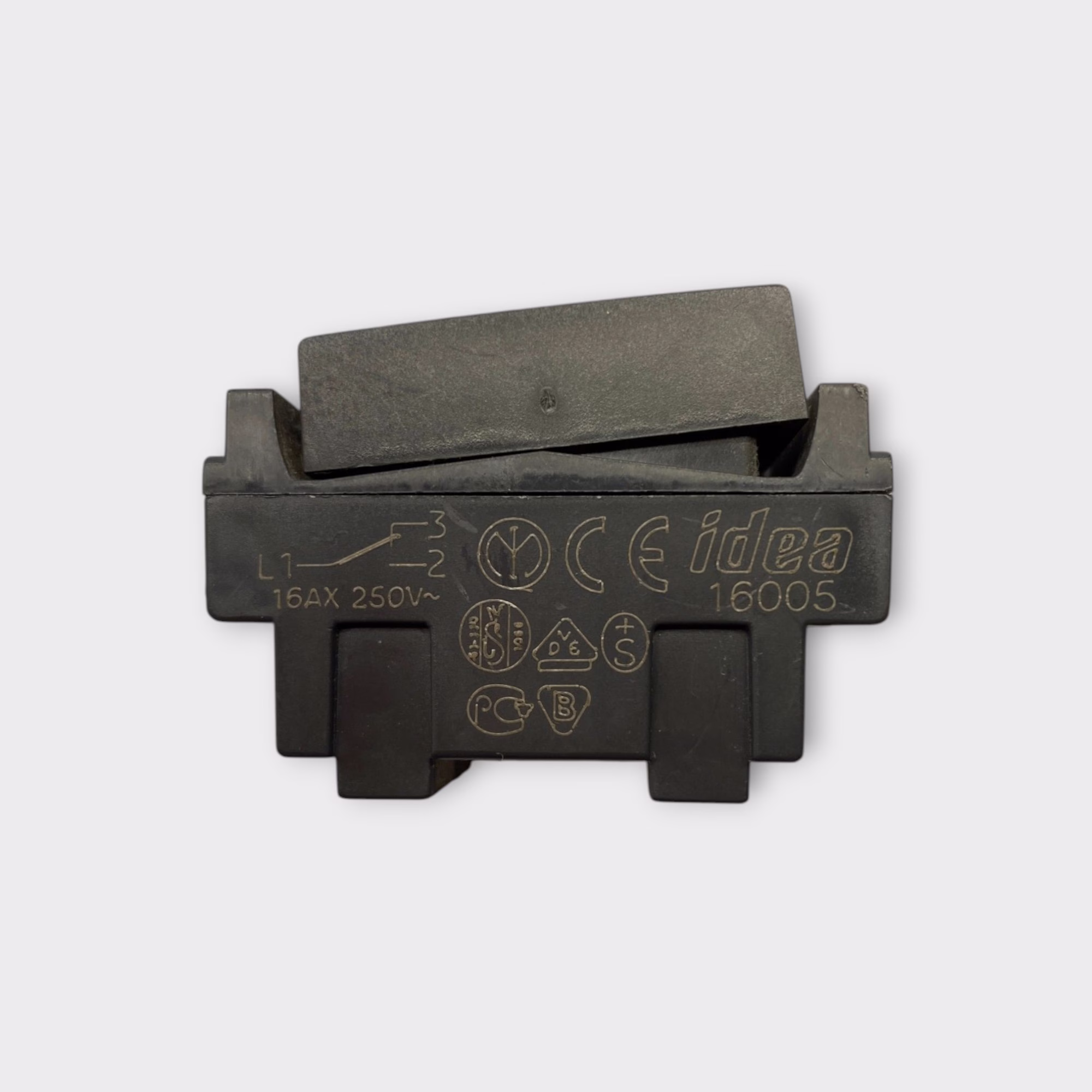

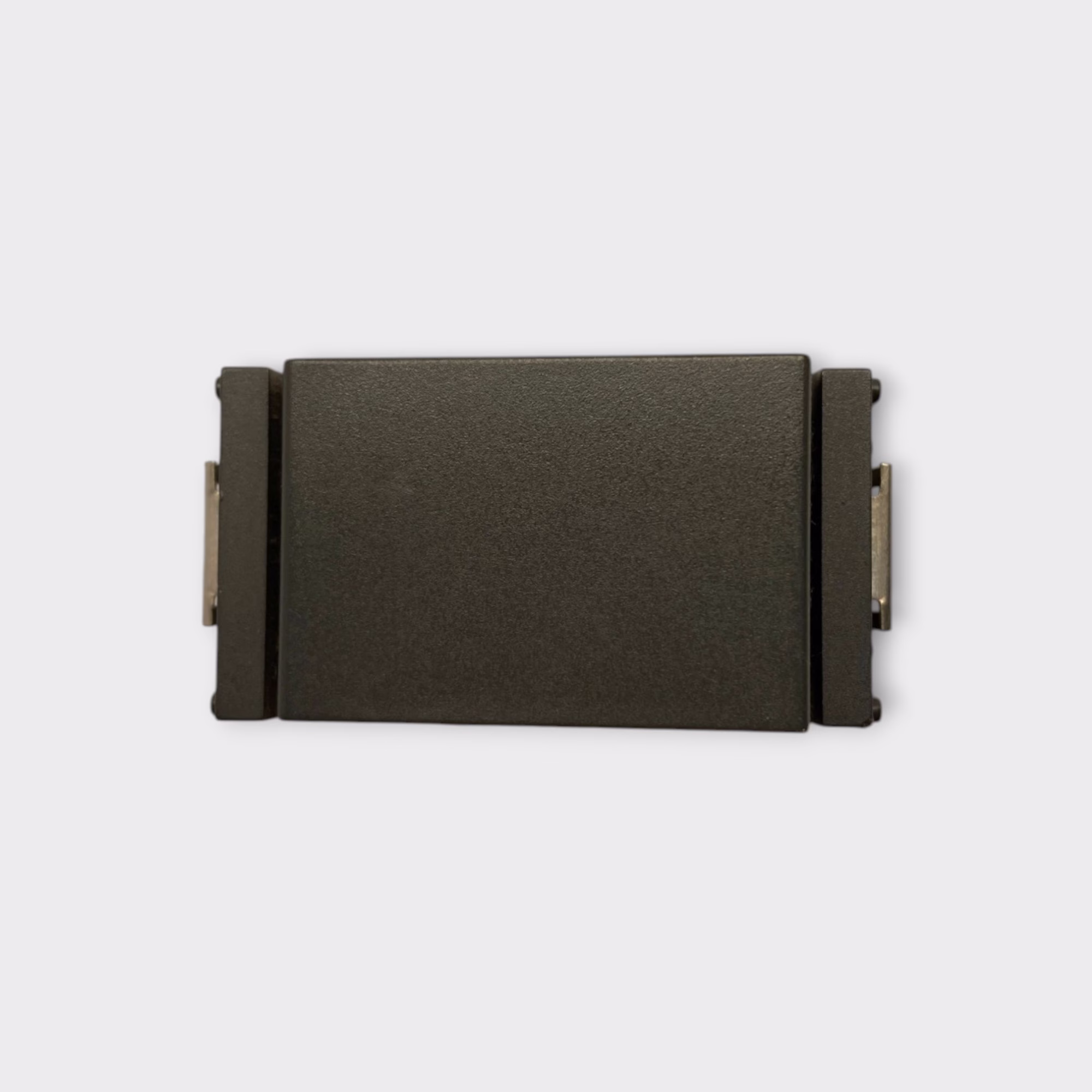

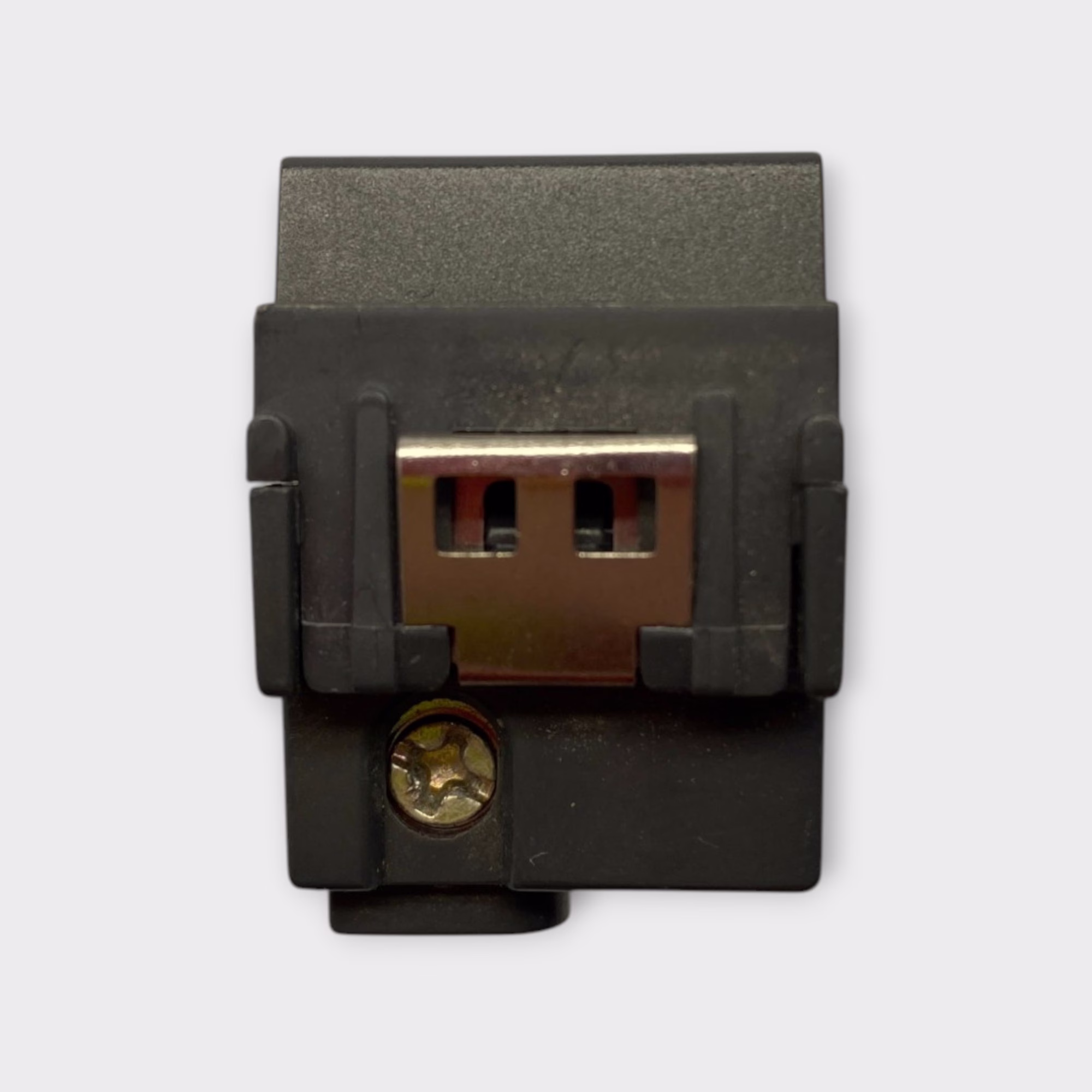

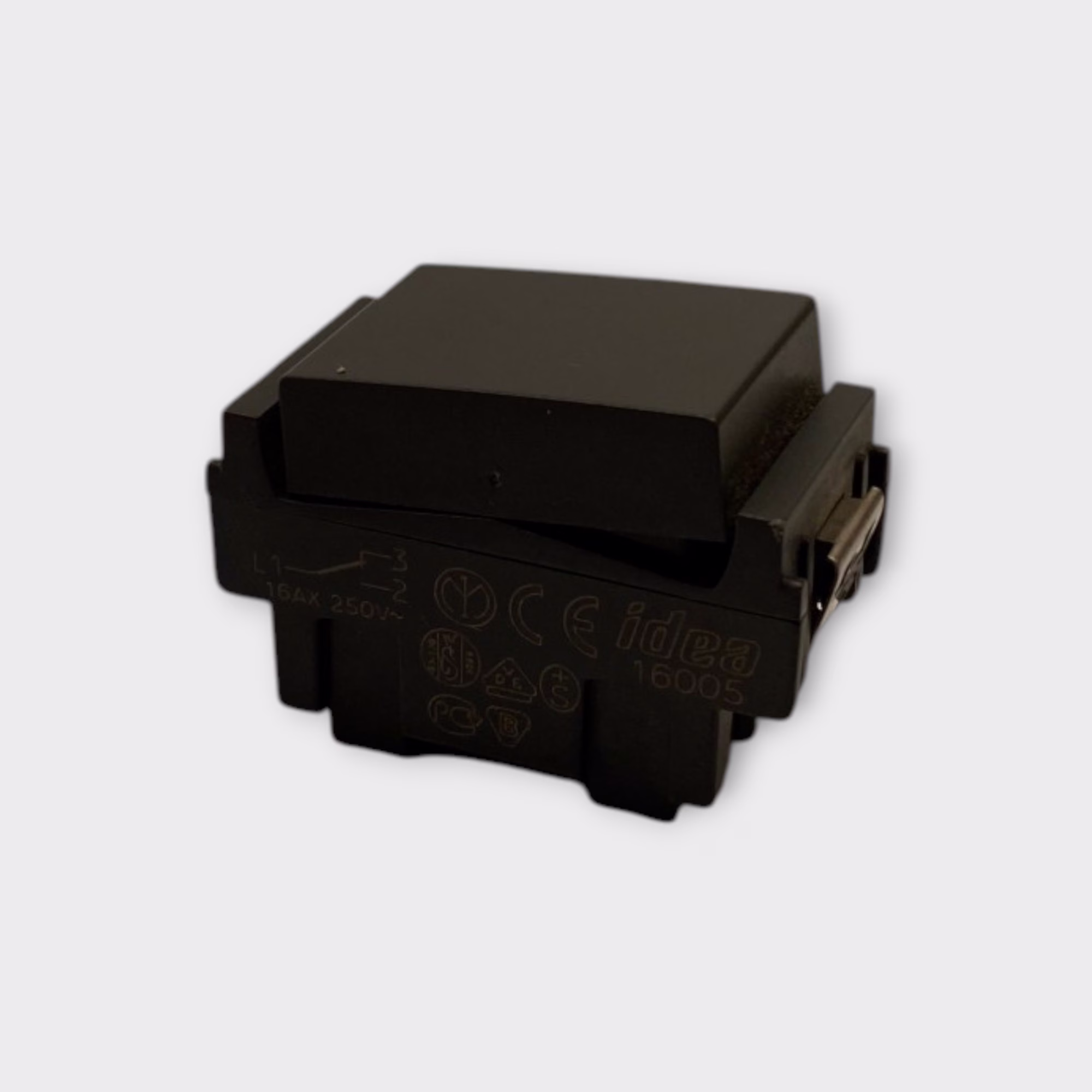

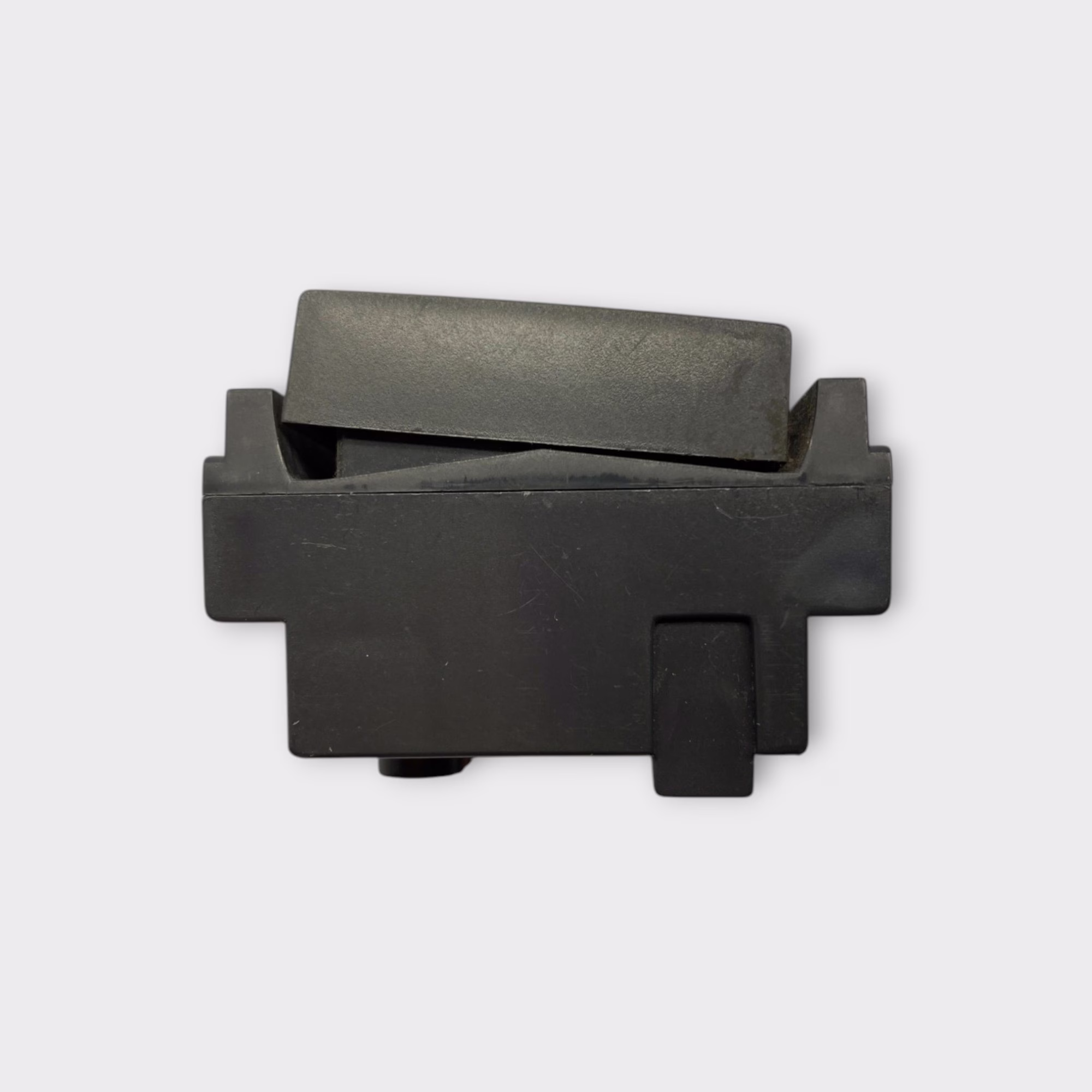

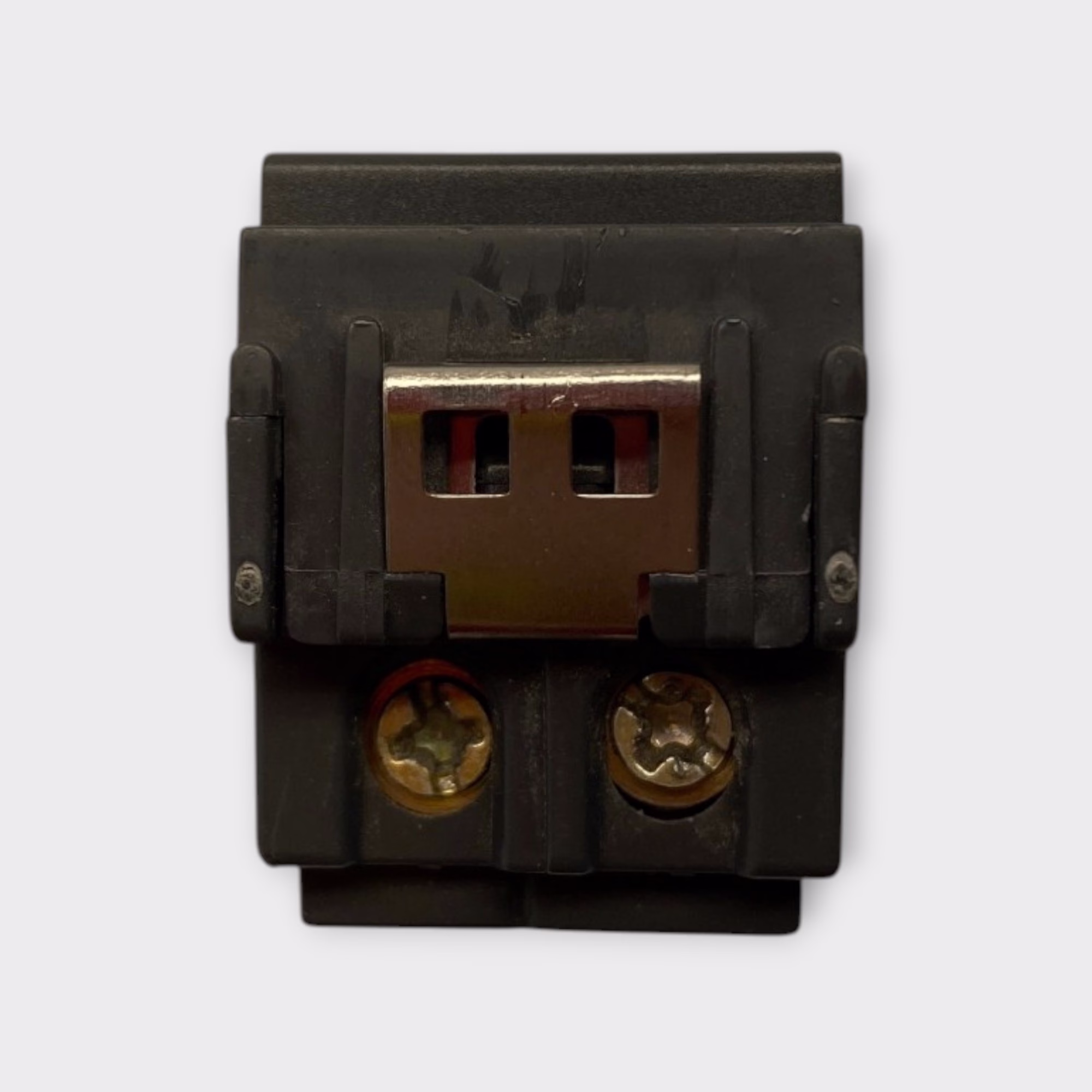

This listing is for a Vimar 16005 grey 1P 16AX 2-way light rocker switch. The item is new old stock and remains in decent condition, please see photos for item condition and included contents. Box and instructions not included, switch only. Made in Italy.
Product Information:
Class group - Domestic switching devices
Class - Installation switch
Wiring system - Two-way switch
Operating method - Rocker/button
Assembly arrangement - Modular device for domestic switching devices
Number of modules (module system) - 1
Push button switch - Yes
Number of rockers - 1
Mounting method - Flush-mounted
Type of fastening - Engage (snap)
With mounting plate - No
Material - Plastic
Material quality - Thermoplastic
Halogen free - Yes
Surface protection - Untreated
Surface finishing - Matt
Colour - Grey
RAL-number (similar) - 7015
Label space/information surface - Yes
Lighting - No
Function lighting - Other
Type of lighting - Other
Suitable for degree of protection (IP) - IP40
Nominal voltage - 250 V
Rated current - 16,00 A
Monitoring contact - No
Connection type - Screwed terminal
Washing machine switch - No
Device width - 24,80 mm
Device height - 50,10 mm
Device depth - 36,50 mm
Built-in depth - 23,30 mm
Manufacture Info:
1P 16AX 2-way switch grey
1P 16 AX 250 V~ 2-way switch, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)
What's Included:
- Vimar 16005 Grey 2 Way Rocker Light Switch
Compatible Parts:
