Summary

• Phoenix Contact UT 4-PE (3044128) protective earth ground terminal blocks, sold as a pack of 5 with 1 Phoenix Contact D-UT 2,5/10 (3047028) end plate included. These green/yellow CLIPLINE complete UT Series terminal blocks feature screw-clamp connections, a 4 mm² nominal conductor cross-section, and two conductor connection points for protective earth grounding applications.
• Designed for standard 35 mm DIN rail mounting, these terminal blocks provide secure protective earth connections for industrial electrical control panels, machinery, automation systems, and electrical distribution equipment.

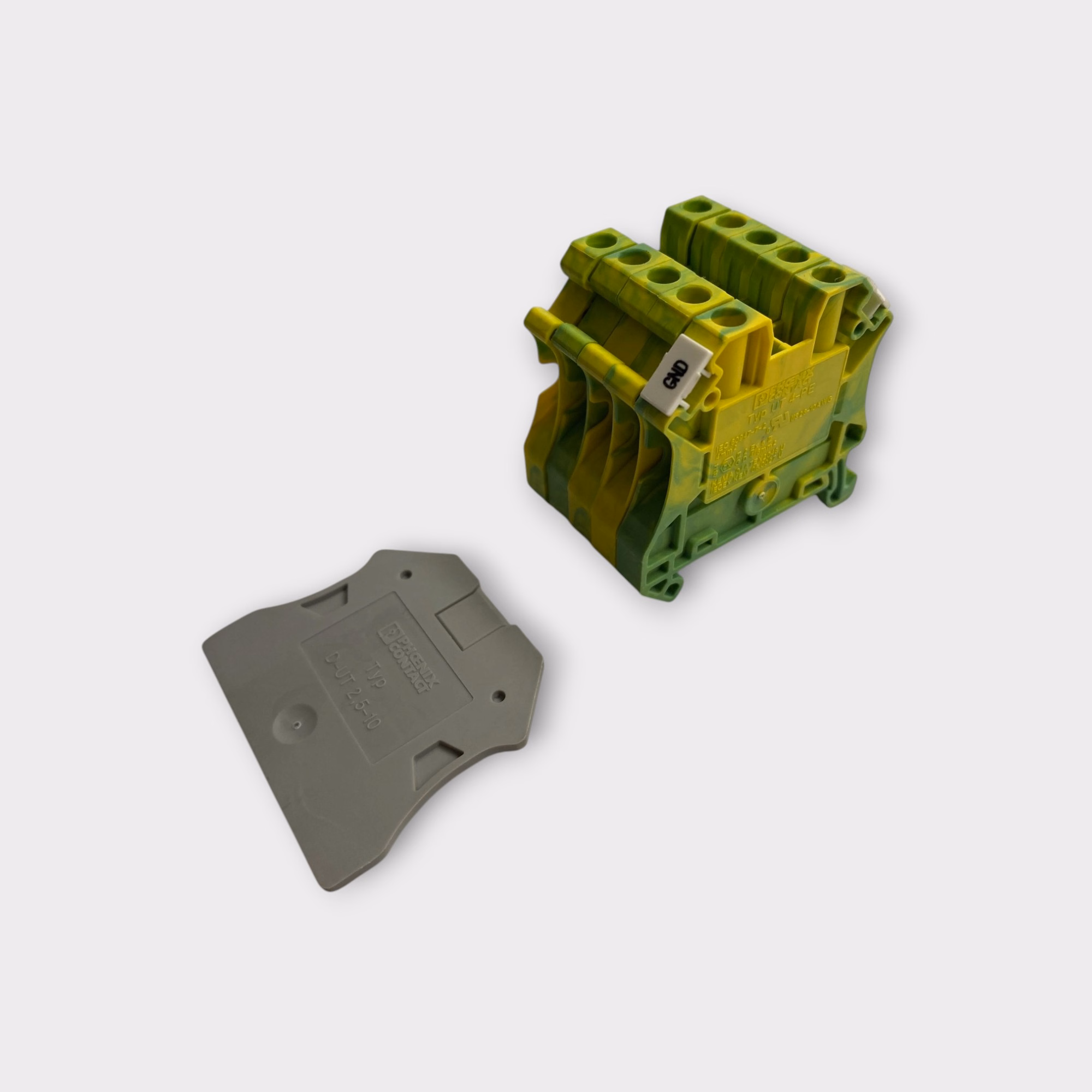

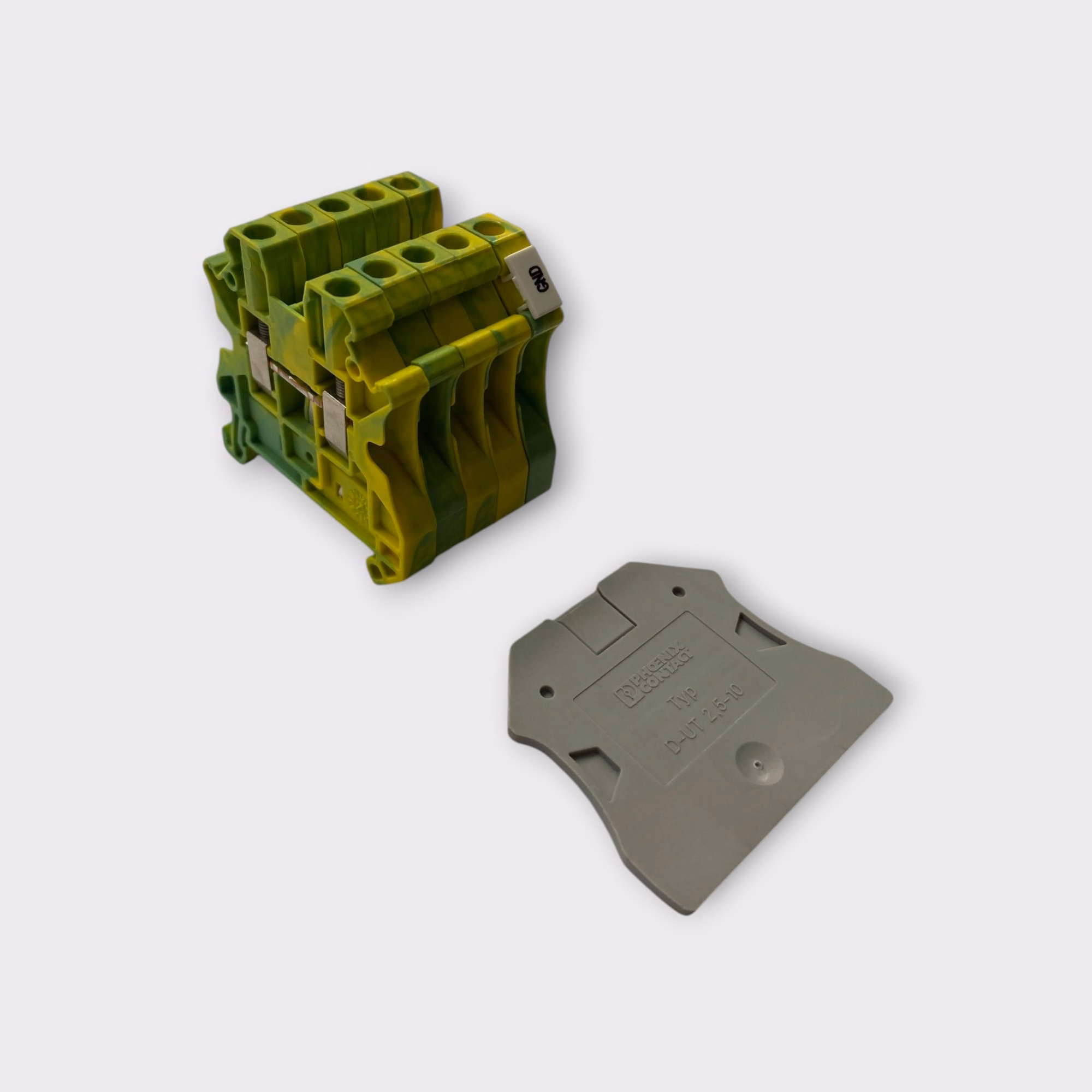

• This listing includes 5 Phoenix Contact UT 4-PE ground terminal blocks and 1 D-UT 2,5/10 end plate only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

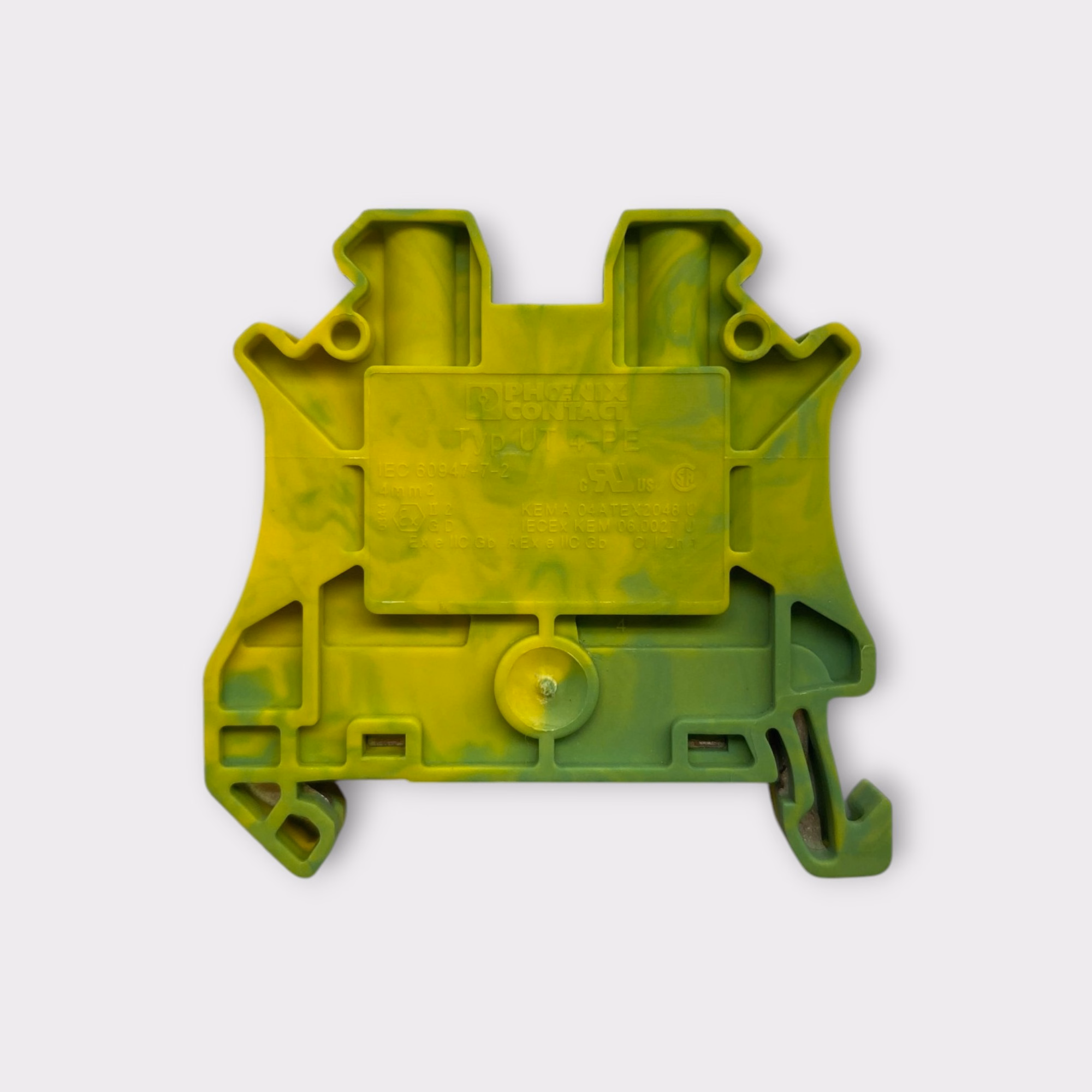

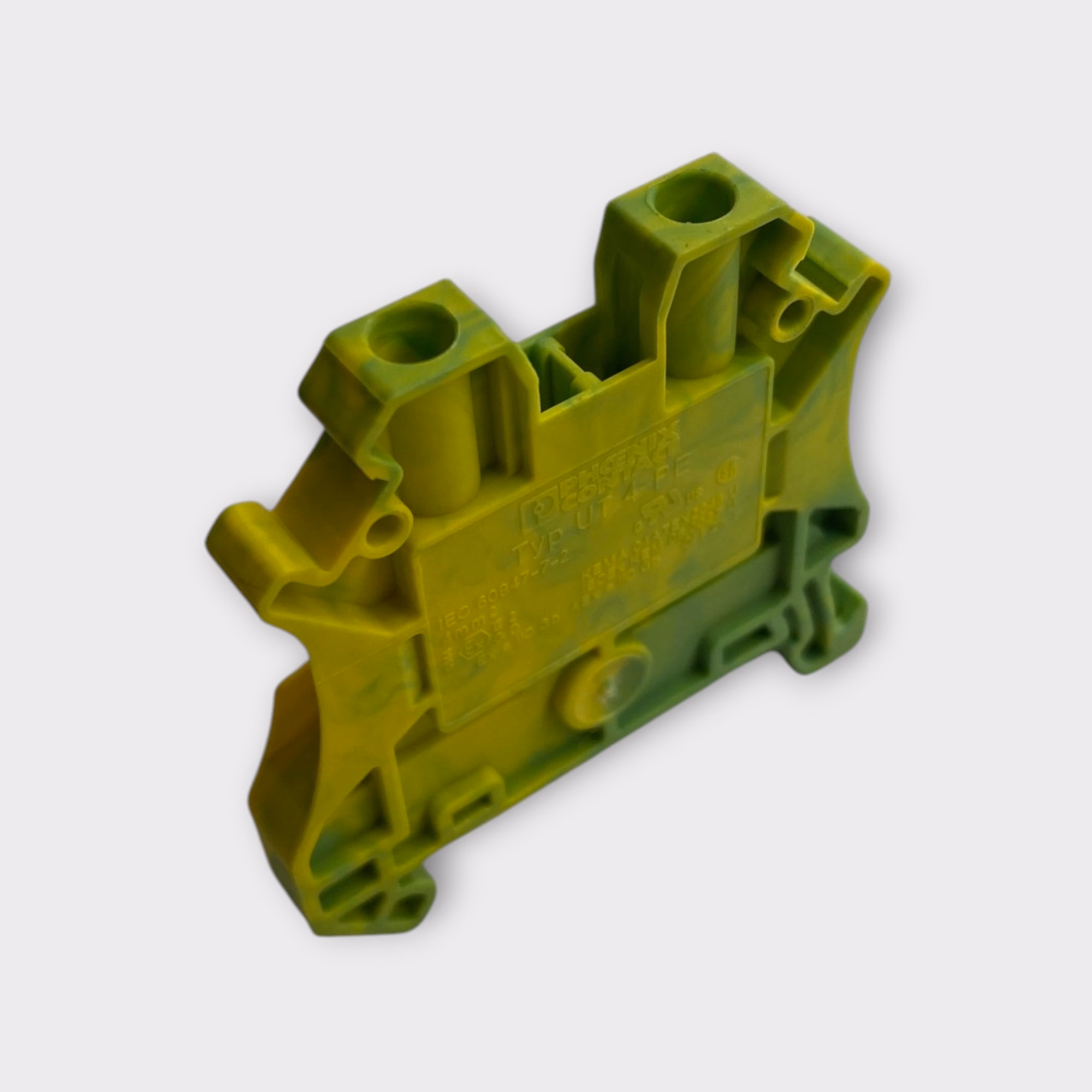

• The Phoenix Contact UT 4-PE is a CLIPLINE complete UT Series protective earth terminal block designed for reliable grounding connections in industrial electrical control panels, machinery, and electrical distribution systems.
• Each terminal block features two screw-clamp conductor connection points on a single level, providing a secure protective earth connection through the integrated grounding foot and compatible DIN rail.
• The screw connection system incorporates Phoenix Contact's Reakdyn principle, designed to provide a maintenance-free, vibration-resistant conductor connection.
• The integrated grounding foot establishes a low-resistance electrical connection between the protective earth terminal and the DIN rail, eliminating the need for additional grounding connections between the terminal block and properly installed mounting rail.
• Designed for standard NS 35/7.5 and NS 35/15 DIN rails, these terminal blocks feature a compact 6.2 mm housing width and support a nominal conductor cross-section of 4 mm².
• The terminal blocks support solid and flexible conductors ranging from 0.14 mm² to 6 mm², with a compatible wire gauge range of 26–10 AWG.
• The green/yellow insulating housing provides standardized visual identification for protective earth connections and is manufactured from polyamide (PA) with a UL 94 V-0 flammability classification.

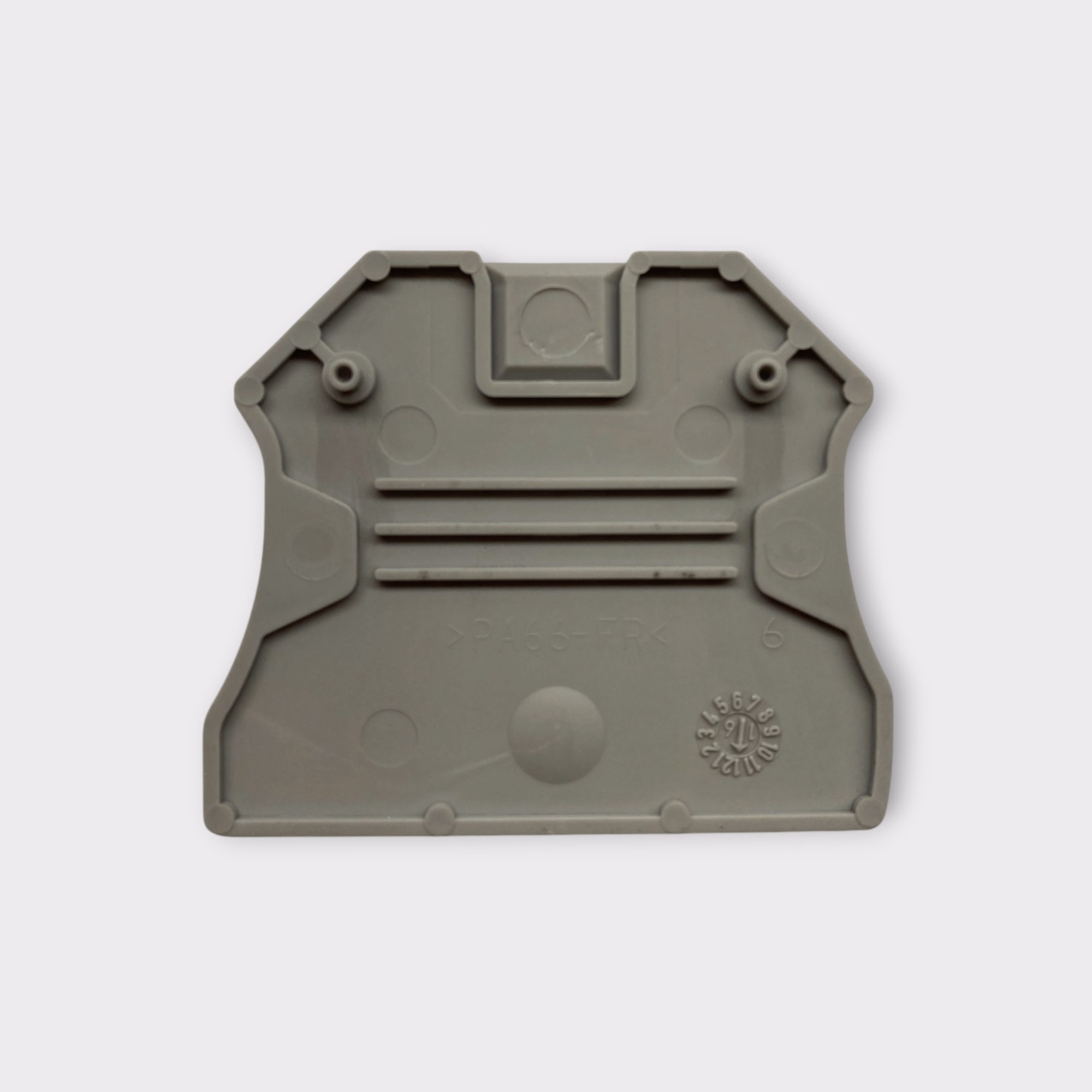

• This 5-pack includes one Phoenix Contact D-UT 2,5/10 end cover, part number 3047028, designed to cover an exposed side of a compatible UT Series terminal block assembly.
• The included gray end plate is manufactured from polyamide insulating material and features a 2.2 mm thickness, providing insulation and protection within the terminal assembly.
• The UT 4-PE is designed specifically for protective earth grounding applications and complies with IEC 60947-7-2 requirements for protective conductor terminal blocks.
• These ground terminal blocks are suitable for industrial automation, electrical distribution cabinets, machinery wiring, control panel assemblies, and compatible marine electrical installations.

Product Information

Terminal Blocks

- Brand: Phoenix Contact
- Model Number: UT 4-PE
- Series: CLIPLINE complete UT Series
- MPN: 3044128
- Type: Protective Earth Ground Terminal Block
- Number in Pack: 5 Terminal Blocks
- Number of Ports: 2
- Number of Poles: 1 (Protective Earth)
- Number of Levels: 1
- Connector Style: DIN Rail Terminal Block
- Termination Type: Screw Clamp
- Compatible Mounting Type: DIN Rail
- Compatible DIN Rails: NS 35/7.5 / NS 35/15
- Connection Technology: Screw Connection
- Protective Earth Connection: Yes
- Grounding Foot: Integrated
- Material: Polyamide (PA)
- Color: Green / Yellow
- Nominal Conductor Cross-Section: 4 mm²
- Compatible Wire Gauge (AWG): 10–26 AWG
- Solid Conductor Range: 0.14–6 mm²
- Flexible Conductor Range: 0.14–6 mm²
- Flexible Conductor with Ferrule Range: 0.14–4 mm²
- Screw Thread: M3
- Tightening Torque: 0.5–0.8 Nm
- Stripping Length: 9 mm
- Rated Surge Voltage: 8 kV
- Item Length (Depth): 46.9 mm
- Item Width: 6.2 mm
- Item Height: 47.7 mm
- Net Weight: 12.7 g Each
- Operating Temperature: -60°C to +110°C
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-2
- UL File Number: E60425
- RoHS Compliance: Compliant (Exemption 6(c))
- Country/Region of Manufacture: Germany
- EAN / GTIN: 4017918960407

End Plate

- Brand: Phoenix Contact
- Model Number: D-UT 2,5/10
- Series: CLIPLINE complete UT Series
- MPN: 3047028
- Type: End Cover / Terminal Block End Plate
- Number in Pack: 1 End Plate
- Compatible Model: Phoenix Contact UT Series, Including UT 4-PE
- Material: Polyamide (PA)
- Color: Gray (RAL 7042)
- Item Length (Depth): 39.8 mm
- Item Width (Thickness): 2.2 mm
- Item Height: 47 mm
- Net Weight: 2.369 g
- Operating Temperature: -60°C to +110°C
- Flammability Rating: UL 94 V-0
- RoHS Compliance: Compliant Without Exemption
- Country/Region of Manufacture: Germany
- EAN / GTIN: 4017918960346

Package Contents

- 5x Phoenix Contact UT 4-PE Ground Terminal Blocks (3044128)
- 1x Phoenix Contact D-UT 2,5/10 End Plate (3047028)

Total: 6 Components, Sold as One 5-Pack Ground Terminal Block Listing with 1 End Plate.
