Summary

• Lot of 62 Phoenix Contact UT 4 feed-through terminal blocks, manufacturer part number 3044102, including 3 Phoenix Contact D-UT 2,5/10 end covers, part number 3047028. These gray screw-connection terminal blocks are designed for secure electrical connections on standard 35mm DIN rails in industrial control panels, electrical distribution systems, and automation equipment.
• Each UT 4 terminal block features a nominal current rating of 32A, nominal voltage of 1000V, and a rated conductor cross-section of 4mm². The included end covers provide insulation and protection at the ends of terminal block assemblies.
• This listing includes 62 Phoenix Contact UT 4 terminal blocks and 3 D-UT 2,5/10 end covers only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

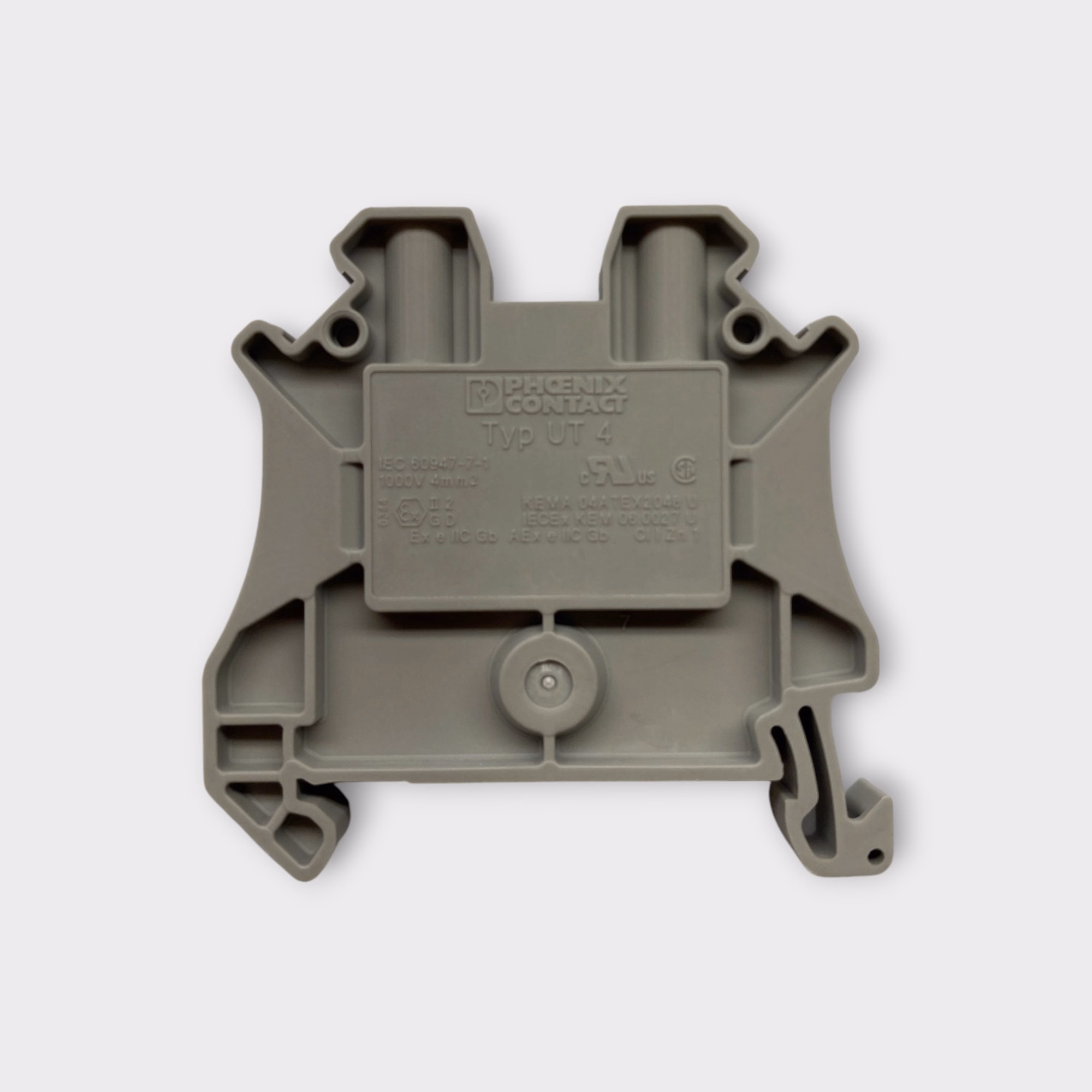

• The Phoenix Contact UT 4 is a screw-connection feed-through terminal block from the CLIPLINE complete terminal block system. Engineered for reliable electrical connections, these terminal blocks provide secure conductor termination in industrial electrical installations.
• Each terminal block features two connection points, a nominal conductor cross-section of 4mm², and compatibility with rigid and flexible conductors ranging from 0.14mm² to 6mm², subject to conductor type and termination requirements.
• The screw-connection design incorporates Phoenix Contact's Reakdyn principle, providing vibration-resistant electrical connections and reliable conductor retention. The terminal blocks are compatible with standard NS 35/7.5 and NS 35/15 DIN mounting rails.

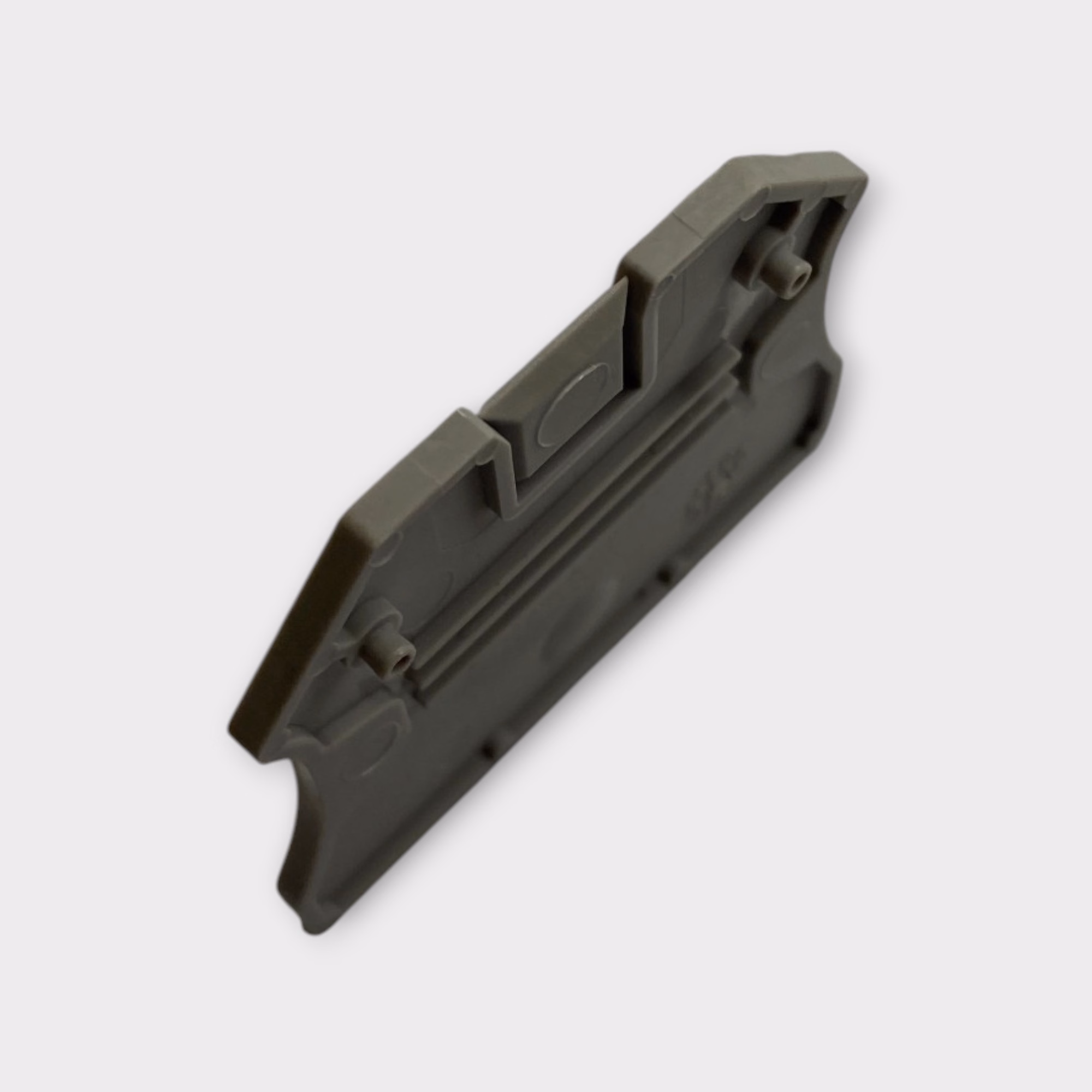

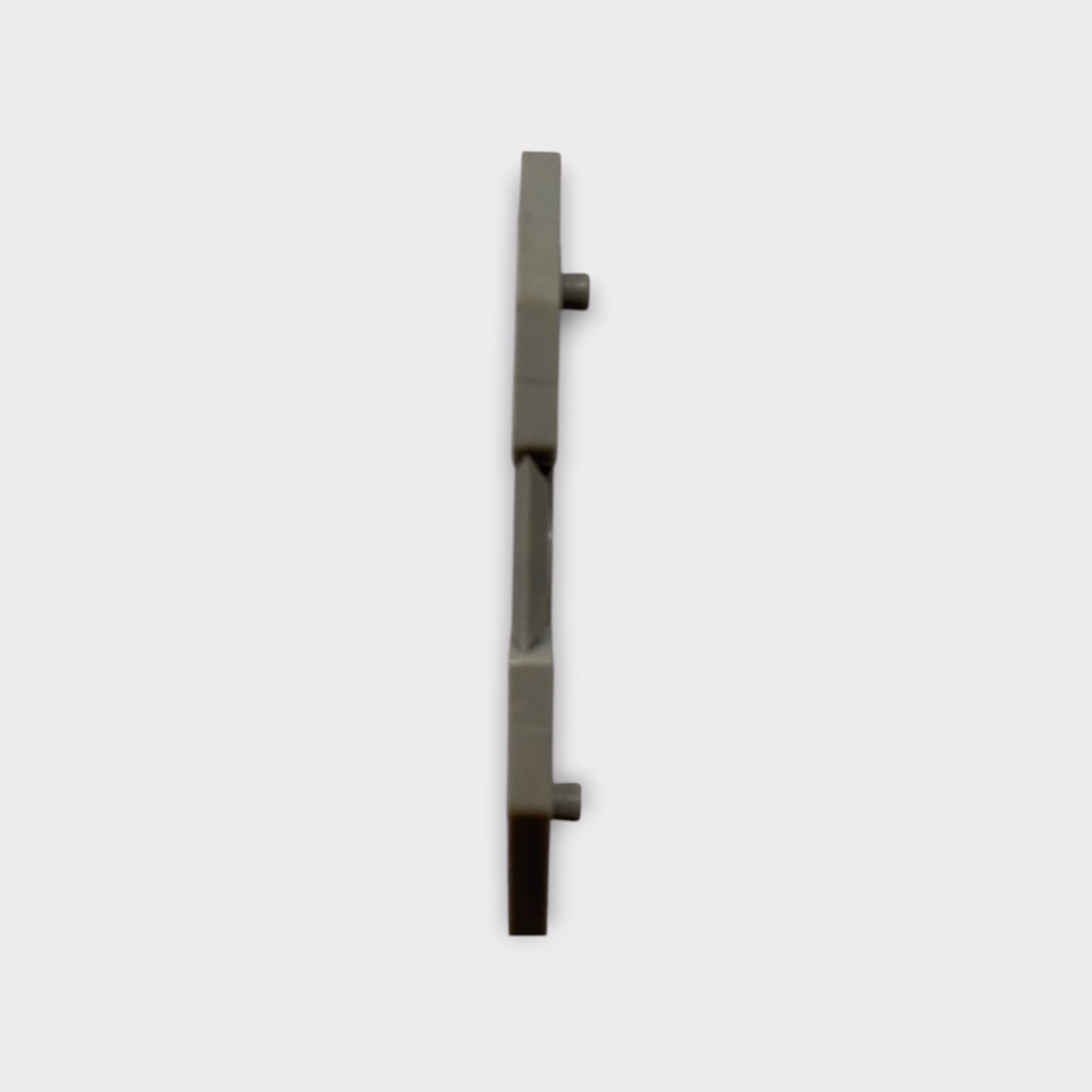

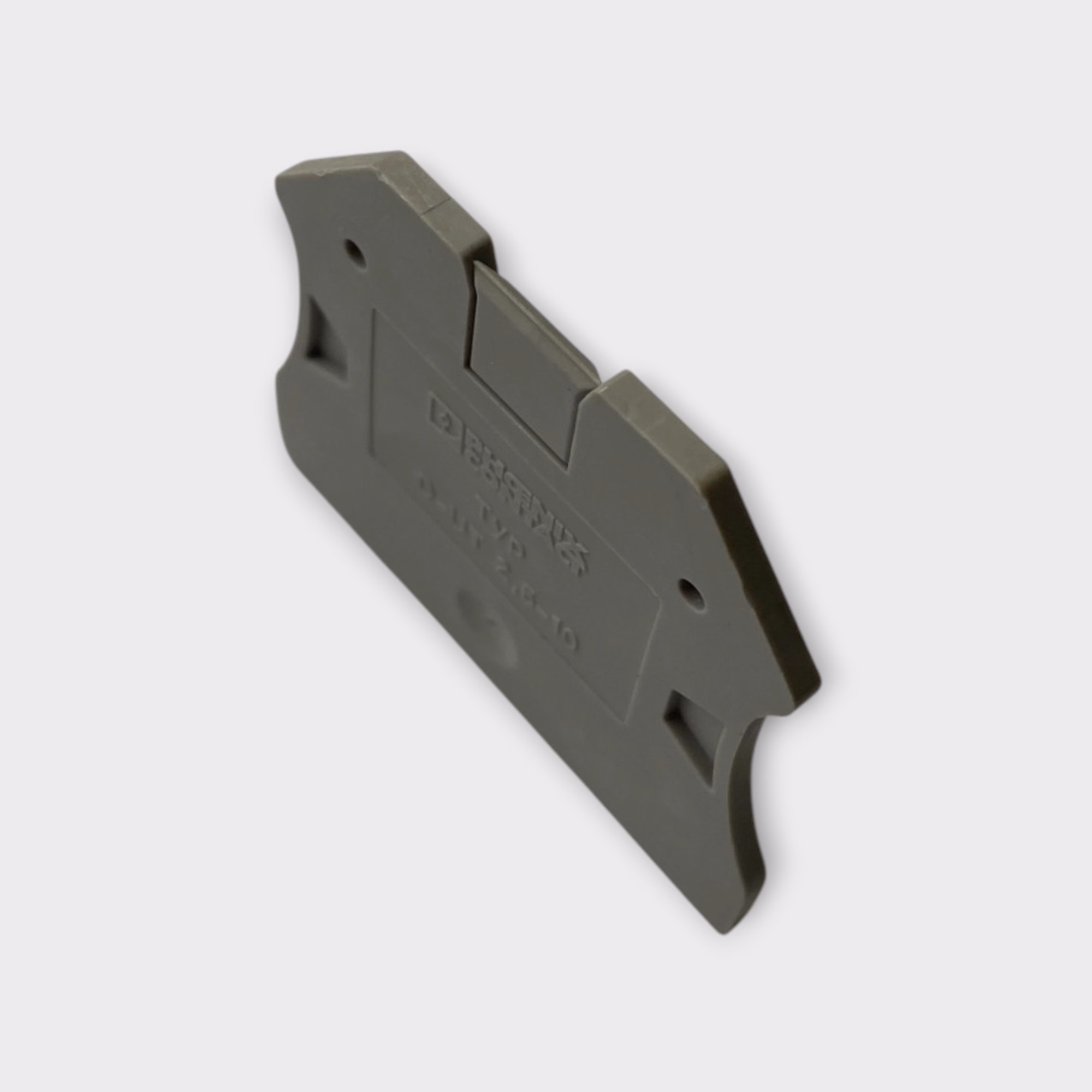

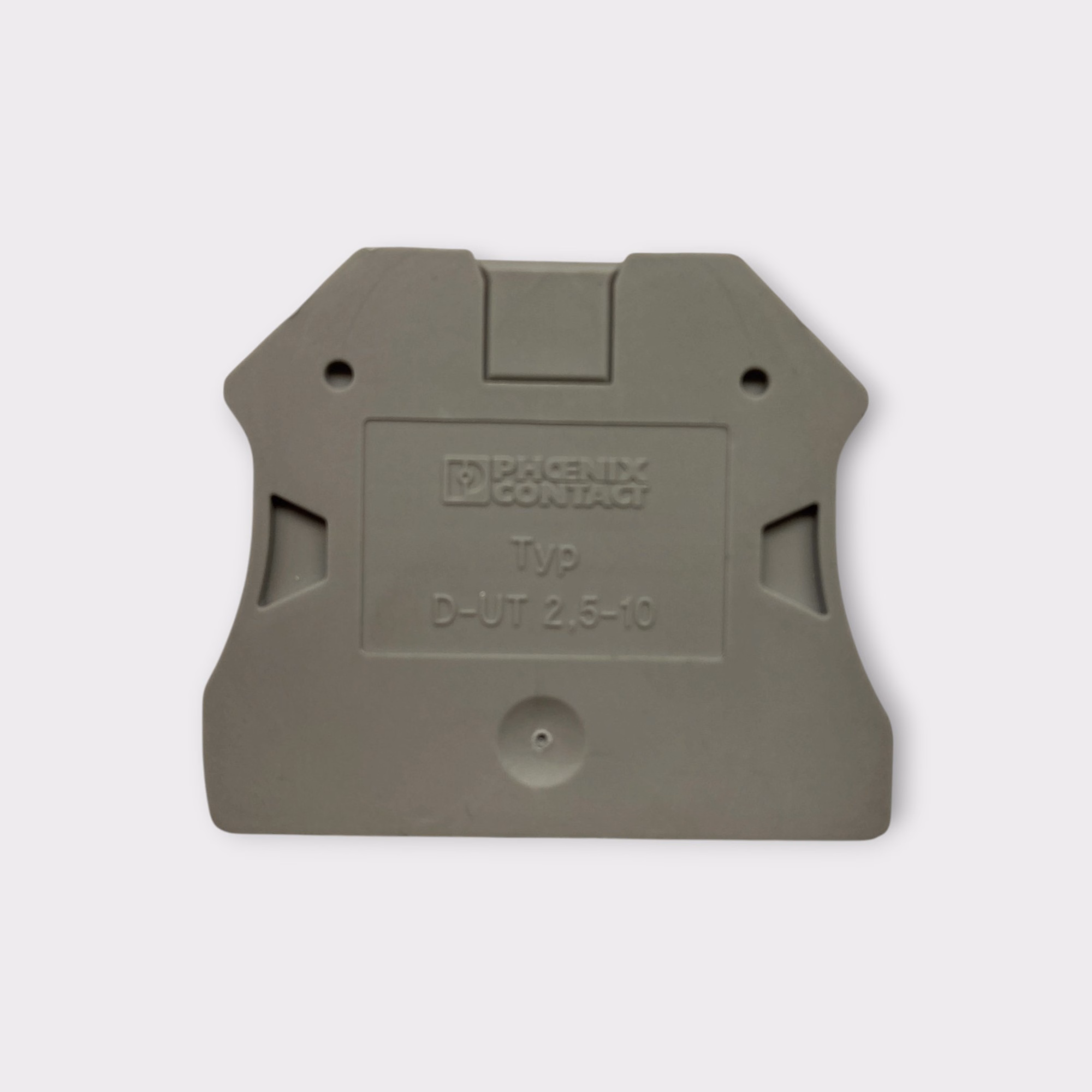

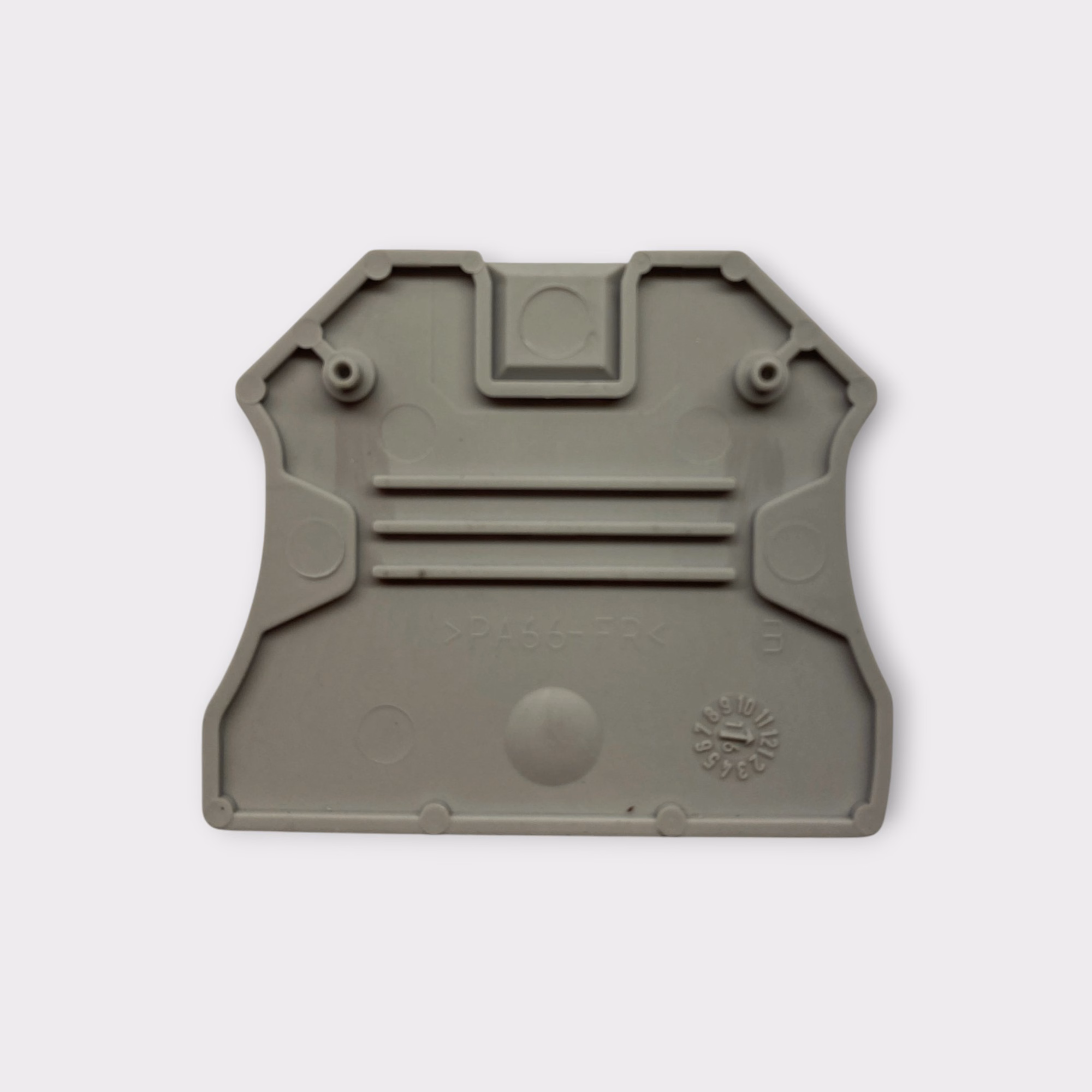

• The included Phoenix Contact D-UT 2,5/10 end covers are designed to close and insulate exposed terminal block ends, supporting safe and organized terminal strip installations.
• This 65-piece lot is suitable for industrial electrical panel construction, automation system wiring, electrical distribution cabinets, machinery control systems, and terminal block replacement applications.

Product Information

Terminal Blocks

- Manufacturer: Phoenix Contact
- Model Number: UT 4
- Series: CLIPLINE Complete / UT Series
- MPN: 3044102
- Product Type: Feed-Through Terminal Block
- Connection Method: Screw Connection
- Number of Connections: 2
- Number of Levels: 1
- Nominal Voltage: 1000V
- Nominal Current: 32A (IEC)
- CSA Rating: 600V / 30A
- Maximum Load Current: 41A (6mm² conductor)
- Nominal Conductor Cross-Section: 4mm²
- Conductor Range: 0.14–6mm²
- Wire Gauge Range: 26–10 AWG (IEC equivalent)
- Screw Thread: M3
- Tightening Torque: 0.6–0.8 Nm
- Wire Stripping Length: 9mm
- Mounting Type: DIN Rail
- Compatible DIN Rails: NS 35/7.5 and NS 35/15
- Material: Polyamide (PA)
- Color: Gray (RAL 7042)
- Width: 6.2mm
- Height: 47.7mm
- Depth: 46.9mm
- Flammability Rating: UL 94 V-0
- Country of Origin: USA (Manufacturer Catalog)
- GTIN / EAN: 4017918960391
- Quantity Included: 62 Pieces

End Covers

- Manufacturer: Phoenix Contact
- Model Number: D-UT 2,5/10
- Series: CLIPLINE Complete / UT Accessories
- MPN: 3047028
- Product Type: Terminal Block End Cover / End Plate
- Compatible Product: Phoenix Contact UT Series
- Material: Polyamide (PA)
- Color: Gray (RAL 7042)
- Width: 2.2mm
- Height: 47mm
- Depth: 39.8mm
- Flammability Rating: UL 94 V-0
- Country of Origin: Germany (Manufacturer Catalog)
- GTIN / EAN: 4017918960346
- Quantity Included: 3 Pieces

Package Contents

- 62x Phoenix Contact UT 4 Feed-Through Terminal Blocks (3044102)
- 3x Phoenix Contact D-UT 2,5/10 End Covers (3047028)
- Total: 65 Pieces

Applications

- Industrial Electrical Control Panels
- DIN Rail Terminal Block Assemblies
- Electrical Distribution Cabinets
- PLC and Automation Control Systems
- Industrial Machinery Wiring
- Marine Electrical Control Panels
- Electrical Equipment Enclosures
