Mitsubishi Electric FX3U-4DA 4-channel analog output module for MELSEC FX Series PLC systems. Provides high-resolution voltage or current analog outputs with independently selectable output modes for industrial automation and process control applications.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

Listing is for Module only, does not include any instructions, installation screws, or original box.

Product Description

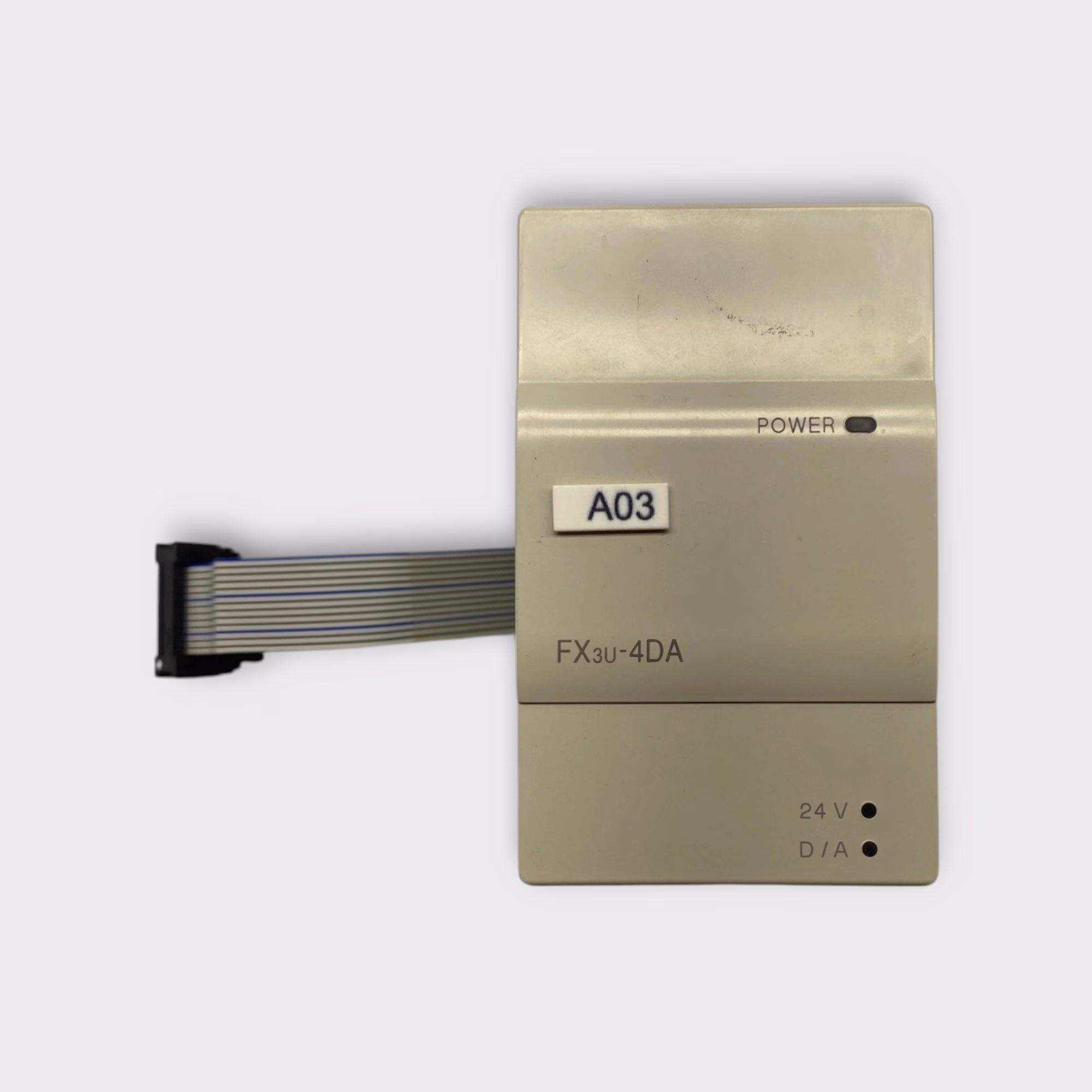

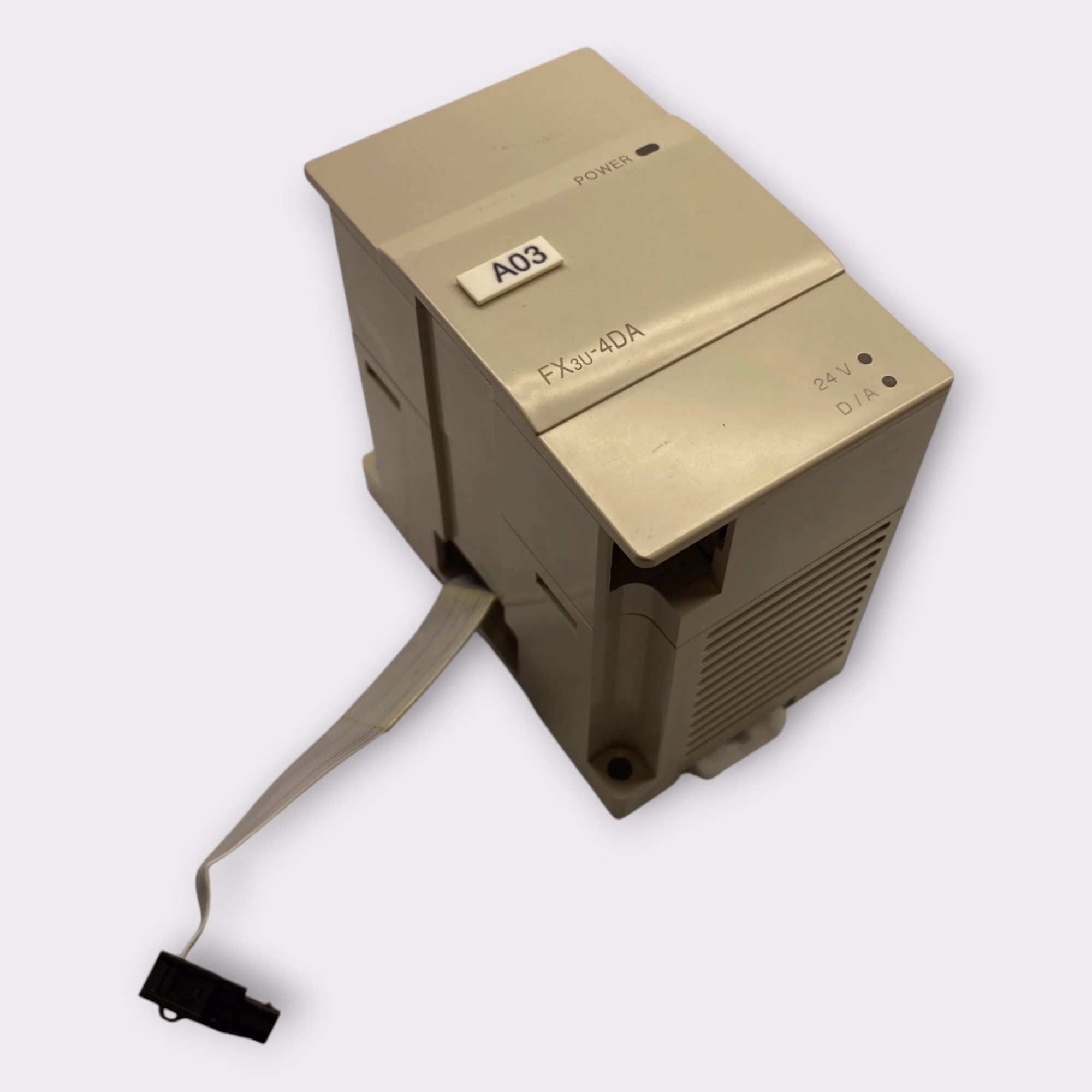

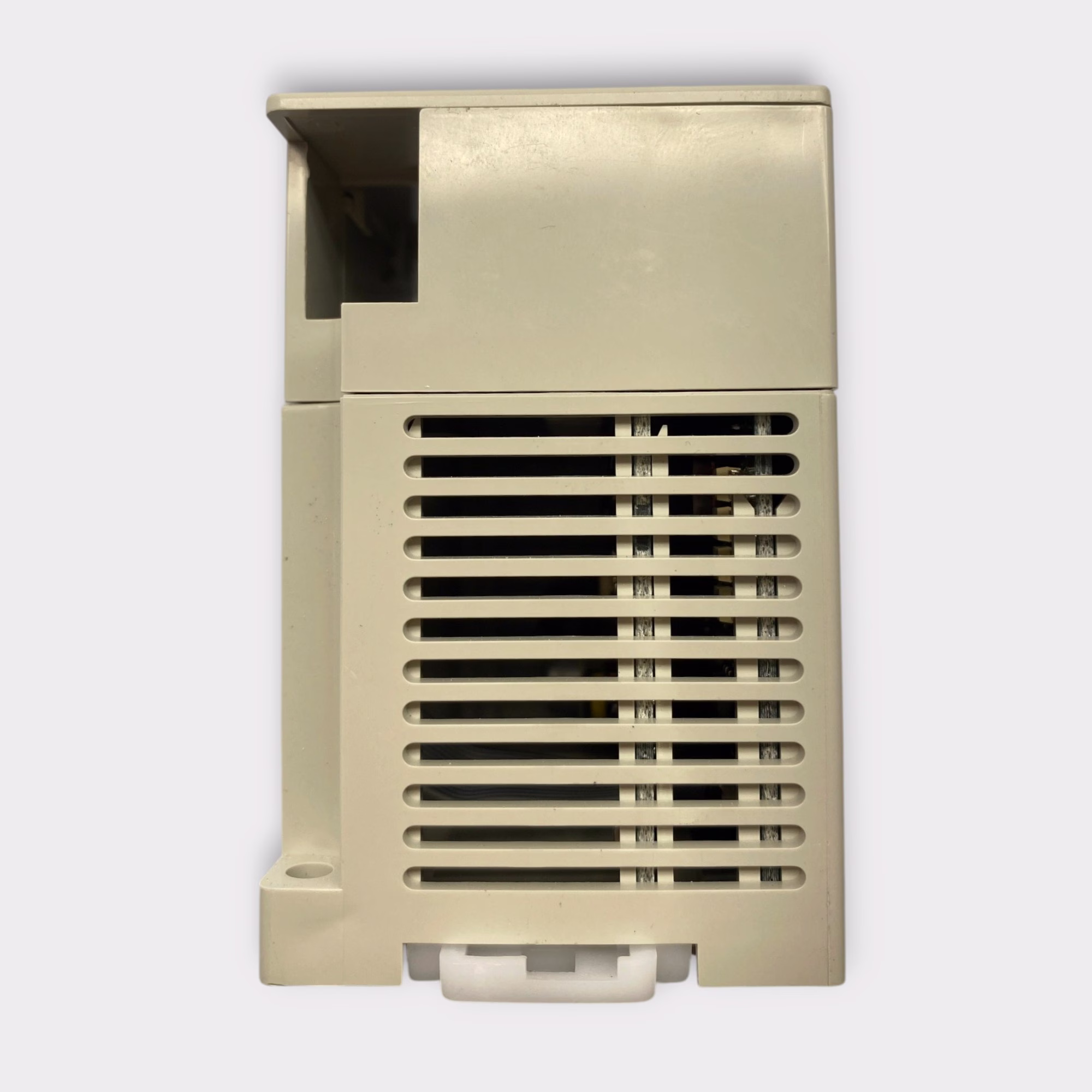

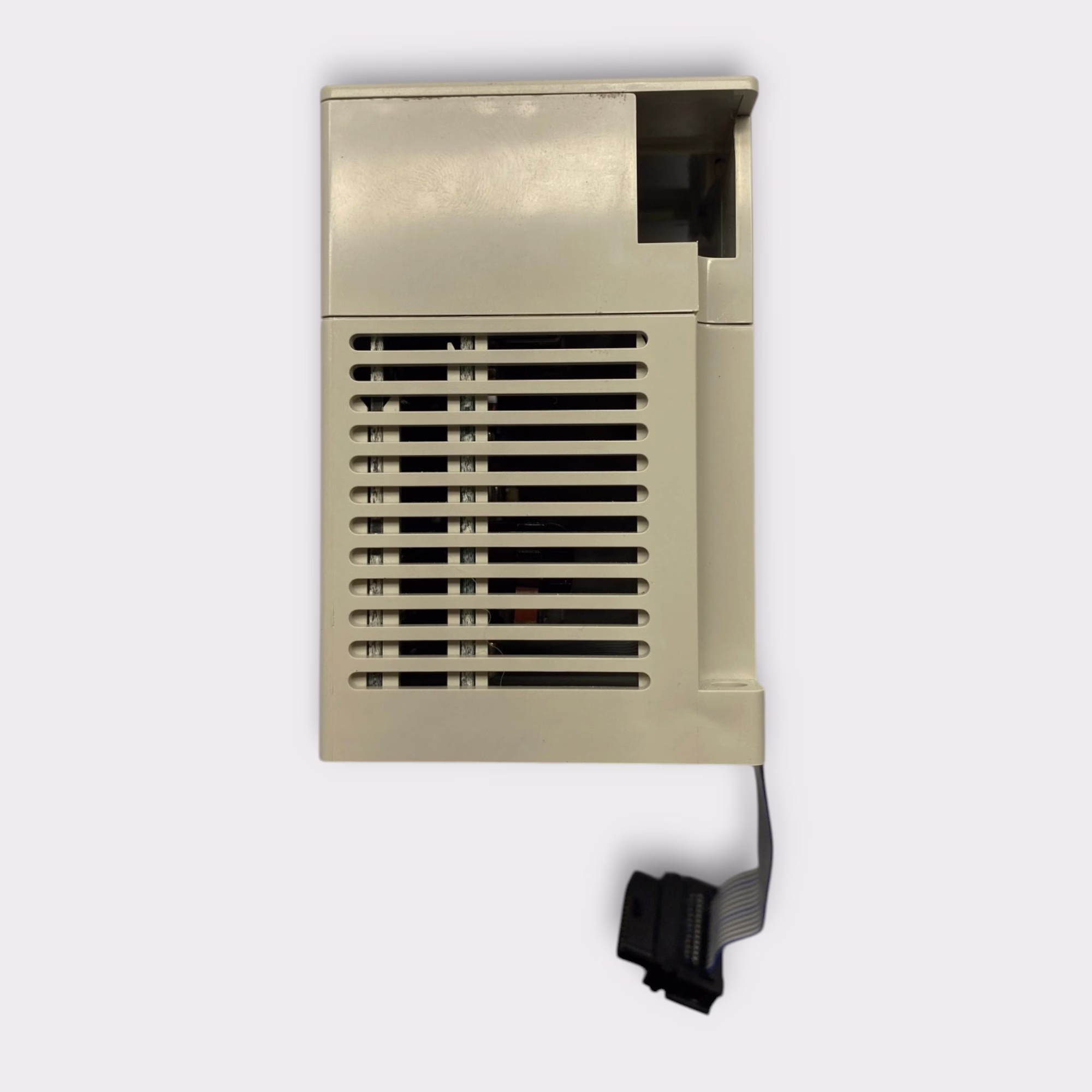

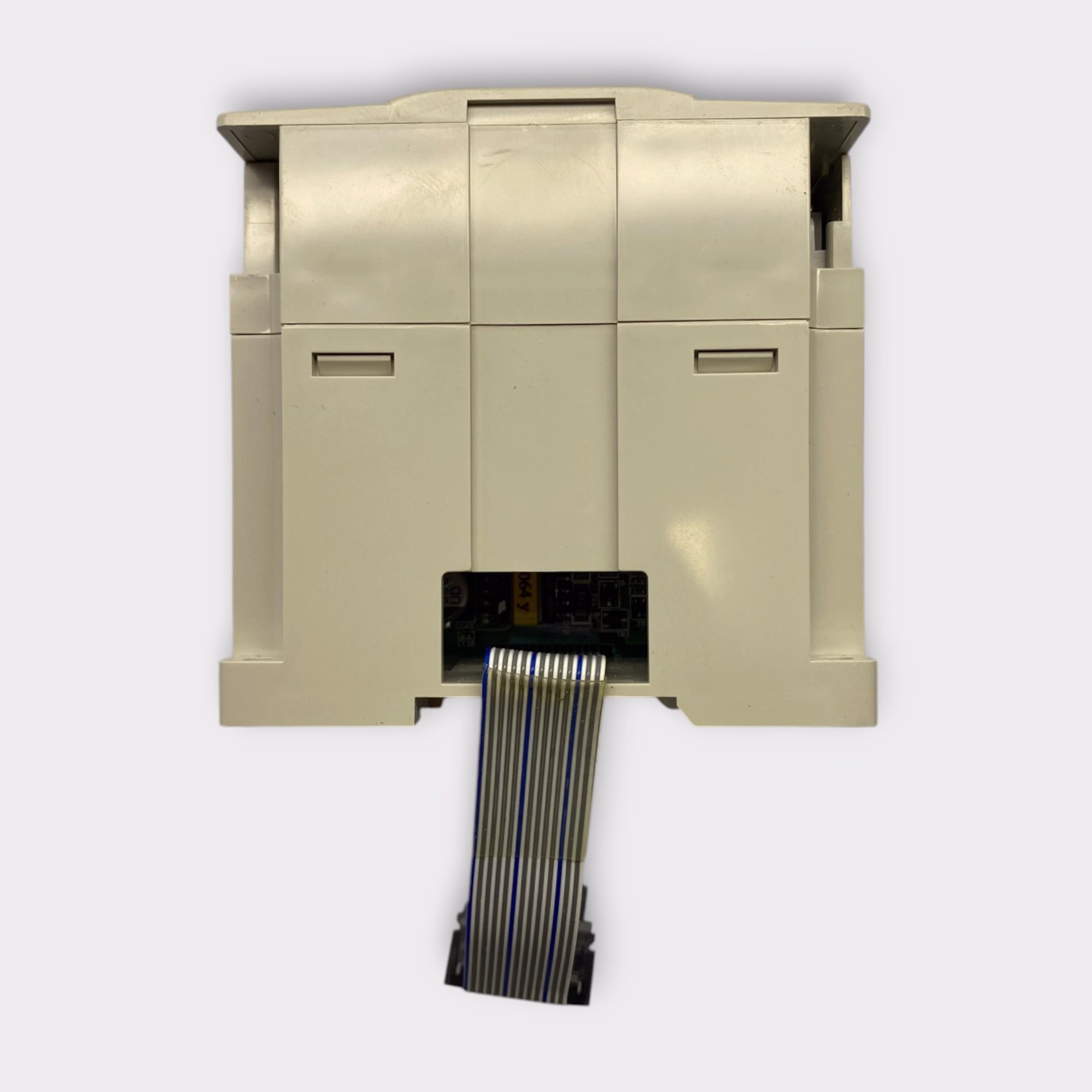

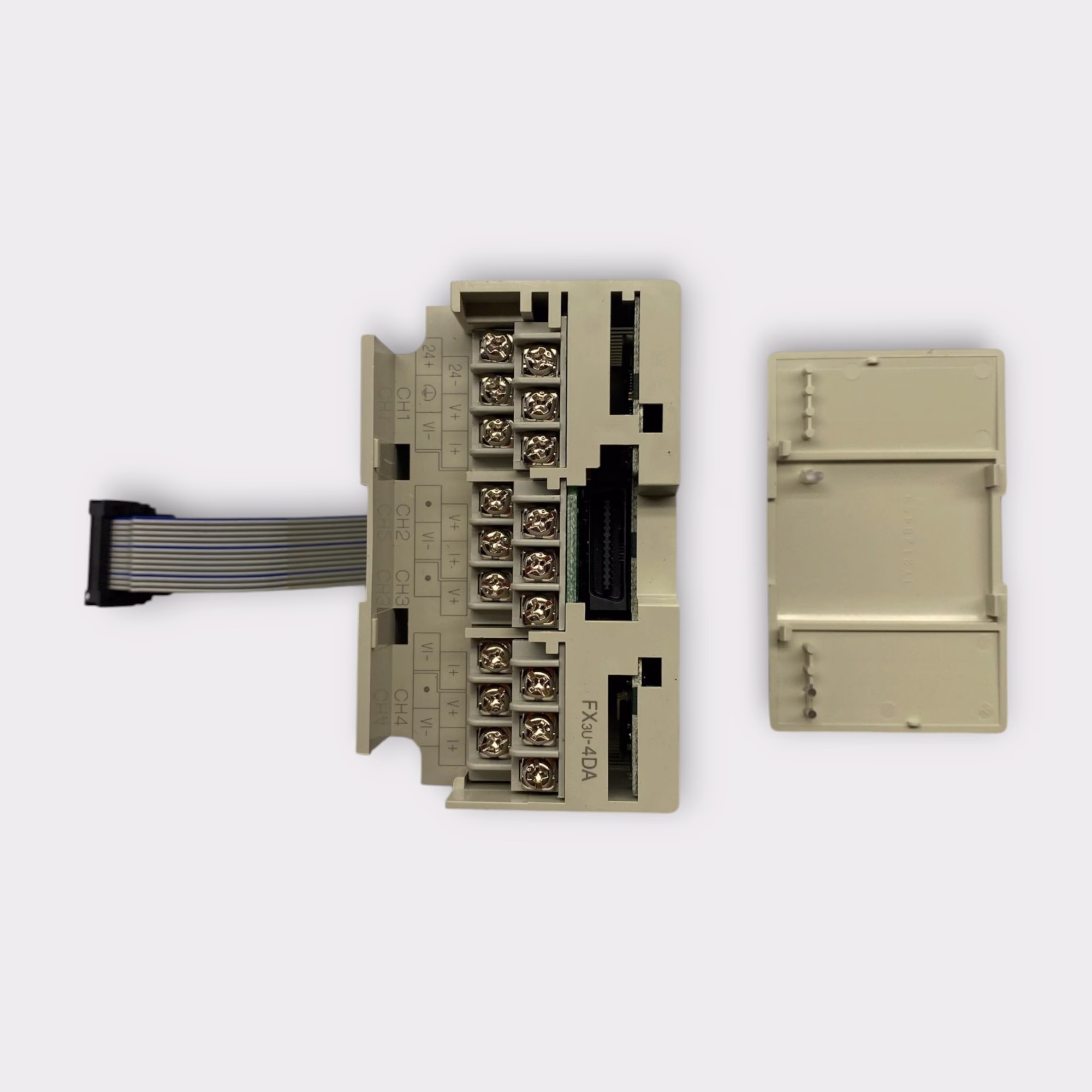

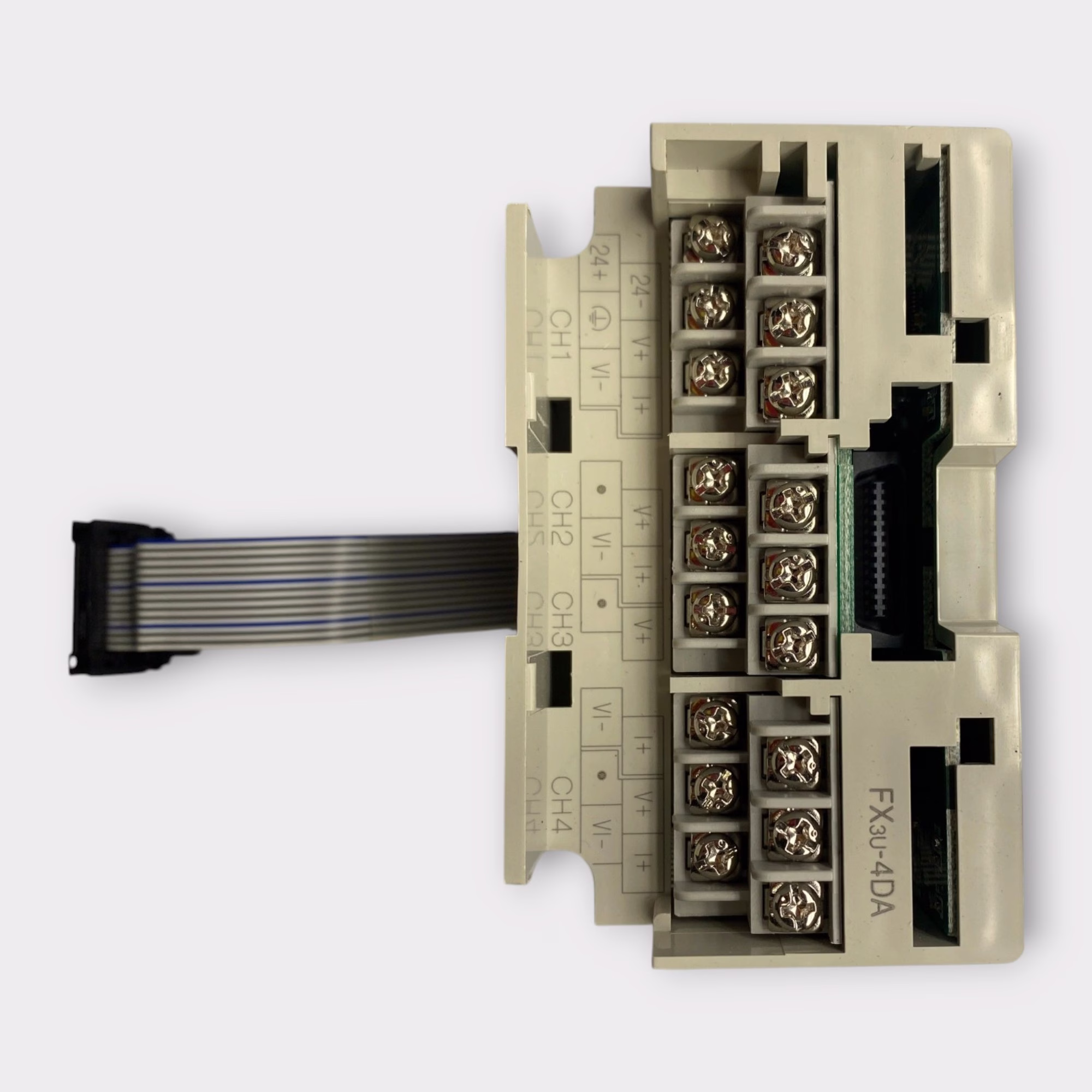

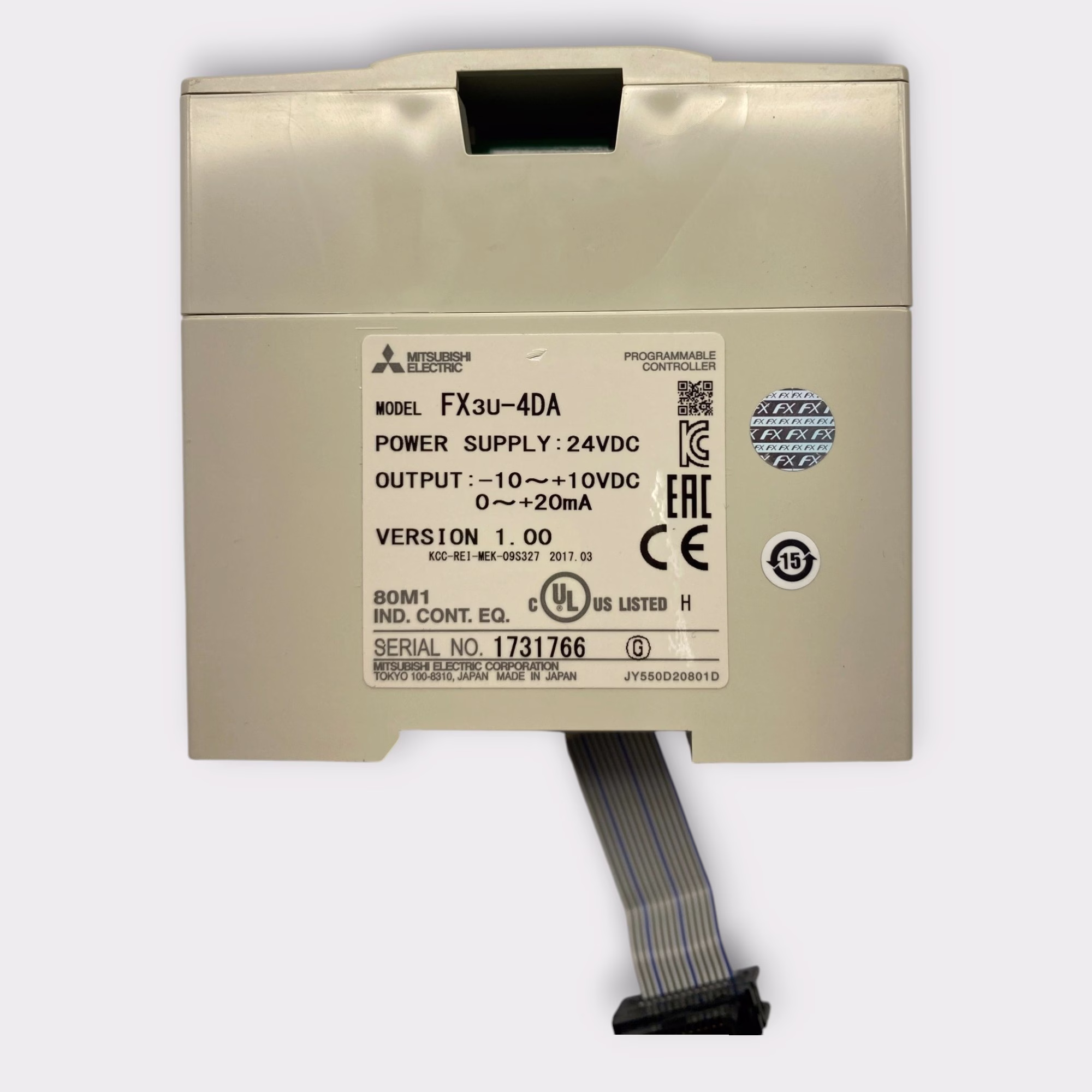

The Mitsubishi Electric FX3U-4DA is a 4-channel analog output block designed to convert digital PLC values into voltage or current analog output signals. Each of the four channels can be individually configured for voltage or current output.

The module supports -10 to +10VDC voltage output and 0 to 20mA or 4 to 20mA current output. Its integrated high-performance CPU converts all four analog signals in 1ms and provides high-resolution analog control for industrial automation applications.

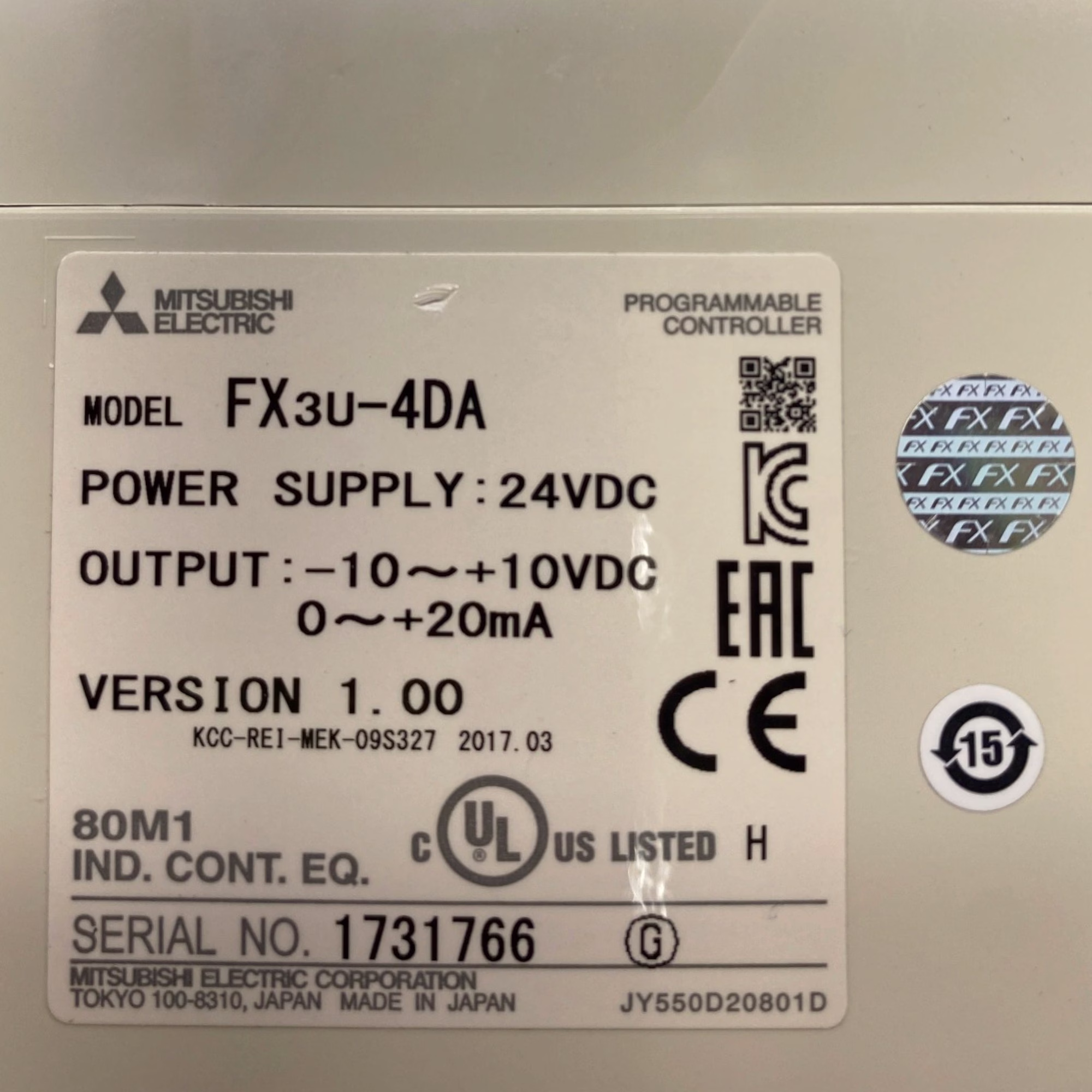

Product Information:

• Manufacturer - Mitsubishi Electric
• Model Number - FX3U-4DA
• Series - MELSEC FX3U
• MPN - FX3U-4DA
• Product Type - Analog Output Module
• Module Type - Digital-to-Analog (D/A) Conversion
• Analog Output Channels - 4
• Voltage Output Range - -10 to +10VDC
• Voltage Load Resistance - 1kΩ to 1MΩ
• Current Output Range - 0 to 20mA / 4 to 20mA DC
• Current Load Resistance - 500Ω or Less
• Output Selection - Voltage or Current Selectable Per Channel
• Voltage Digital Input - 15 Bit Binary + 1 Sign Bit
• Current Digital Input - 15 Bit Binary
• Voltage Resolution - 0.32mV
• Current Resolution - 0.63µA
• D/A Conversion Time - 1ms
• Overall Accuracy - ±0.3% to ±0.5% Full Scale
• Occupied I/O Points - 8
• Internal Power Supply - 5VDC / 120mA
• External Power Supply - 24VDC ±10% / 160mA
• Isolation - Photocoupler / DC-DC Converter
• Channel Isolation - Channels Not Isolated From Each Other
• Compatible PLC Series - FX3G / FX3GE / FX3GC / FX3U / FX3UC
• Dimensions - 55mm W x 90mm H x 87mm D
• Weight - 0.2 kg
• Conformance Standards - UL / cUL / CE / KC
• Application - Industrial Automation / Analog Output / Process Control
