Summary

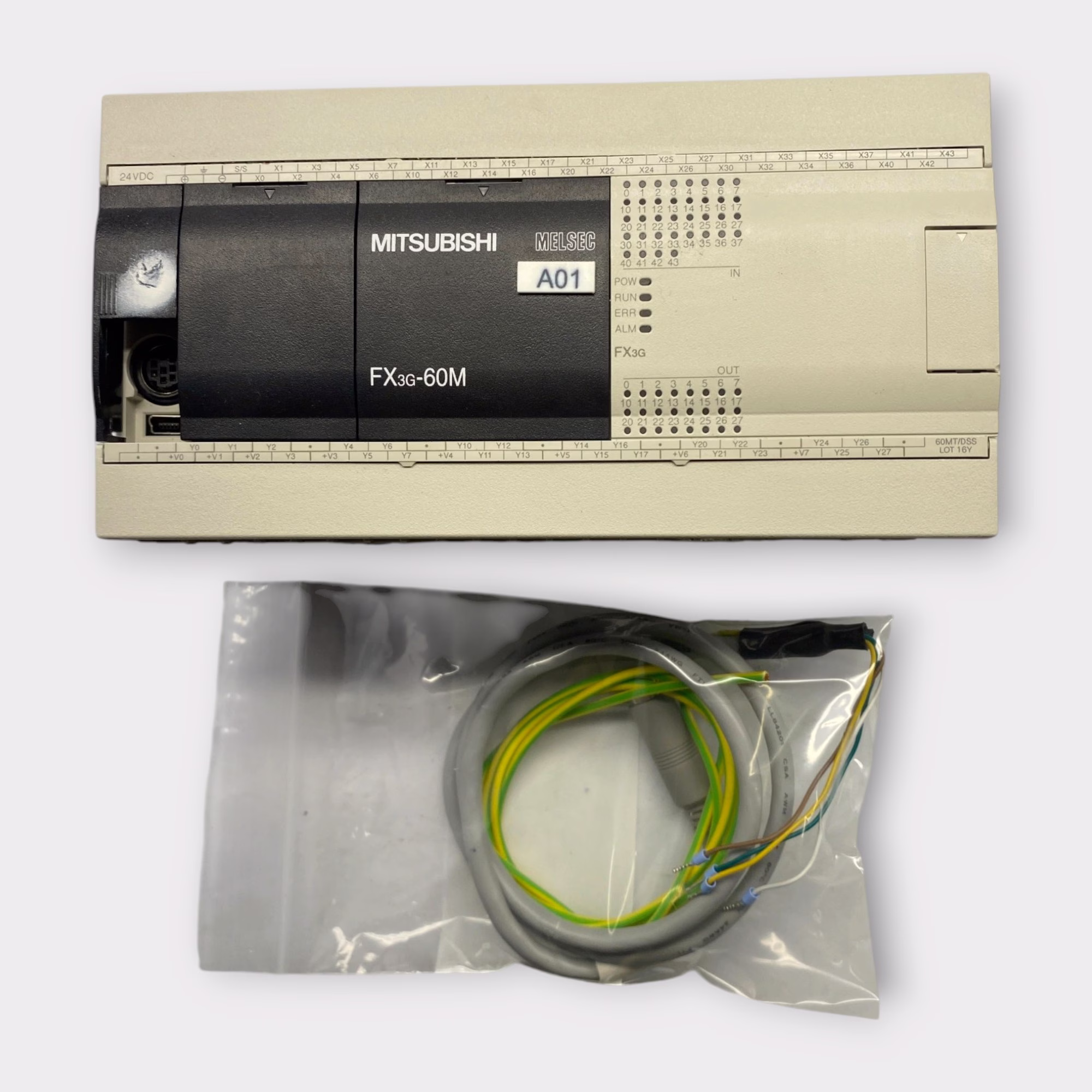

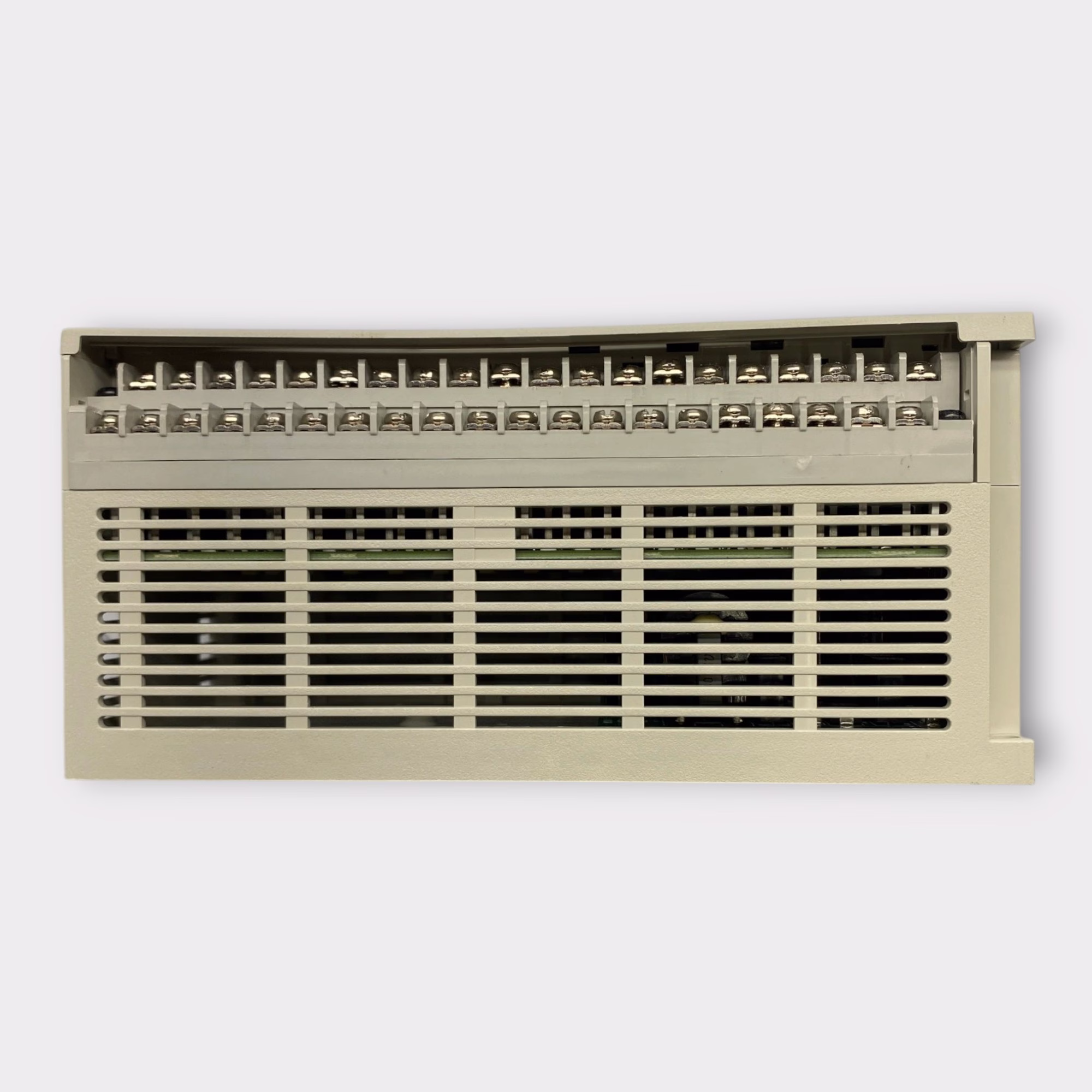

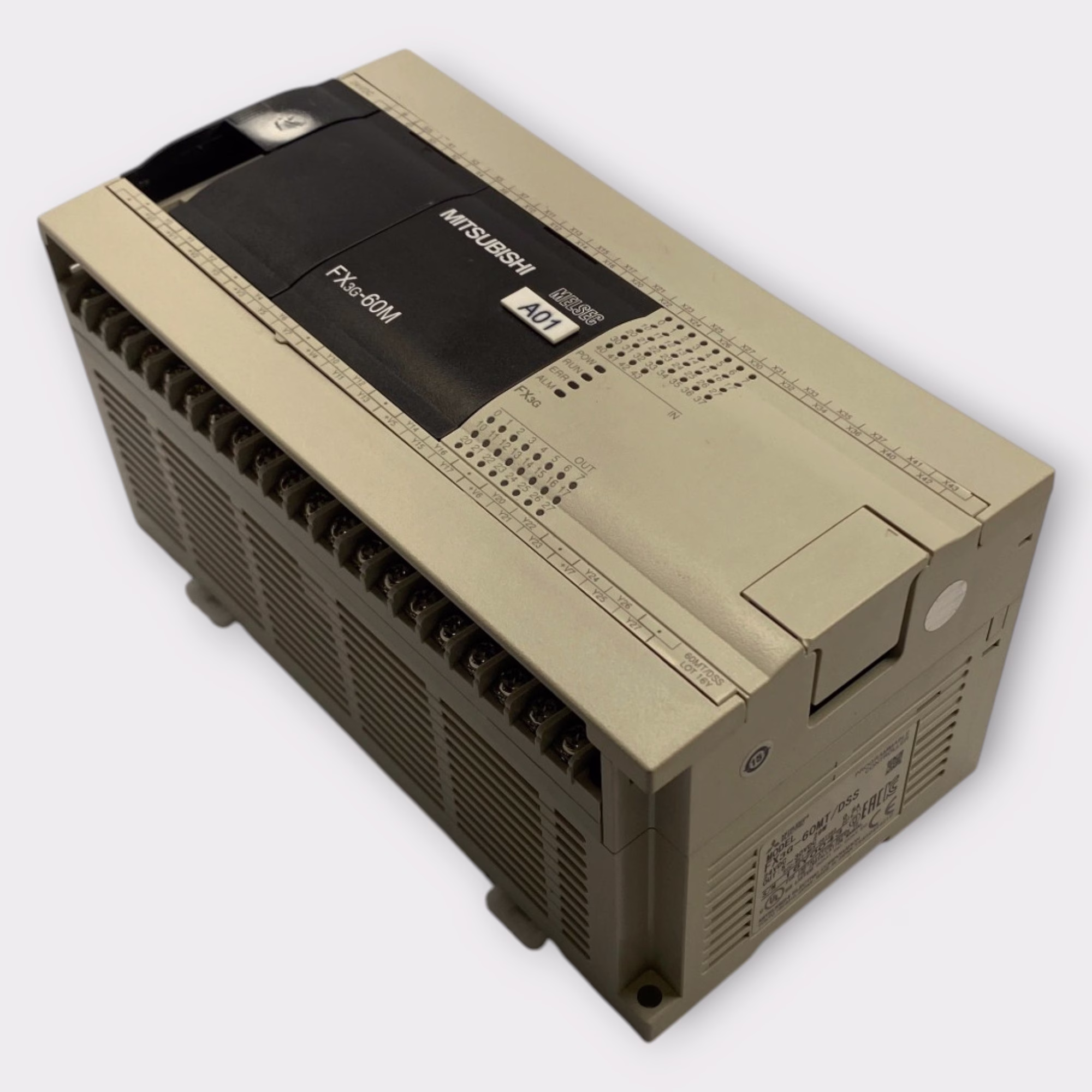

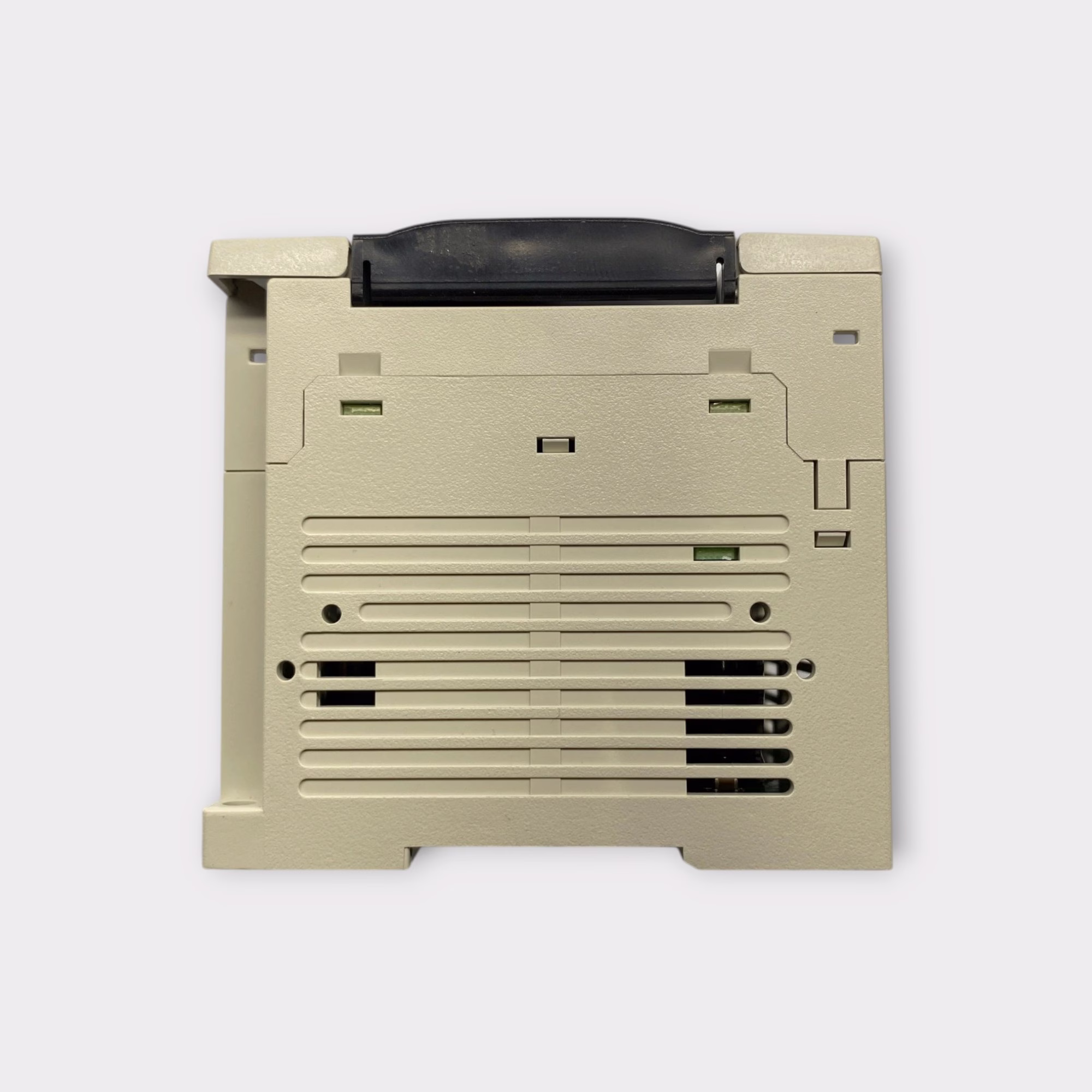

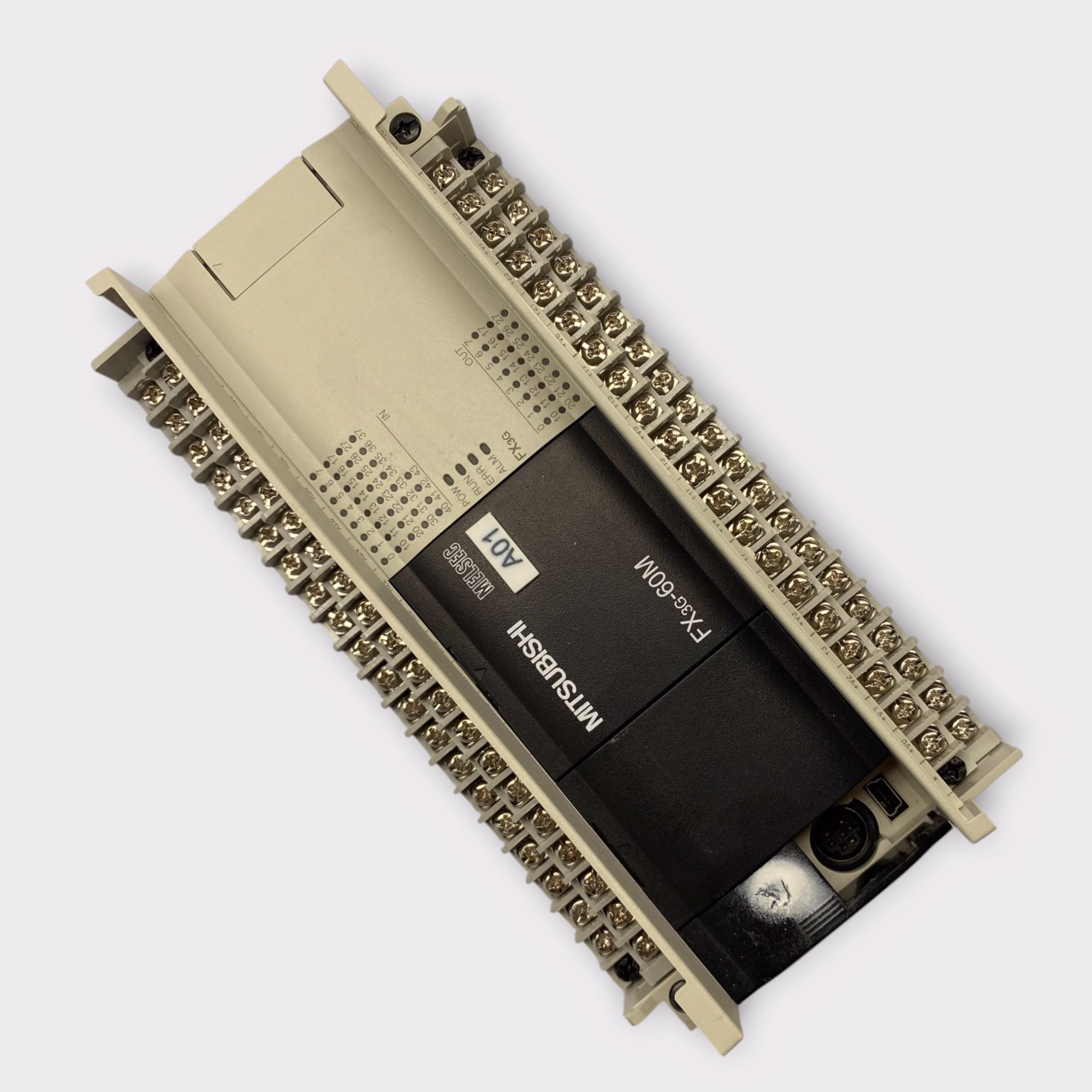

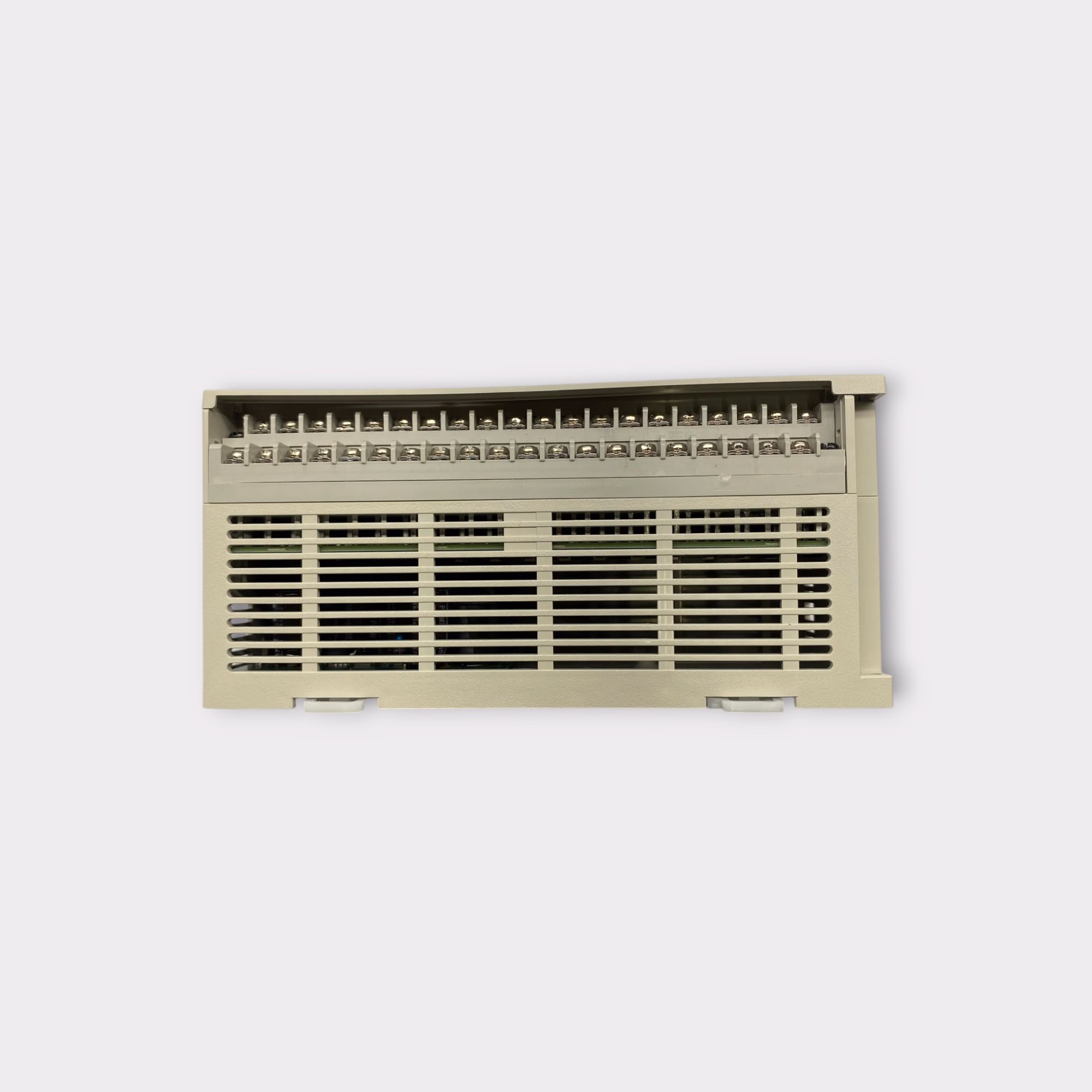

Mitsubishi Electric FX3G-60MT/DSS MELSEC FX3G programmable logic controller featuring 60 integrated I/O points, 24VDC power, 36 digital inputs, and 24 transistor source outputs. Designed for industrial machine control and automation applications.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

Product Description

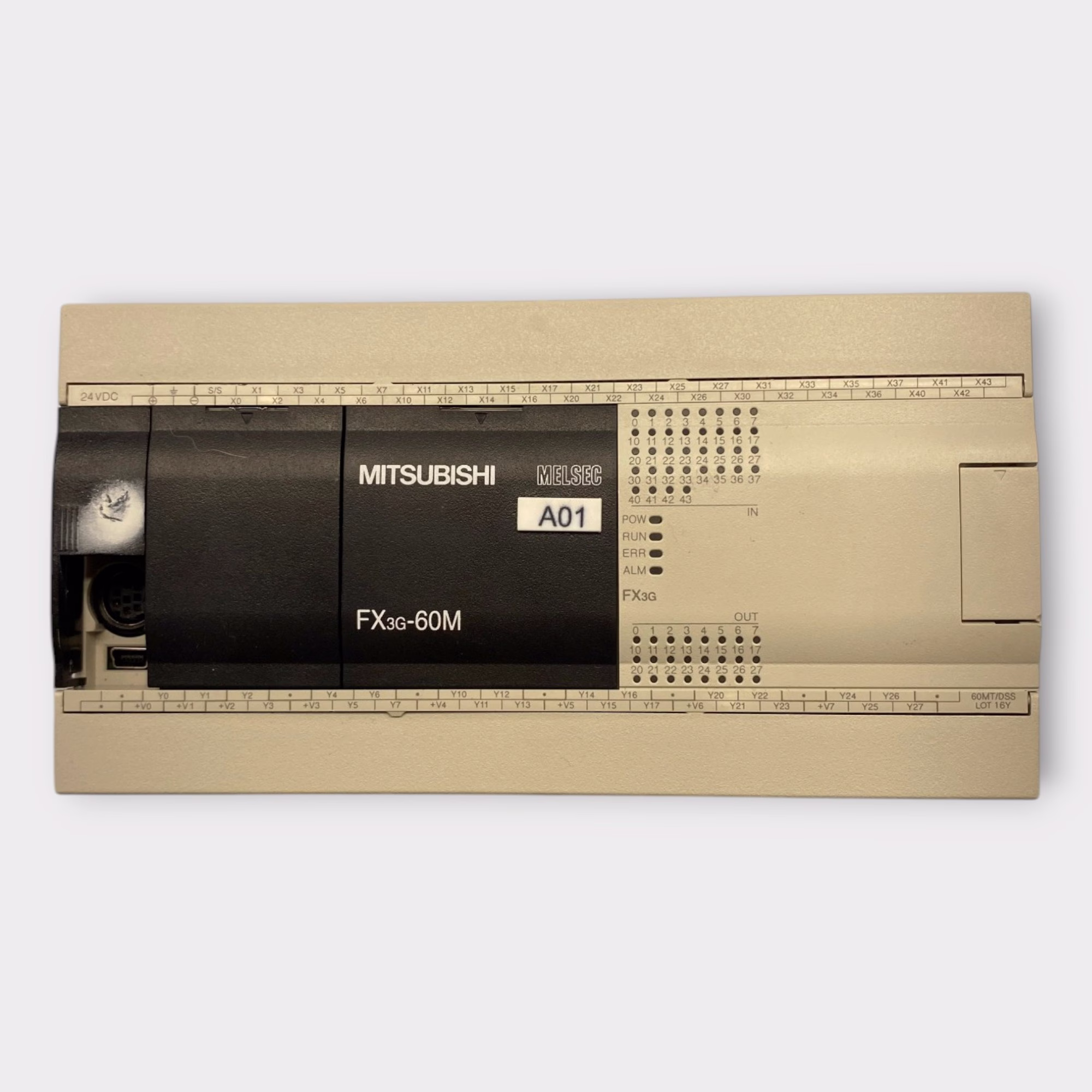

The Mitsubishi Electric FX3G-60MT/DSS is a MELSEC FX3G Series programmable logic controller with 60 integrated I/O points. It features 36 DC sink/source inputs and 24 transistor source outputs, with support for expansion modules and additional communication and analog control options.

Product Information:

- Manufacturer - Mitsubishi Electric

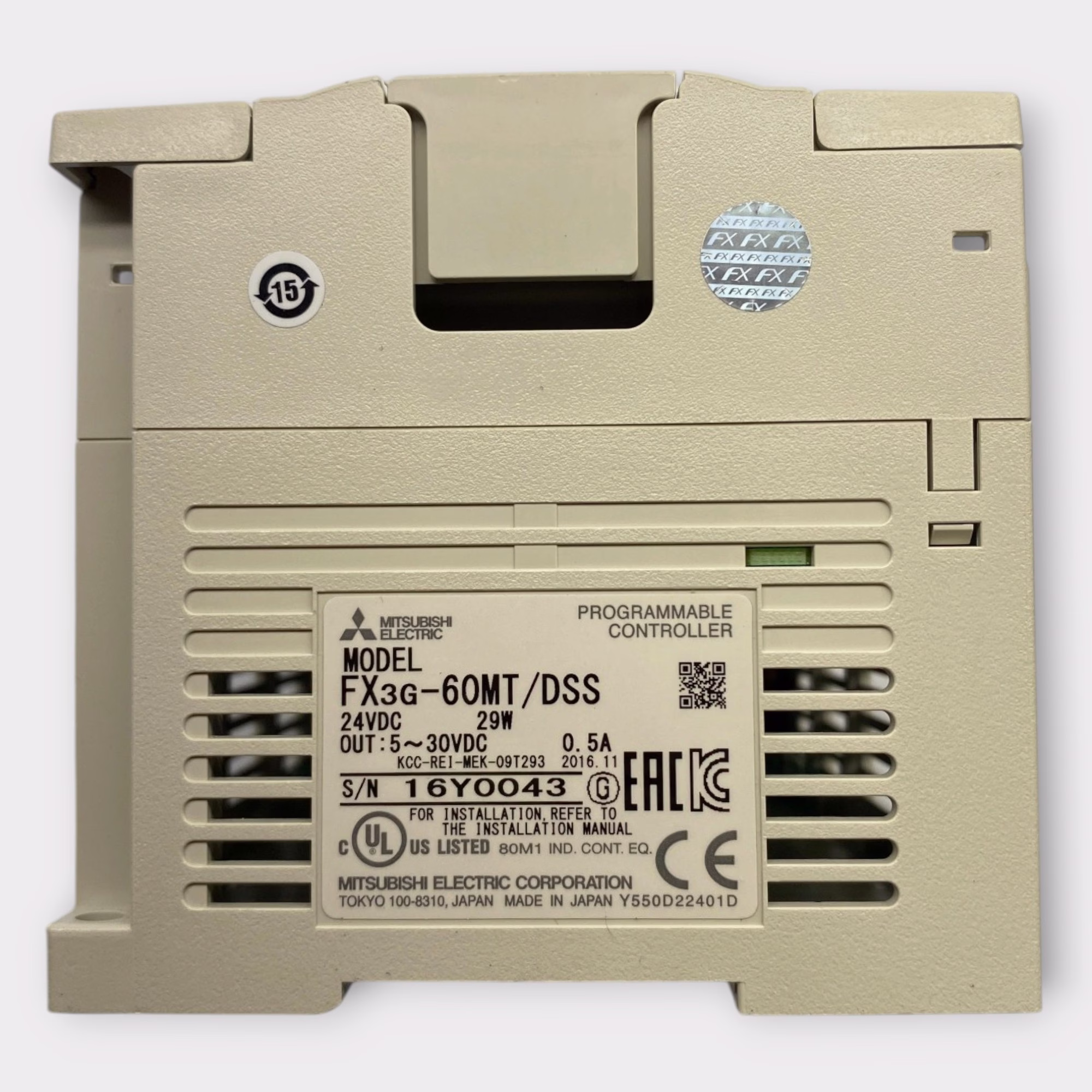

- Model Number - FX3G-60MT/DSS
- Series - MELSEC FX3G
- MPN - FX3G-60MT/DSS
- Product Type - Programmable Logic Controller (PLC)
- Total Integrated I/O - 60 Points
- Integrated Inputs - 36 Points
- Input Type - 24VDC Sink / Source
- Integrated Outputs - 24 Points
- Output Type - Transistor Source

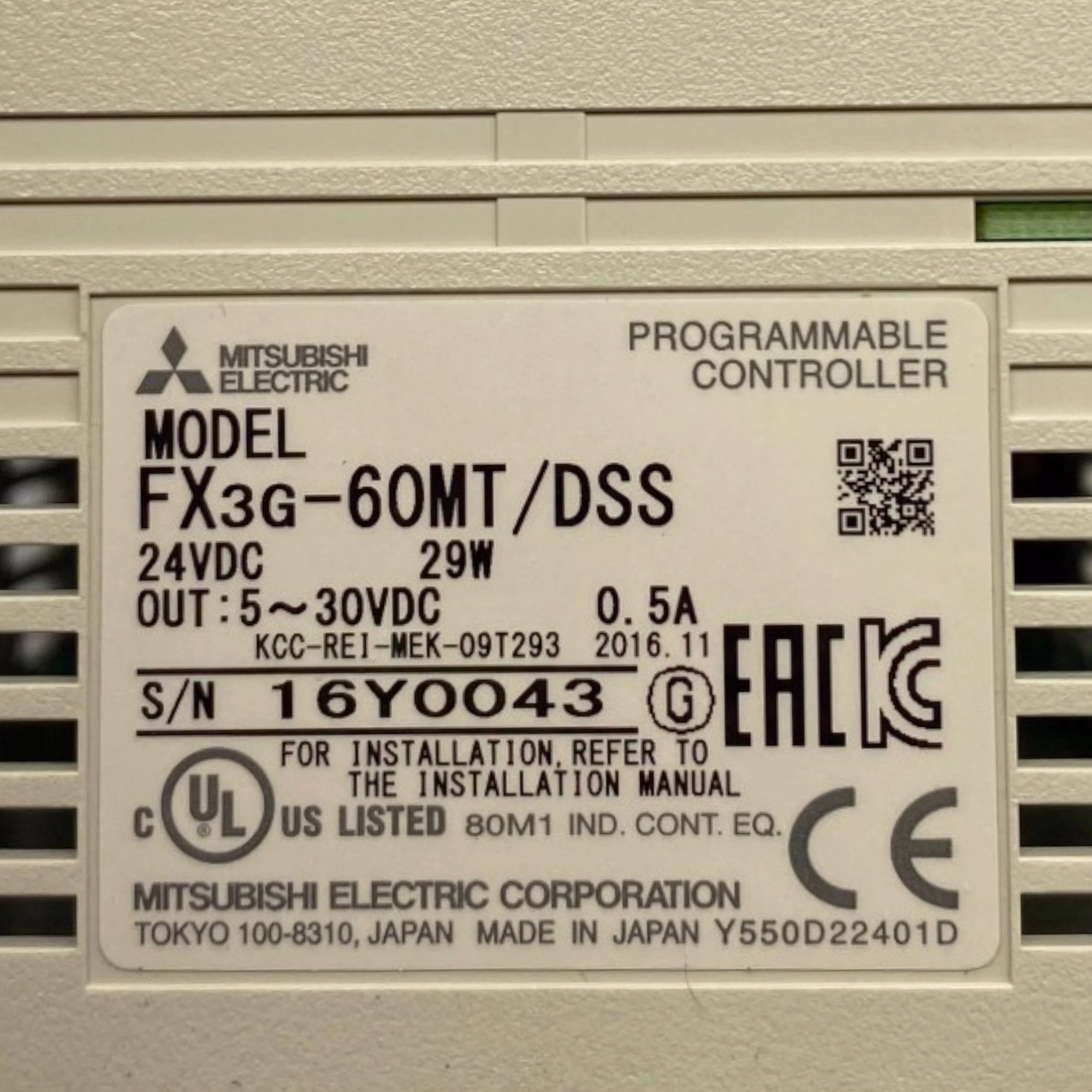

- Power Supply - 24VDC
- Power Consumption - 29W
- Output Voltage - 5–30VDC
- Output Current - 0.5A
- Controllable I/O - Up to 256 Points with Remote I/O
- Expansion Capability - Analog / Communication / I/O Expansion

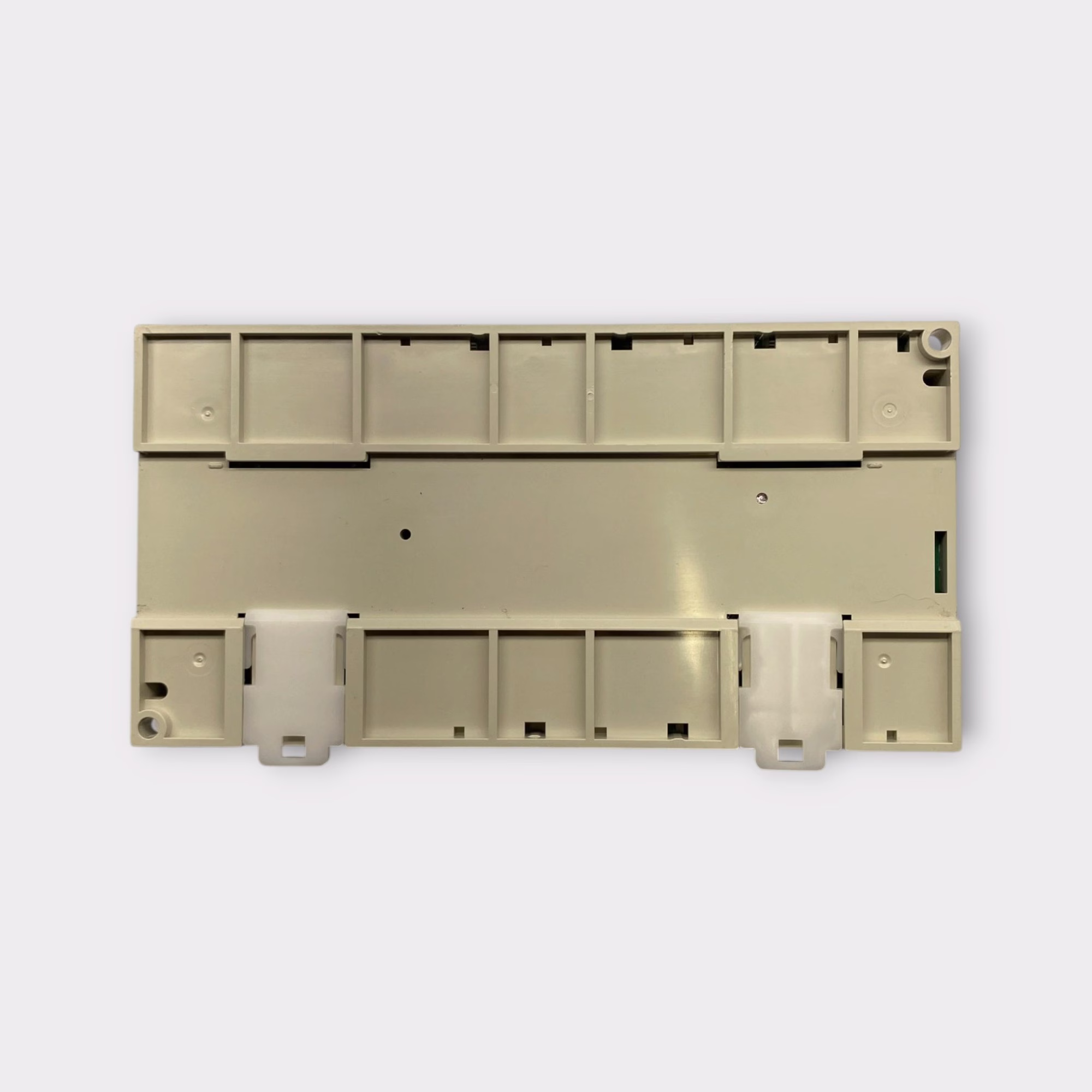

- Mounting - DIN Rail / Direct Mount
- Width - 175mm
- Height - 90mm
- Depth - 86mm
- Weight - Approx. 0.85 kg
- Certifications - UL / cUL / CE / KC
- Marine Approvals - LR / NK / DNV / ABS / RINA / BV / KR
- Manufacturing Date Marking - 2016.11
- Country of Origin - Japan
