Manufacturer: Browning
Model Number: BR-200
Listed Item Condition: New
Additional Notes: Browning BR-200 is a low loss braided 0.195 inch diameter coaxial cable designed for standard RG-58 crimp connectors. Great for antenna projects!

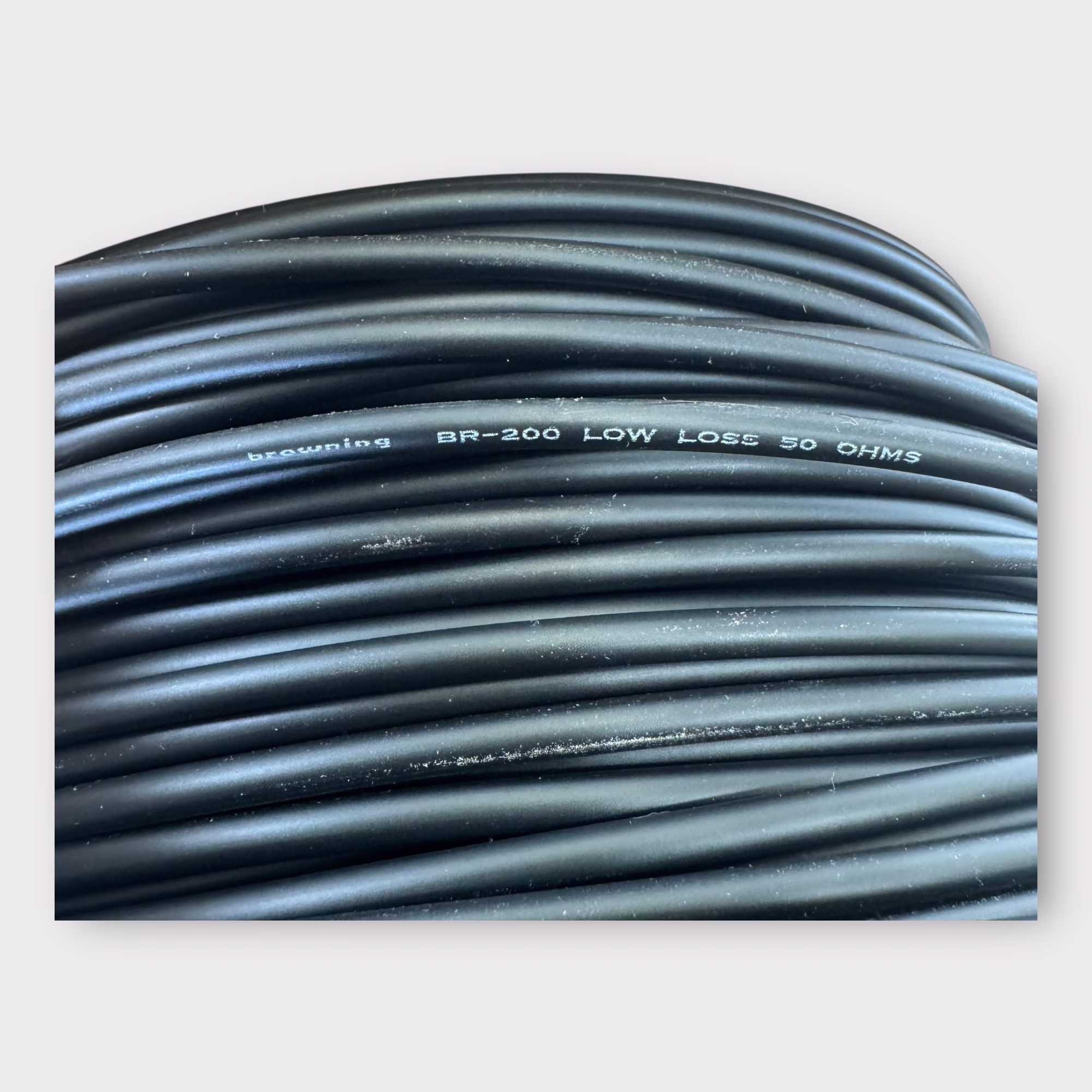

Browning Low Loss BR-200 Cable
-Braided 0.195 inch (4.95mm) diameter coaxial cable
-Low loss RG-58 type
-High velocity gas-injected foam polyethylene dielectric – 83%
-Double shield coverage—95% tinned copper braid plus bonded aluminum tape
-Solid bare 1.12mm copper center conductor
-Black UV resistant polyethylene jacket
-50 ohms
-Use standard RG-58 crimp connectors
Electrical Specifications
-Maximum frequency – 16.2 GHz
-Velocity of propagation – 83%
-DC breakdown – 1000 Volts
-Peak power rating – 2.5kW
-DC resistance, inner conductor (ohms) -5.36/1000′
-DC resistance, outer conductor (ohms) – 4.90/1000′
-Jacket spark-volts RMS – 3,000
-Impedence – 50 Ohms
-Capacitance – 25.55 pF/ft.
-Inductance – 0.061 uH/ft.
-Shielding effectiveness – >90 dB
What’s Included:

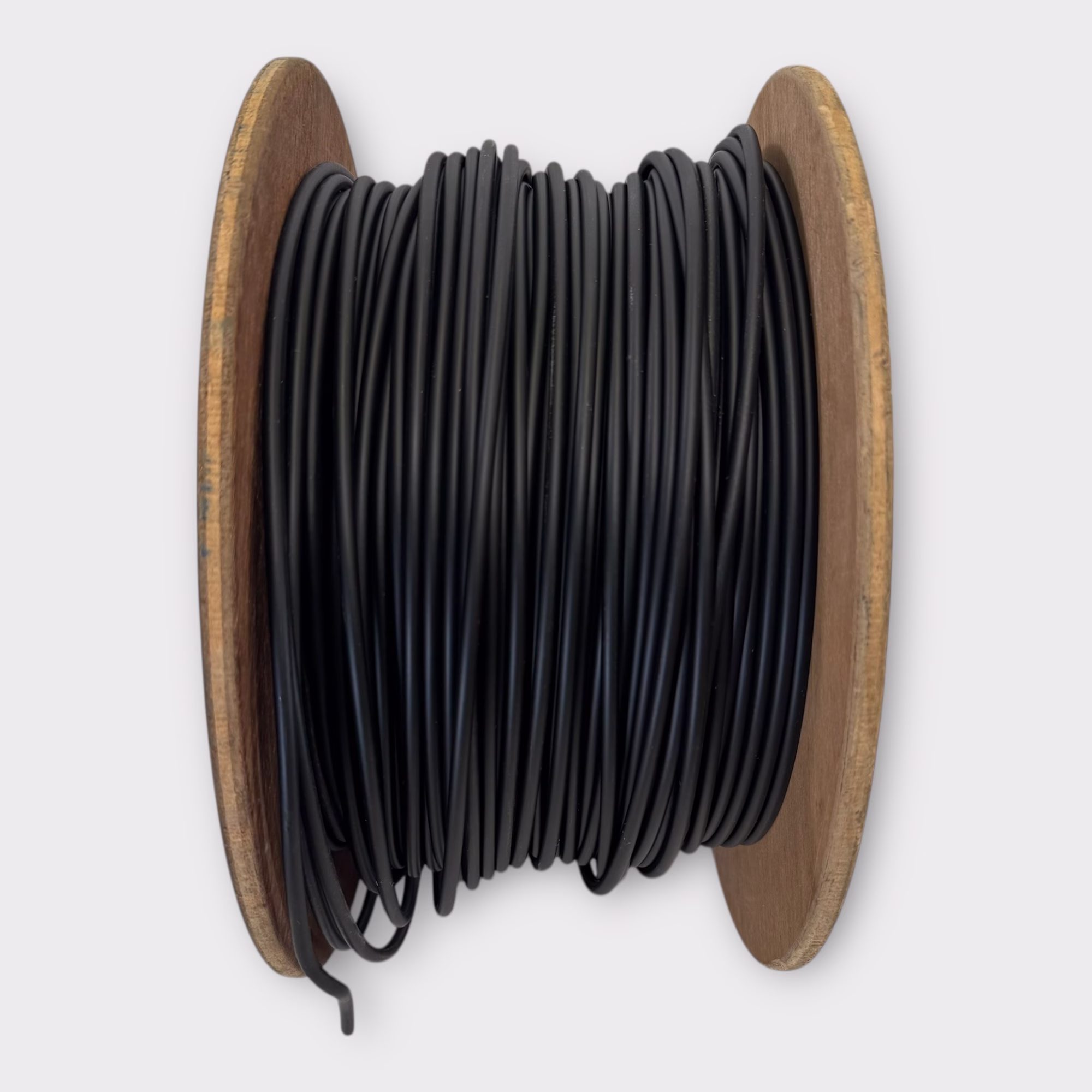

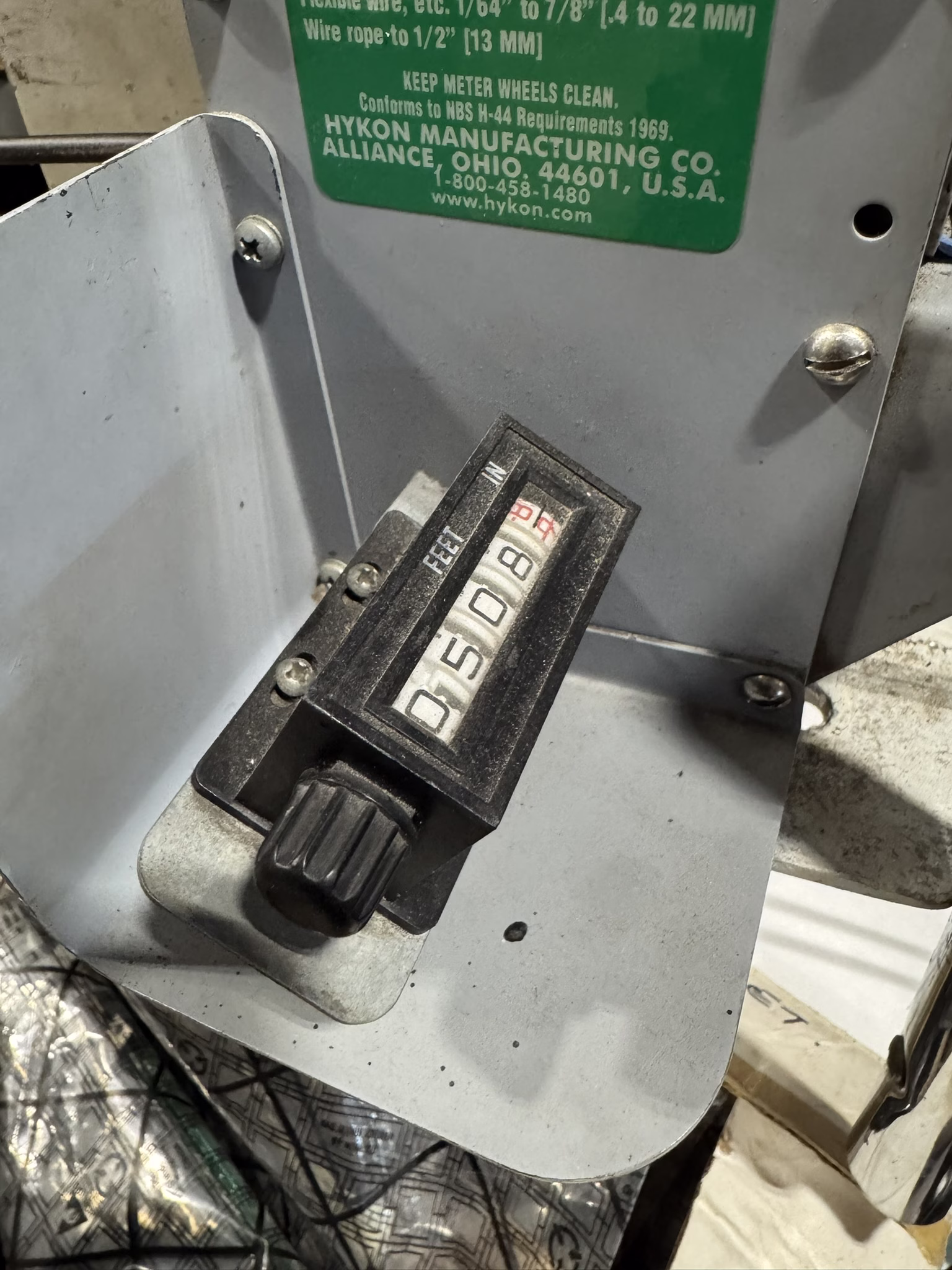

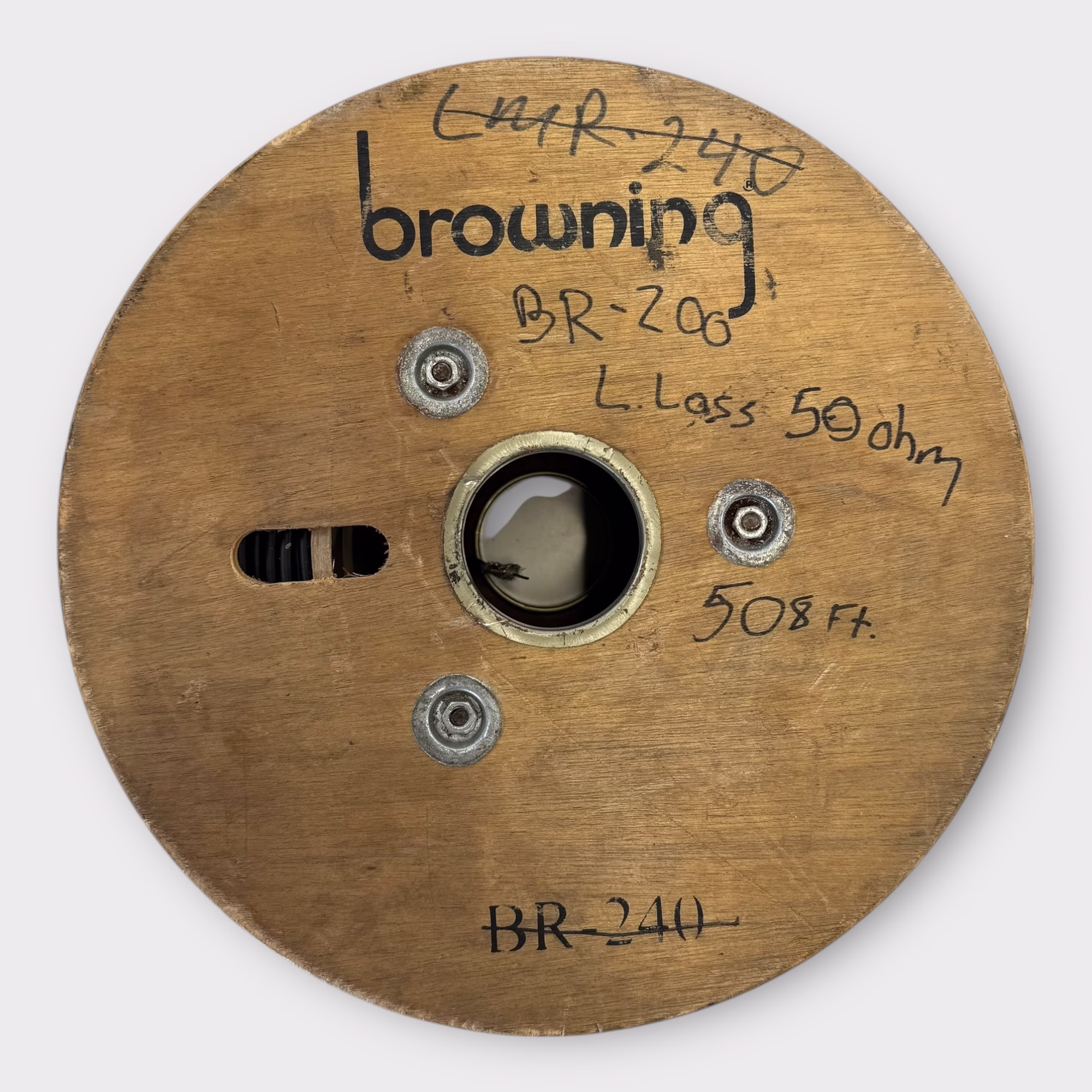

- 508′ Browning BR-200
Dimensions (L x W x H): 12 x 12 x 12 in, Weight: 7 lbs
