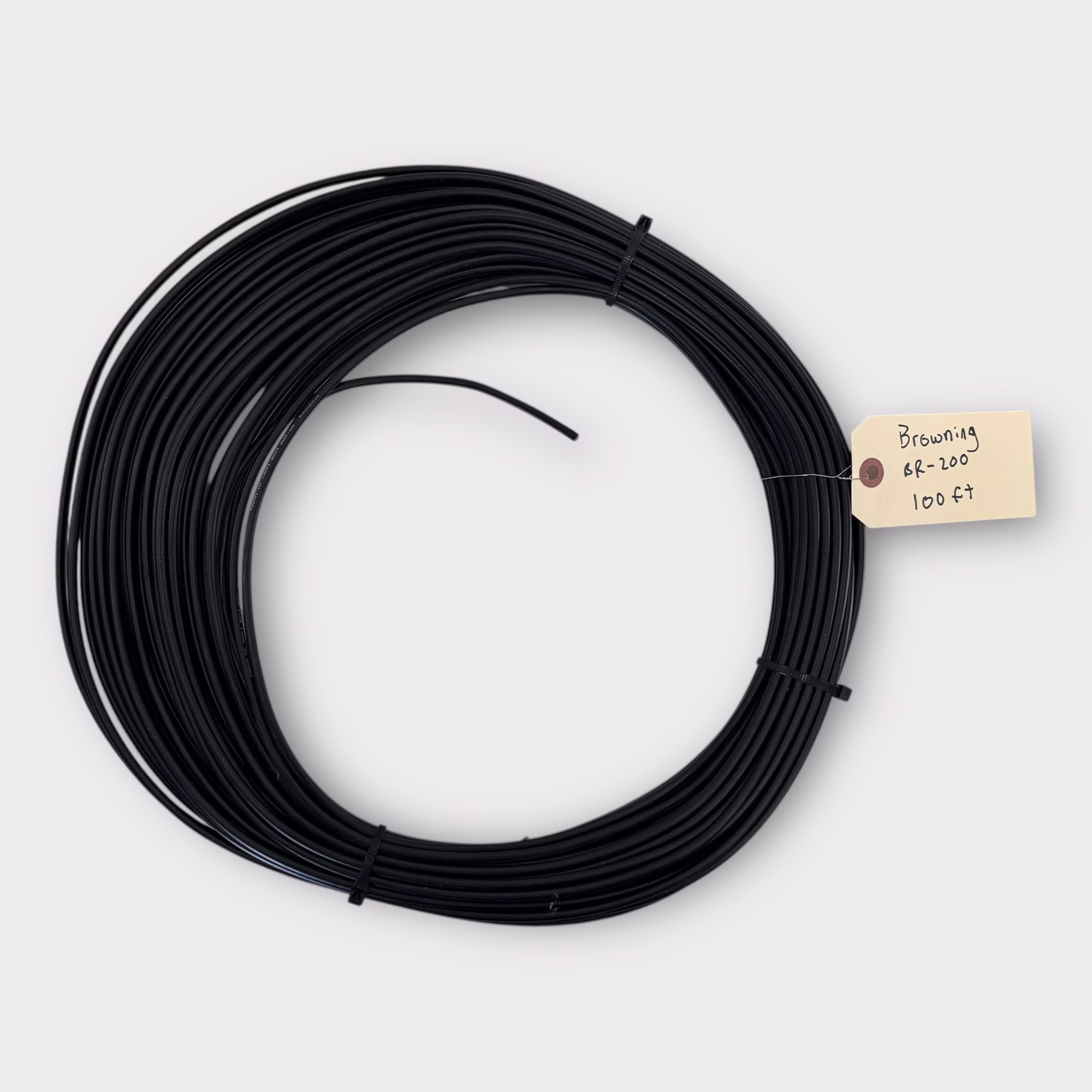

Browning 100′ BR-200 Coaxial Low Loss RF .195″ Antenna Cable Braided Shield

Original price was: $29.99.Current price is: $26.99.

This item is new and has never been used. It may be unused in its original packaging, be old stock, new open-box, new out of box, or never installed. Packaging might be missing, opened, or show minor damage. The item is fully functional and includes all accessories shown in the listing and images, unless otherwise noted.
SKU: 770642
  • Free Shipping Lower 48

    Free Shipping Lower 48

  • 30-Day Returns

    30-Day Returns

  • 90-Day Warranty

    90-Day Warranty

Manufacturer:

Model Number: BR-200

Listed Item Condition: New/New Other

Product Details:

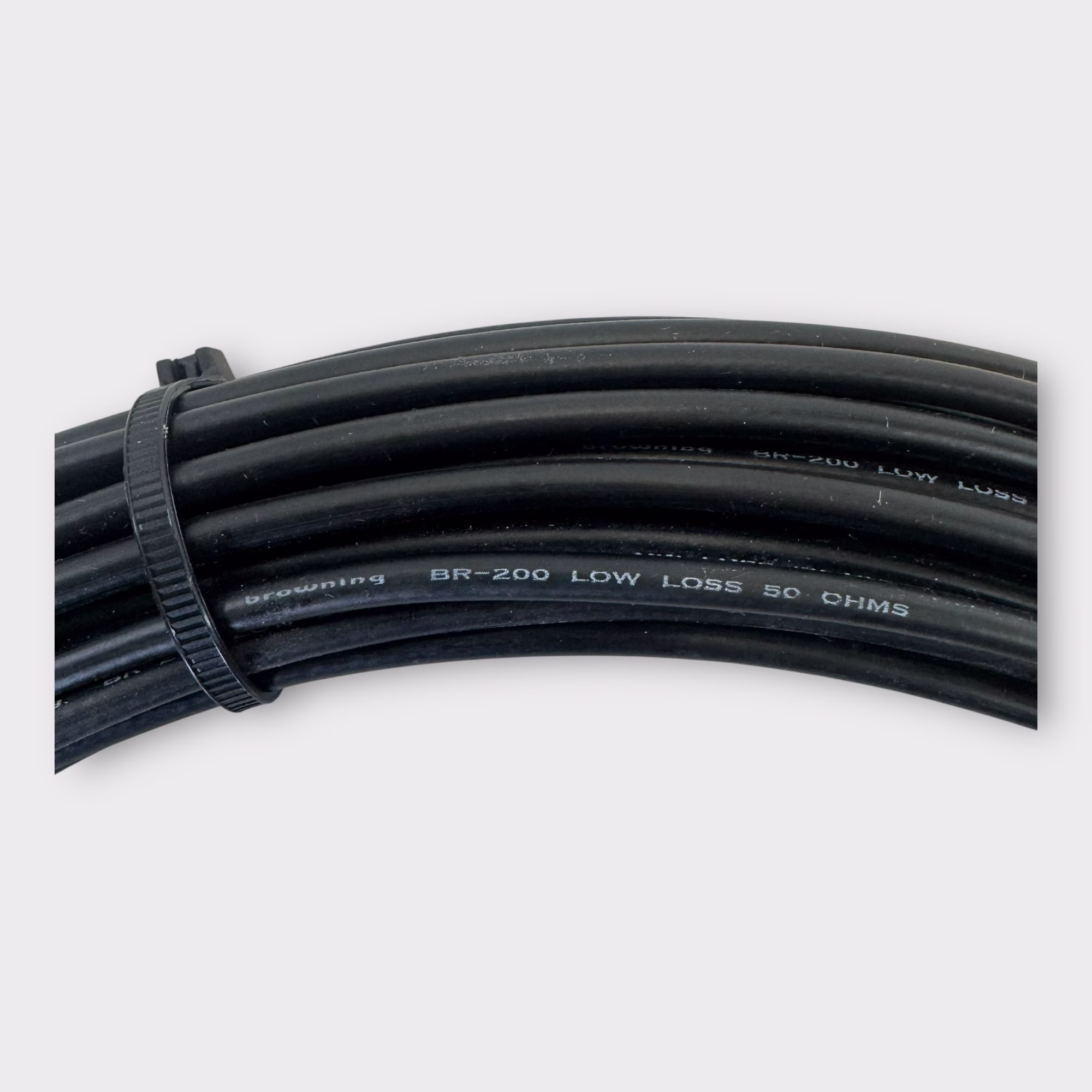

Browning BR-200 is a low loss braided 0.195 inch diameter coaxial cable designed for standard RG-58 crimp connectors. Great for antenna projects!

Browning Low Loss BR-200 Cable
-Braided 0.195 inch (4.95mm) diameter coaxial cable
-Low loss RG-58 type
-High velocity gas-injected foam polyethylene dielectric - 83%
-Double shield coverage—95% tinned copper braid plus bonded aluminum tape
-Solid bare 1.12mm copper center conductor
-Black UV resistant polyethylene jacket
-50 ohms
-Use standard RG-58 crimp connectors

Electrical Specifications
-Maximum frequency - 16.2 GHz
-Velocity of propagation - 83%
-DC breakdown - 1000 Volts
-Peak power rating - 2.5kW
-DC resistance, inner conductor (ohms) -5.36/1000'
-DC resistance, outer conductor (ohms) - 4.90/1000'
-Jacket spark-volts RMS - 3,000
-Impedence - 50 Ohms
-Capacitance - 25.55 pF/ft.
-Inductance - 0.061 uH/ft.
-Shielding effectiveness - >90 dB

What's Included:

  • 100' Browning BR-200

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty

Dimensions: 12 × 12 × 3 in, Weight: 3 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout. Please be advised if the item is large or is a multi-piece shipment, shipping quotes may be inaccurate due to restrictions outside of our control, in those instances you will be contacted promptly.

Terms:

All items sold at Max Marine Electronics come as you see in the pictures provided, with only the parts and accessories stated in the description section named “What’s Included”. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE DESCRIPTION WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times when a display is used only to show the item being sold is functional and working properly. In this case, these displays are not included. If you have any questions feel free to reach out to Max Marine Electronics. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.

***PLEASE NOTE***Buyers outside the contiguous United States:
We strive to provide accurate shipping quotes at checkout. However, for satellites, radars, large items, or multi-piece shipments, system and carrier limitations may sometimes result in incorrect estimates. If this happens with your order, our team will reach out to you right away to ensure you receive the best possible shipping solution. Your satisfaction is our priority!
