This module is in good condition with minor signs of installation, but nothing that affects the functionality.

It was removed from a testing environment and performed as intended before the setup was taken apart.

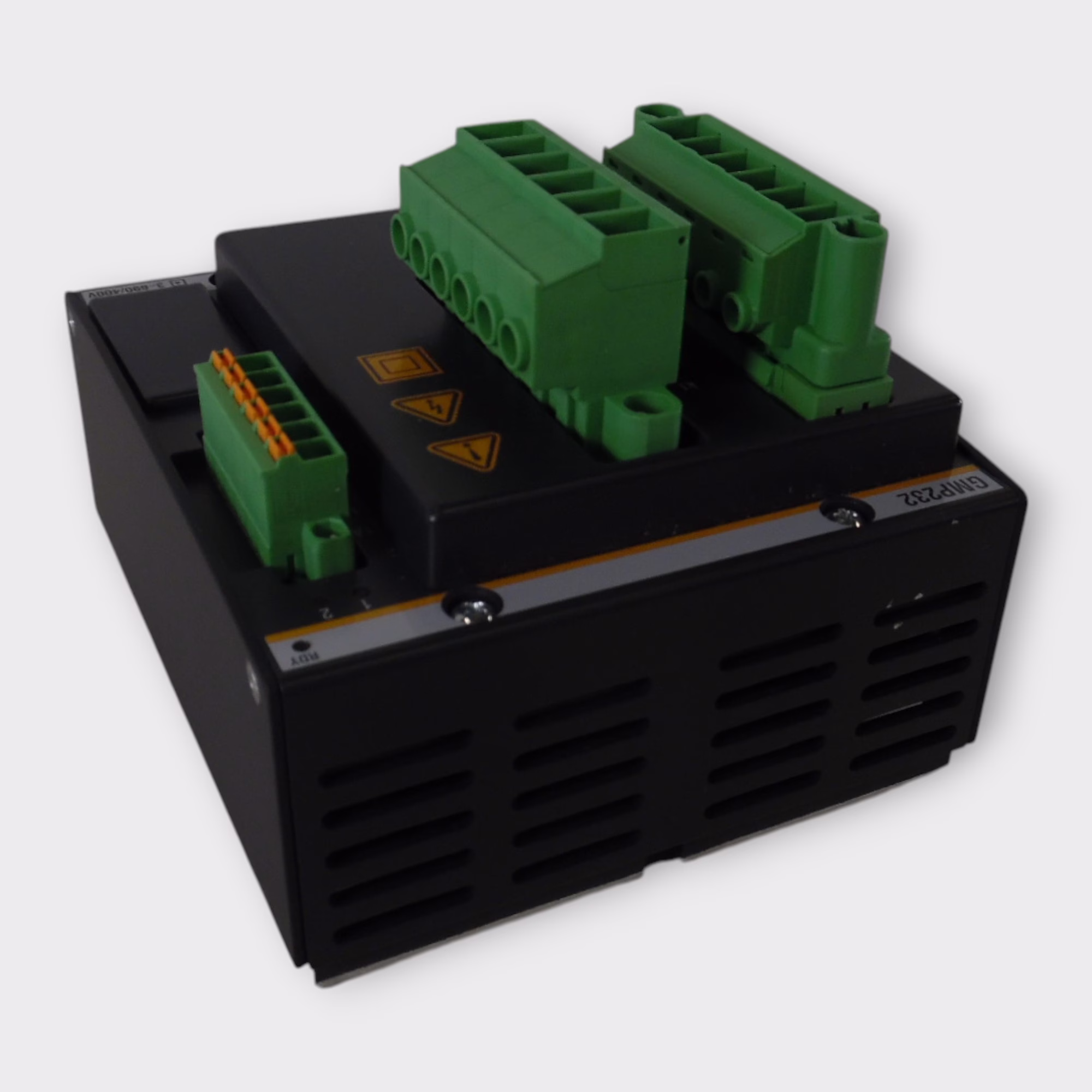

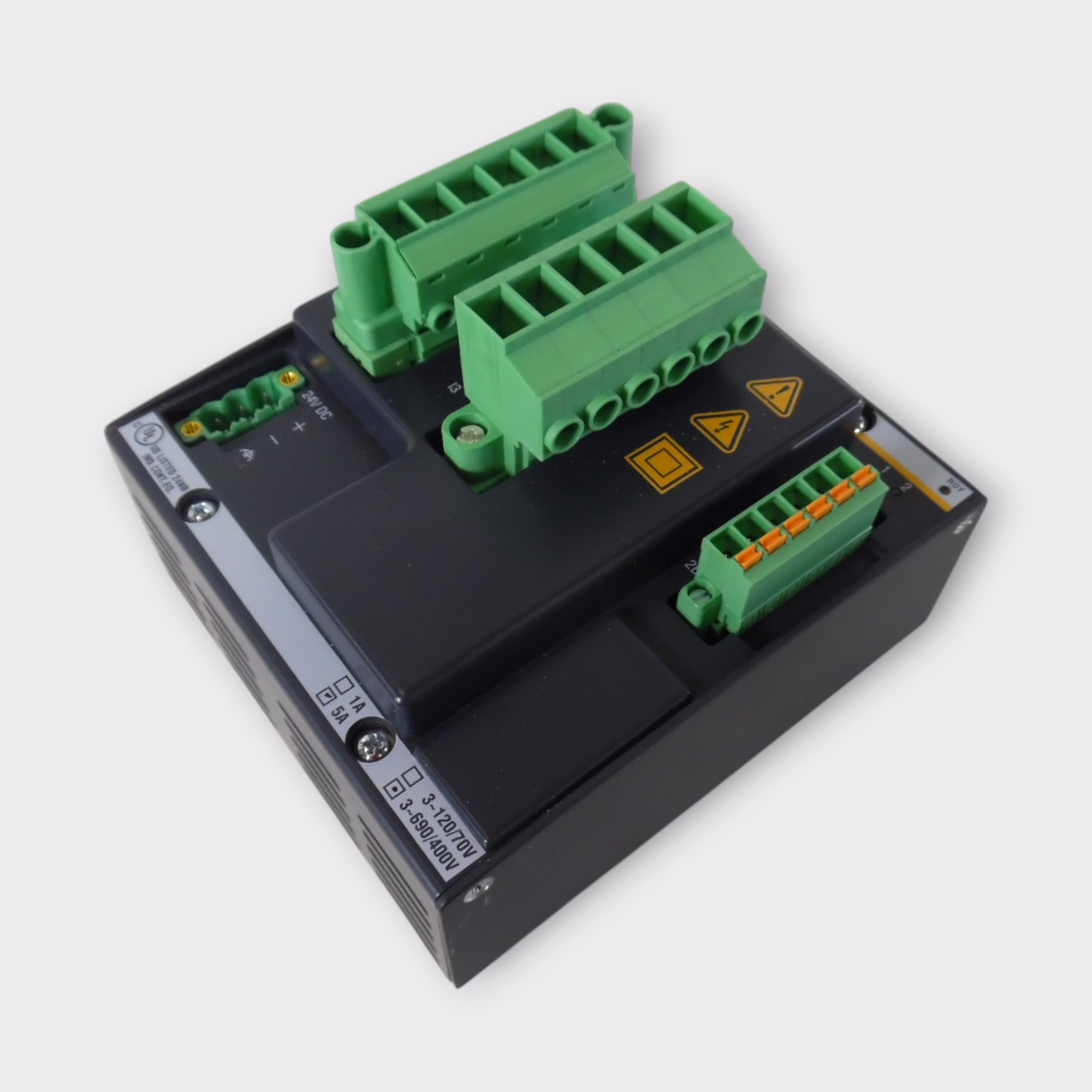

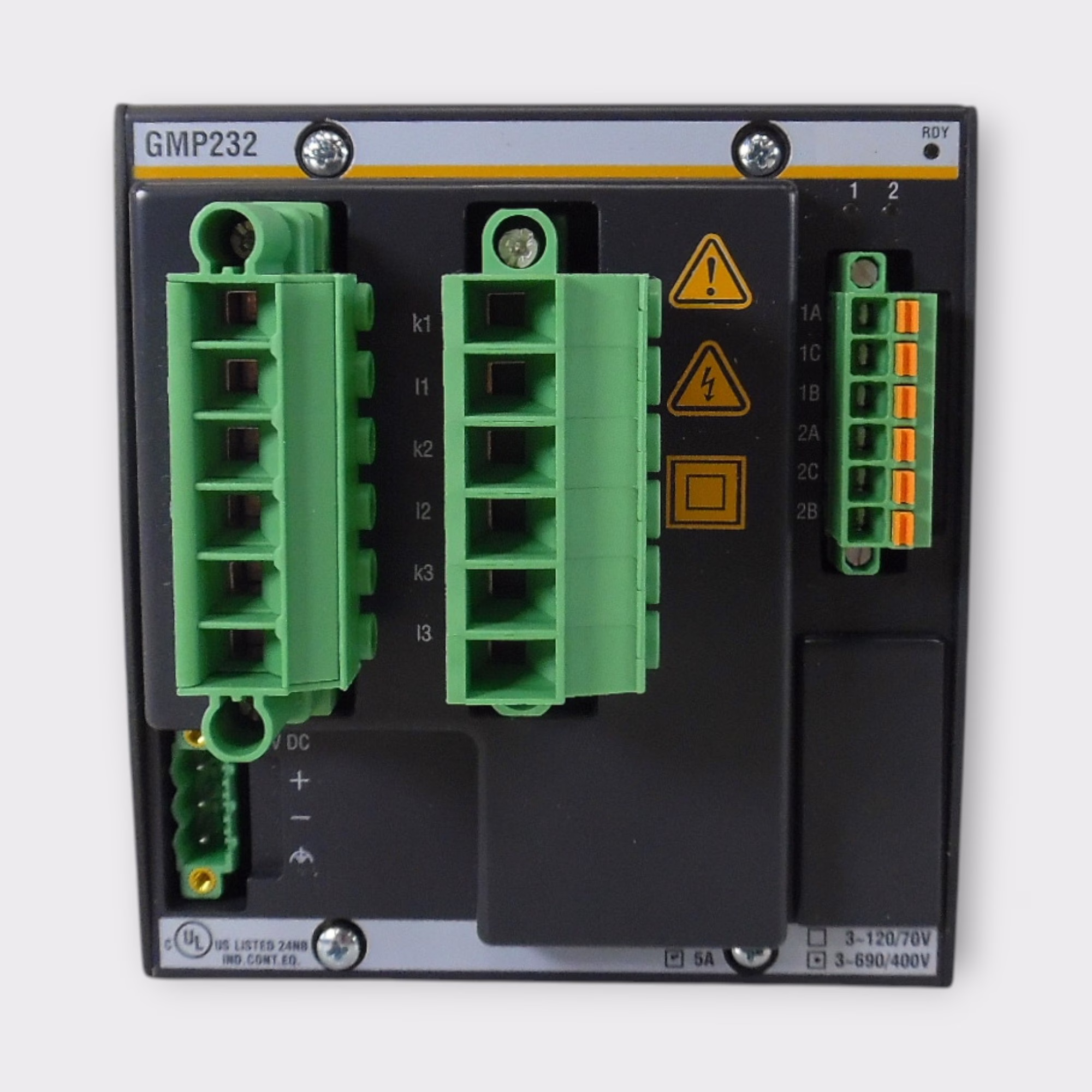

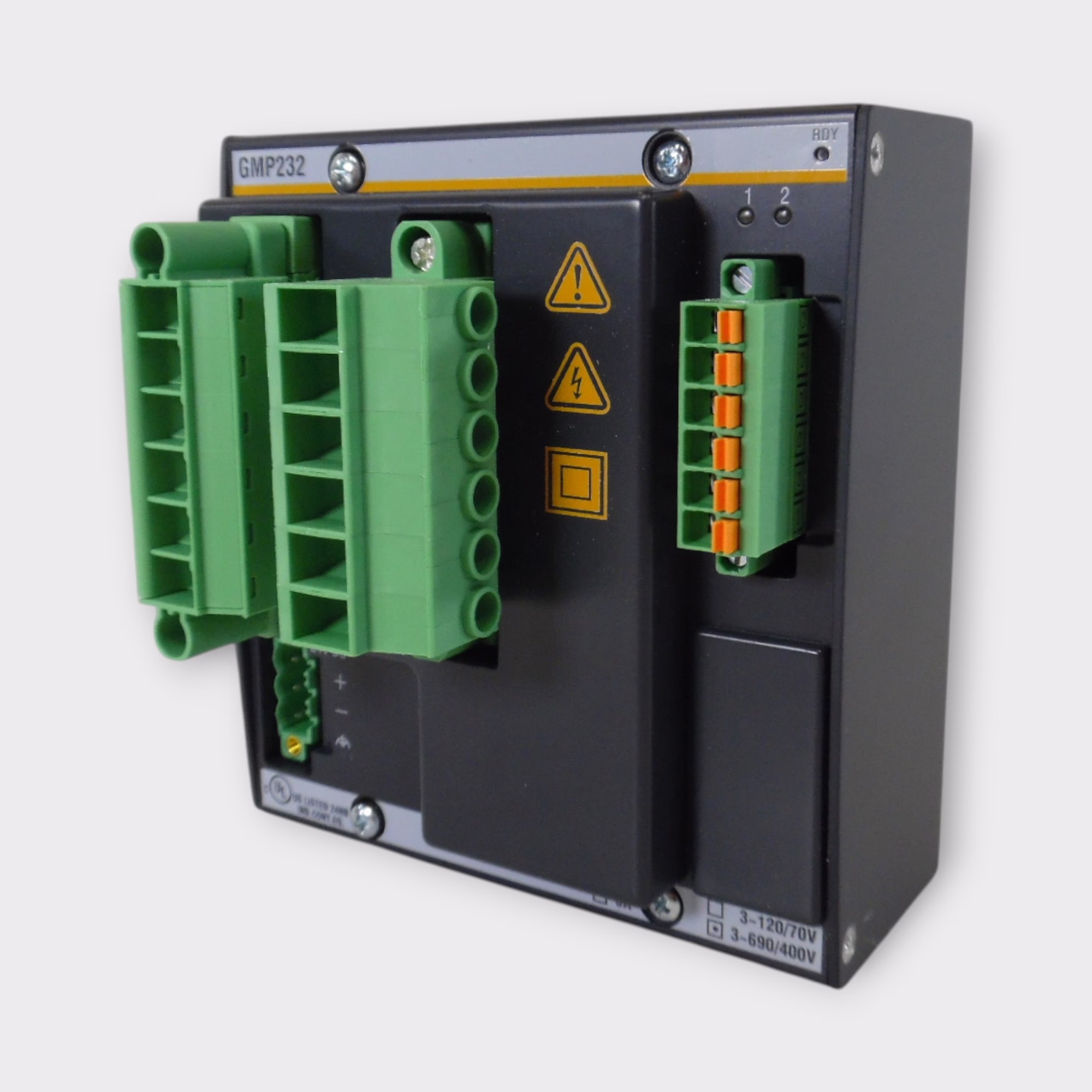

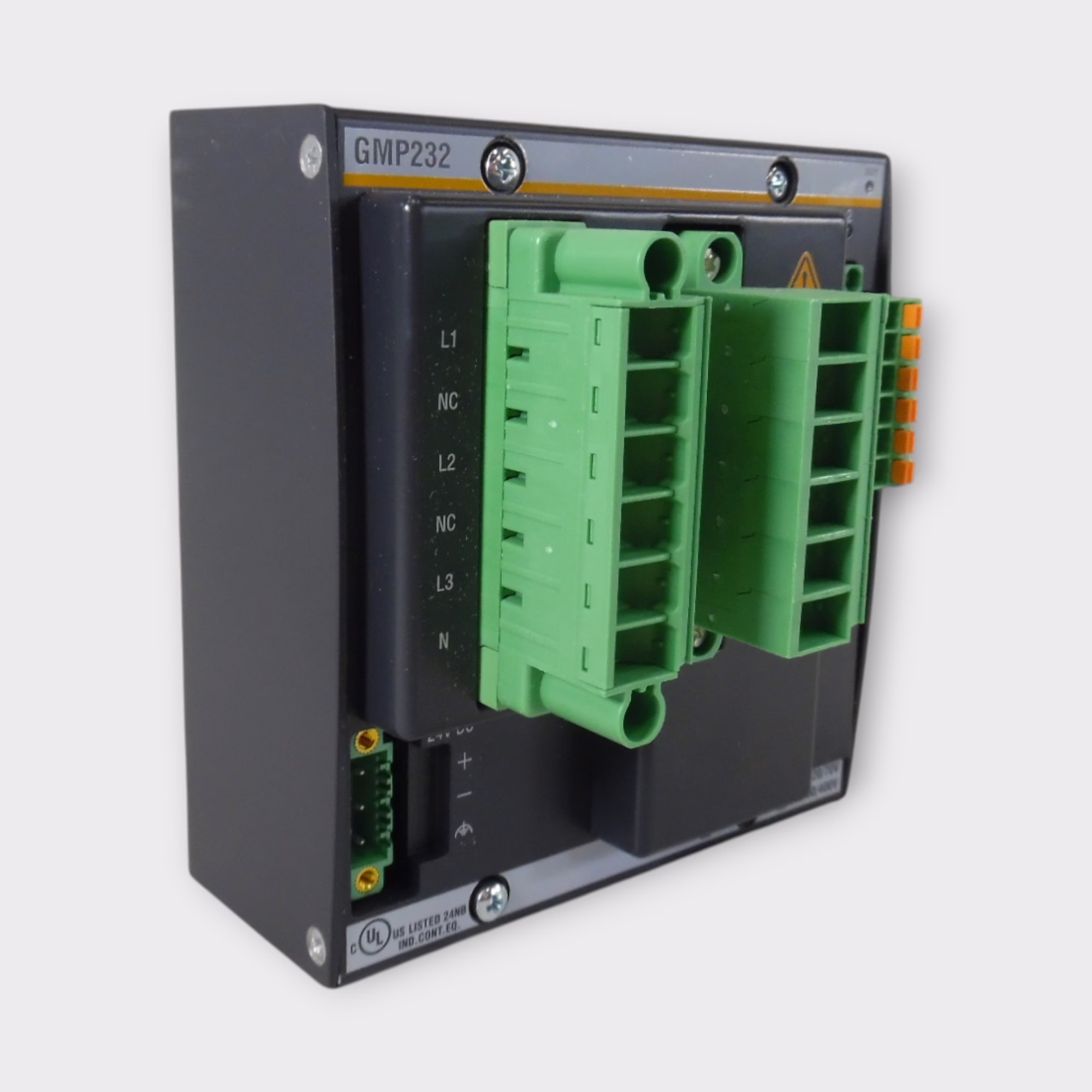

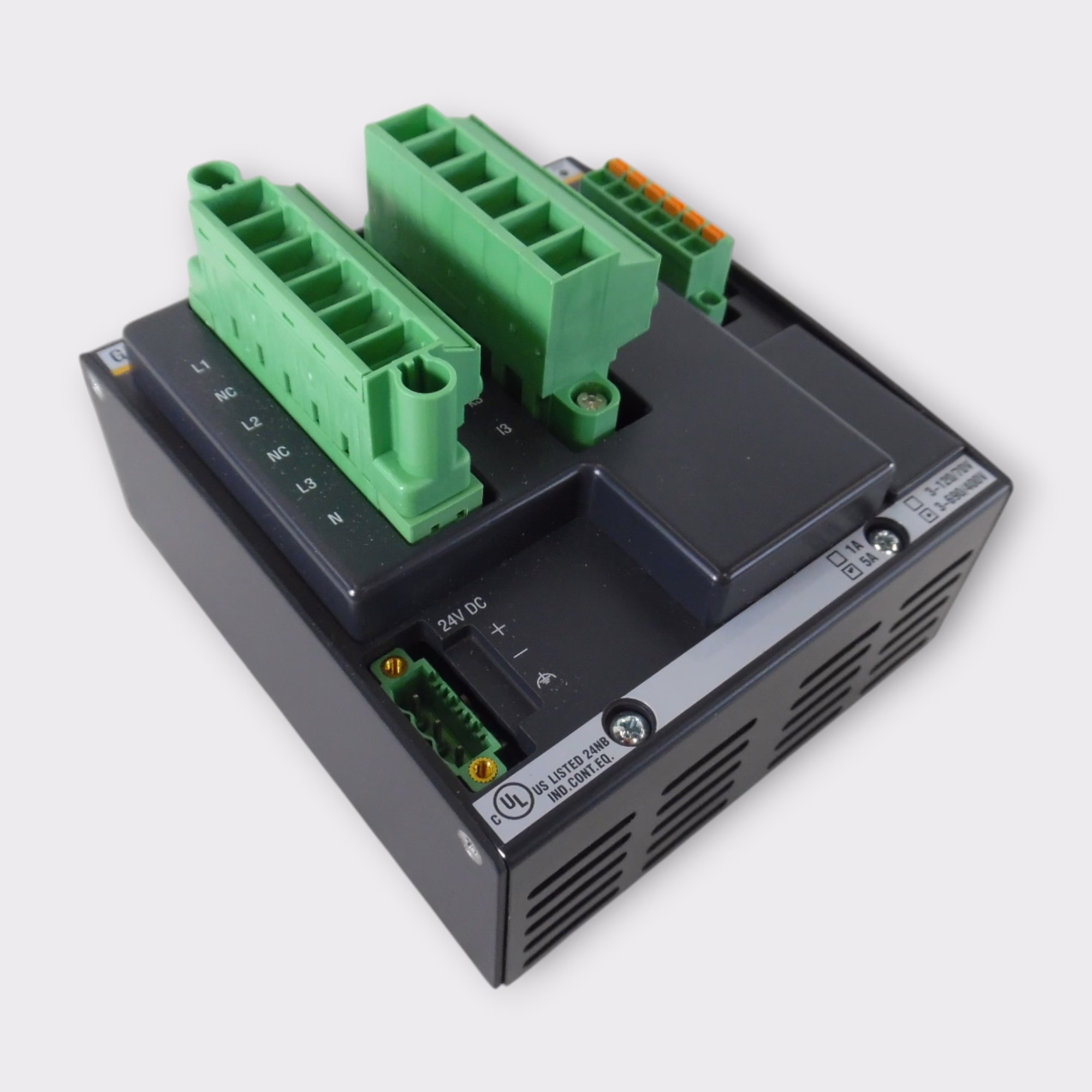

There is no power Phoenix connector, however, the 3 others are present (see photos).

This iteration of the GMP232 has the highest voltage and amperage rating (690V 5A). All modules were manufactured in 2022 or later.

Please refer to our photos for the condition and contents included with the sale.

We have several other Bachmann PLC components listed. Please look at our other listings and inventory.
Features:
Measurement of current, voltage, frequency, power, power factor, and phase angle
Direct connection up to 1000 Vrms rated CAT III
True RMS and fundamental RMS, symmetrical components
High dynamic measurement / very low latency
Measurement of grid harmonics up to the 50th (PQ)
Configurable grid and generator protection
Direct relay outputs for circuit-breaker/trip circuits
Integrated real-time fault recording
Integrated event logging
4Q energy meter
Integrated mean value aggregation, grid statistics
Measured value simulation
