Manufacturer: Bachmann Electronic
Model Number: GMP232/4
Series: Grid Measuring and Monitoring PLC Module
MPN: 00025963-00
Listed Item Condition: New/New Other

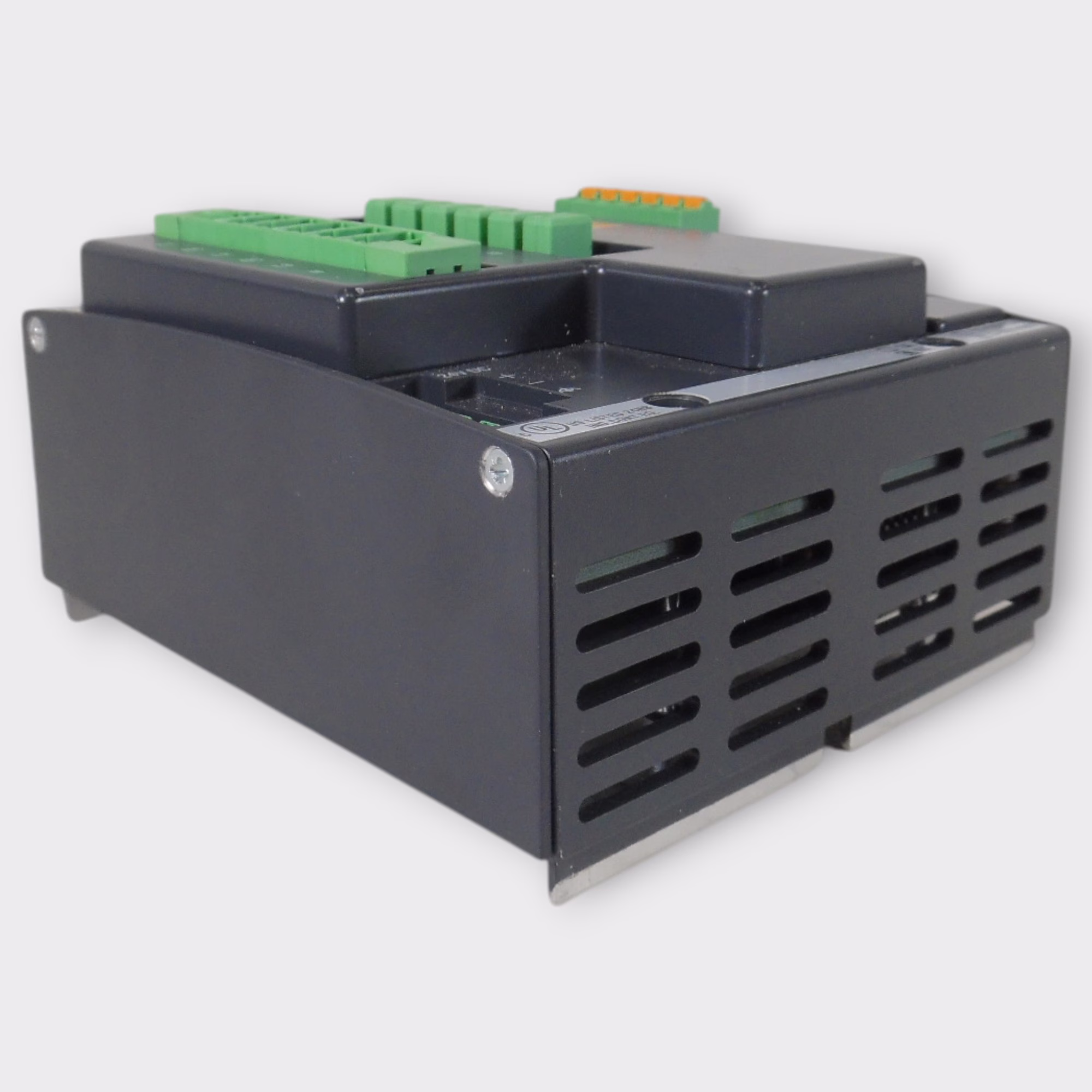

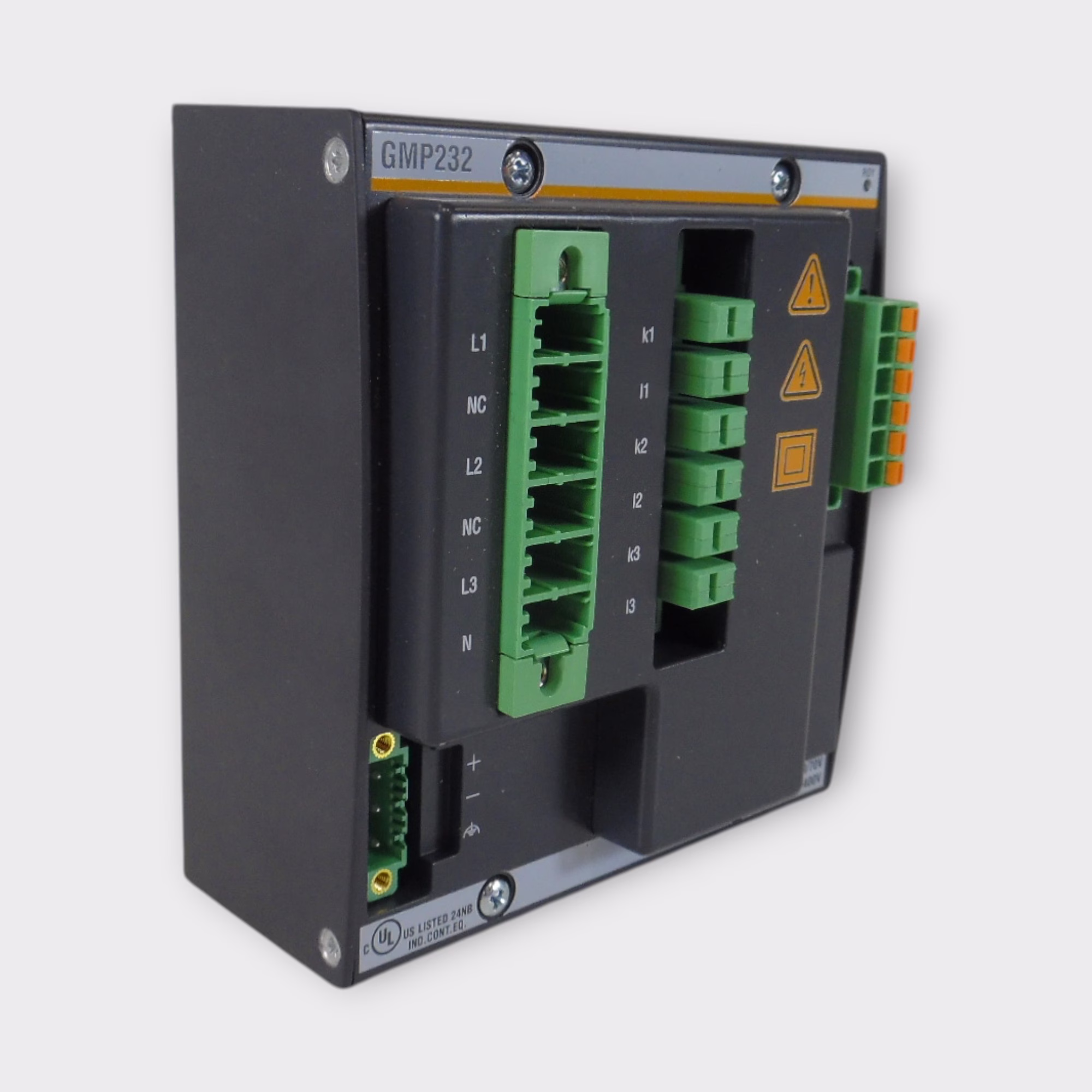

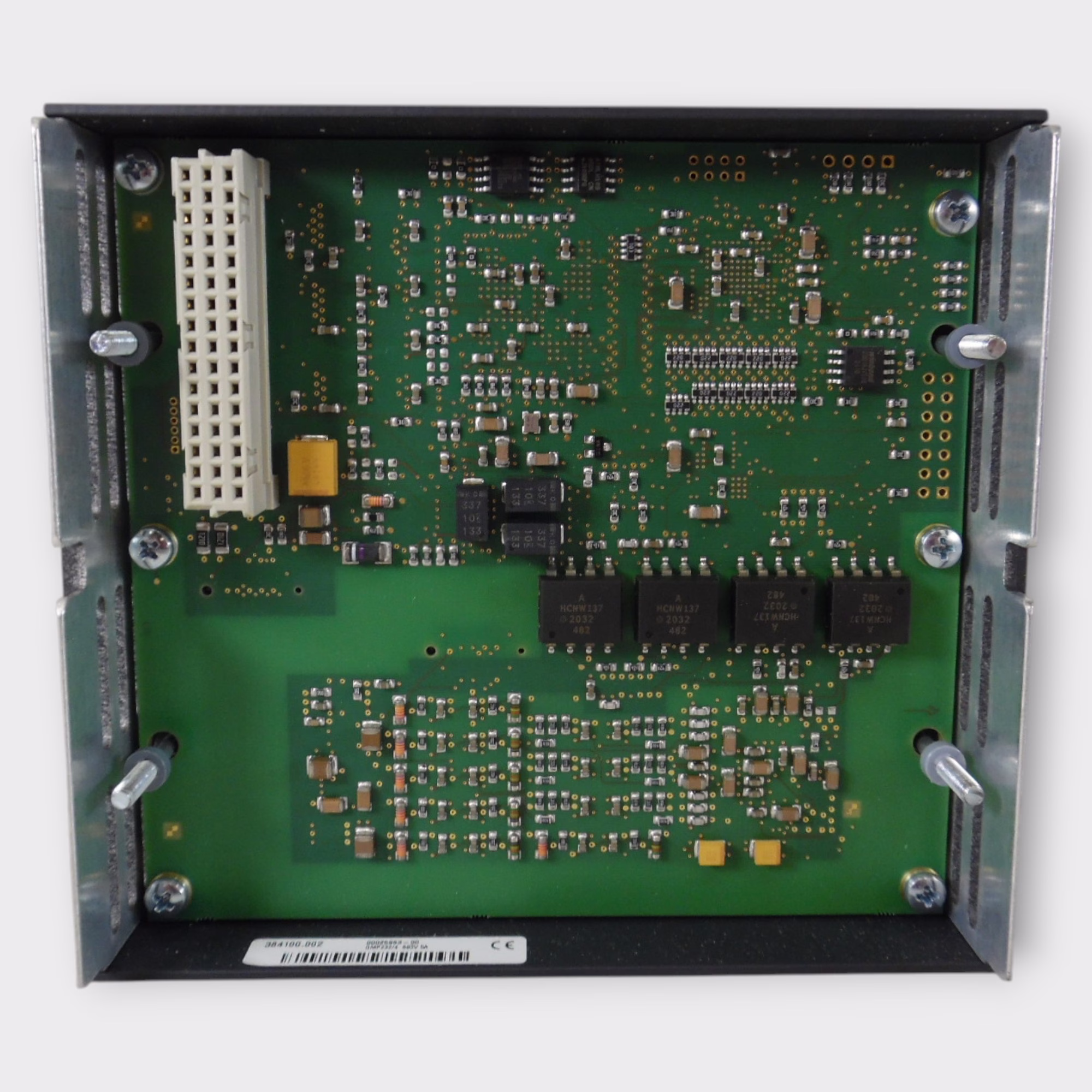

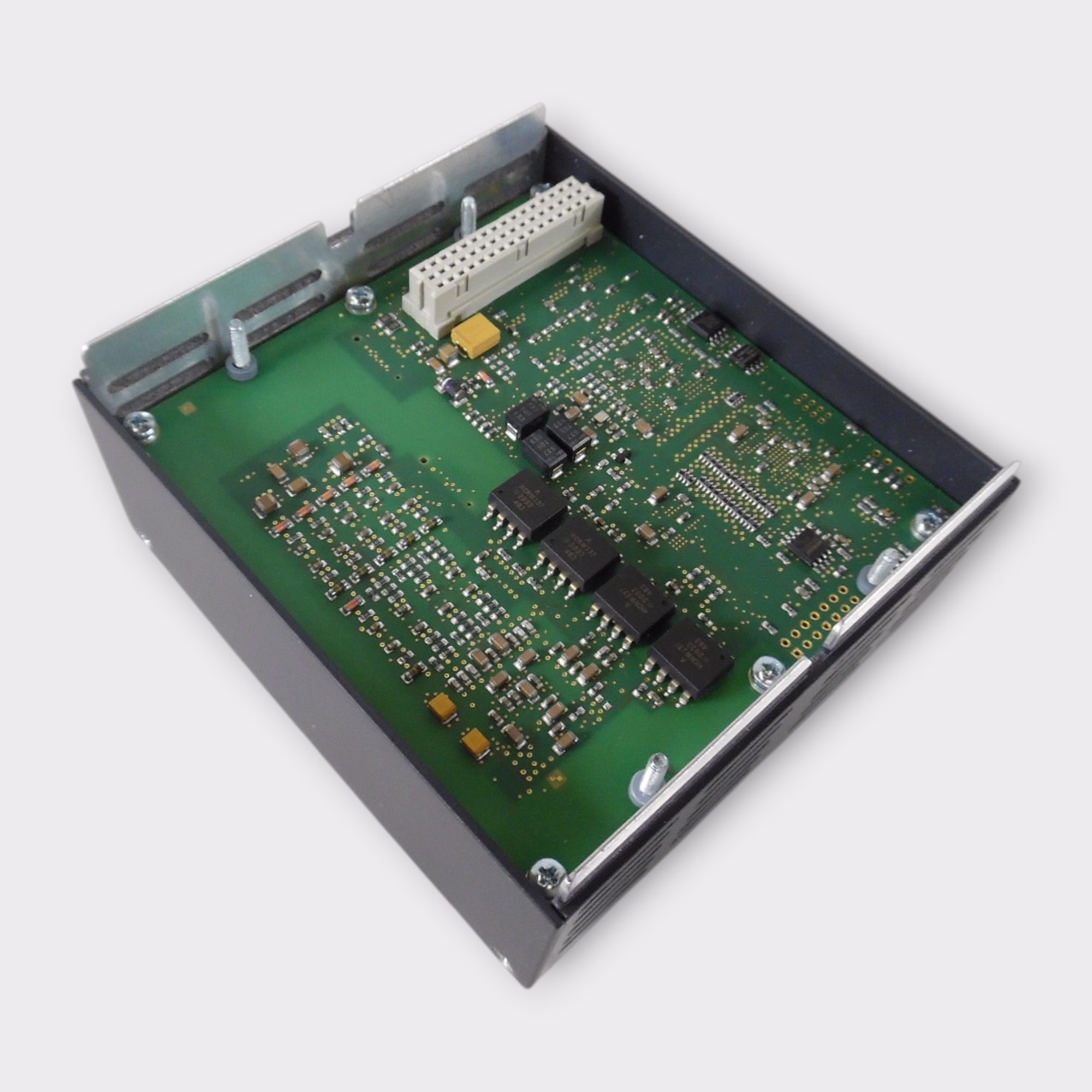

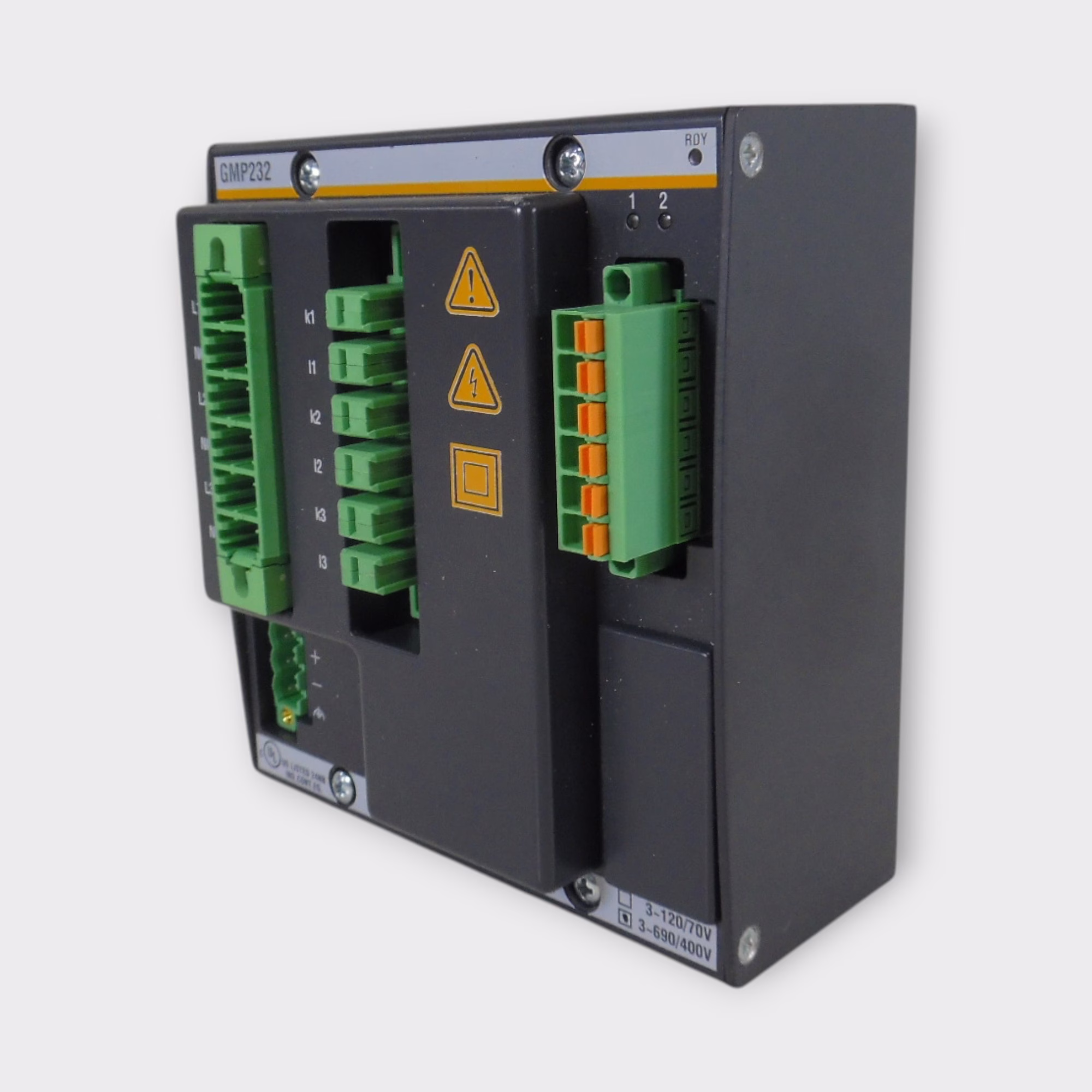

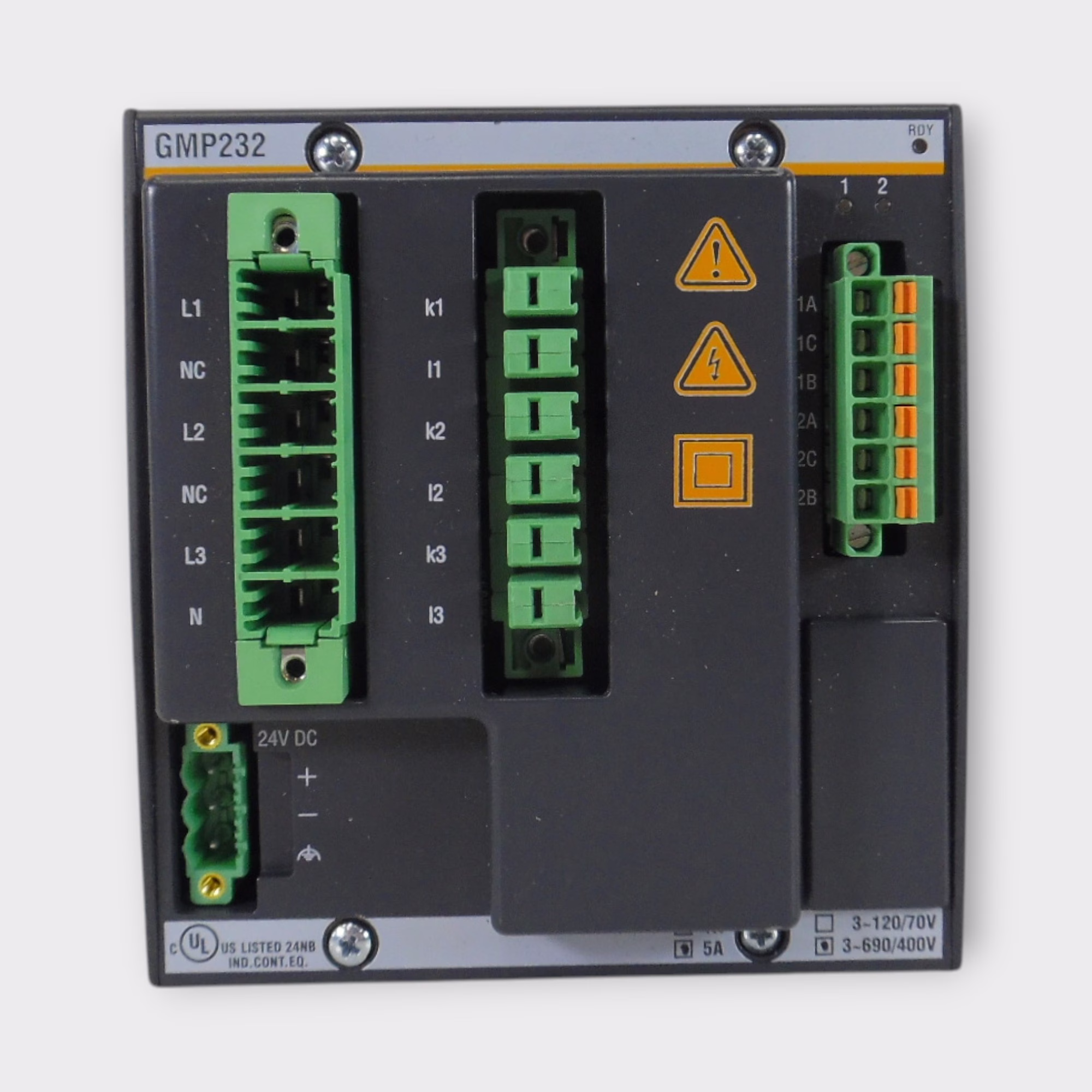

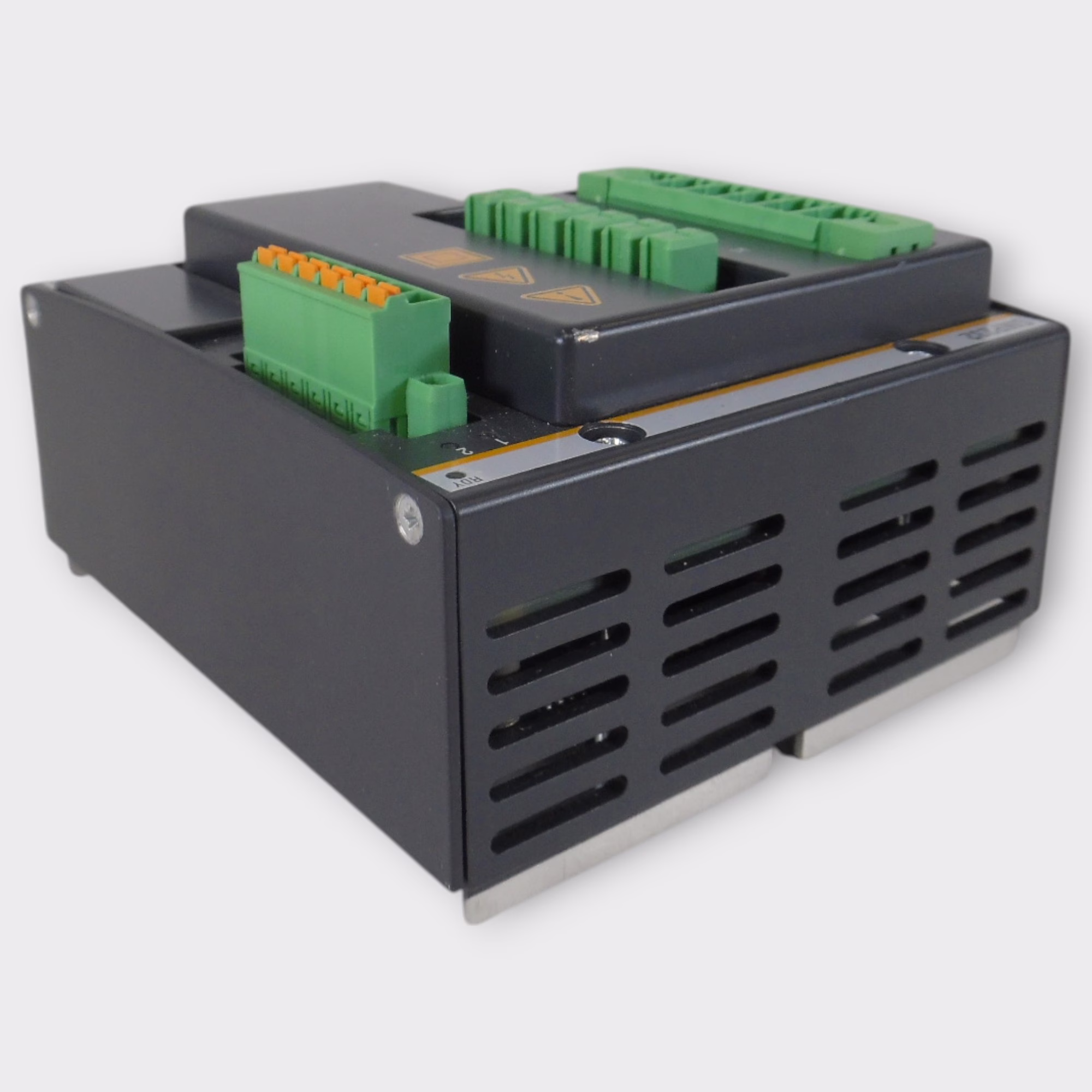

Additional Notes: This module is in good condition with minor signs of installation, but nothing that affects the functionality. It was removed from a testing environment and performed as intended before the setup was taken apart. This iteration of the GMP232 has the highest voltage and amperage rating (690V 5A). All modules were manufactured in 2022 or later. There are no Phoenix connectors included with the sale. Please refer to our photos for the condition and contents. We have several other Bachmann PLC components listed. Please look at our other listings and inventory. Features: Measurement of current, voltage, frequency, power, power factor, and phase angle Direct connection up to 1000 Vrms rated CAT III True RMS and fundamental RMS, symmetrical components High dynamic measurement / very low latency Measurement of grid harmonics up to the 50th (PQ) Configurable grid and generator protection Direct relay outputs for circuit-breaker/trip circuits Integrated real-time fault recording Integrated event logging 4Q energy meter Integrated mean value aggregation, grid statistics Measured value simulation
What's Included:
- Bachmann GMP232 grid measurement and protection module (no connectors) – 00025963-00
Dimensions: 5 × 5 × 5 in
Shipping Info: Free Shipping Lower 48
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
