Summary

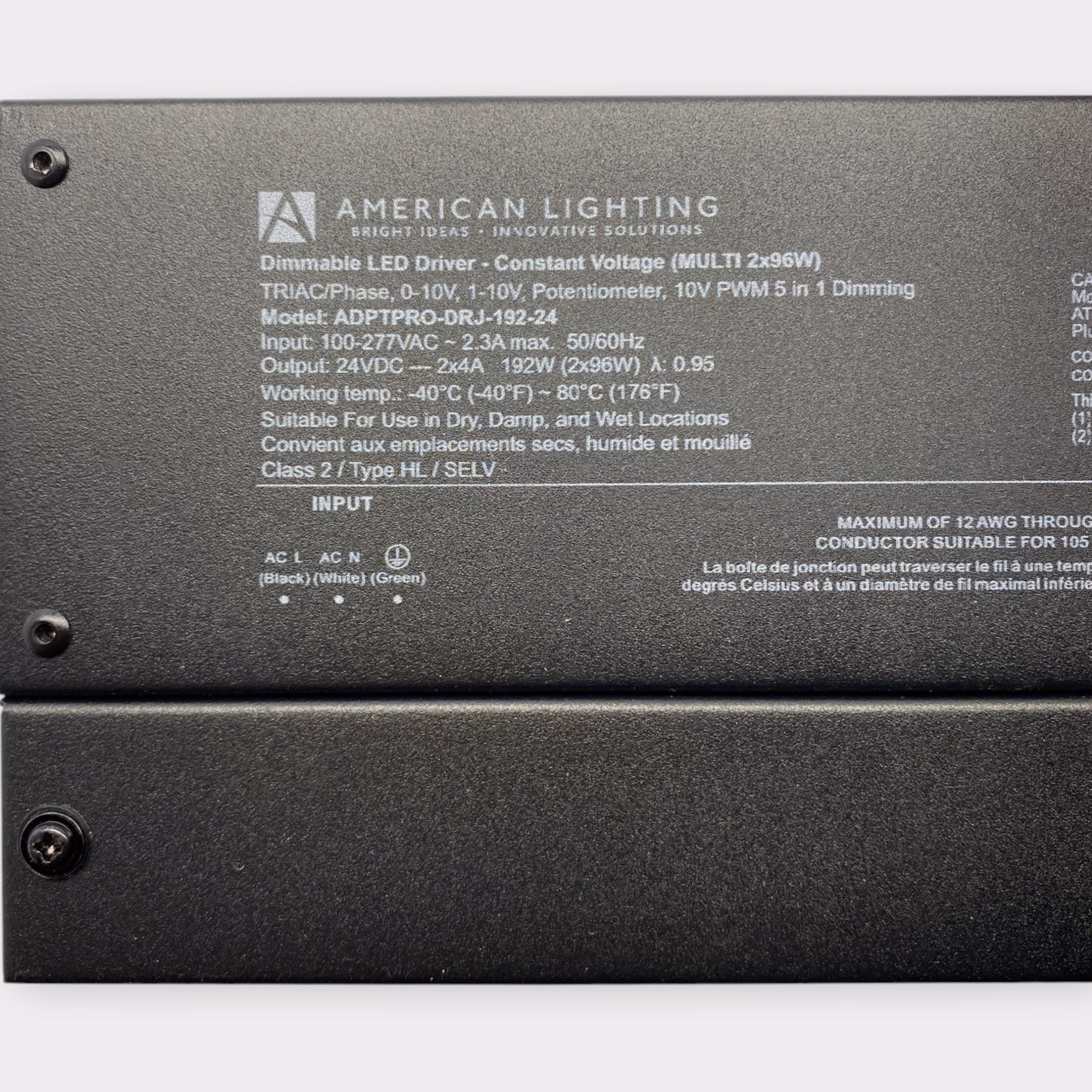

American Lighting ADPTPRO-DRJ-192-24 Adaptive PRO Series 192W dimmable LED driver designed to provide regulated 24V DC constant-voltage power for compatible LED lighting systems. Features dual 96W outputs, 5-in-1 dimming compatibility, a durable black metal enclosure, and integrated wiring compartments.

• New old stock in like-new condition. These units have never been installed or used and have been stored in inventory. Original packaging may show minor signs of storage or handling.
• This listing includes one American Lighting ADPTPRO-DRJ-192-24 LED driver. No additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition. Please review all photos for the exact item, condition, and components included.

Product Description

The American Lighting ADPTPRO-DRJ-192-24 is a 192-watt constant-voltage LED power supply designed for residential, commercial, architectural, and compatible outdoor lighting installations.

Part of the Adaptive PRO Series, this driver converts 100–277V AC input power into regulated 24V DC output, delivering a total of 192 watts through two independent 96-watt output channels rated at 4 amps each.

The versatile 5-in-1 dimming system supports forward-phase and reverse-phase dimming, including TRIAC, MLV, ELV, 0-10V, 1-10V, potentiometer, and 10V PWM control methods.

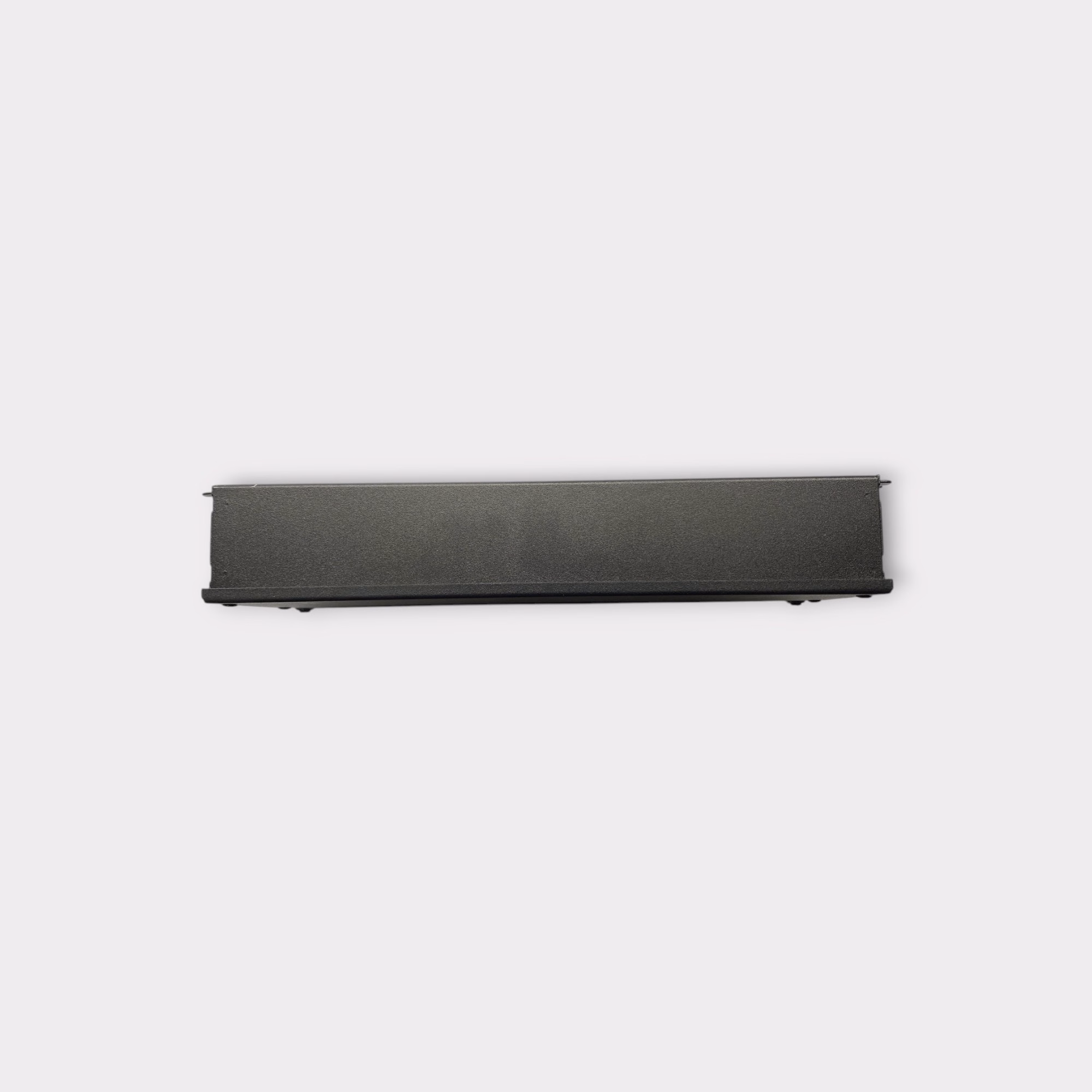

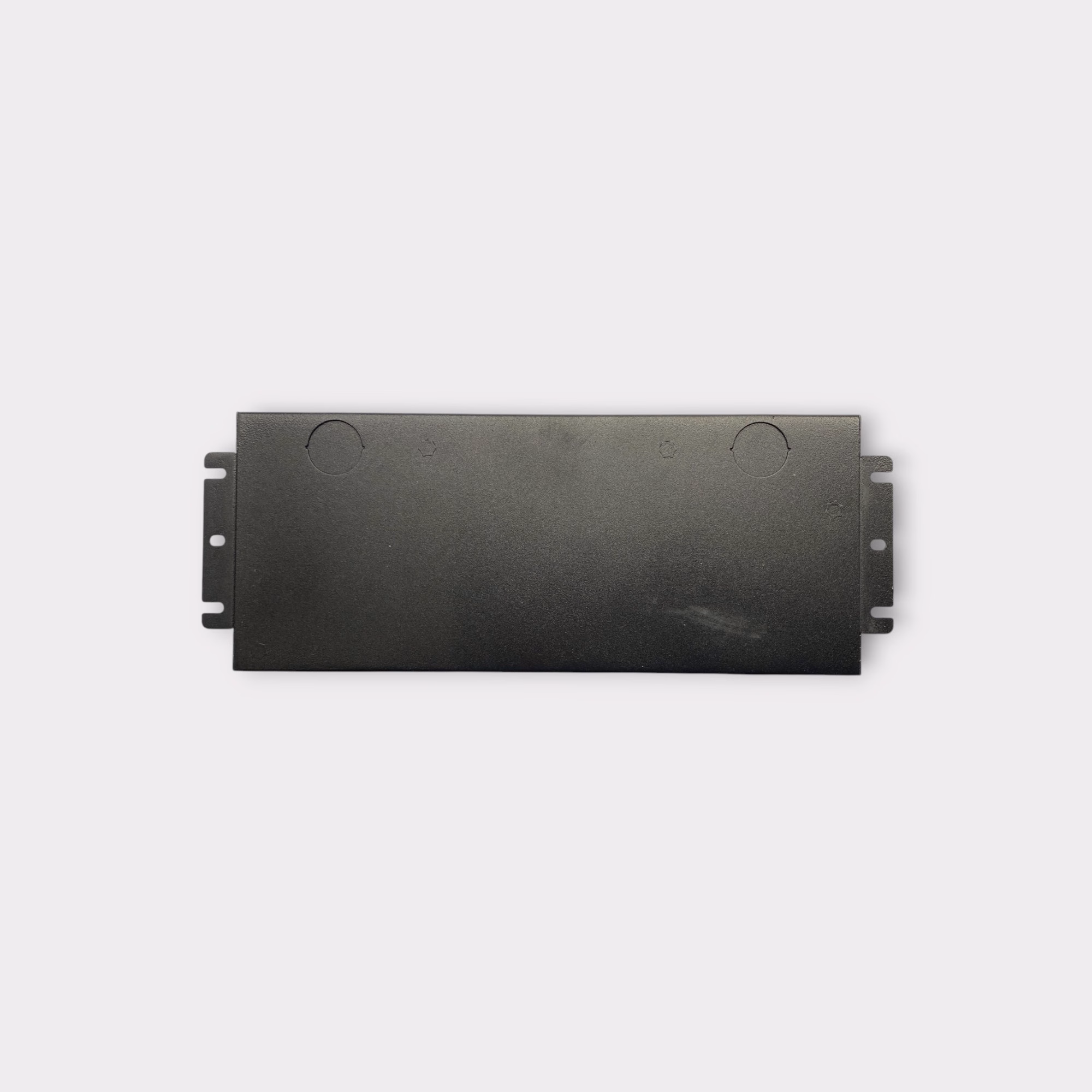

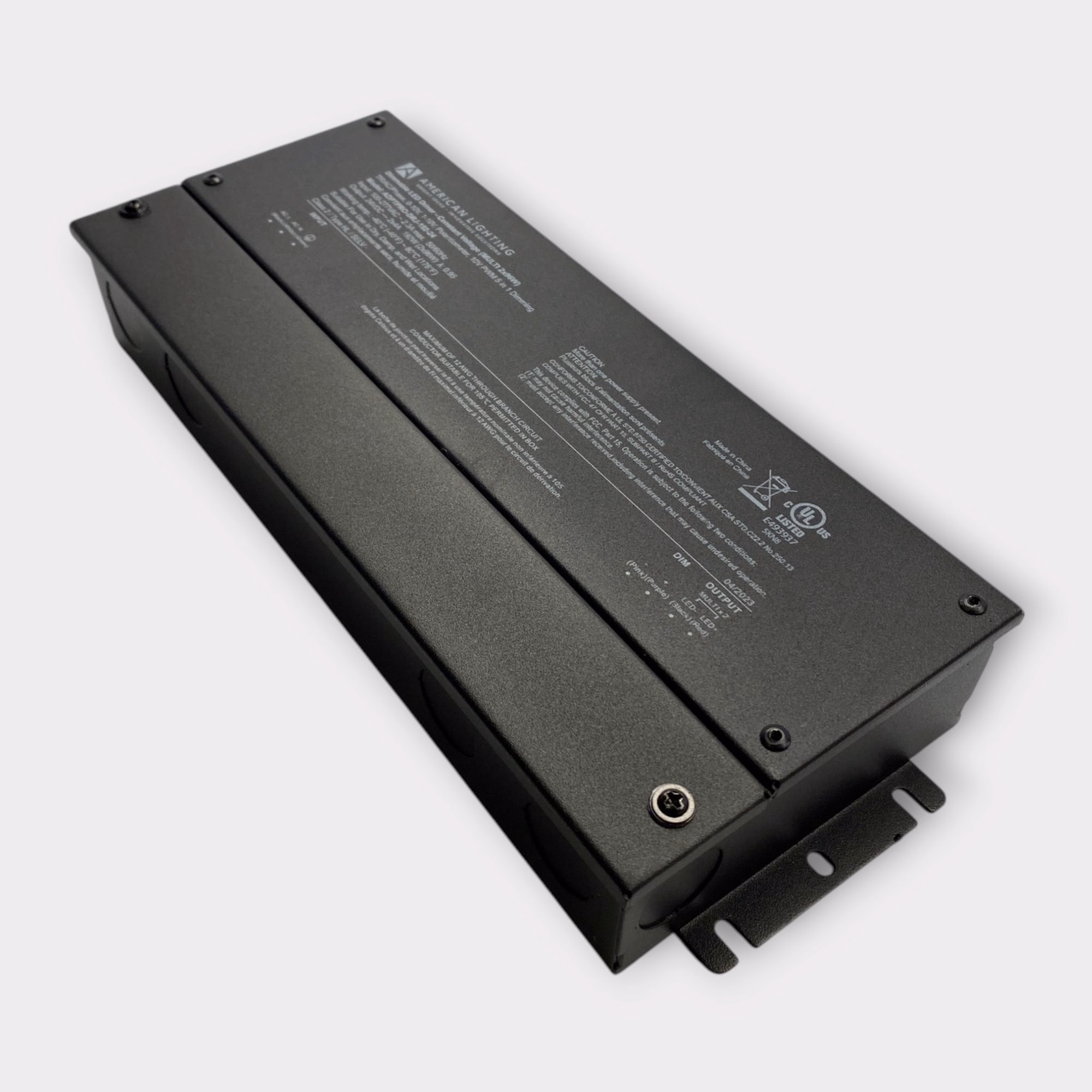

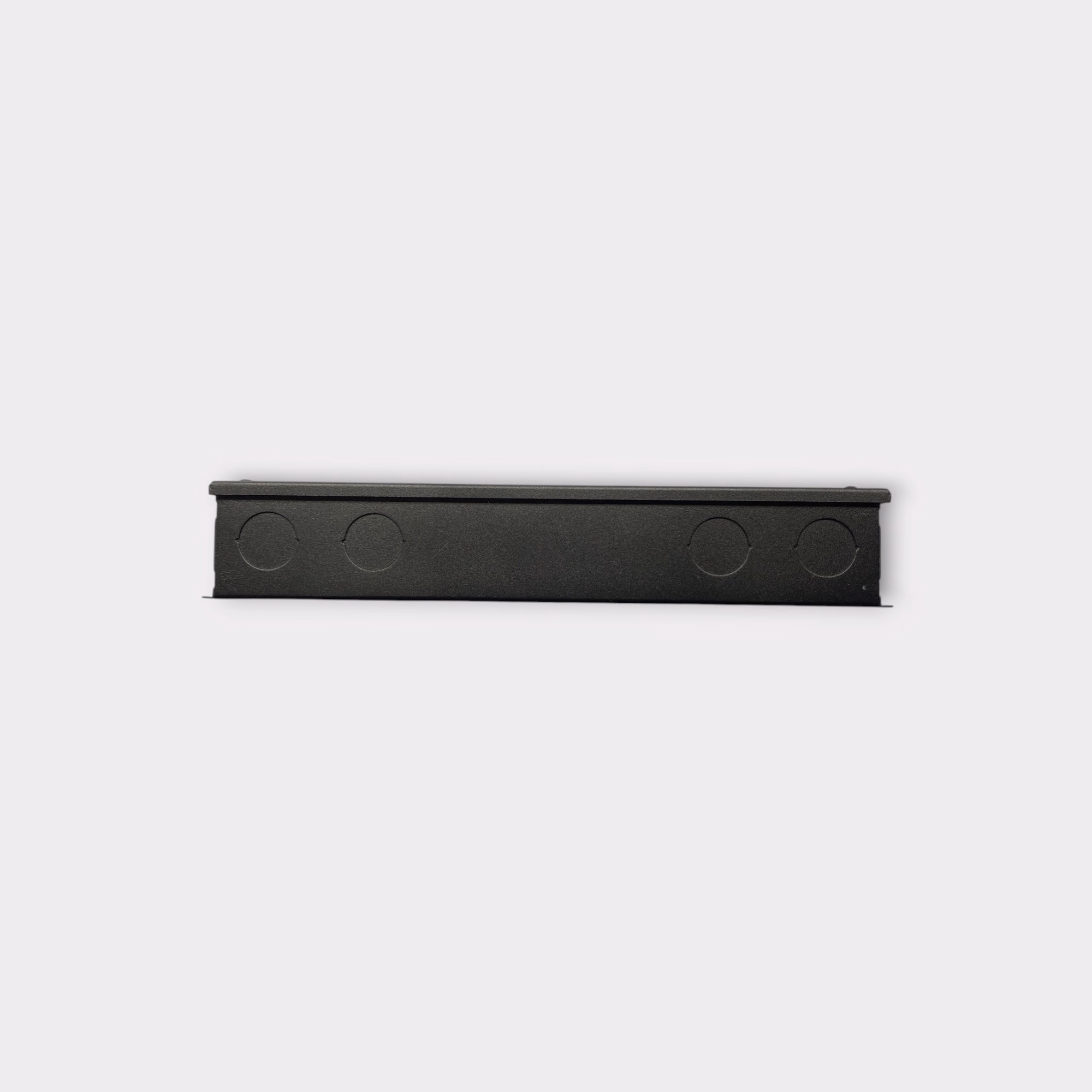

Its low-profile metal enclosure features integrated line-voltage and low-voltage wiring compartments with knockouts for hardwired installation. The driver includes short-circuit, overload, and over-temperature protection.

The unit is cULus listed for wet locations and is suitable for compatible LED tape lighting, under-cabinet lighting, architectural lighting, and other 24V DC constant-voltage applications.

Product Information

- Manufacturer - American Lighting
- Model Number - ADPTPRO-DRJ-192-24
- Series - Adaptive PRO
- MPN - ADPTPRO-DRJ-192-24
- Product Type - Dimmable LED Driver / Power Supply
- Driver Type - Constant Voltage
- Input Voltage - 100–277V AC
- Input Current - 2.3A Maximum
- Input Frequency - 50/60Hz
- Output Voltage - 24V DC
- Output Current - 2 x 4A
- Maximum Output Power - 192W Total
- Output Configuration - Dual 96W Outputs
- Minimum Load - 19.2W
- Dimming - 5-in-1
- Dimming Methods - TRIAC, MLV, ELV, 0-10V, 1-10V, 10V PWM, Potentiometer
- Power Factor - 0.95 (Unit Label)
- Enclosure Material - Metal / Aluminum
- Housing Color - Black
- Installation - Hardwired
- Wiring - Integrated Input, Output, and Dimming Compartments
- Mounting - Integrated Mounting Tabs
- Location Rating - Dry, Damp, and Wet Locations
- Protection Features - Short Circuit, Overload, Over Temperature
- Operating Temperature - -40°C to 80°C (Unit Label)

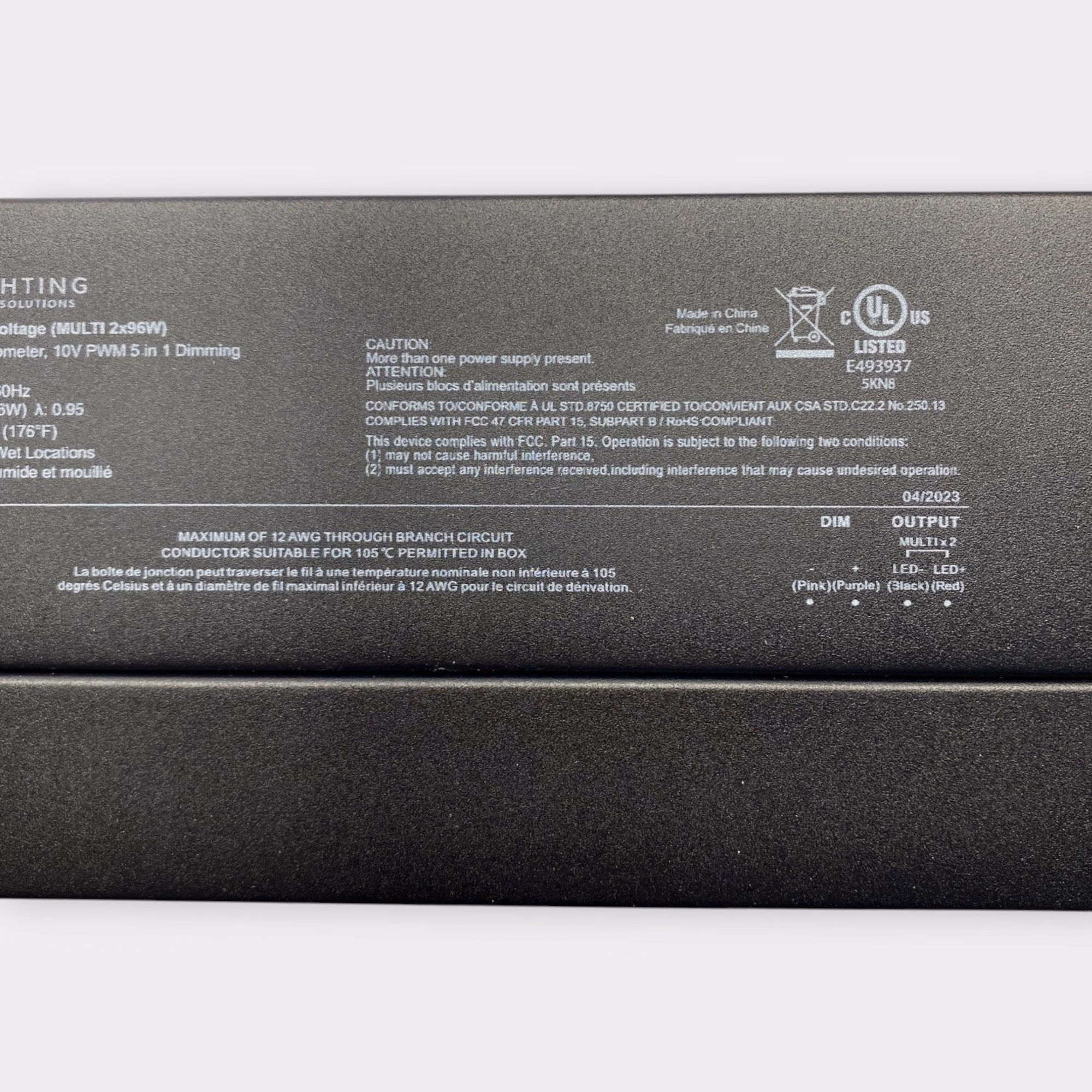

- Classification - Class 2 / Type HL / SELV
- Certification - cULus Listed
- Compliance - FCC / RoHS
- Approximate Length - 10.9 Inches
- Approximate Width - 4.33 Inches
- Approximate Height - 1.88 Inches
- Approximate Weight - 4.70 lbs
- Country of Origin - China
- Quantity Included - 1 Driver
- Quantity Available - 3 Units (Sold Individually)
