Summary

American Lighting ADPTPRO-DR-300-24 Adaptive PRO Series 300W dimmable LED driver designed to provide regulated 24V DC constant-voltage power for compatible LED lighting systems. Features 5-in-1 dimming compatibility, a durable black aluminum enclosure, and integrated protection circuitry.

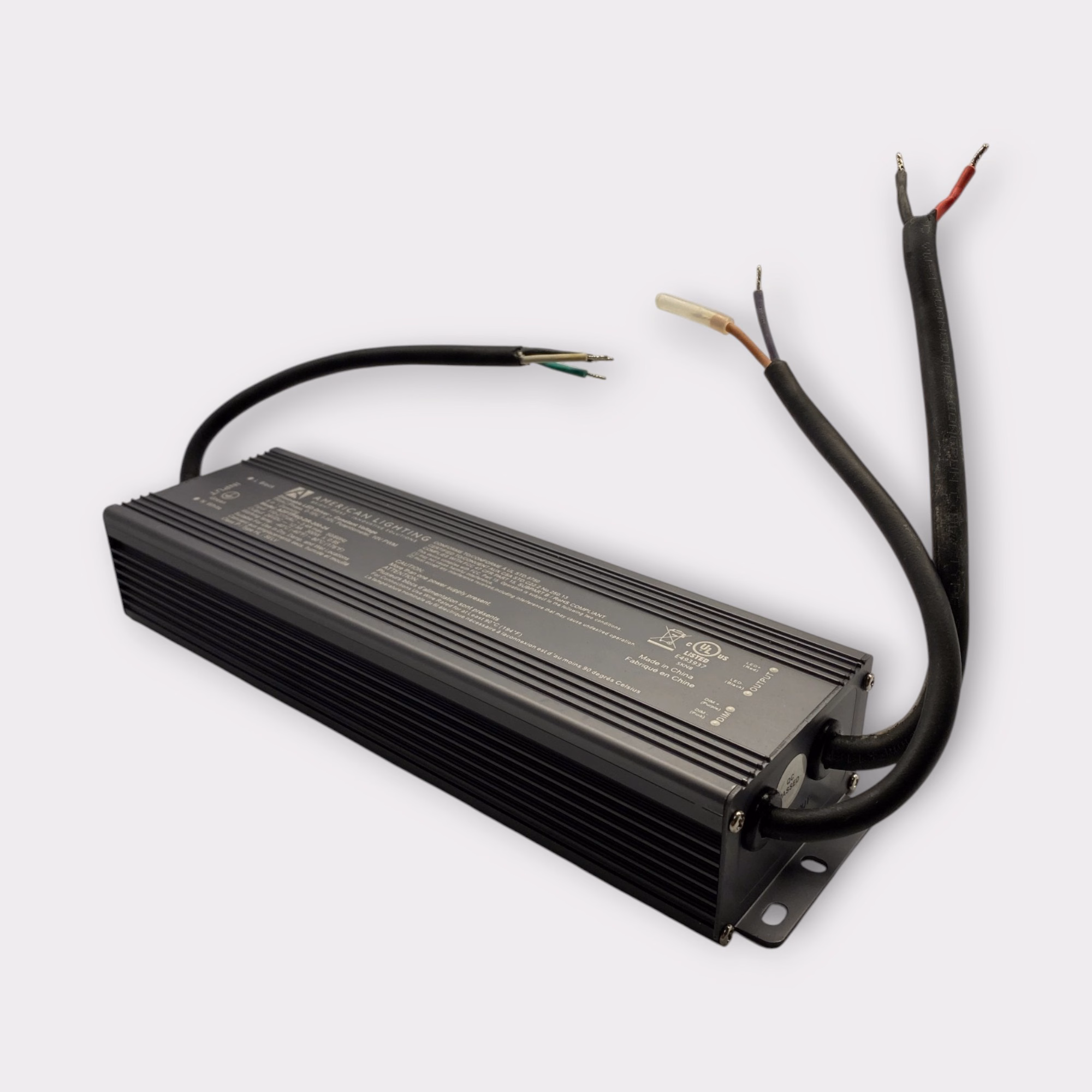

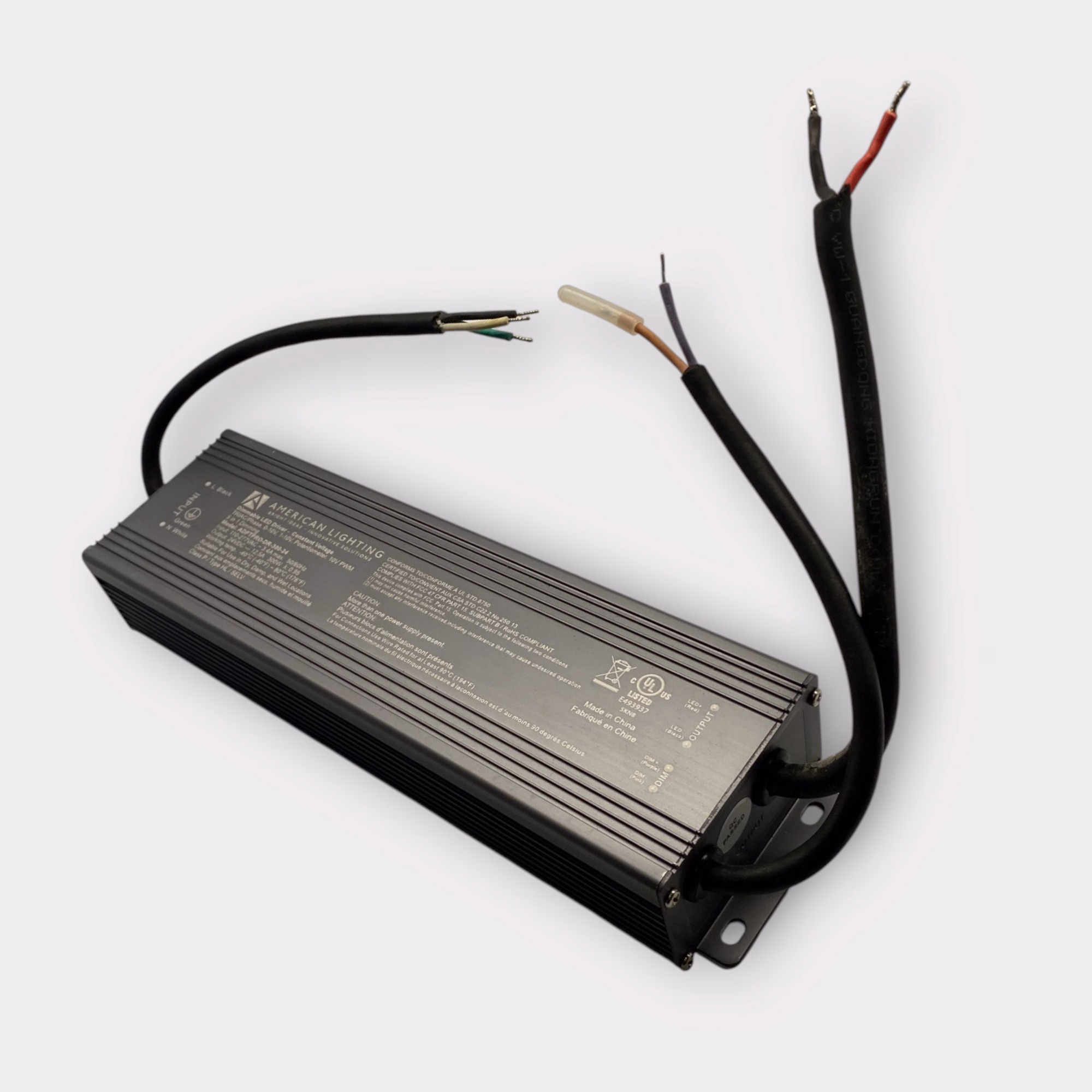

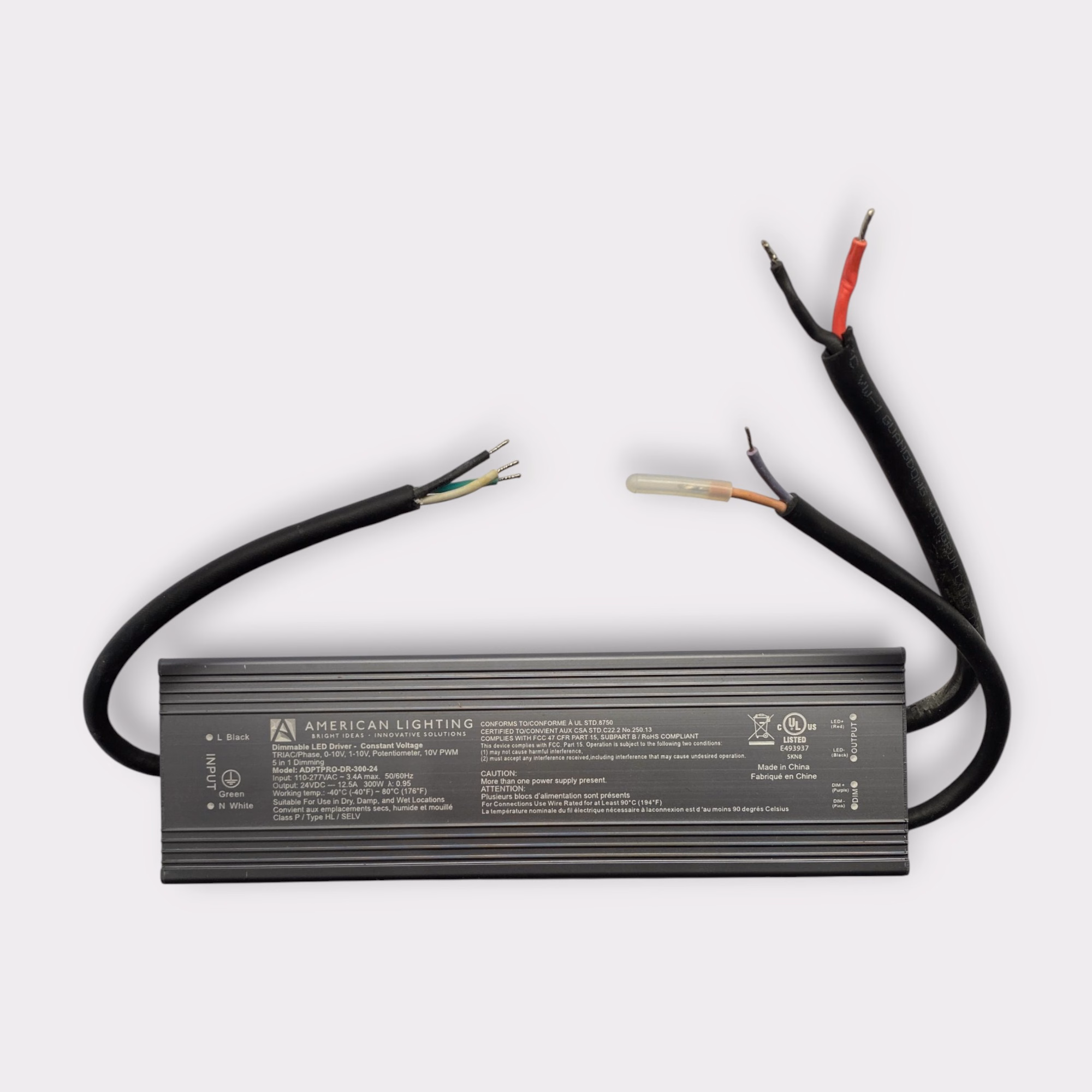

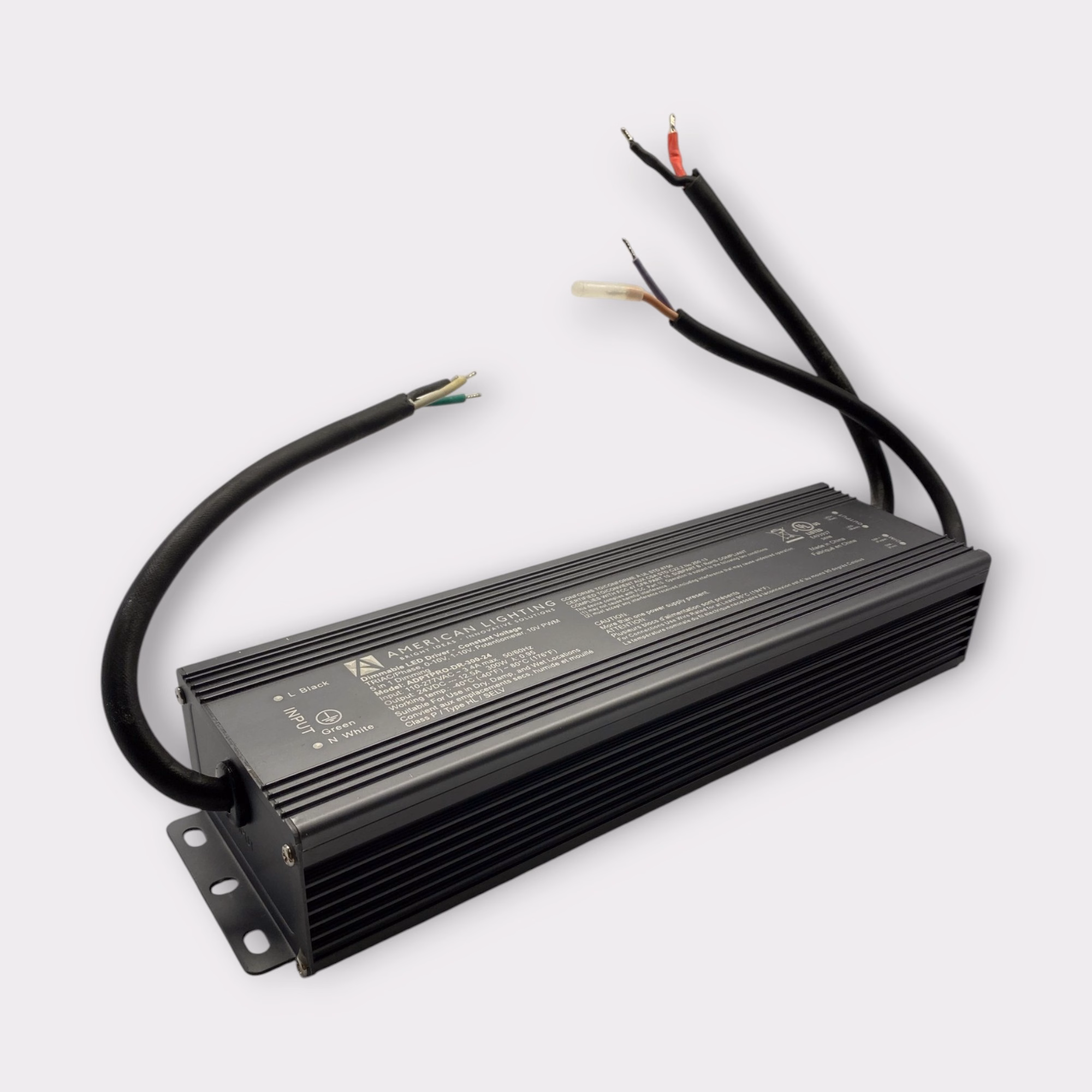

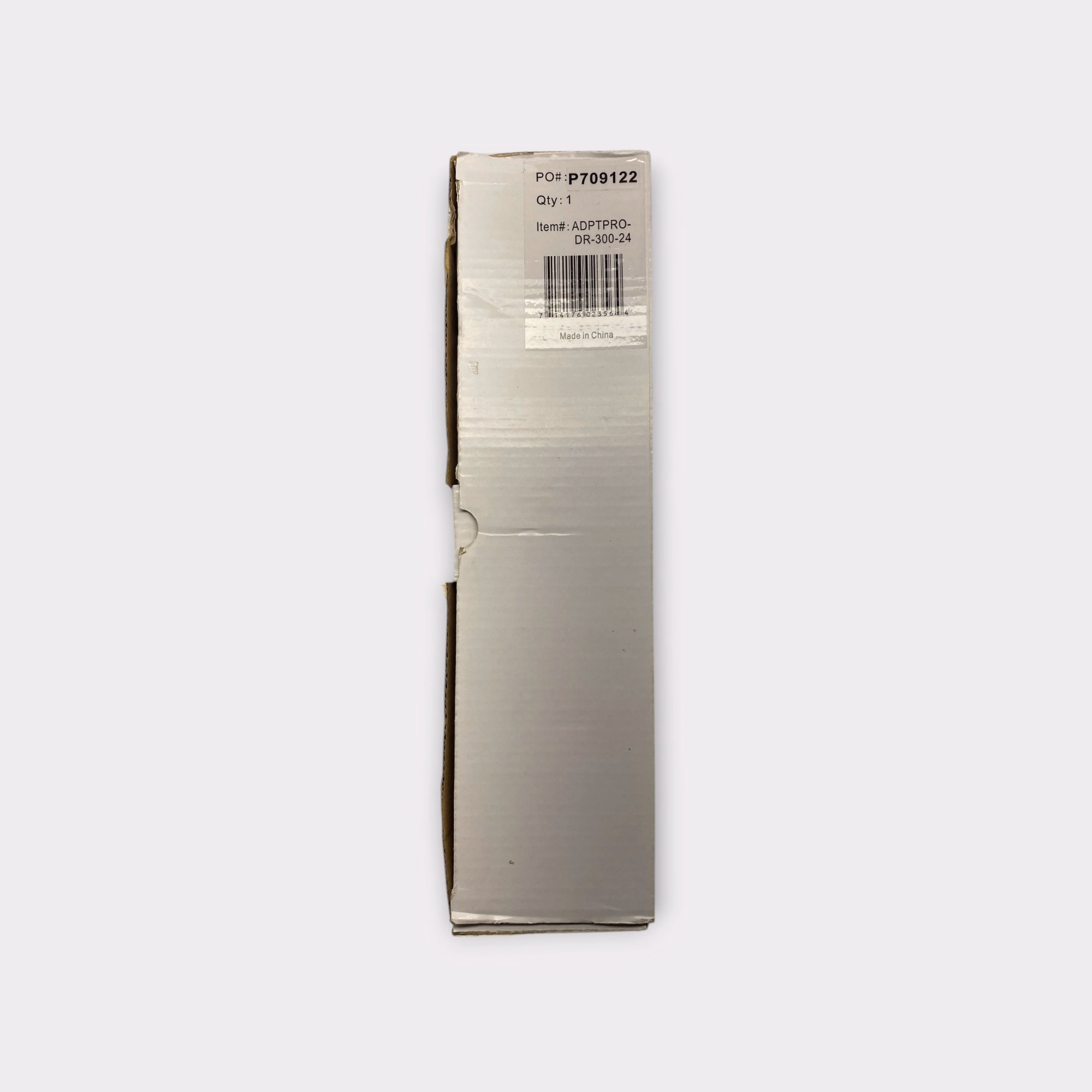

This listing includes the American Lighting ADPTPRO-DR-300-24 LED driver with attached wiring and the original cardboard box shown. No instructions, manuals, or additional accessories are included. Please review all photos for the exact item, condition, and components included.

Product Description

The American Lighting ADPTPRO-DR-300-24 is a 300-watt constant-voltage LED power supply designed for residential, commercial, architectural, and compatible outdoor lighting installations.

Part of the Adaptive PRO Series, this driver converts AC input power into regulated 24V DC output, delivering up to 12.5 amps for compatible low-voltage LED lighting applications.

Its versatile dimming system supports forward-phase and reverse-phase dimming, including TRIAC, MLV, ELV, 0-10V, 1-10V, potentiometer, and 10V PWM control methods.

The sealed, low-profile aluminum housing provides a durable installation solution and is cULus listed for wet locations. Built-in protection features include short-circuit, overload, and over-temperature protection.

Designed for hardwired installation with separate input, output, and dimming control leads.

Product Information

- Manufacturer - American Lighting
- Model Number - ADPTPRO-DR-300-24
- Series - Adaptive PRO
- MPN - ADPTPRO-DR-300-24
- Product Type - Dimmable LED Driver / Power Supply
- Driver Type - Constant Voltage
- Input Voltage - 100–277V AC (Manufacturer Specification)

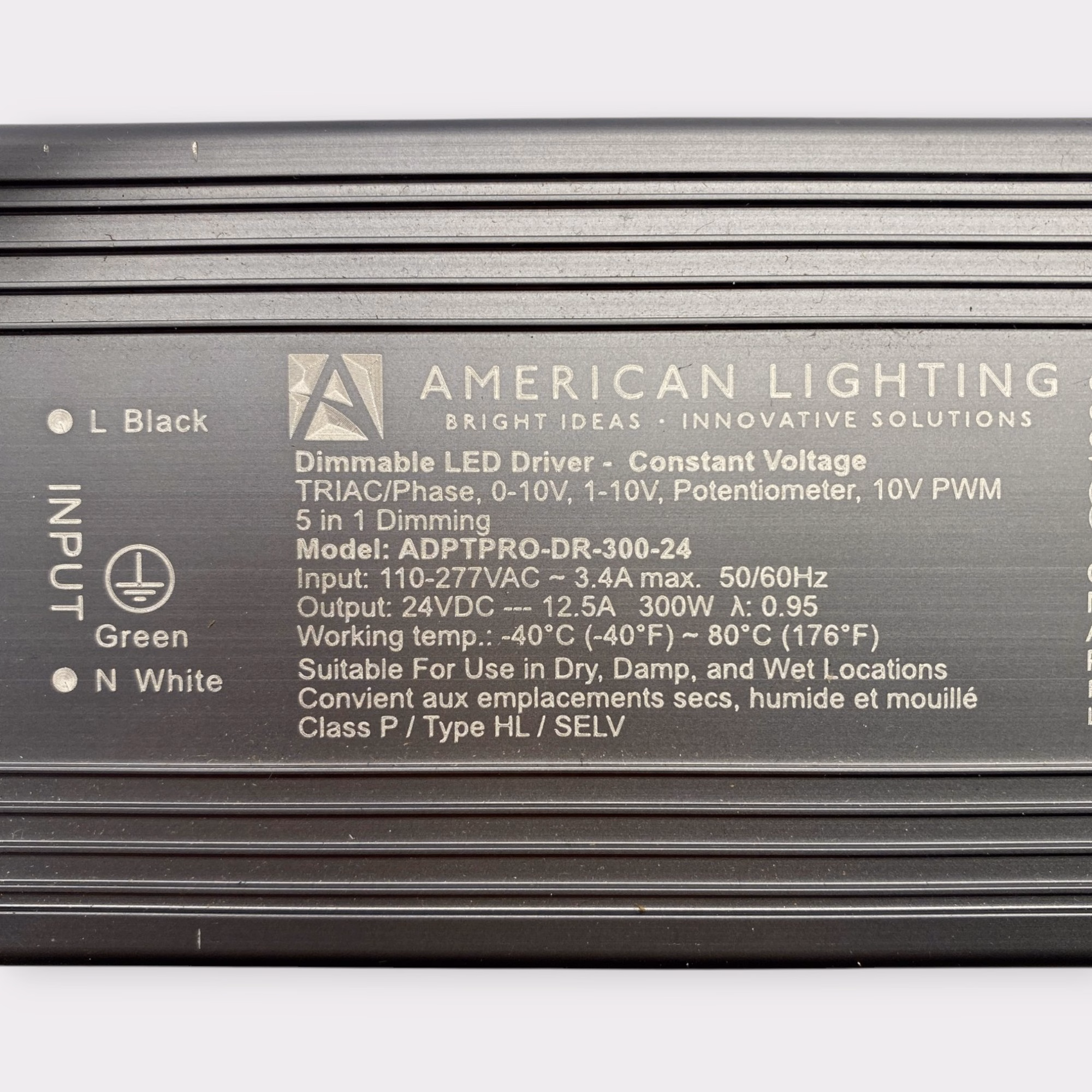

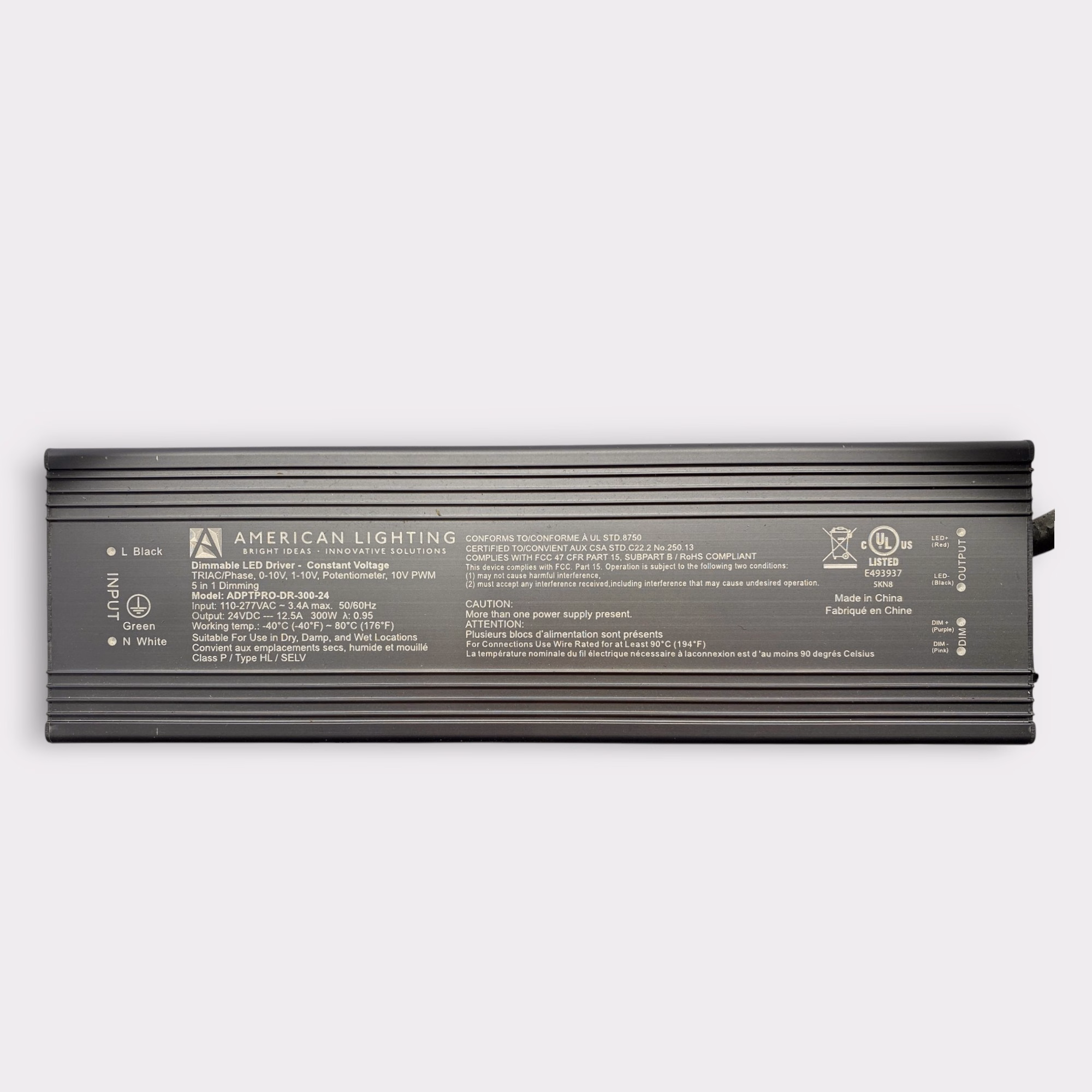

- Input Rating on Unit Label - 110–277V AC
- Input Current - 3.4A Maximum
- Input Frequency - 50/60Hz (Unit Label)
- Output Voltage - 24V DC
- Output Current - 12.5A
- Maximum Output Power - 300W
- Minimum Load - 30W
- Dimming - 5-in-1
- Dimming Methods - TRIAC, MLV, ELV, 0-10V, 1-10V, 10V PWM, Potentiometer
- Dimming Range - 0–100%
- Power Factor - 0.99 at 120V AC / 0.95 at 277V AC
- Enclosure Material - Aluminum
- Housing Color - Black
- Installation - Hardwired

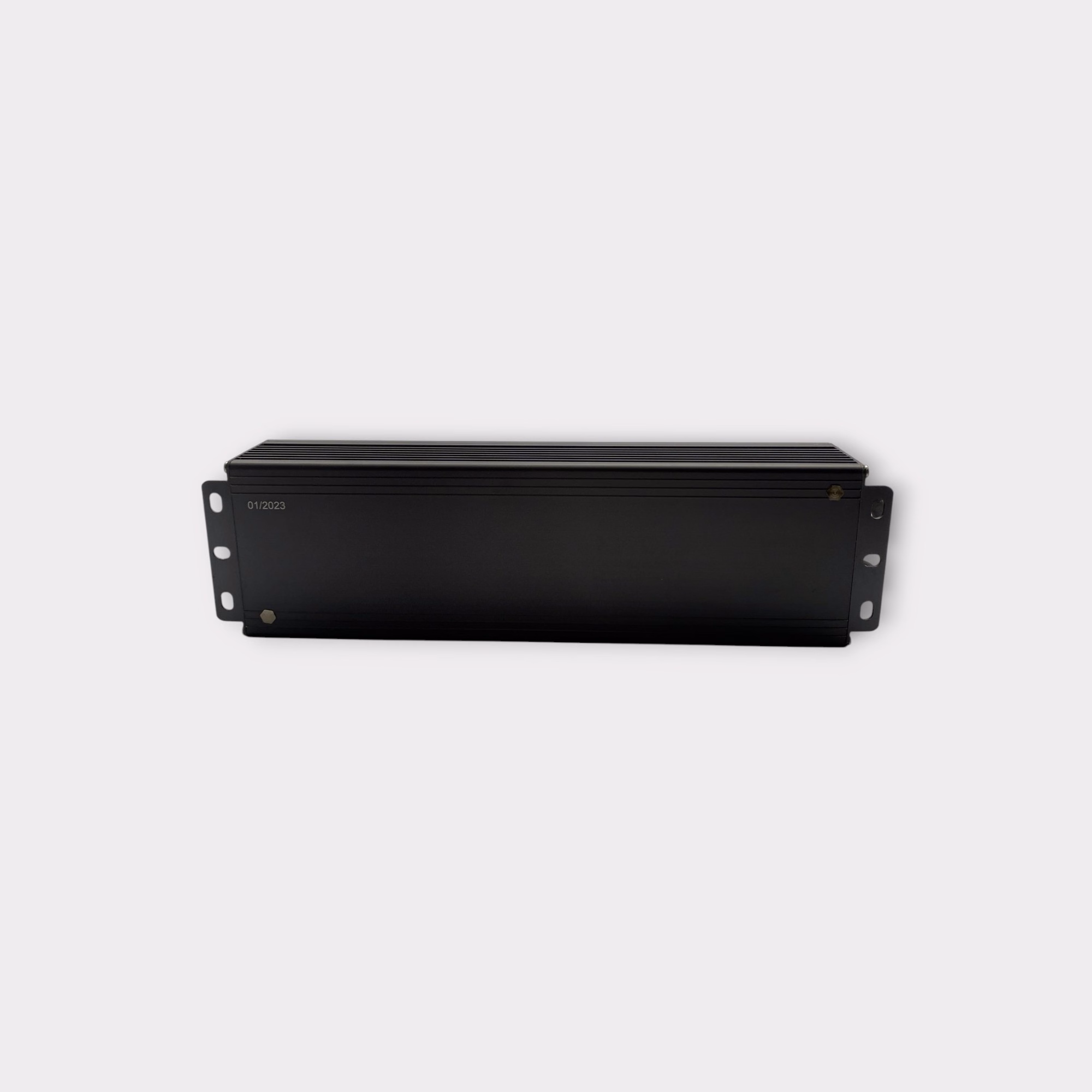

- Mounting - Integrated Mounting Tabs
- Location Rating - Wet Location
- Protection Features - Short Circuit, Overload, Over Temperature
- Operating Temperature - -40°C to 60°C (Manufacturer Specification)
- Operating Temperature on Unit Label - -40°C to 80°C
- Classification - Class P / Type HL / SELV
- Certification - cULus Listed
- Compliance - FCC / RoHS
- Approximate Length - 10.86 Inches
- Approximate Width - 3.07 Inches
- Approximate Height - 1.85 Inches
- Approximate Weight - 3.9 lbs
- Country of Origin - China
- Quantity - 1
