Summary

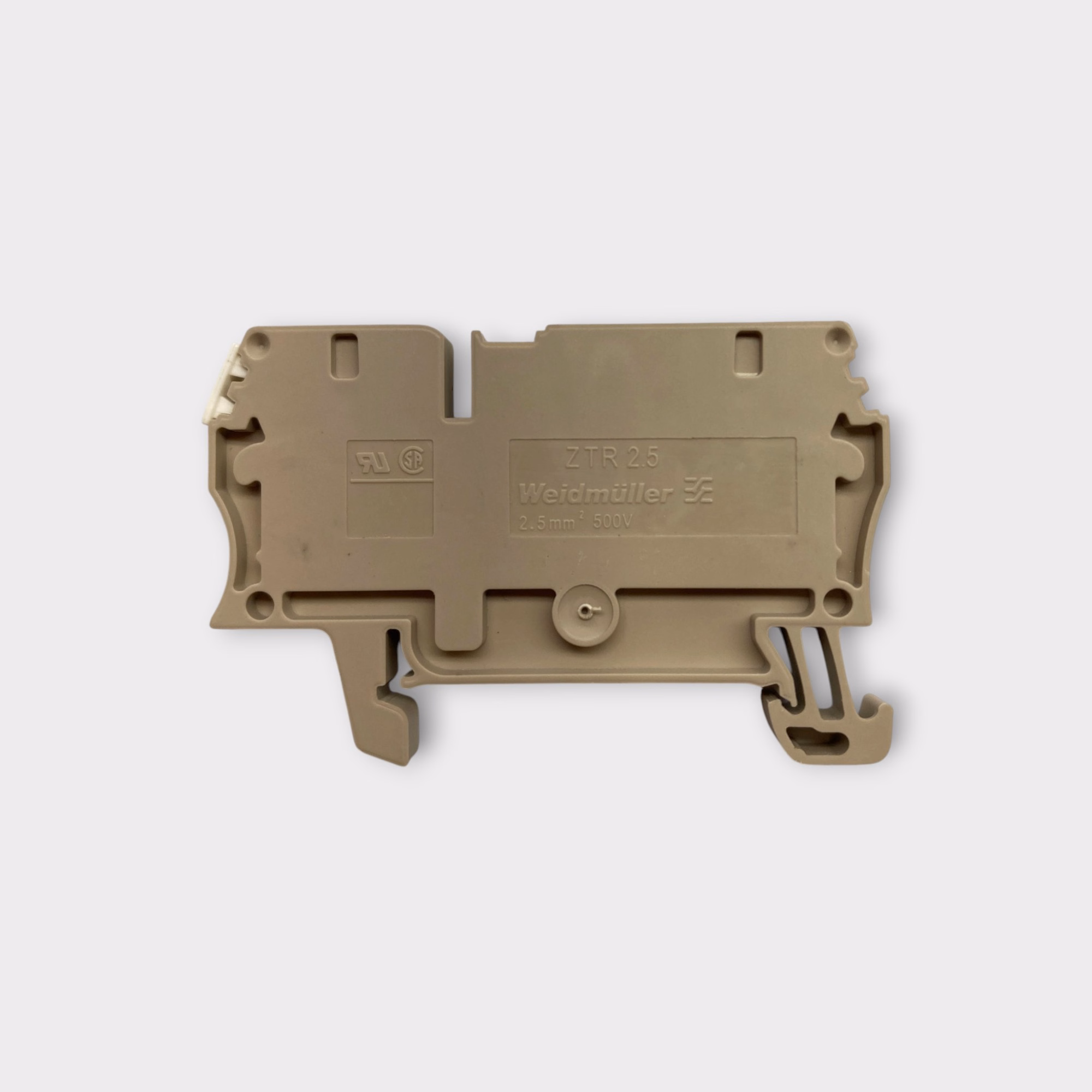

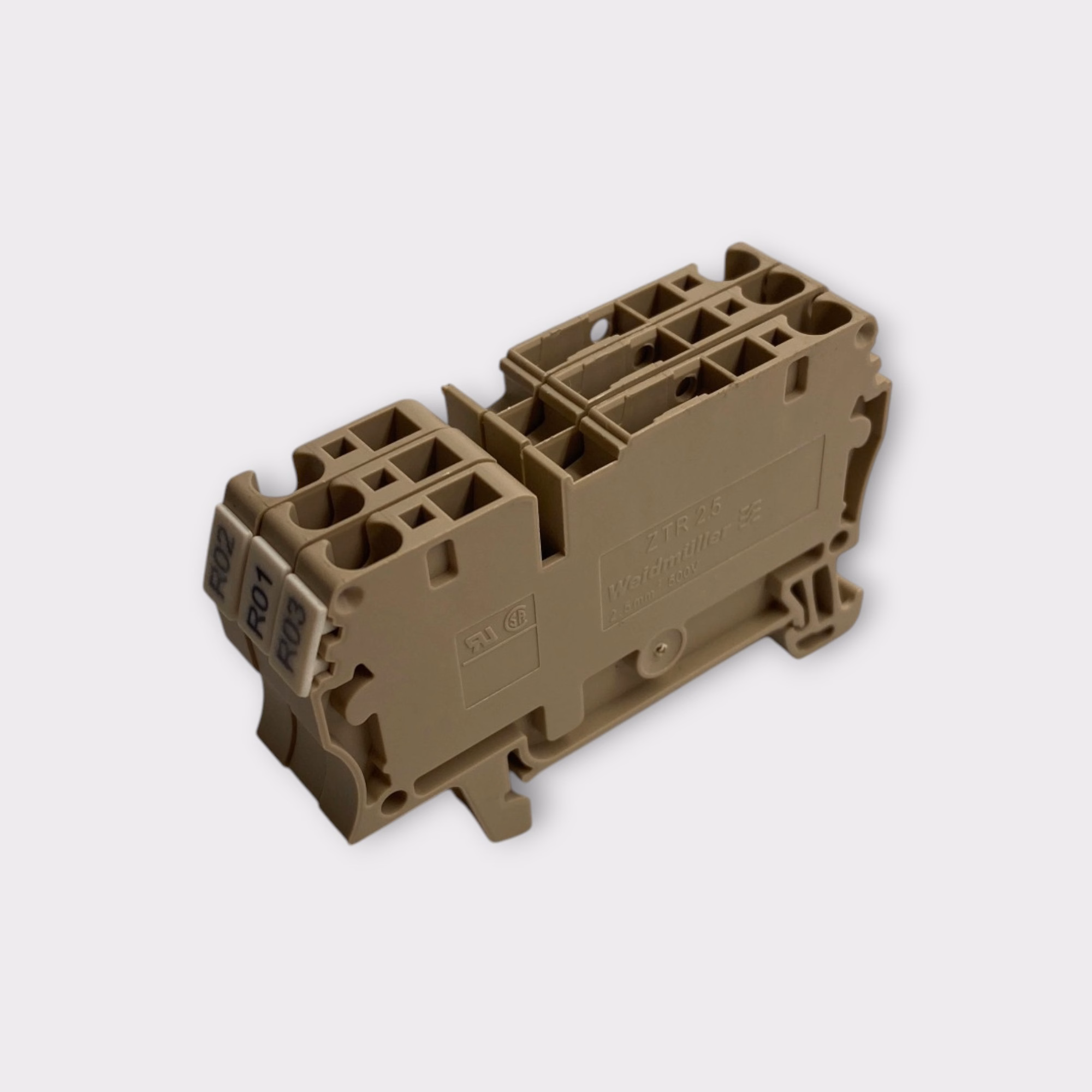

• Weidmuller ZTR 2.5/O.TNHE (1831130000) DIN rail test-disconnect terminal blocks, sold as a pack of 3. These Z-Series terminal blocks feature tension-clamp spring connections, a 2.5 mm² rated conductor cross-section, and a 20 A / 500 V IEC electrical rating for industrial electrical control, testing, and distribution applications.
• Each terminal block provides two conductor connection points and an integrated test-disconnect function, allowing compatible electrical circuits to be isolated for testing and maintenance.

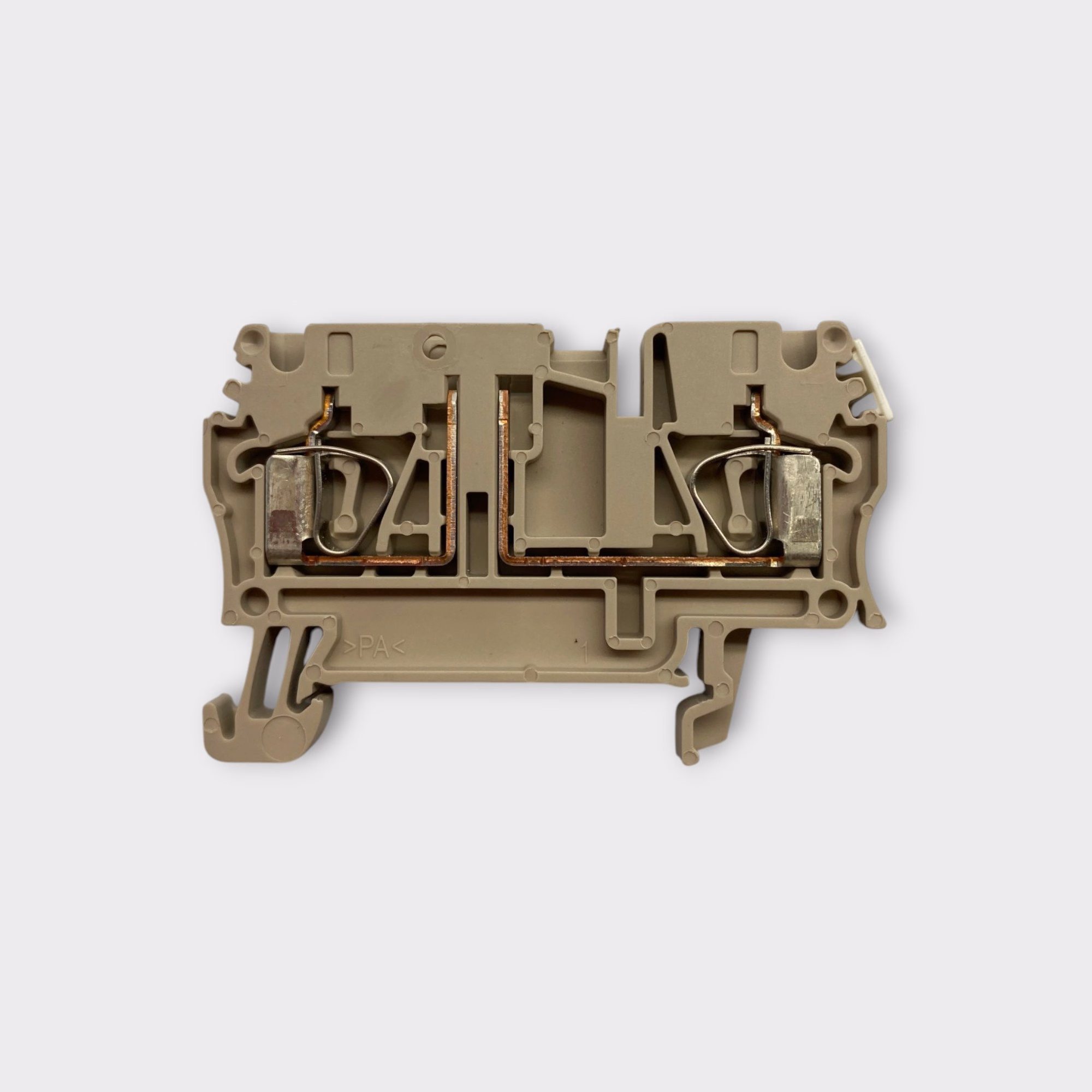

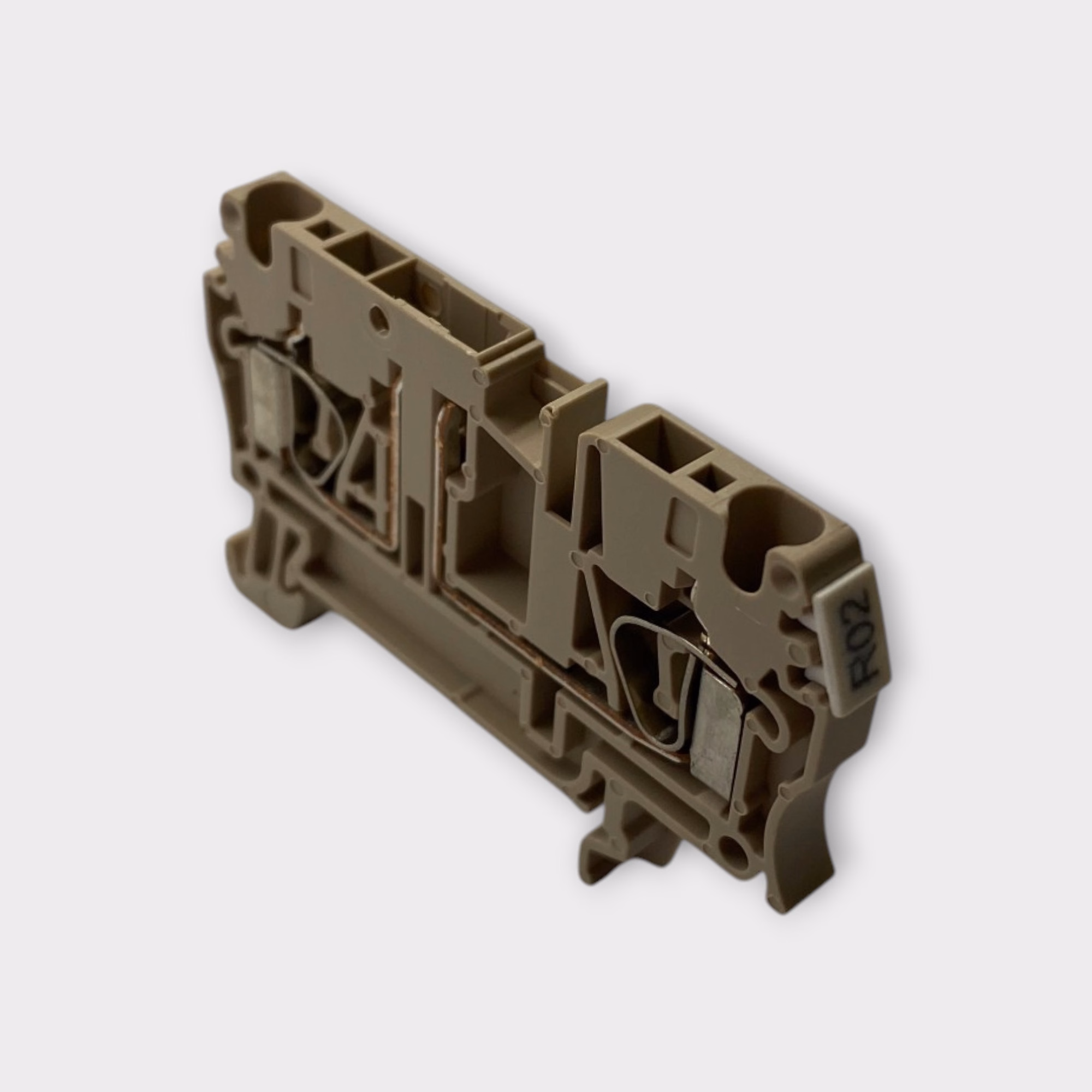

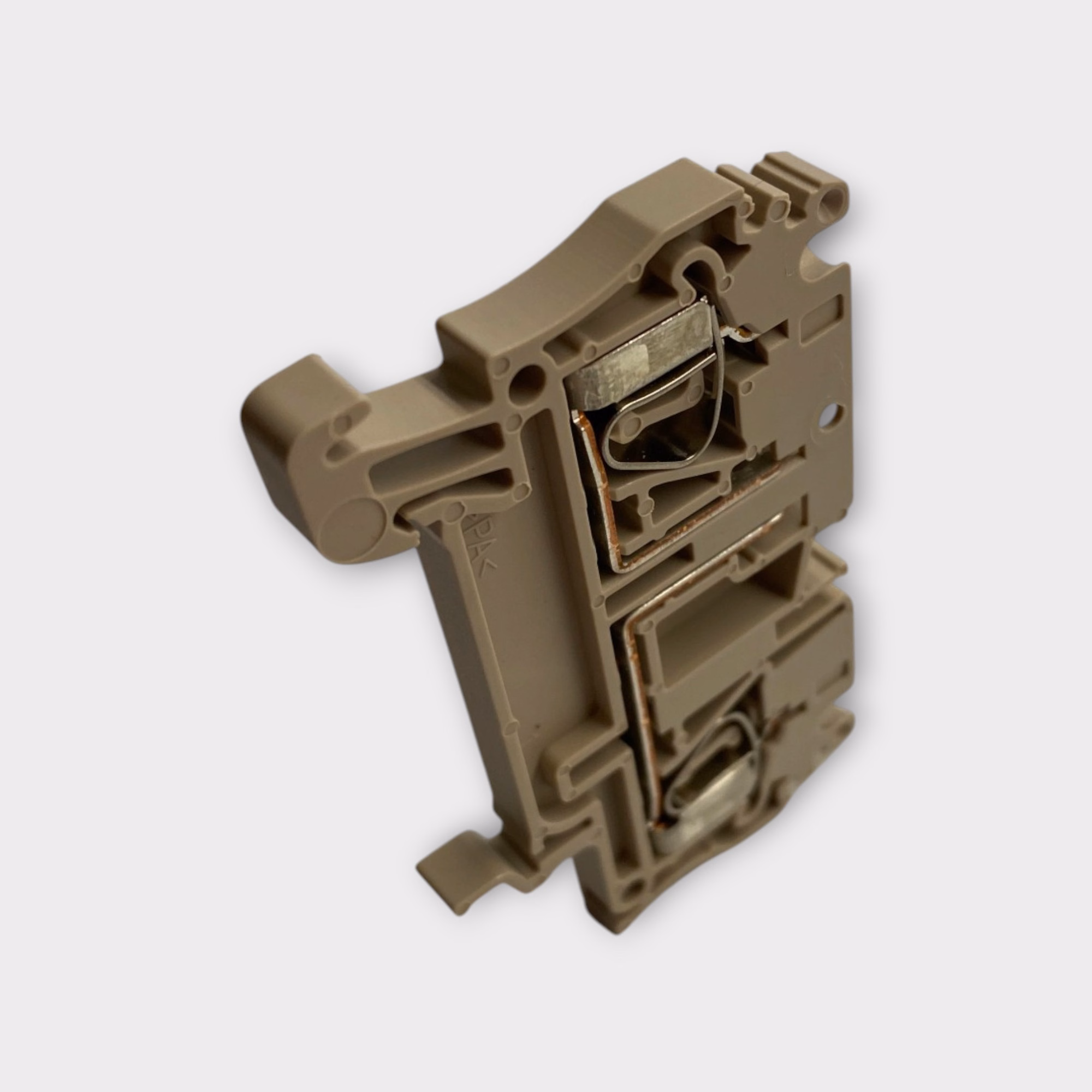

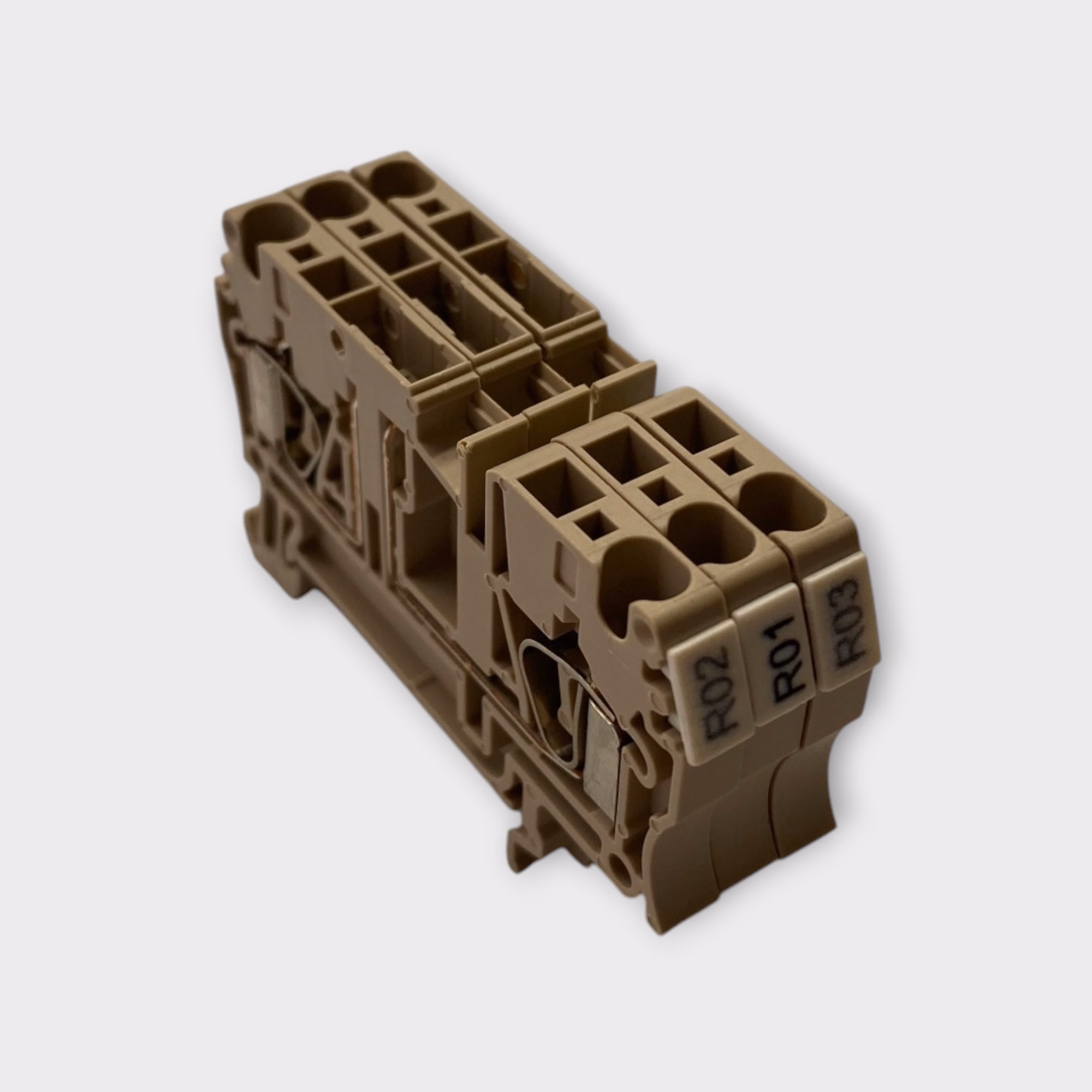

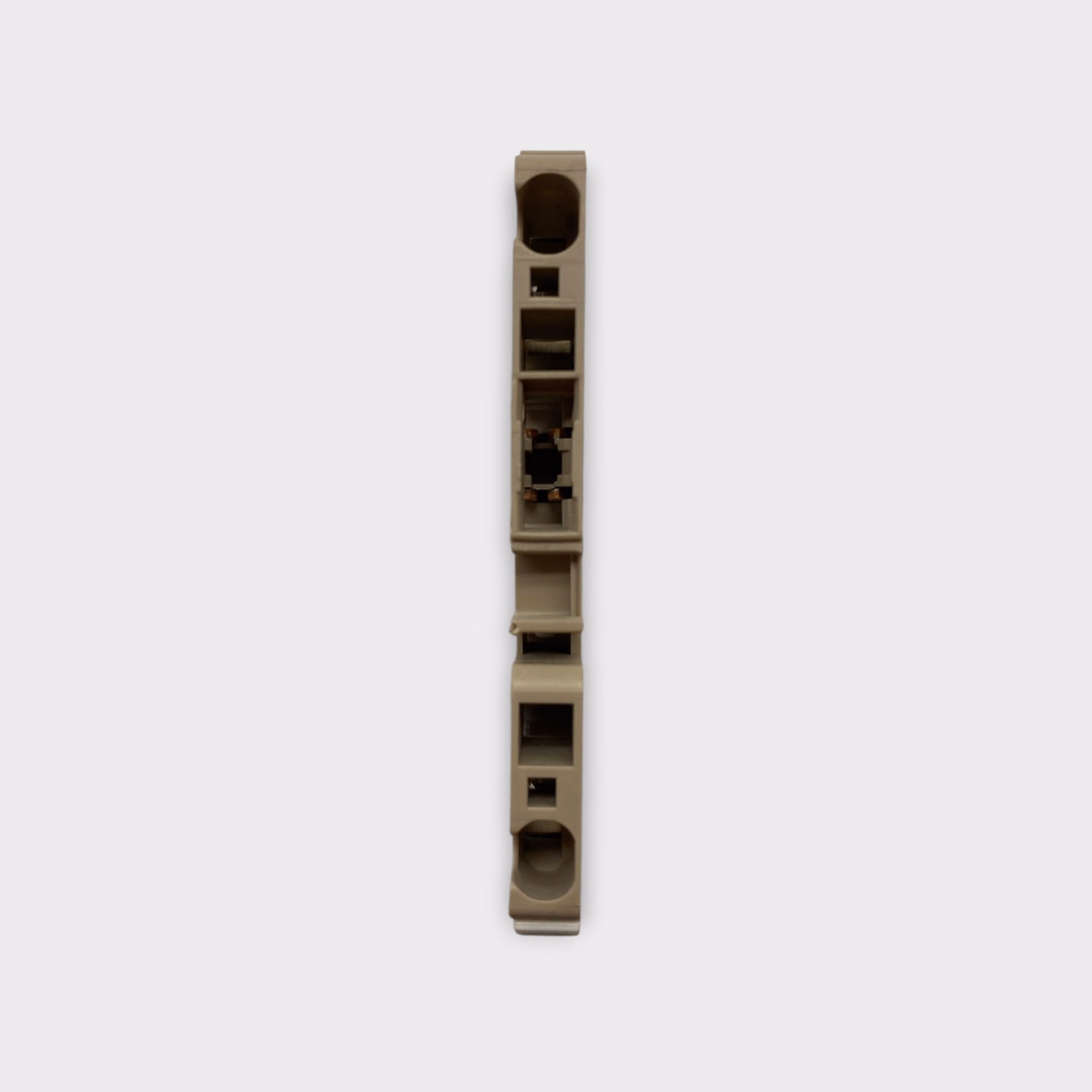

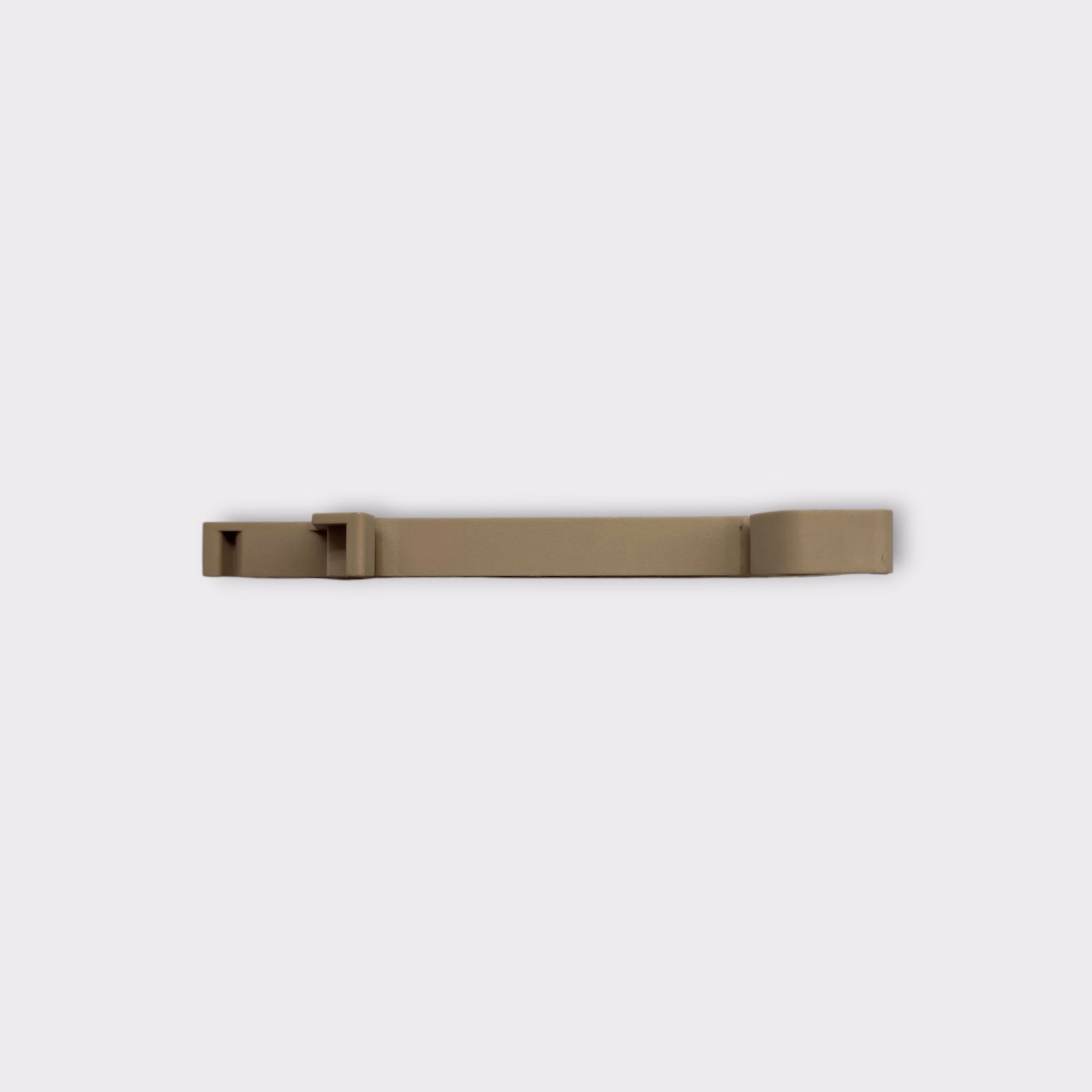

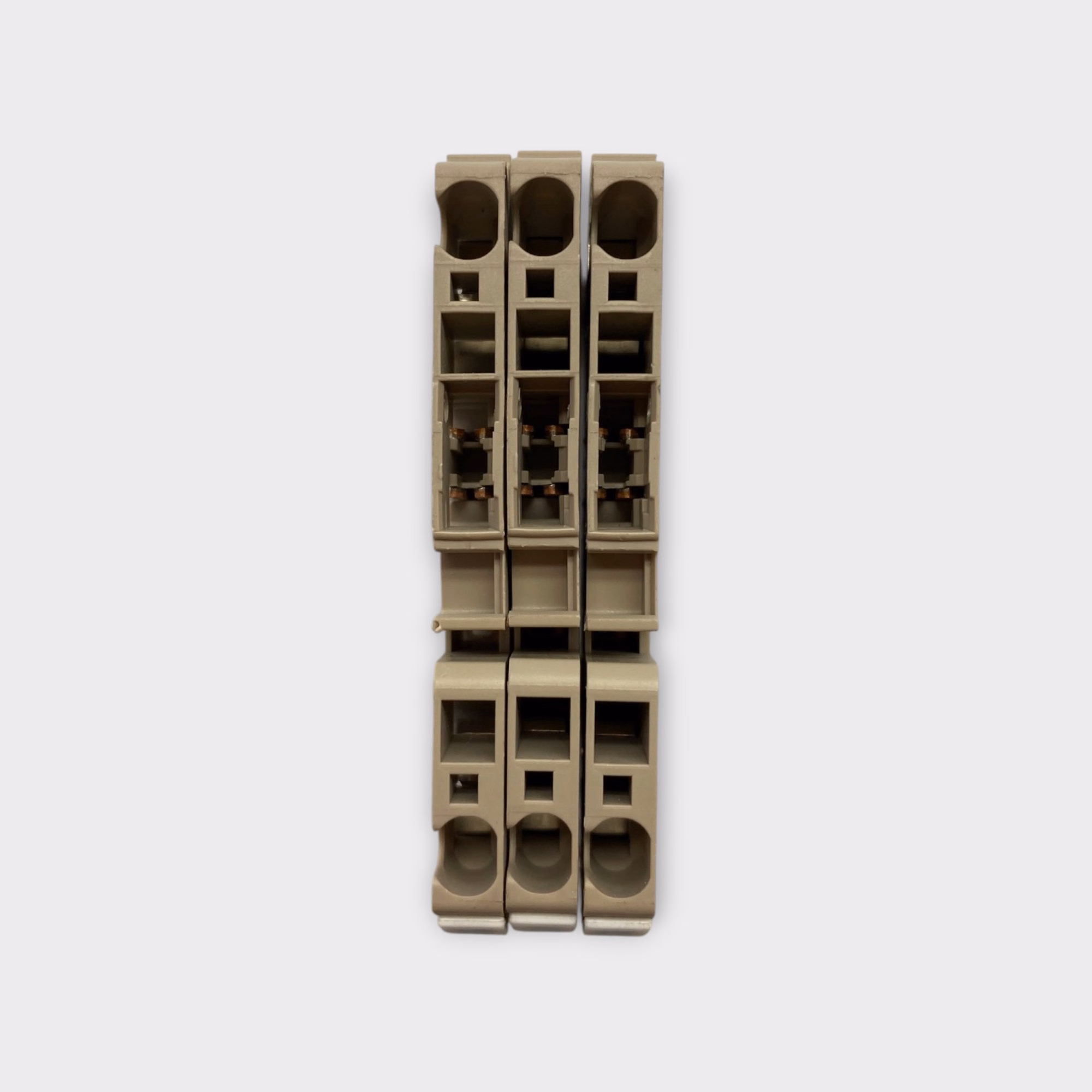

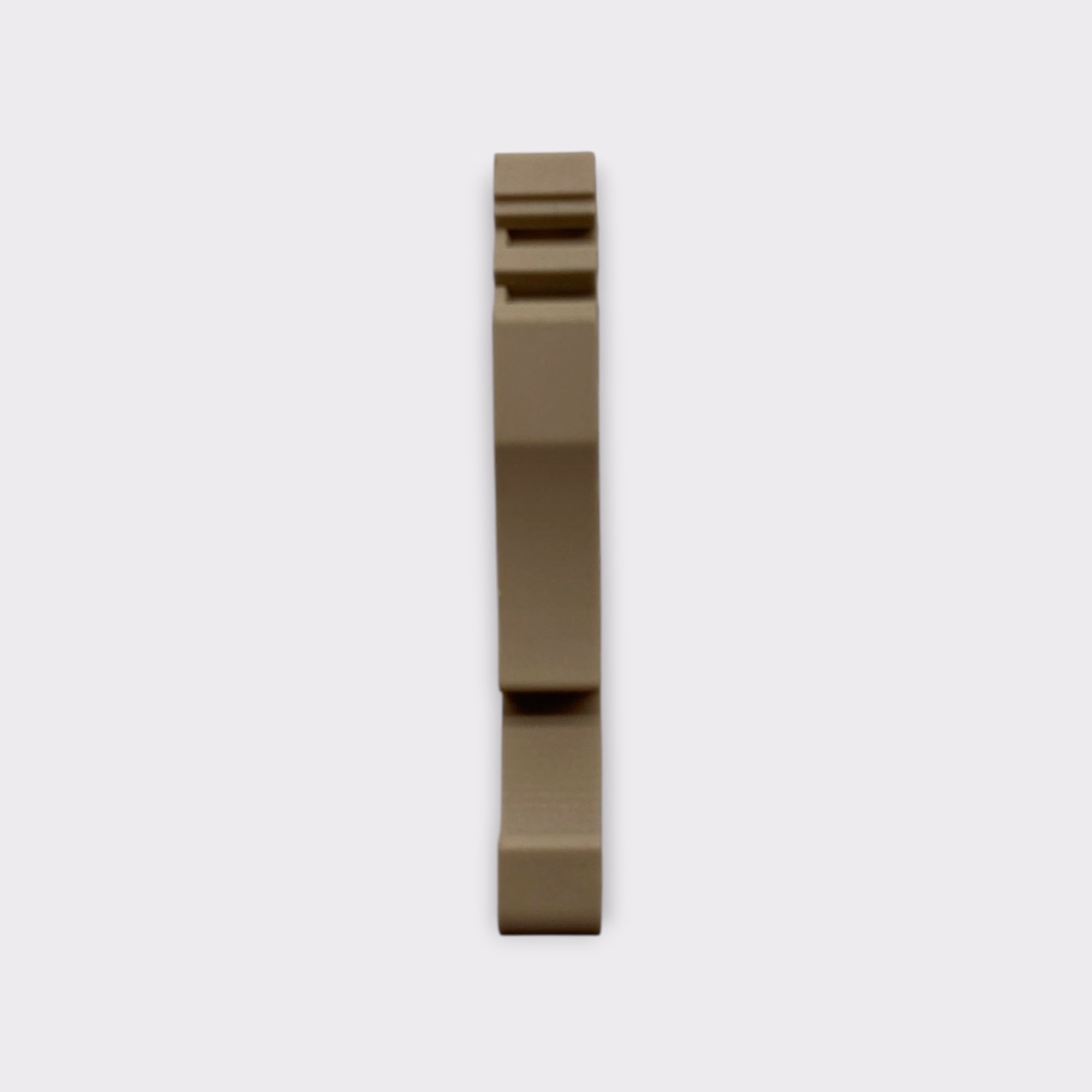

• This listing includes 3 Weidmuller ZTR 2.5/O.TNHE test-disconnect terminal blocks only. No original box, instructions, manuals, DIN rail, end plates, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Weidmuller ZTR 2.5/O.TNHE is a Z-Series test-disconnect terminal block designed for industrial electrical control panels, instrumentation systems, and electrical distribution applications requiring accessible circuit testing and isolation.
• Each terminal block features two tension-clamp conductor connection points and an integrated test-disconnect arrangement, allowing the circuit connection to be interrupted for compatible testing and maintenance procedures.
• The spring-clamp connection technology provides reliable conductor retention without conventional screw-tightened wire terminals, supporting efficient electrical panel installation and maintenance.
• Designed for standard TS 35 DIN rail mounting, these terminal blocks feature a compact 5.1 mm width and compatibility with plug-in cross-connectors for organized circuit distribution.
• The ZTR 2.5/O.TNHE supports a nominal conductor cross-section of 2.5 mm² and features manufacturer-specified IEC ratings of 500 V and 20 A. Its conductor clamping range extends from 0.05 mm² to 4 mm², depending on conductor type and termination method.
• The dark beige insulating housing is manufactured from Weidmuller's WEMID material and features a UL 94 V-0 flammability classification.
• The terminal block incorporates a test connection and a disconnecting arrangement for electrical testing applications. It is not a fuse terminal block and does not provide overcurrent protection.
• These terminals are suitable for industrial automation, instrumentation wiring, control cabinet assemblies, electrical distribution systems, and compatible marine electrical installations.

Product Information

- Brand: Weidmuller
- Model: ZTR 2.5/O.TNHE
- Series: Z-Series
- MPN: 1831130000
- Type: Test-Disconnect Terminal Block
- Number in Pack: 3
- Number of Ports: 2
- Number of Poles: 1
- Number of Levels: 1
- Connector Style: DIN Rail Terminal Block
- Termination Type: Tension-Clamp / Spring Clamp
- Compatible Mounting Type: DIN Rail
- Compatible DIN Rail: TS 35 (35 mm)
- Mounting Method: Snap-On
- Test-Disconnect Function: Yes
- Cross-Connection: Plug-In Cross-Connector Compatible
- End Cover Plate Required: Yes (Not Included)
- Material: WEMID Insulating Material
- Color: Dark Beige
- Rated Conductor Cross-Section: 2.5 mm²
- Current Rating (IEC): 20 A
- Voltage Rating (IEC): 500 V
- Voltage Rating (DC): 500 V
- Current Rating (UL): 20 A
- Voltage Rating (UL): 600 V
- Rated Impulse Withstand Voltage: 6 kV
- Compatible Wire Gauge (AWG): 12–30 AWG
- Conductor Clamping Range: 0.05–4 mm²
- Stripping Length: 10 mm
- Item Length (Depth): 38.5 mm
- Item Width: 5.1 mm
- Item Height: 59.5 mm
- Depth Including DIN Rail: 41 mm
- Net Weight: 8.1 g Each
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-1
- UL Certificate Number: E60693
- RoHS Compliance: Compliant Without Exemption
- EAN / GTIN: 4032248471515

Package Contents

- 3x Weidmuller ZTR 2.5/O.TNHE Test-Disconnect Terminal Blocks (1831130000)

Total: 3 Test-Disconnect Terminal Blocks, Sold as One 3-Pack Listing.
