Summary

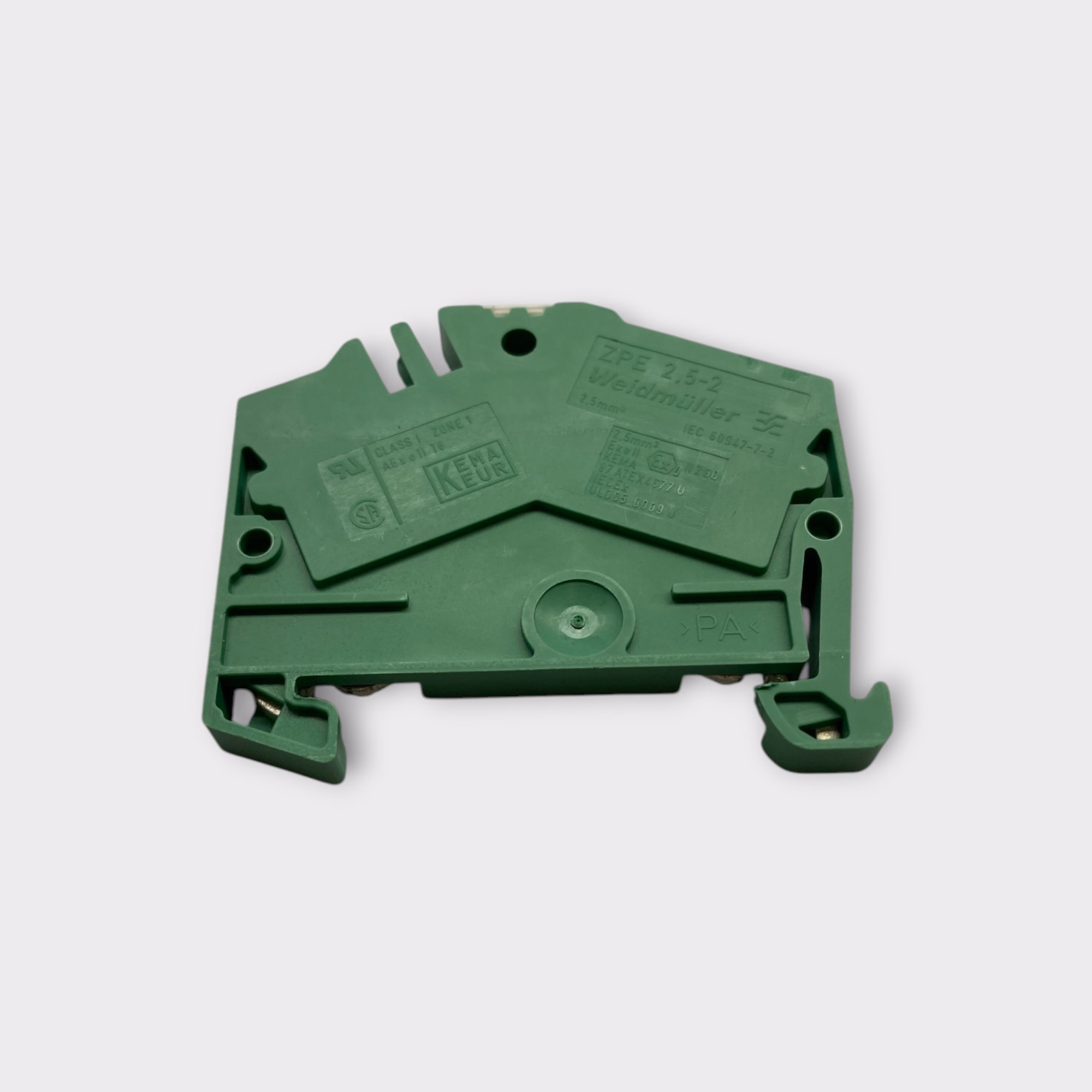

• Weidmuller ZPE 2.5-2 (1772090000) protective earth ground terminal blocks, sold as a pack of 3. These green/yellow Z-Series terminal blocks feature tension-clamp connections, a 2.5 mm² rated conductor cross-section, and two conductor connection points for protective earth grounding applications.
• Designed for standard TS 35 DIN rail mounting, these terminal blocks provide secure grounding connections for industrial electrical control panels, machinery, automation systems, and electrical distribution equipment.

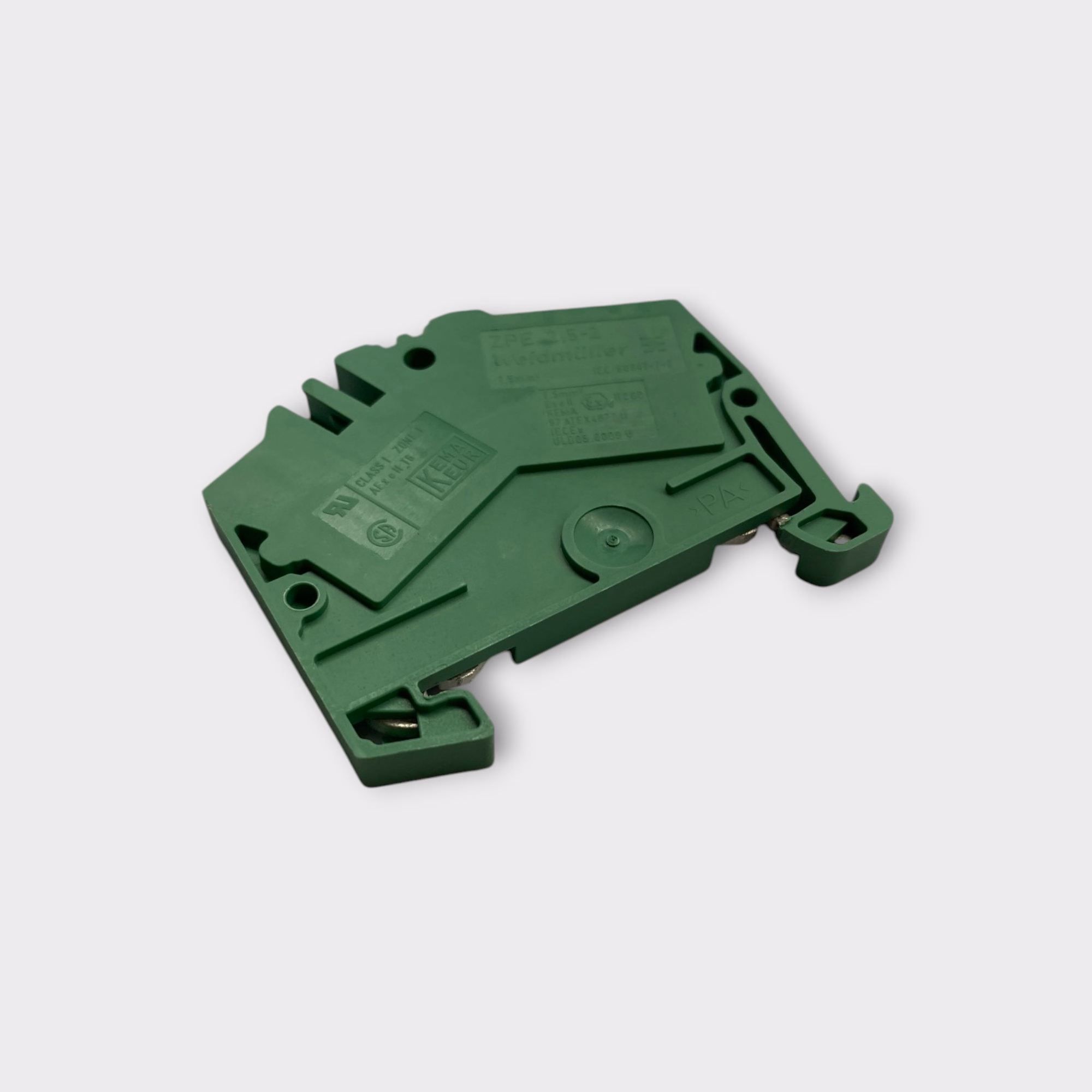

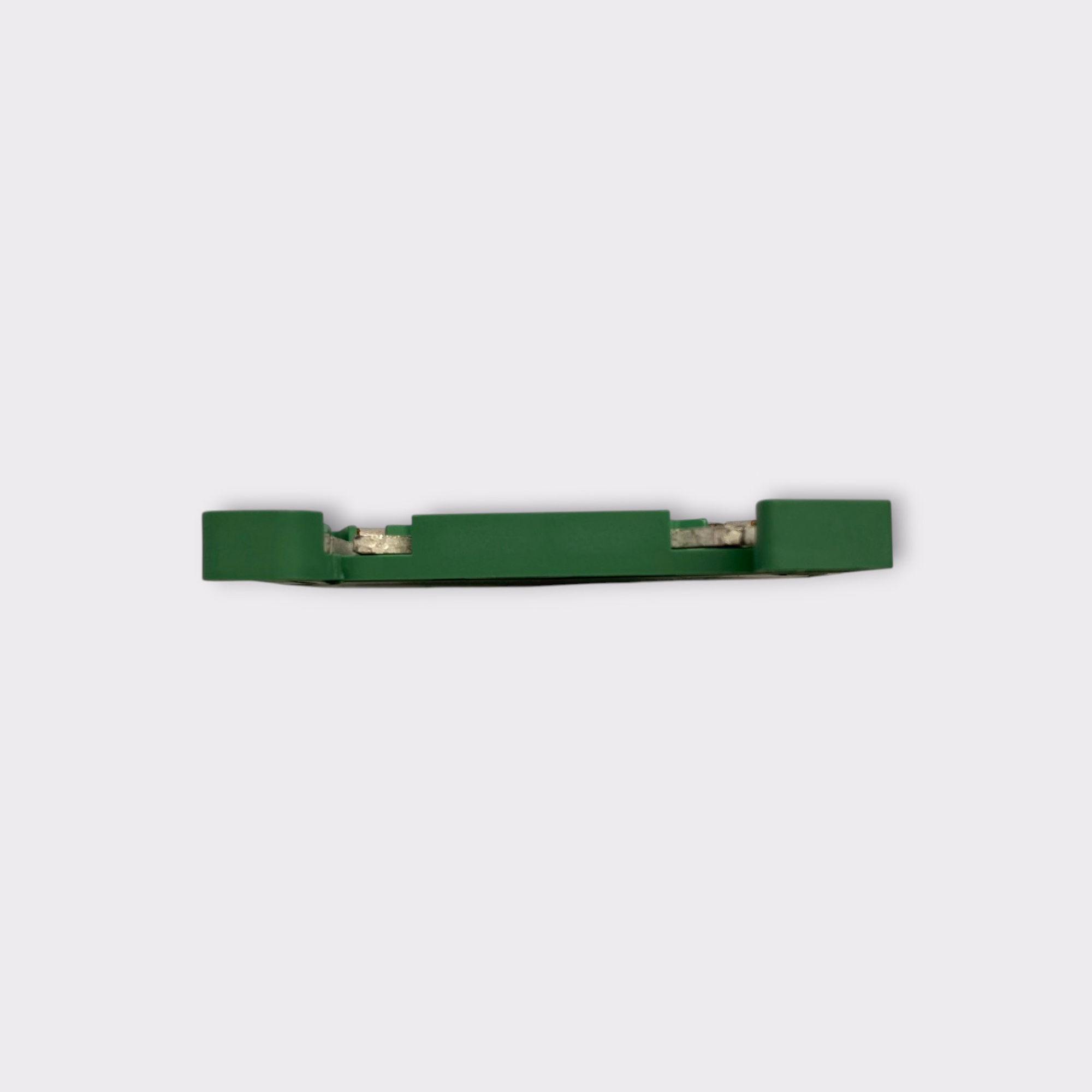

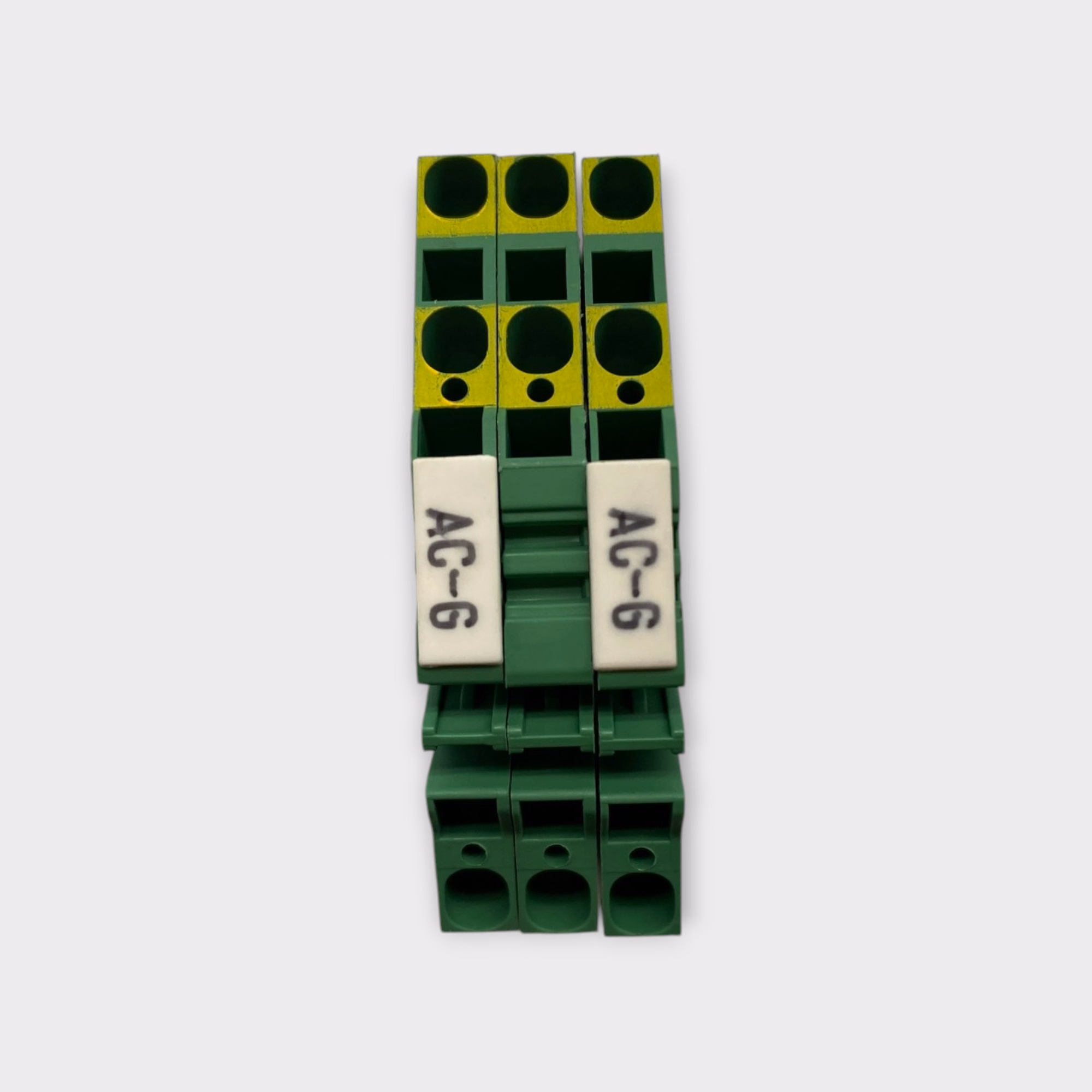

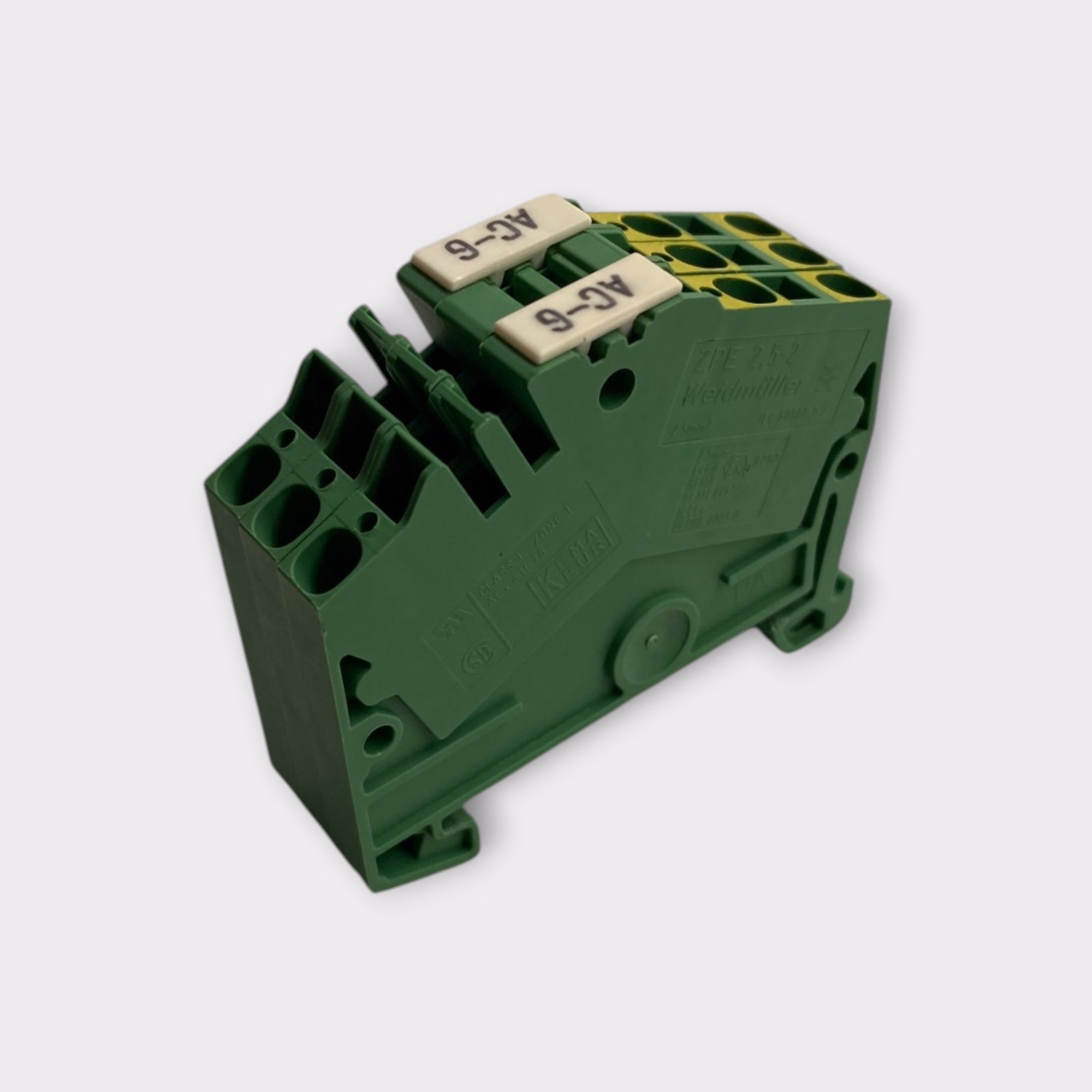

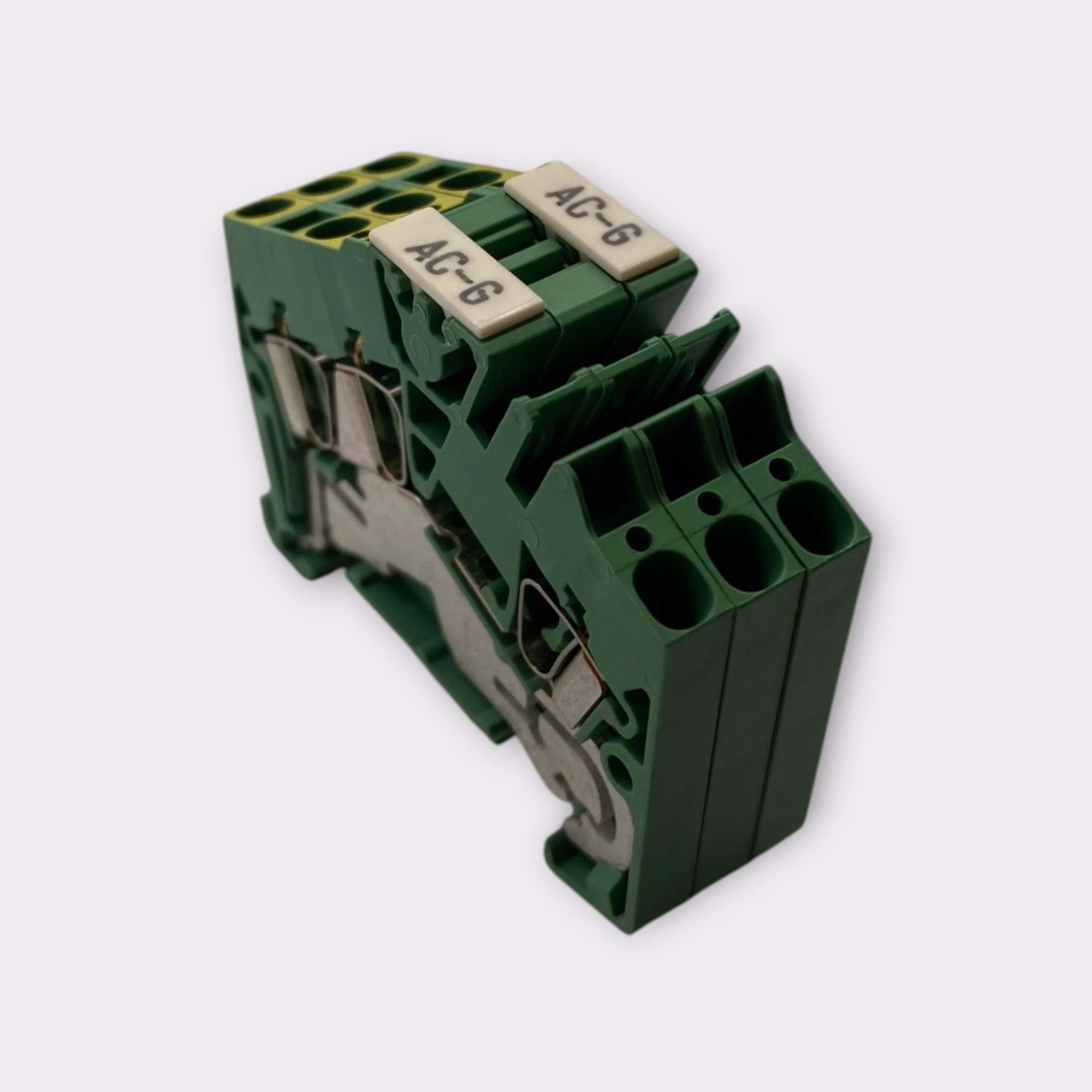

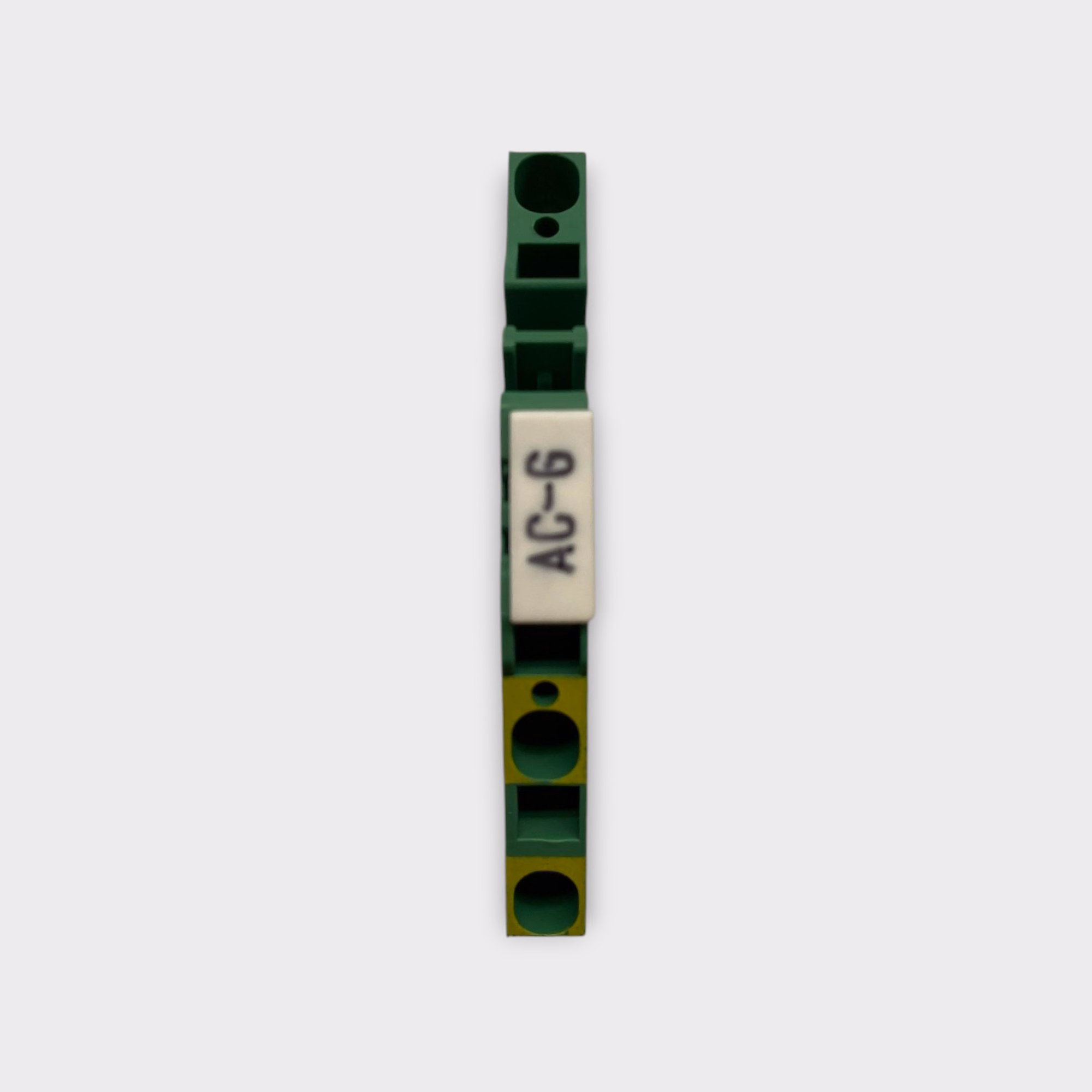

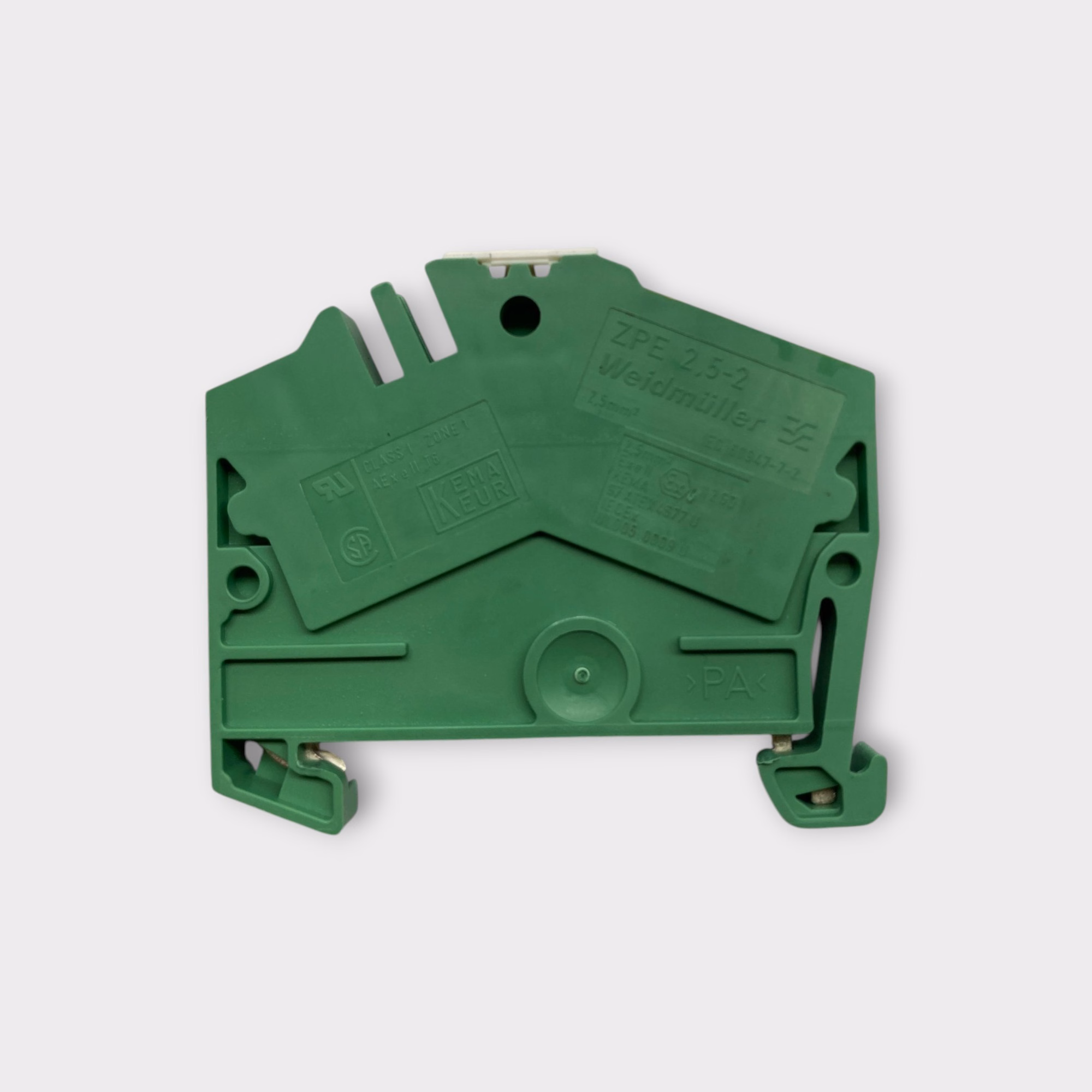

• This listing includes 3 Weidmuller ZPE 2.5-2 ground terminal blocks only. No original box, instructions, manuals, DIN rail, end plates, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Weidmuller ZPE 2.5-2 is a Z-Series protective earth (PE) terminal block designed for reliable grounding connections in industrial electrical control panels and distribution systems.

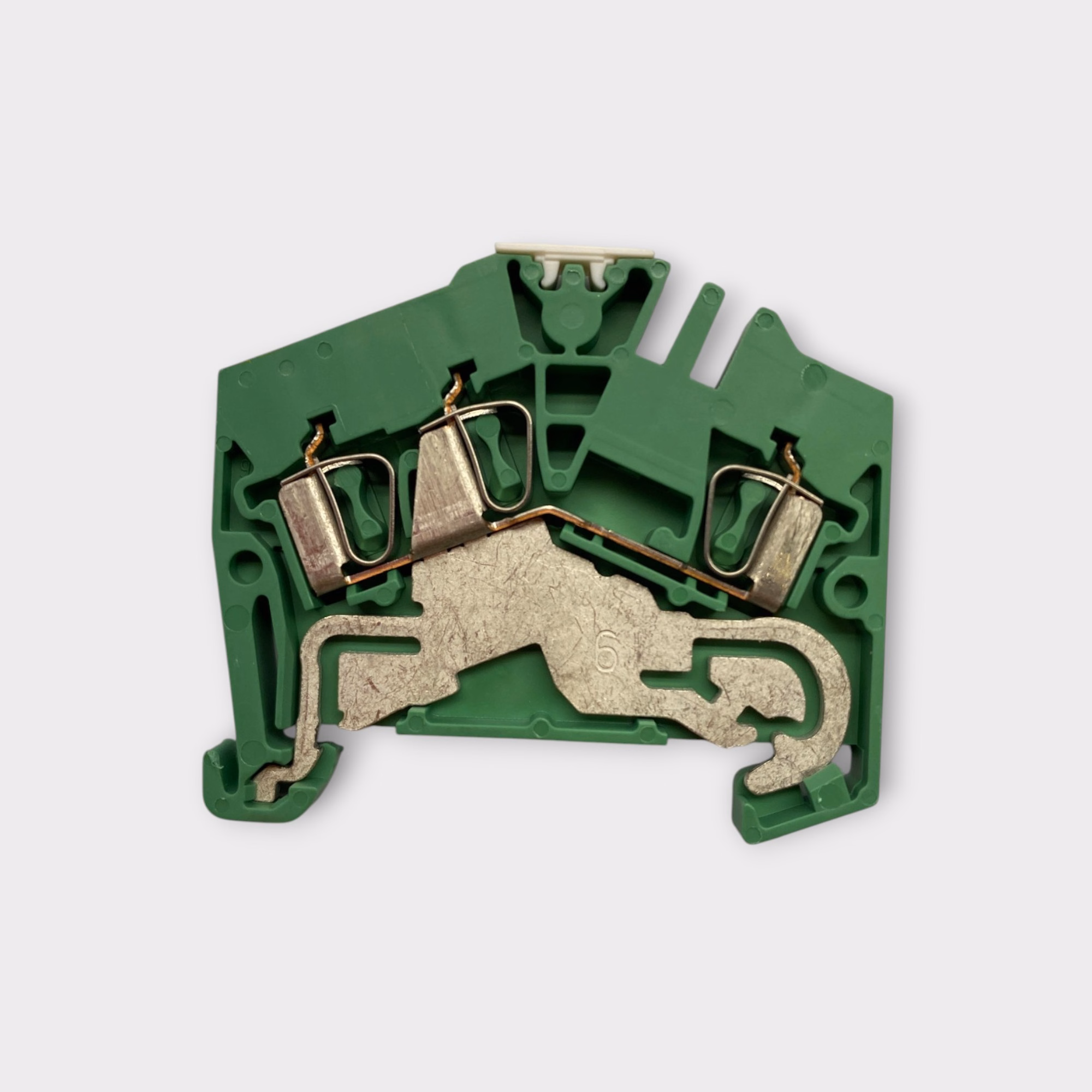

• Each terminal block features two tension-clamp connection points on a single level, providing a common protective earth connection through the DIN rail mounting system.
• The spring-clamp connection technology provides secure conductor retention without conventional screw-tightened wire terminals, making the ZPE 2.5-2 suitable for organized and efficient electrical installations.
• Designed for standard TS 35 DIN rails, these terminal blocks feature a compact 5.1 mm housing width and support a nominal conductor cross-section of 2.5 mm².
• The terminal blocks feature green/yellow insulating housings for standardized protective earth identification. The housings are manufactured from Weidmuller's WEMID material and feature a UL 94 V-0 flammability rating.
• The ZPE 2.5-2 is designed specifically for protective earth grounding rather than ordinary feed-through power distribution. The manufacturer specifies a rated short-time grounding current of 300 A for a 2.5 mm² conductor.
• These ground terminal blocks are suitable for industrial automation, electrical distribution cabinets, machinery wiring, control panel assemblies, and compatible marine electrical installations.

Product Information

- Brand: Weidmuller
- Model Number: ZPE 2.5-2
- Series: Z-Series
- MPN: 1772090000
- Type: Protective Earth Ground Terminal Block
- Number in Pack: 3
- Number of Ports: 2
- Number of Poles: 1 (Protective Earth)
- Number of Levels: 1
- Connector Style: DIN Rail Terminal Block
- Termination Type: Tension-Clamp / Spring Clamp
- Compatible Mounting Type: DIN Rail
- Compatible DIN Rail: TS 35 (35 mm)
- Mounting Method: Snap-On
- Material: WEMID Insulating Material
- Color: Green / Yellow
- Rated Conductor Cross-Section: 2.5 mm²
- Compatible Wire Gauge (AWG): 12–26 AWG
- Conductor Clamping Range: 0.13–4 mm²
- Stripping Length: 10 mm
- Protective Earth Connection: Yes
- PEN Function: No
- Rated Short-Time Current: 300 A (2.5 mm²)
- Rated Voltage to Adjacent Terminal: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Item Length (Depth): 43.5 mm
- Item Width: 5.1 mm
- Item Height: 50.5 mm
- Net Weight: 11.11 g Each
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- End Cover Plate Required: Yes (Not Included)
- RoHS Compliance: Compliant Without Exemption
- Standard: IEC 60947-7-2
- UL Certificate Number: E60693
- EAN / GTIN: 4032248128730

Package Contents

- 3x Weidmuller ZPE 2.5-2 Protective Earth Terminal Blocks (1772090000)

Total: 3 Ground Terminal Blocks, Sold as One 3-Pack Listing.
