Summary

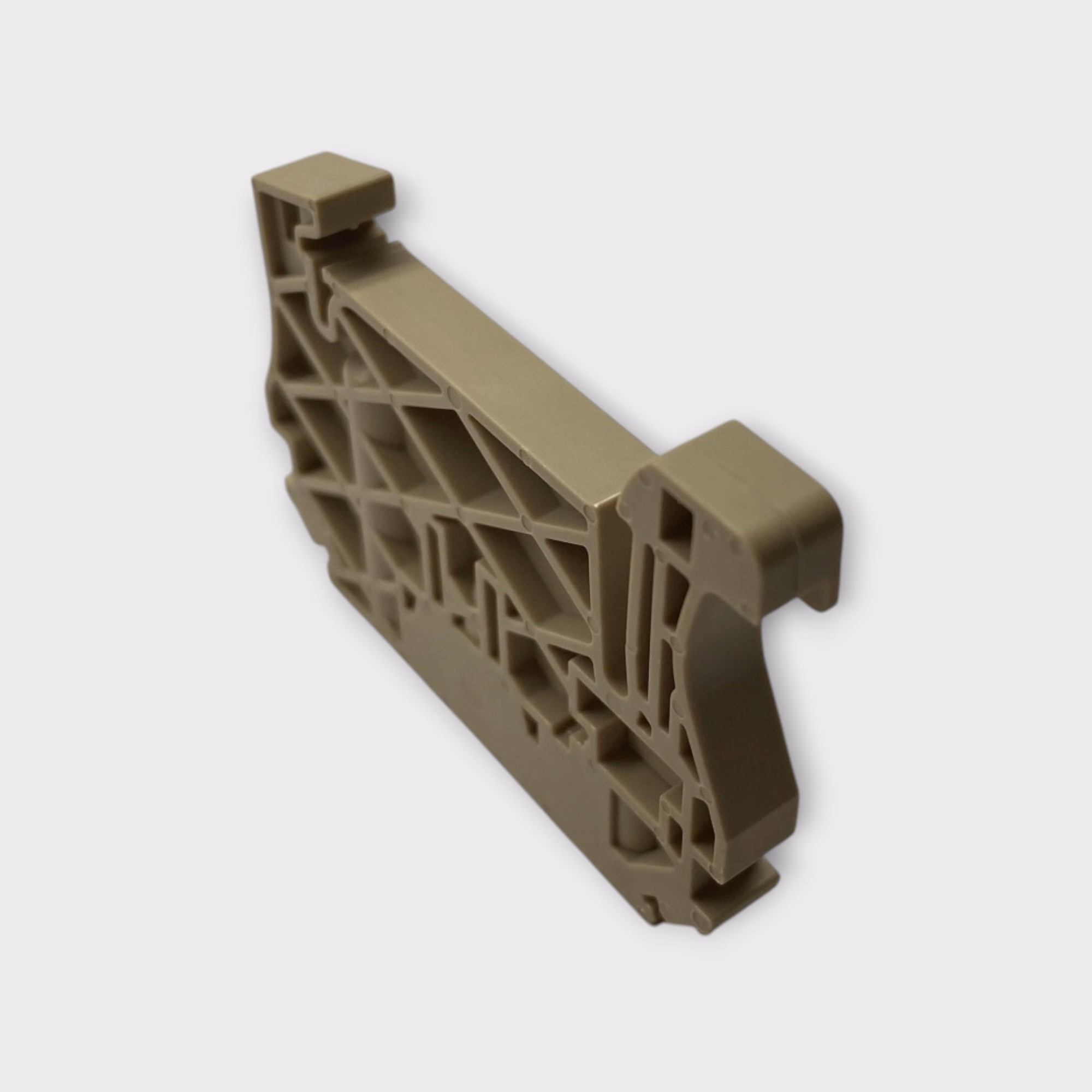

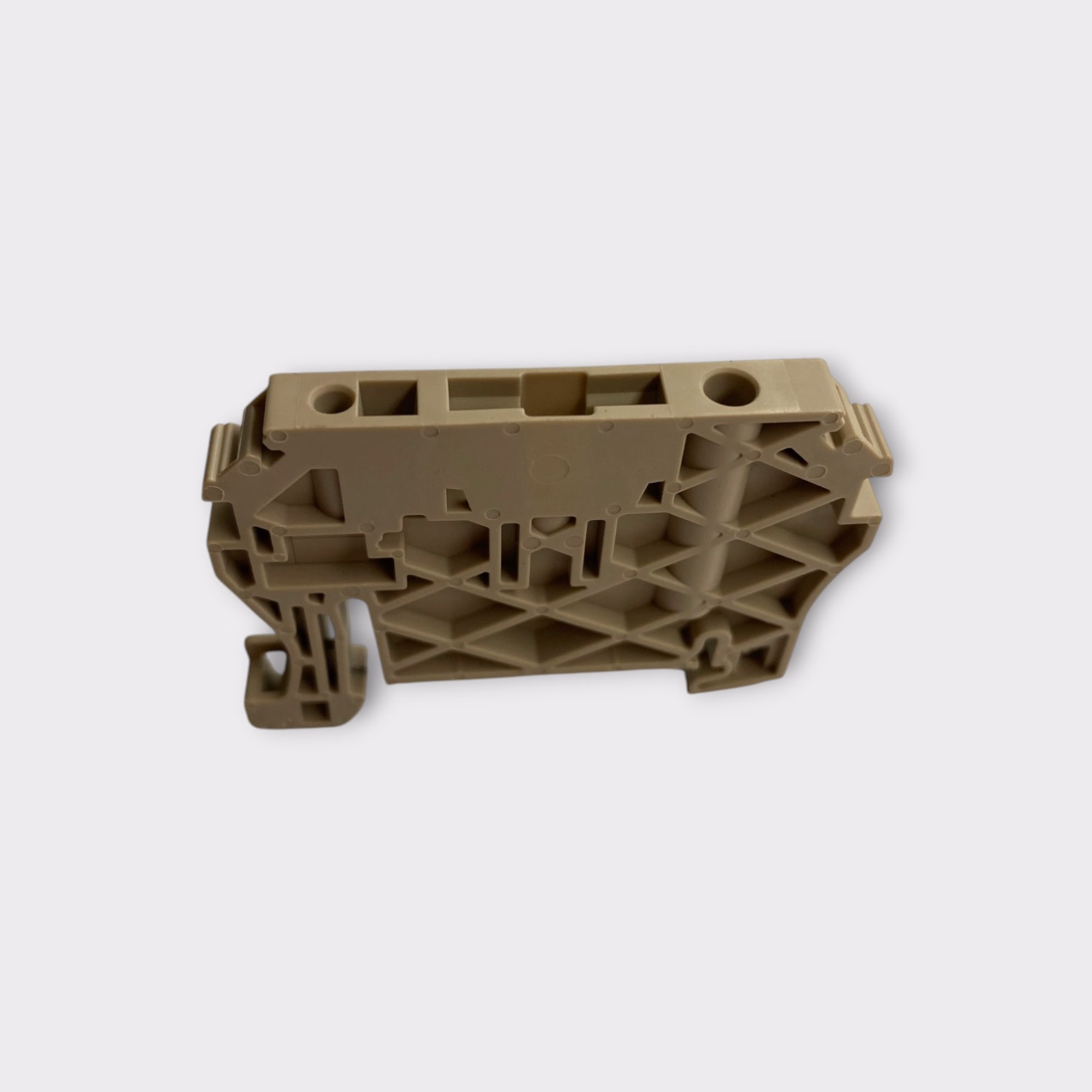

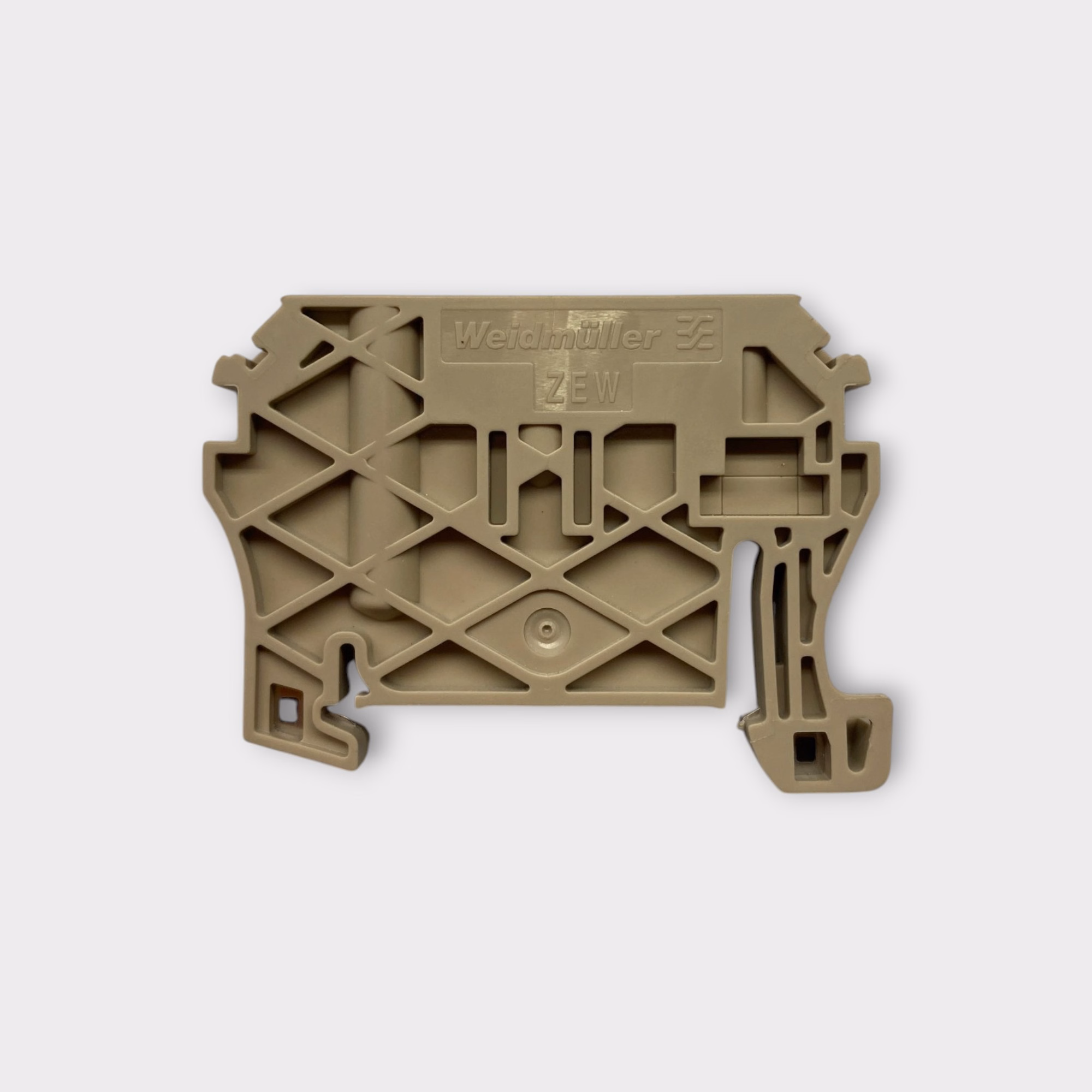

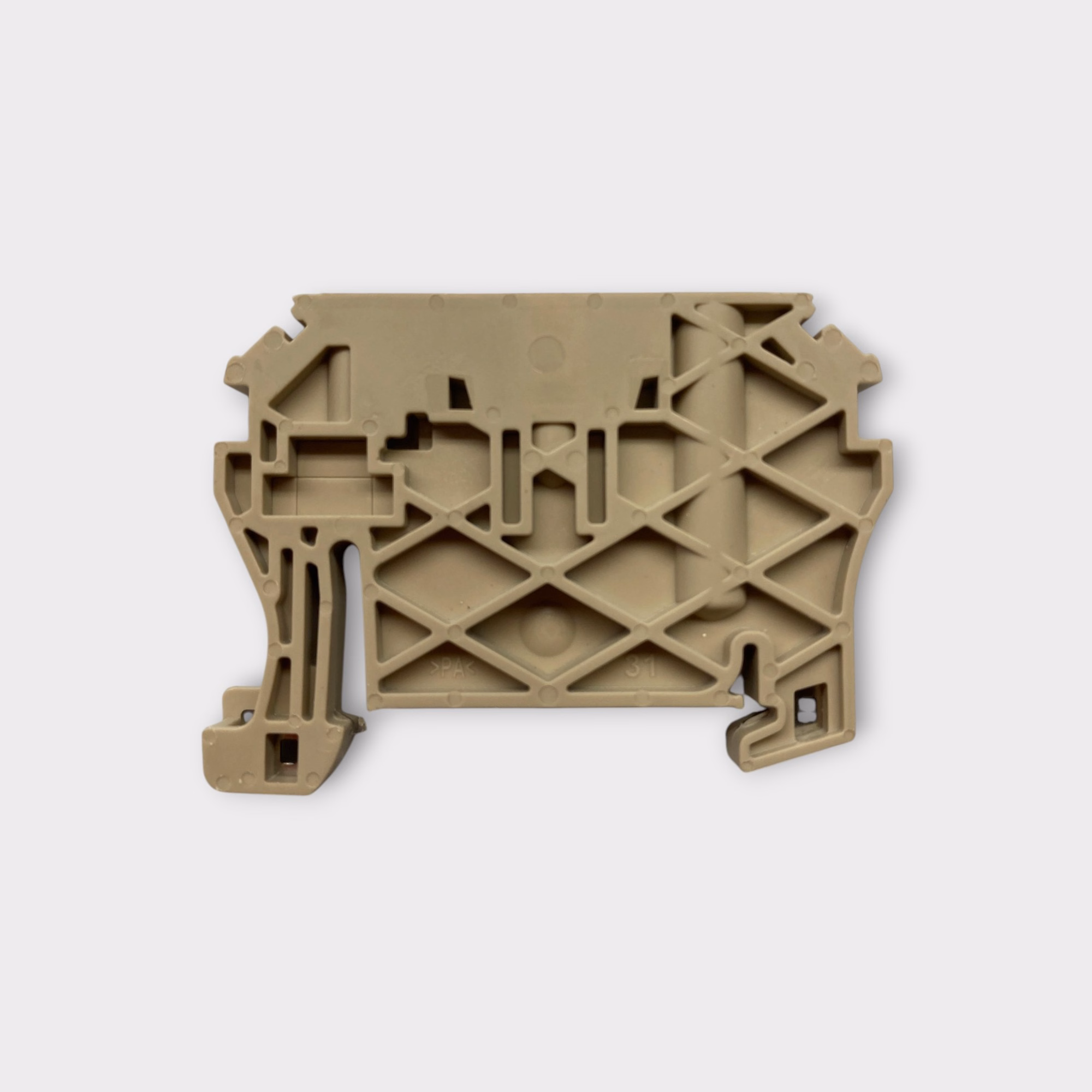

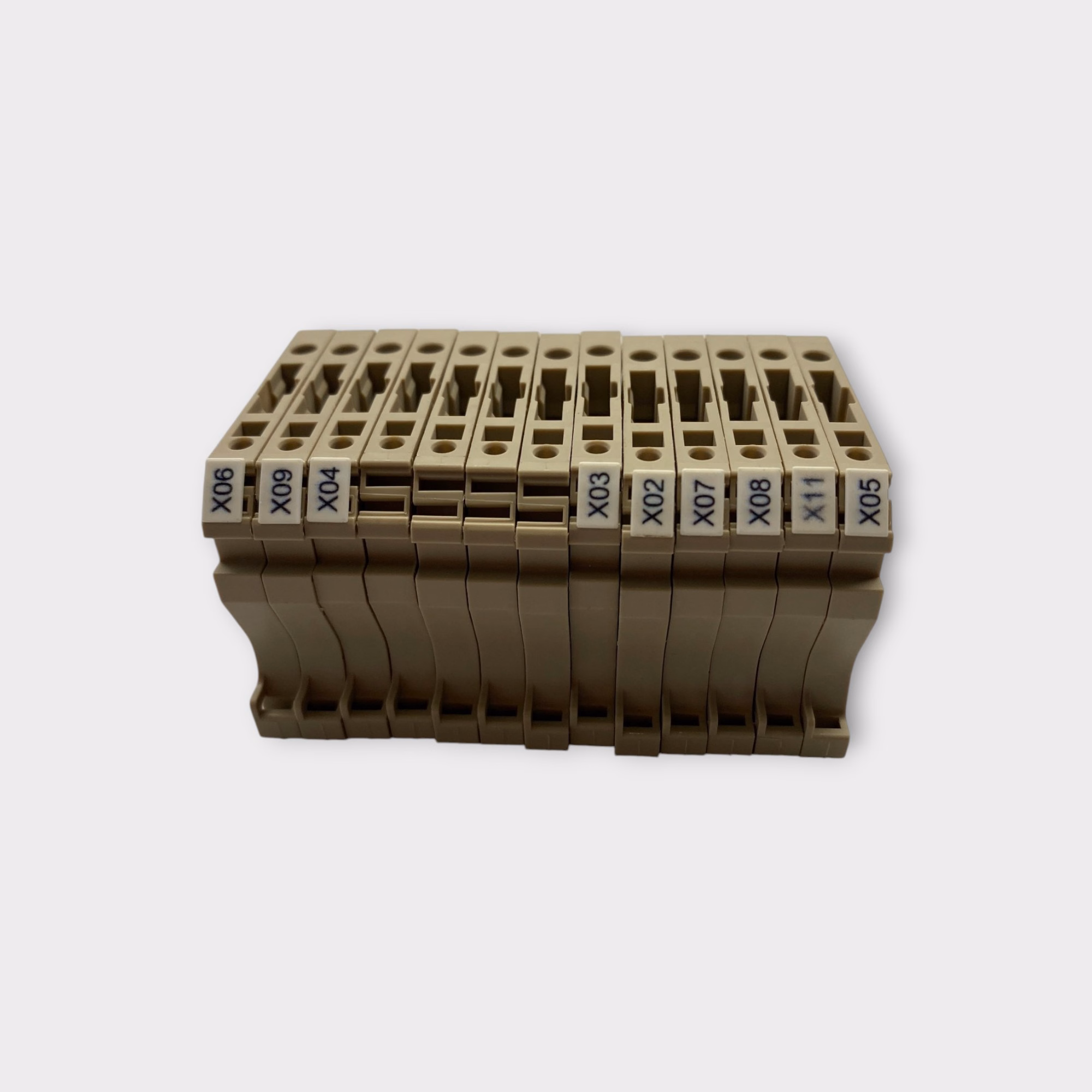

• Weidmuller ZEW 35 (9540000000) DIN rail end brackets, sold as a pack of 13. These screwless, snap-on end brackets are designed to secure terminal block assemblies on standard 35 mm DIN rails, preventing lateral movement and maintaining proper positioning within electrical control panels.
• This listing includes 13 Weidmuller ZEW 35 end brackets only. No original box, instructions, manuals, DIN rails, terminal blocks, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Weidmuller ZEW 35 is a compact, screwless end bracket designed to securely retain terminal blocks and other compatible components on TS 35 DIN mounting rails.
• Manufactured from Weidmuller's WEMID insulating material, these dark beige end clamps feature a 6 mm wide housing and snap-on mounting mechanism for quick installation without additional fastening screws.
• Designed for industrial electrical systems, these brackets are suitable for terminal strip assemblies, automation control panels, distribution cabinets, and marine electrical installations.

Product Information

- Manufacturer: Weidmuller
- Model Number: ZEW 35
- Series: Z-Series
- MPN: 9540000000
- Product Type: DIN Rail End Bracket / End Clamp
- Quantity Included: 13 Pieces
- Color: Dark Beige
- Material: WEMID Insulating Material
- Mounting Type: Snap-On DIN Rail
- Compatible DIN Rail: TS 35 (35 mm)
- Locking Mechanism: Screwless
- Width: 6 mm (0.236")
- Height: 55 mm (2.165")
- Depth: 40 mm (1.575")
- Weight: Approximately 6.69 g per Bracket
- Continuous Operating Temperature: -50°C to +100°C
- Flammability Rating: UL 94 V-2
- RoHS Compliance: Compliant
- GTIN / EAN: 4008190956264
- Manufacturer Part Number: 9540000000
- Package Quantity: 13 End Brackets
