Summary

• Weidmuller ZDU 6-2/3AN (1771410000) DIN rail feed-through terminal blocks, sold as a pack of 8 with 4 Weidmuller ZAP ZDU6-2 (1771440000) end plates included. These Z-Series terminal blocks feature tension-clamp connections, a 6 mm² rated conductor cross-section, and a 41 A / 800 V electrical rating for industrial electrical distribution and control applications.
• Each terminal block provides three conductor connection points on a single level, allowing multiple conductors to be connected at a common electrical potential within a compact DIN rail terminal assembly.
• This listing includes 8 Weidmuller ZDU 6-2/3AN terminal blocks and 4 ZAP ZDU6-2 end plates only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

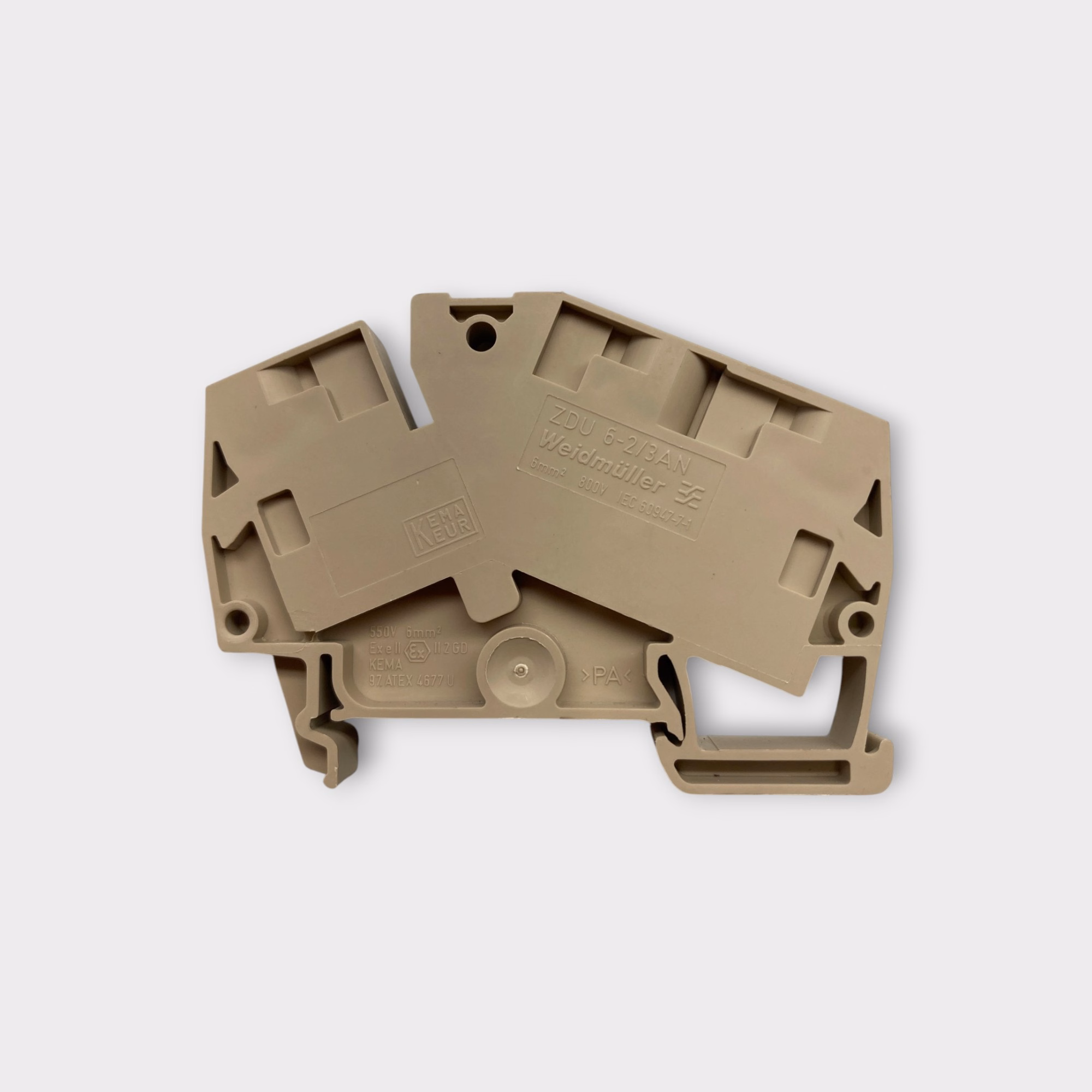

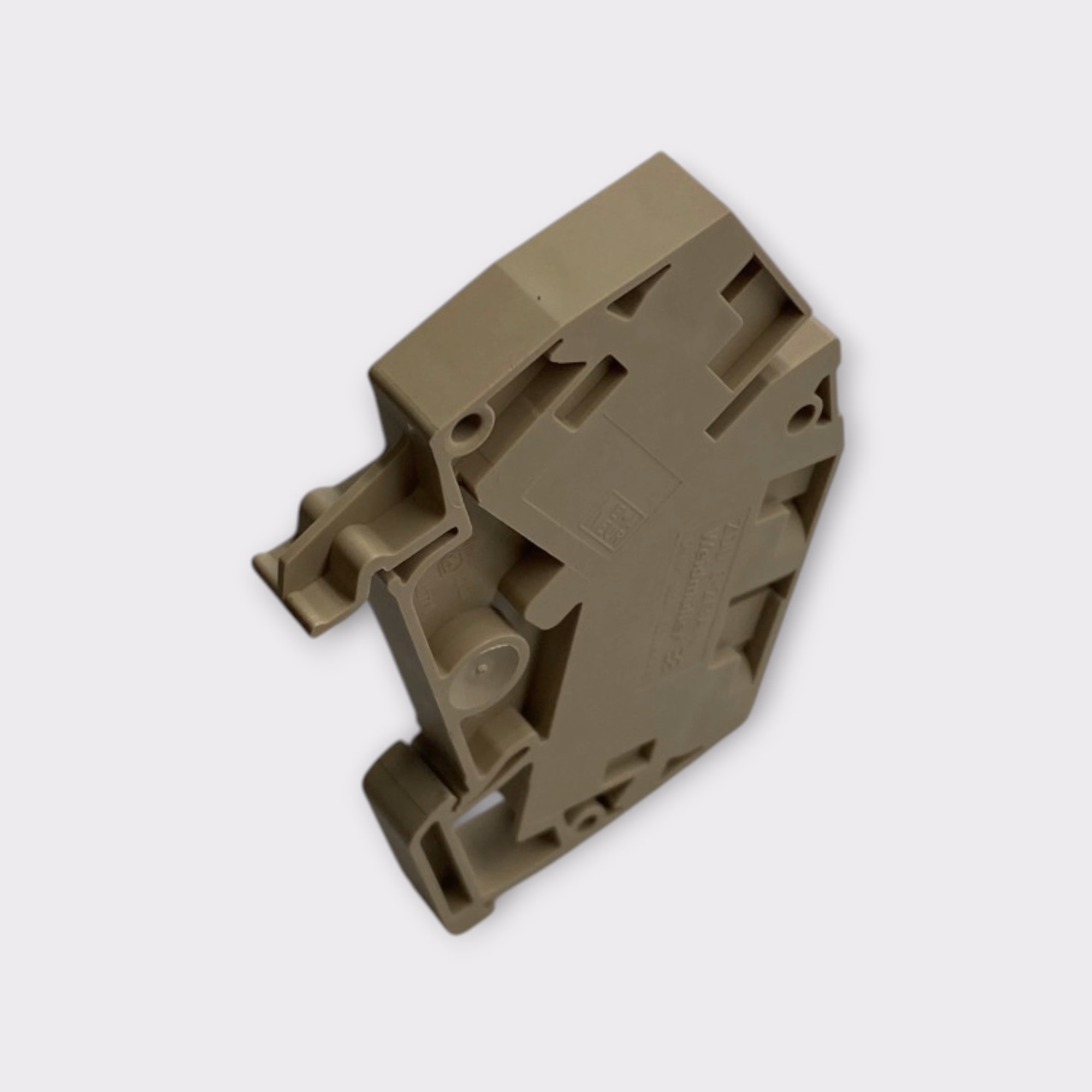

• The Weidmuller ZDU 6-2/3AN is a Z-Series feed-through terminal block designed for secure and efficient electrical connections in industrial control panels, electrical distribution systems, and automation equipment.

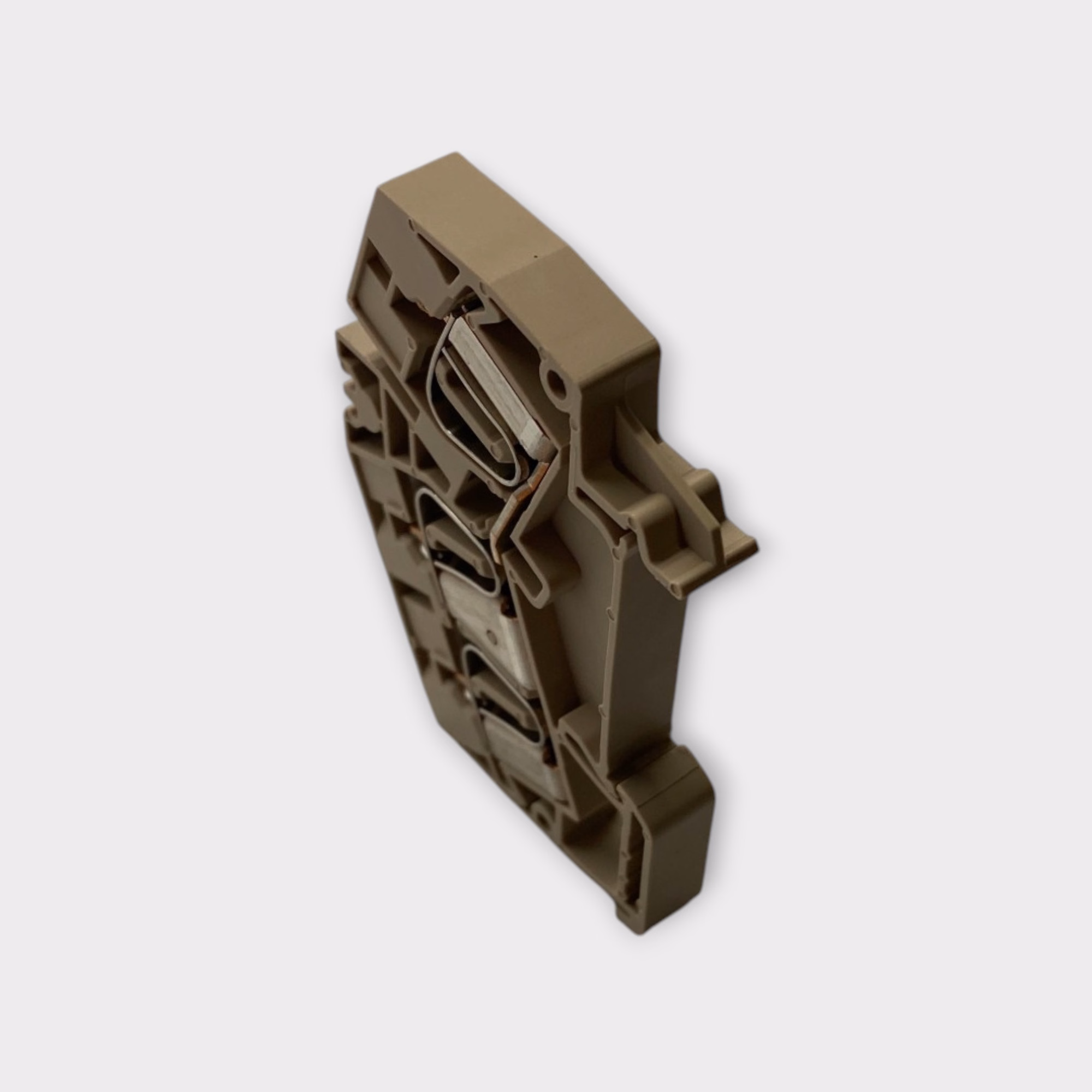

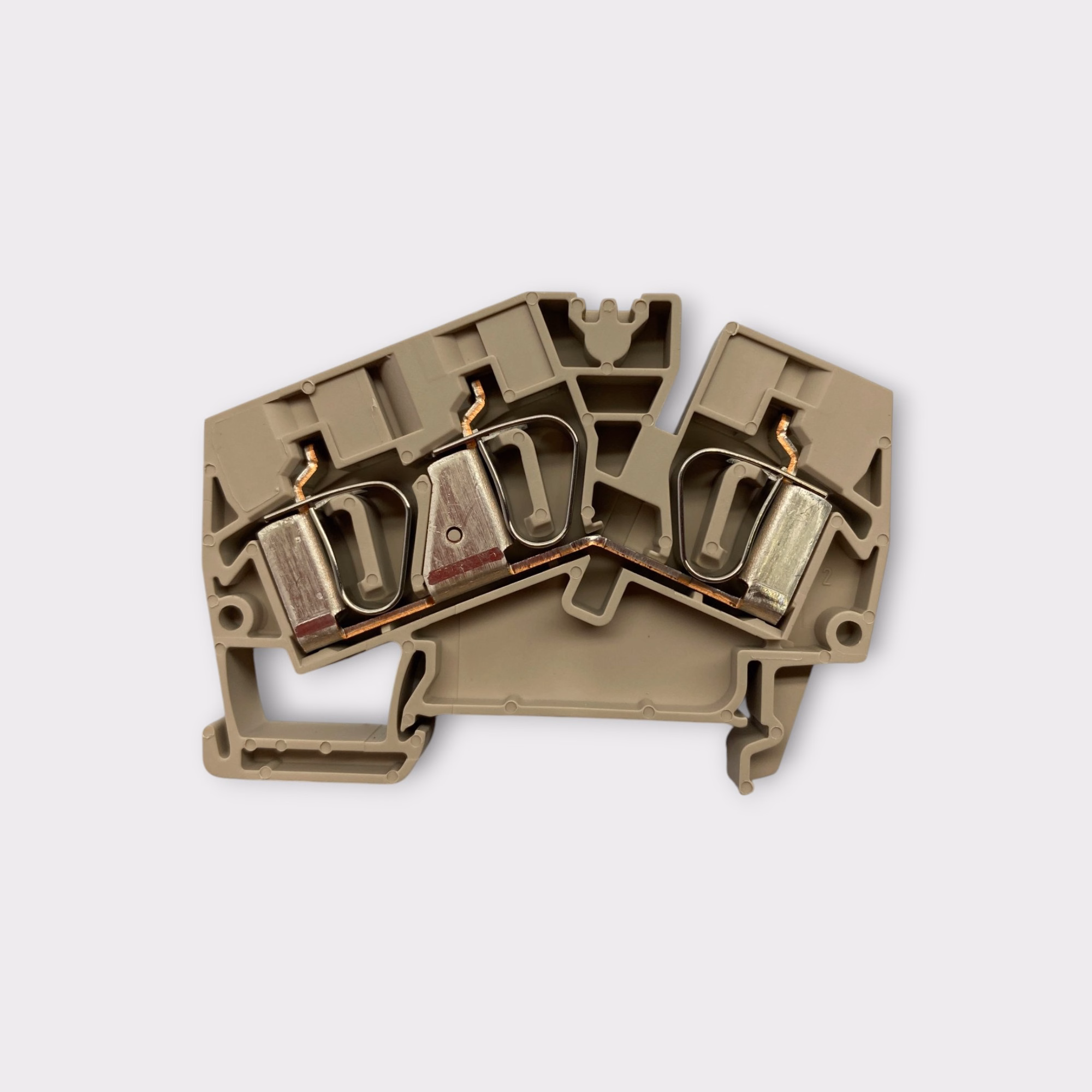

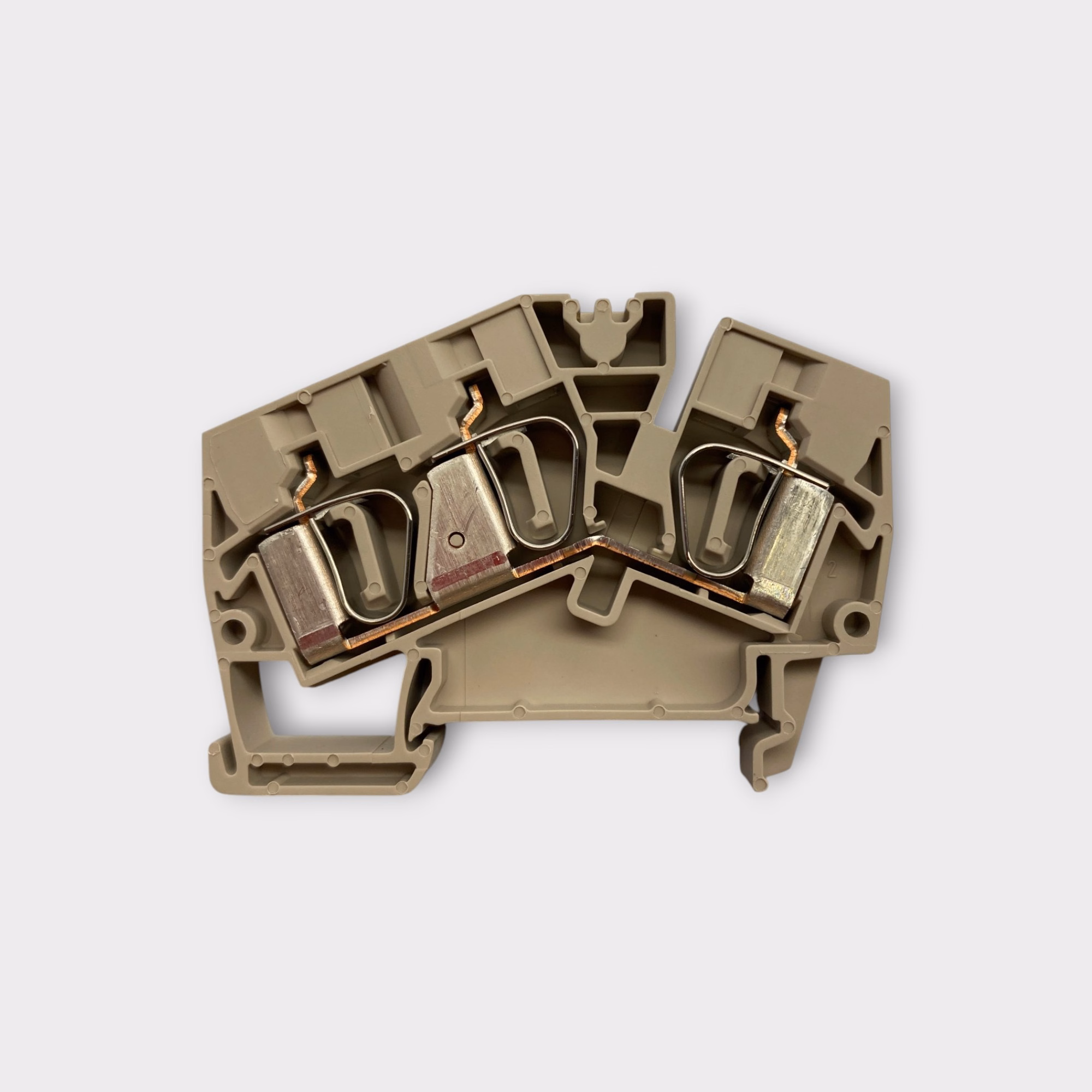

• Each terminal block features three tension-clamp connection points on a single level, allowing multiple conductors to be connected at a common electrical potential. The spring-clamp connection technology provides secure conductor retention without conventional screw-tightened terminals.

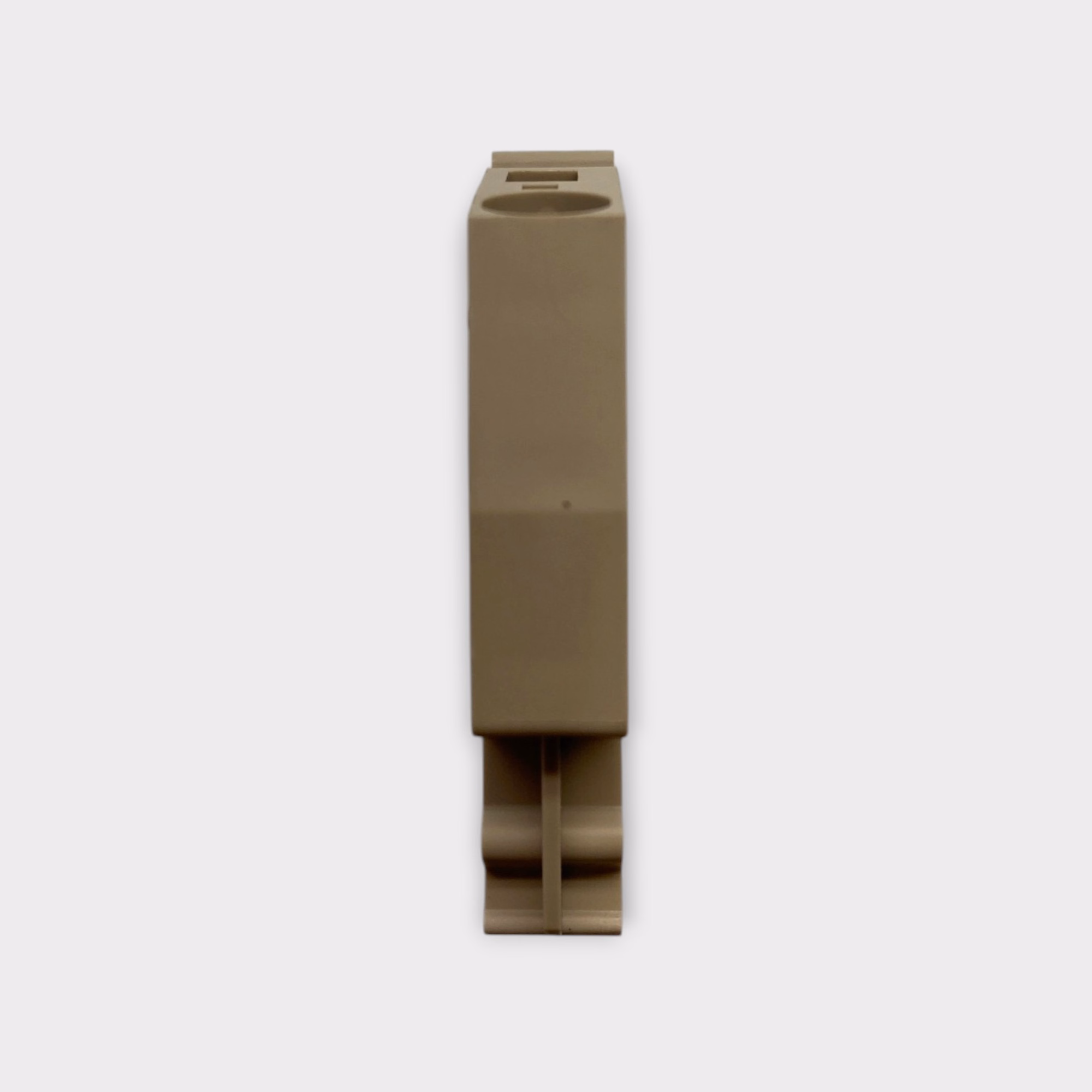

• Designed for standard TS 35 DIN rail mounting, these terminal blocks feature an 8.1 mm housing width and support plug-in cross-connectors for flexible electrical distribution and terminal strip configuration.
• The ZDU 6-2/3AN supports a rated conductor cross-section of 6 mm² and features an IEC electrical rating of 800 V and 41 A. Its conductor clamping range extends from 0.22 mm² to 10 mm², depending on conductor type.
• The insulating housing is manufactured from Weidmuller's WEMID material, providing thermal resistance and a UL 94 V-0 flammability rating.
• This 8-pack includes four Weidmuller ZAP ZDU6-2 end plates, designed to cover exposed terminal block sides, provide insulation, and protect against accidental contact with live components.
• The included end plates feature direct snap-on mounting and are manufactured from WEMID insulating material. Their dark beige finish matches the terminal blocks for a consistent terminal strip assembly.
• These terminal blocks are suitable for industrial automation, control cabinet wiring, electrical distribution, machinery, and compatible marine electrical control systems.

Product Information

Terminal Blocks

- Manufacturer: Weidmuller
- Model Number: ZDU 6-2/3AN
- Series: Z-Series
- MPN: 1771410000
- Product Type: Feed-Through Terminal Block
- Quantity Included: 8
- Connection Technology: Tension-Clamp
- Rated Cross-Section: 6 mm²
- Rated Voltage (IEC): 800 V
- Rated DC Voltage: 800 V
- Nominal Current (IEC): 41 A
- UL Rated Voltage: 600 V
- UL Rated Current: 45 A
- Rated Impulse Withstand Voltage: 8 kV
- Number of Connections: 3
- Number of Levels: 1
- Number of Potentials: 1
- Clamping Points Per Level: 3
- Protective Earth Connection: No
- Conductor Clamping Range: 0.22–10 mm² (Depending on Conductor Type)
- Wire Gauge Range: 8–22 AWG
- Compatible DIN Rail: TS 35 (35 mm)
- Mounting Type: Snap-On
- Cross-Connection: Plug-In Cross-Connector Compatible
- End Cover Plate Required: Yes
- Material: WEMID
- Color: Dark Beige
- Width: 8.1 mm
- Height: 68 mm
- Depth: 49.5 mm
- Depth Including DIN Rail: 50 mm
- Stripping Length: 12 mm
- Net Weight: 19.36 g Each
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-1
- UL Certificate Number: E60693
- RoHS Compliance: Compliant Without Exemption
- EAN / GTIN: 4032248143146

End Plates

- Manufacturer: Weidmuller
- Model Number: ZAP ZDU6-2
- Series: Z-Series
- MPN: 1771440000
- Product Type: End Plate / Terminal Block Cover Plate
- Quantity Included: 4
- Installation: Direct Snap-On Mounting
- Material: WEMID
- Color: Dark Beige
- Width / Thickness: 2 mm
- Height: 67.95 mm
- Depth: 38.54 mm
- Net Weight: 3.16 g Each
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- RoHS Compliance: Compliant Without Exemption
- EAN / GTIN: 4032248169719

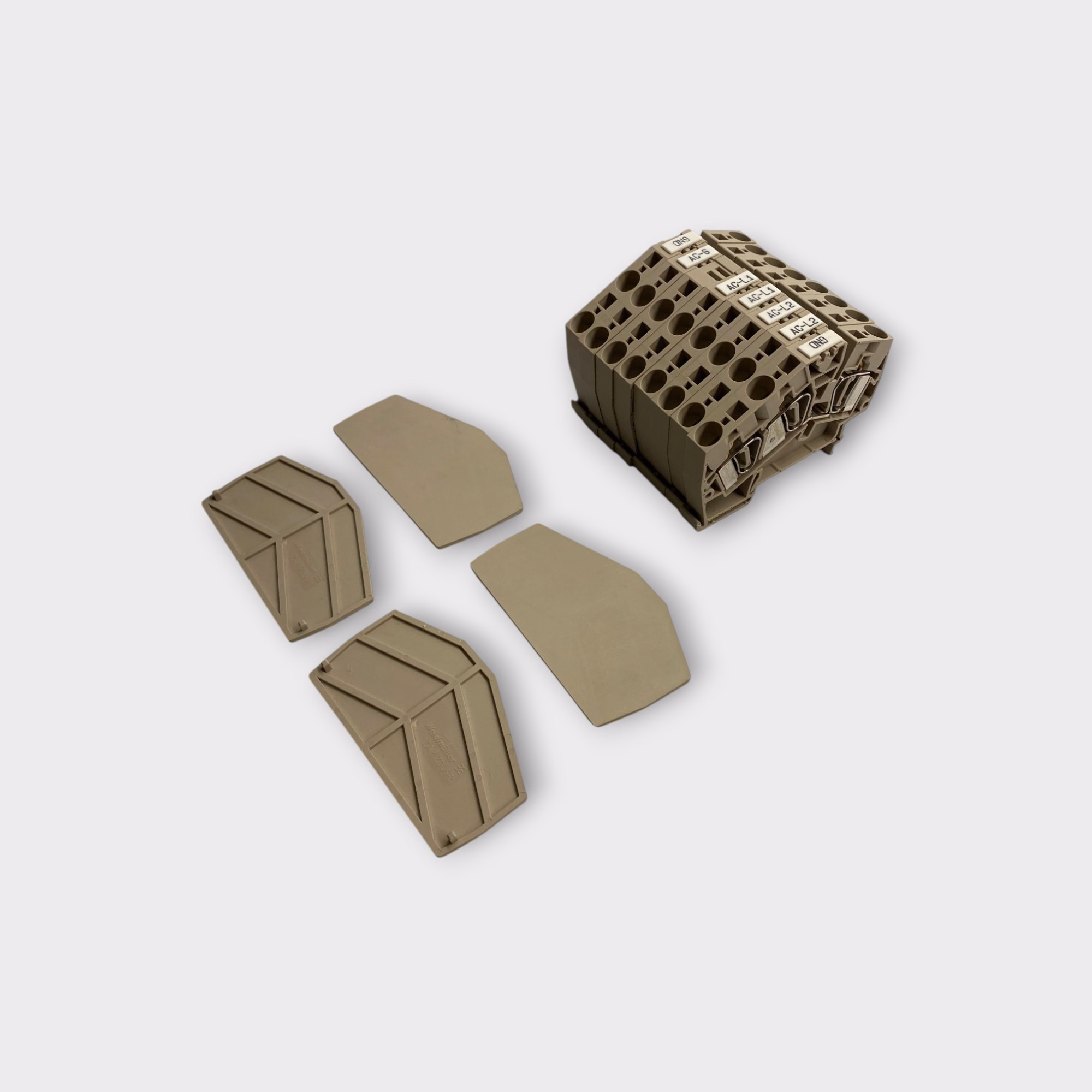

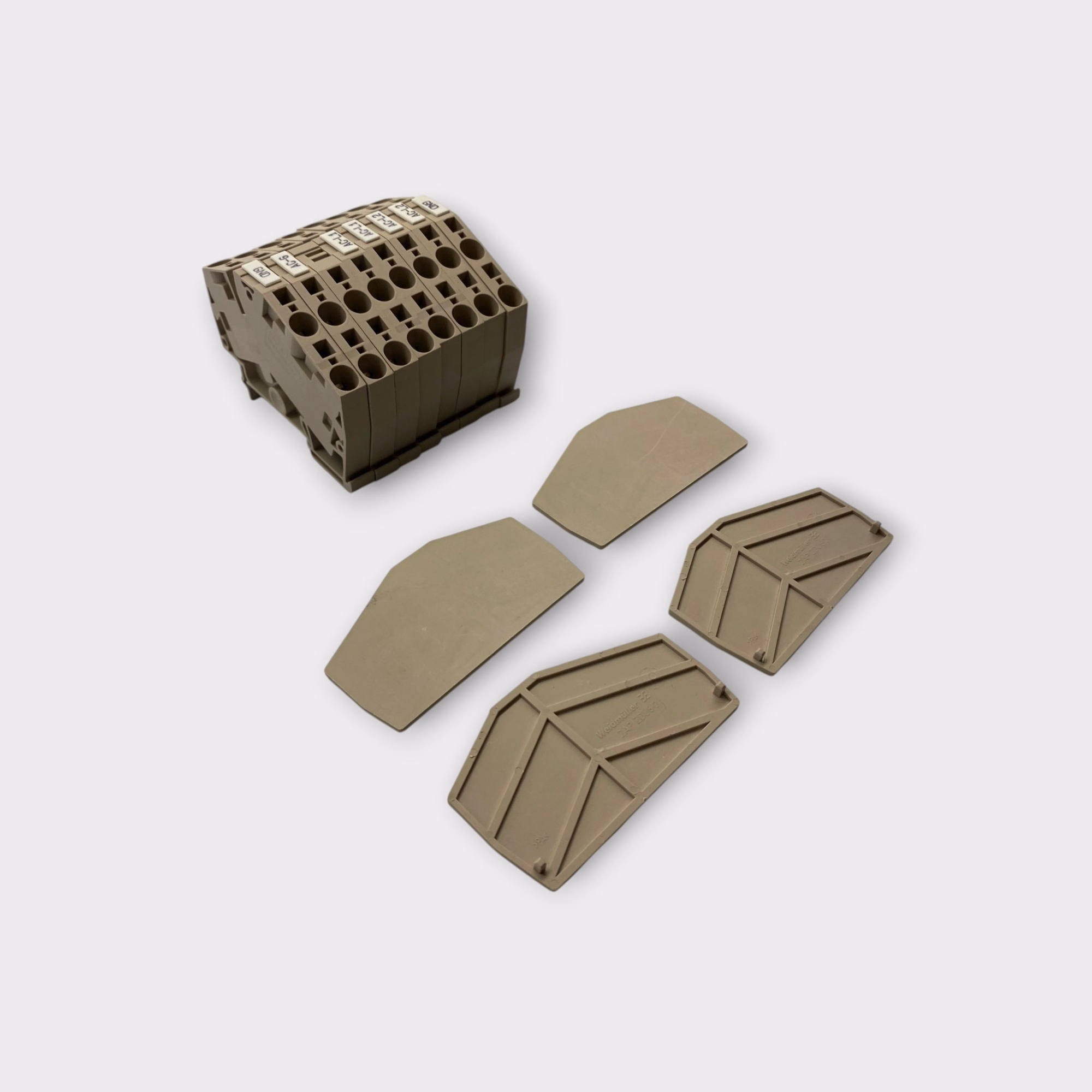

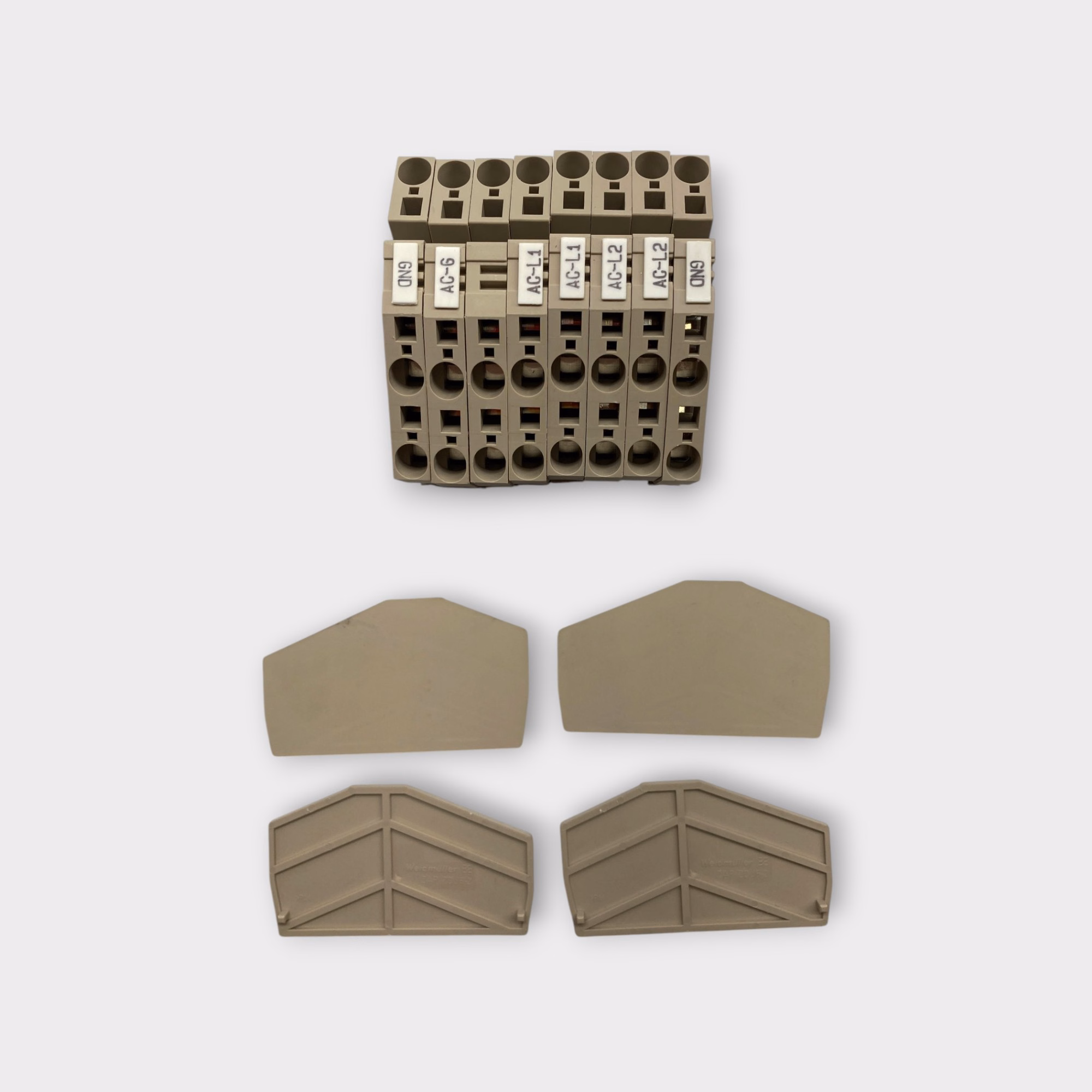

Package Contents

- 8x Weidmuller ZDU 6-2/3AN Feed-Through Terminal Blocks (1771410000)
- 4x Weidmuller ZAP ZDU6-2 End Plates (1771440000)

Total: 12 Components, Sold as One 8-Pack Terminal Block Listing with 4 End Plates.
