Summary

• Weidmuller ZDU 2.5-2/3AN (1706010000) DIN rail feed-through terminal blocks, sold as a pack of 6 with 2 Weidmuller ZAP/TW7 (1706110000) end plates included. These Z-Series terminal blocks feature tension-clamp connections, a 2.5 mm² rated conductor cross-section, and a 24 A / 800 V electrical rating for industrial electrical distribution and control applications.
• This listing includes 6 Weidmuller ZDU 2.5-2/3AN terminal blocks and 2 ZAP/TW7 end plates only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

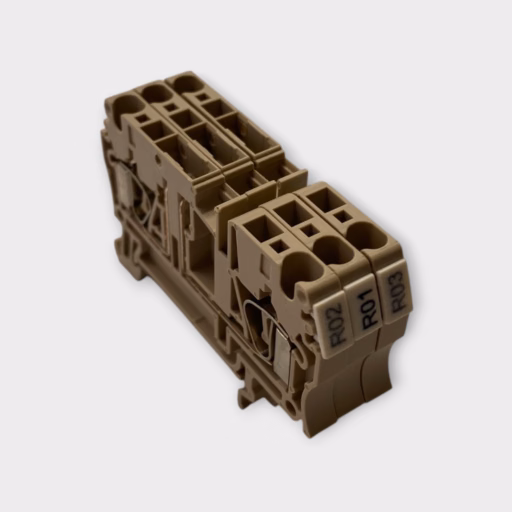

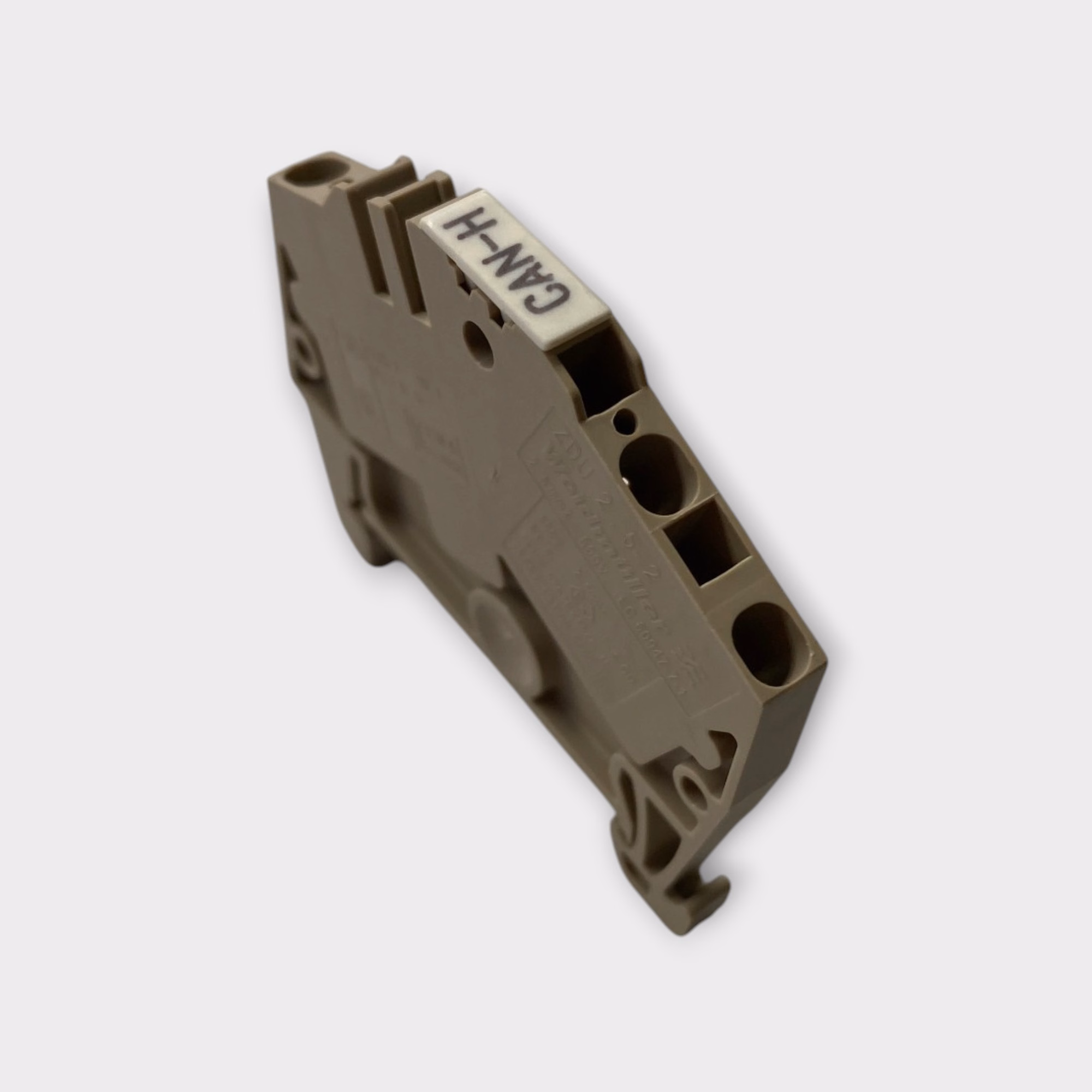

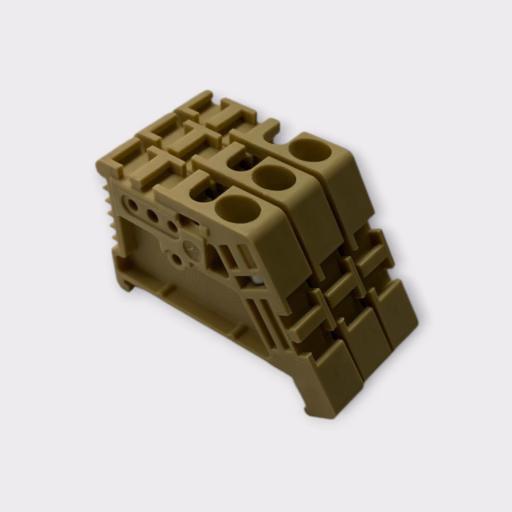

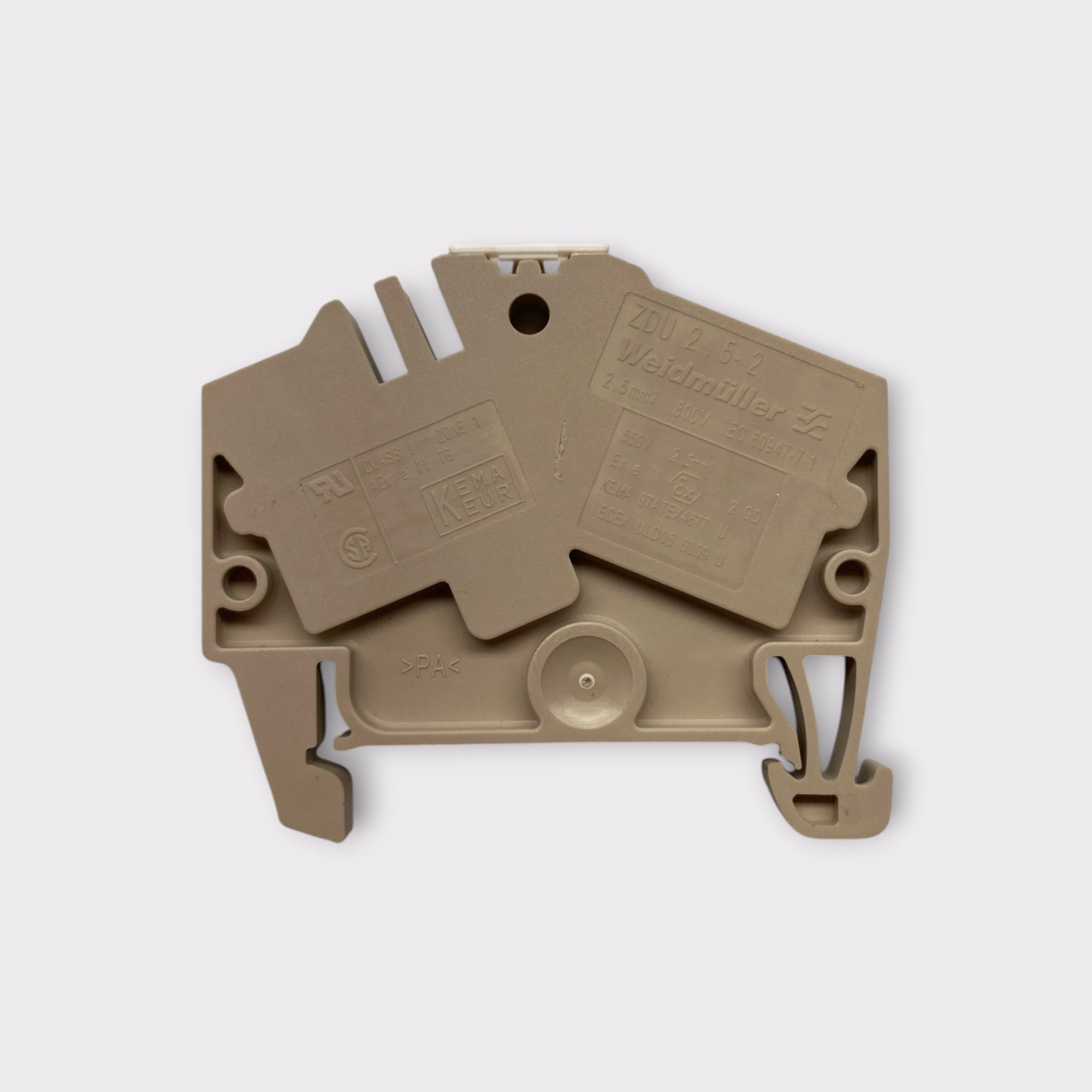

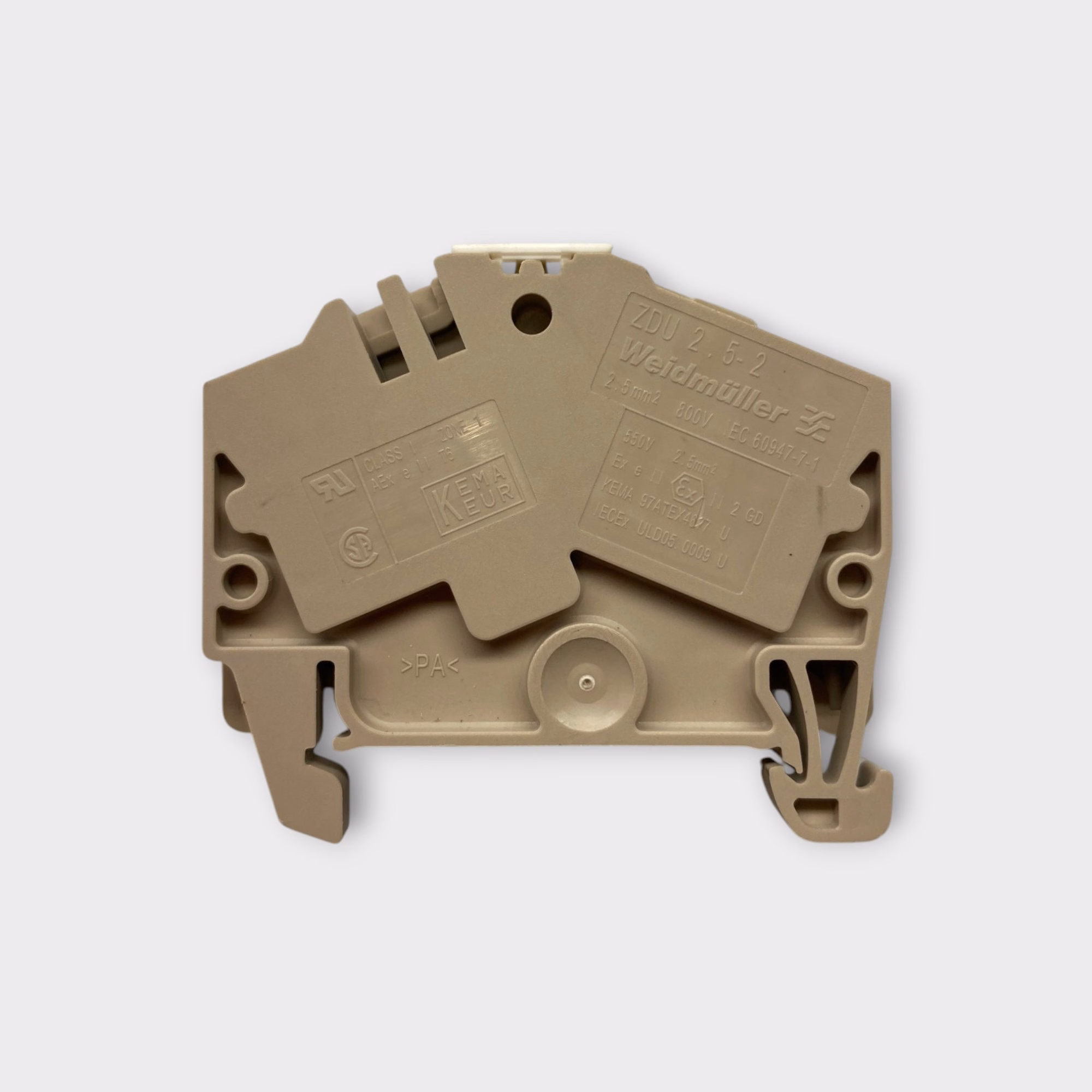

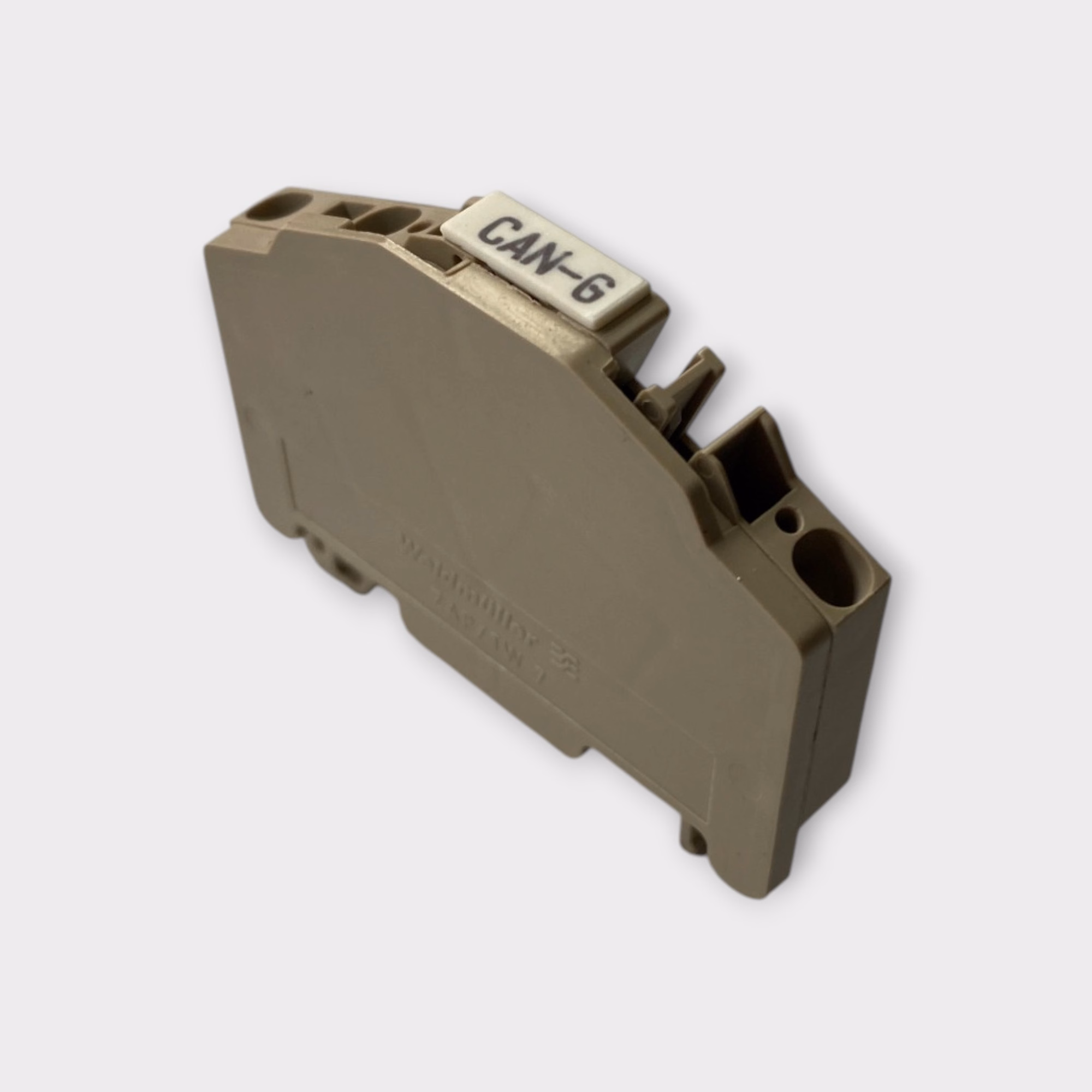

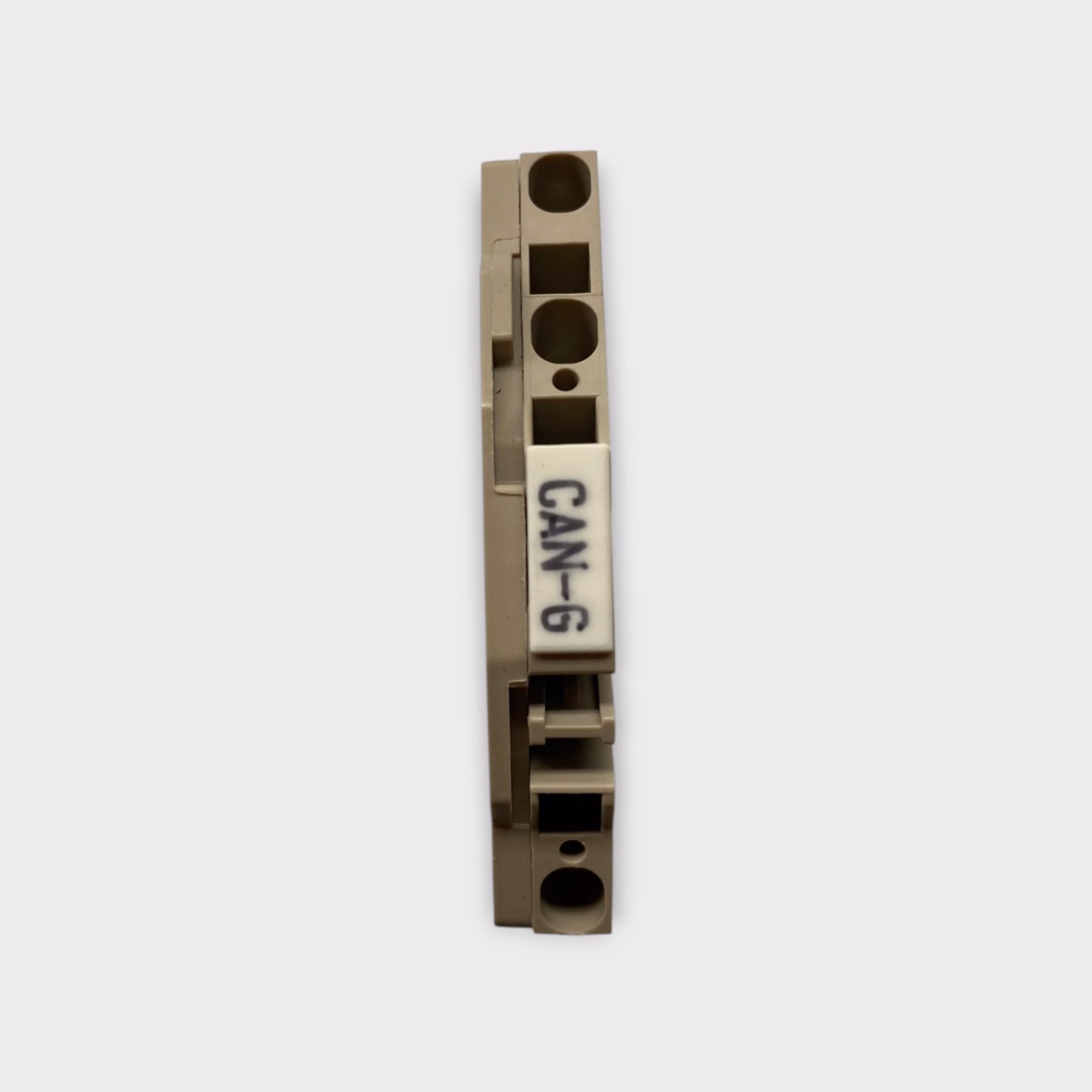

• The Weidmuller ZDU 2.5-2/3AN is a Z-Series feed-through terminal block designed for secure and efficient electrical connections in industrial control panels and electrical distribution systems.

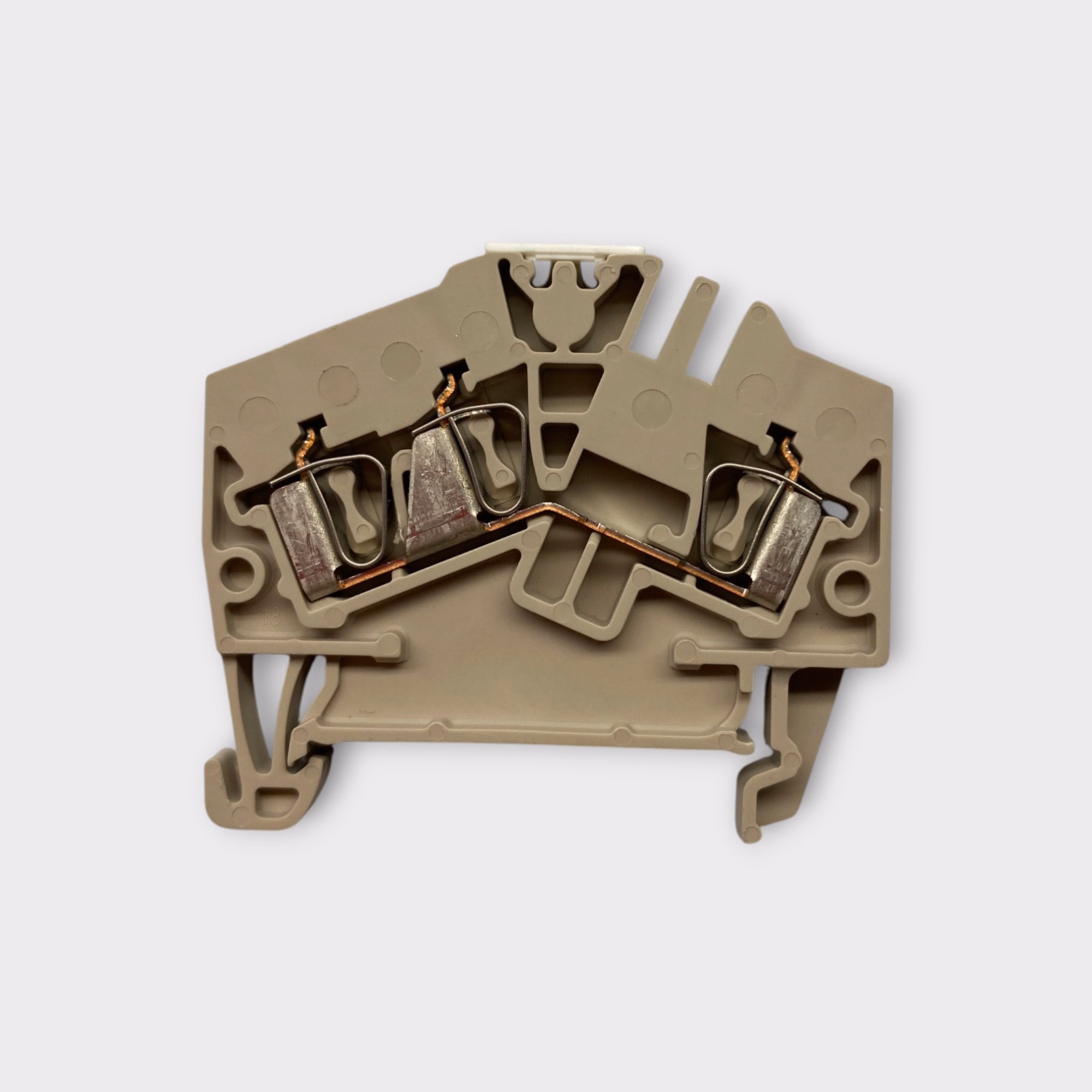

• Each terminal block features three tension-clamp connection points on a single level, allowing multiple conductors to be connected at a common electrical potential. The spring-clamp connection system provides secure conductor retention without requiring screw-tightened terminals.
• Designed for standard TS 35 DIN rail mounting, these terminal blocks feature a compact 5.1 mm width and support plug-in cross-connectors for flexible electrical distribution.
• The insulating housing is manufactured from Weidmuller's WEMID material, offering durability, thermal resistance, and a UL 94 V-0 flammability rating.

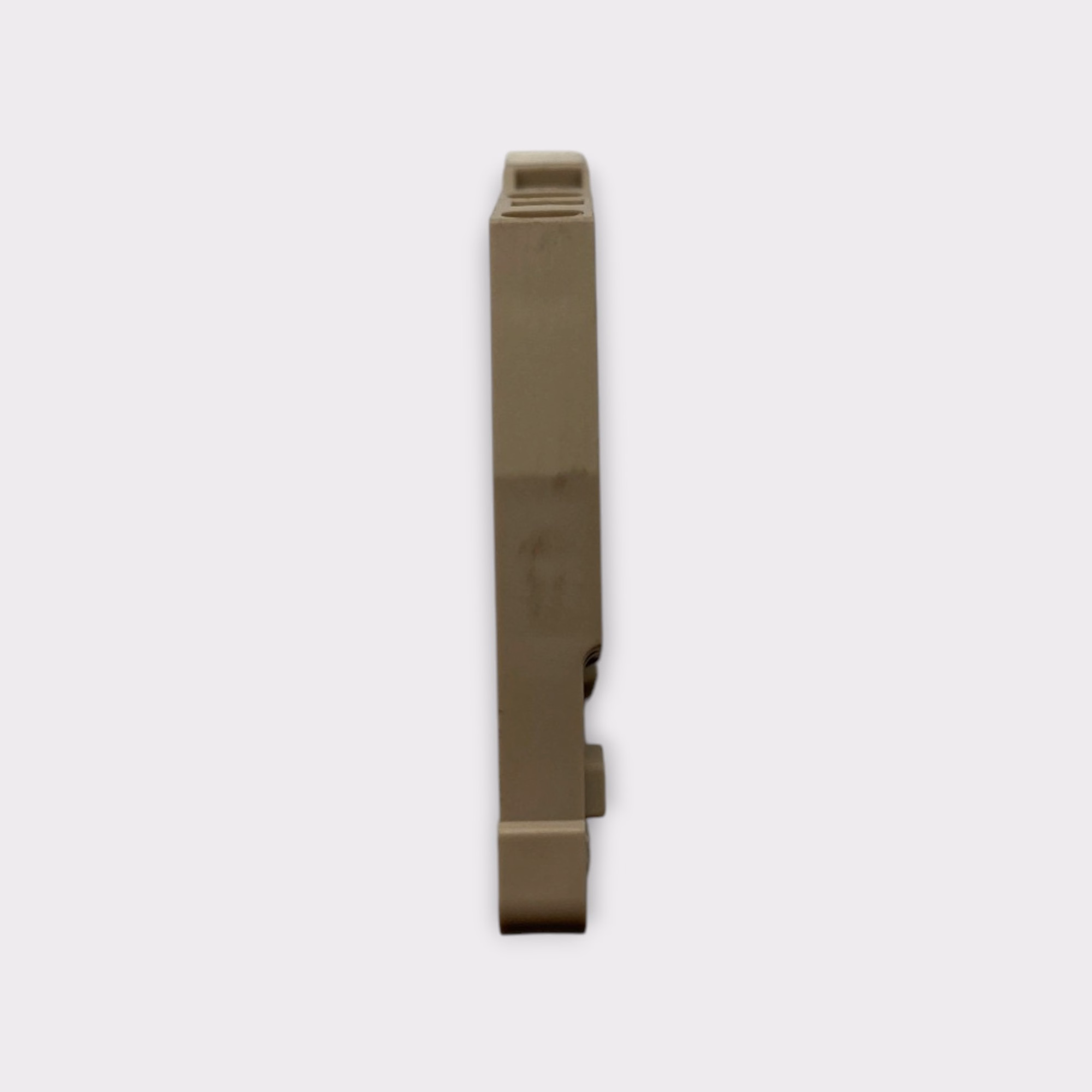

• This 6-pack includes two Weidmuller ZAP/TW7 end and intermediate plates, designed to cover exposed sides and provide separation within compatible Z-Series terminal block assemblies.
• Suitable for industrial automation, control cabinet wiring, electrical distribution, machinery, and marine electrical control systems.

Product Information

Terminal Blocks

- Manufacturer: Weidmuller
- Model Number: ZDU 2.5-2/3AN
- Series: Z-Series
- MPN: 1706010000
- Product Type: Feed-Through Terminal Block
- Quantity Included: 6
- Connection Type: Tension-Clamp
- Rated Cross-Section: 2.5 mm²
- Rated Voltage: 800 V
- Rated DC Voltage: 800 V
- Nominal Current: 24 A
- Rated Impulse Withstand Voltage: 8 kV
- Number of Connections: 3
- Number of Levels: 1
- Number of Potentials: 1
- Wire Connection Range: 12–26 AWG
- Compatible DIN Rail: TS 35 (35 mm)
- Mounting Type: Snap-On
- Cross-Connection: Plug-In Cross-Connector Compatible
- Material: WEMID
- Color: Dark Beige
- Width: 5.1 mm
- Height: 50.5 mm
- Depth: 43 mm
- Stripping Length: 10 mm
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-1
- RoHS Compliance: Compliant Without Exemption
- EAN: 4008190915377

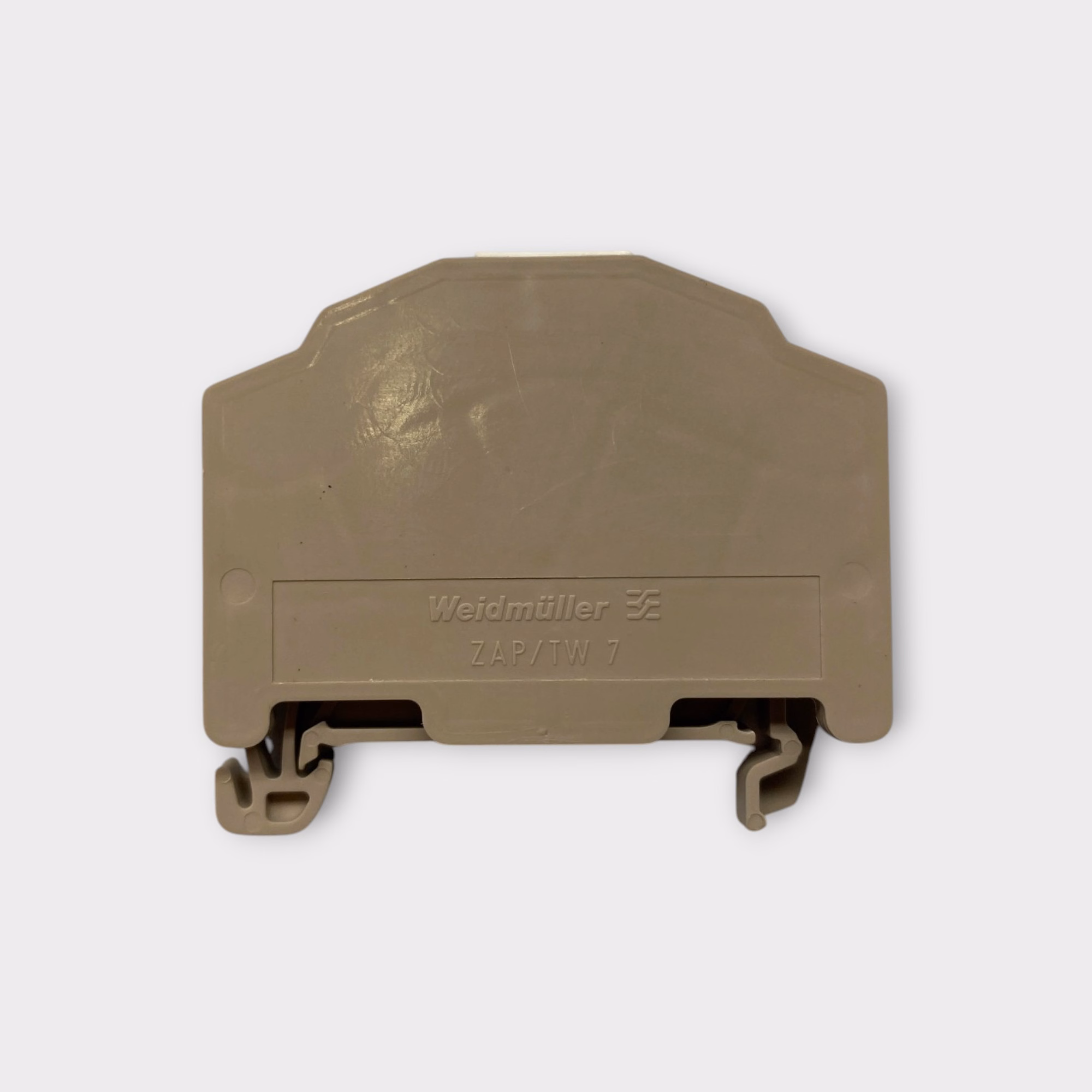

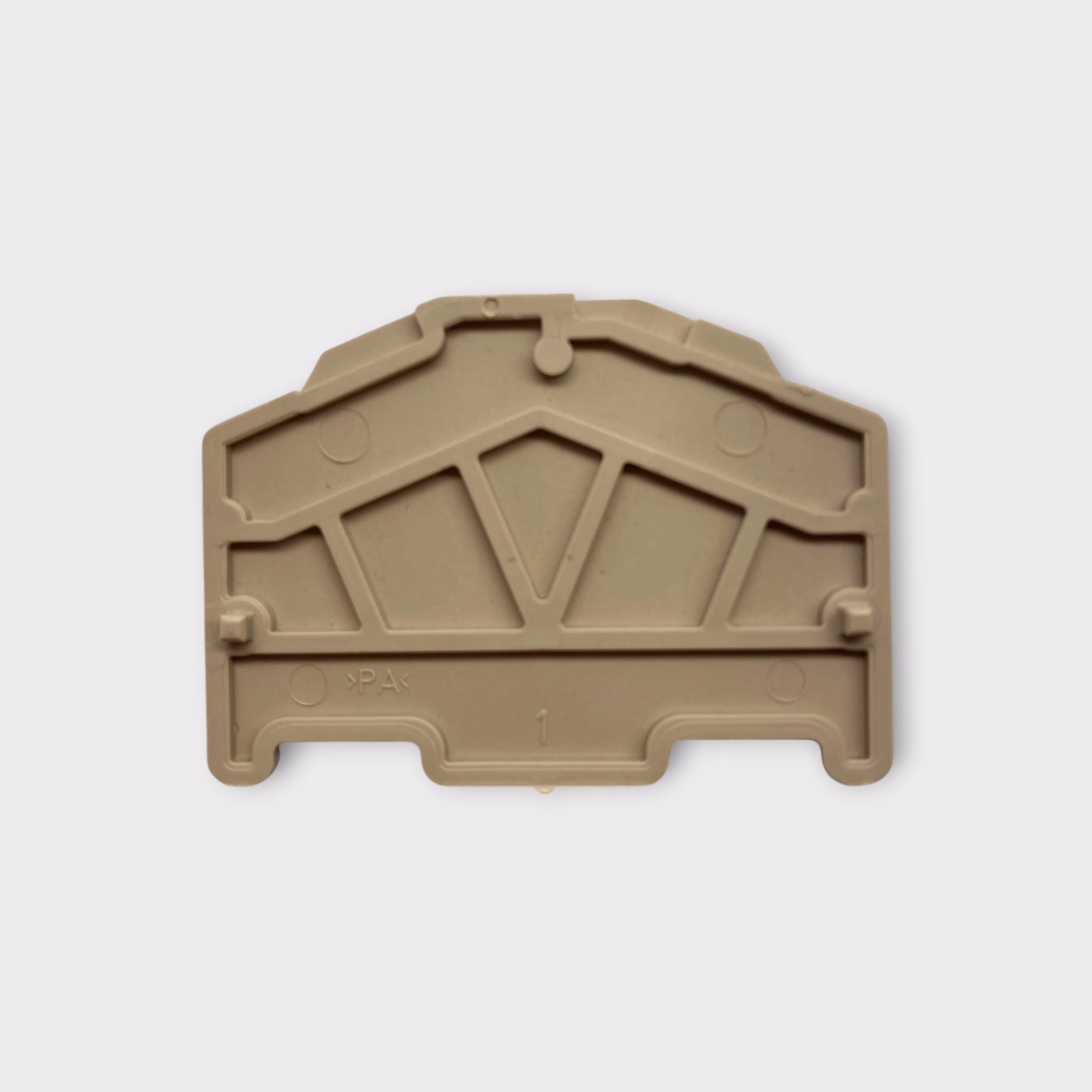

End Plates

- Manufacturer: Weidmuller
- Model Number: ZAP/TW7
- Series: Z-Series
- MPN: 1706110000
- Product Type: End and Intermediate Plate / Partition Plate
- Quantity Included: 2
- Installation: Direct Snap-On Mounting
- Material: WEMID
- Color: Dark Beige
- Width: 2.5 mm
- Height: 50.5 mm
- Depth: 36.2 mm
- Flammability Rating: UL 94 V-0
- RoHS Compliance: Compliant Without Exemption
- EAN: 4008190915452

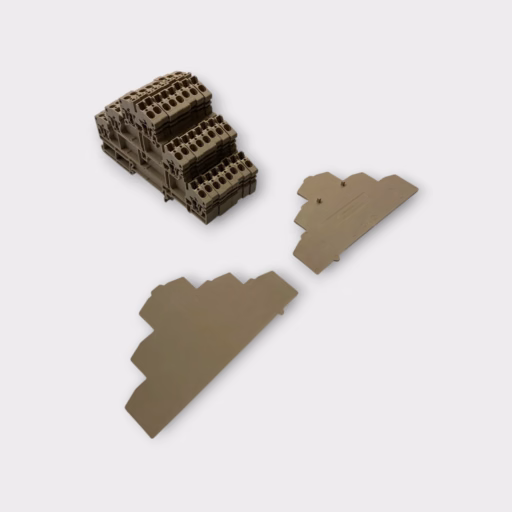

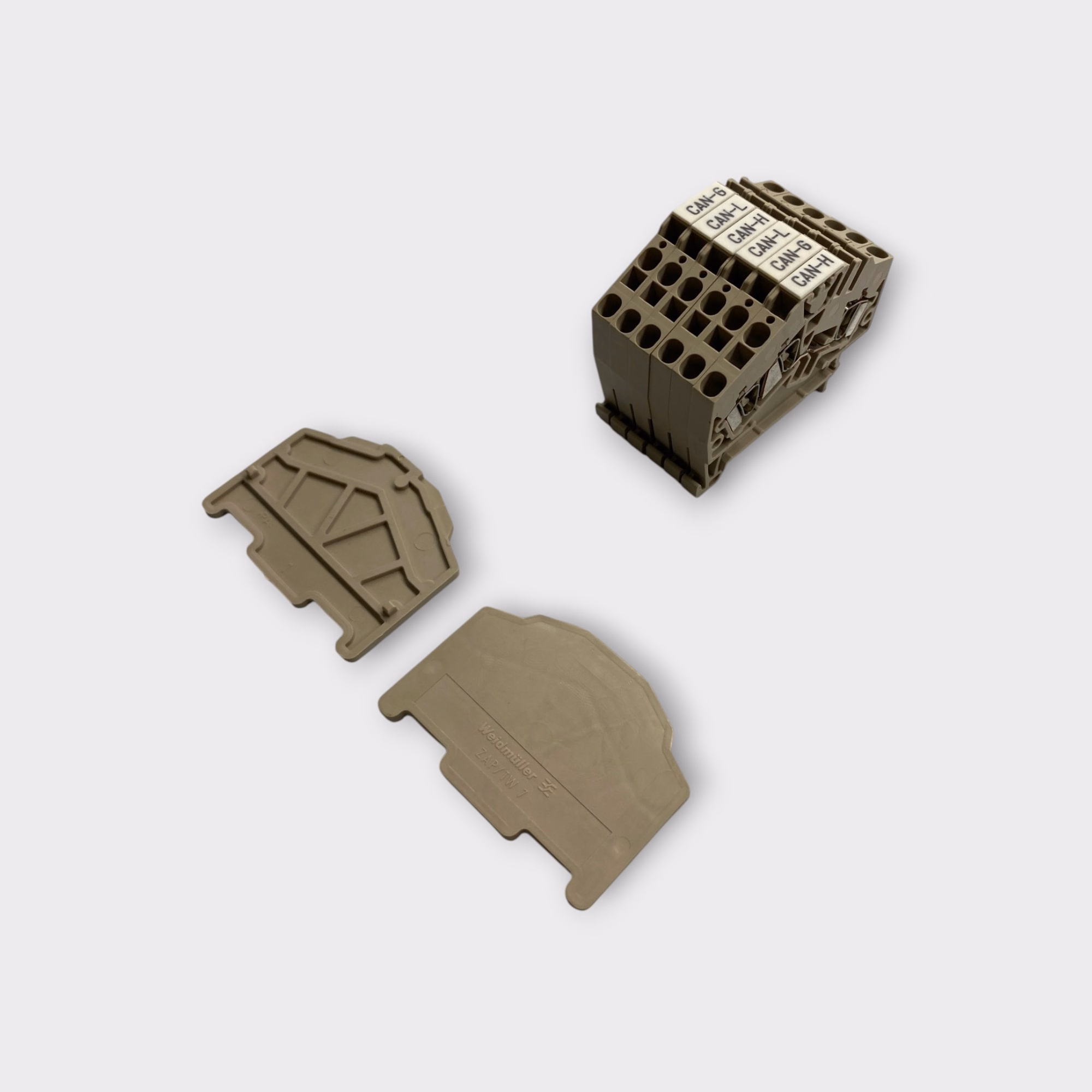

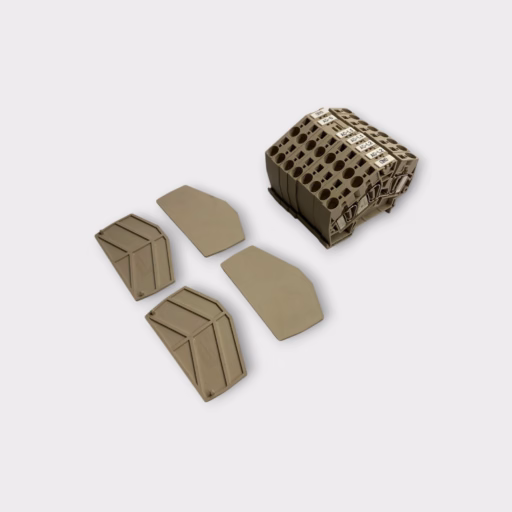

Package Contents

- 6x Weidmuller ZDU 2.5-2/3AN Feed-Through Terminal Blocks (1706010000)
- 2x Weidmuller ZAP/TW7 End Plates (1706110000)

Total: 8 Components, Sold as One 6-Pack Terminal Block Listing.
