Summary

• Weidmuller ZDU 2.5-2/3AN OR (1706050000) orange DIN rail feed-through terminal blocks, sold as a pack of 16. These Z-Series terminal blocks feature tension-clamp connections, a 2.5 mm² rated conductor cross-section, and a 24 A / 800 V electrical rating for industrial electrical distribution and control applications.

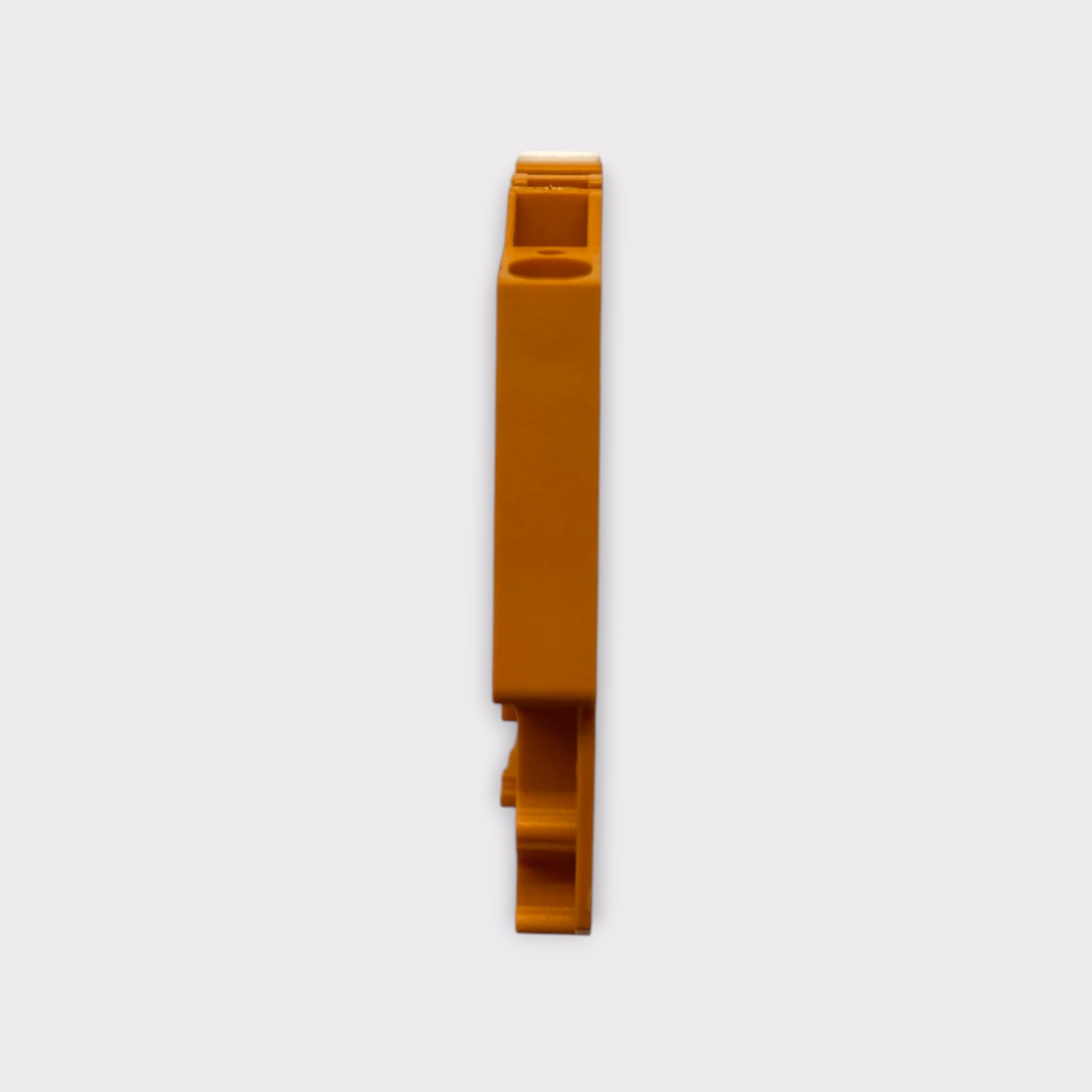

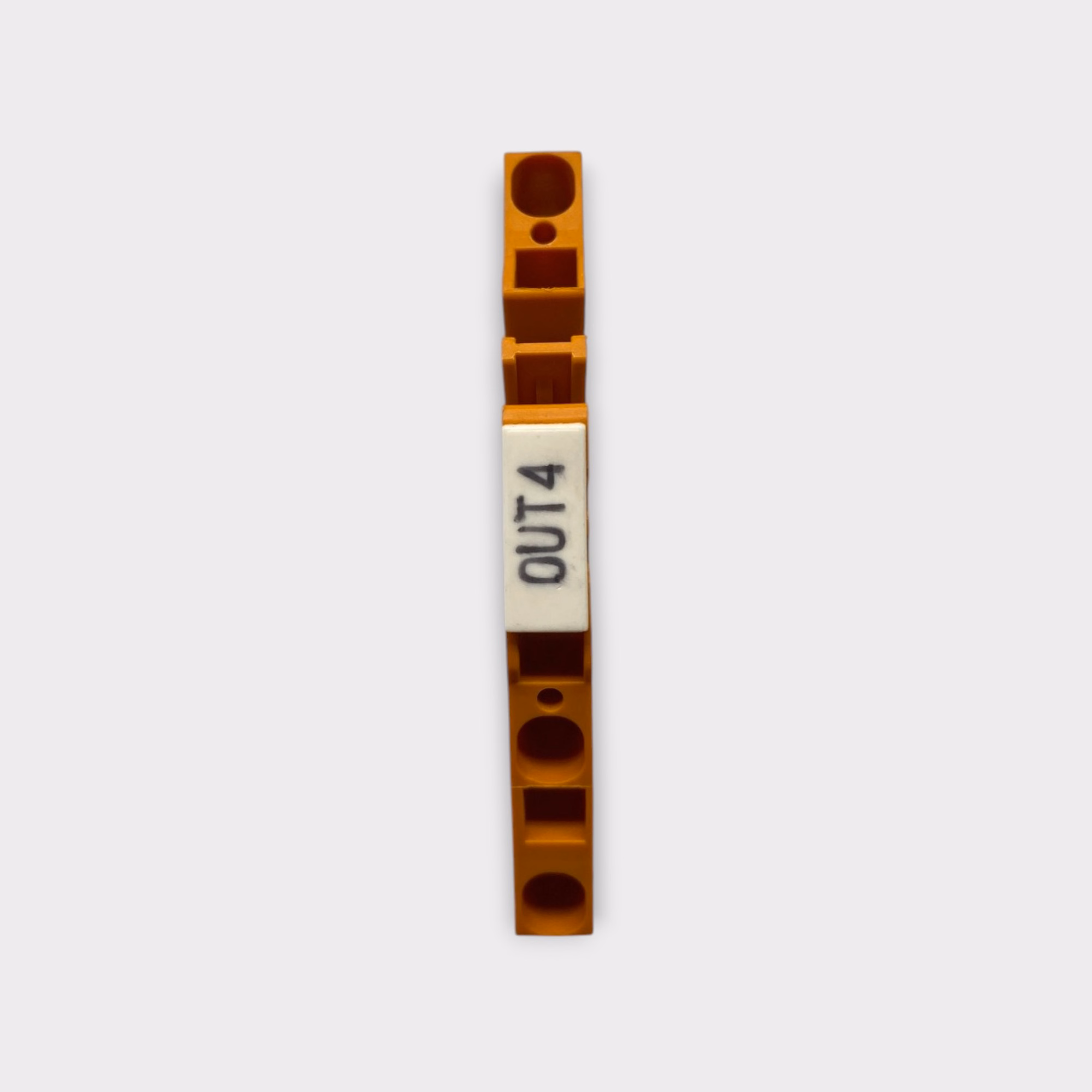

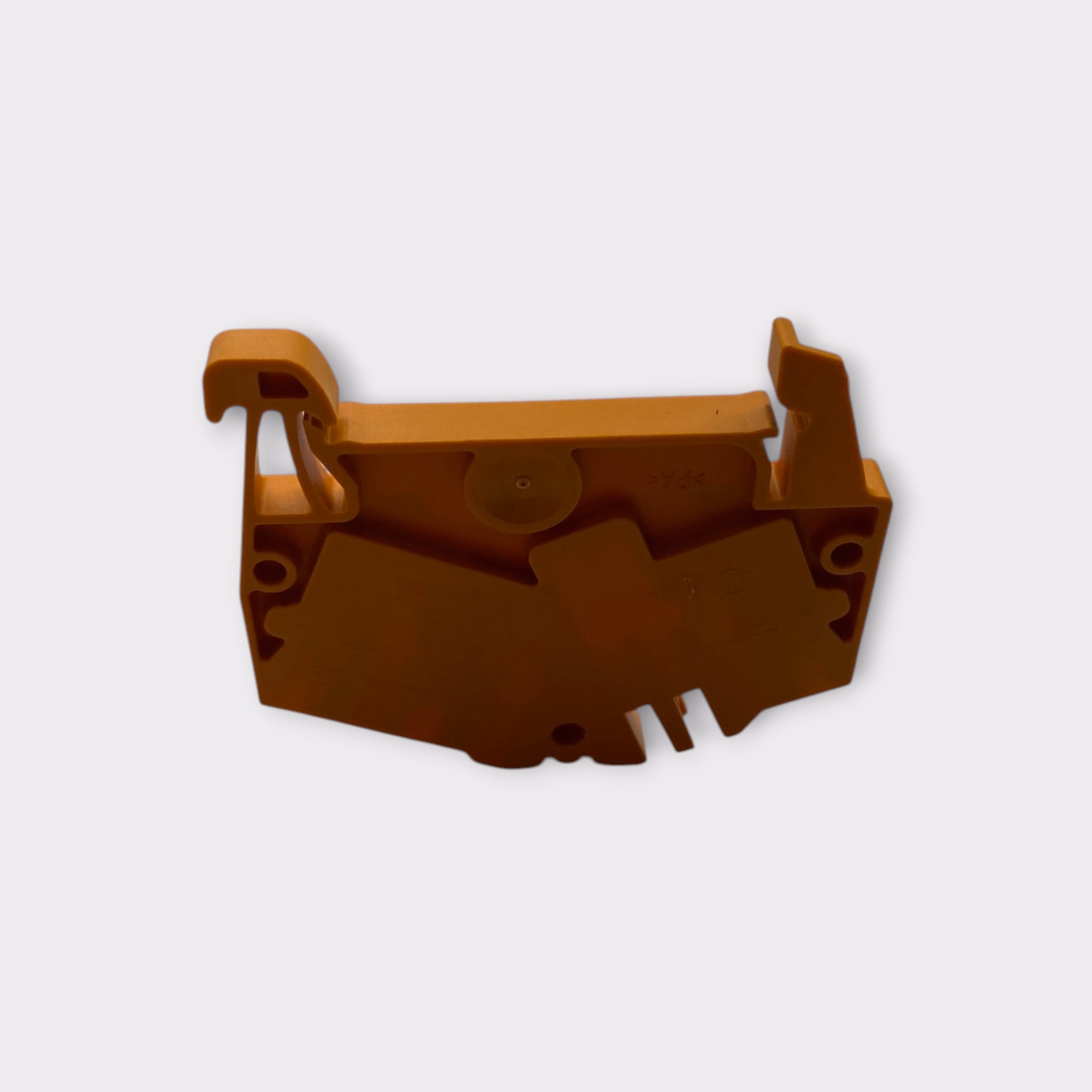

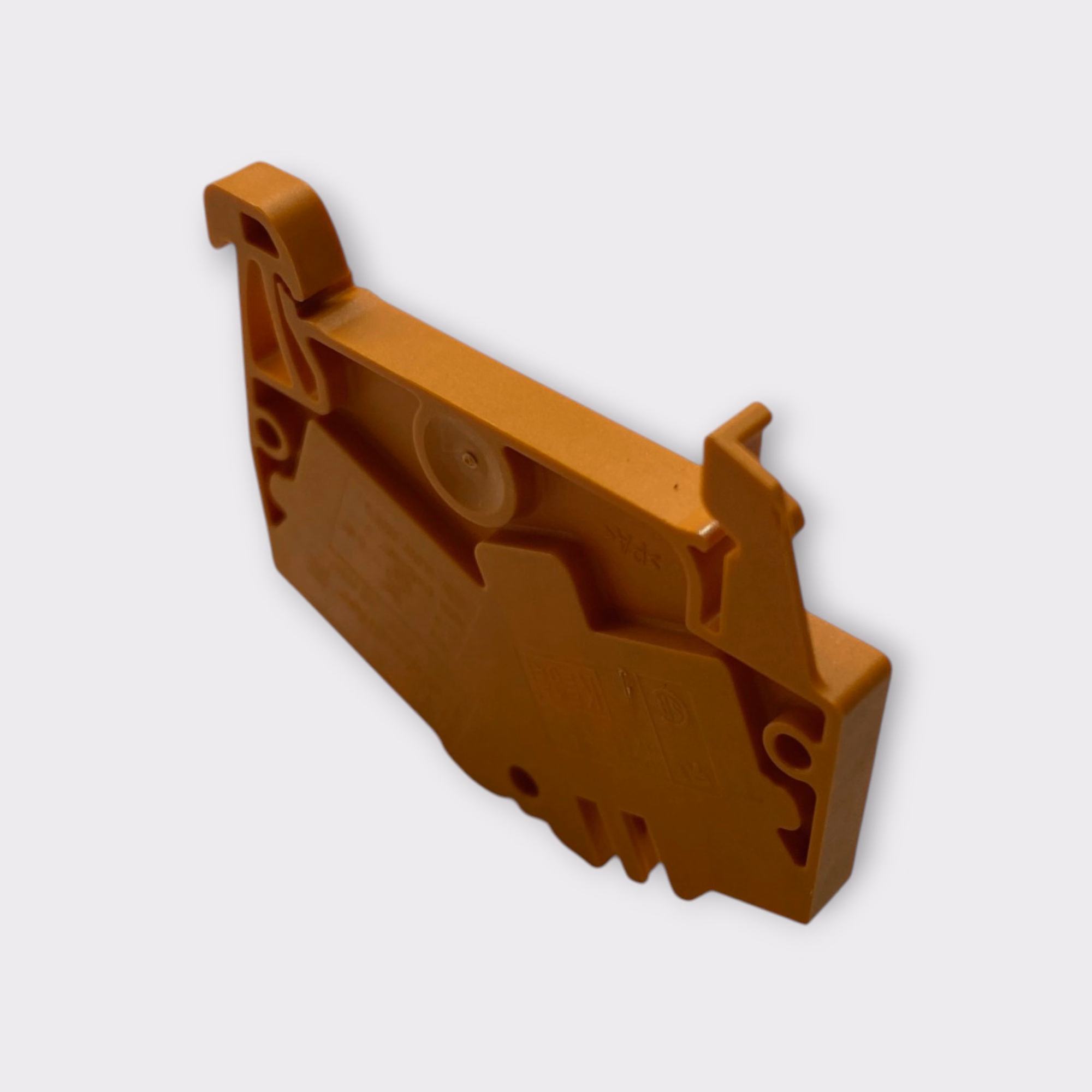

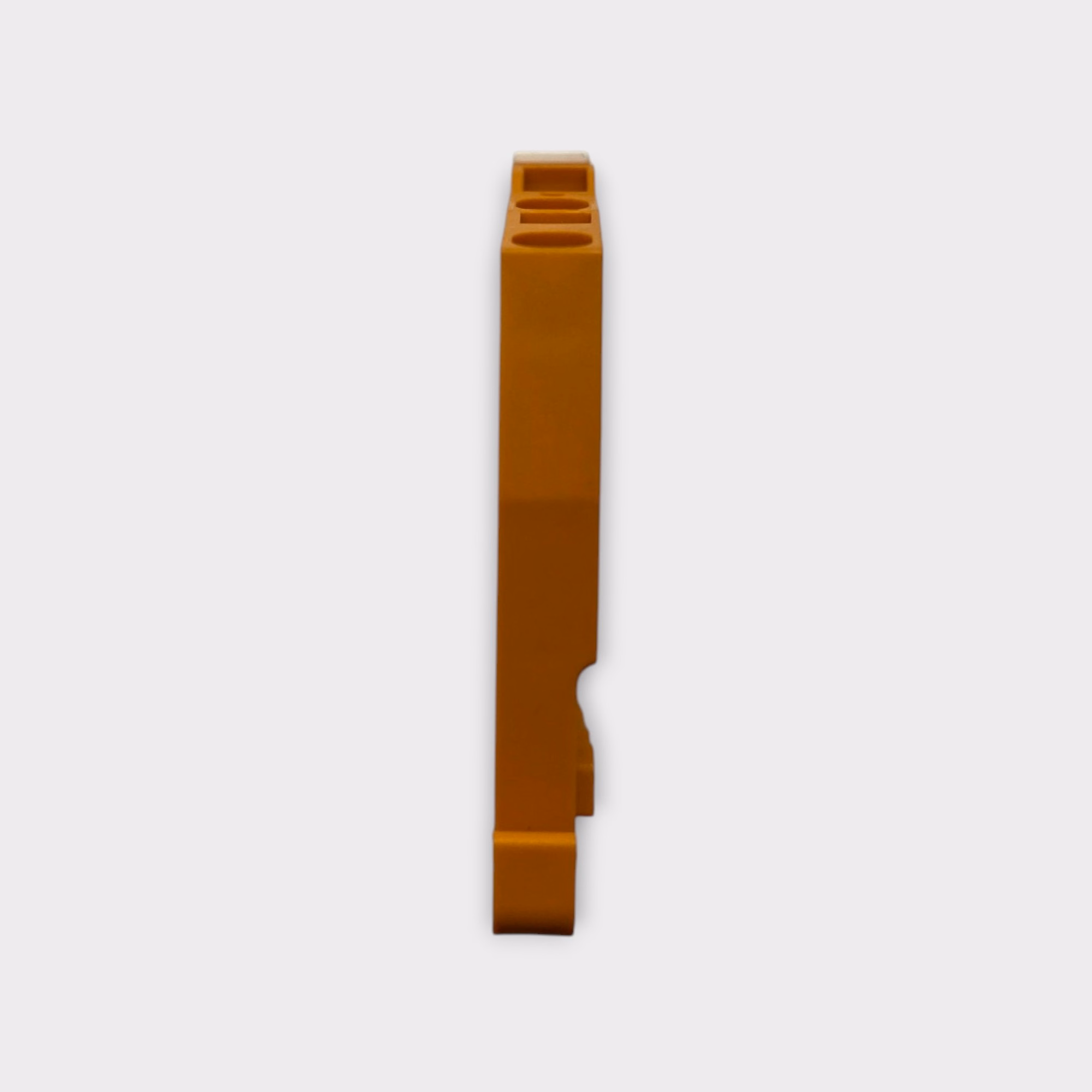

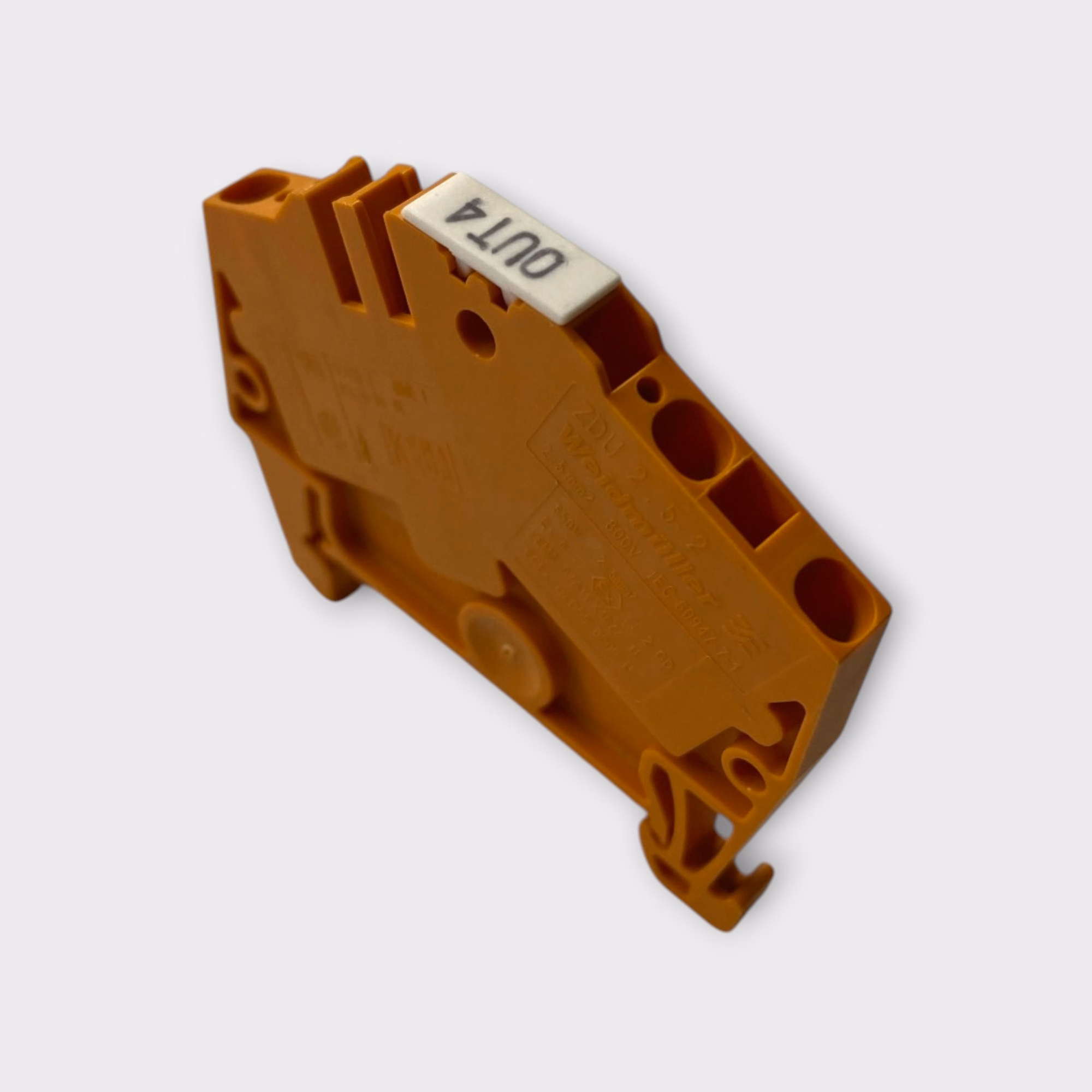

• This listing includes 16 Weidmuller ZDU 2.5-2/3AN OR terminal blocks only. No original box, instructions, manuals, DIN rail, end plates, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

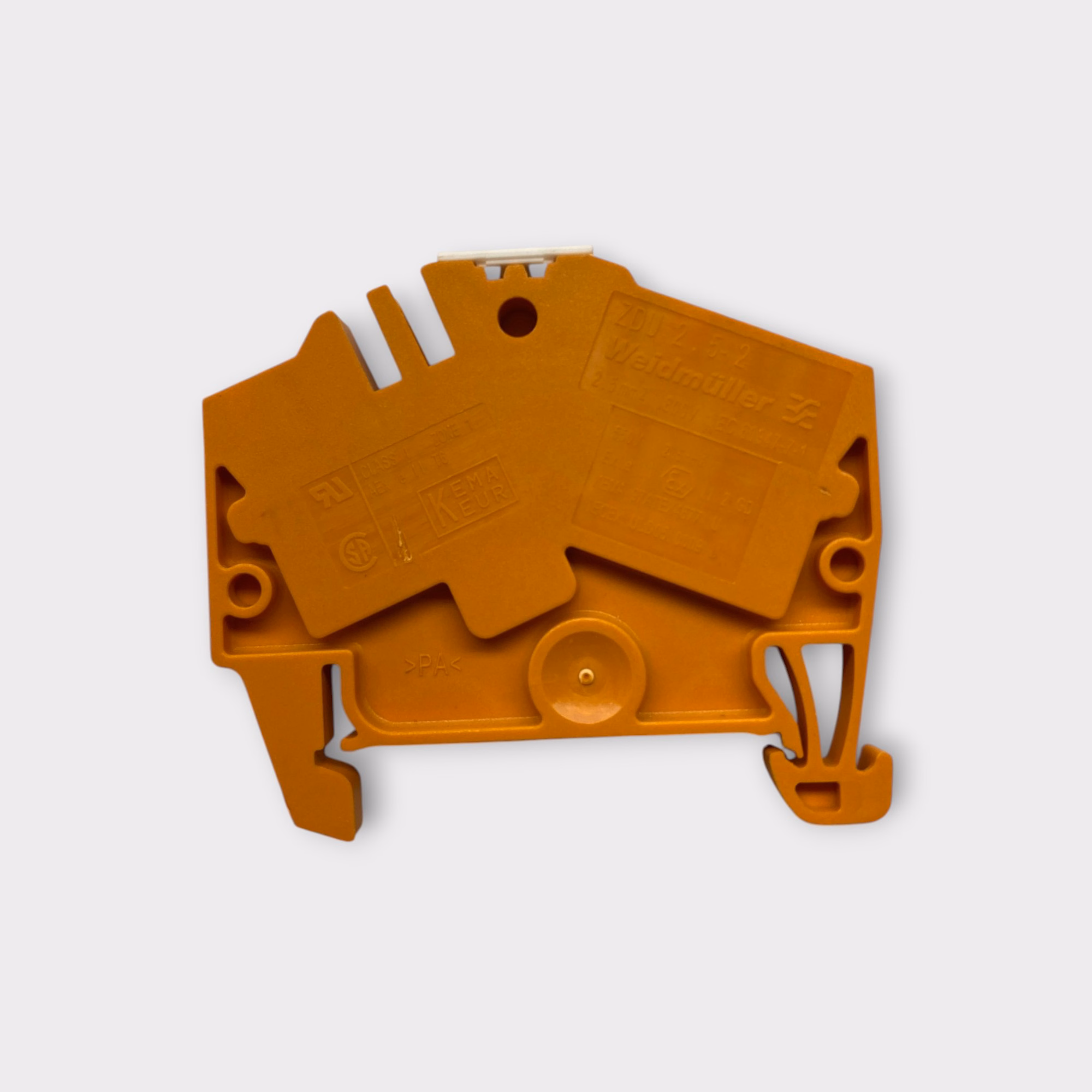

• The Weidmuller ZDU 2.5-2/3AN OR is an orange Z-Series feed-through terminal block designed for secure electrical connections in industrial control panels, automation systems, and electrical distribution applications.

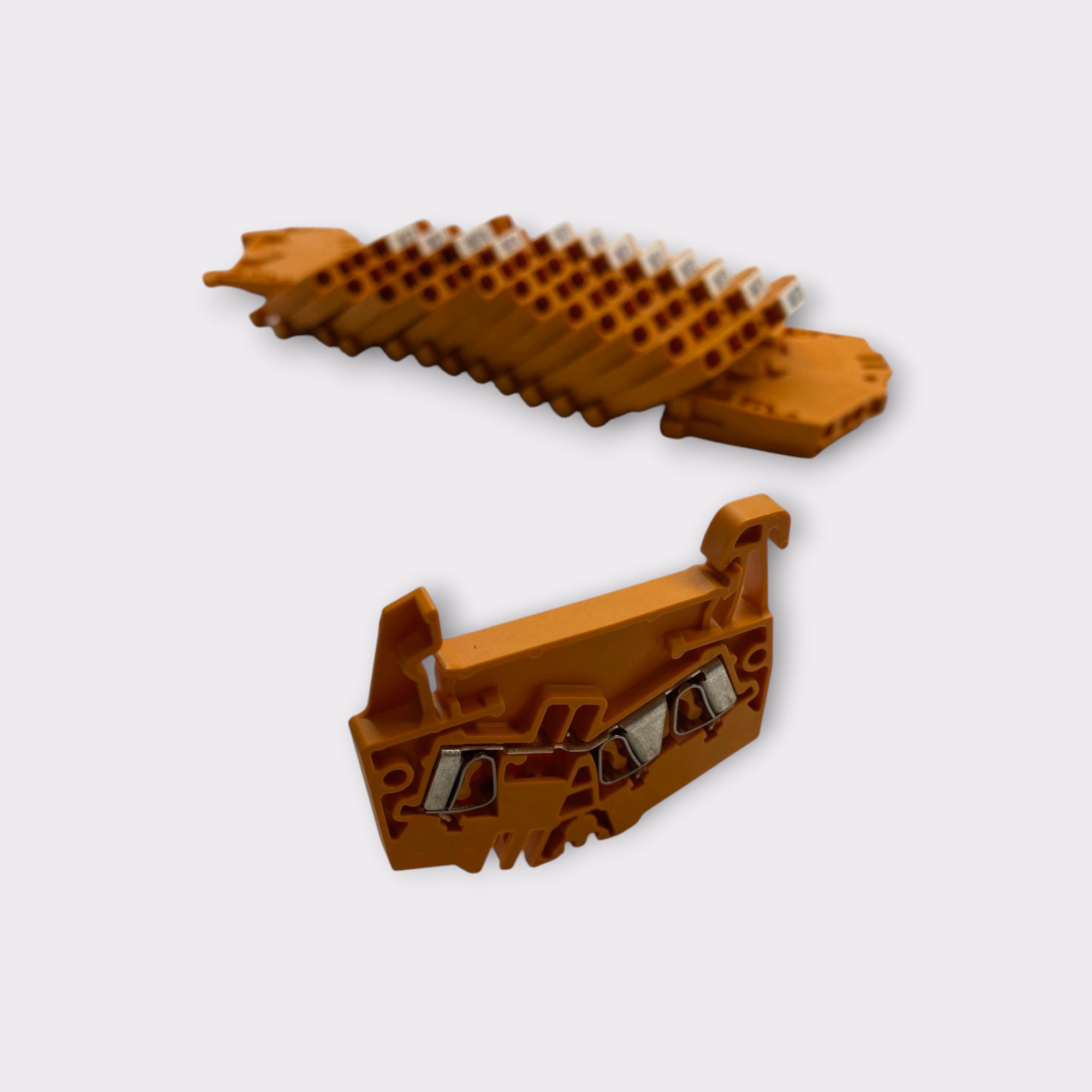

• Each terminal block features three tension-clamp connection points on a single level, allowing multiple conductors to be connected at a common electrical potential. The spring-clamp connection system provides reliable conductor retention without conventional screw-tightened terminals.
• Designed for standard TS 35 DIN rail mounting, these terminal blocks feature a compact 5.1 mm width and support plug-in cross-connectors for flexible electrical distribution.
• The insulating housing is manufactured from Weidmuller's WEMID material, providing thermal resistance and a UL 94 V-0 flammability rating.
• The orange housing allows for color-coded terminal arrangements and circuit identification within industrial electrical installations.
• These terminal blocks are suitable for industrial automation, control cabinet wiring, electrical distribution, machinery, and marine electrical control systems.

Product Information

- Manufacturer: Weidmuller
- Model Number: ZDU 2.5-2/3AN OR
- Series: Z-Series
- MPN: 1706050000
- Product Type: Feed-Through Terminal Block
- Quantity Included: 16
- Connection Type: Tension-Clamp
- Rated Cross-Section: 2.5 mm²
- Rated Voltage (IEC): 800 V
- Rated DC Voltage: 800 V
- Nominal Current (IEC): 24 A
- UL Rated Voltage: 600 V
- UL Rated Current: 20 A
- Rated Impulse Withstand Voltage: 8 kV
- Number of Connections: 3
- Number of Levels: 1
- Number of Potentials: 1
- Wire Connection Range: 12–26 AWG
- Compatible DIN Rail: TS 35 (35 mm)
- Mounting Type: Snap-On
- Cross-Connection: Plug-In Cross-Connector Compatible
- End Cover Plate Required: Yes (Not Included)
- Material: WEMID
- Color: Orange
- Width: 5.1 mm
- Height: 50.5 mm
- Depth: 43 mm
- Net Weight: 6.63 g Each
- Stripping Length: 10 mm
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-1
- UL File Number: E60693
- RoHS Compliance: Compliant Without Exemption
- EAN: 4008190915384
- Country of Origin: Not Verified

Package Contents

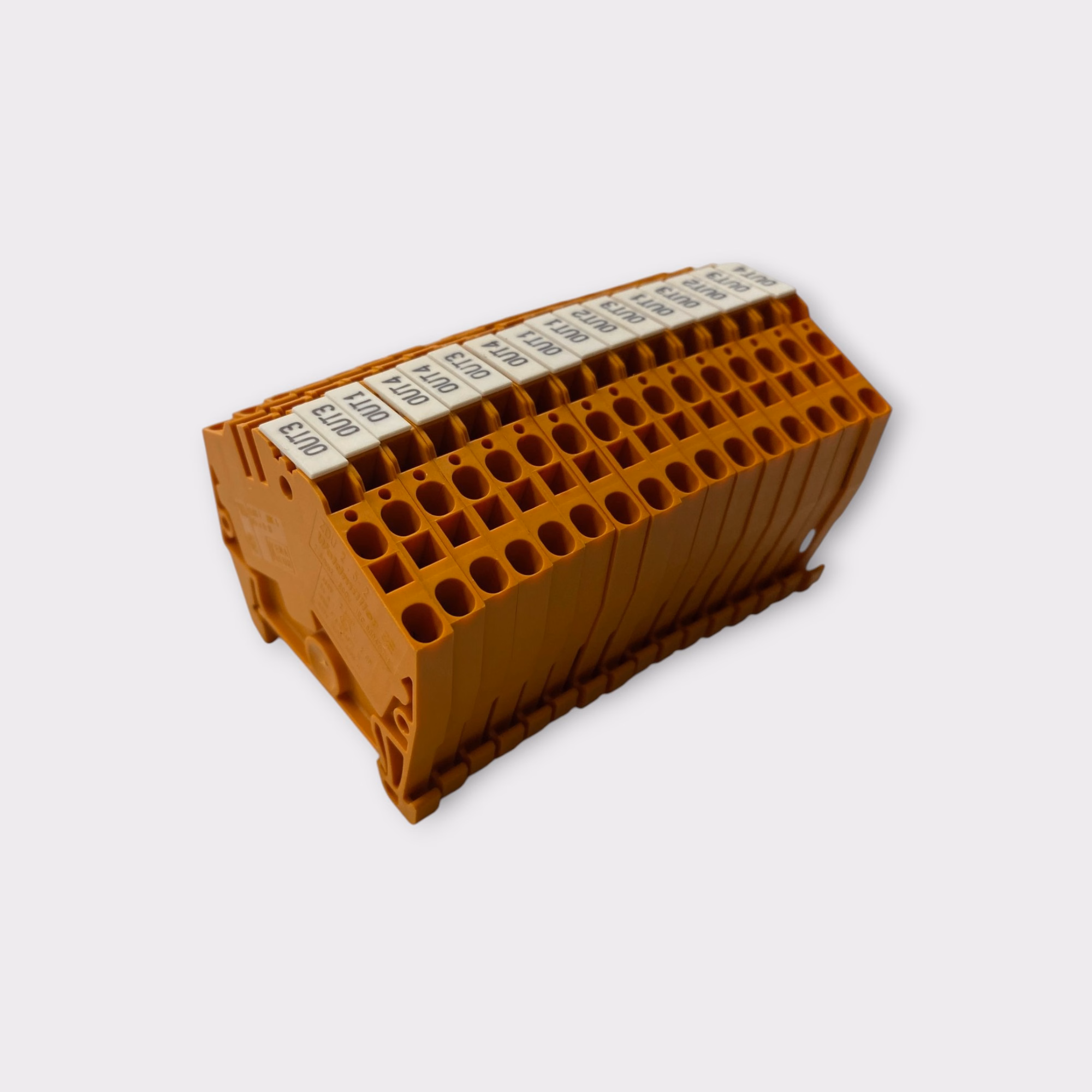

- 16x Weidmuller ZDU 2.5-2/3AN OR Orange Feed-Through Terminal Blocks (1706050000)

Total: 16 Terminal Blocks, Sold as One 16-Pack Listing.
