Summary

• Weidmuller ZDLD 2.5-2N (1782300000) three-level DIN rail feed-through terminal blocks, sold as a pack of 8 with 2 Weidmuller ZAP/TW ZDLD2.5-2N (1782340000) end plates included. These Z-Series terminal blocks feature tension-clamp connections, a 2.5 mm² rated conductor cross-section, and a 20 A / 500 V electrical rating for industrial electrical distribution and control applications.
• Each terminal block provides three independent connection levels with six conductor connection points, allowing multiple circuits to be organized within a compact DIN rail terminal assembly.
• This listing includes 8 Weidmuller ZDLD 2.5-2N terminal blocks and 2 ZAP/TW ZDLD2.5-2N end plates only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Weidmuller ZDLD 2.5-2N is a Z-Series three-level feed-through terminal block designed for secure and space-efficient electrical connections in industrial control panels, automation systems, and electrical distribution applications.
• Each terminal block features six tension-clamp connection points distributed across three separate levels, allowing multiple independent electrical potentials to be connected within a single compact terminal housing.
• The spring-clamp connection system provides secure conductor retention without conventional screw-tightened connections, supporting reliable wiring installations in industrial environments.
• Designed for standard TS 35 DIN rail mounting, these terminal blocks feature a compact 5.1 mm width and support plug-in cross-connectors for flexible electrical distribution and terminal strip configuration.
• The insulating housing is manufactured from Weidmuller's WEMID material, providing thermal resistance and a UL 94 V-0 flammability rating.
• This 8-pack includes two Weidmuller ZAP/TW ZDLD2.5-2N end and intermediate plates, designed to cover exposed terminal block sides and provide electrical insulation and separation within compatible Z-Series terminal block assemblies.
• The included end plates feature snap-on mounting and are manufactured from WEMID insulating material, with a 1.5 mm thickness and dark beige finish matching the terminal blocks.
• These terminal blocks are suitable for industrial automation, control cabinet wiring, electrical distribution, machinery, and compatible marine electrical control systems.
• Product Information

Terminal Blocks

- Manufacturer: Weidmuller
- Model Number: ZDLD 2.5-2N
- Series: Z-Series
- MPN: 1782300000
- Product Type: Three-Level Feed-Through Terminal Block
- Quantity Included: 8
- Connection Technology: Tension-Clamp
- Rated Cross-Section: 2.5 mm²
- Rated Voltage (IEC): 500 V
- Rated DC Voltage: 500 V
- Nominal Current (IEC): 20 A
- UL Rated Voltage: 300 V
- UL Current Rating: 15 A (Application Category B)
- Rated Impulse Withstand Voltage: 6 kV
- Number of Connections: 6
- Number of Levels: 3
- Number of Potentials: 3
- Clamping Points Per Level: 2
- Levels Cross-Connected Internally: No
- Protective Earth Connection: No
- Wire Connection Range: 0.08–2.5 mm² (Solid and Finely Stranded)
- Wire Gauge Range: 12–26 AWG
- Compatible DIN Rail: TS 35 (35 mm)
- Mounting Type: Snap-On
- Cross-Connection: Plug-In Cross-Connector Compatible
- End Cover Plate Required: Yes
- Material: WEMID
- Color: Dark Beige
- Width: 5.1 mm
- Height: 110.5 mm
- Depth: 69 mm
- Depth Including DIN Rail: 70 mm
- Stripping Length: 10 mm
- Net Weight: 16.8 g Each
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-1
- UL Certificate Number: E60693
- RoHS Compliance: Compliant Without Exemption
- EAN / GTIN: 4032248176526

End Plates

- Manufacturer: Weidmuller
- Model Number: ZAP/TW ZDLD2.5-2N
- Series: Z-Series
- MPN: 1782340000
- Product Type: End and Intermediate Plate / Partition Plate
- Quantity Included: 2
- Installation: Direct Snap-On Mounting
- Material: WEMID
- Color: Dark Beige
- Width / Thickness: 1.5 mm
- Height: 108.42 mm
- Depth: 59.03 mm
- Net Weight: 6.995 g Each
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- RoHS Compliance: Compliant Without Exemption
- EAN / GTIN: 4032248176564

Package Contents

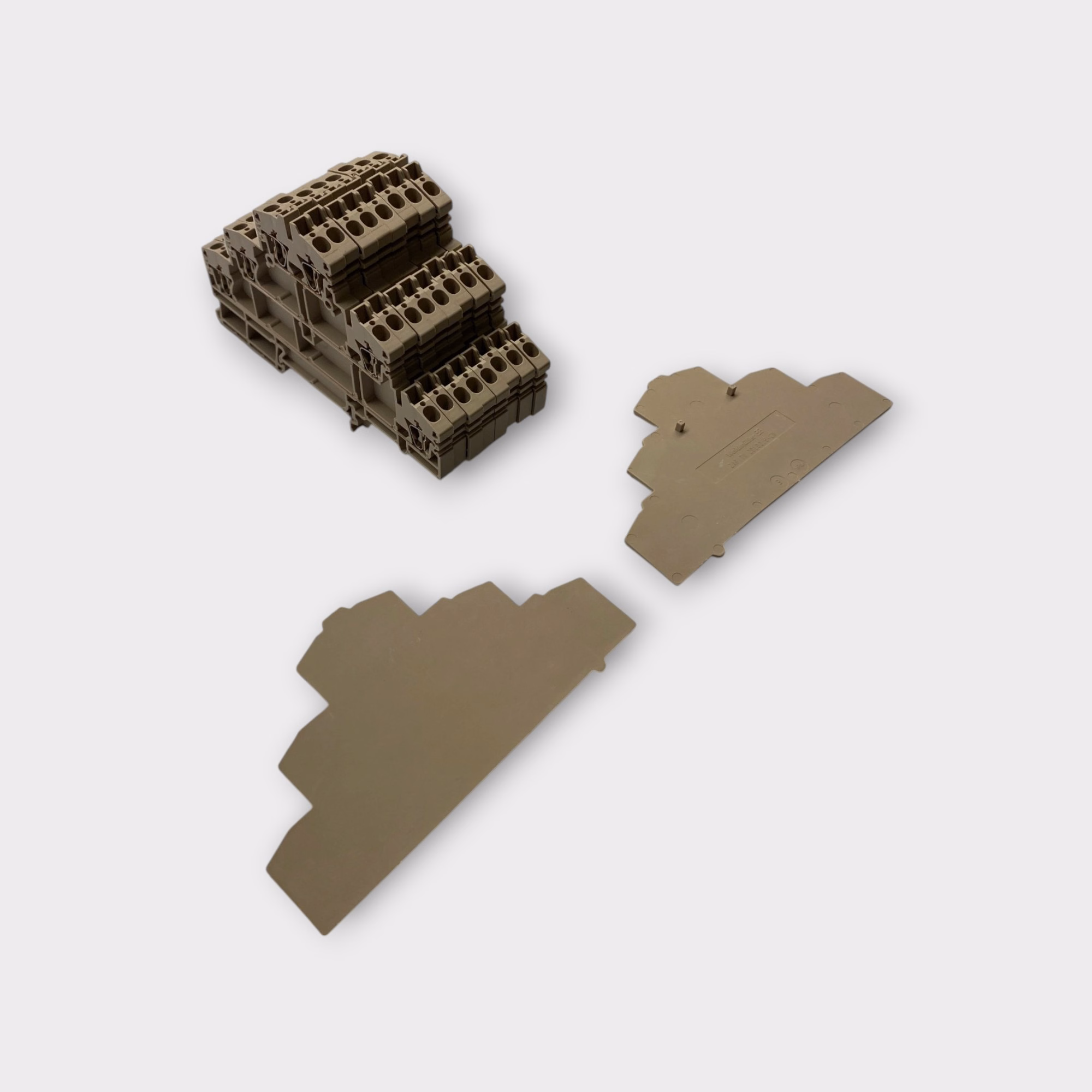

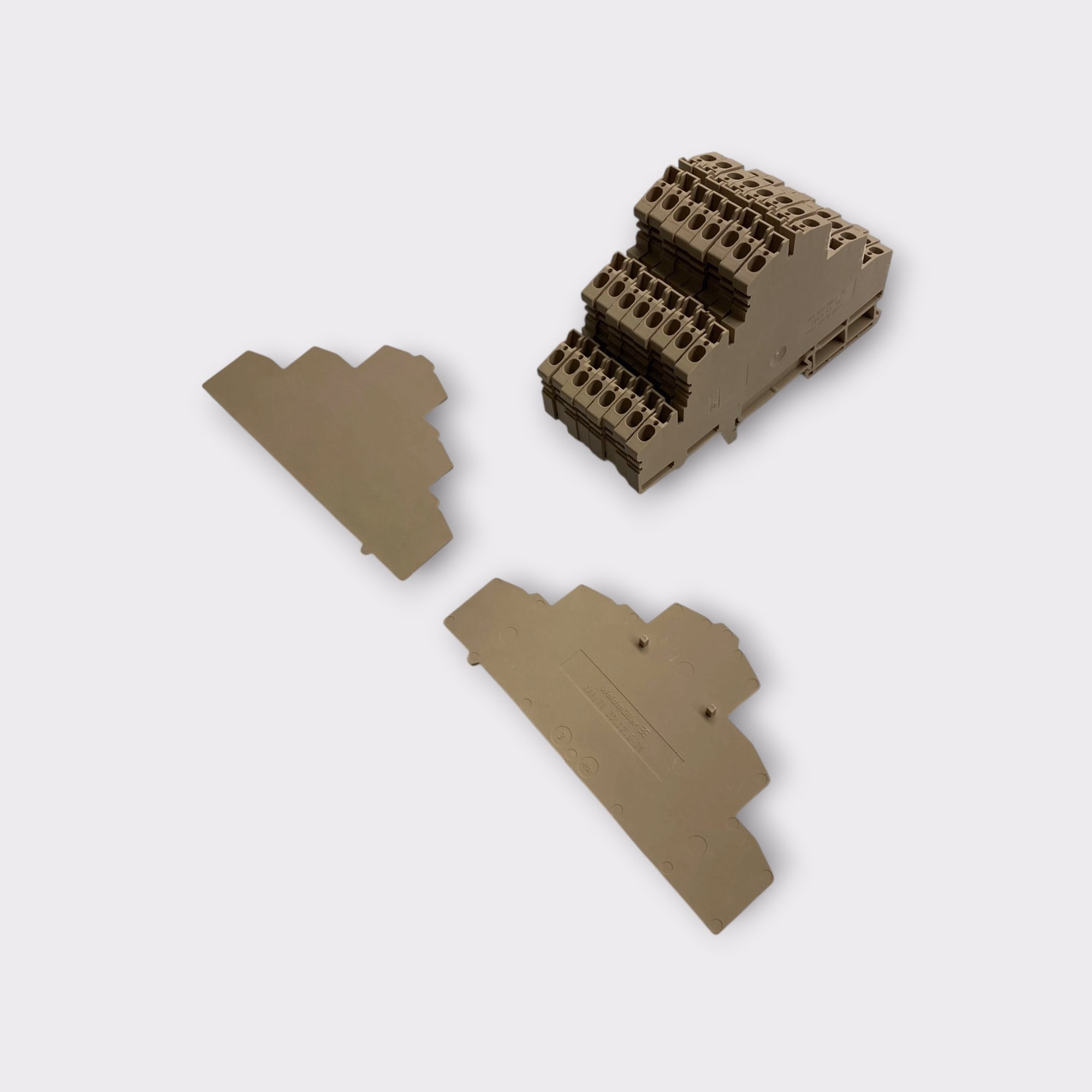

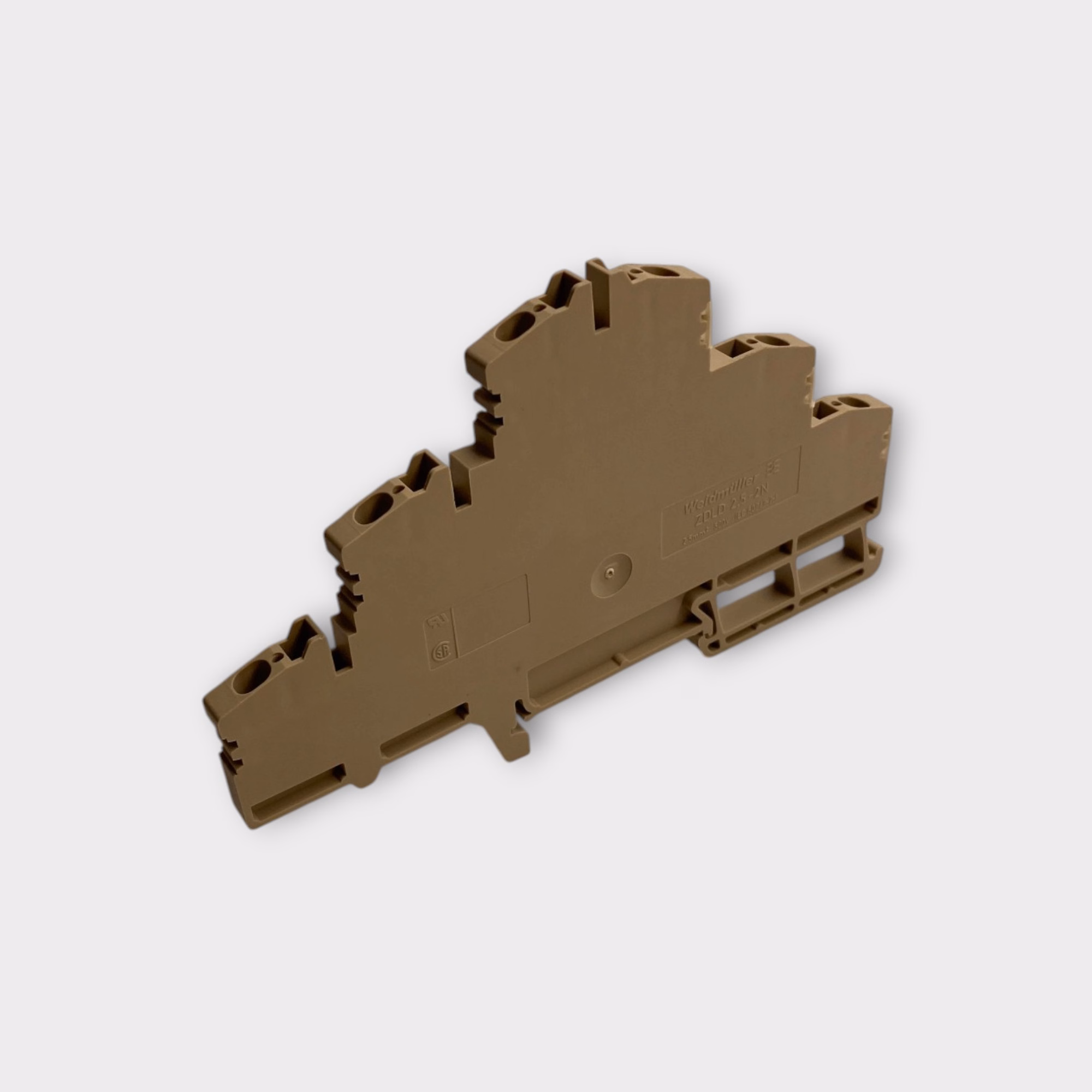

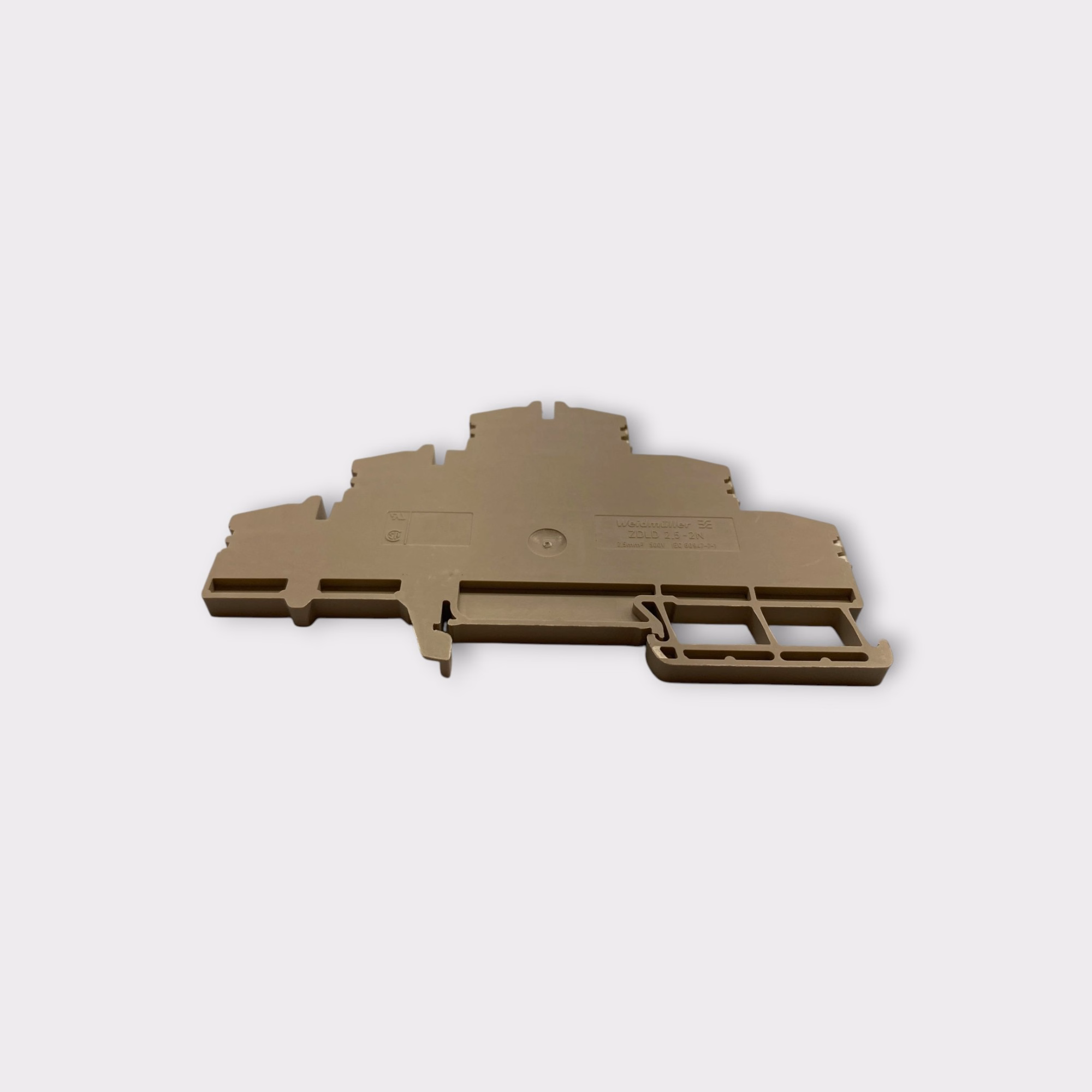

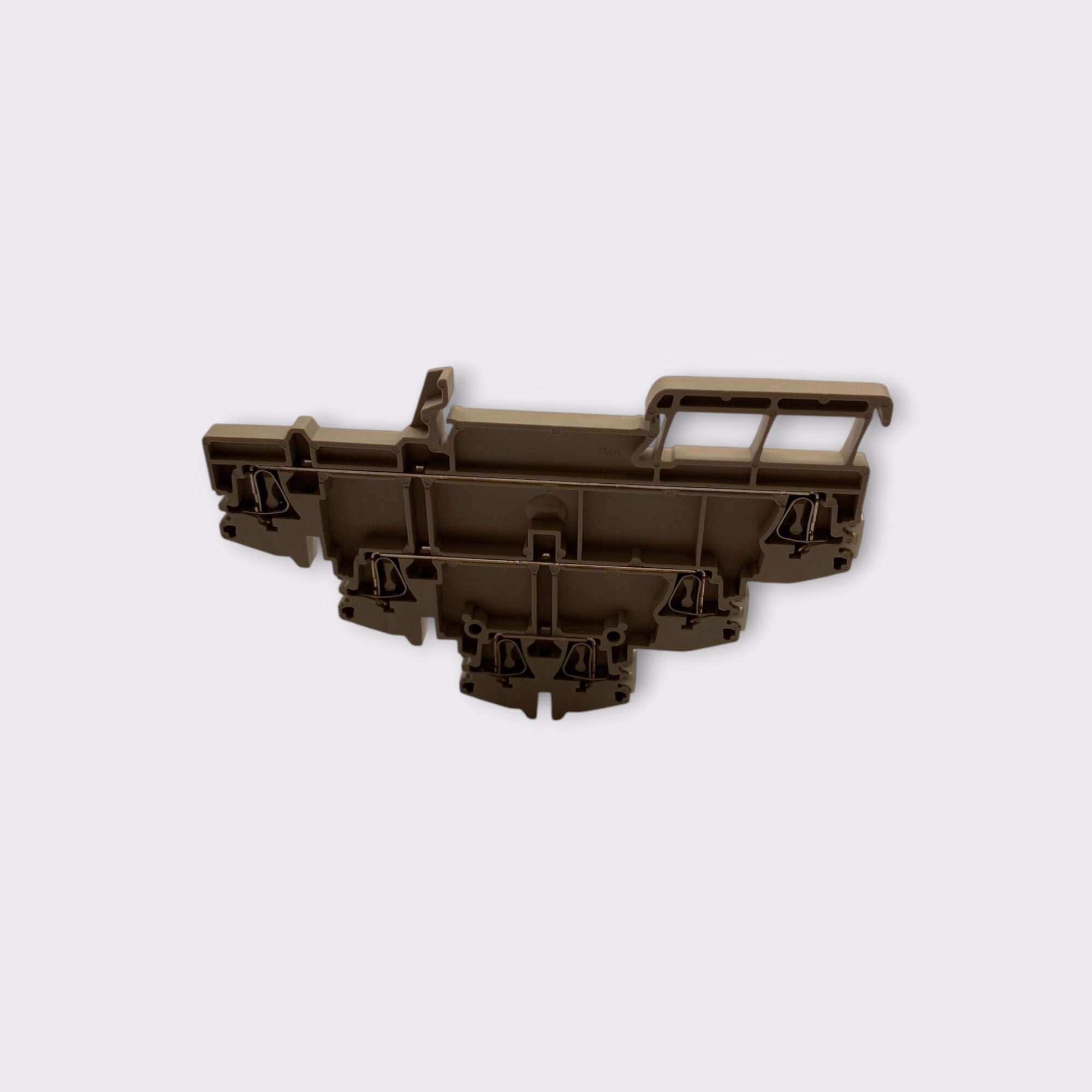

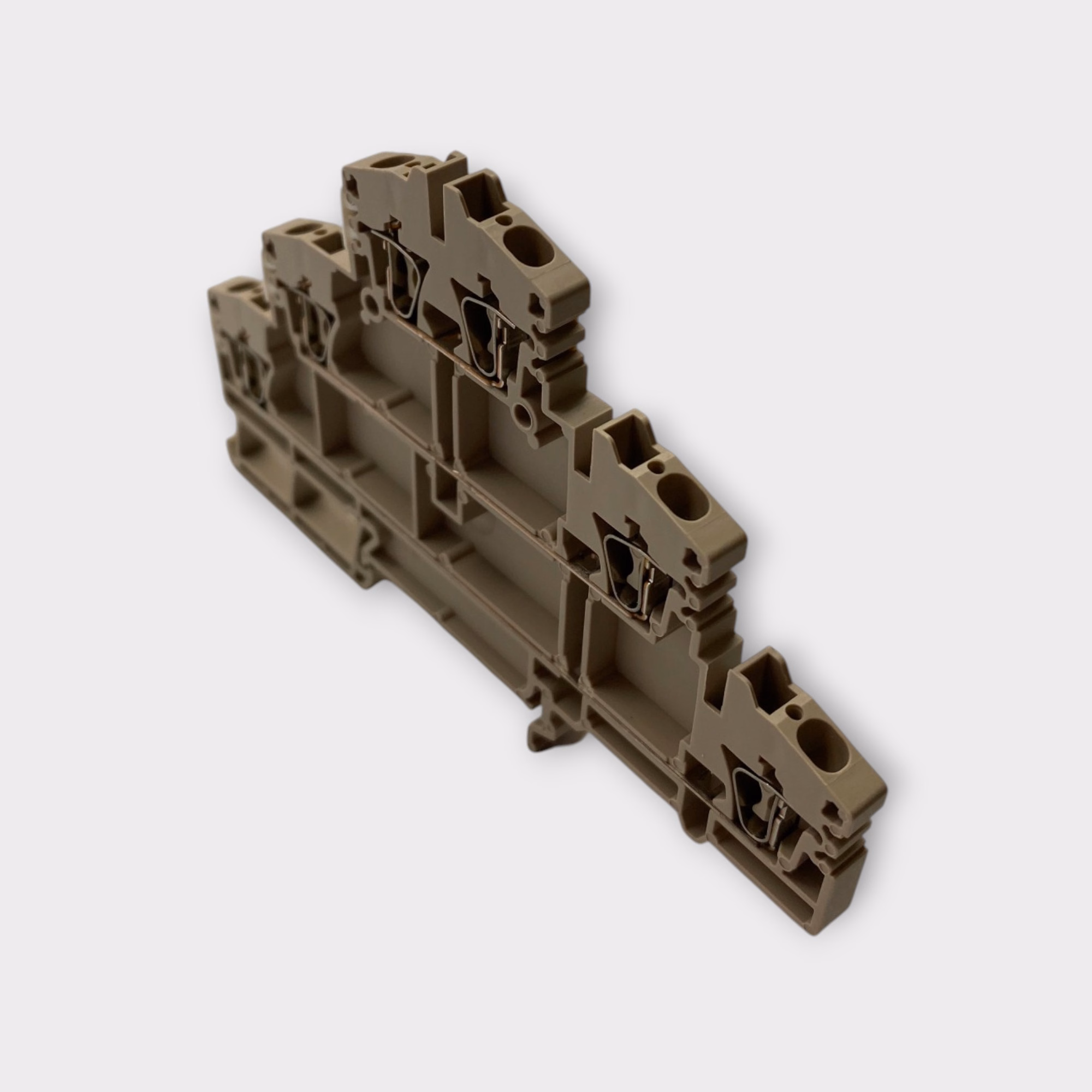

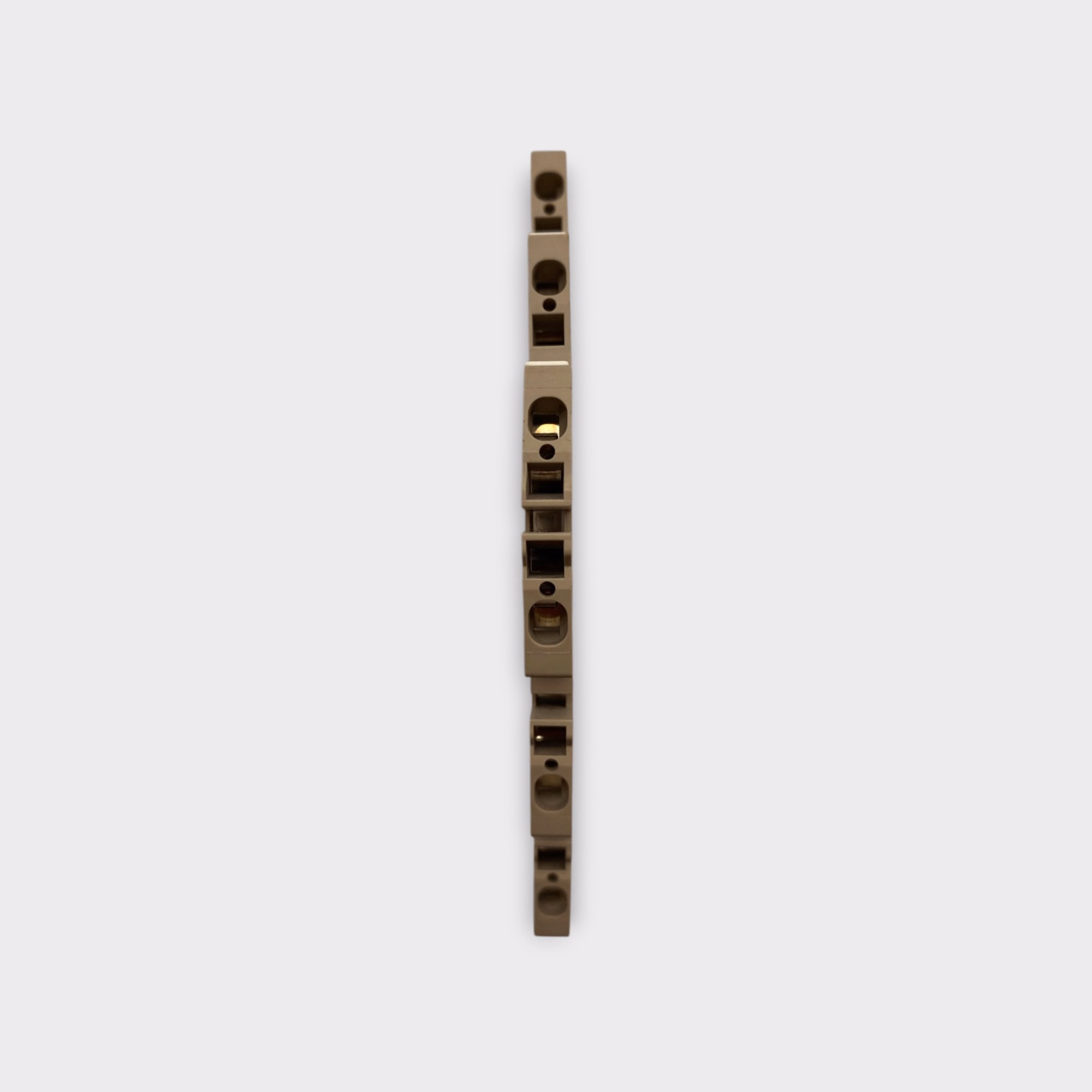

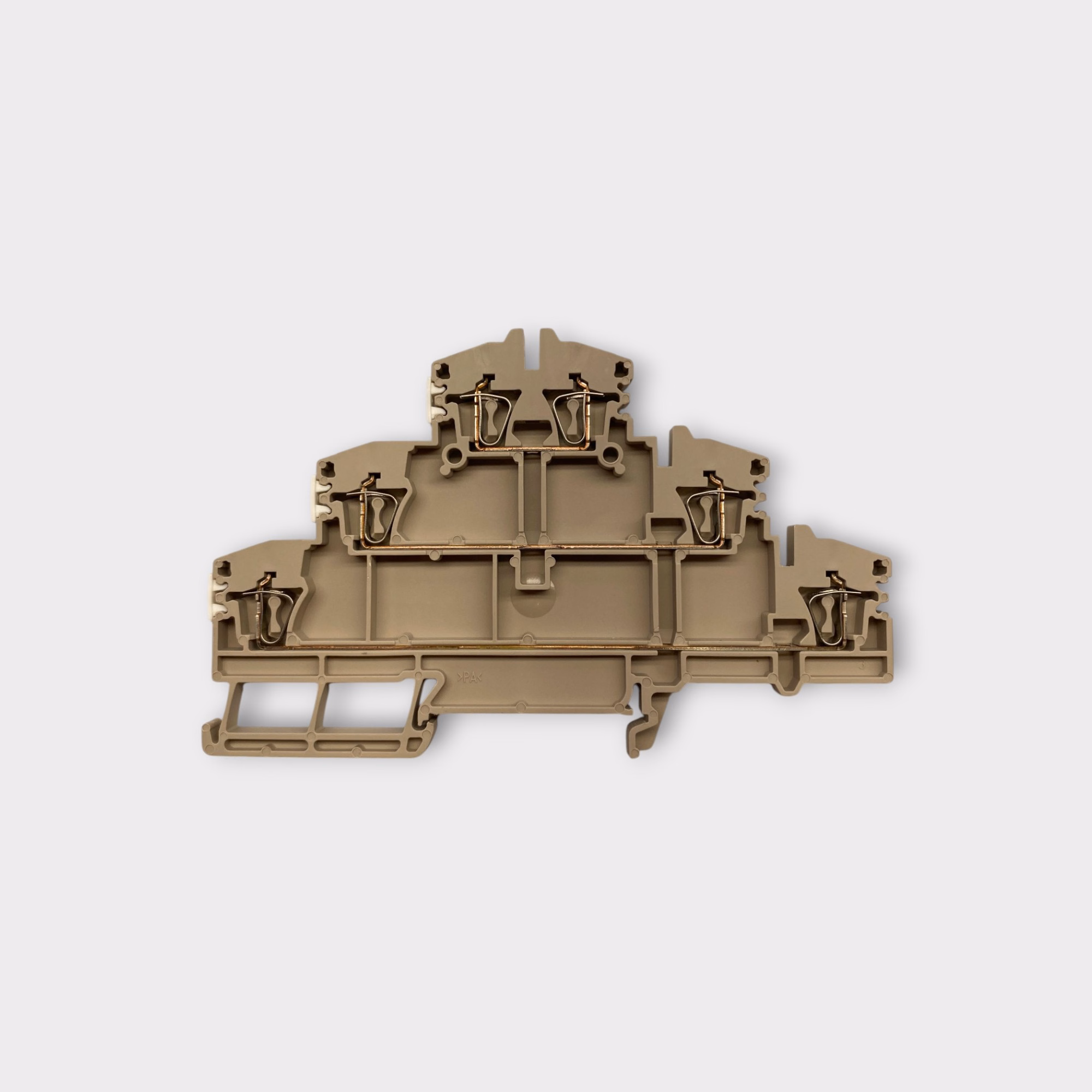

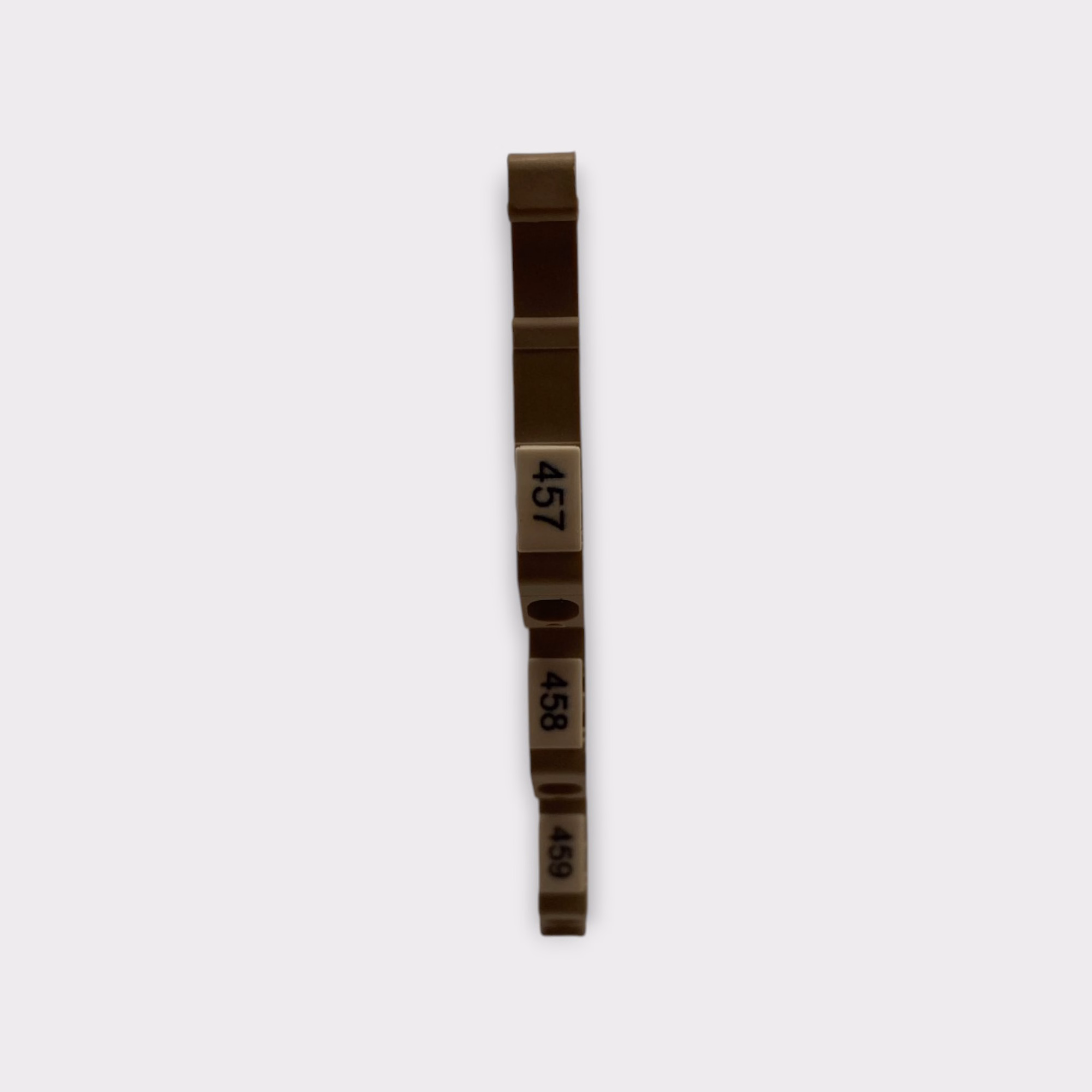

- 8x Weidmuller ZDLD 2.5-2N Three-Level Terminal Blocks (1782300000)

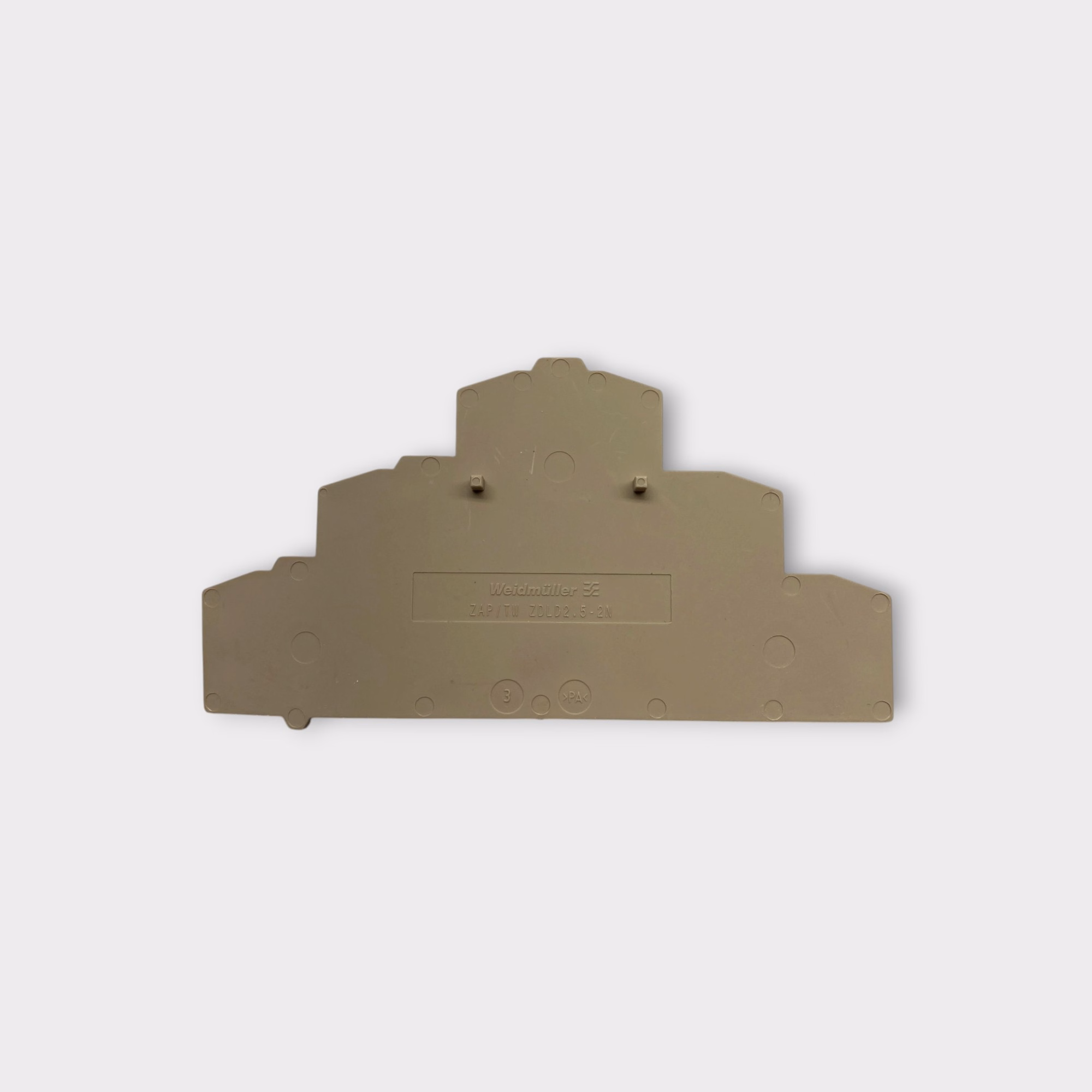

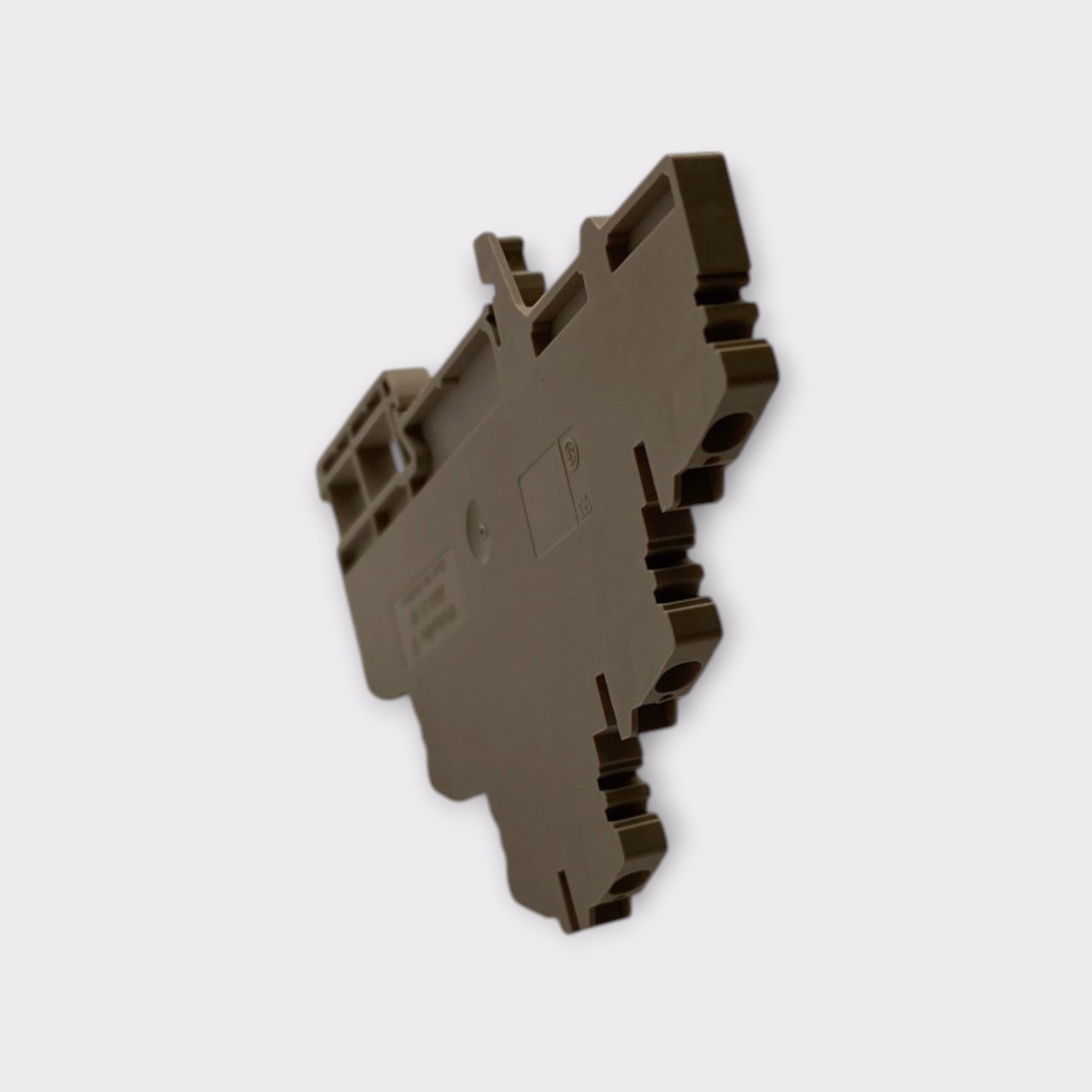

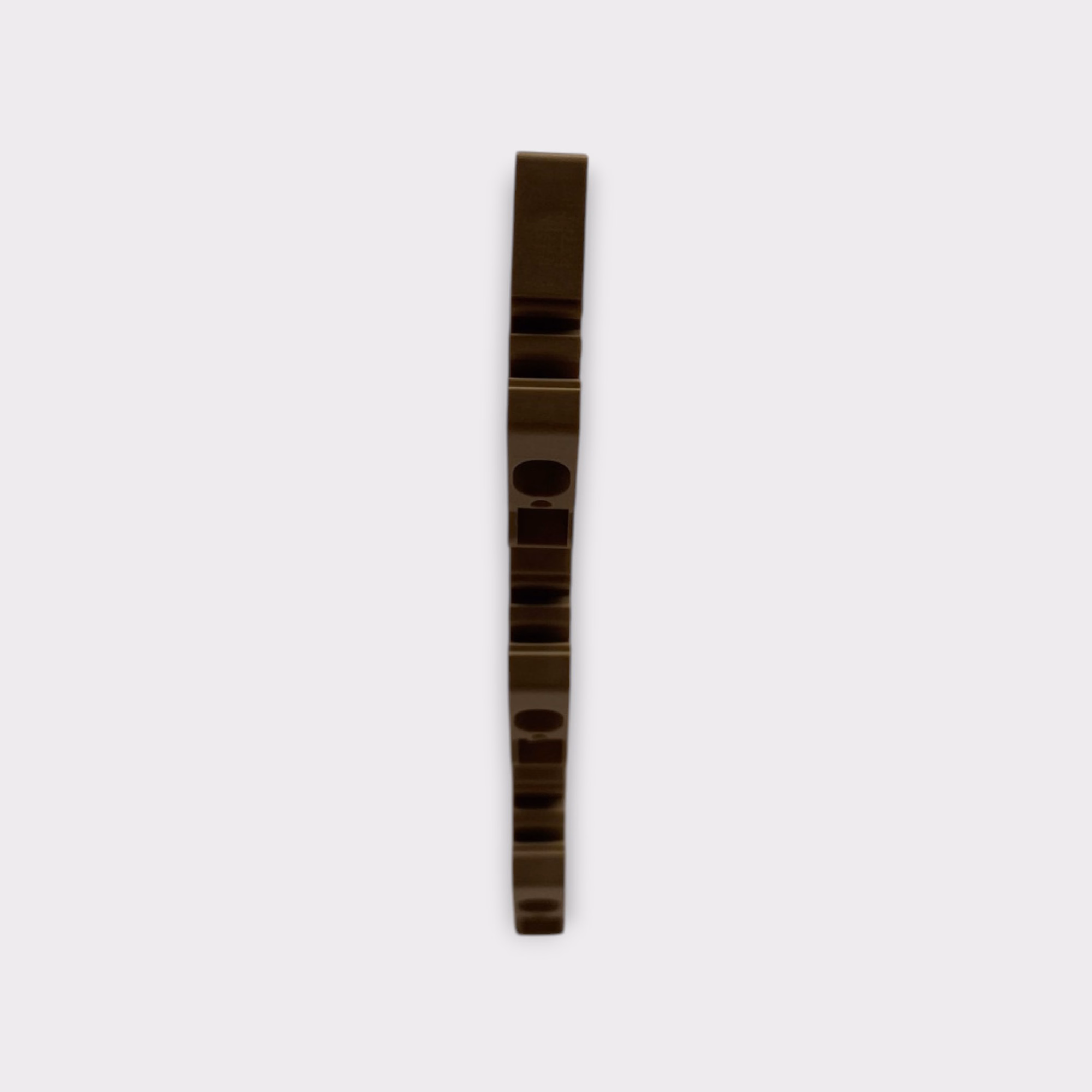

- 2x Weidmuller ZAP/TW ZDLD2.5-2N End Plates (1782340000)

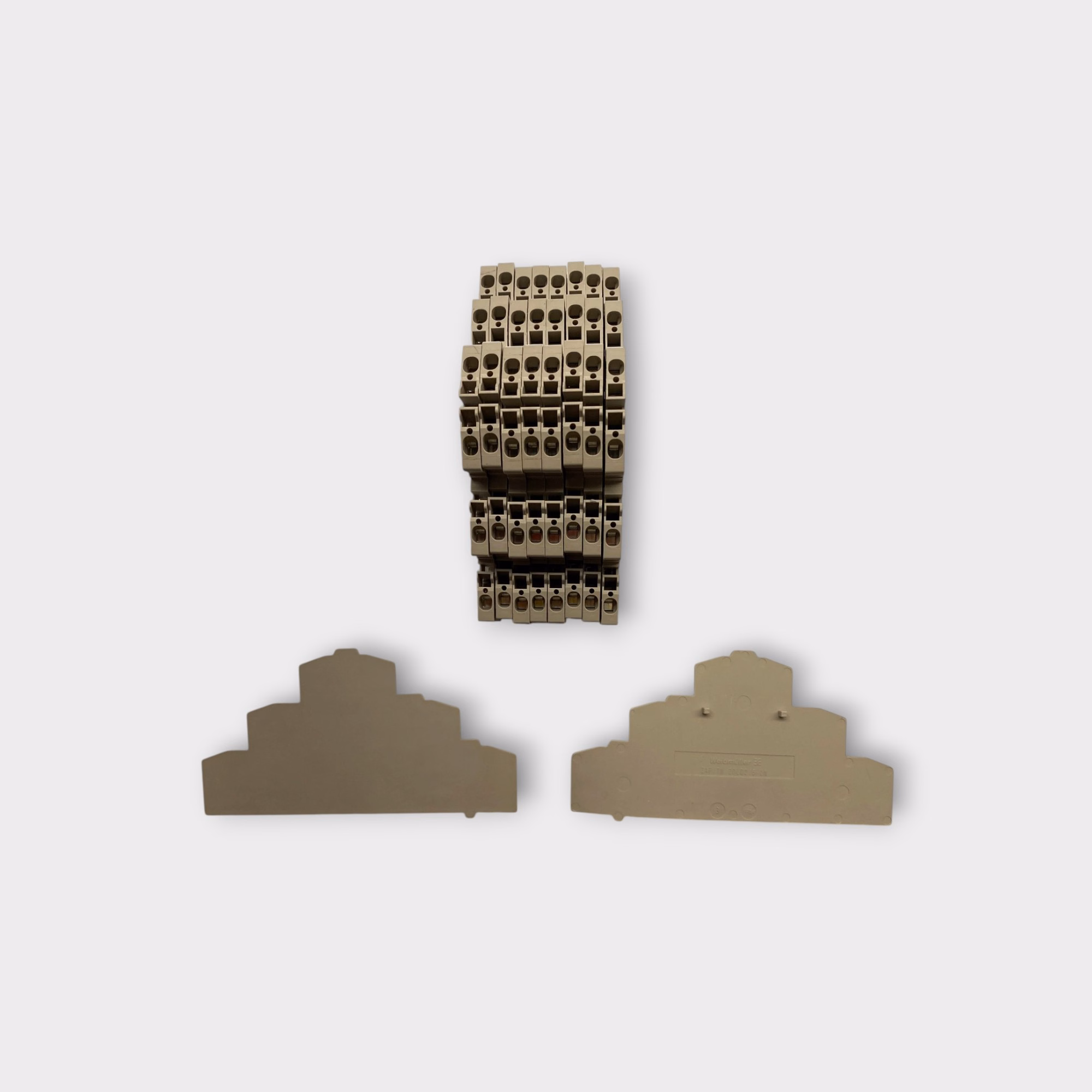

Total: 10 Components, Sold as One 8-Pack Terminal Block Listing.
