Summary

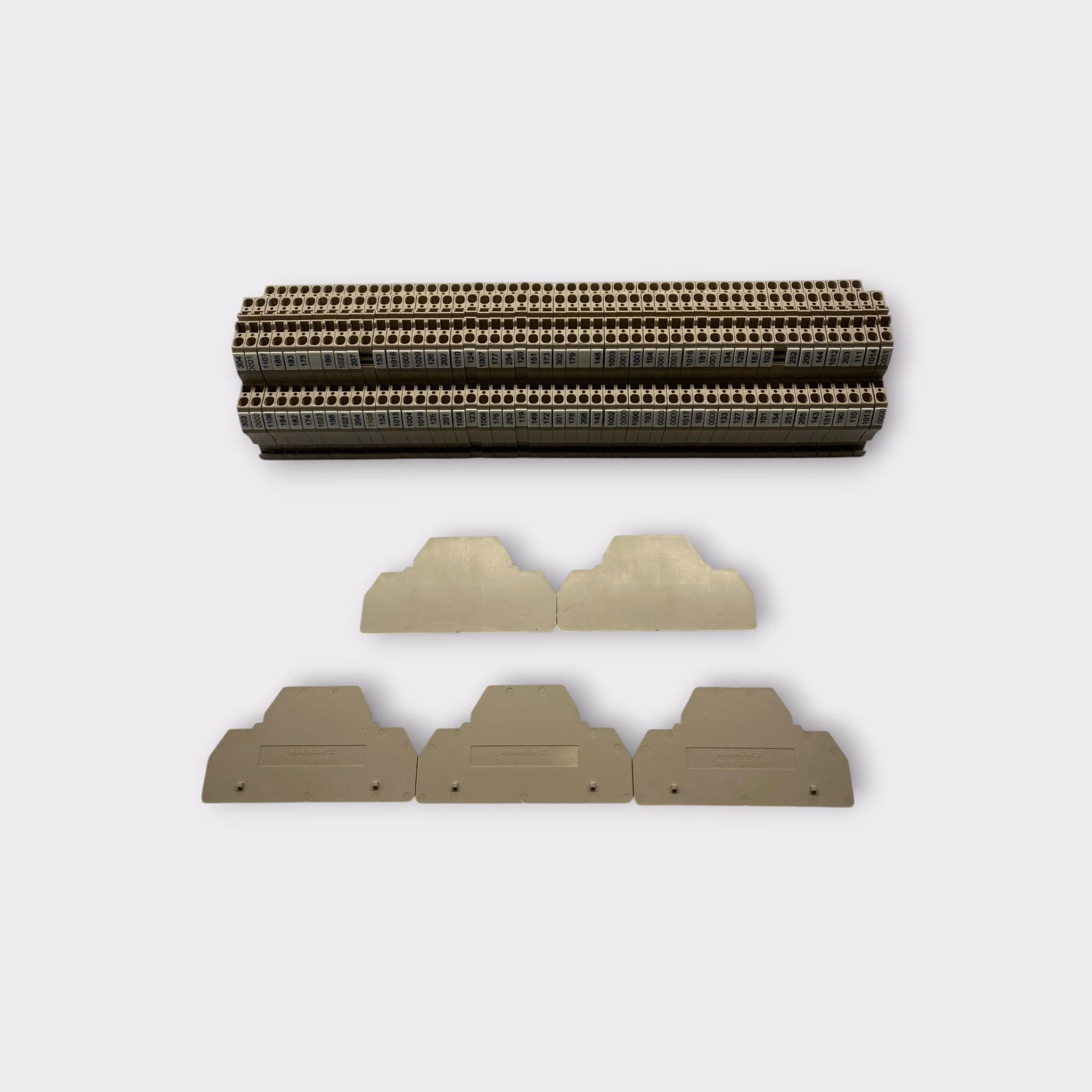

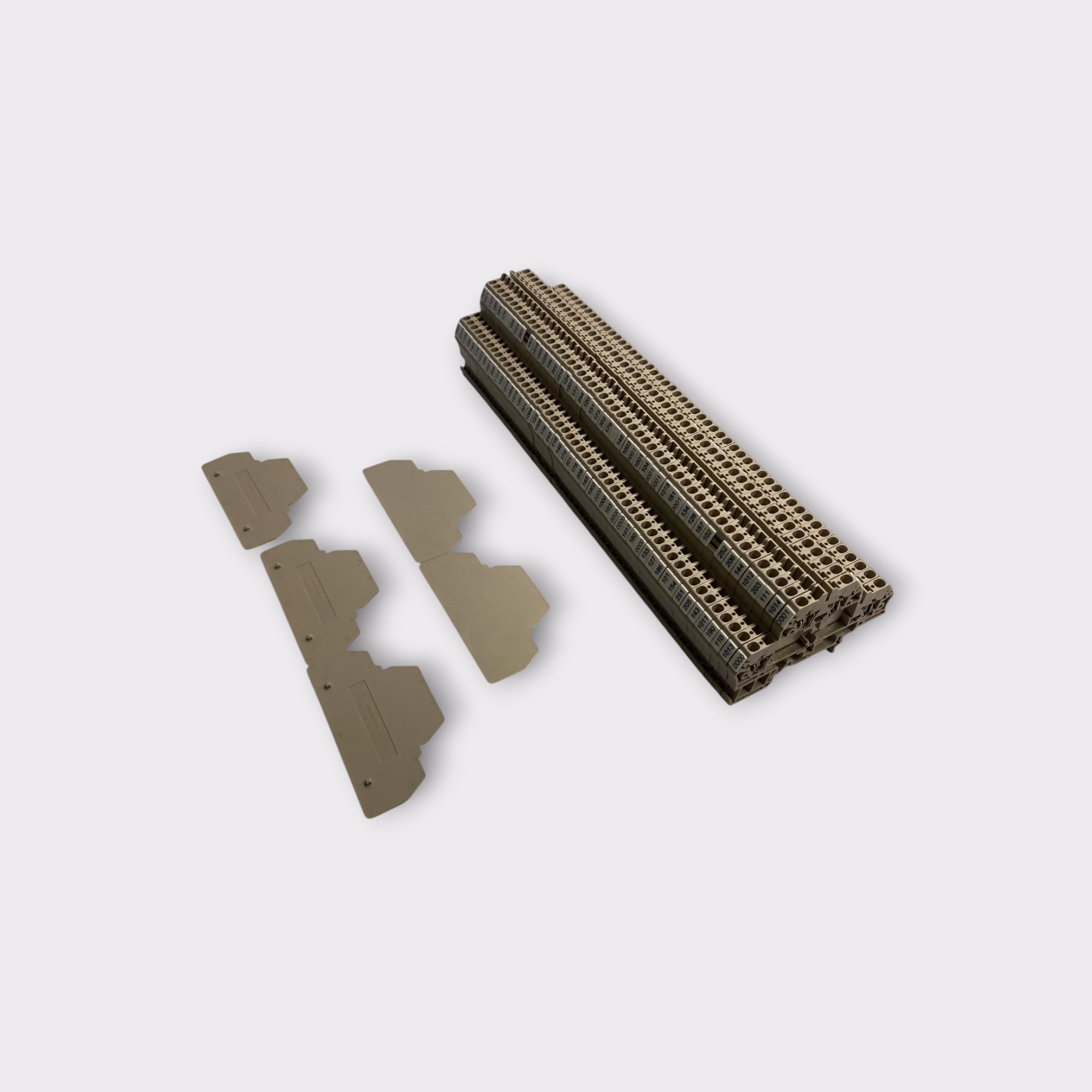

• Lot of 51 Weidmüller ZDK 2.5 double-tier feed-through terminal blocks, manufacturer part number 1674300000, including 5 Weidmüller ZAP/TW ZDK2.5 end plates, part number 1674730000.
• These beige DIN rail terminal blocks feature tension-clamp connections, two independent connection levels, and a compact design for electrical control panels, industrial automation systems, and power distribution applications. Each terminal block is rated for 20A and 500V, with a nominal conductor cross-section of 2.5mm².
• The included end plates provide protective separation and insulation for terminal block assemblies.
• This listing includes 51 Weidmüller ZDK 2.5 terminal blocks and 5 ZAP/TW ZDK2.5 end plates only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

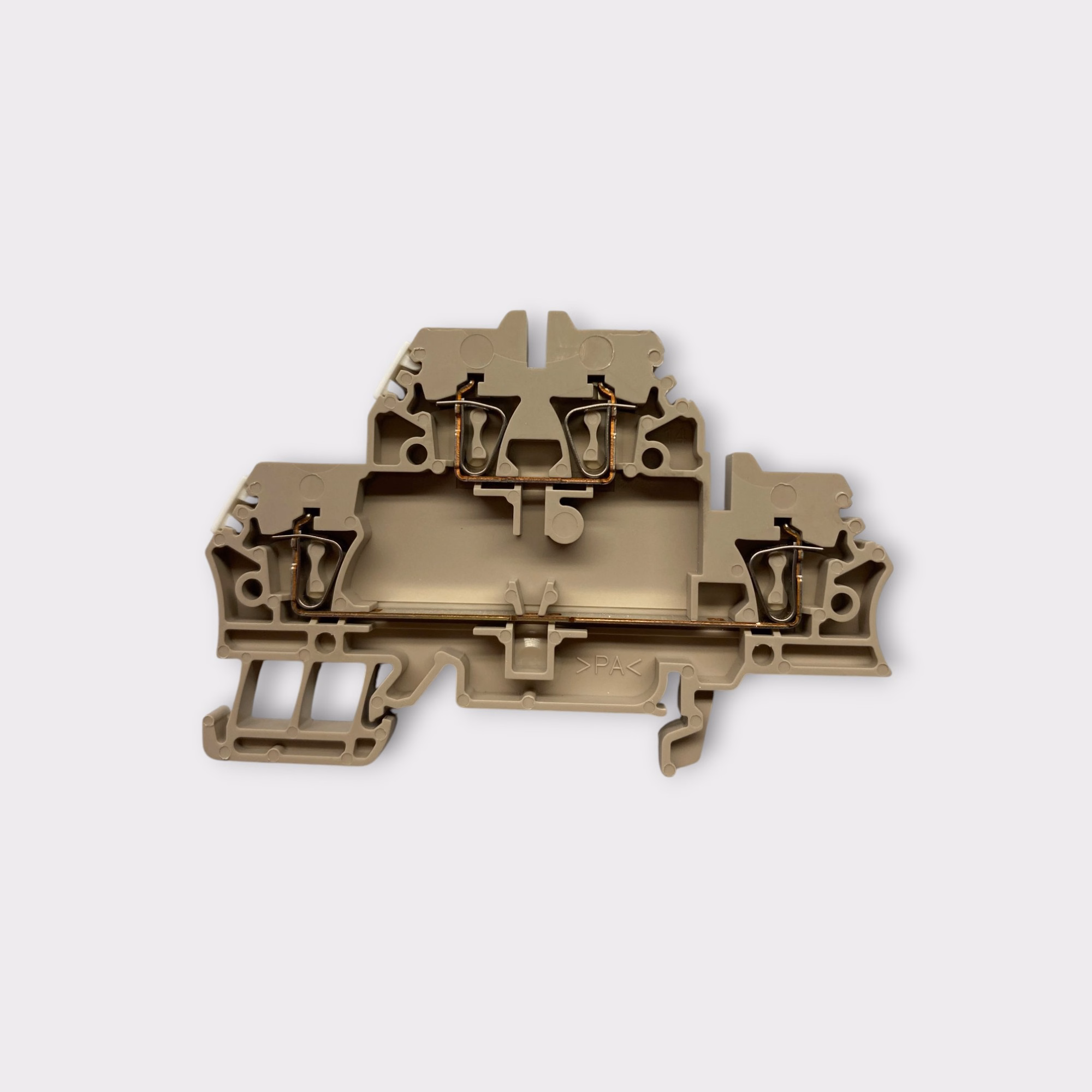

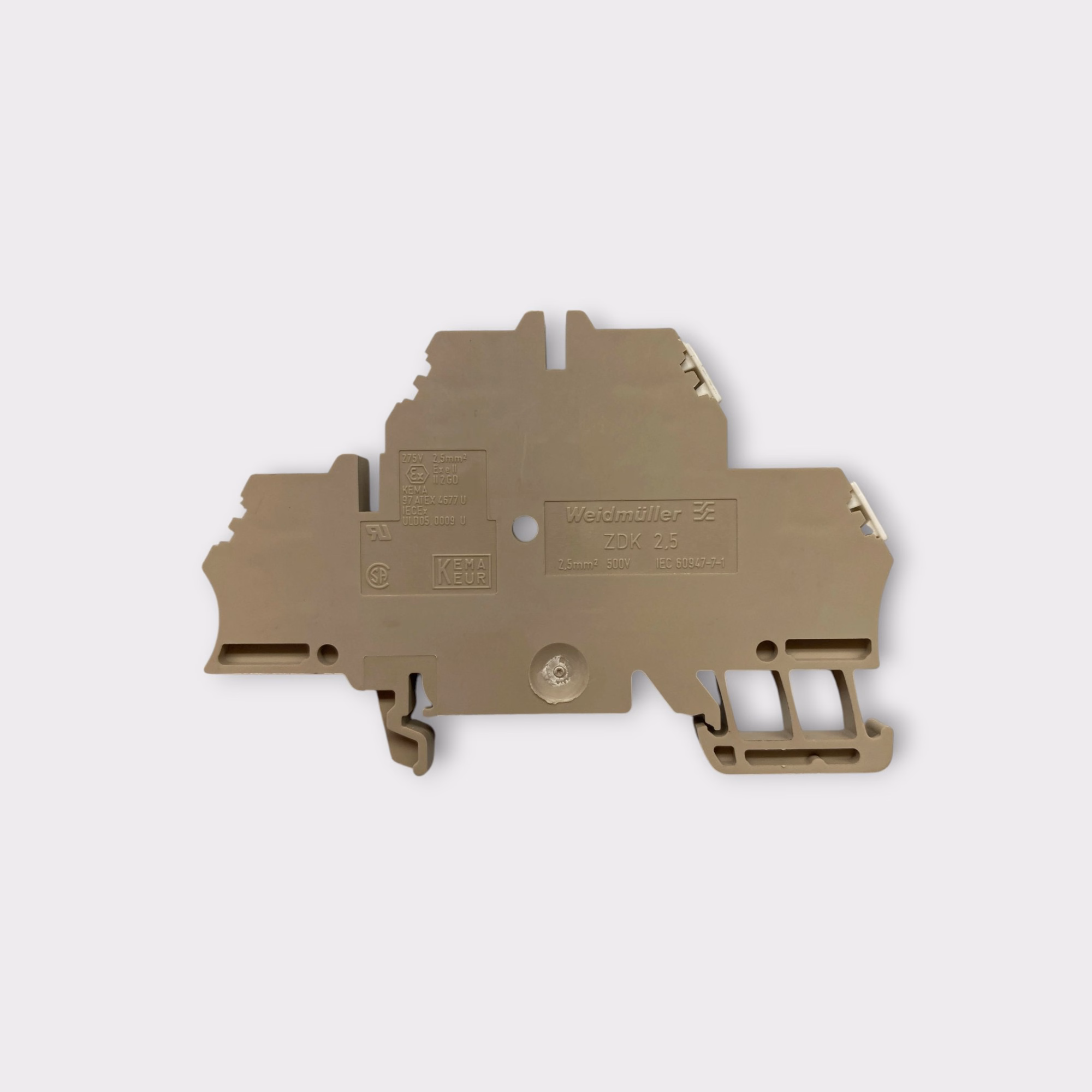

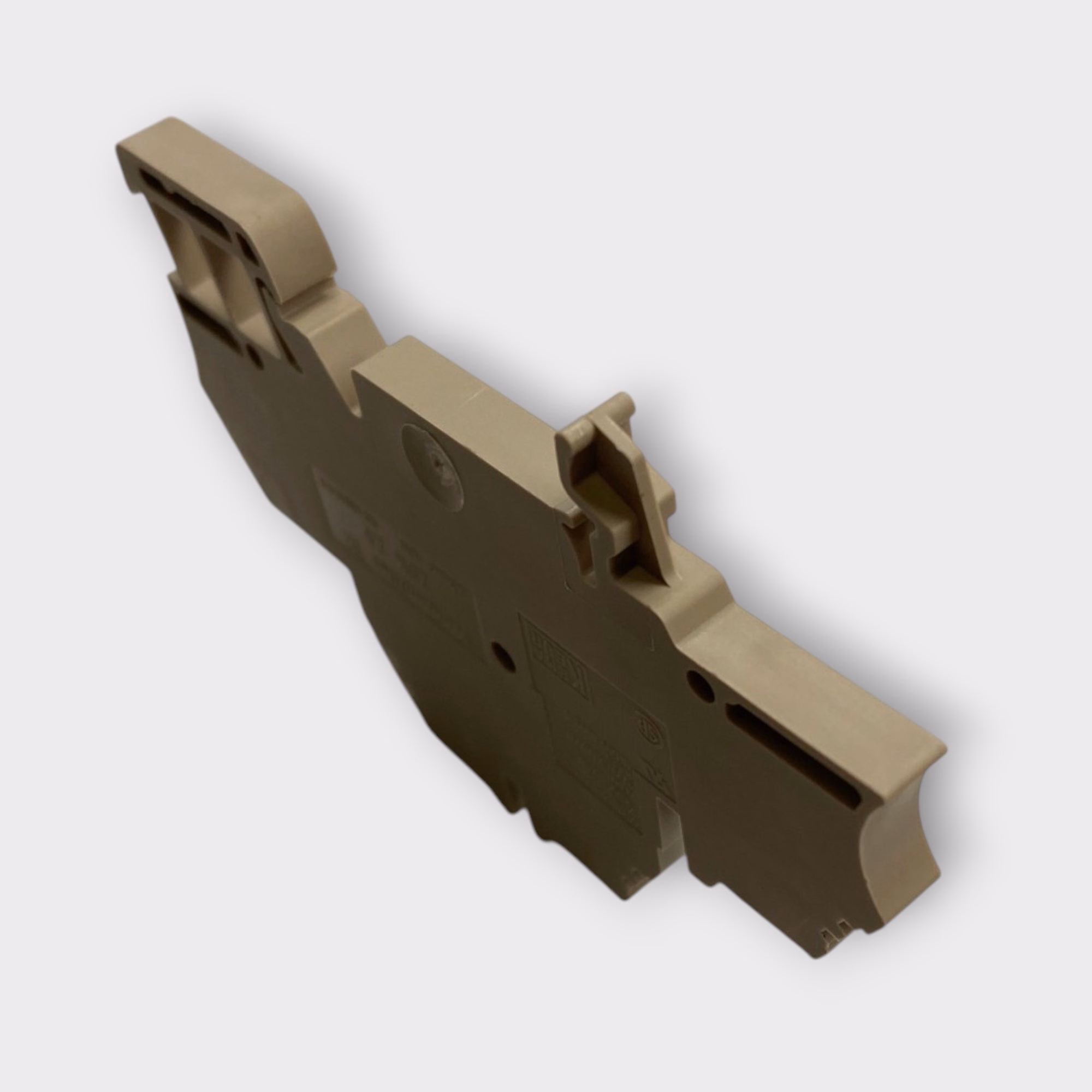

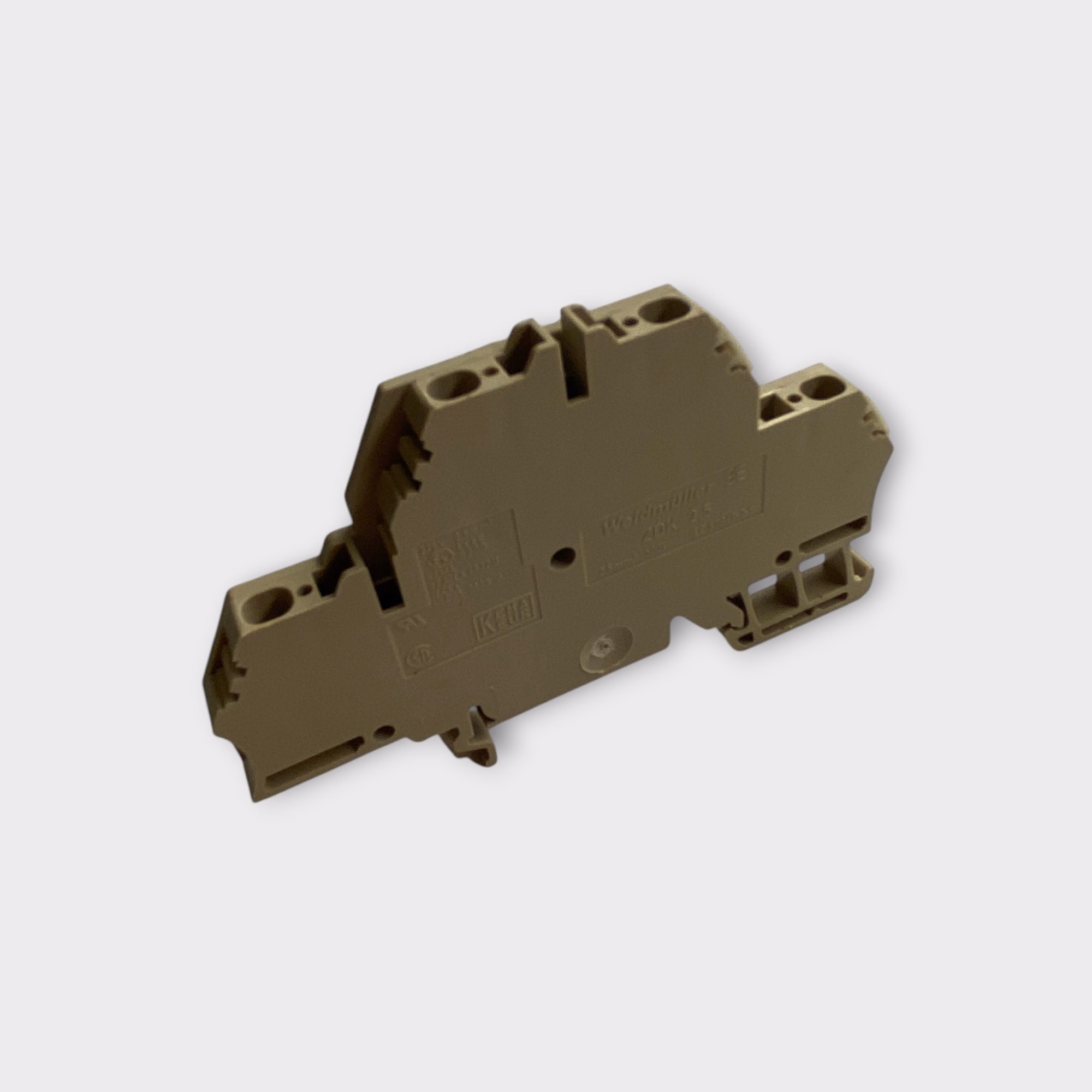

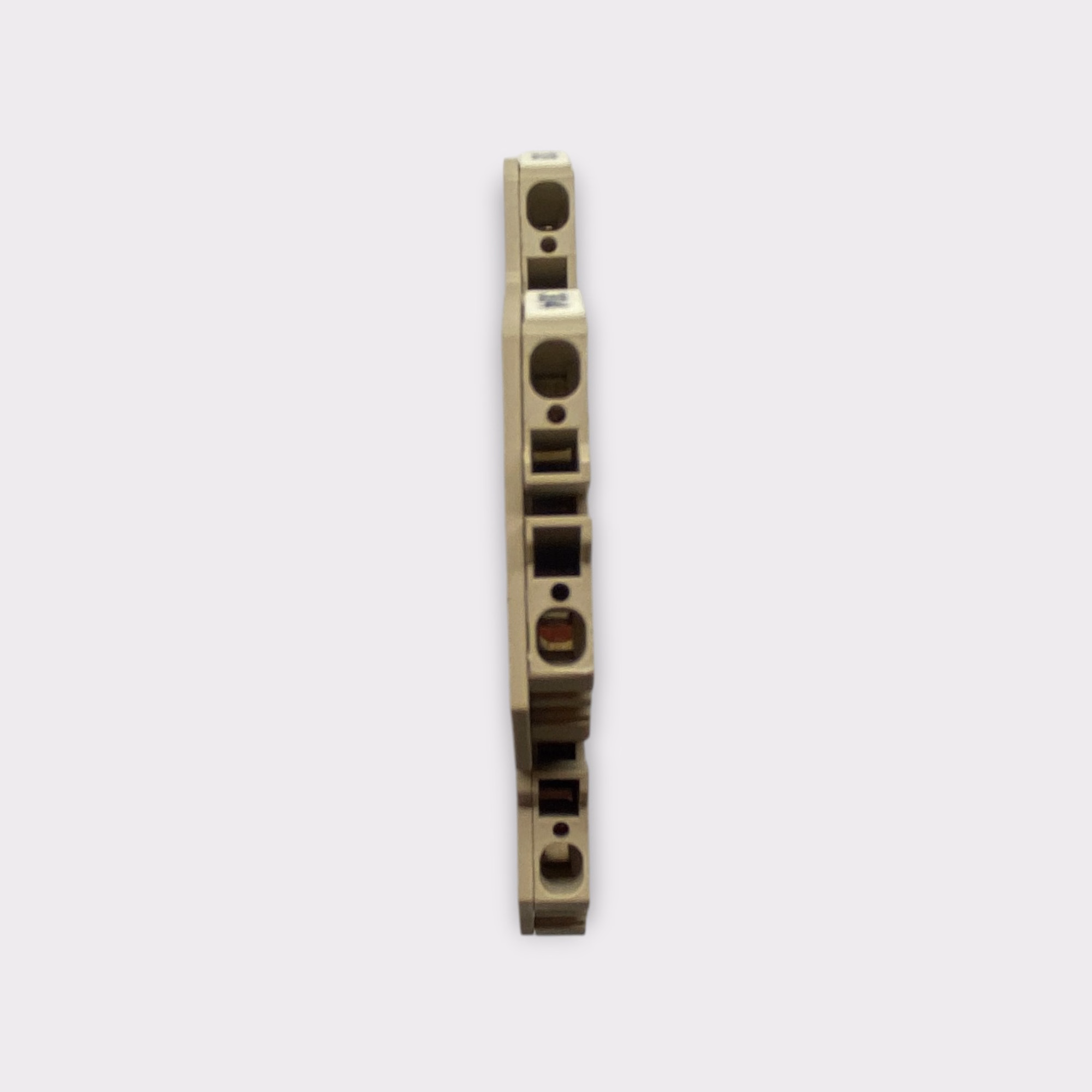

• The Weidmüller ZDK 2.5 is a double-tier feed-through terminal block from the Weidmüller Z-Series, designed for reliable electrical connections in industrial control and automation applications.

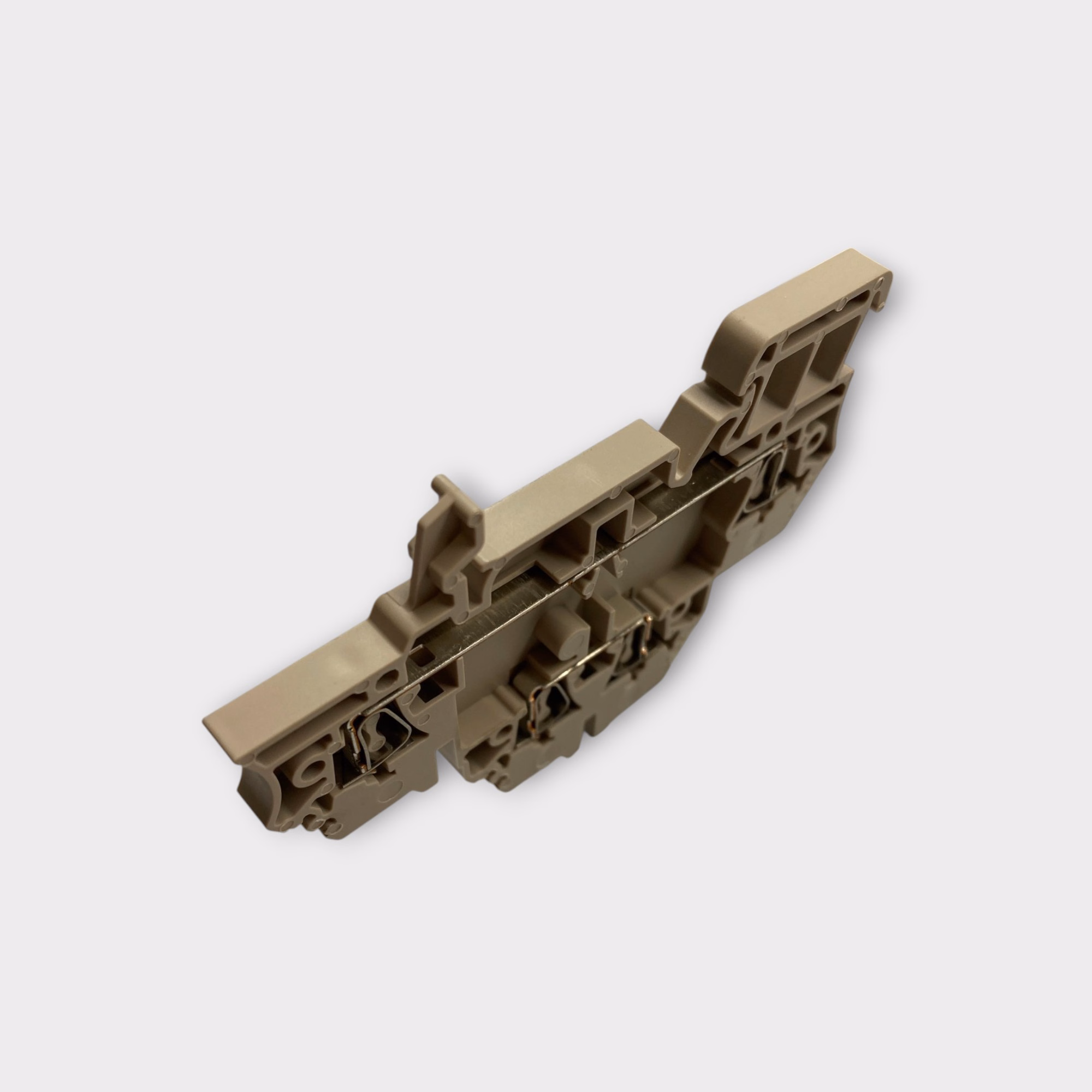

• Featuring tension-clamp connection technology, the ZDK 2.5 provides secure, vibration-resistant conductor termination without conventional screw-type wiring connections. Its double-tier construction allows two electrically separate circuits to be connected within a single compact terminal block, helping conserve DIN rail space.
• Each terminal block provides four conductor connection points across two independent levels. The design supports conductors up to 2.5mm² and is compatible with standard 35mm DIN mounting rails.

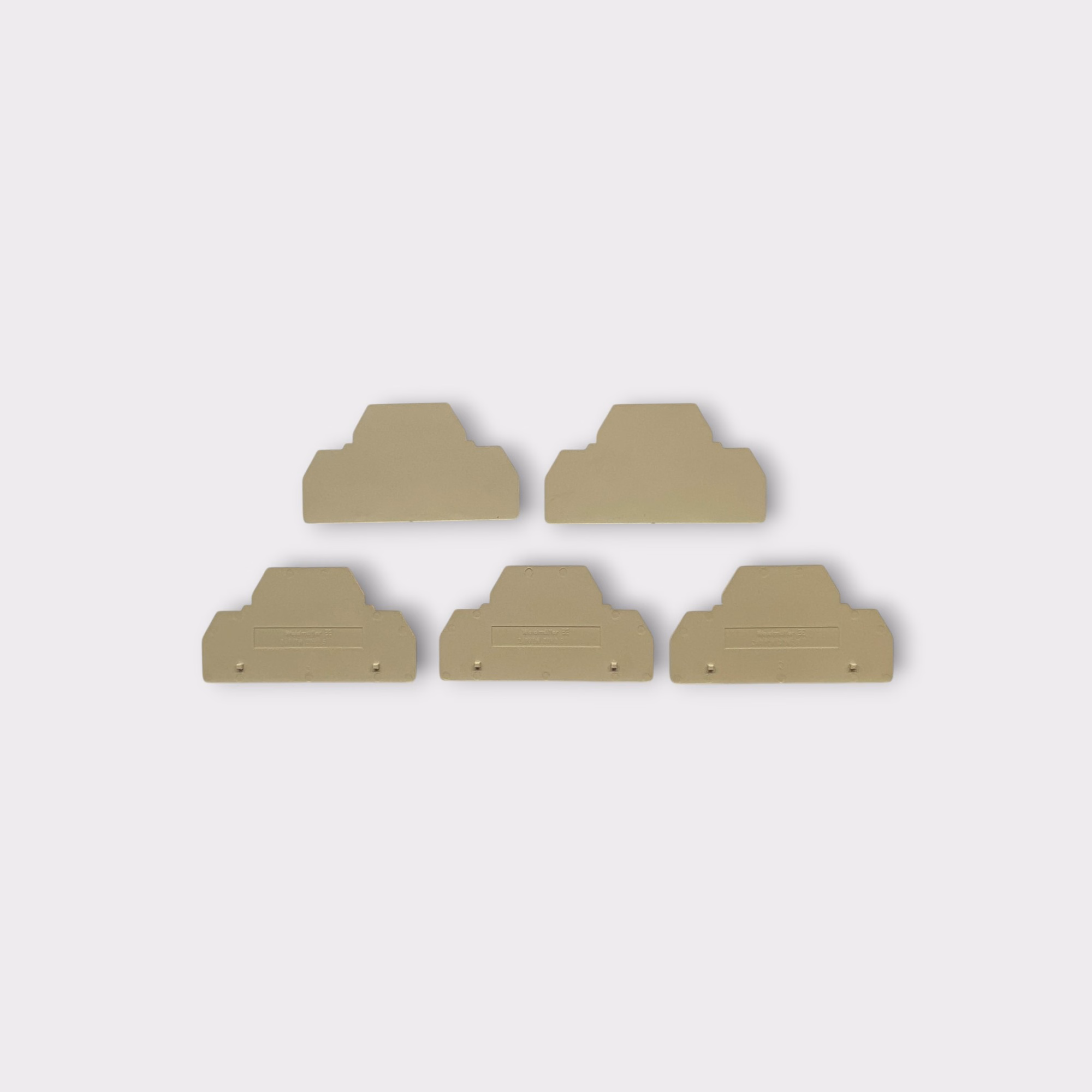

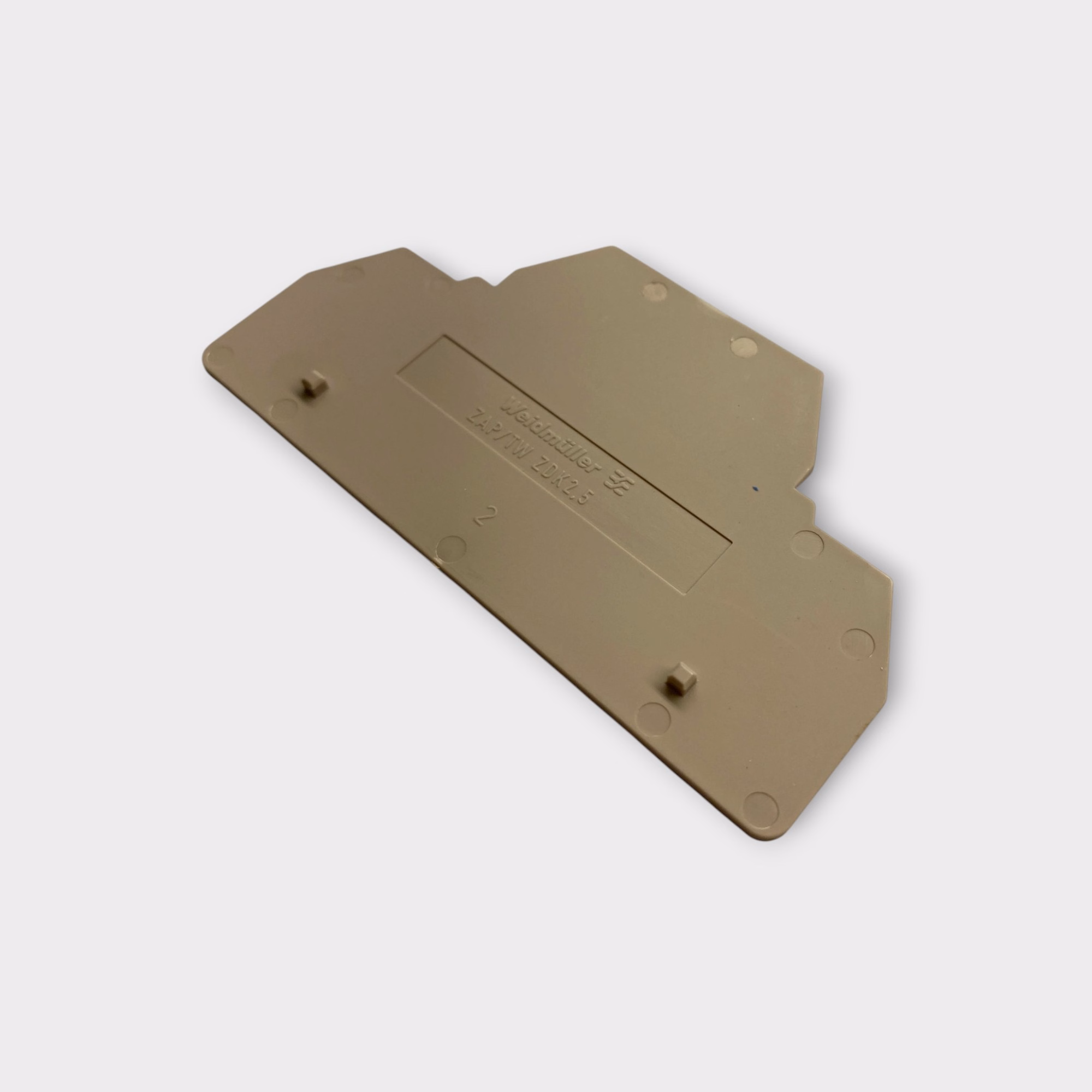

• The included Weidmüller ZAP/TW ZDK2.5 end plates are designed for use with compatible Z-Series terminal blocks, providing insulation at exposed terminal block ends or separation between terminal groups.
• This 56-piece lot is suitable for industrial electrical panel construction, automation controls, machinery wiring, terminal strip assemblies, and maintenance or replacement applications.

Product Information

Terminal Blocks

Manufacturer: Weidmüller
Model Number: ZDK 2.5
Series: Z-Series
MPN: 1674300000
Product Type: Double-Tier Feed-Through Terminal Block
Connection Technology: Tension-Clamp Connection
Number of Levels: 2
Number of Connections: 4
Number of Independent Potentials: 2
Internal Connection Between Levels: No
Rated Voltage: 500V (IEC)
Rated Current: 20A (IEC)
UL Rated Voltage: 300V
UL Rated Current: 15A
Nominal Conductor Cross-Section: 2.5mm²
IEC Conductor Range: 0.05–2.5mm²
Wire Gauge Range: 24–14 AWG (IEC)
Wire Stripping Length: 10mm
Rated Impulse Withstand Voltage: 6kV
Mounting Type: DIN Rail
Compatible DIN Rail: TS 35 (35mm)
Mounting Method: Snap-On
Housing Material: Wemid
Color: Beige
Width: 5.1mm
Height: 79.5mm
Depth: 53mm
Flammability Rating: UL 94 V-0
Standard: IEC 60947-7-1
UL File Number: E60693
GTIN / EAN: 4008190444884
Quantity Included: 51 Pieces

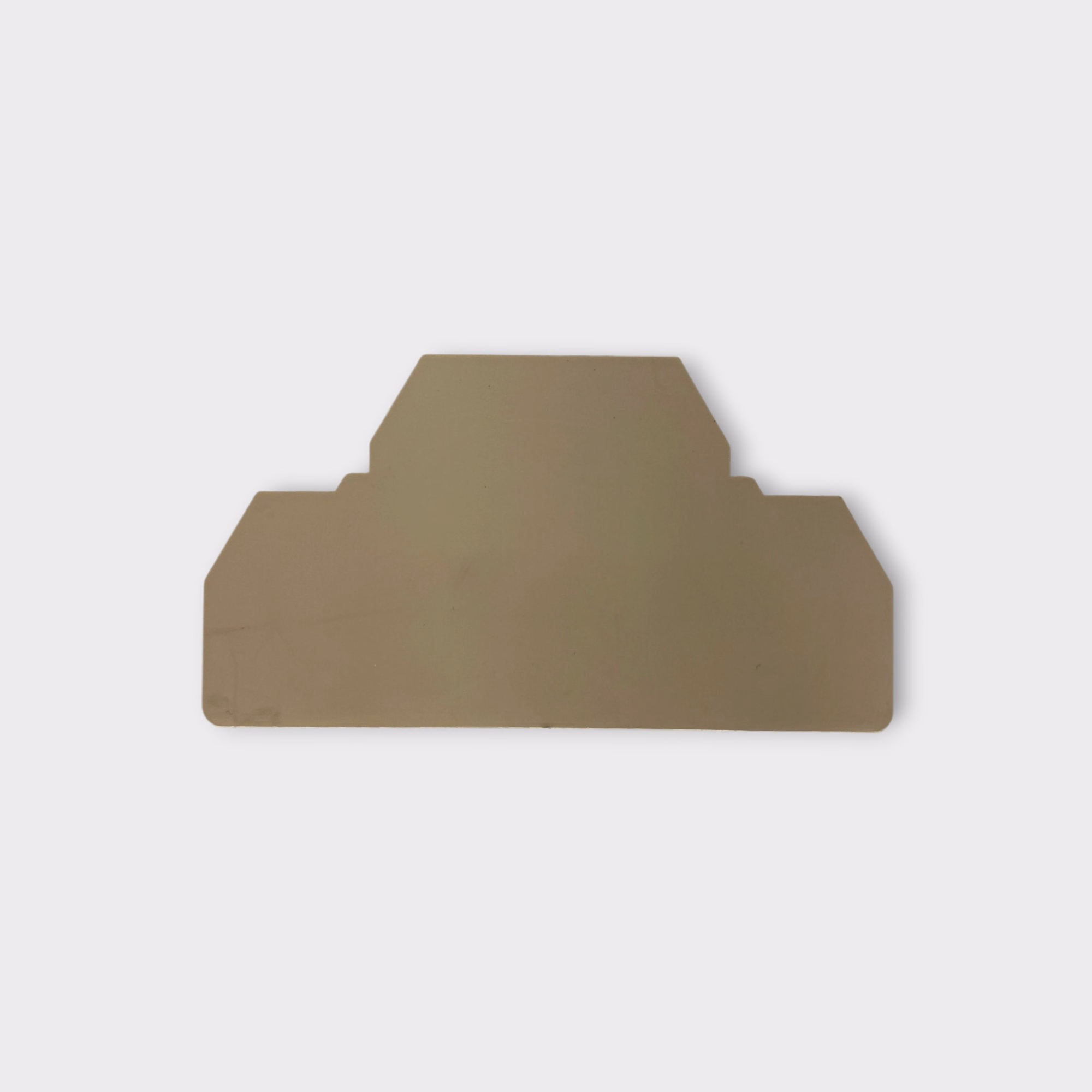

End Plates

Manufacturer: Weidmüller
Model Number: ZAP/TW ZDK2.5
Series: Z-Series
MPN: 1674730000
Product Type: End Plate / Partition Plate
Compatible Product: Weidmüller ZDK 2.5 Terminal Blocks
Mounting Method: Direct Snap-On
Housing Material: Wemid
Color: Dark Beige
Width: 1.5mm
Height: 79mm
Depth: 43mm
Flammability Rating: UL 94 V-0
GTIN / EAN: 4008190444891
Quantity Included: 5 Pieces

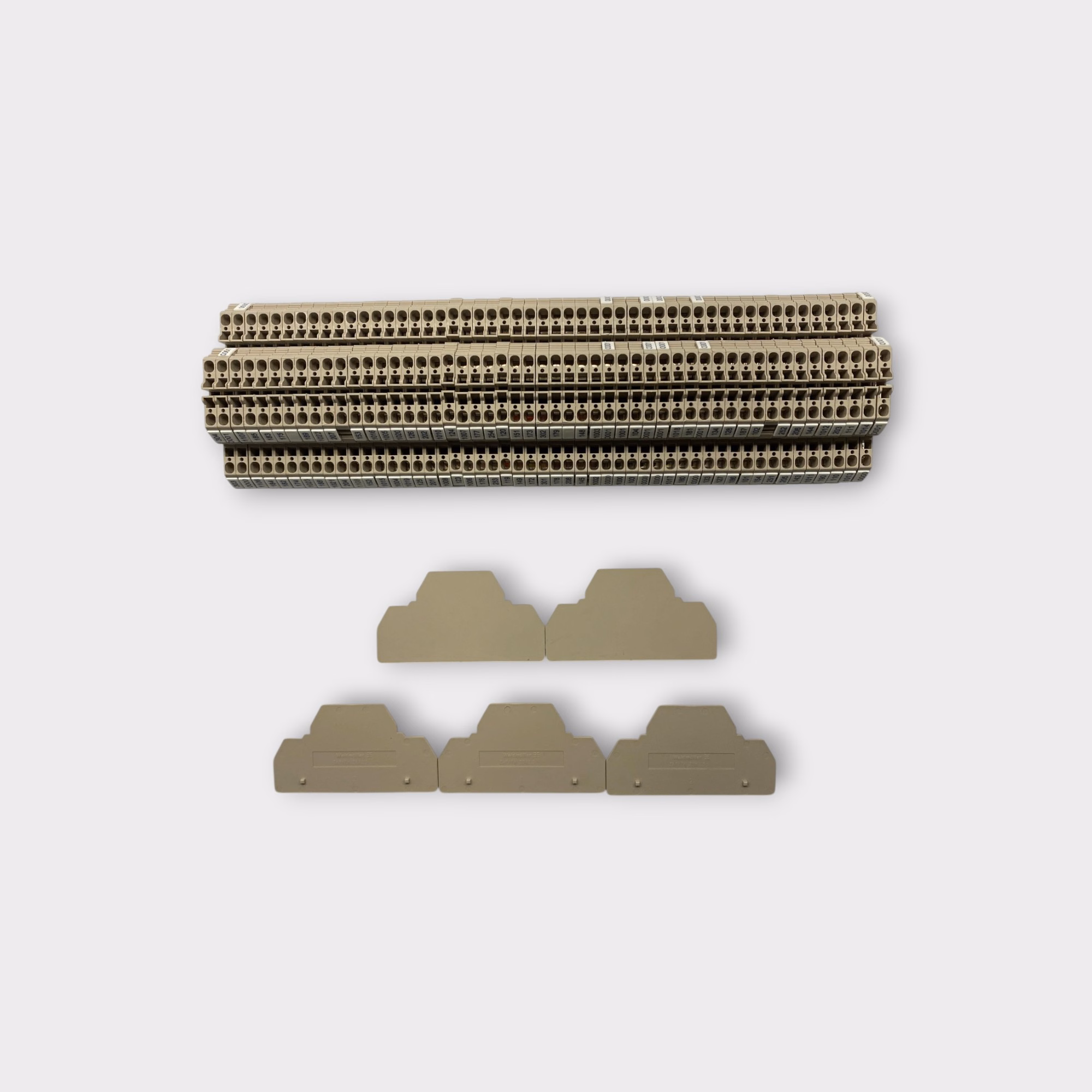

Package Contents

• 51x Weidmüller ZDK 2.5 Double-Tier Terminal Blocks (1674300000)
• 5x Weidmüller ZAP/TW ZDK2.5 End Plates (1674730000)
• Total: 56 Pieces

Applications

• Industrial Electrical Control Panels
• DIN Rail Terminal Block Assemblies
• PLC and Industrial Automation Systems
• Electrical Distribution Cabinets
• Industrial Machinery Wiring
• Marine Electrical Control Panels
• Equipment Enclosures and Control Cabinets
