Summary

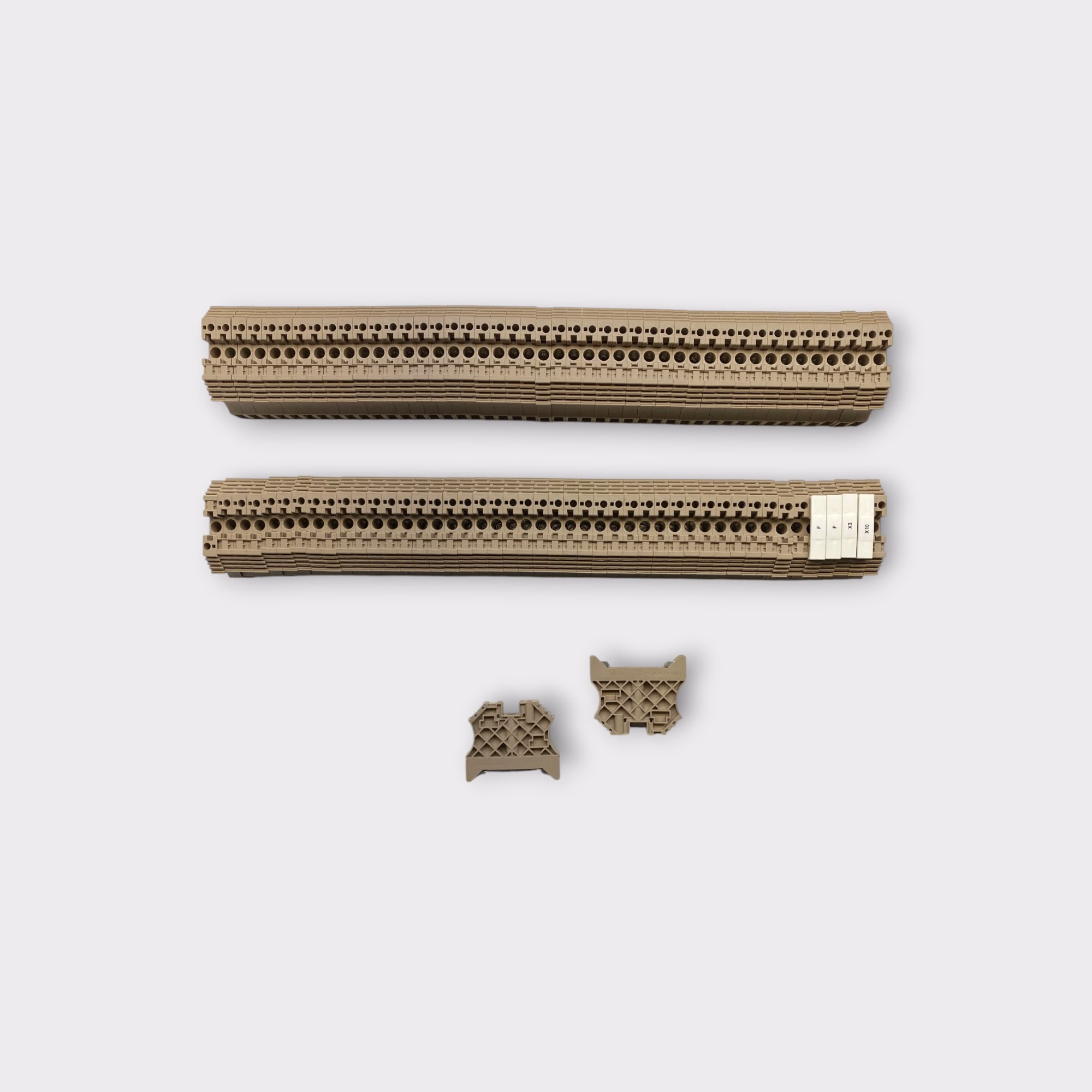

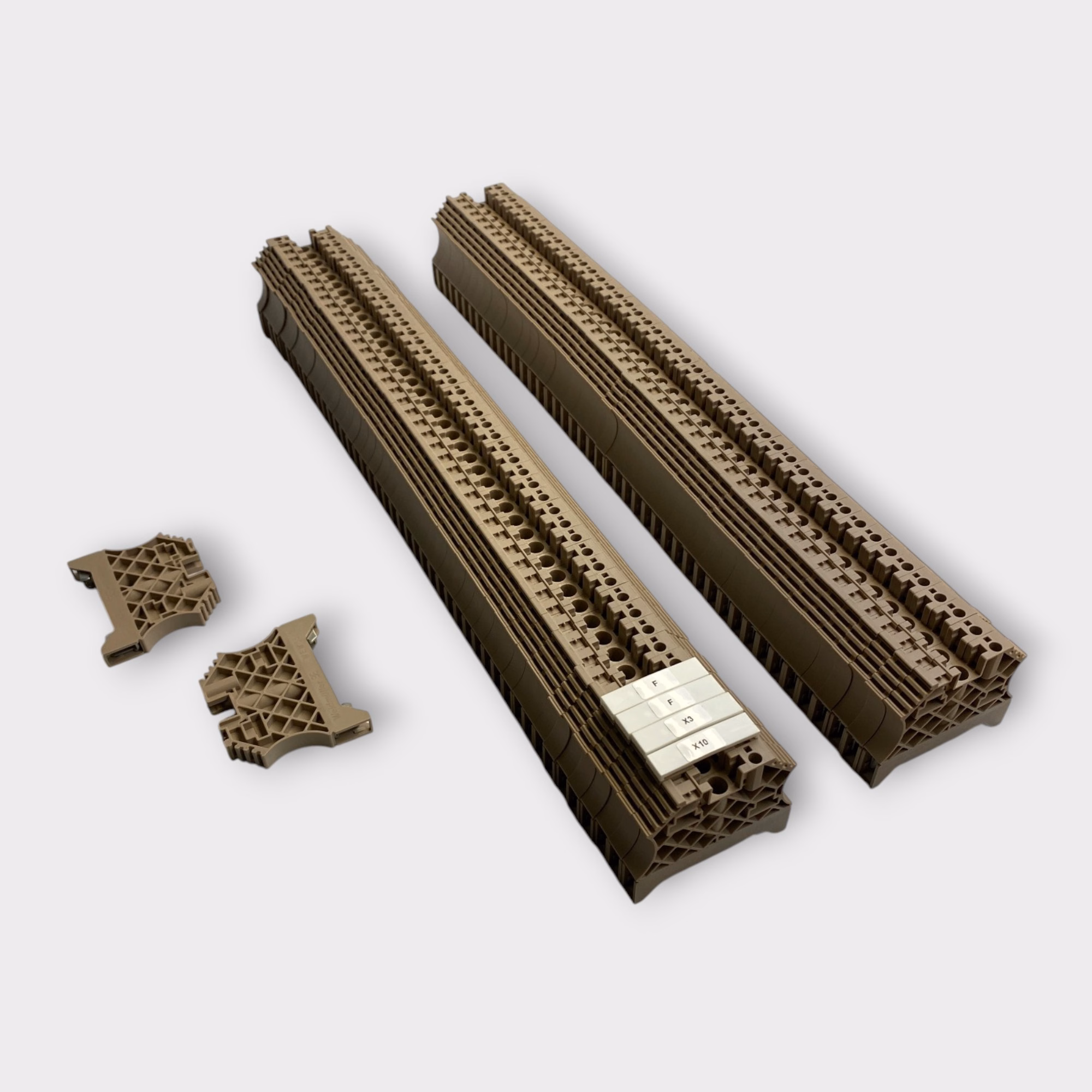

• 116-pack of Weidmüller WEW 35/2 (1061200000) dark beige DIN rail end stop brackets, designed to secure terminal blocks and other compatible components on standard TS 35 mounting rails.
• Each end bracket features an 8mm-wide Wemid insulating housing, screw-operated locking mechanism, and compact construction suitable for industrial electrical control panels, automation cabinets, and terminal block assemblies.
• The WEW 35/2 helps prevent terminal blocks from shifting along the mounting rail, maintaining the position of assembled terminal groups. The bracket features a continuous operating temperature range of -50°C to +100°C.
• Listing is for 116 Weidmüller WEW 35/2 DIN rail end brackets only, does not include any instructions, additional installation screws, or original box. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

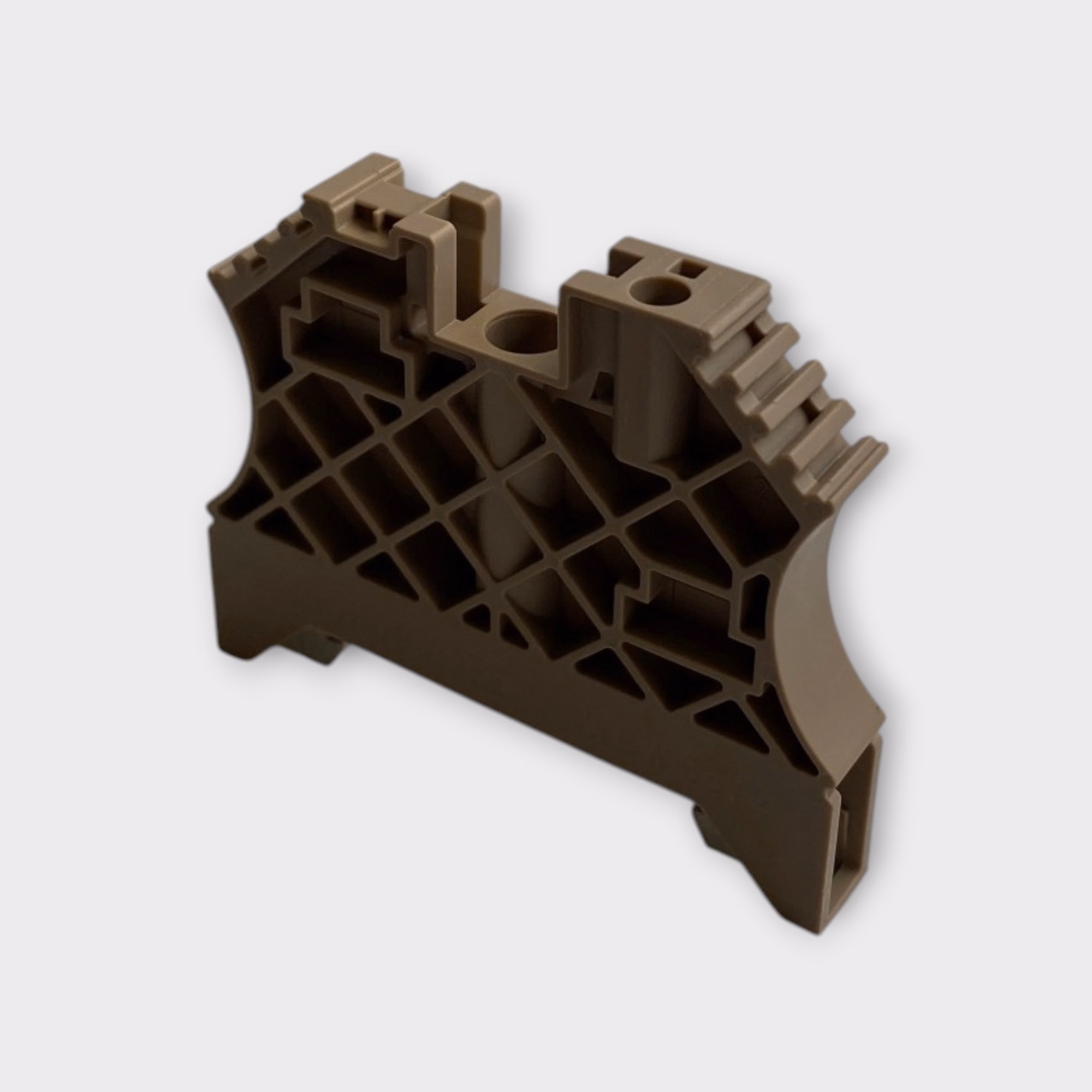

• The Weidmüller WEW 35/2 is a screw-fixed end bracket designed to secure terminal block groups and compatible DIN rail-mounted components in industrial electrical installations.
• Unlike a feed-through terminal block, the WEW 35/2 does not provide an electrical conductor connection. Instead, it serves as a mechanical retaining accessory that holds terminal assemblies in position along a compatible TS 35 DIN rail.

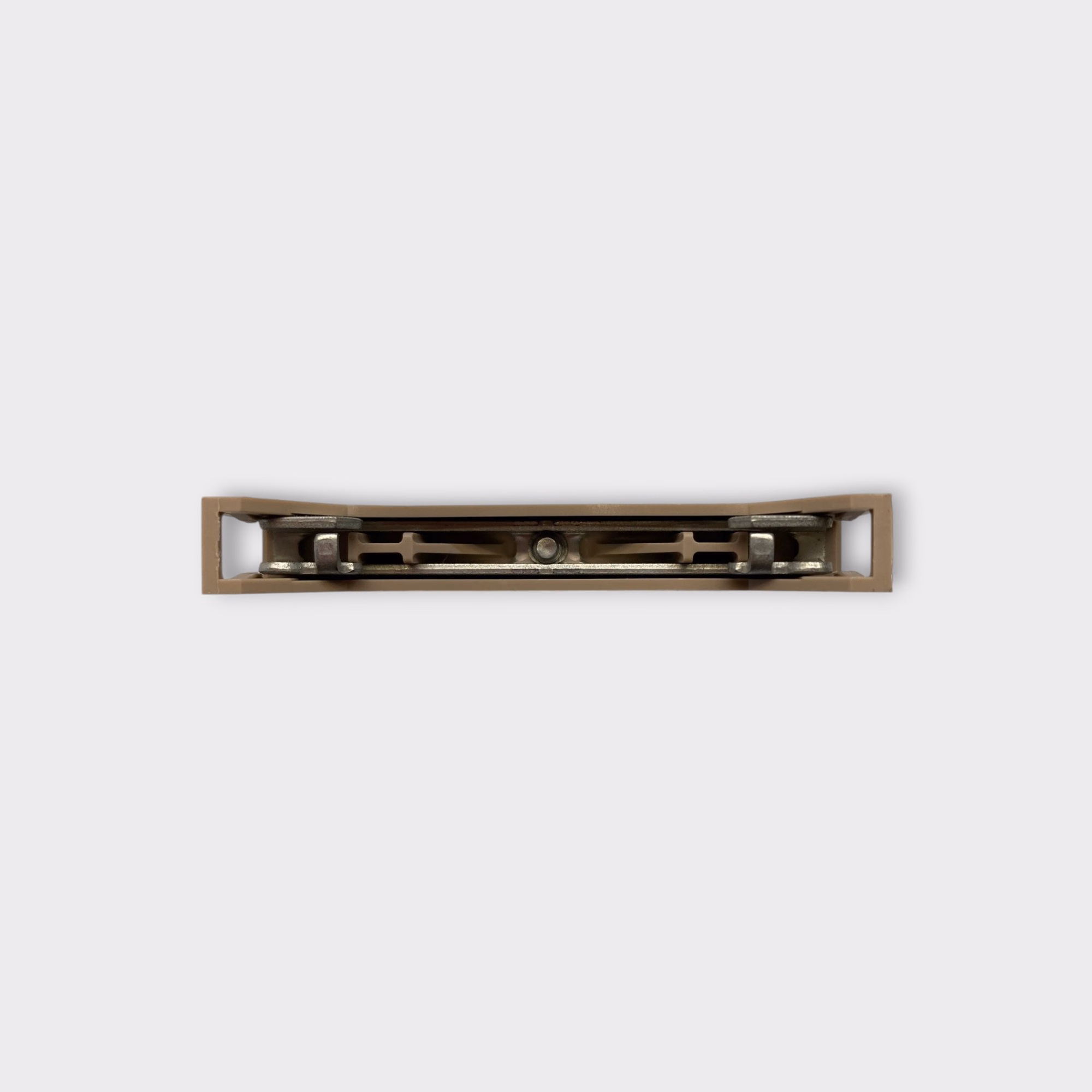

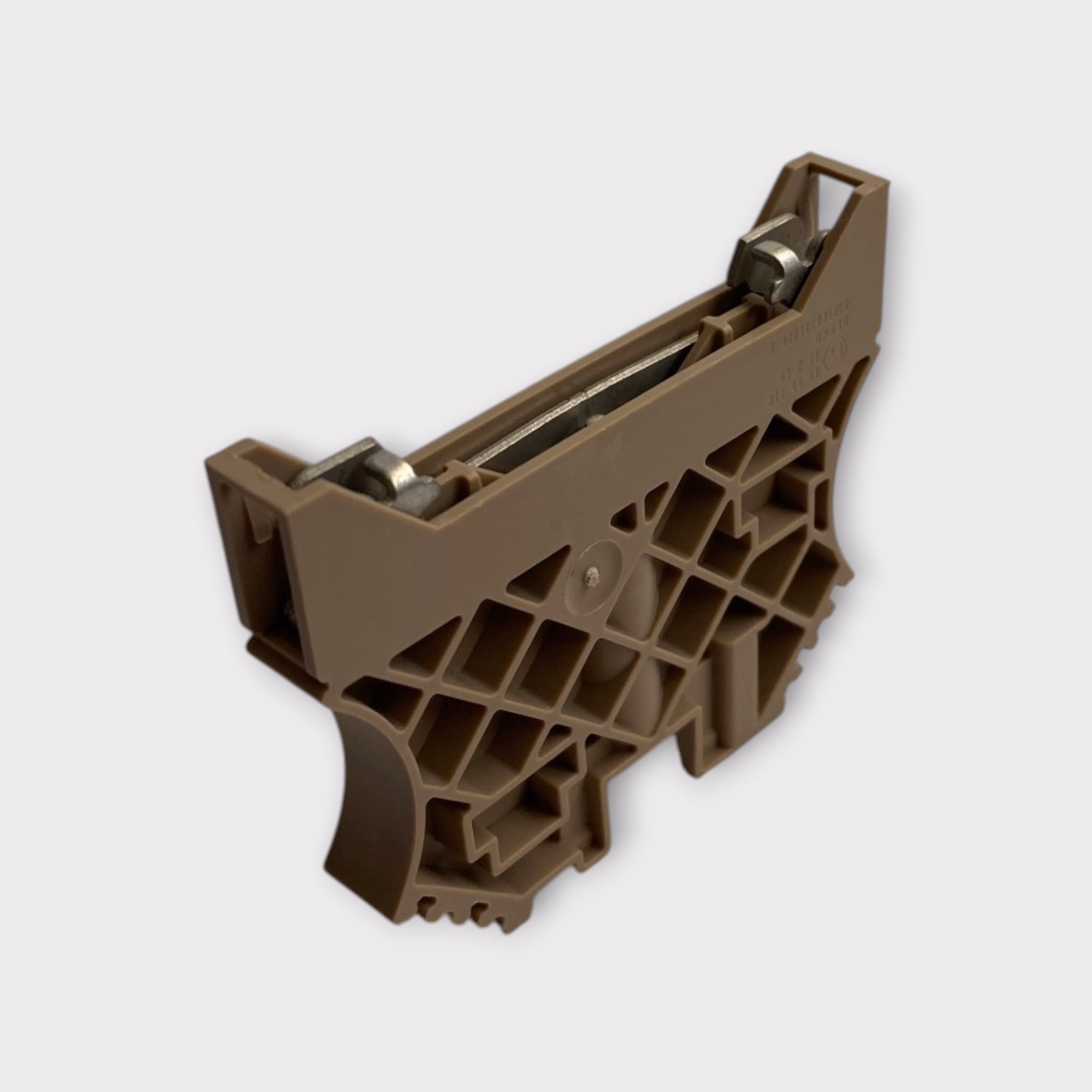

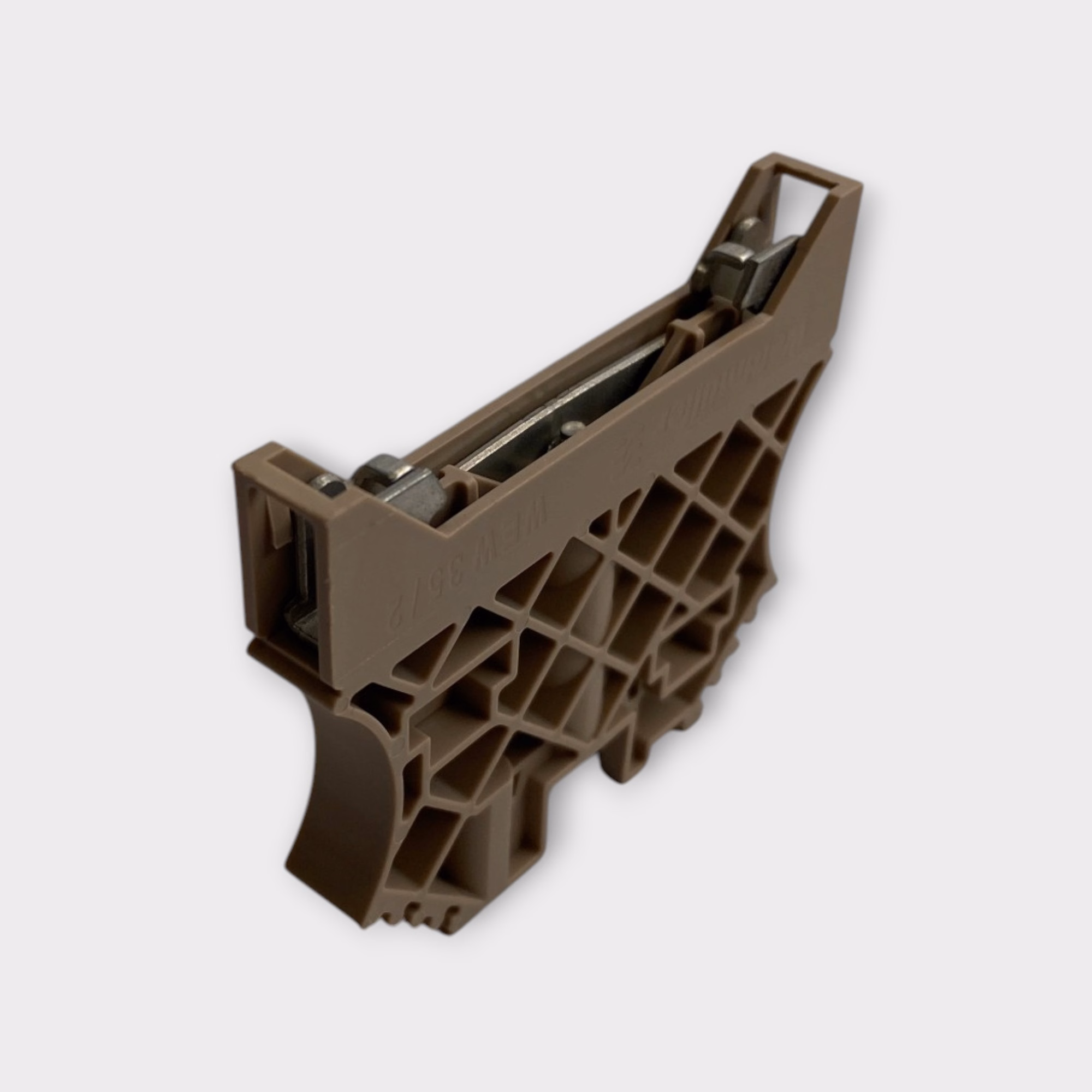

• Each bracket features a durable dark beige Wemid insulating housing and a screw-operated locking mechanism for fastening to the mounting rail. The manufacturer specifies a tightening torque of 0.5–1 Nm.

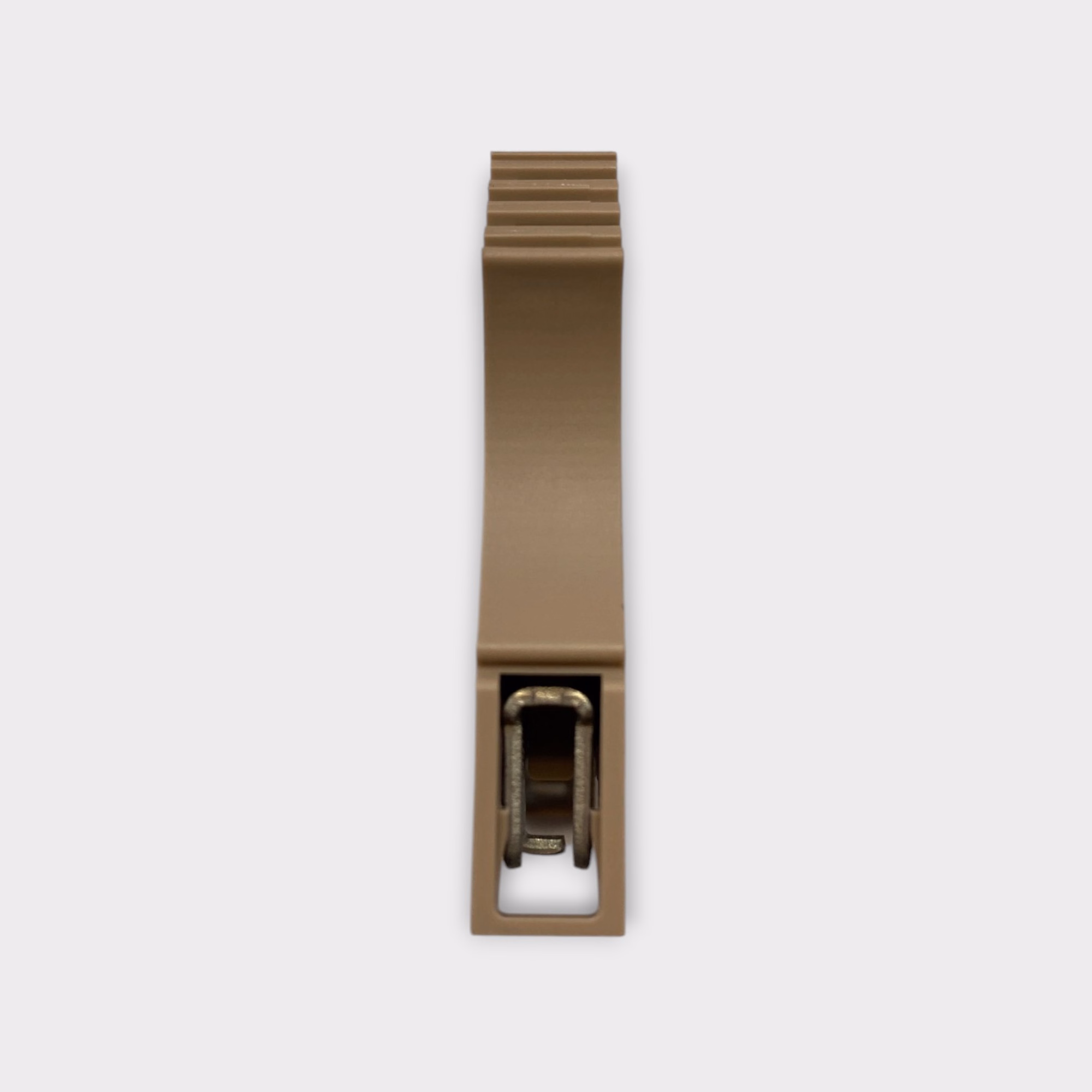

• The WEW 35/2 measures 8mm wide, 56mm high, and 46.5mm deep, providing a compact retaining solution for control cabinets, machinery, electrical distribution panels, and industrial automation systems.
• The housing features a UL 94 HB flammability classification and a maximum continuous operating temperature of +100°C.
• This 116-piece package is suitable for assembling multiple terminal block groups, industrial cabinet construction, equipment refurbishment, and maintenance inventory.

Product Information

• Brand: Weidmüller
• Model Number: WEW 35/2
• Series: W Series
• MPN: 1061200000
• SKU: 1061200000
• Type: DIN Rail End Stop Bracket
• Product Function: Mechanical Terminal Block Retainer
• Compatible Mounting Type: TS 35 DIN Rail
• Mounting Style: Screw-Fixed
• Locking Type: Screw Lock
• Connection Type: No Electrical Conductor Connections
• Material: Wemid Insulating Material
• Color: Dark Beige
• Width: 8mm
• Height: 56mm
• Depth: 46.5mm
• Net Weight Per Unit: 13.92g
• Recommended Tightening Torque: 0.5–1 Nm
• Continuous Operating Temperature: -50°C to +100°C
• Ambient Temperature: -50°C to +55°C
• Housing Flammability Rating: UL 94 HB
• RoHS Compliance: Compliant Without Exemption
• REACH Compliance: No SVHC Above 0.1% by Weight
• Manufacturer GTIN / EAN-13: 4008190030230
• Country of Origin: Not Verified for This Production Lot
• Unit Quantity: 116
• Unit Type: Unit

Included

• 116x Weidmüller WEW 35/2 Dark Beige DIN Rail End Stop Brackets (1061200000)

Not Included

• DIN Rails
• Terminal Blocks
• End Cover Plates
• Additional Mounting Hardware
• Additional Installation Screws
• Installation Instructions
• Original Manufacturer Packaging
• Wiring or Other Electrical Accessories

Please review all photos for the exact item, condition, and components included.
