This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new(other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy.

Product Description

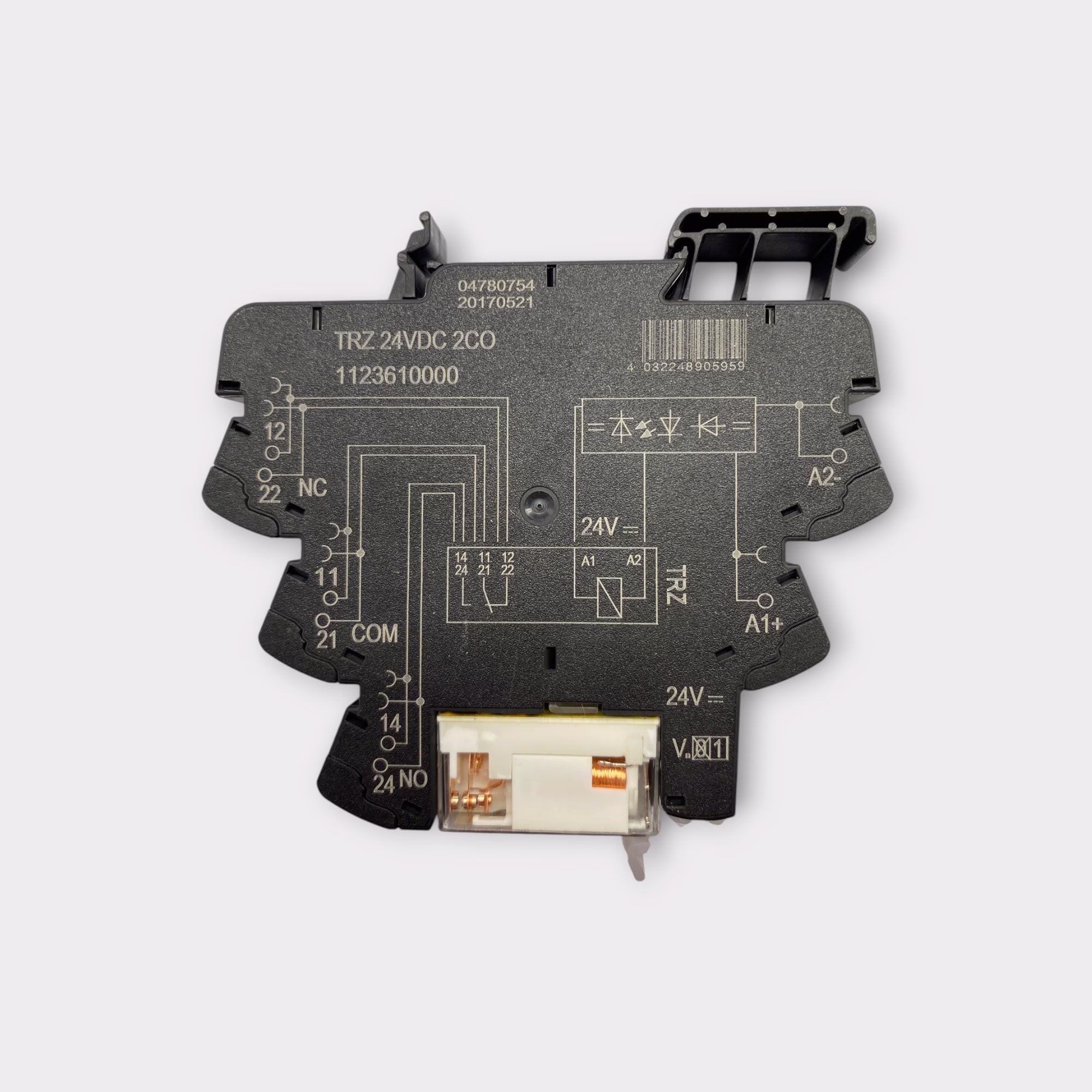

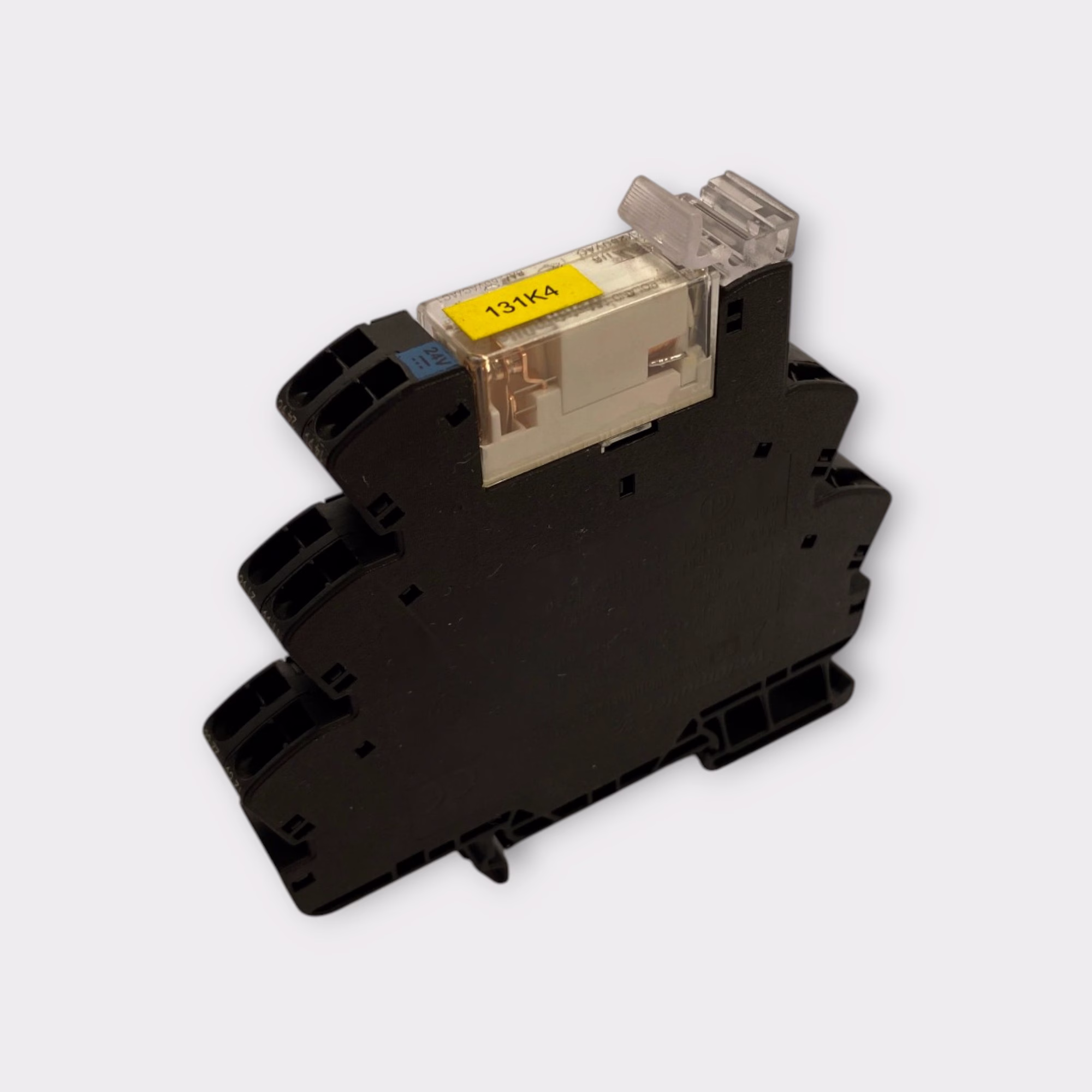

The Weidmüller TRZ 24VDC 2CO is a TERMSERIES industrial relay module featuring a 24V DC control voltage, two changeover contacts, and an 8A continuous current rating. Designed for DIN rail installation, this compact relay module uses tension-clamp connections.

Suitable for industrial control cabinets, automation systems, and electrical switching applications.

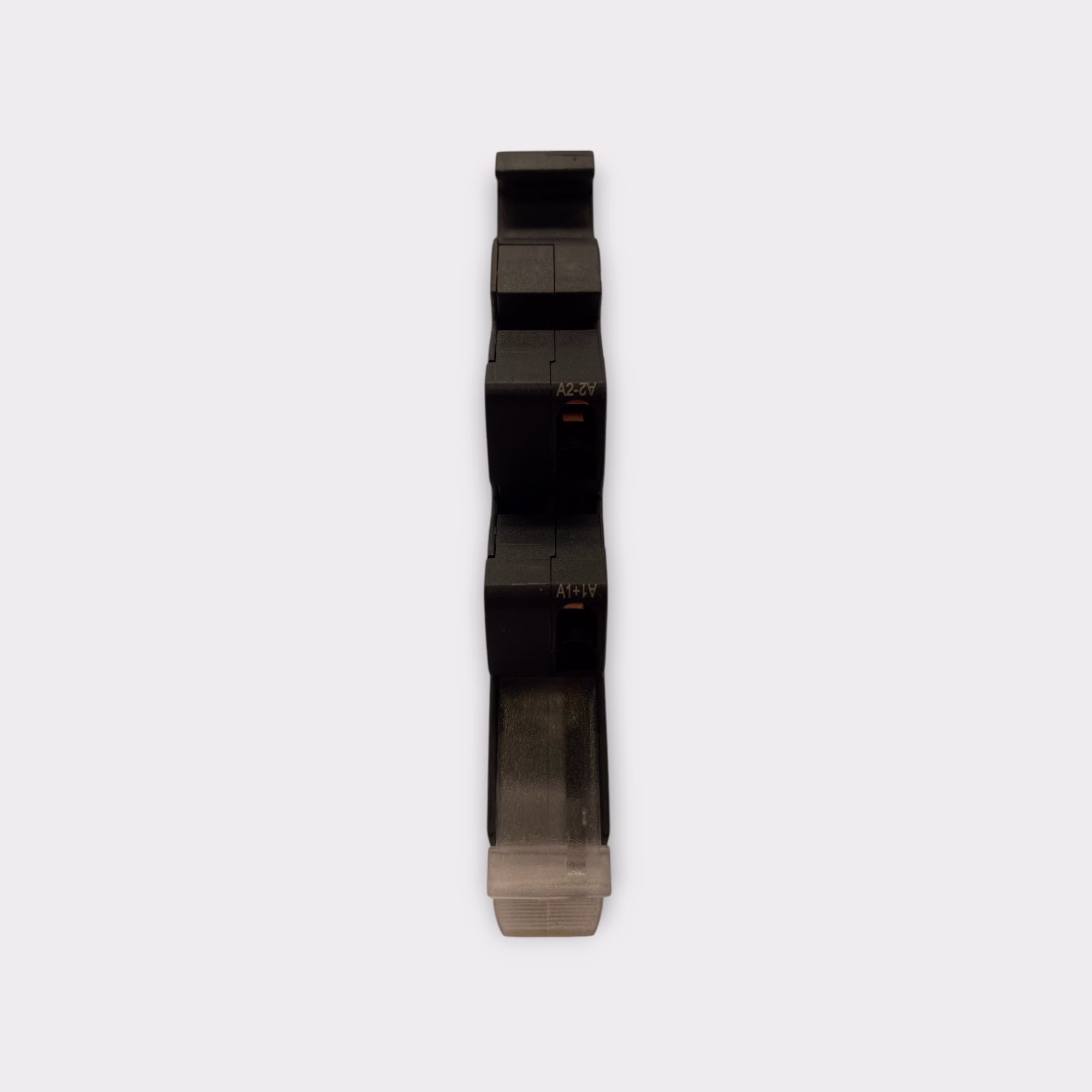

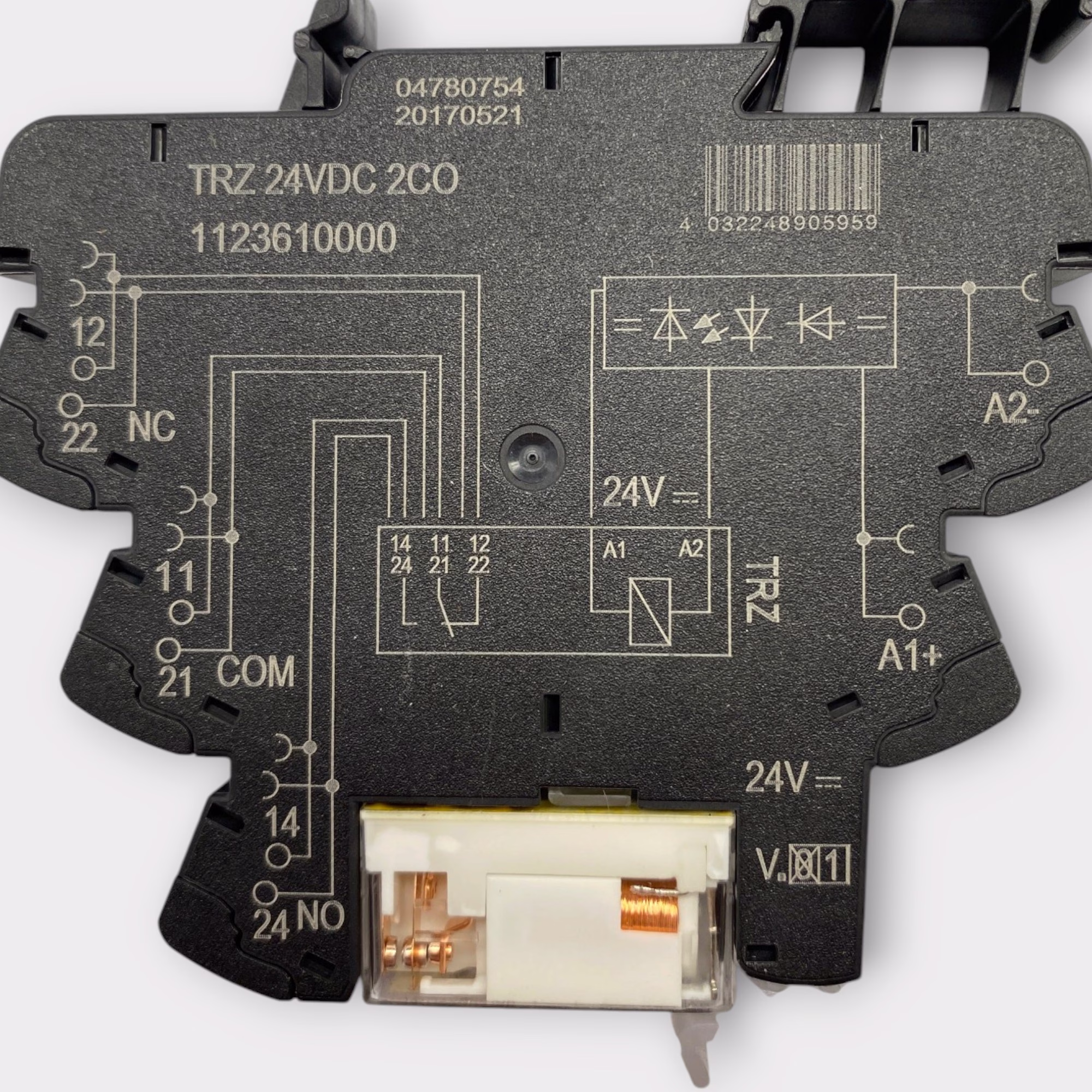

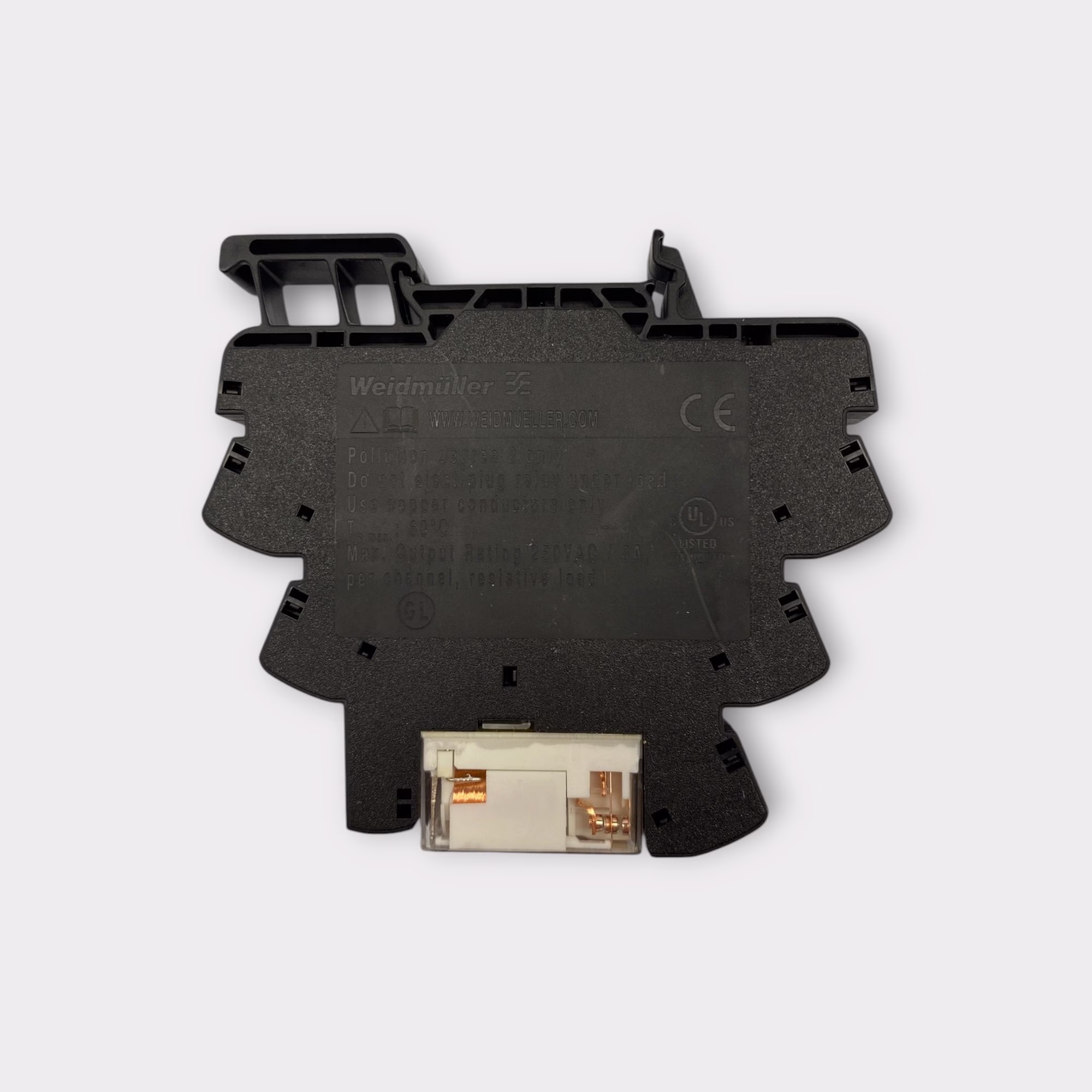

This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition. Item includes the relay and socket assembly shown. No original box, instructions, or additional accessories are included. Please review all photos for the exact item, condition, and components included.

Product Information:

- Manufacturer - Weidmüller
- Model Number - TRZ 24VDC 2CO
- Series - TERMSERIES
- MPN - 1123610000
- Product Type - Industrial Relay Module
- Rated Control Voltage - 24V DC ±20%
- Continuous Current - 8A
- Number of Contacts - 2 Changeover (2CO / DPDT)
- Contact Material - Silver Nickel (AgNi)
- Rated Switching Voltage - 250V AC
- Maximum AC Switching Voltage - 250V
- Maximum DC Switching Voltage - 250V
- Connection Type - Tension-Clamp
- Mounting Type - TS 35 DIN Rail
- Protective Circuit - Freewheeling Diode / Reverse Polarity Protection
- Wire Size - 26–14 AWG
- Protection Rating - IP20
- Operating Temperature - -40°C to +60°C
- Width - 12.8mm
- Height - 90.5mm
- Depth - 87.8mm
- Housing Color - Black
- GTIN / EAN - 4032248905959
- Condition - New Old Stock (New Other)

Included:

- Weidmüller TRZ 24VDC 2CO Relay Module with Socket - 1

Not Included:

- Original Box
- Instructions / Manuals
- Additional Accessories
