Summary

This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new(other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy.

• This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition. Item includes the relay and socket assembly shown. No original box, instructions, or additional accessories are included. Please review all photos for the exact item, condition, and components included.

Product Description

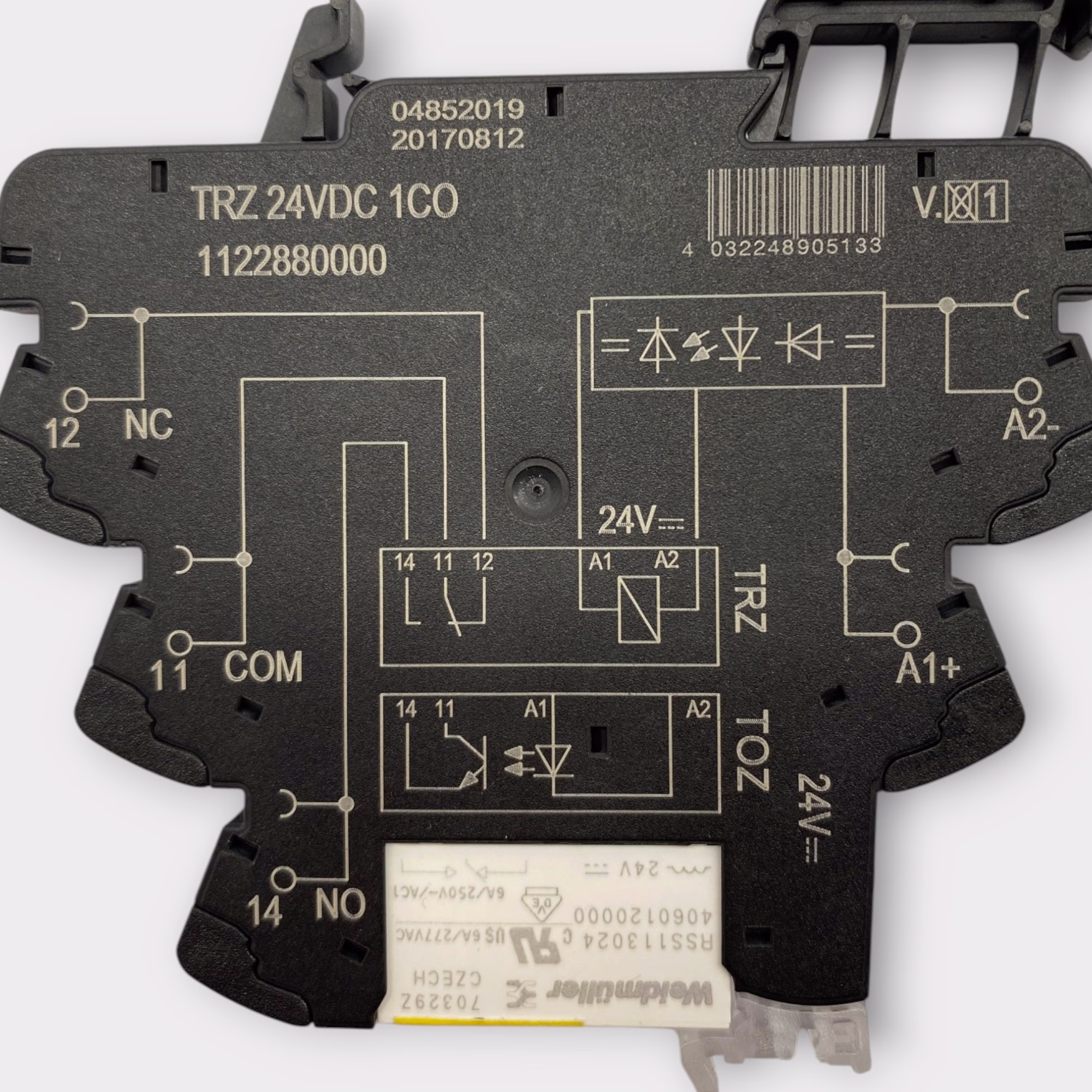

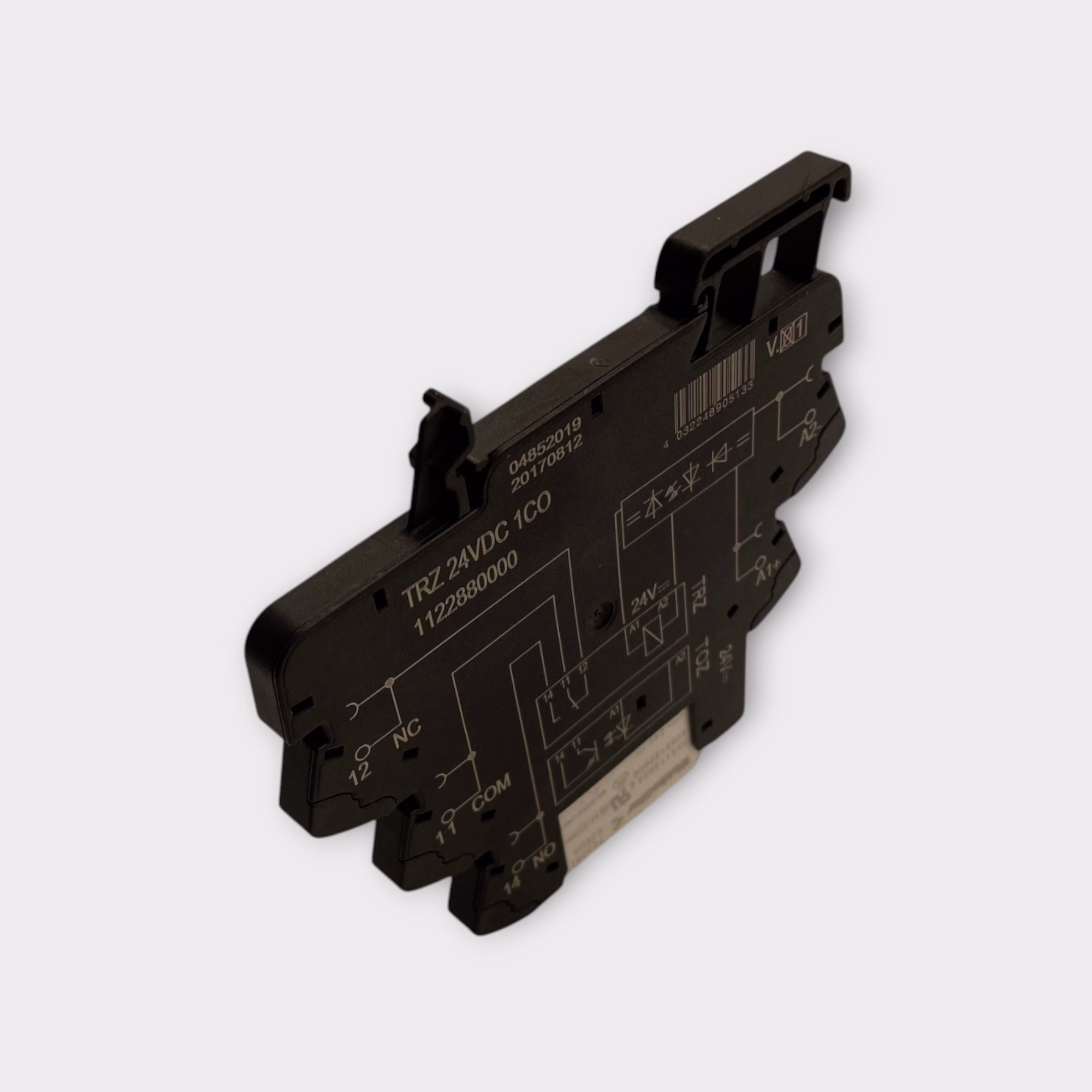

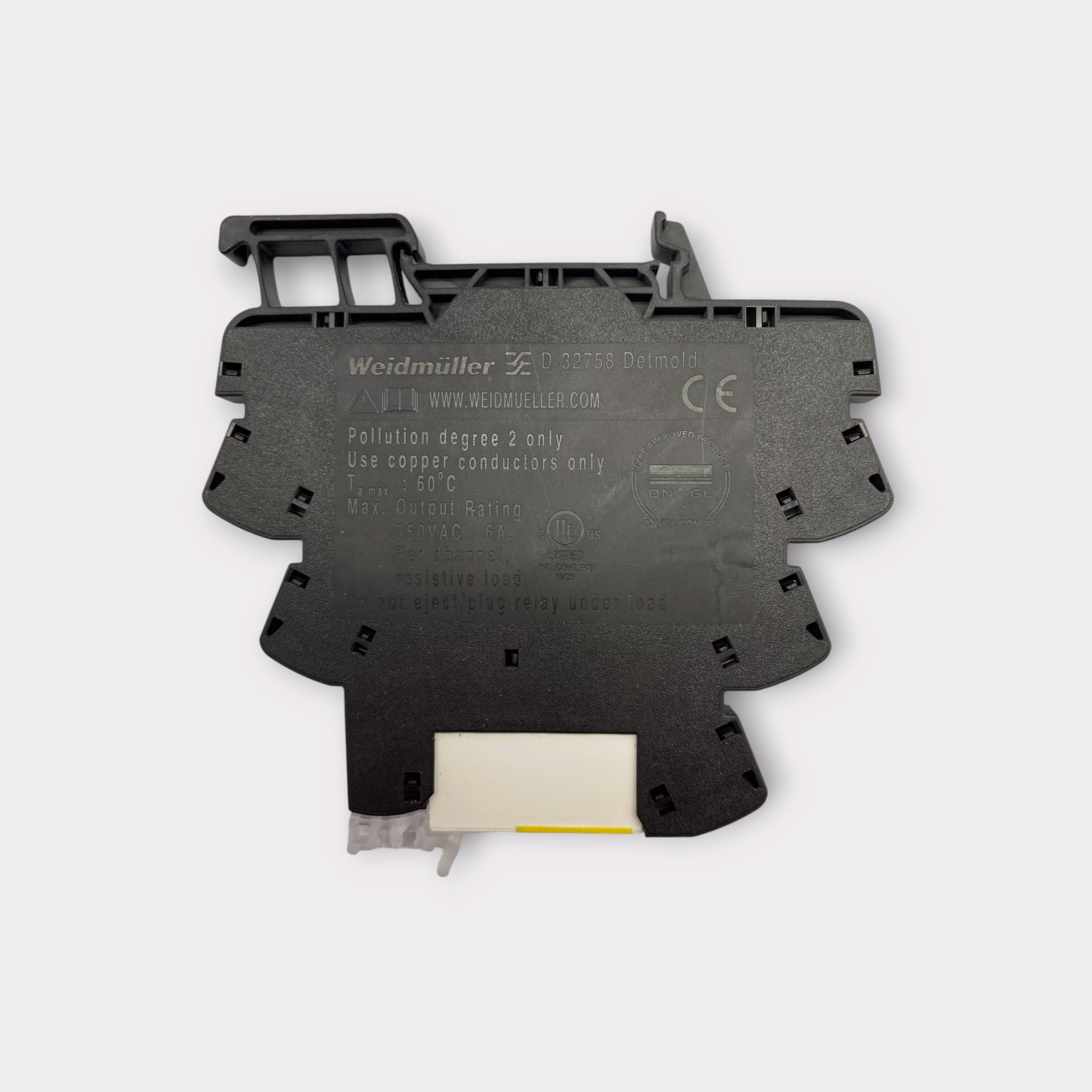

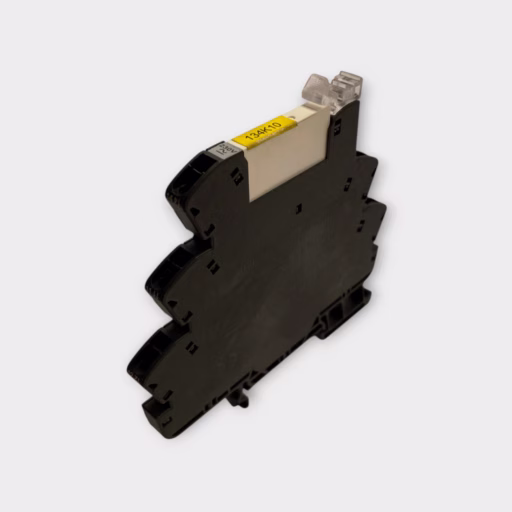

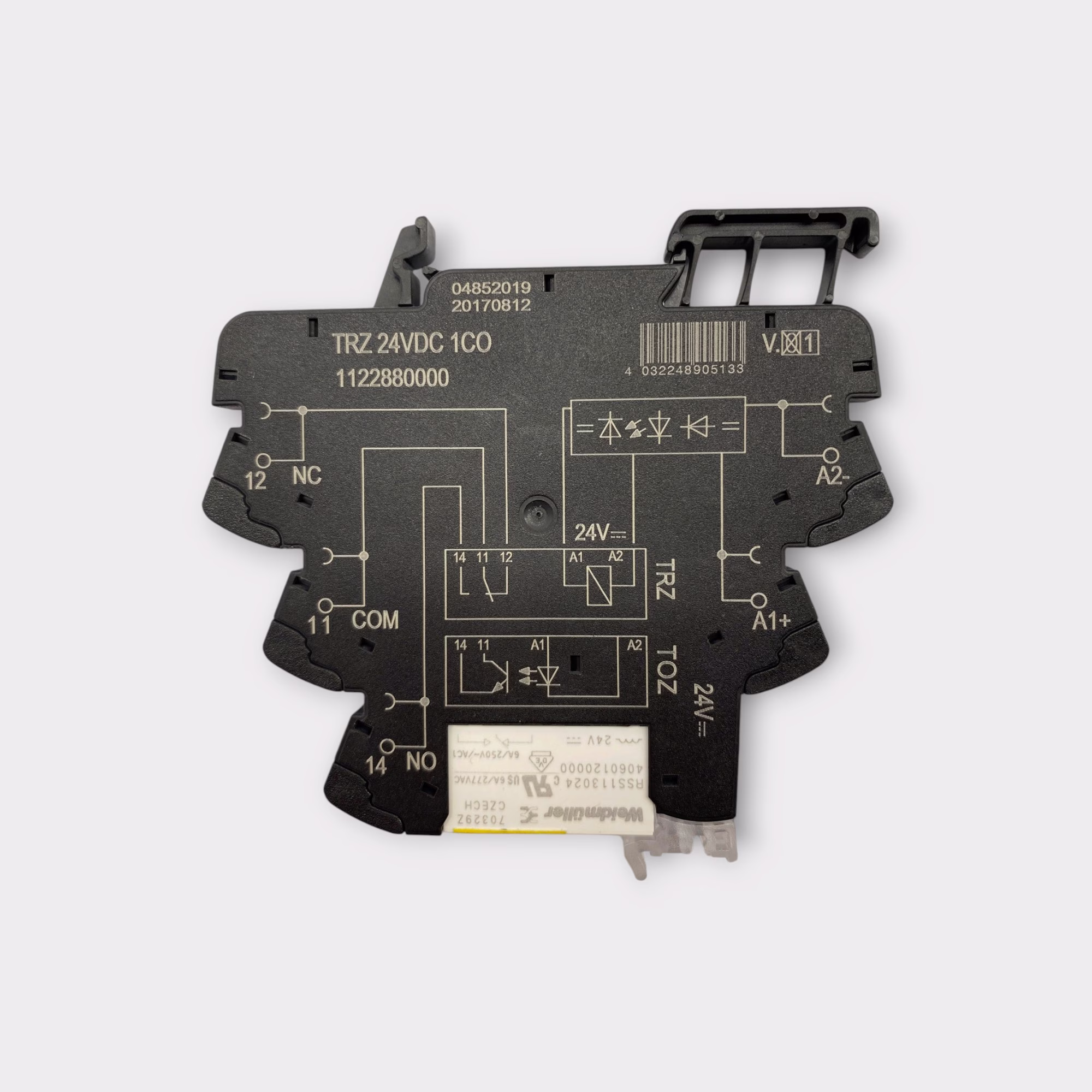

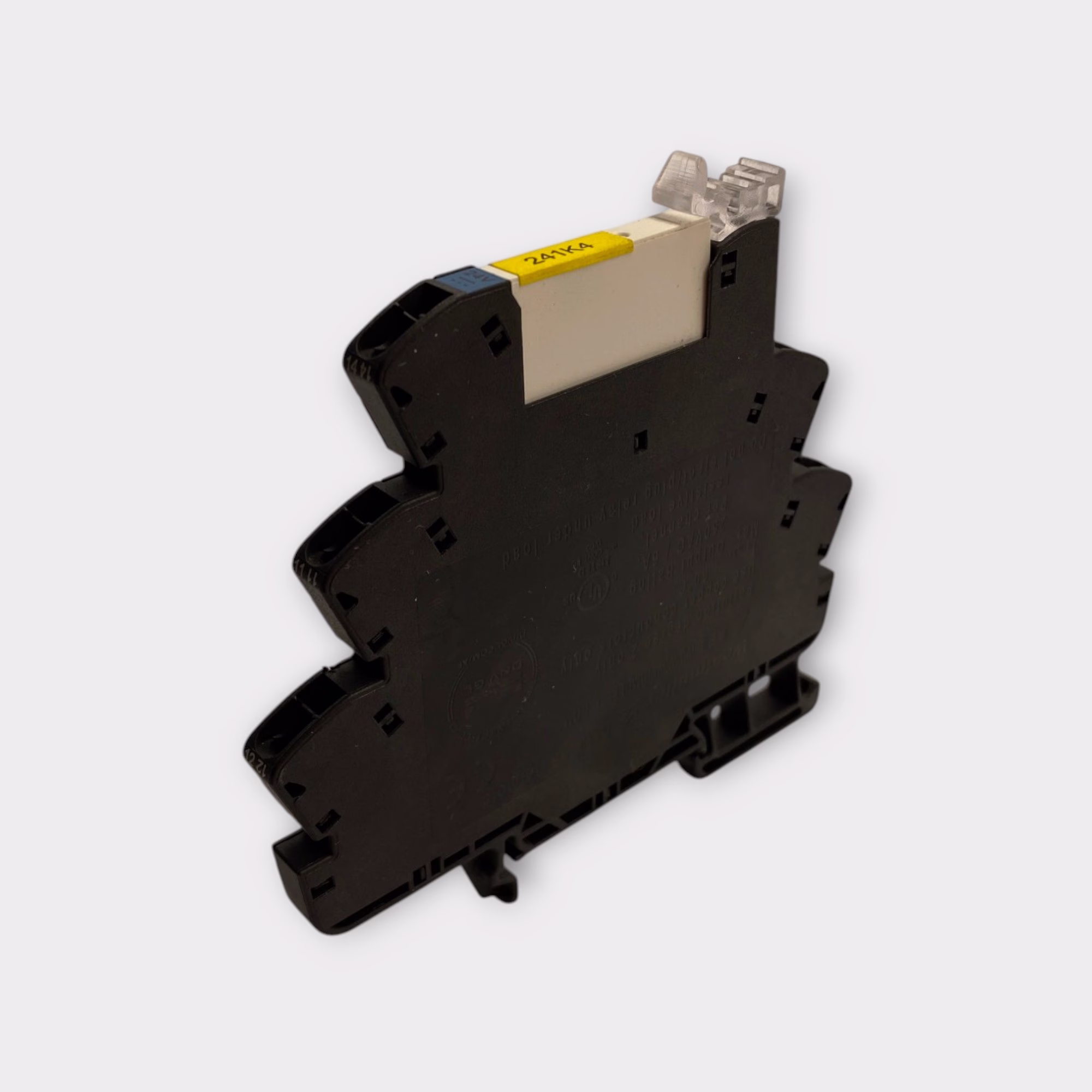

Weidmuller TRZ 24VDC 1CO 1122880000 TERMSERIES relay module featuring a 24V DC control coil and single changeover (SPDT) contact rated for 6A at 250V AC. Designed for DIN rail installation, this compact 6.4mm relay module features tension-clamp connections and integrated coil protection.

Suitable for industrial automation, electrical control cabinets, PLC interfaces, and marine control systems. Includes the relay and matching DIN rail socket assembly only.

Product Information

- Manufacturer - Weidmuller
- Model Number - TRZ 24VDC 1CO
- Series - TERMSERIES
- MPN - 1122880000
- Product Type - Electromechanical Relay Module
- Relay Type - Interface Relay

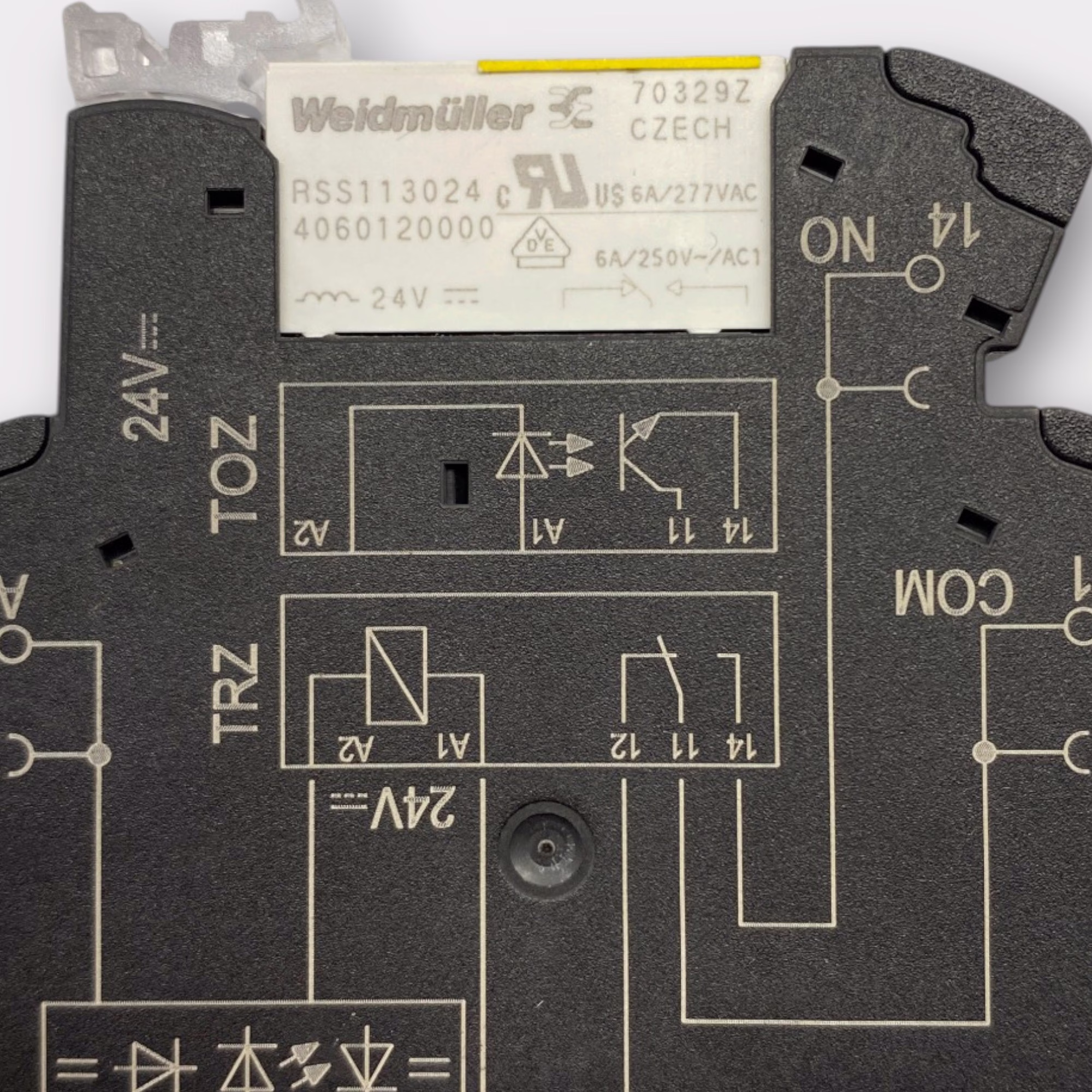

- Relay Insert Model - RSS113024
- Rated Control Voltage - 24V DC ±20%
- Coil Current - 11.5mA
- Coil Power - 280mW
- Contact Configuration - 1 Changeover (SPDT)
- Contact Material - Silver Nickel (AgNi)
- Continuous Current - 6A
- Rated Switching Voltage - 250V AC
- Maximum AC Switching Capacity - 1500VA (Resistive)
- Coil Protection - Freewheeling Diode and Reverse Polarity Protection
- Connection Type - Tension Clamp
- Mounting Type - DIN Rail
- Module Width - 6.4mm
- Dimensions - 87.8mm D x 90.5mm H x 6.4mm W
- Operating Temperature - -40°C to +60°C
- GTIN / EAN - 4032248905133
- Relay Insert Country Marking - Czech Republic
- Condition - New (Other) / NOS
- Quantity - 1 Relay and Socket Assembly
- Included - Relay Module with DIN Rail Socket
- Not Included - Original Box, Instructions, or Additional Accessories
