Summary

• Weidmuller PDL 4 S/L/L/PE (1837040000) multi-level DIN rail installation terminal blocks, sold as a pack of 141 with 11 Weidmuller PAP PDL4S (1837070000) end plates included. These P-Series terminal blocks feature PUSH IN connection technology, a 4 mm² rated conductor cross-section, and a 32 A / 400 V electrical rating for industrial electrical distribution and control applications.
• Each terminal block provides separate line (L), line (L), and protective earth (PE) connections within a compact multi-level design, allowing organized electrical wiring and space-efficient terminal arrangements.
• This listing includes 141 Weidmuller PDL 4 S/L/L/PE terminal blocks and 11 PAP PDL4S end plates only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

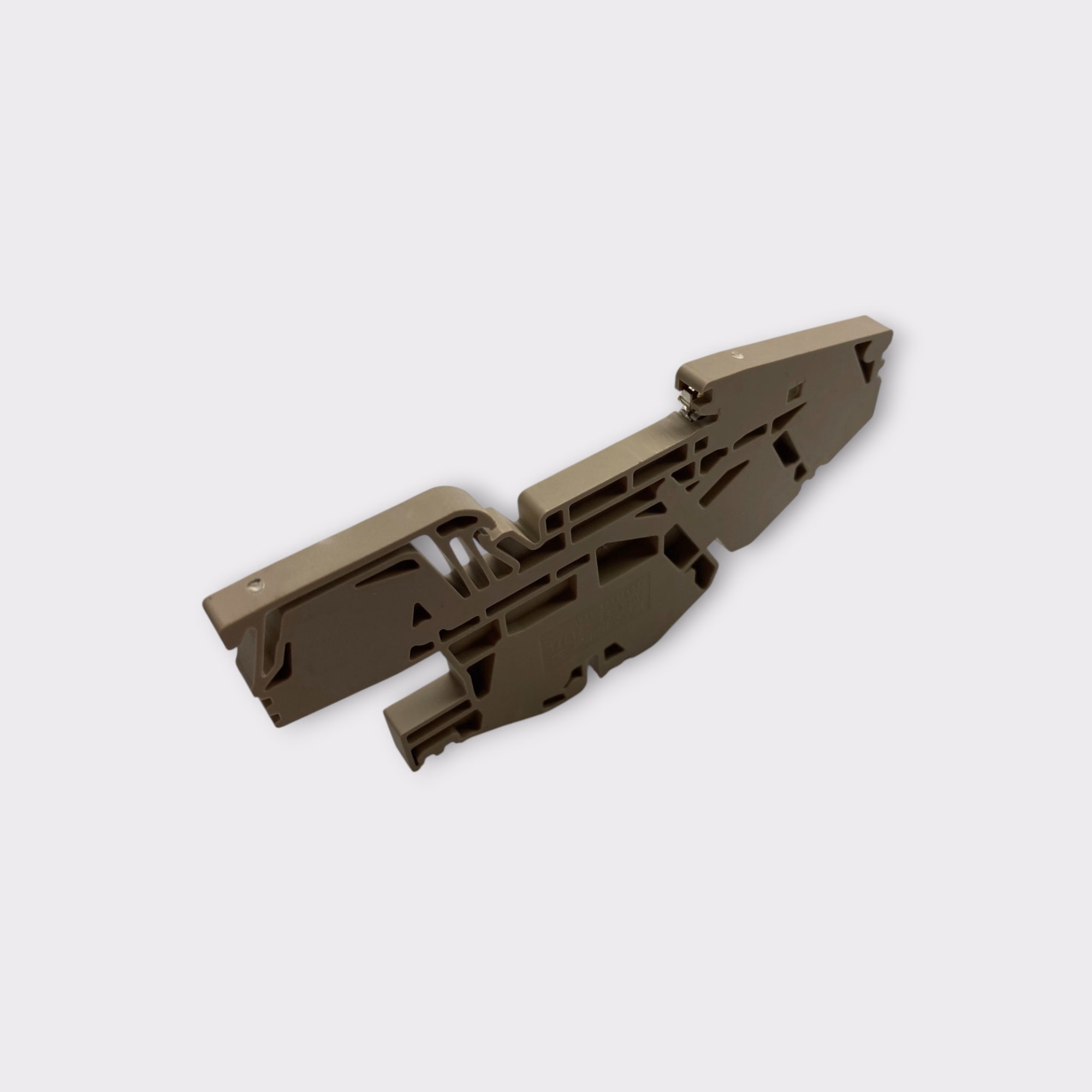

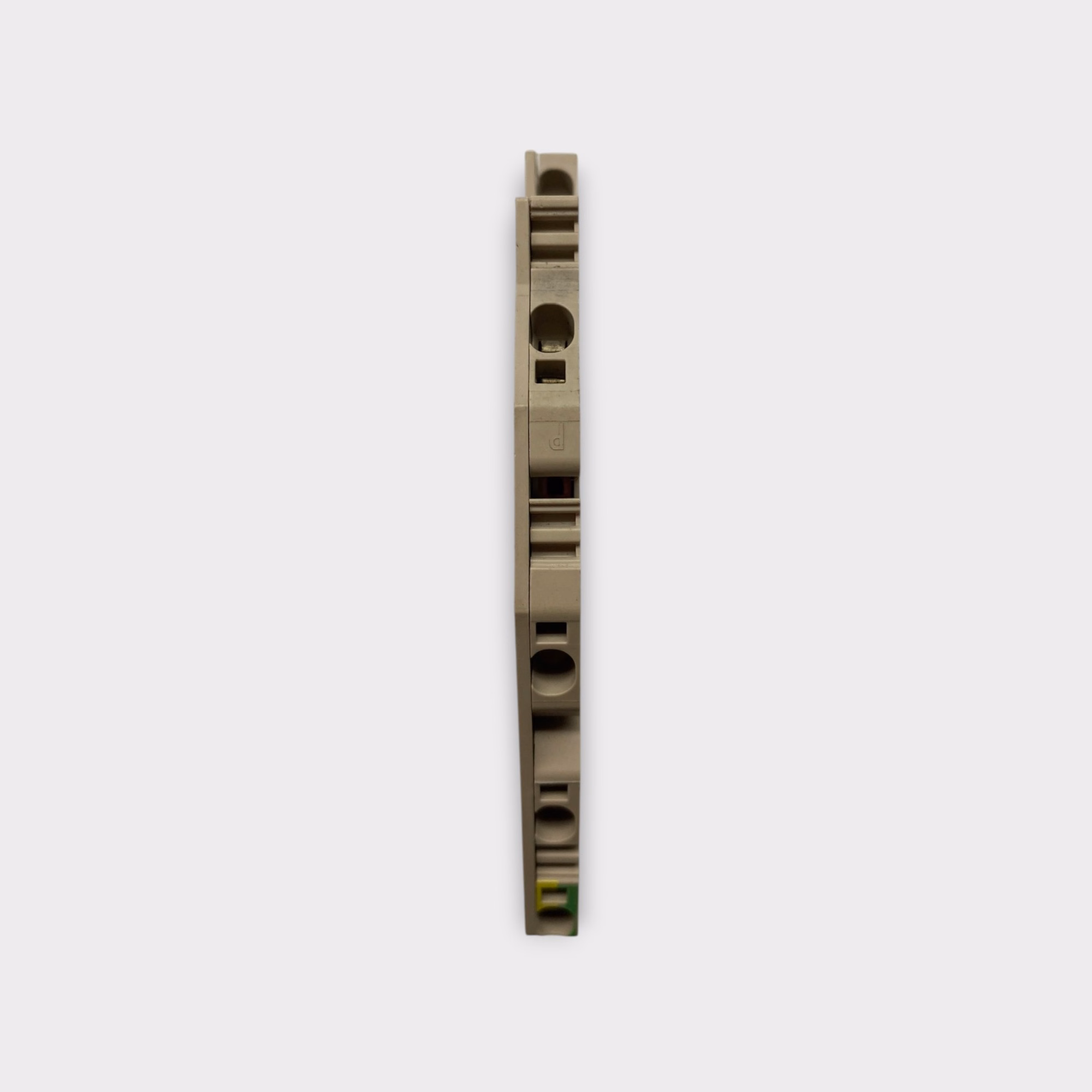

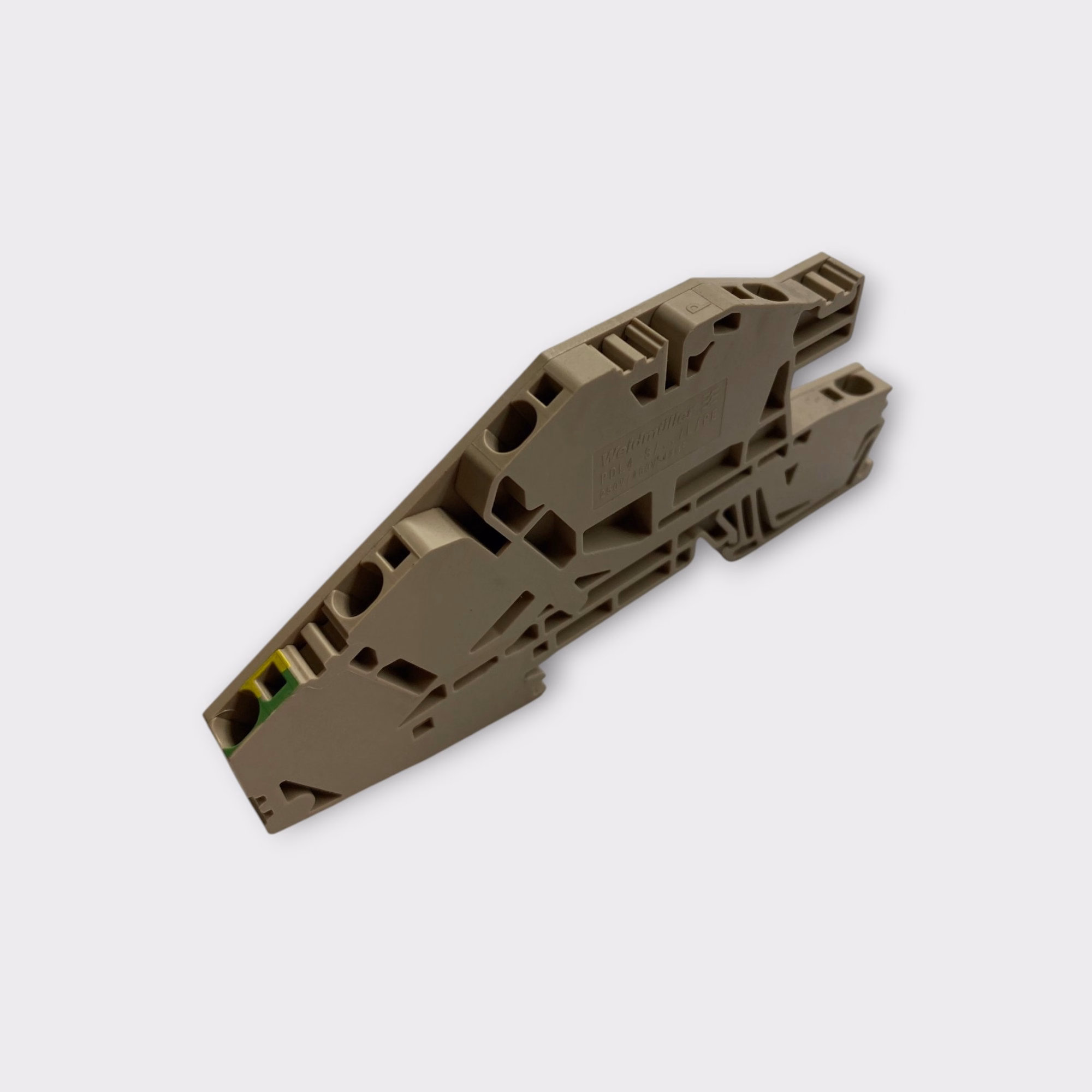

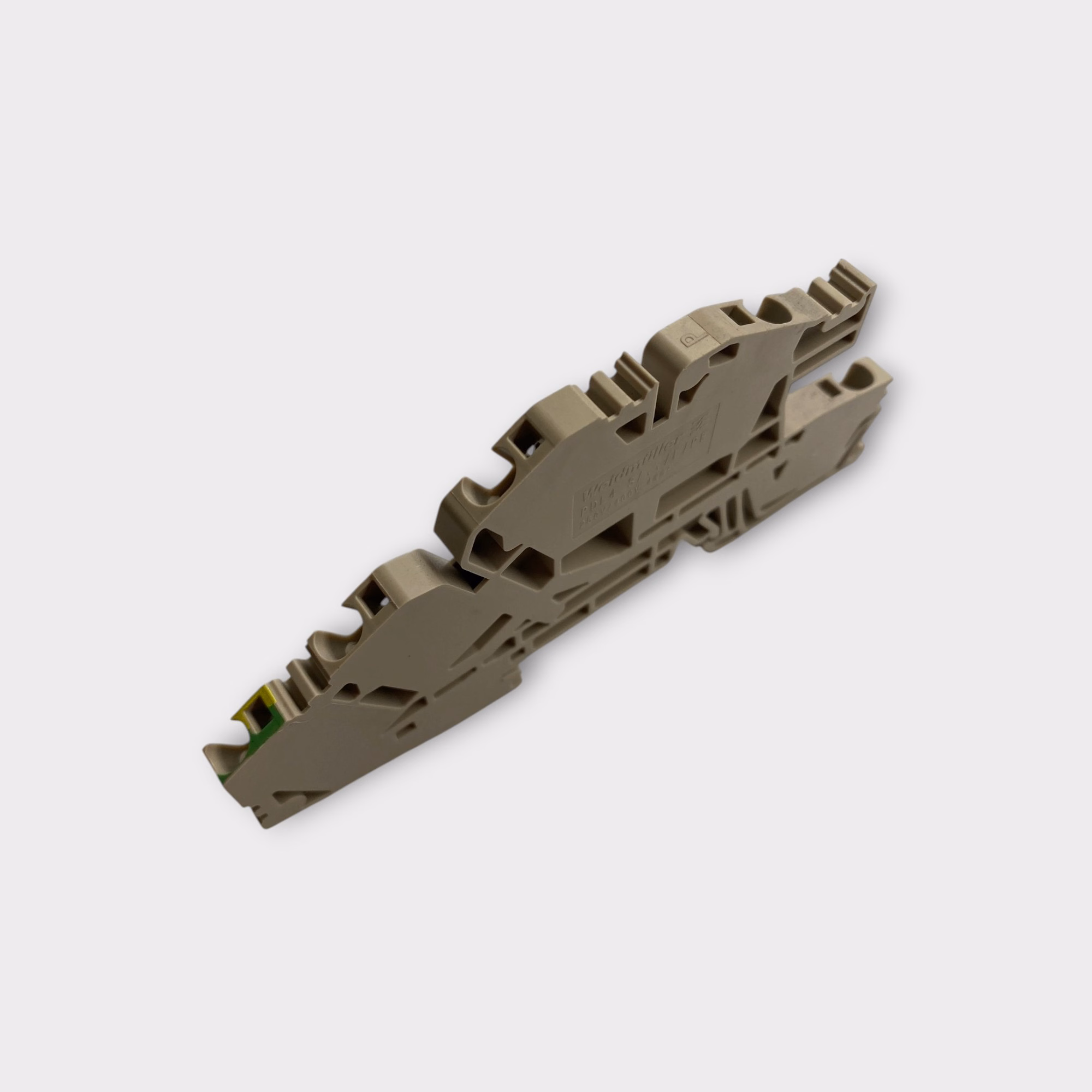

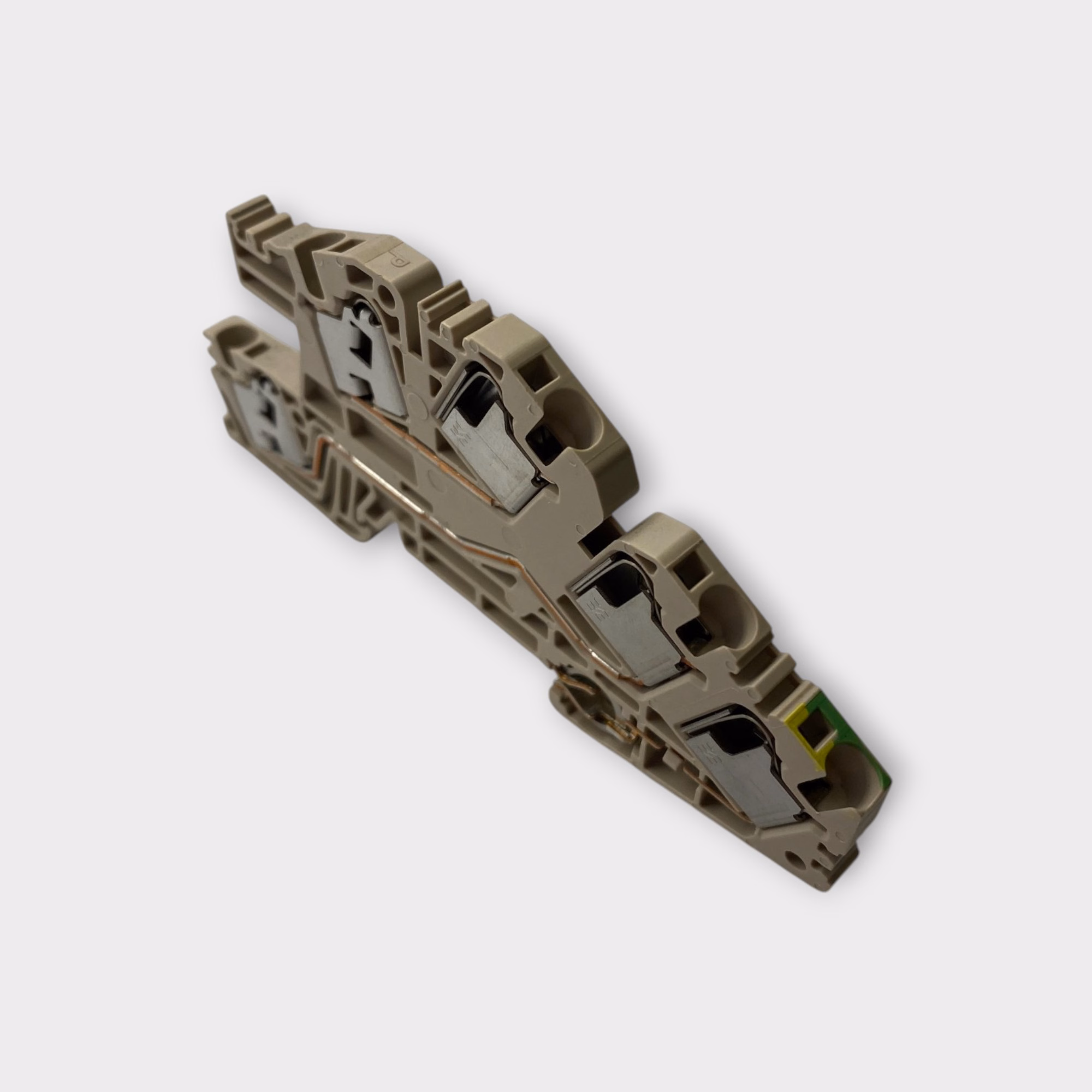

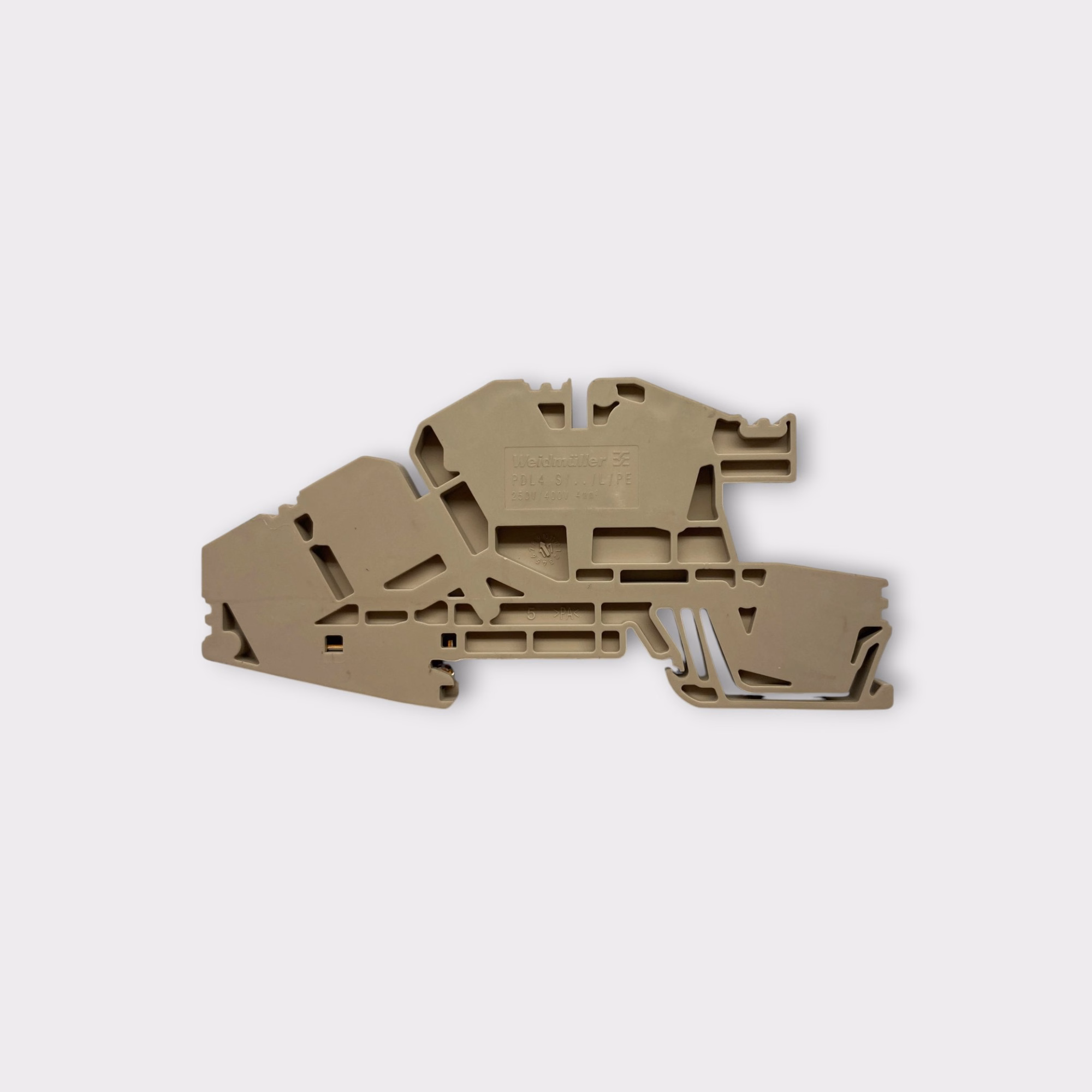

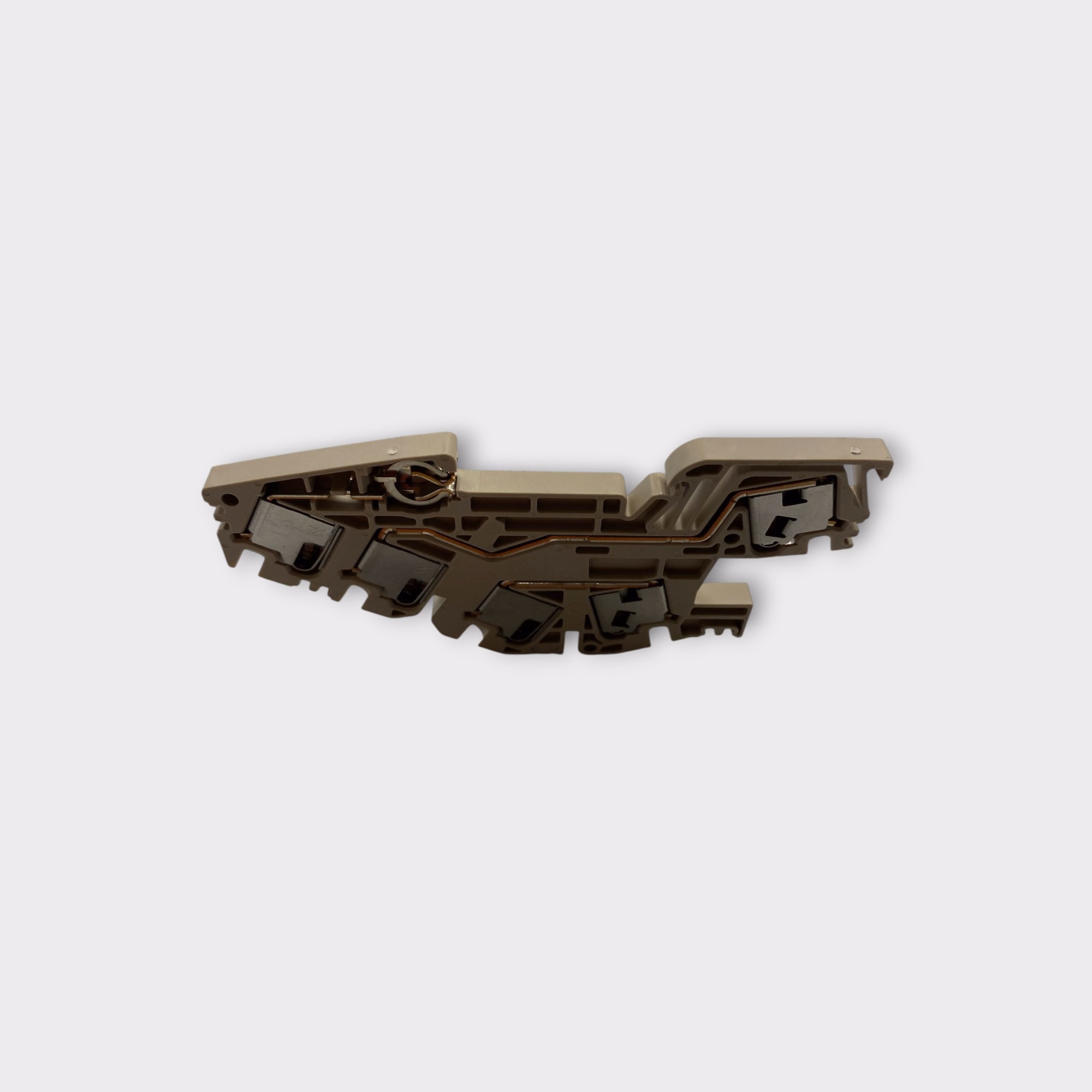

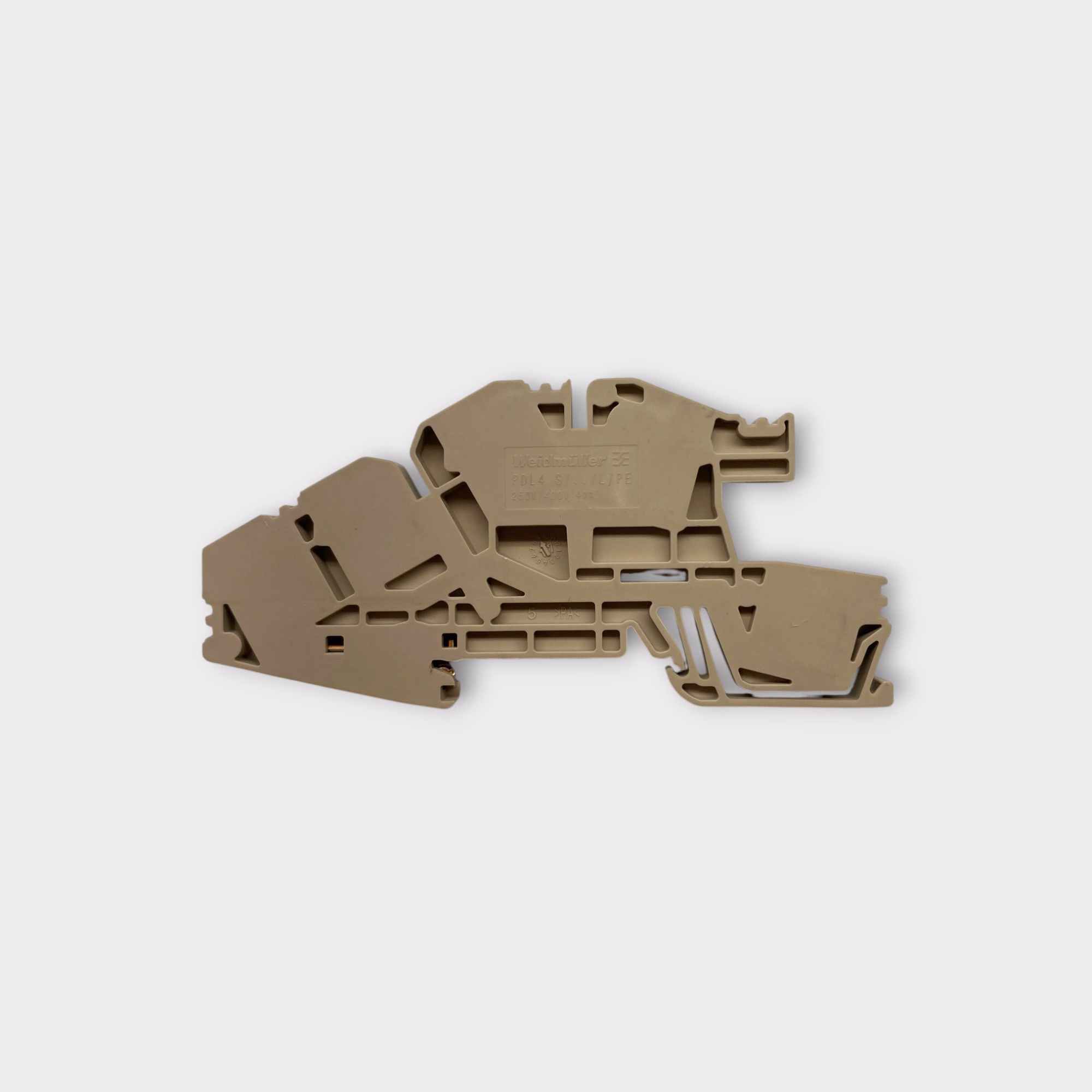

• The Weidmuller PDL 4 S/L/L/PE is a P-Series multi-level installation terminal block designed for reliable electrical connections in industrial control panels, distribution cabinets, and building electrical installations.

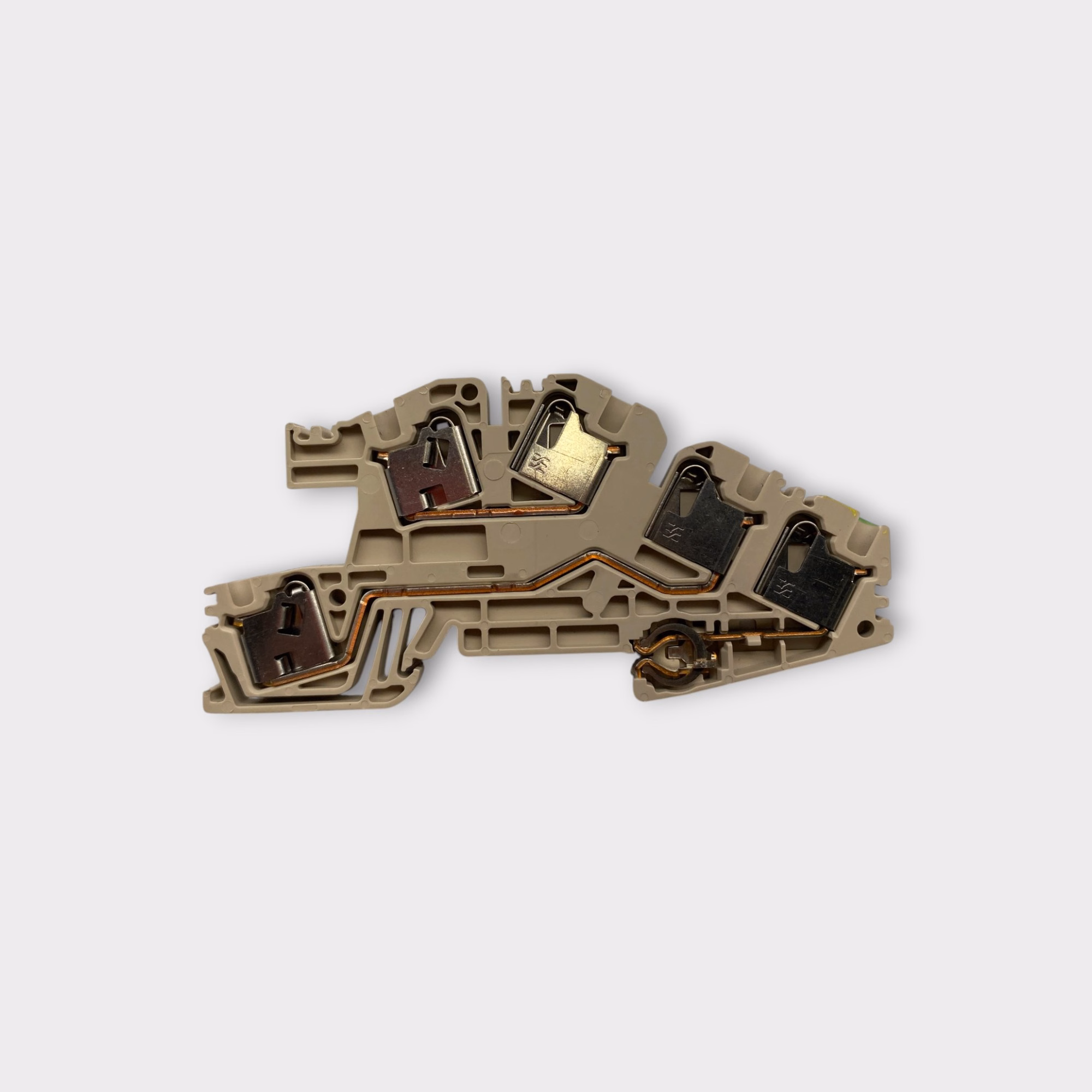

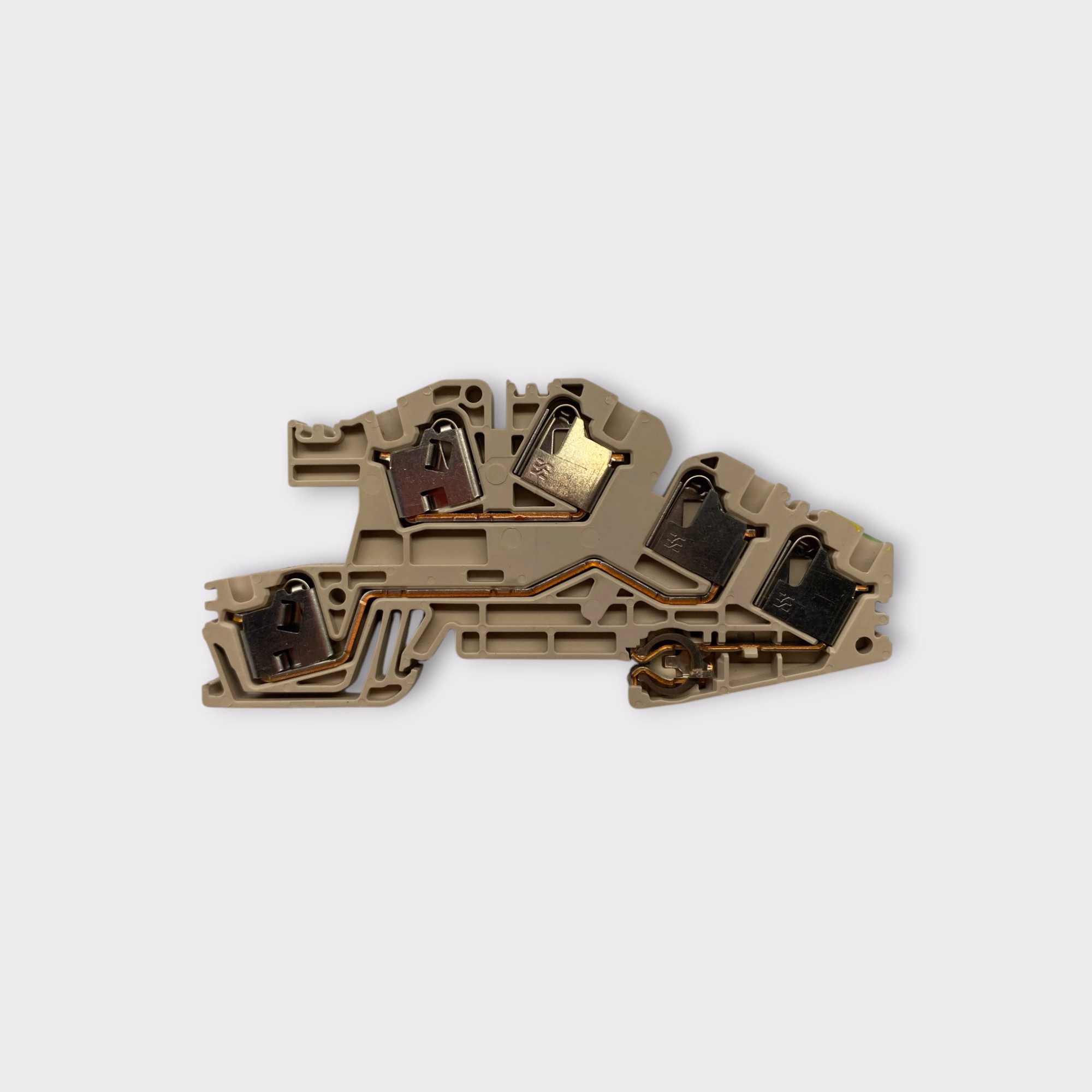

• Each terminal block features PUSH IN spring connection technology for secure conductor termination without conventional screw-tightened connections. Its multi-level configuration incorporates two independent line connections and a protective earth connection, providing an organized solution for electrical distribution circuits.

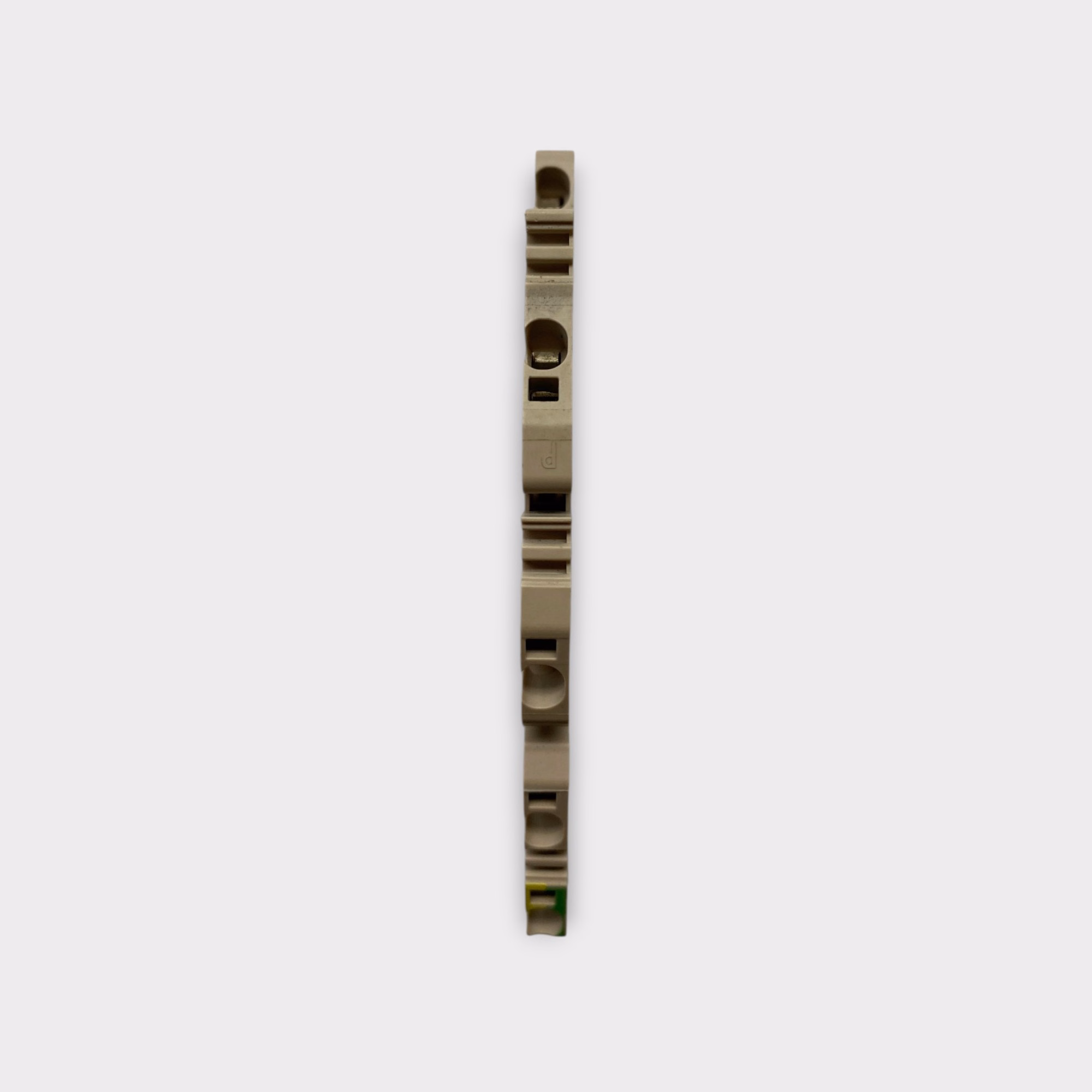

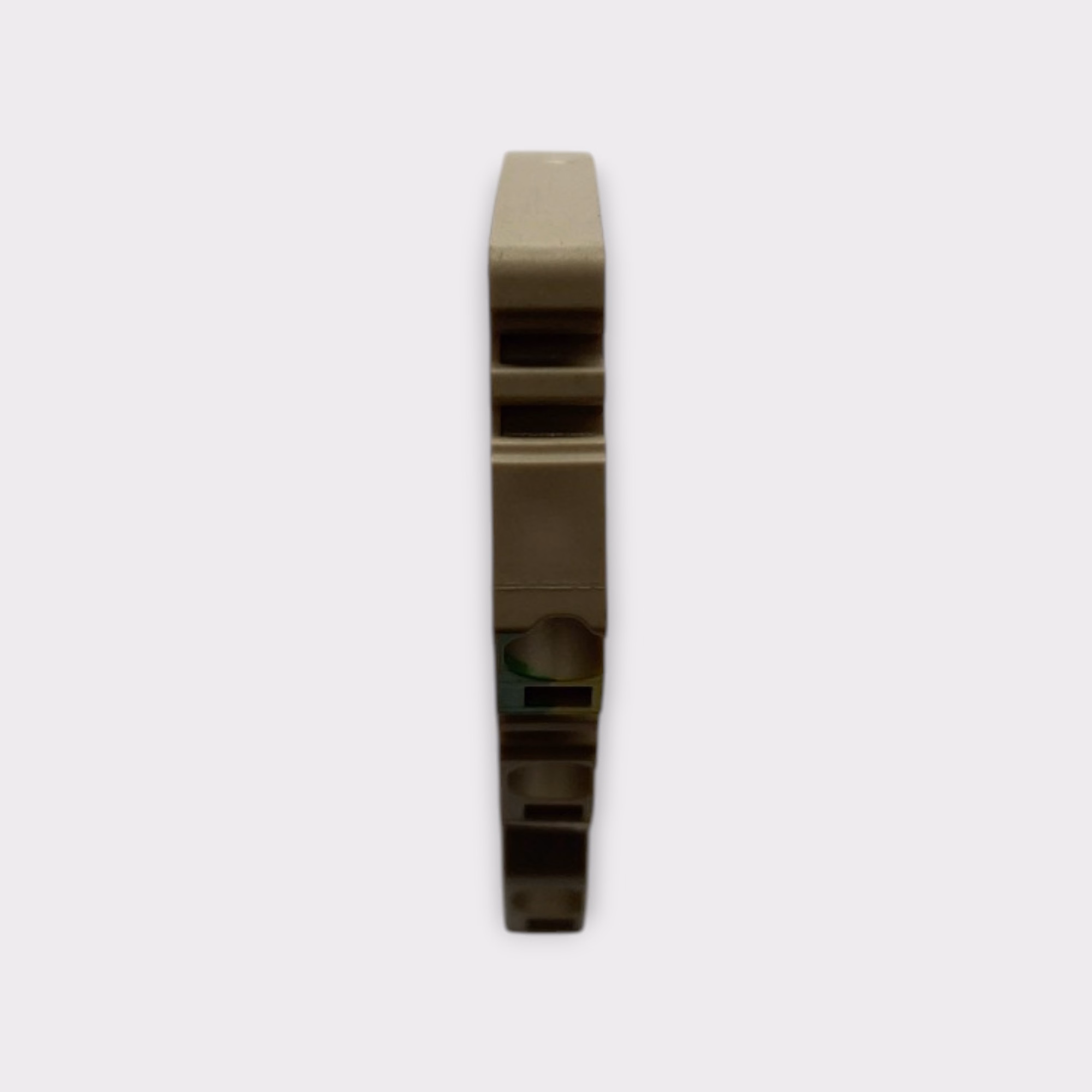

• Designed for standard TS 35 DIN rail mounting, these terminal blocks feature a compact 5.1 mm width, five connection points, and support for plug-in cross-connectors.
• The insulating housing is manufactured from Weidmuller's WEMID material, providing thermal resistance and a UL 94 V-0 flammability rating.

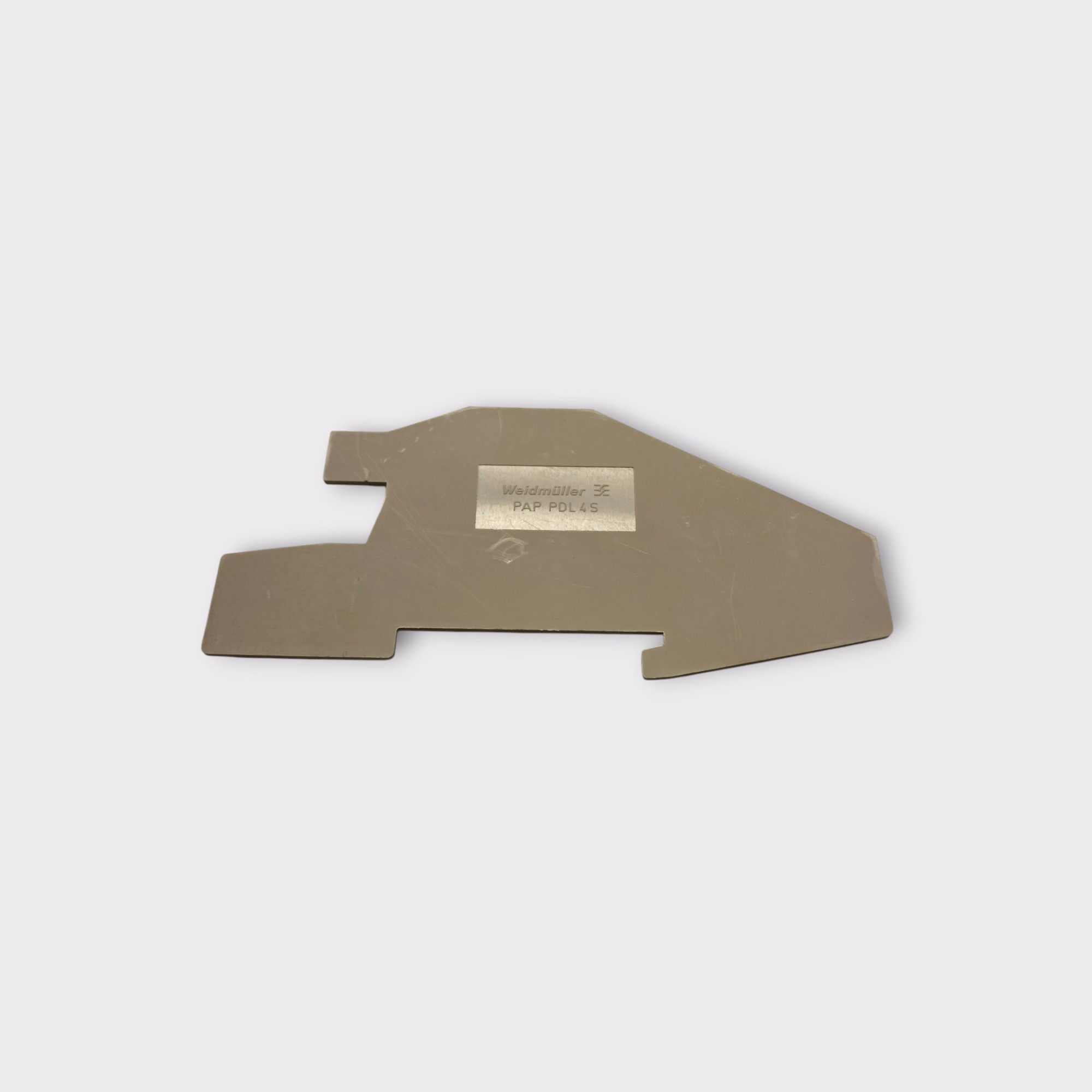

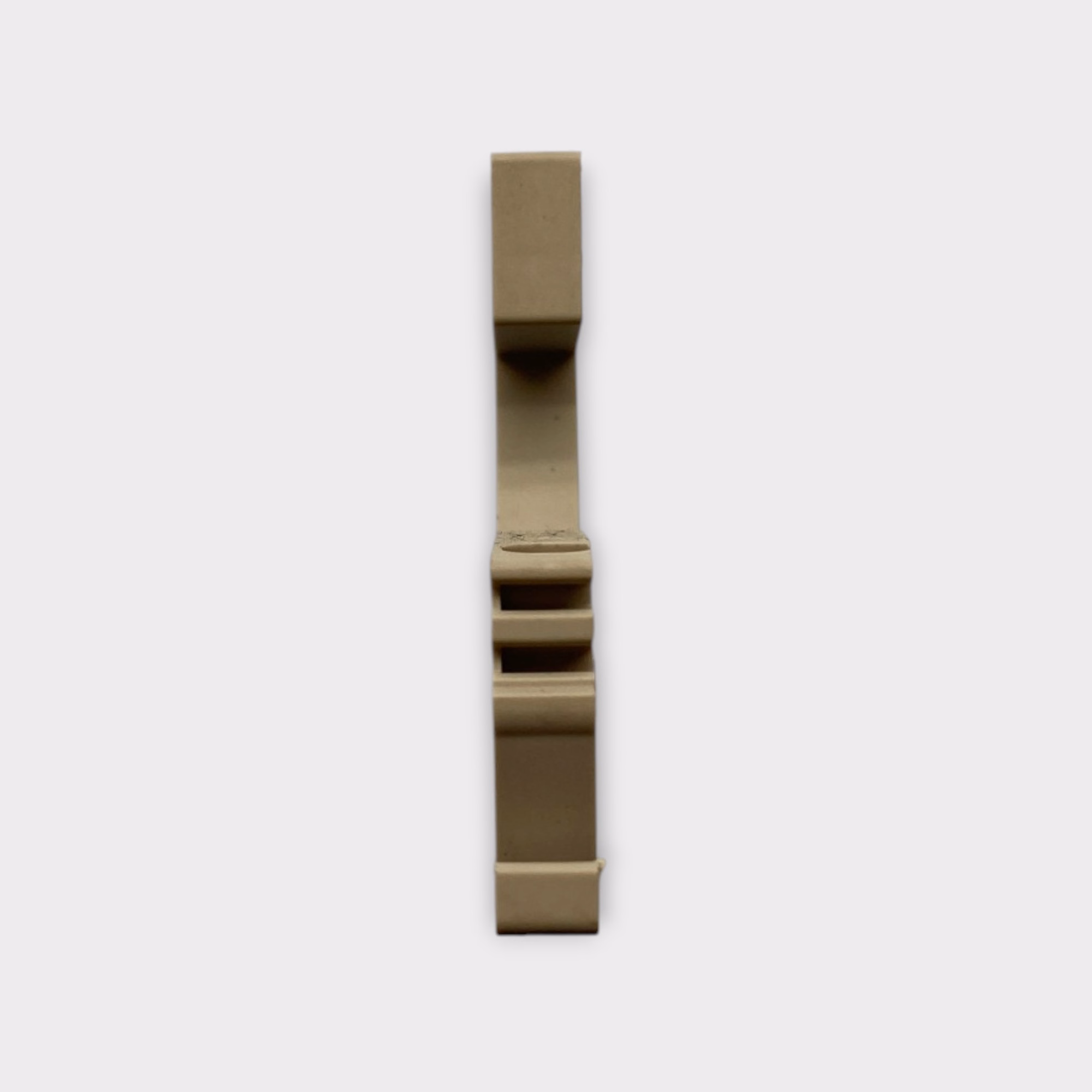

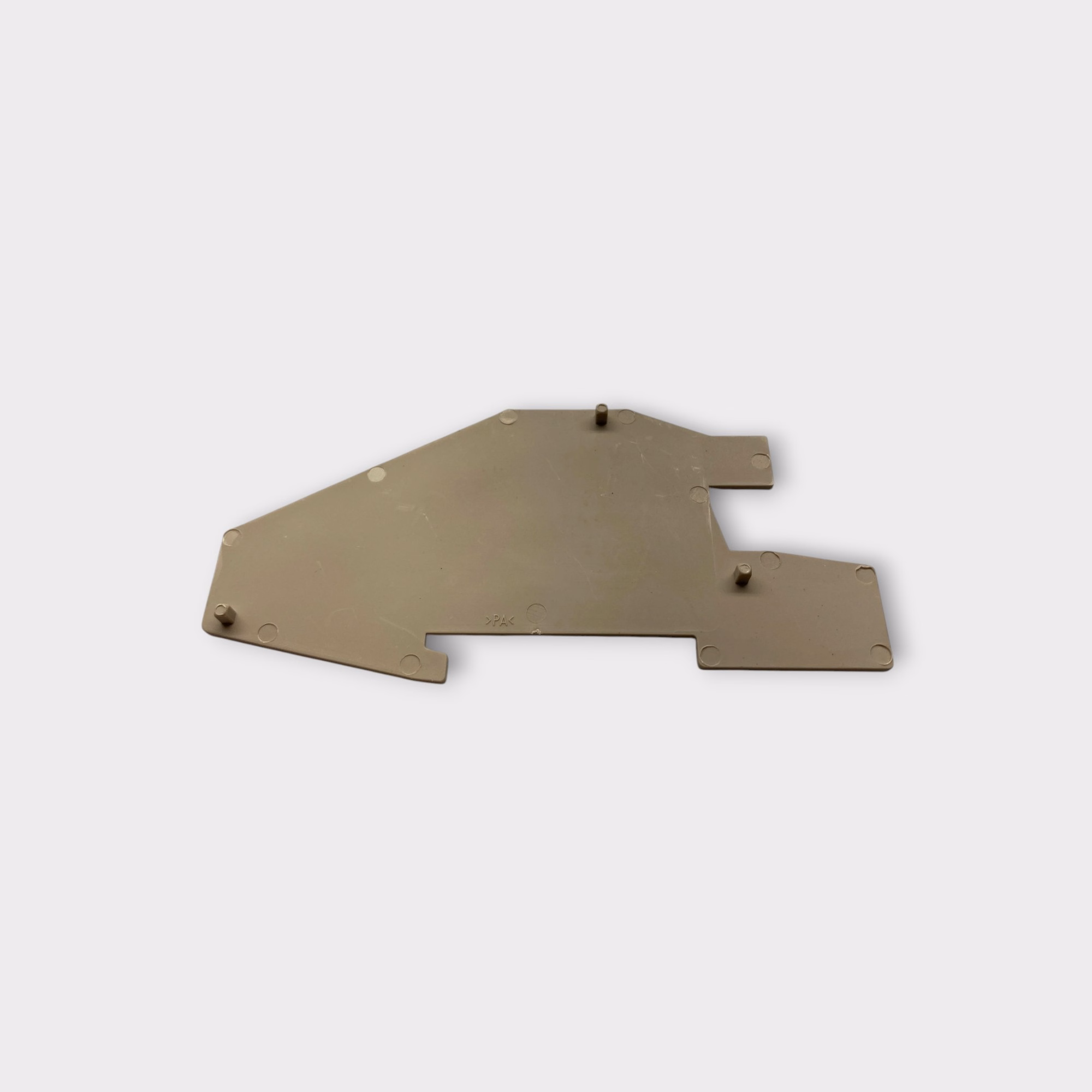

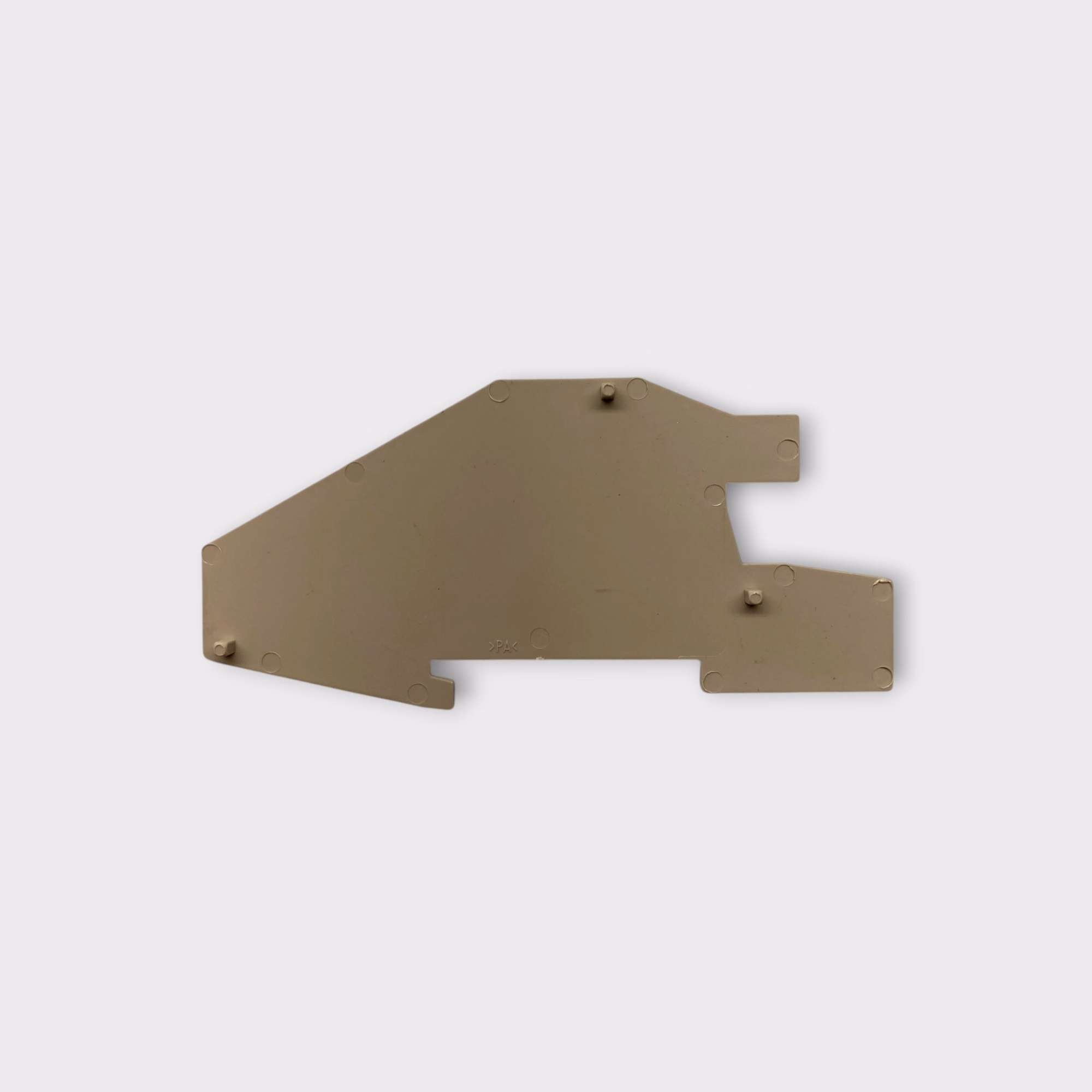

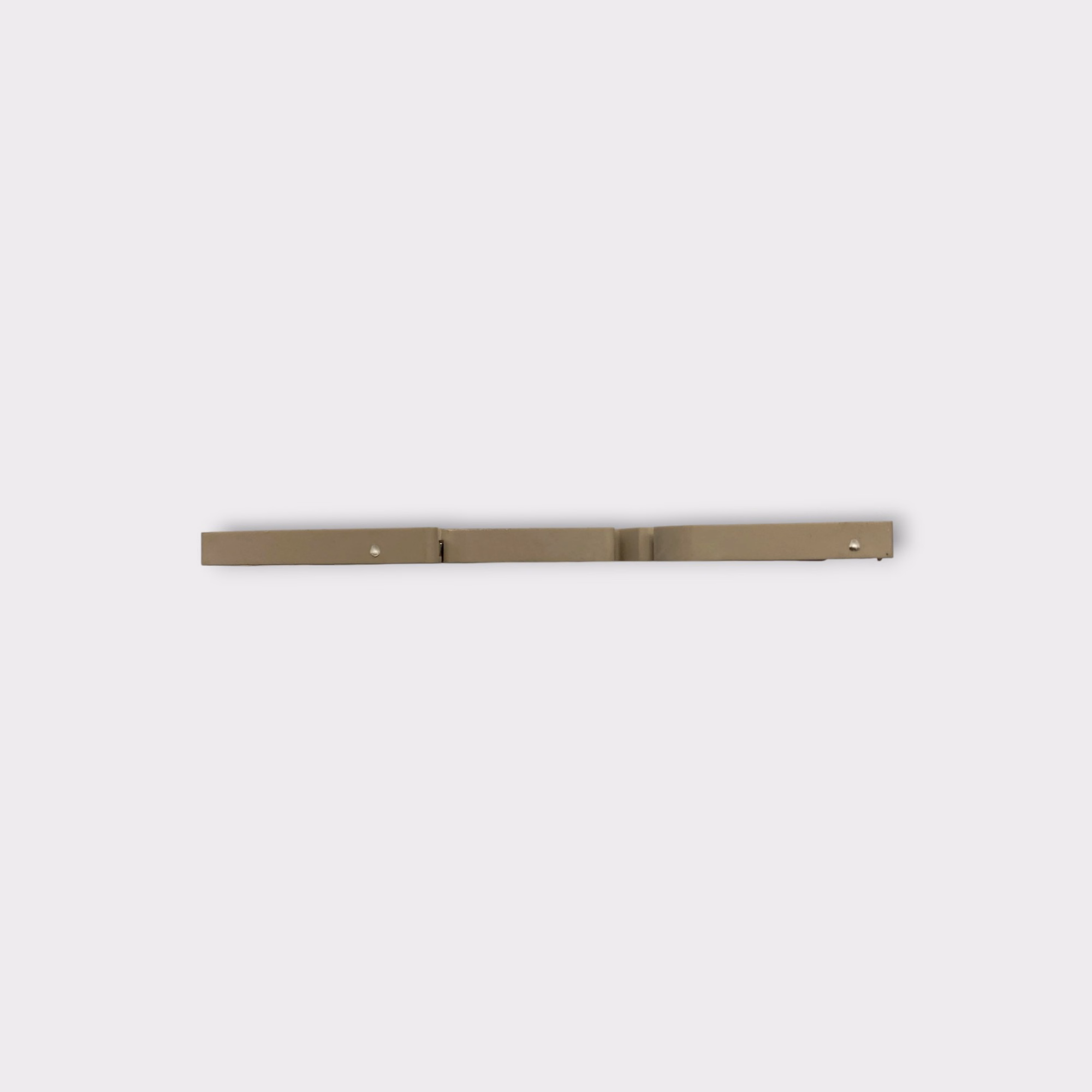

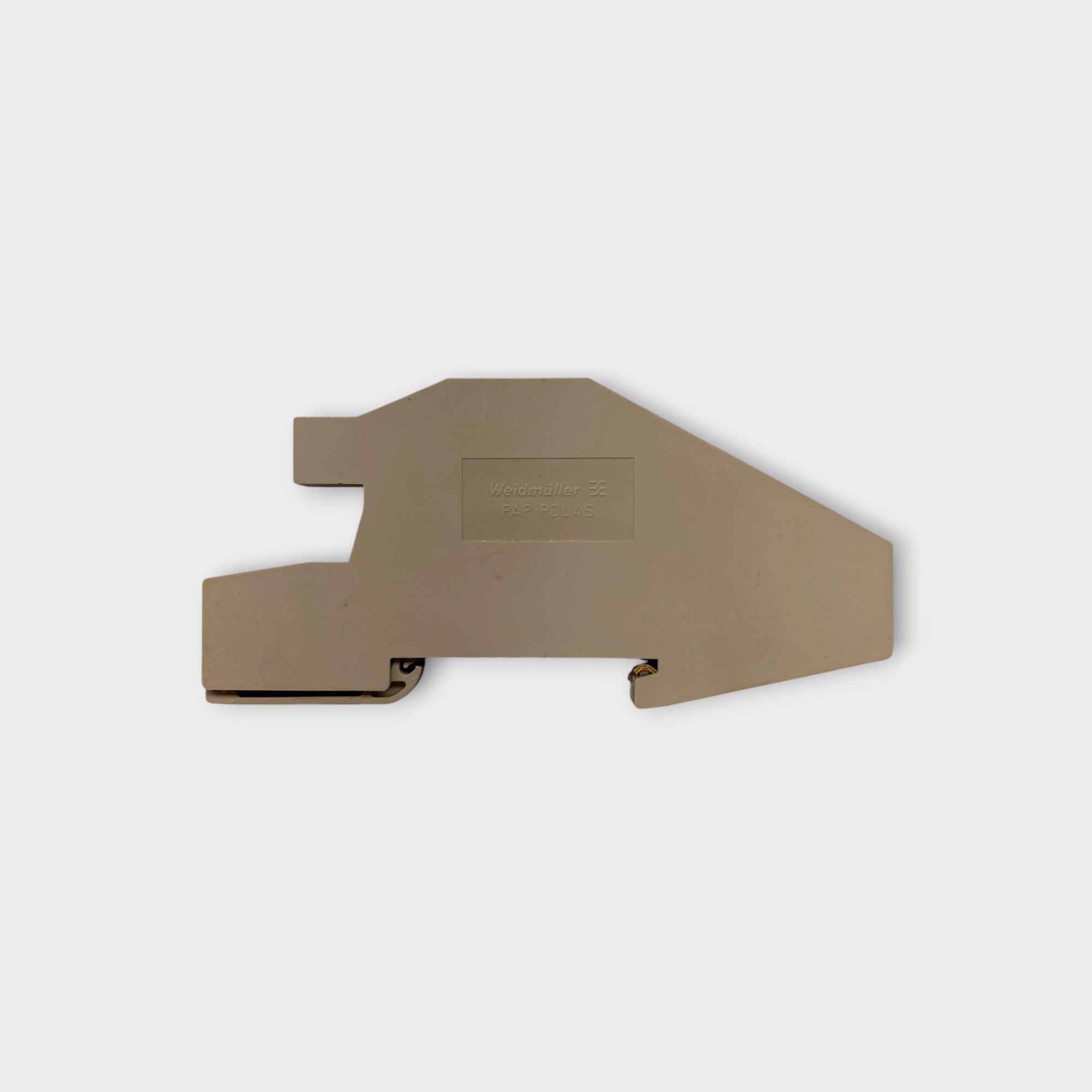

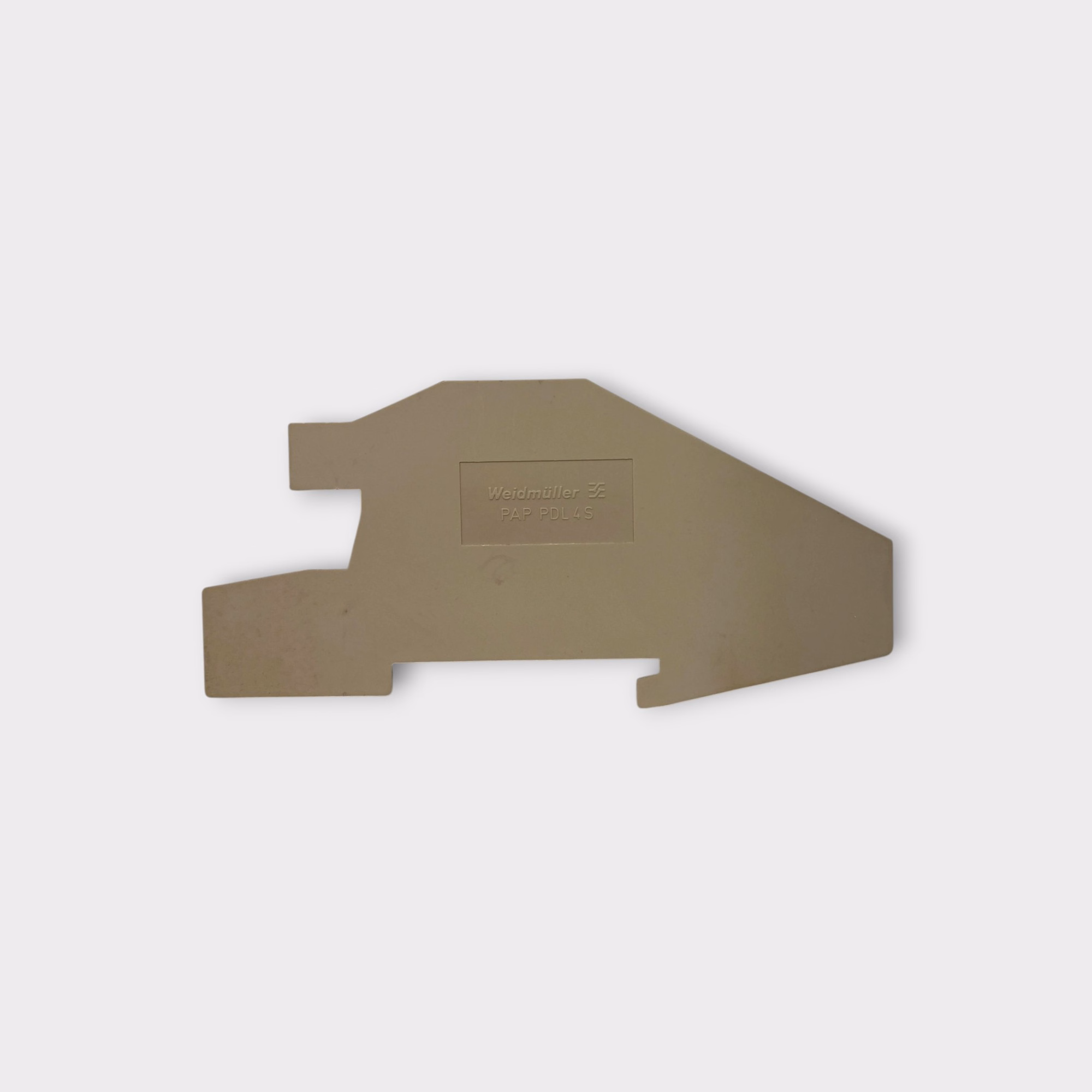

• This 141-pack includes 11 Weidmuller PAP PDL4S end plates, designed to cover exposed terminal block sides and provide proper insulation and separation within compatible P-Series terminal block assemblies.
• The end plates are manufactured from WEMID insulating material, feature a 1.5 mm thickness, and are color-matched to the dark beige terminal blocks.
• This large-quantity package is suitable for industrial automation, electrical distribution panels, building installation wiring, machinery, and marine electrical control systems.

Product Information

Terminal Blocks

- Manufacturer: Weidmuller
- Model Number: PDL 4 S/L/L/PE
- Series: P-Series
- MPN: 1837040000
- Product Type: Multi-Level Installation Terminal Block
- Quantity Included: 141
- Connection Technology: PUSH IN
- Connection Configuration: L / L / PE
- Rated Cross-Section: 4 mm²
- Rated Voltage (IEC): 400 V
- Nominal Current (IEC): 32 A
- Rated Impulse Withstand Voltage: 6 kV
- Number of Connections: 5
- Number of Levels: 2
- Number of Potentials: 3
- Protective Earth Connection: Yes
- Internal Cross-Connection Between Levels: No
- Wire Connection Range: 0.08–4 mm²
- Wire Gauge Range: 12–28 AWG
- Compatible DIN Rail: TS 35 (35 mm)
- Mounting Type: Snap-On
- Cross-Connection: Plug-In Cross-Connector Compatible
- End Cover Plate Required: Yes
- Material: WEMID
- Color: Dark Beige
- Width: 5.1 mm
- Height: 100 mm
- Depth: 48 mm
- Stripping Length: 12 mm
- Net Weight: 21.32 g Each
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-1 / IEC 60947-7-2
- RoHS Compliance: Compliant Without Exemption
- EAN: 4032248419739
- Manufacturer Status: Discontinued

End Plates

- Manufacturer: Weidmuller
- Model Number: PAP PDL4S
- Series: P-Series
- MPN: 1837070000
- Product Type: End Plate / Terminal Block Cover Plate
- Quantity Included: 11
- Installation: Direct Mounting
- Material: WEMID
- Color: Dark Beige
- Width / Thickness: 1.5 mm
- Height: 100 mm
- Depth: 45.45 mm
- Net Weight: 5.409 g Each
- Continuous Operating Temperature: -50°C to +120°C
- Flammability Rating: UL 94 V-0
- RoHS Compliance: Compliant Without Exemption
- EAN: 4032248418794
- Manufacturer Status: Discontinued

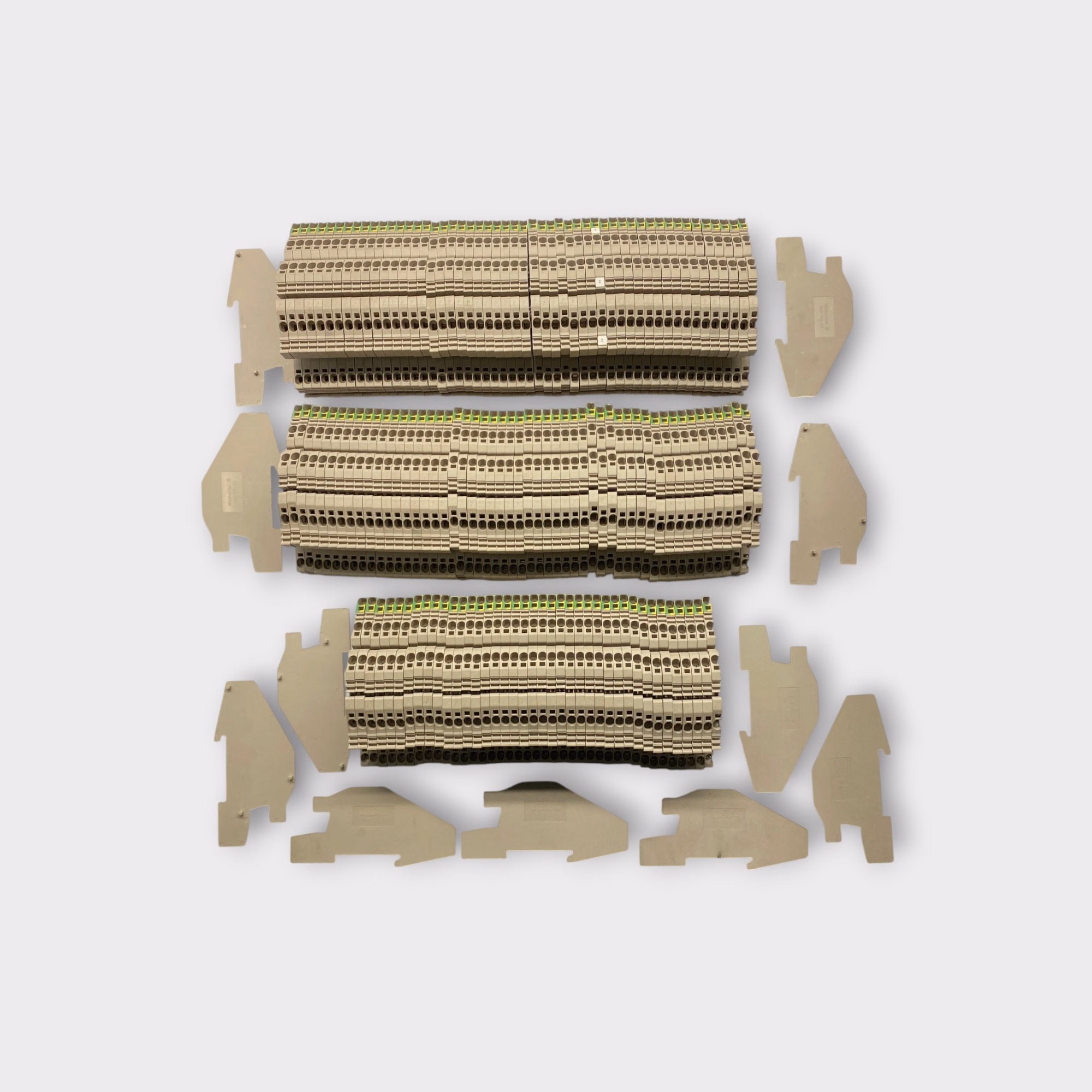

Package Contents

- 141x Weidmuller PDL 4 S/L/L/PE Multi-Level Terminal Blocks (1837040000)
- 11x Weidmuller PAP PDL4S End Plates (1837070000)

Total: 152 Components, Sold as One 141-Pack Terminal Block Listing.
