Summary

Weidmuller 8879050000 IE-XM-RJ45/RJ45 industrial Ethernet coupler designed for DIN rail installation. Features two RJ45 connections, Cat6A performance, and a protective hinged port cover for industrial network applications.

This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new(other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy.

• This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.
• Item includes the Weidmuller 8879050000 IE-XM-RJ45/RJ45 Ethernet coupler shown. No original box, instructions, or additional accessories are included.

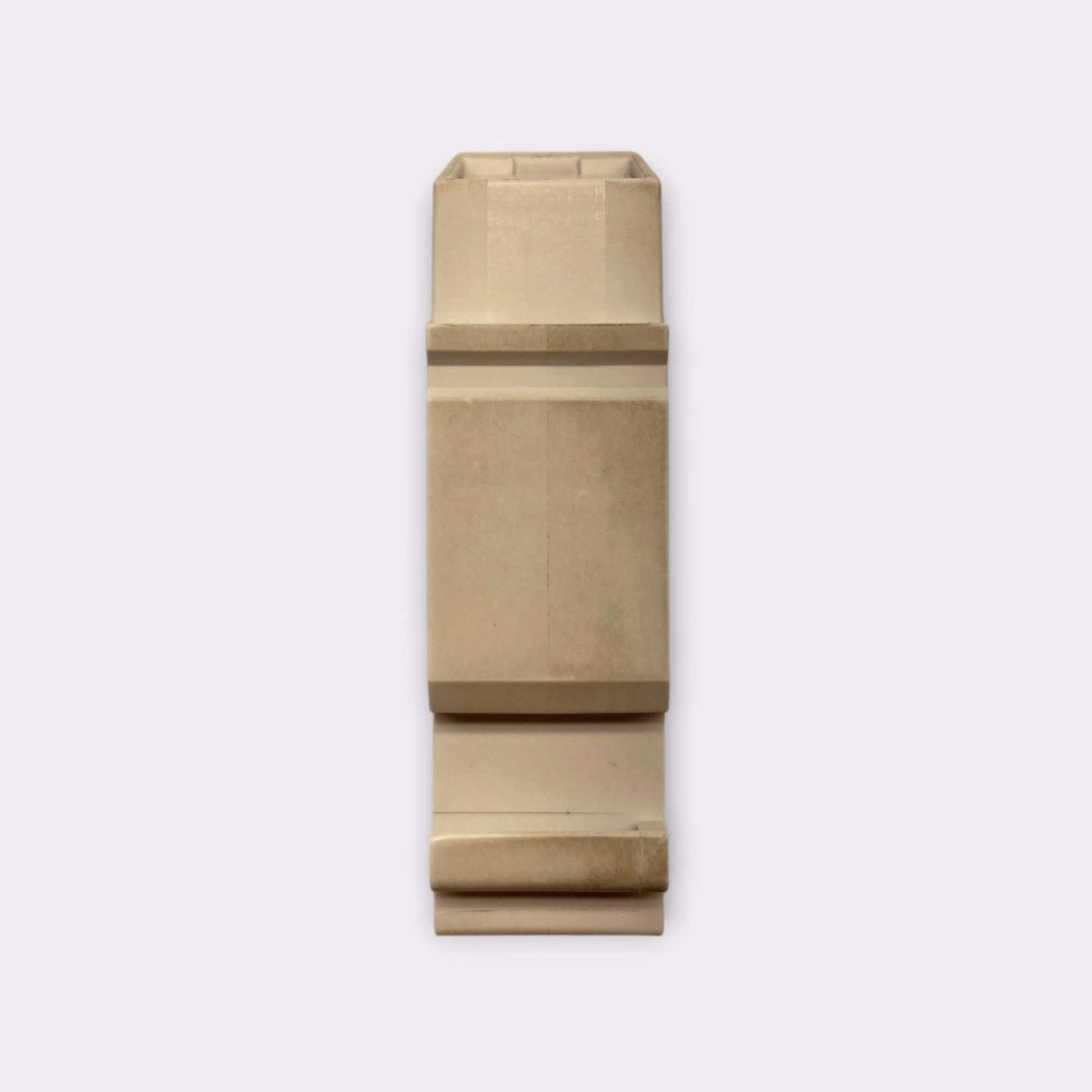

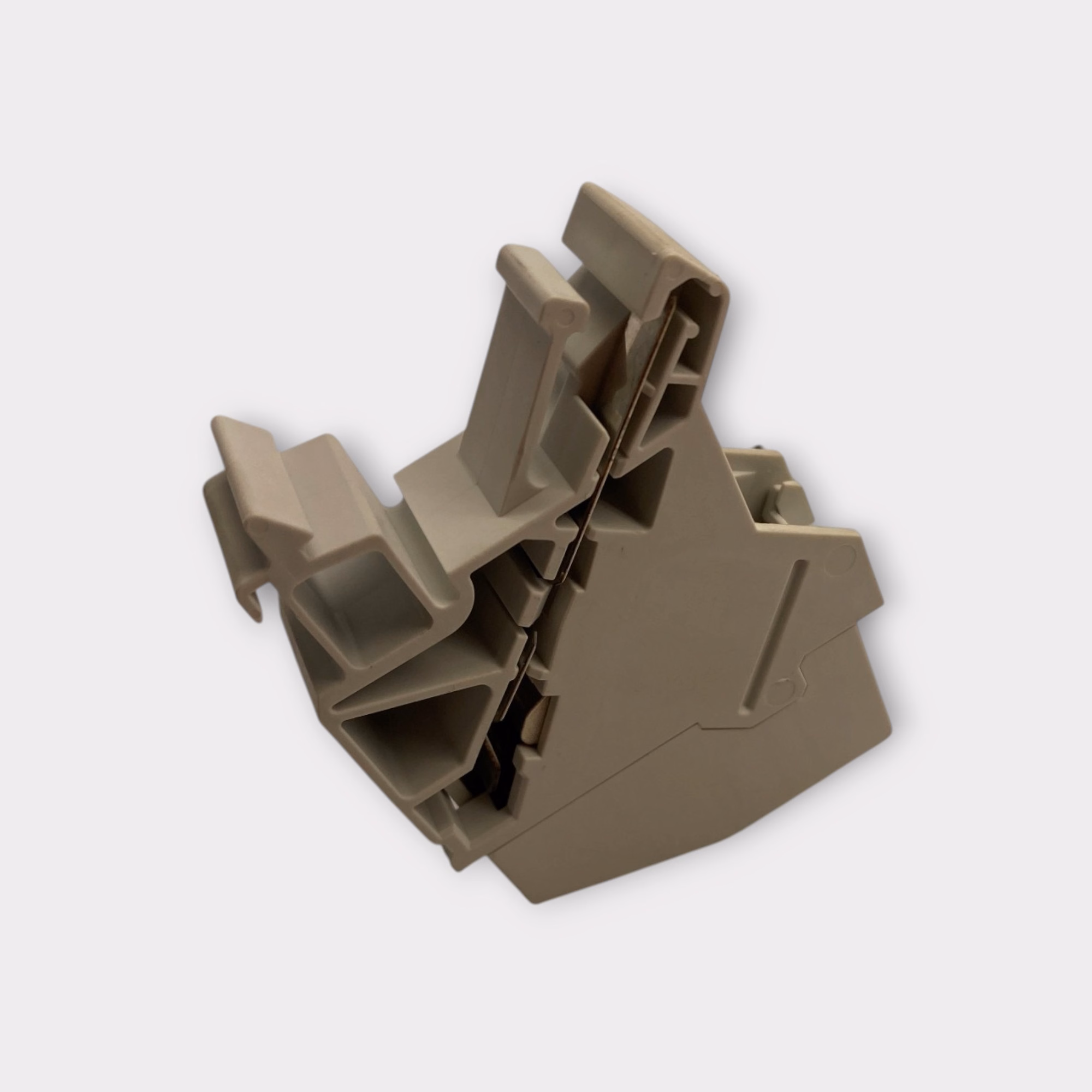

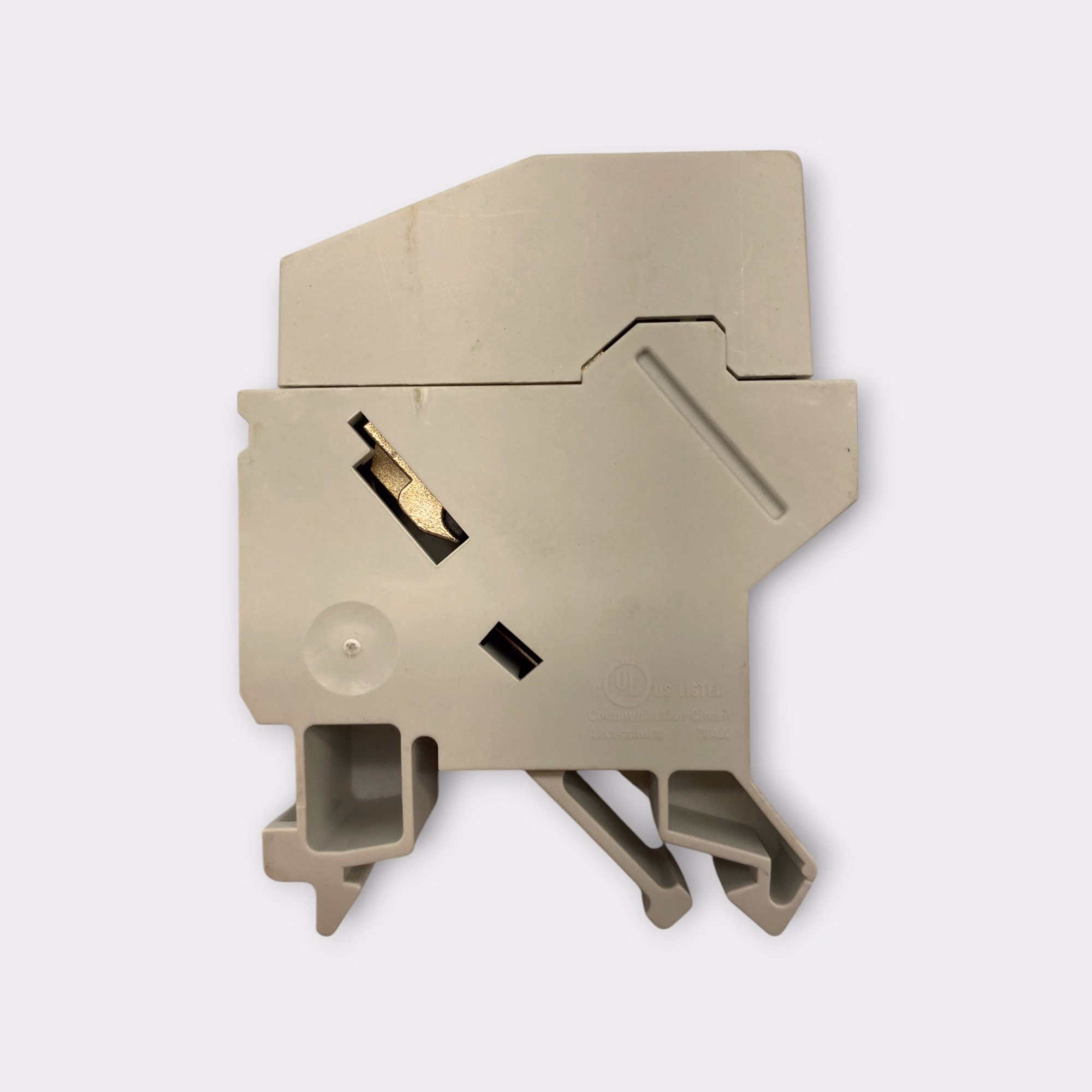

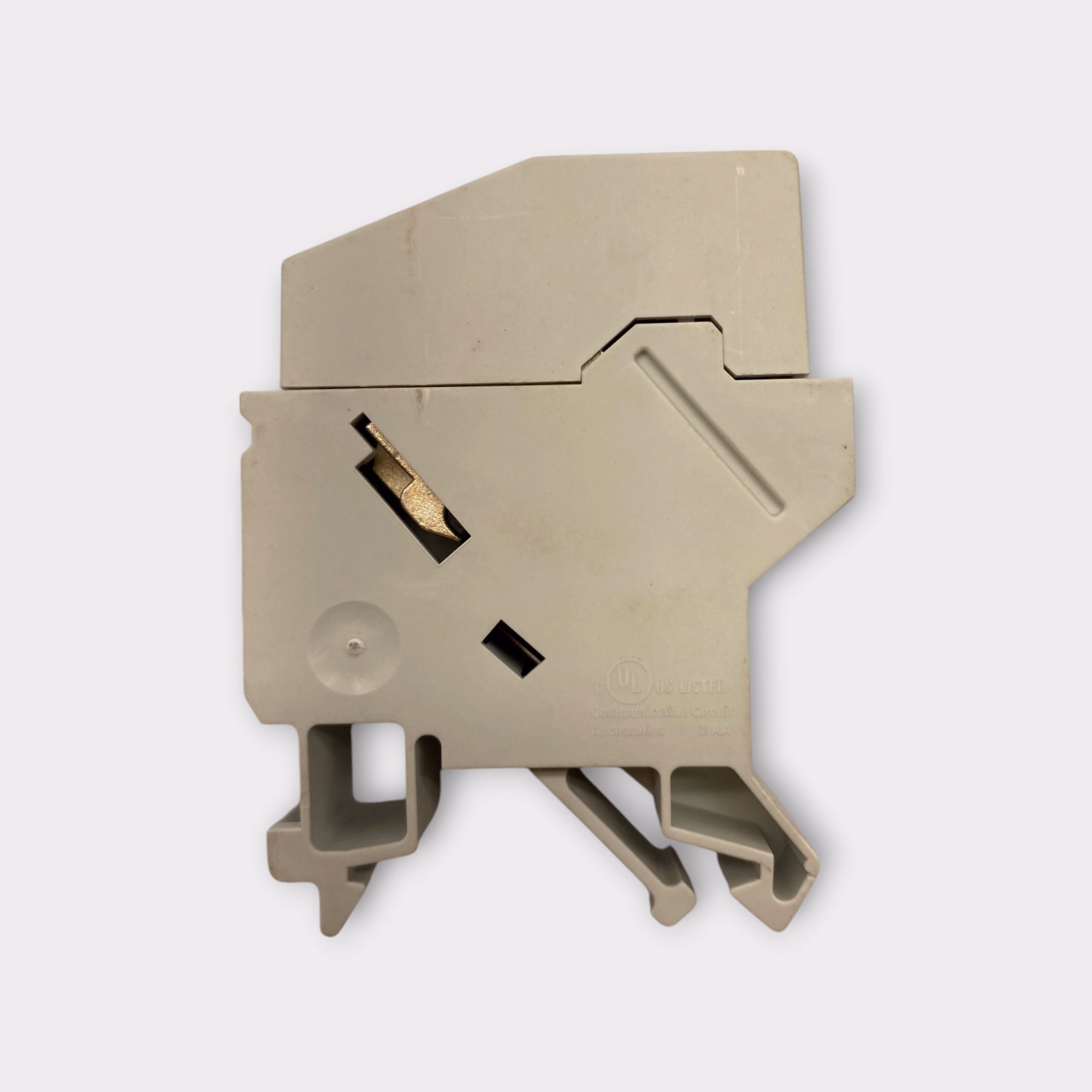

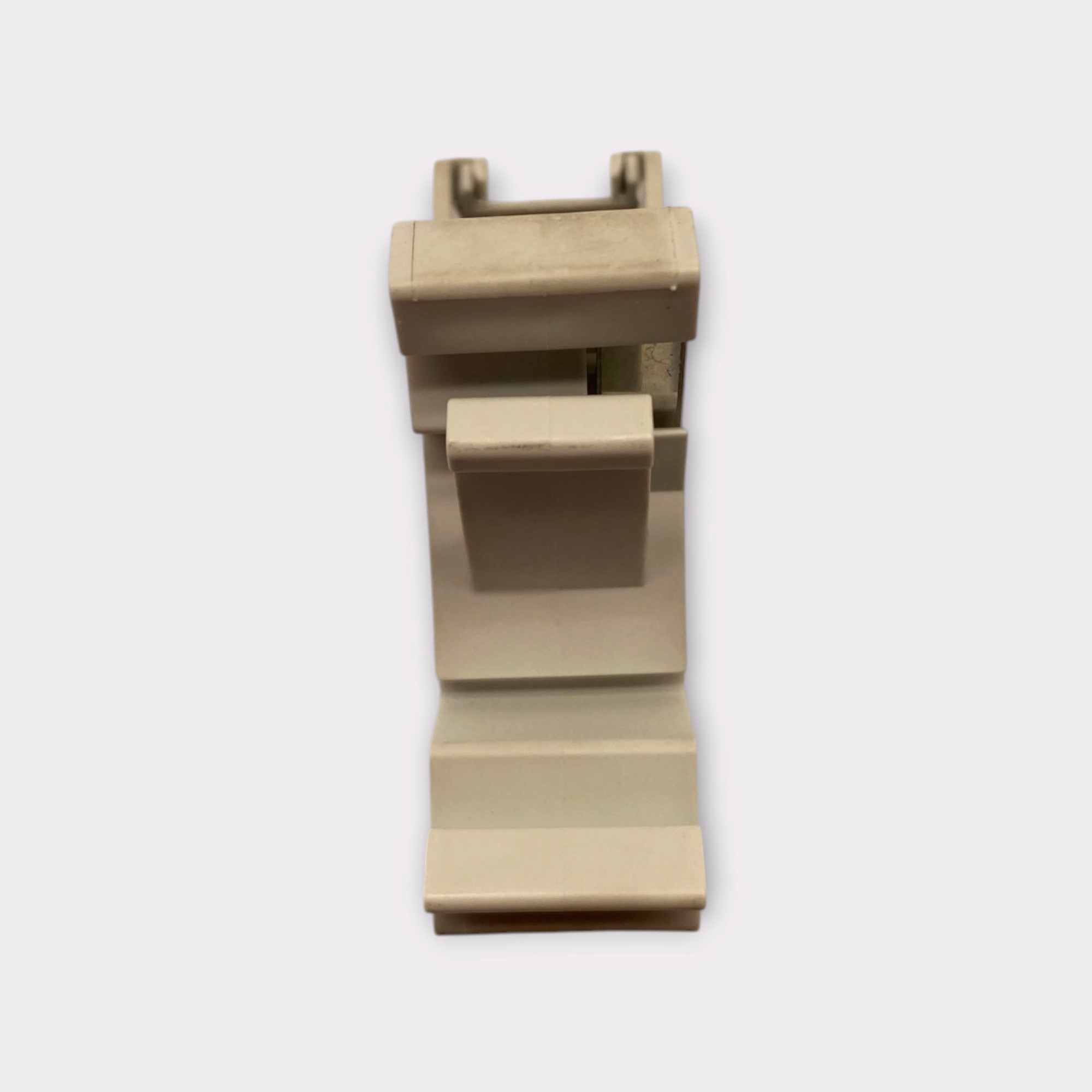

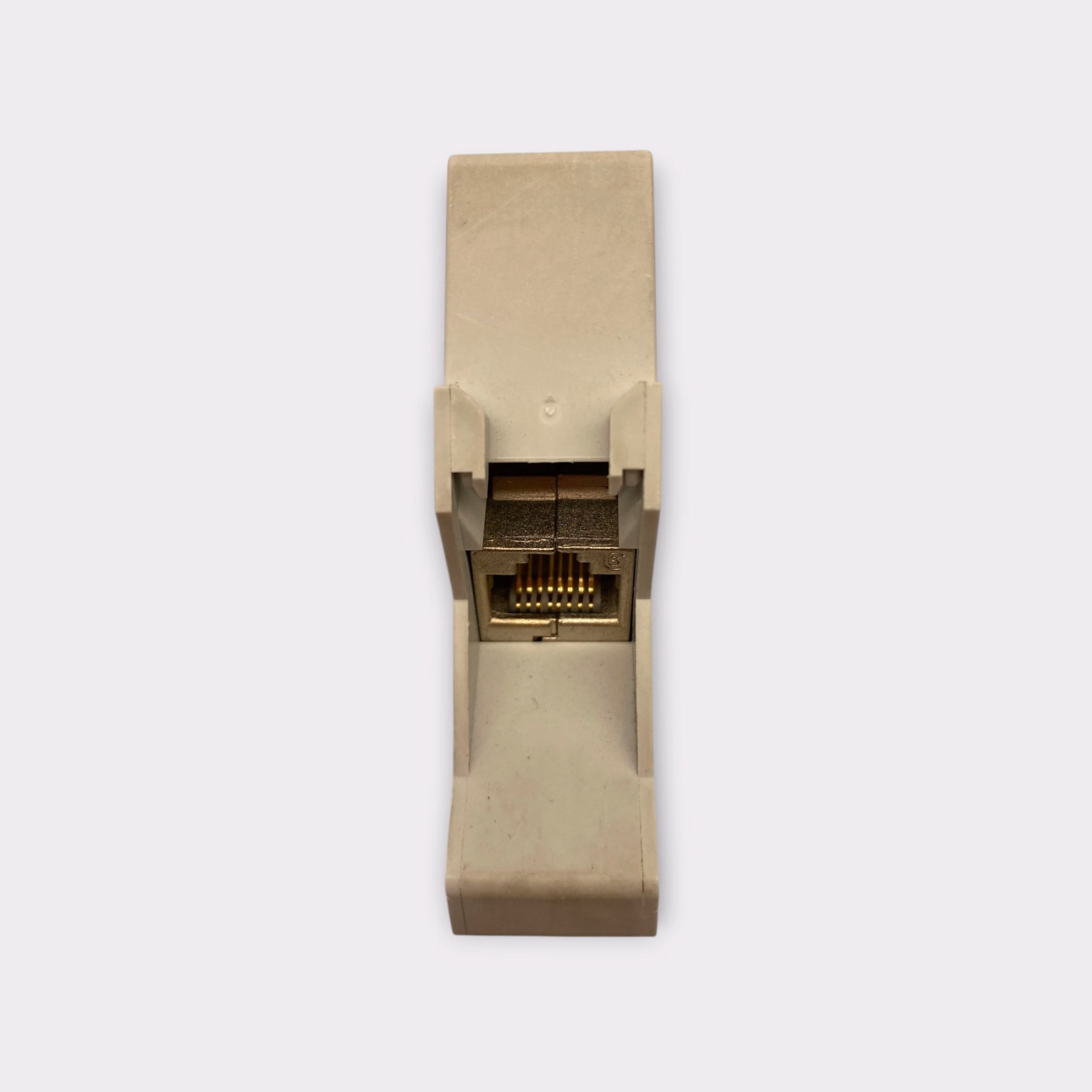

• Please review all photos for the exact item, condition, and components included.

Product Description

The Weidmuller IE-XM-RJ45/RJ45 is an industrial Ethernet RJ45-to-RJ45 feed-through coupler designed for mounting on standard 35mm DIN rails. It provides a convenient connection point for Ethernet cabling inside control cabinets, automation systems, and industrial network installations.

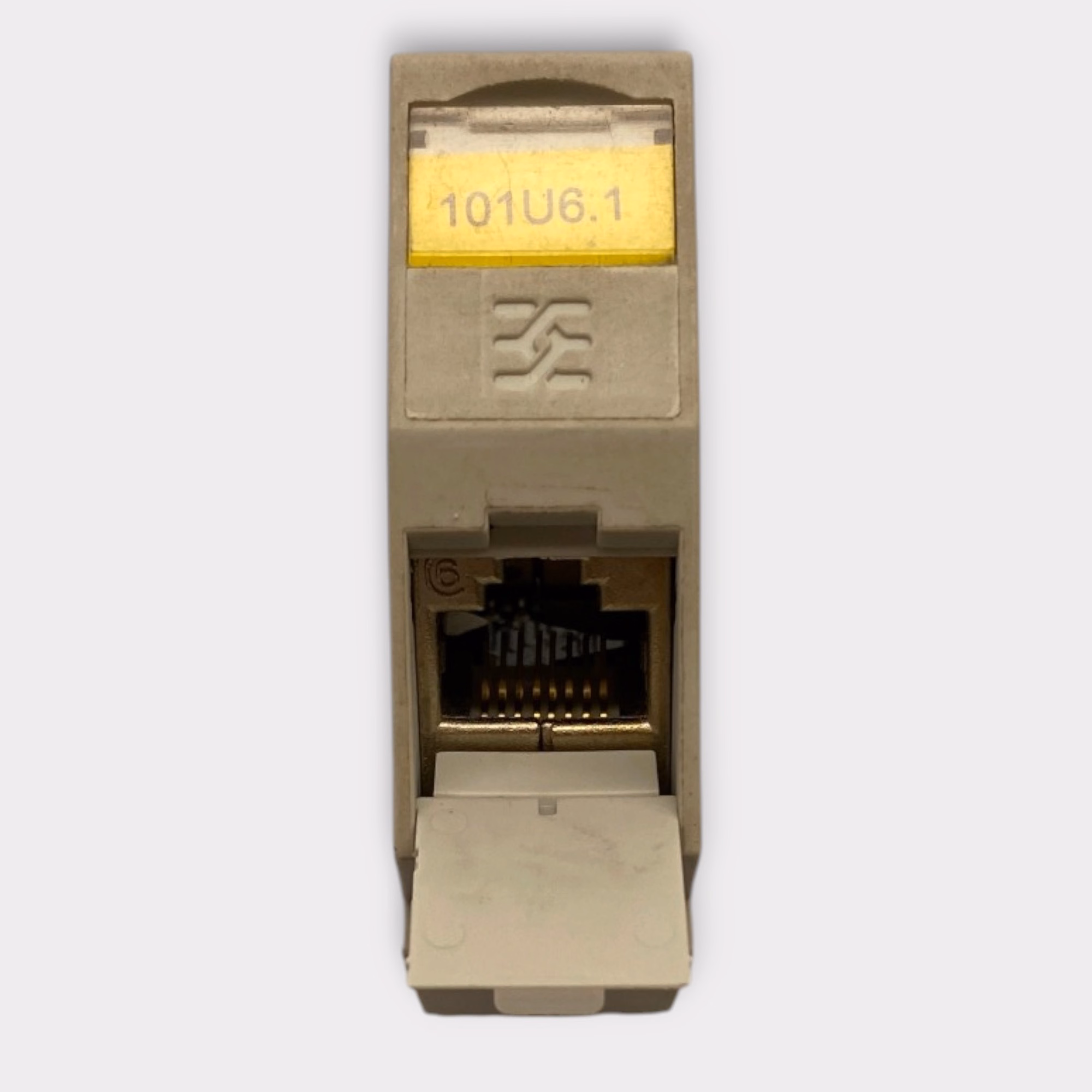

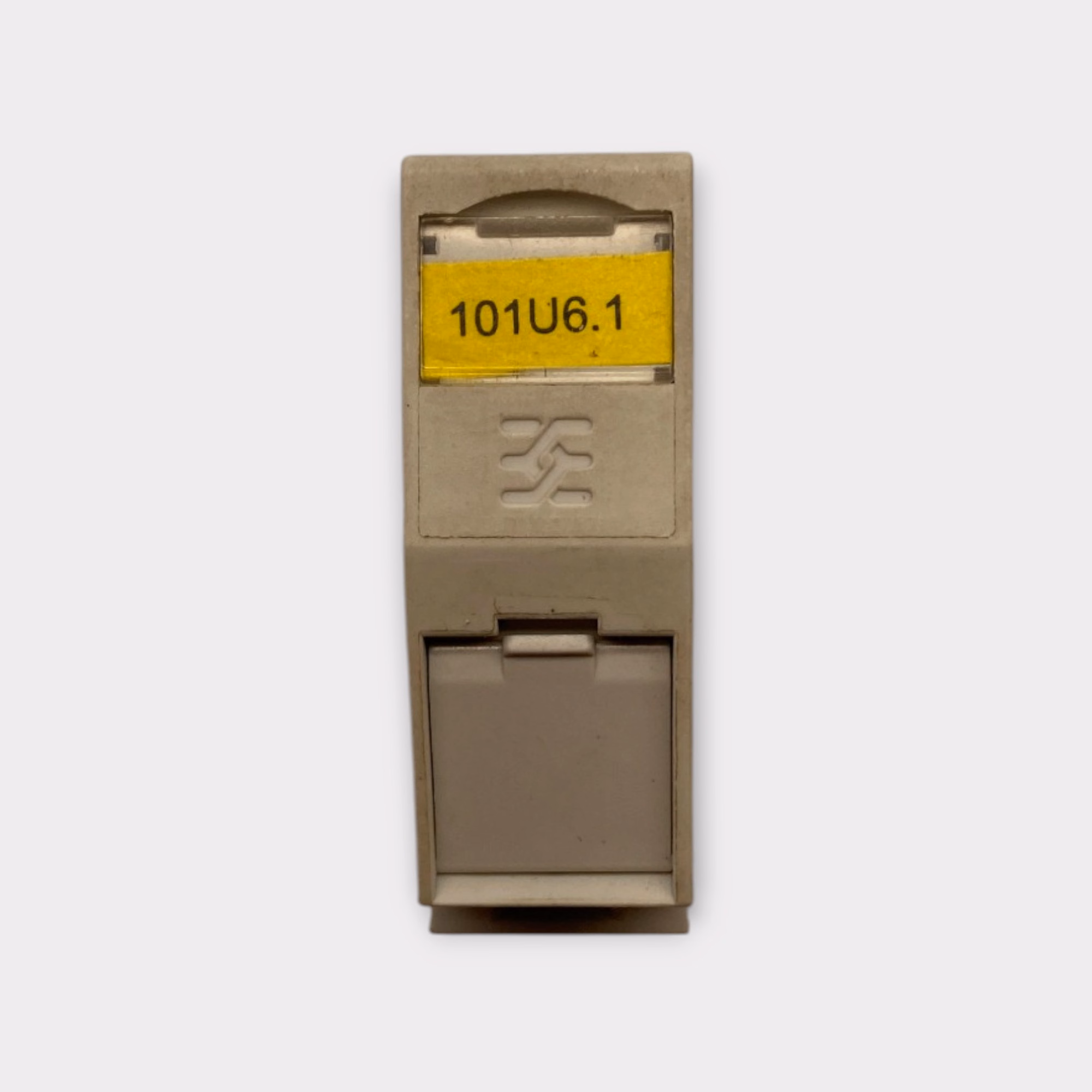

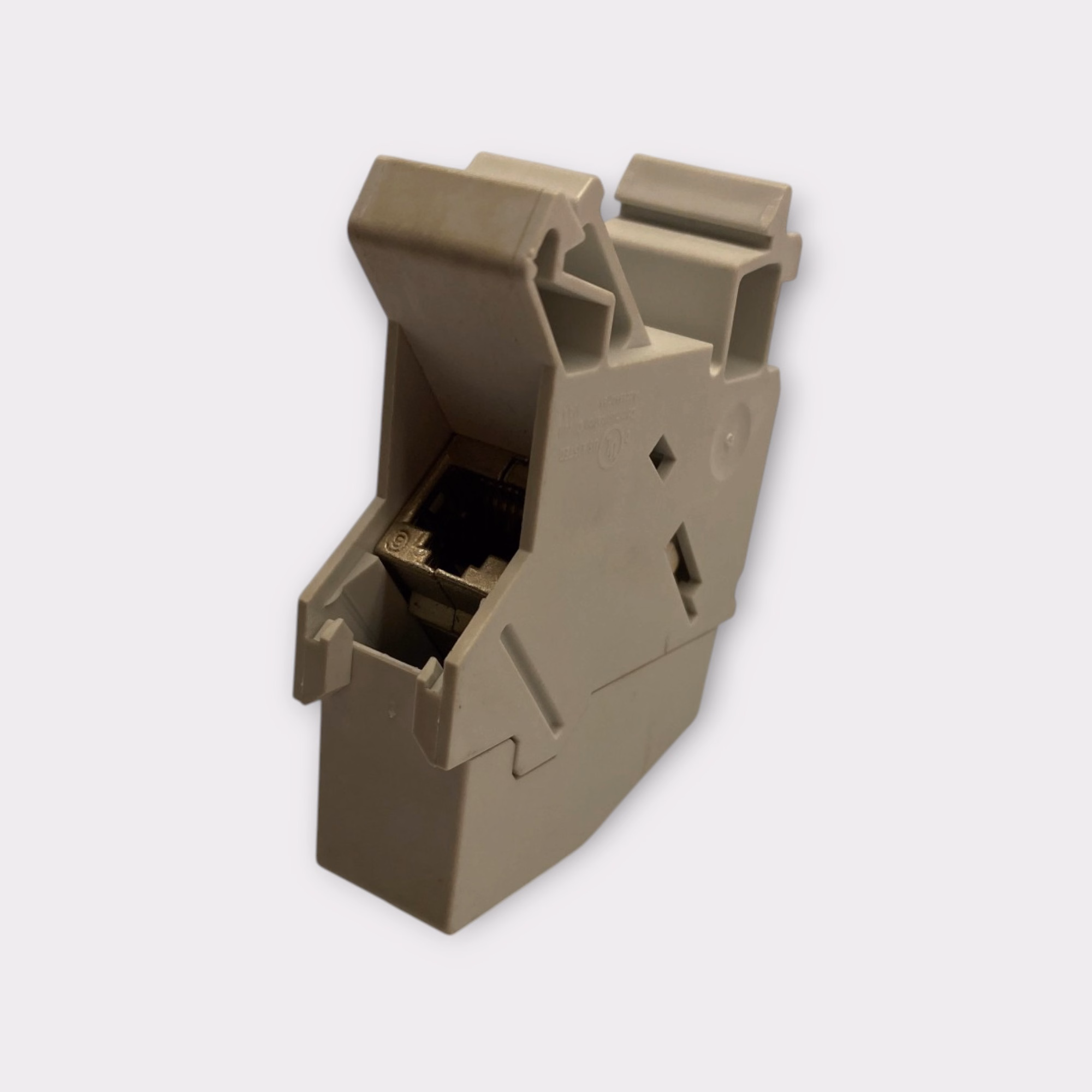

The coupler supports Cat6A / Class EA connections, 360-degree shielding, and PoE/PoE+ applications. Its compact light gray housing features an identification label window and a hinged protective cover.

Product Information

- Manufacturer - Weidmuller
- Model Number - IE-XM-RJ45/RJ45
- Series - IE-XM
- MPN - 8879050000
- Product Type - Industrial Ethernet DIN Rail Coupler
- Connector Type - RJ45 to RJ45
- Number of Ports - 2
- Ethernet Category - Cat6A / Class EA
- Mounting Type - TS 35 DIN Rail
- Protection Rating - IP20
- Shielding - 360° Shield Contact
- Housing Material - Polyamide 66 (PA66)
- Housing Color - Light Gray
- Flammability Rating - UL 94 V-0
- Operating Temperature - -25°C to +70°C
- Contact Resistance - ≤20 mΩ
- Current Carrying Capacity - 1A at 50°C
- Insulation Resistance - 500 MΩ
- PoE Compatibility - IEEE 802.3at (PoE/PoE+)
- Rated Mating Cycles - 750
- Connector Standard - IEC 60603-7-5
- UL Certification - cULus E316369
- DNV Certificate - TAE00003EW
- RoHS Compliance - Compliant
- GTIN / EAN - 4032248614844
