Weidmuller 1240900000 IE-SW-BL08-8TX 8-Port Industrial Ethernet Switch – NOS

$239.99

This item is new and has never been used. It may be unused in its original packaging, be old stock, new open-box, new out of box, or never installed. Packaging might be missing, opened, or show minor damage. The item is fully functional and includes all accessories shown in the listing and images, unless otherwise noted.
SKU: 831299
In stock (2 available)
Buy Now
  • Free Shipping Lower 48

    Free Shipping Lower 48

  • 30-Day Returns

    30-Day Returns

  • 90-Day Warranty

    90-Day Warranty

Manufacturer:

Model Number: IE-SW-BL08-8TX

Series: BasicLine

MPN: 1240900000

Listed Item Condition: New/New Other

Product Details:

Summary

Weidmüller 1240900000 IE-SW-BL08-8TX BasicLine 8-Port Industrial Ethernet Switch. Designed for reliable network communication in industrial automation and control applications, featuring eight 10/100 Mbps RJ45 ports, redundant DC power inputs, and DIN rail mounting.

  • This listing includes the Weidmüller Ethernet switch with the terminal connector shown only. No original box, instructions, manuals, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
  • This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition. Please review all photos for the exact item, condition, and components included.
  • This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

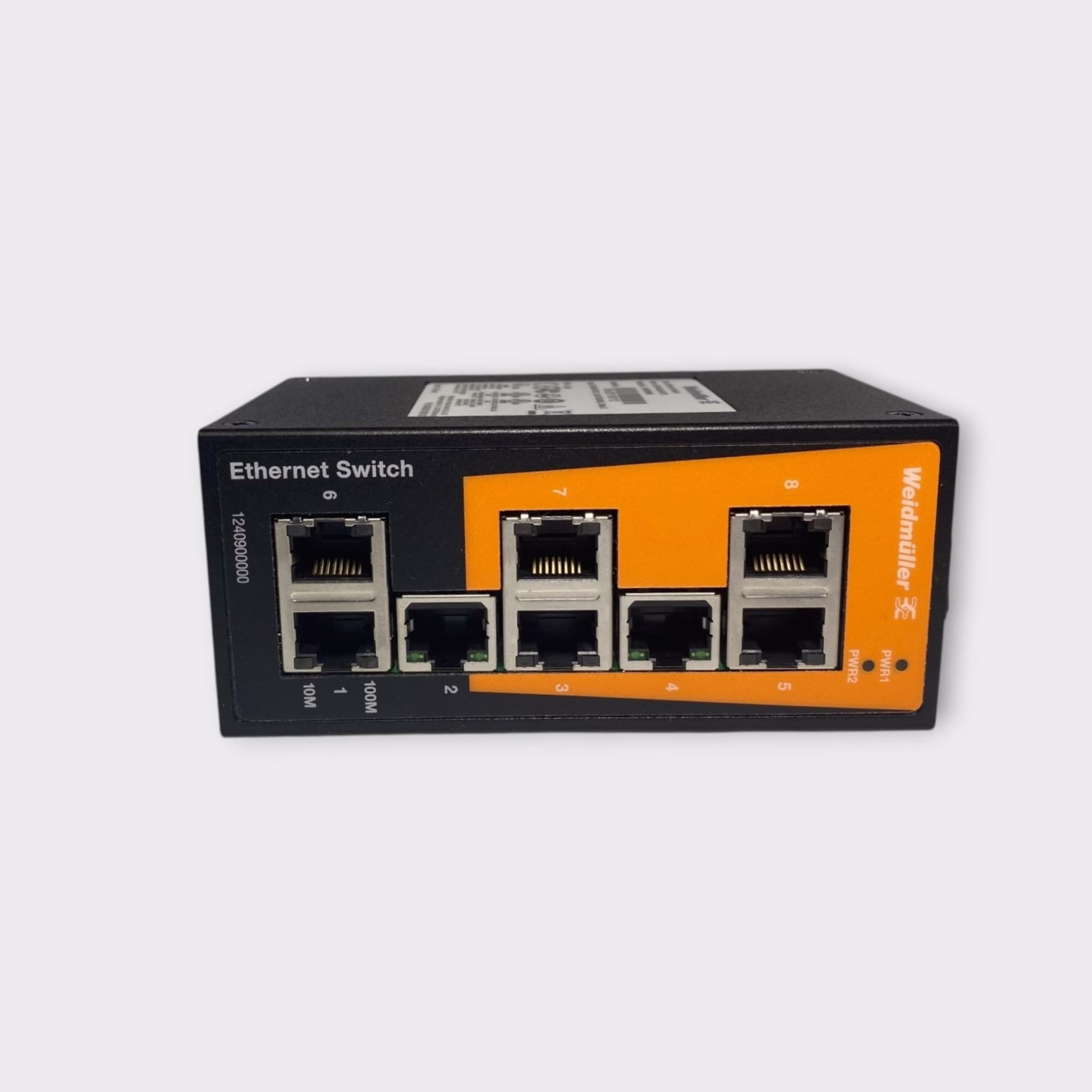

  • The Weidmüller IE-SW-BL08-8TX is an unmanaged industrial Fast Ethernet switch from the BasicLine series, designed to connect industrial controllers, automation equipment, and other Ethernet-enabled devices. It features eight RJ45 ports supporting 10/100 Mbps communication, automatic speed negotiation, and full/half-duplex operation.
  • The switch supports redundant 12/24/48 VDC power inputs, automatic MDI/MDI-X, broadcast storm protection, and DIN rail installation. Its compact aluminum housing and IP30 protection rating make it suitable for industrial control cabinets and network installations.

Product Information

  • Manufacturer - Weidmüller
  • Model Number - IE-SW-BL08-8TX
  • Series - BasicLine
  • MPN - 1240900000
  • Product Type - Industrial Ethernet Switch
  • Switch Type - Unmanaged
  • Ethernet Standard - Fast Ethernet
  • Number of Ports - 8
  • Port Type - RJ45
  • Ethernet Speed - 10/100 Mbps
  • Network Interface - 10/100BaseT(X)
  • Duplex Mode - Full / Half Duplex
  • Auto Negotiation - Supported
  • Auto MDI/MDI-X - Supported
  • Data Switching - Store and Forward
  • Backplane Bandwidth - 1.6 Gbps
  • MAC Address Table - 2K Entries
  • Packet Buffer - 768 kbit
  • Power Supply - 12/24/48 VDC
  • Operating Voltage Range - 9.6–60 VDC
  • Power Inputs - 2 Redundant Inputs
  • Current Consumption - 0.13 A at 24 VDC

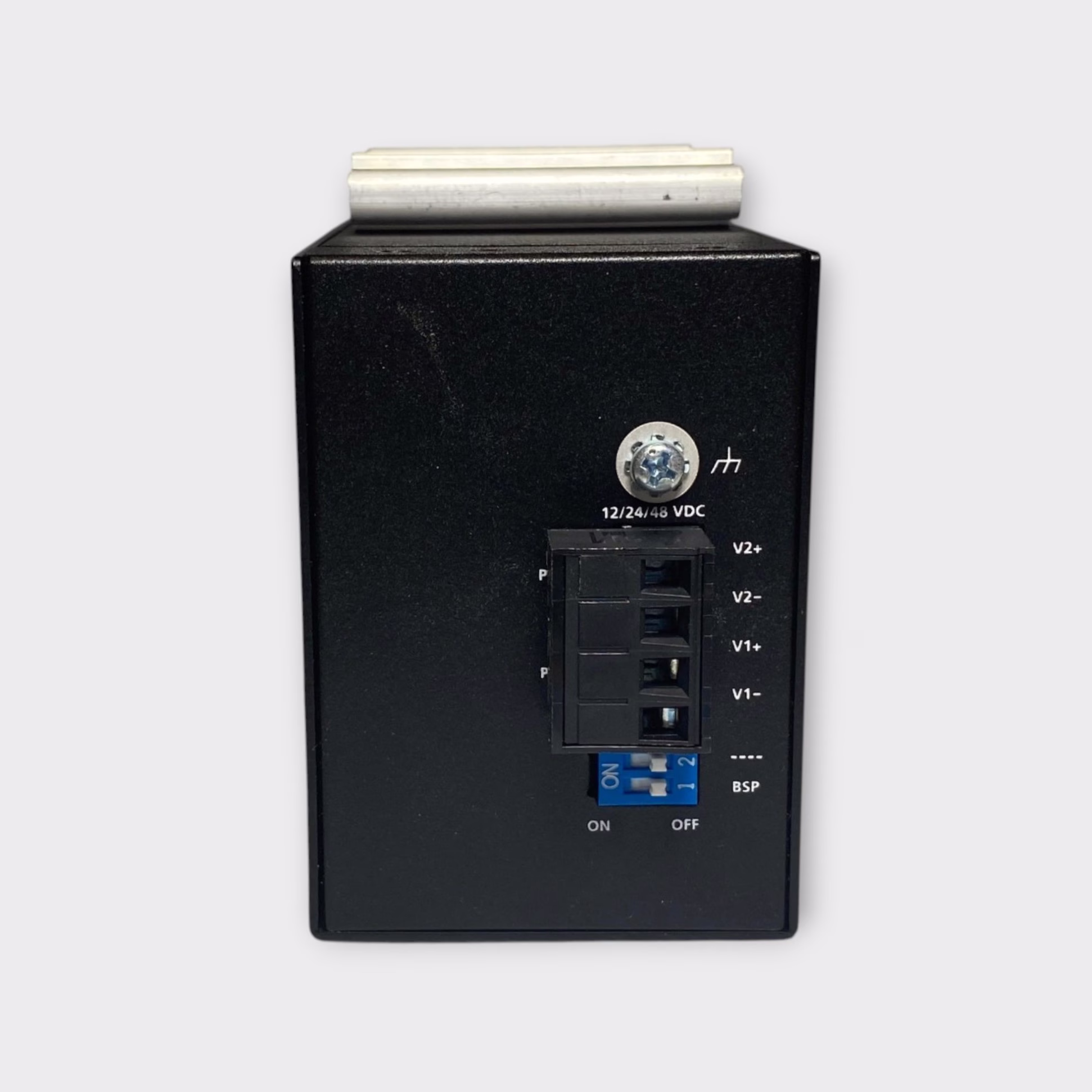

  • Power Connection - Removable 4-Pin Terminal Block
  • Reverse Polarity Protection - Yes
  • Broadcast Storm Protection - Supported
  • LED Indicators - PWR1, PWR2, Ethernet Port Status
  • Protection Rating - IP30
  • Housing Material - Aluminum

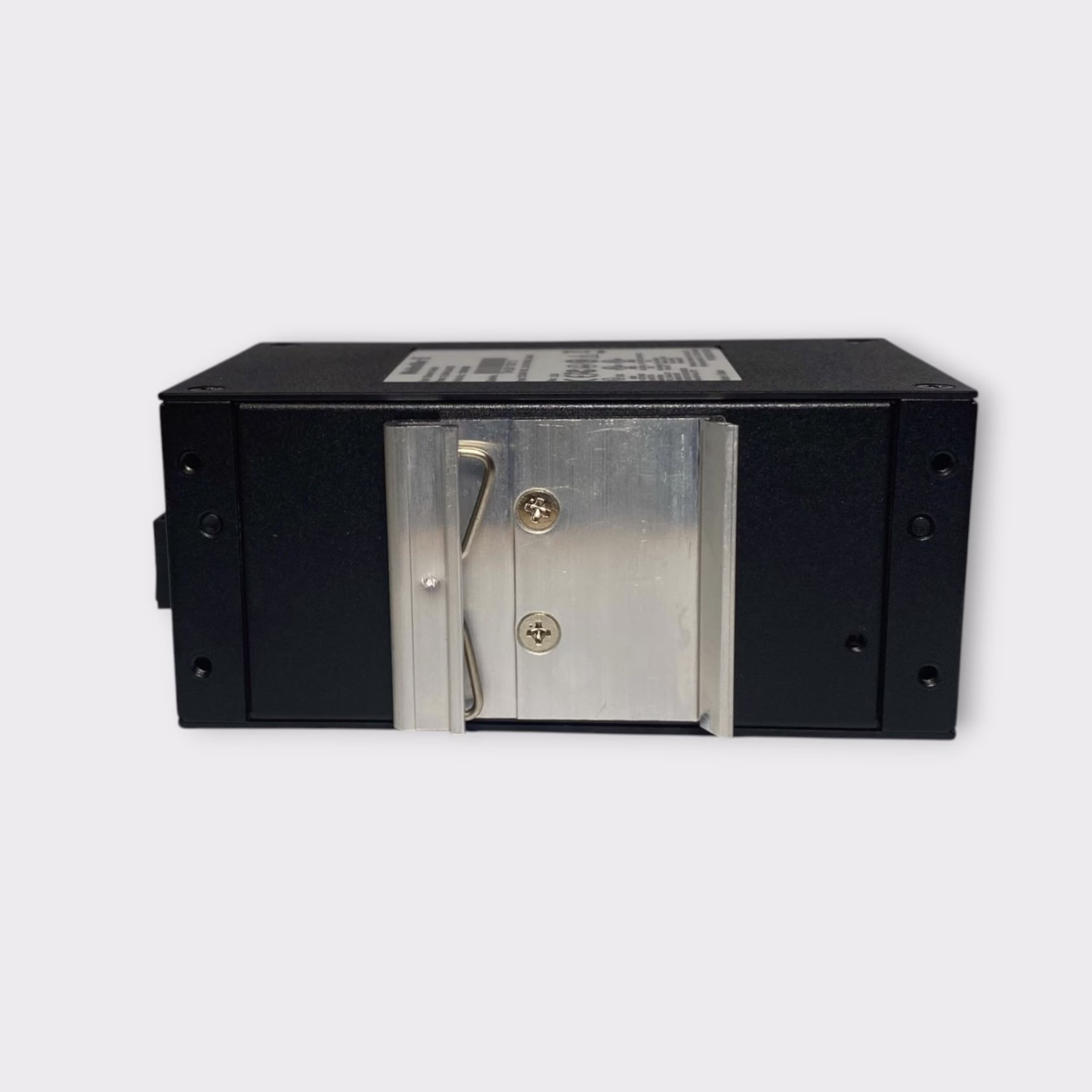

  • Mounting Type - DIN Rail
  • Operating Temperature - -10°C to +60°C
  • Storage Temperature - -40°C to +85°C
  • Humidity - 5–95% Non-Condensing
  • Dimensions (W x H x D) - 50 x 114 x 70 mm
  • Net Weight - 275 g
  • Certifications - CE, FCC, cULus, ATEX
  • Marine Certification - DNV
  • Country of Origin - Taiwan
  • GTIN / EAN - 4050118028911

What's Included:

  • (1) Weidmuller 1240900000 IE-SW-BL08-8TX Industrial Ethernet Switch

Compatible Parts:

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty

Dimensions: 5 × 3.5 × 2 in, Weight: 0.5 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout. Please be advised if the item is large or is a multi-piece shipment, shipping quotes may be inaccurate due to restrictions outside of our control, in those instances you will be contacted promptly.

Terms:

All items sold at Max Marine Electronics come as you see in the pictures provided, with only the parts and accessories stated in the description section named “What’s Included”. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE DESCRIPTION WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times when a display is used only to show the item being sold is functional and working properly. In this case, these displays are not included. If you have any questions feel free to reach out to Max Marine Electronics. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.

***PLEASE NOTE***Buyers outside the contiguous United States:
We strive to provide accurate shipping quotes at checkout. However, for satellites, radars, large items, or multi-piece shipments, system and carrier limitations may sometimes result in incorrect estimates. If this happens with your order, our team will reach out to you right away to ensure you receive the best possible shipping solution. Your satisfaction is our priority!
