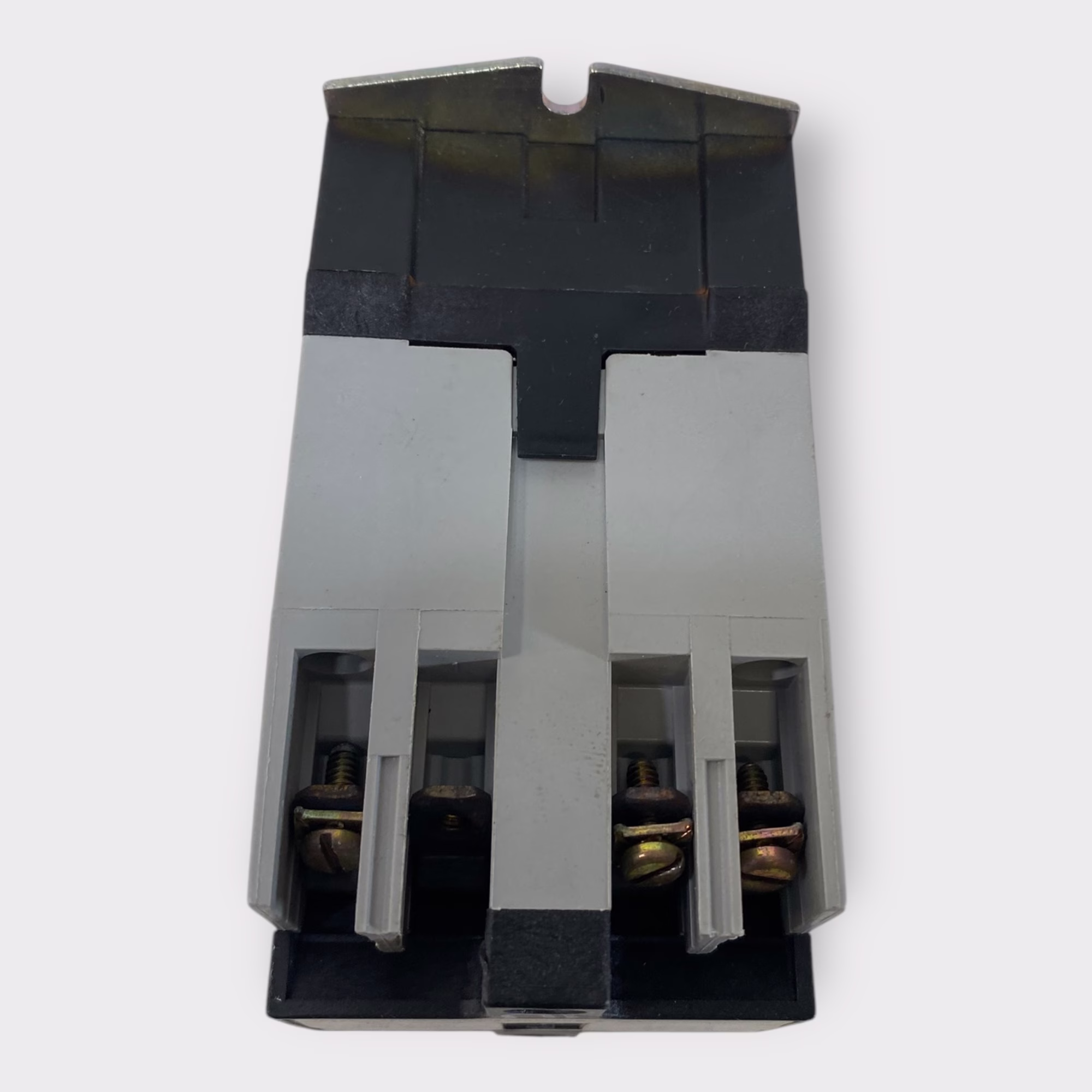

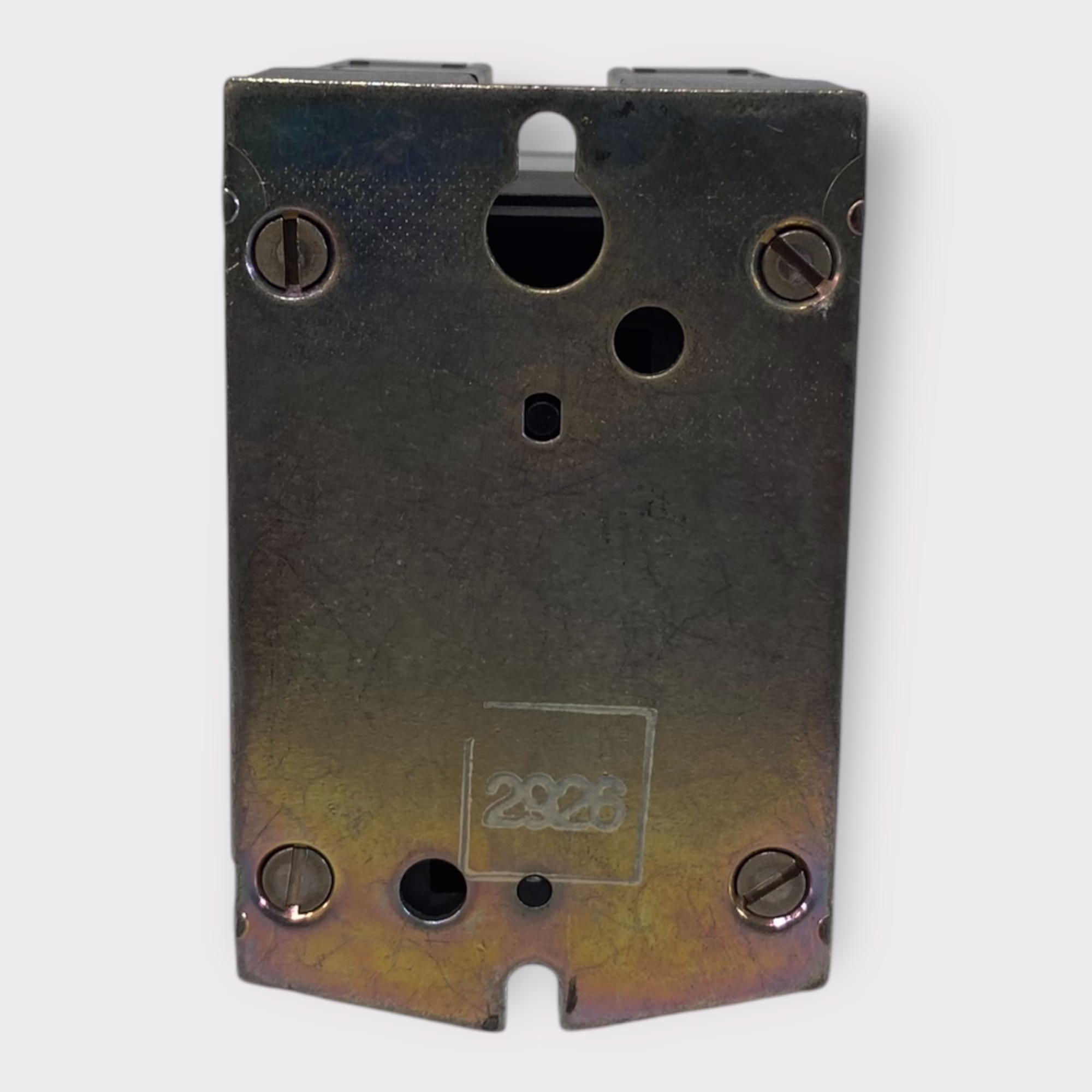

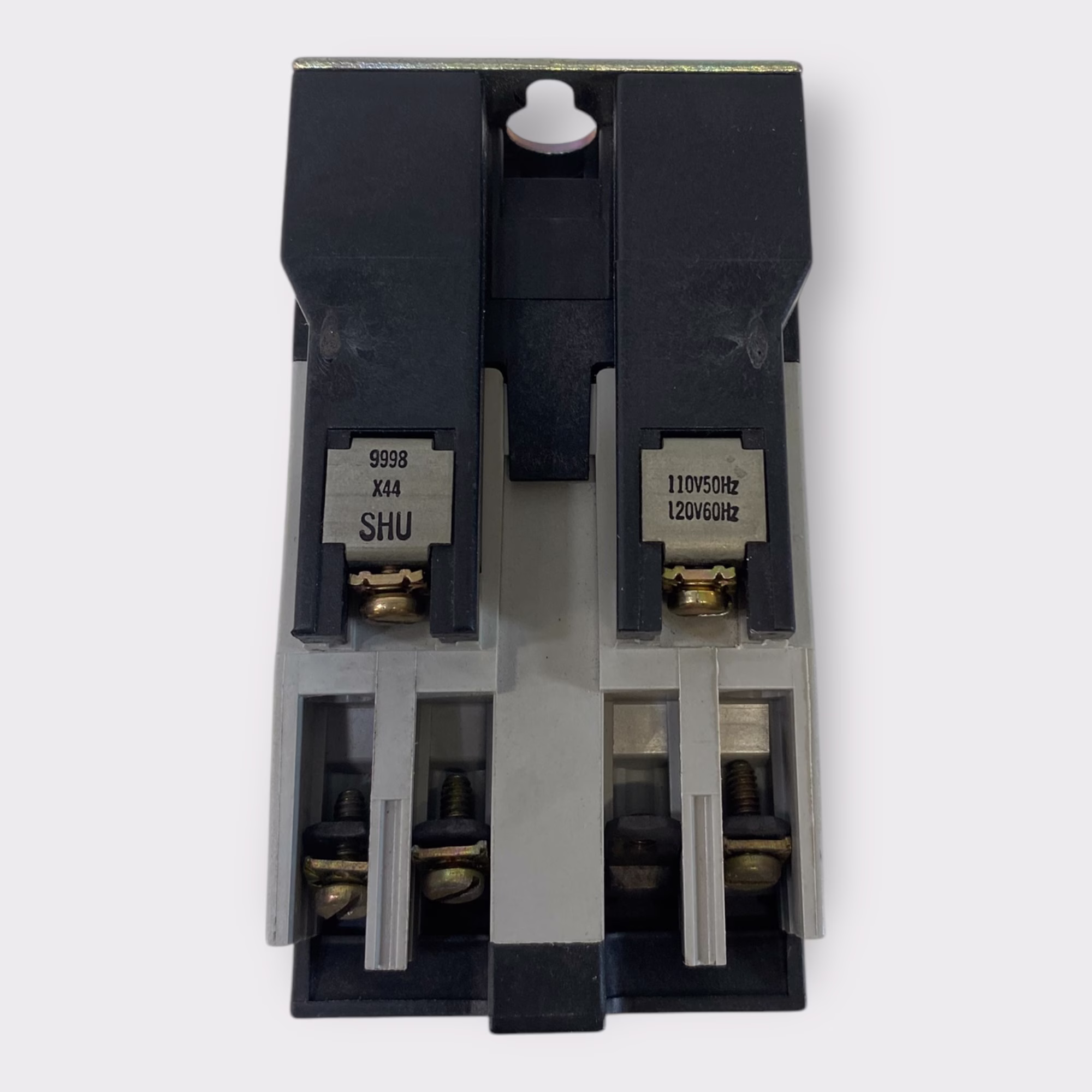

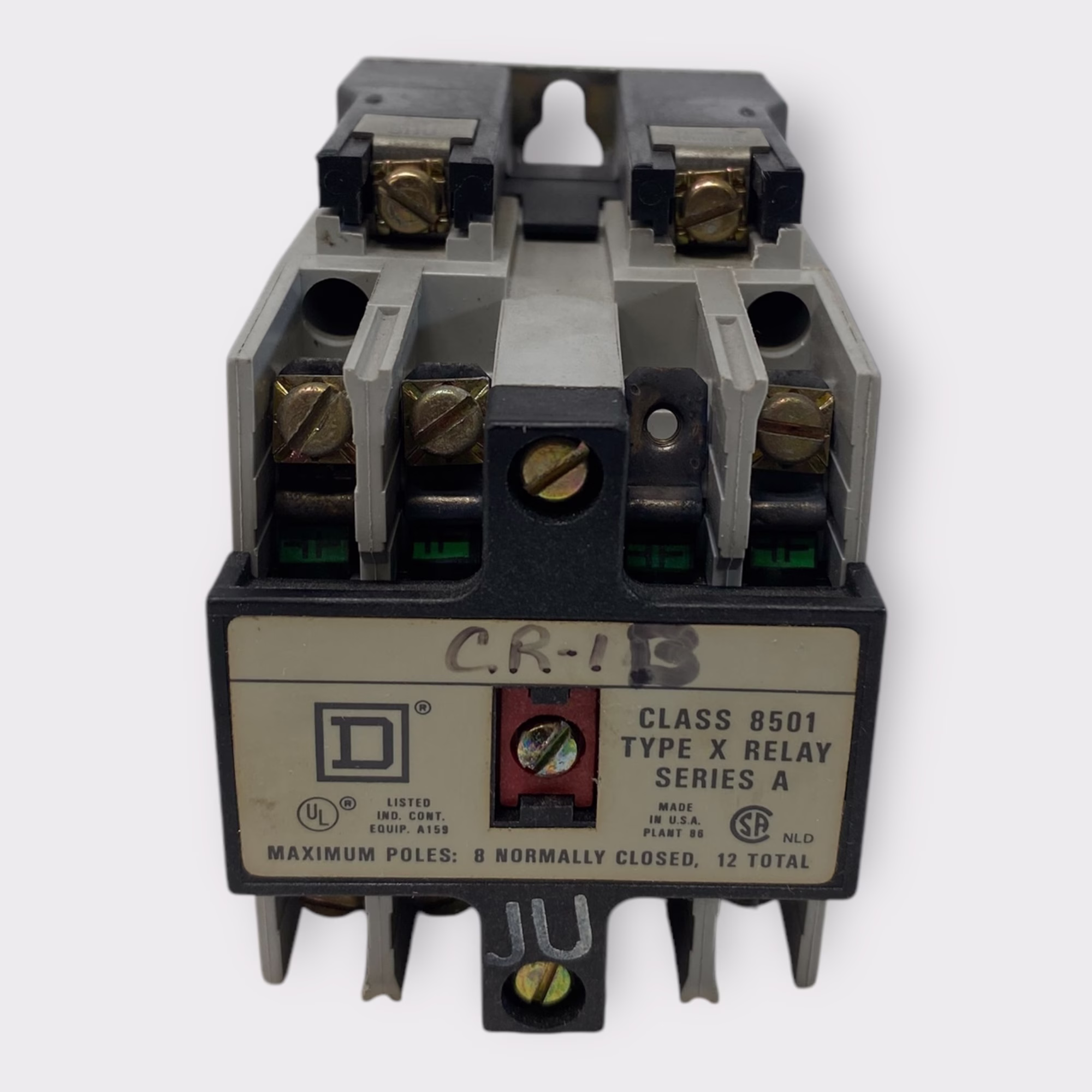

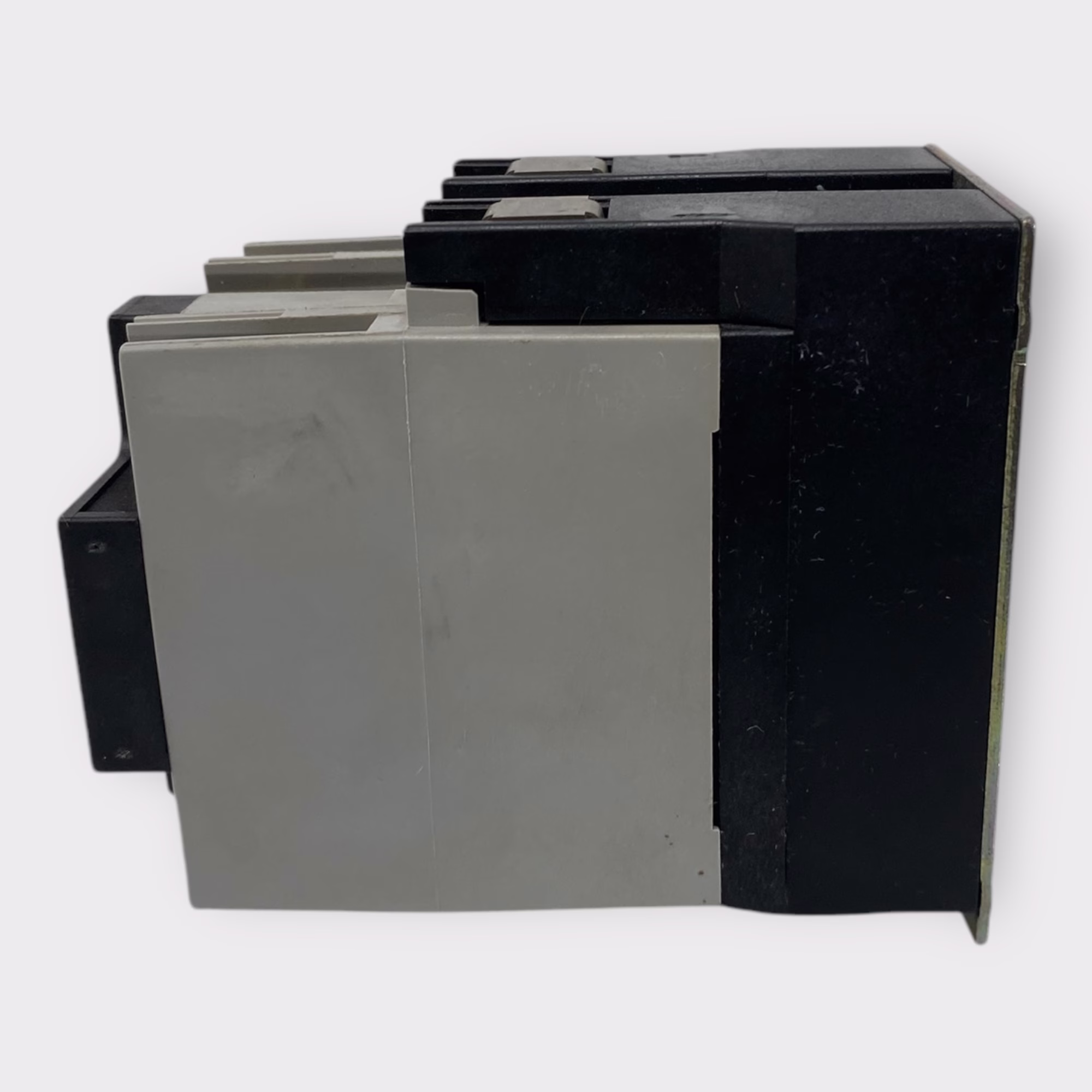

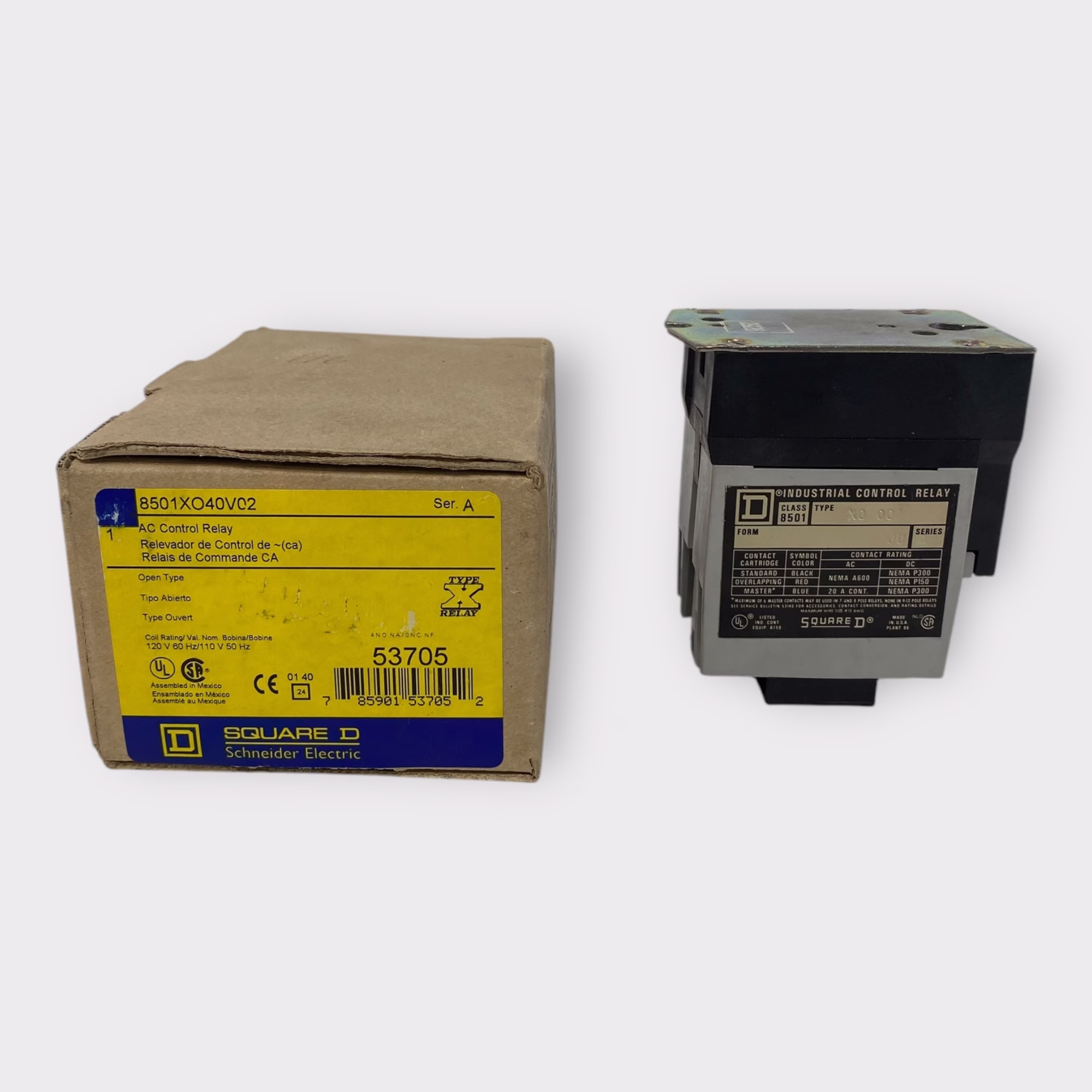

Square D 8501XO40V02 Industrial AC Control Relay 120V 60Hz/110V 50Hz Series A

$67.99

This item is new and has never been used. It may be unused in its original packaging, be old stock, new open-box, new out of box, or never installed. Packaging might be missing, opened, or show minor damage. The item is fully functional and includes all accessories shown in the listing and images, unless otherwise noted.
SKU: 681499
  • Free Shipping Lower 48

    Free Shipping Lower 48

Manufacturer: Square D

Model Number: 8501XO40V02

Series: A

Condition: New

Additional Notes: This listing is for a Square D 8501XO40V02 Industrial AC Control Relay 120V 60Hz/110V 50Hz Series A

Specifications:

Relay Style: NEMA
Relay Mounting Style: Surface
Coil Voltage: 110/120V AC
Input Voltage: 110/120V AC
Current Rating: 10 A
Contact Form: 4NO
Contact Material: Silver Cadmium Oxide
Contact Rating: (AC)10 A @ 600V
Contact Rating: (DC)

  • 0.2 A @ 301-600V
  • 0.55 A @ 250V
  • 0.8 A @ 250V
  • 1.1 A @ 125V
  • 4 A @ 125V
Power Consumption: 23 VA
Electrical Connection Type: Screw
Number of Terminals: 10
Lead Size:18 AWG
Response Time:15 msec (Pick-Up Time); 16 msec (Drop-Out Time)
Minimum Operating: Temperature-40 °F
Maximum Operating: Temperature160 °F
Frequency: 50/60 Hz
Relay Frame Size: Standard
Body Height: 3.5 in
Body Width: 2.23 in
Body Depth: 3.95 in
StandardsCSA Certified; RoHS Compliant; UL Listed
UNSPSC39121515
Country of Origin Mexico

**Item is new in original packaging**

What’s Included:

  • QTY 1 Square D 8501XO40V02 Industrial AC Control Relay 120V 60Hz/110V 50Hz Series A

Dimensions (L x W x H): 6 x 4 x 3 in. Weight: 2lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
