Summary

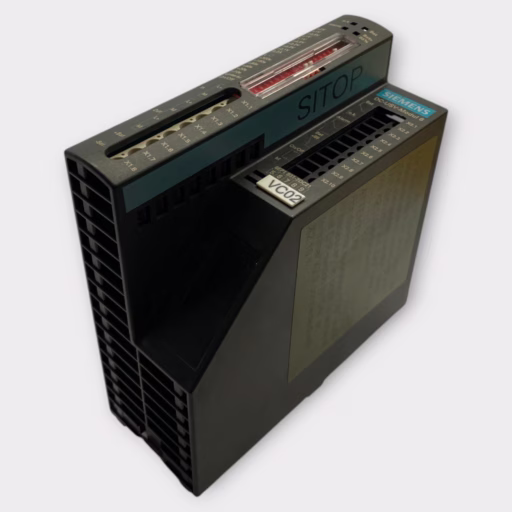

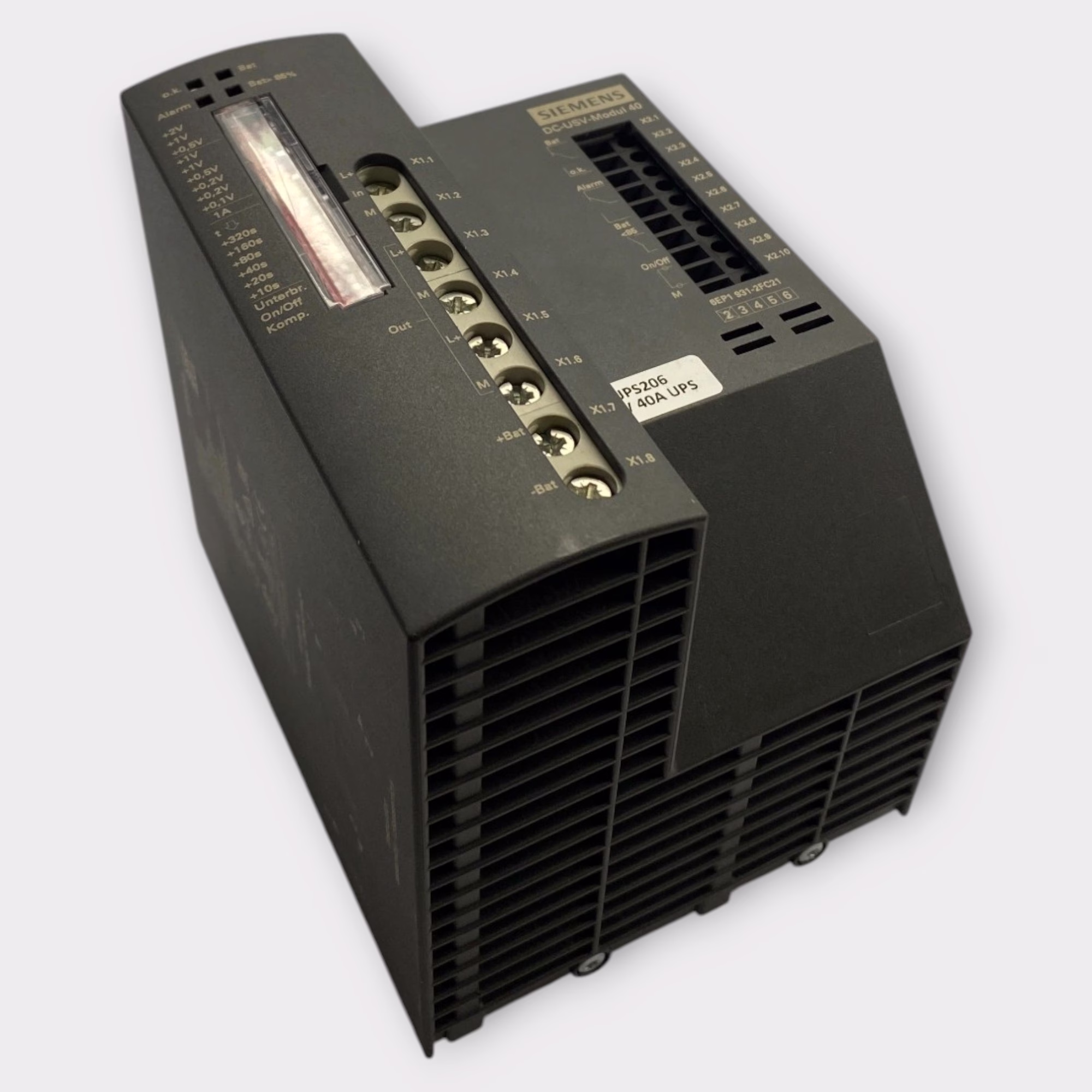

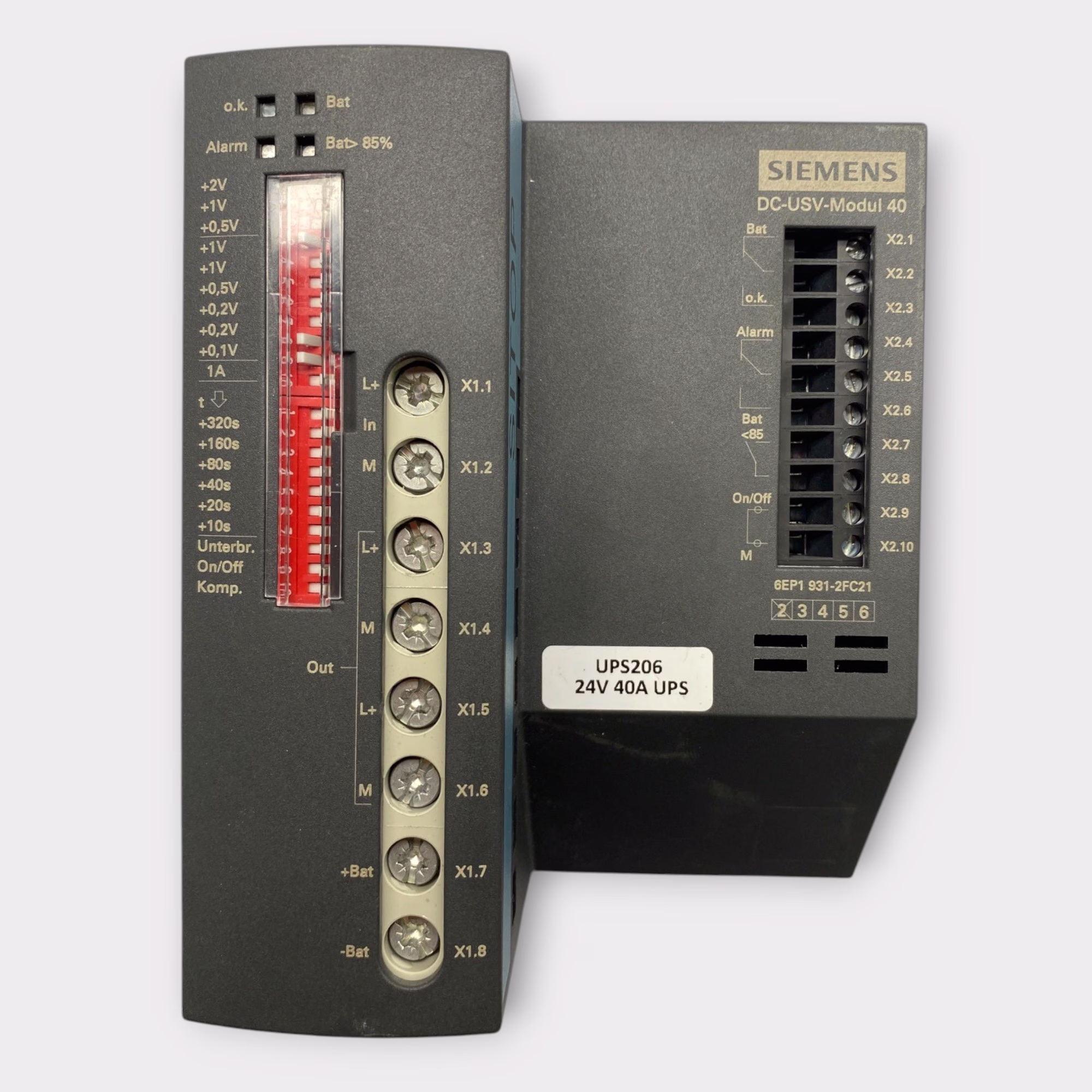

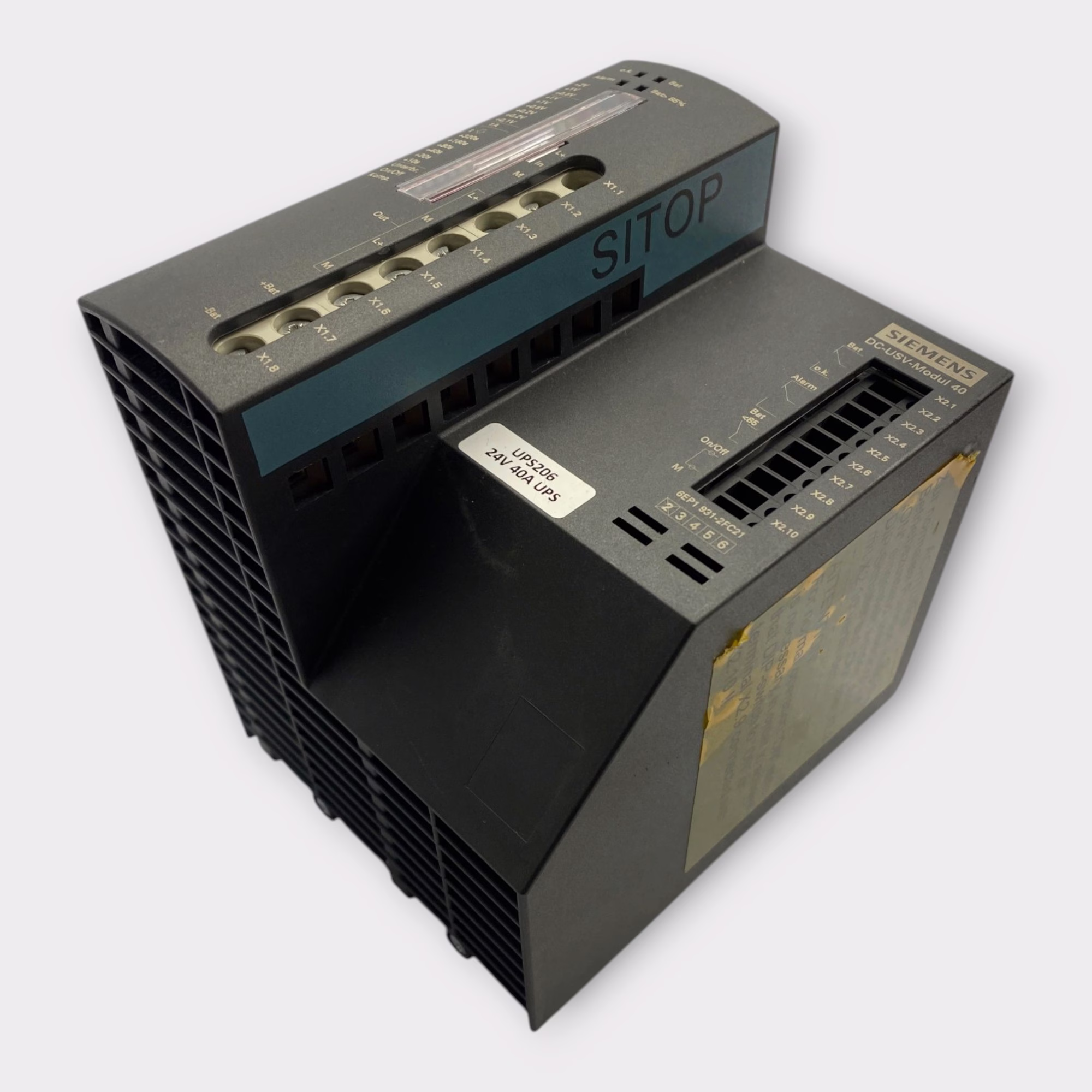

Siemens 6EP1931-2FC21 SITOP DC UPS module designed to provide reliable 24VDC uninterruptible power for industrial control and automation systems. Provides up to 40A output and operates with an external battery module for backup power during supply interruptions.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

Listing is for Module only, does not include any instructions, installation screws, or original box.

Product Description

The Siemens 6EP1931-2FC21 is a high-capacity SITOP DC UPS module designed for industrial 24VDC power backup applications. It provides a 24VDC/40A output with up to 960W of active output power and supports external battery energy storage to maintain connected equipment during power interruptions.

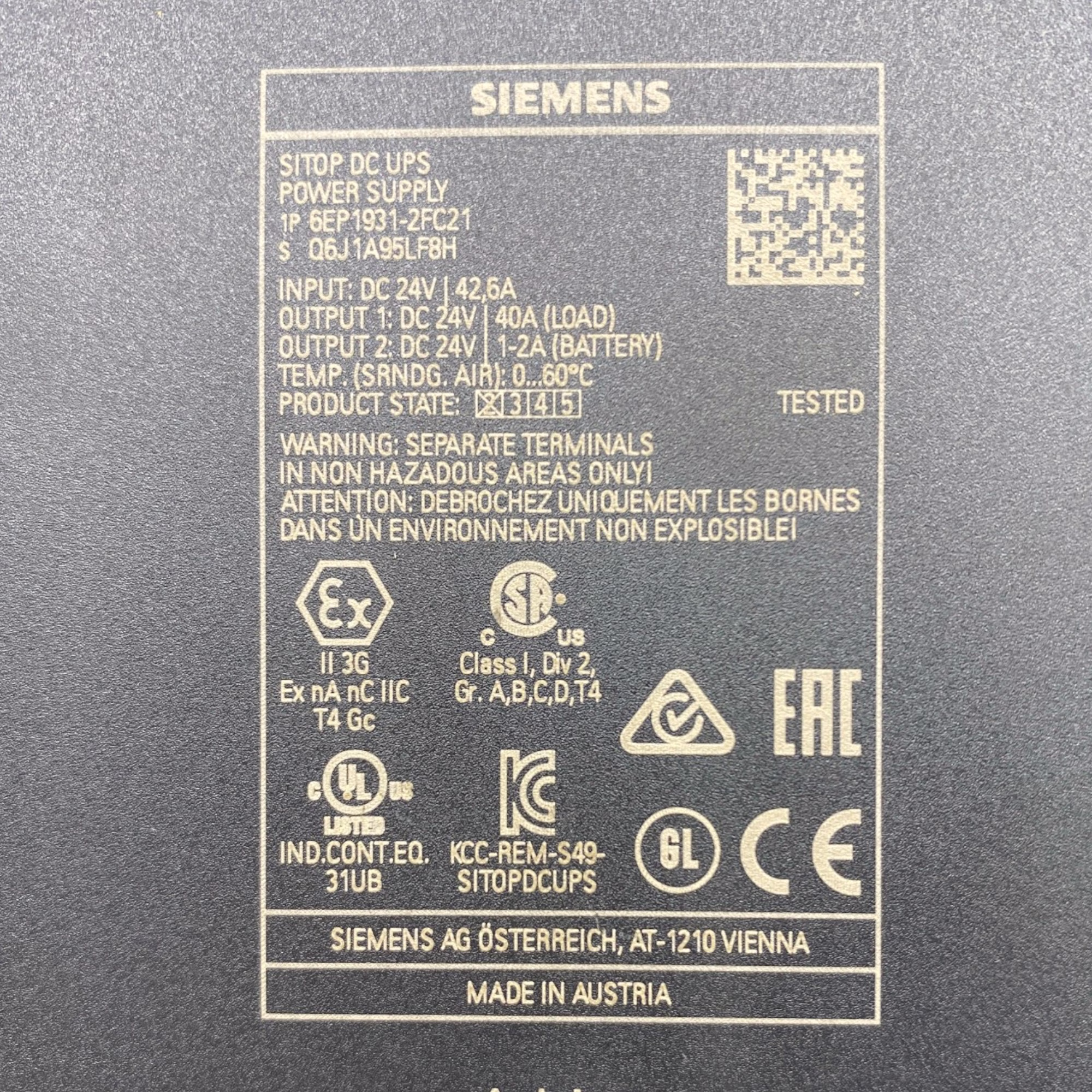

Product Information:

- Manufacturer - Siemens
- Model Number - 6EP1931-2FC21
- Series - SITOP DC UPS
- MPN - 6EP1931-2FC21
- Product Type - DC UPS Module
- Power Supply Type - Uninterruptible DC Power Supply
- Interface - Without Interface
- Rated Input Voltage - 24VDC
- Input Voltage Range - 22–29VDC
- Input Current - 40A + Approx. 2.6A with Depleted Energy Storage
- Rated Output Voltage - 24VDC
- Output Voltage in Buffering Mode - 19–28.5VDC
- Rated Output Current - 40A
- Output Current in Normal Operation - 0–40A
- Output Current in Buffering Mode - 0–40A
- Peak Output Current - 42A
- Charging Current - 1A / 2A
- Energy Storage Type - External Battery
- Typical Active Output Power - 960W
- Efficiency at Rated Output - 97.2%
- Efficiency During Battery Operation - 96.9%
- Typical Power Loss at Rated Output - 28.6W
- Typical Power Loss During Battery Operation - 33.6W
- Typical Startup Delay - 1 Second
- Typical Output Voltage Rise Time - 360ms
- Reverse Polarity Protection for Energy Storage - Yes
- Net Weight - 1.0 kg / 2.20 lb
- Package Dimensions - 16 x 14 x 11 cm
- EAN - 4025515151227
- UPC - 662643298444
- Commodity Code - 85044060
- Product Status - Phase-Out
- Replacement Model - 6EP4137-3AB00-0AY0
