Summary

This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new(other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy.

This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

Product Description

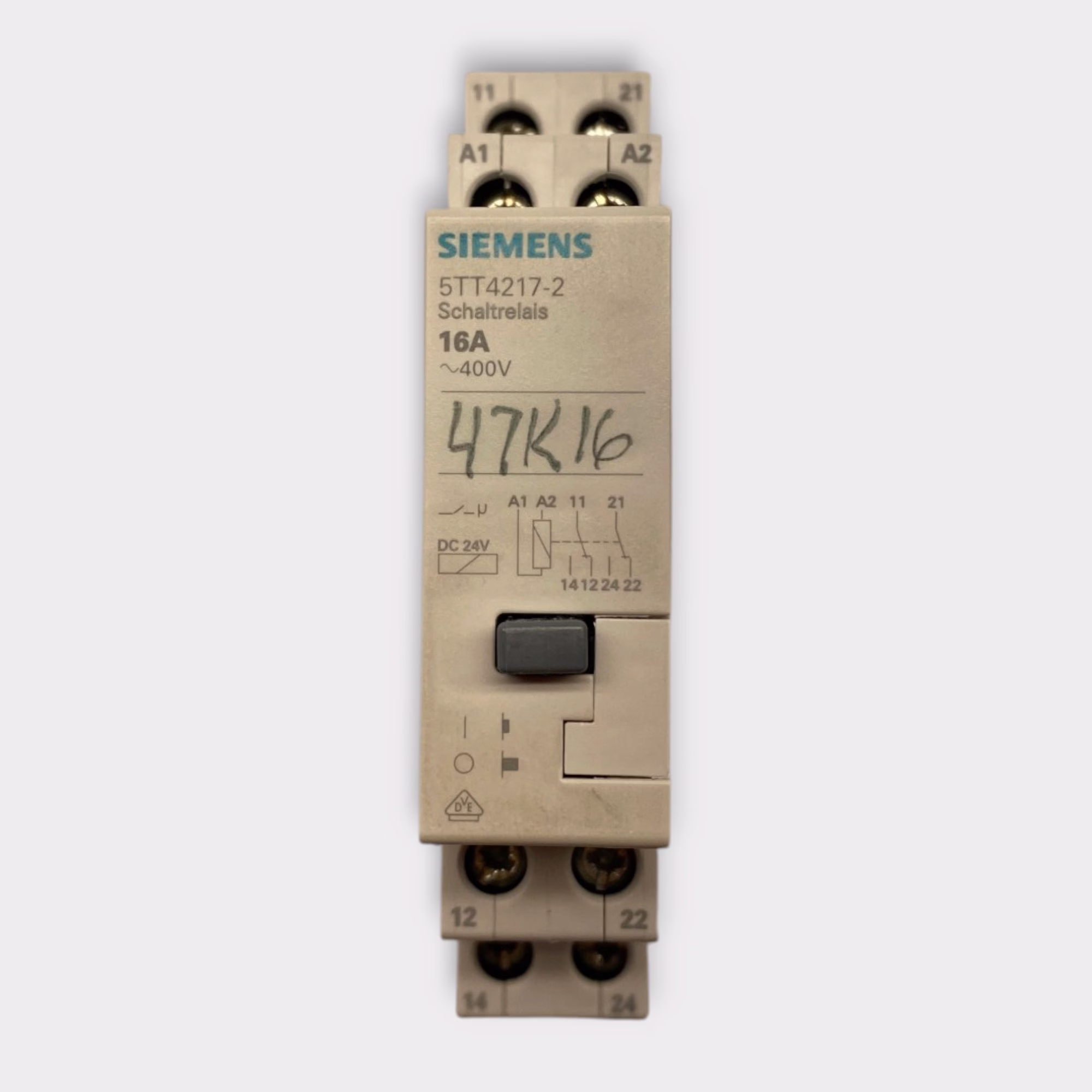

The Siemens 5TT4217-2 is a SENTRON series switching relay designed for industrial electrical control, automation, and switching applications. It features two changeover contacts (2 CO), a 16A rated switching current, and a 24V DC control coil.

The relay features a compact 18mm-wide modular housing, screw terminals, manual operating control, and DIN rail mounting. It provides galvanic isolation between the control coil and switching contacts and is suitable for electrical control cabinets and distribution panels.

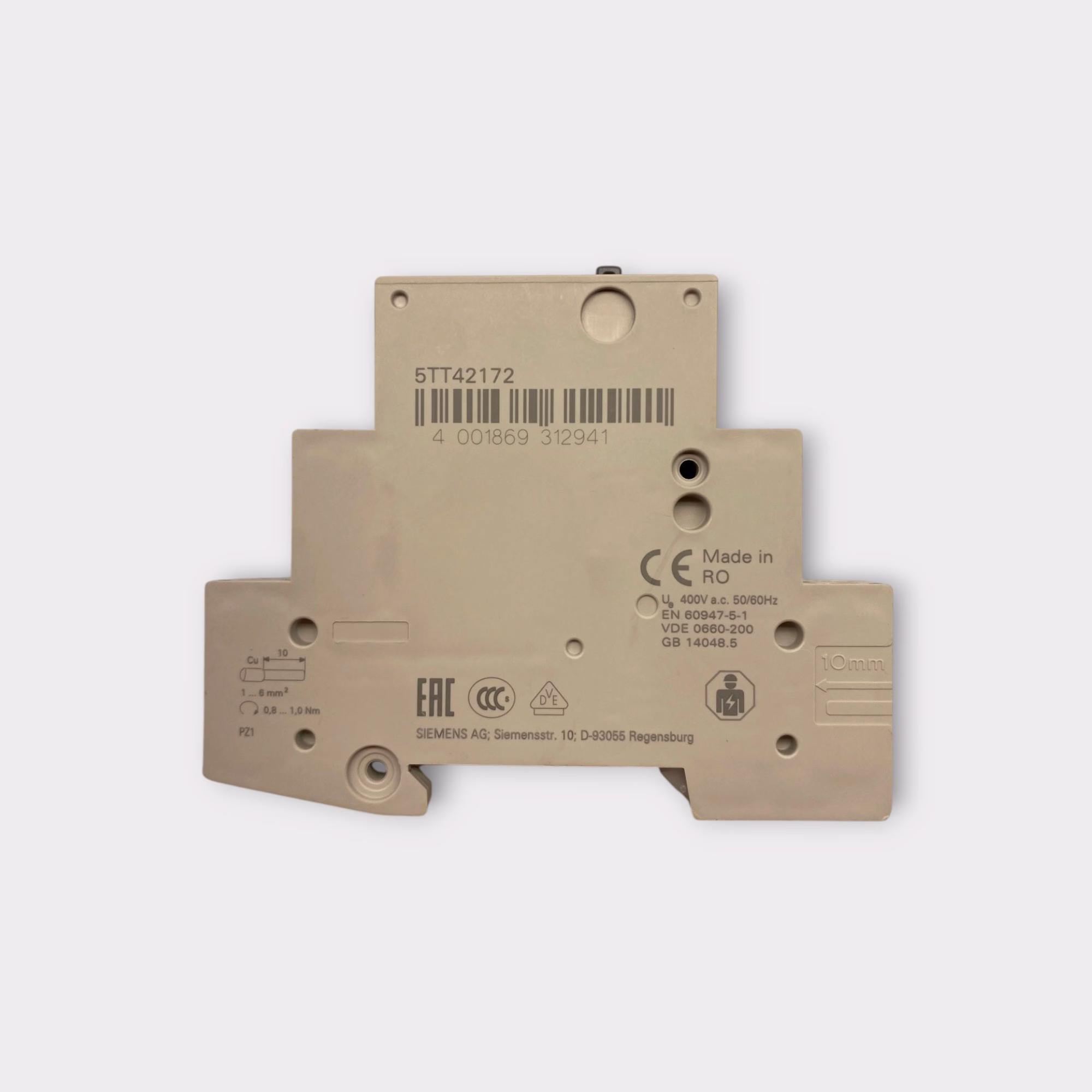

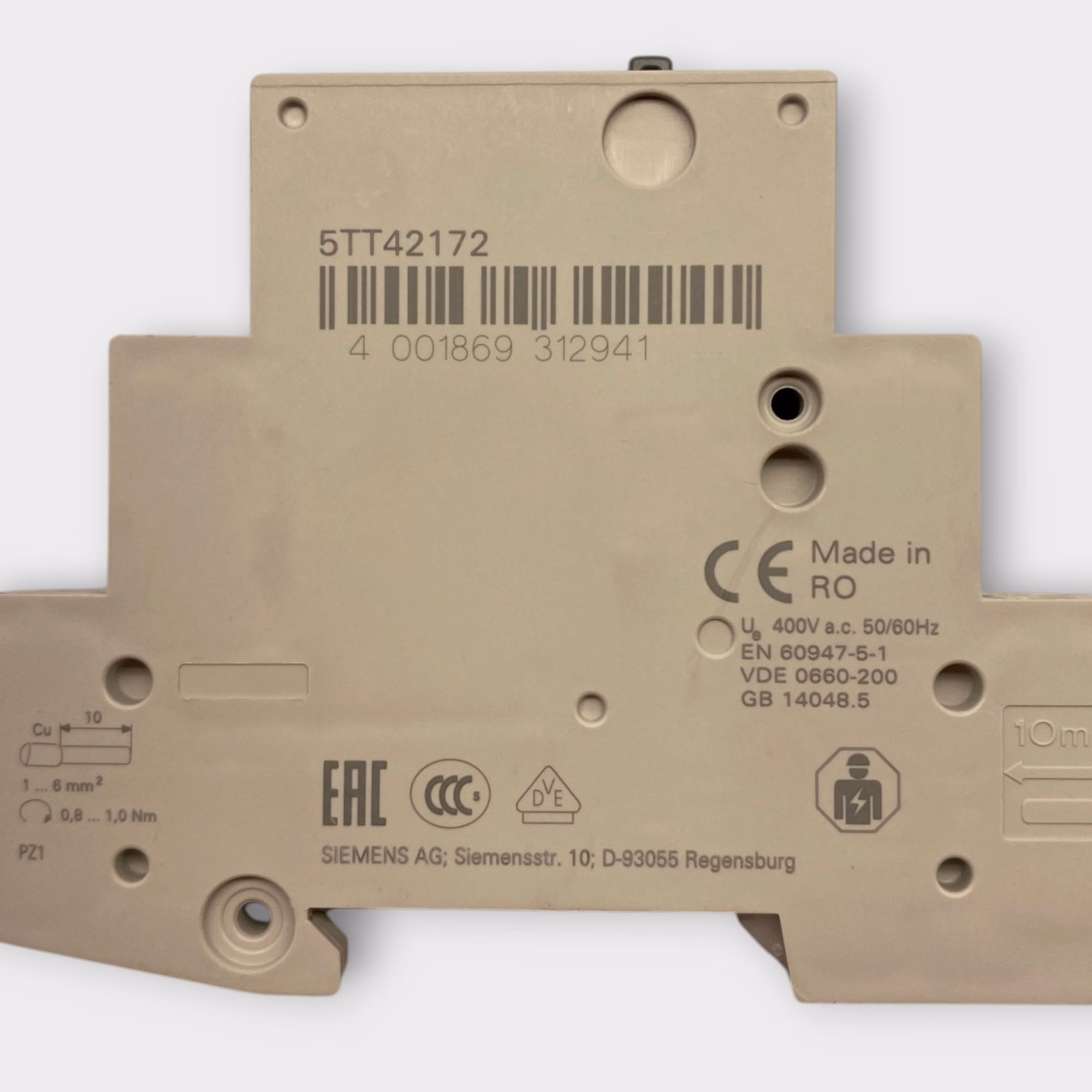

Manufactured in Romania, this Siemens switching relay is rated for switching applications up to 400V AC.

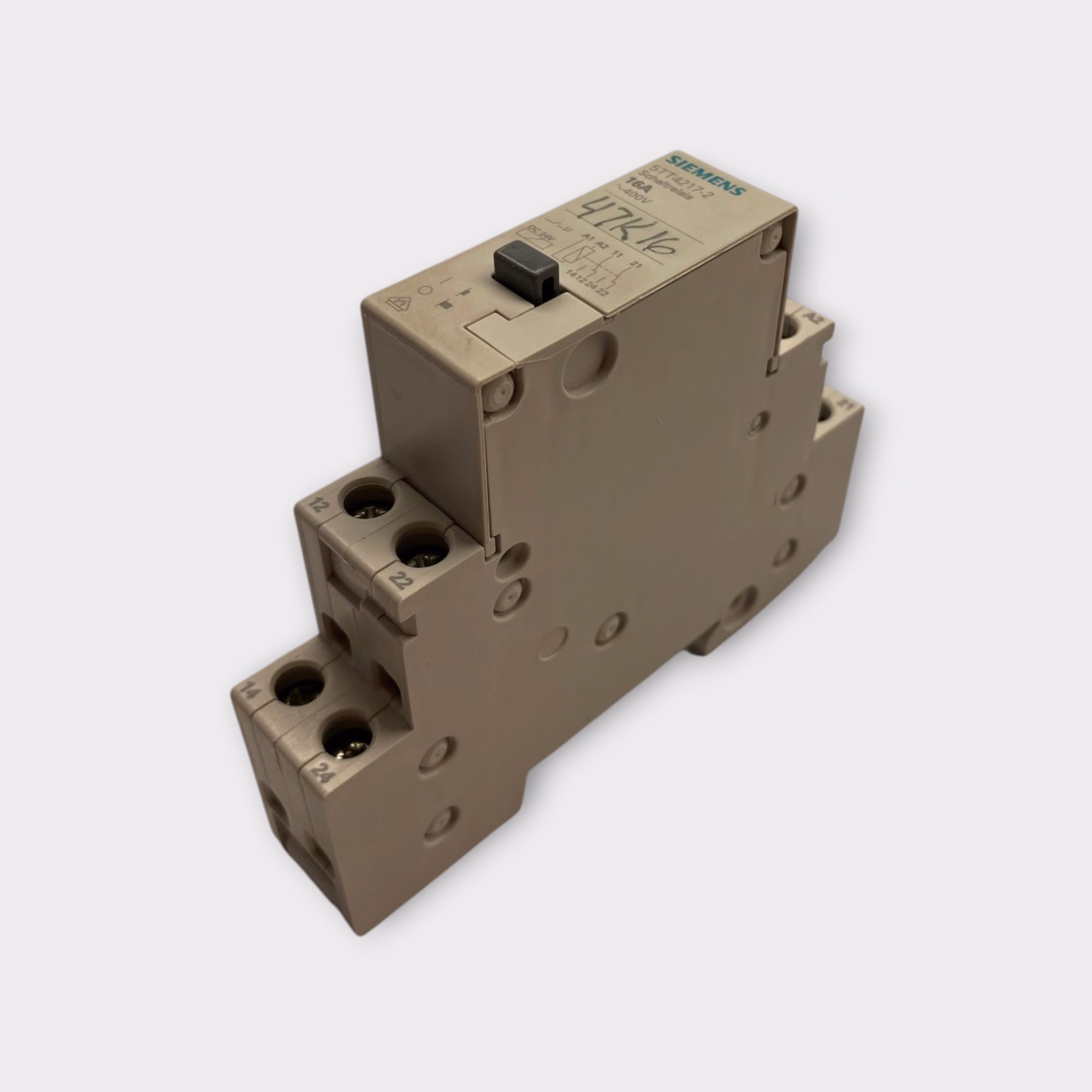

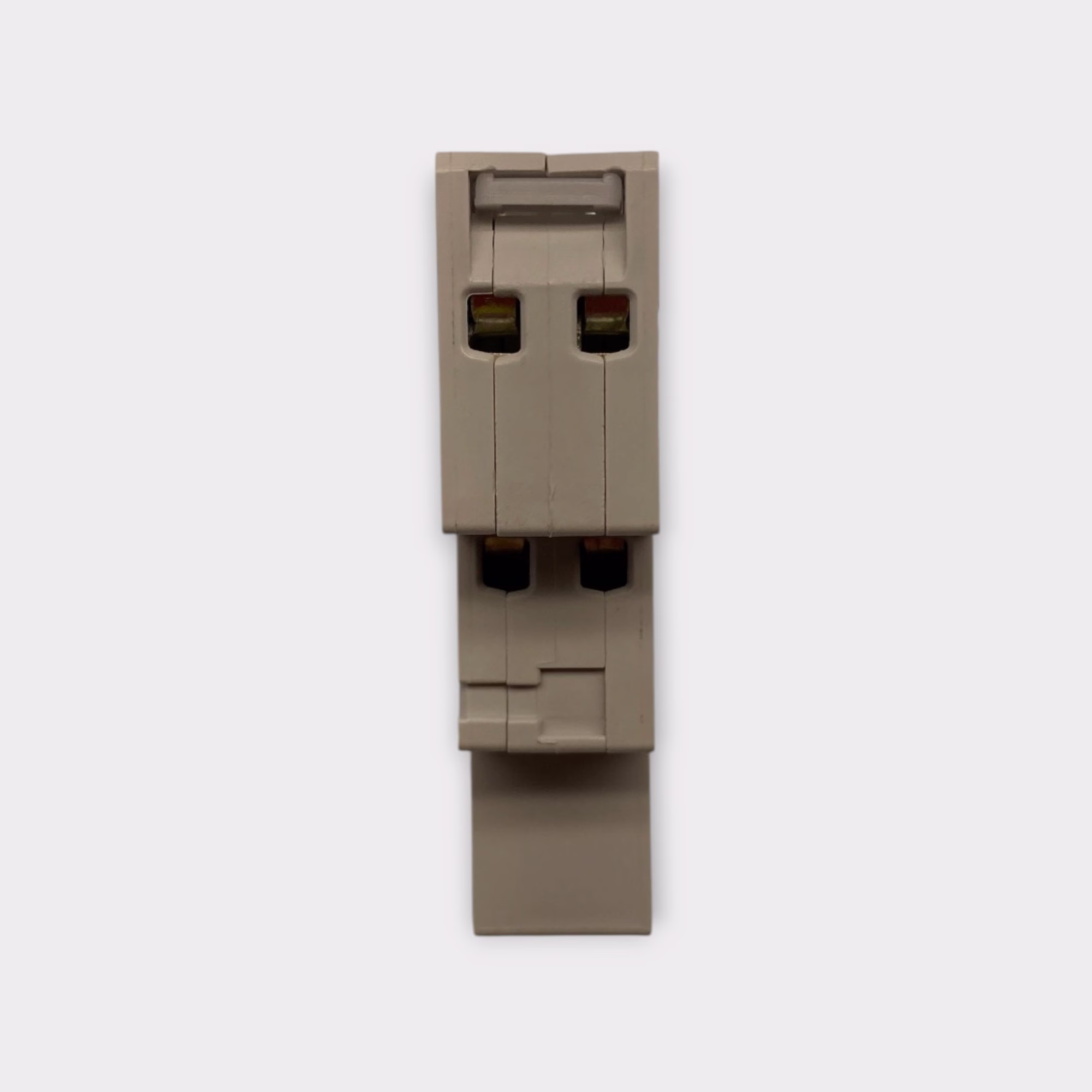

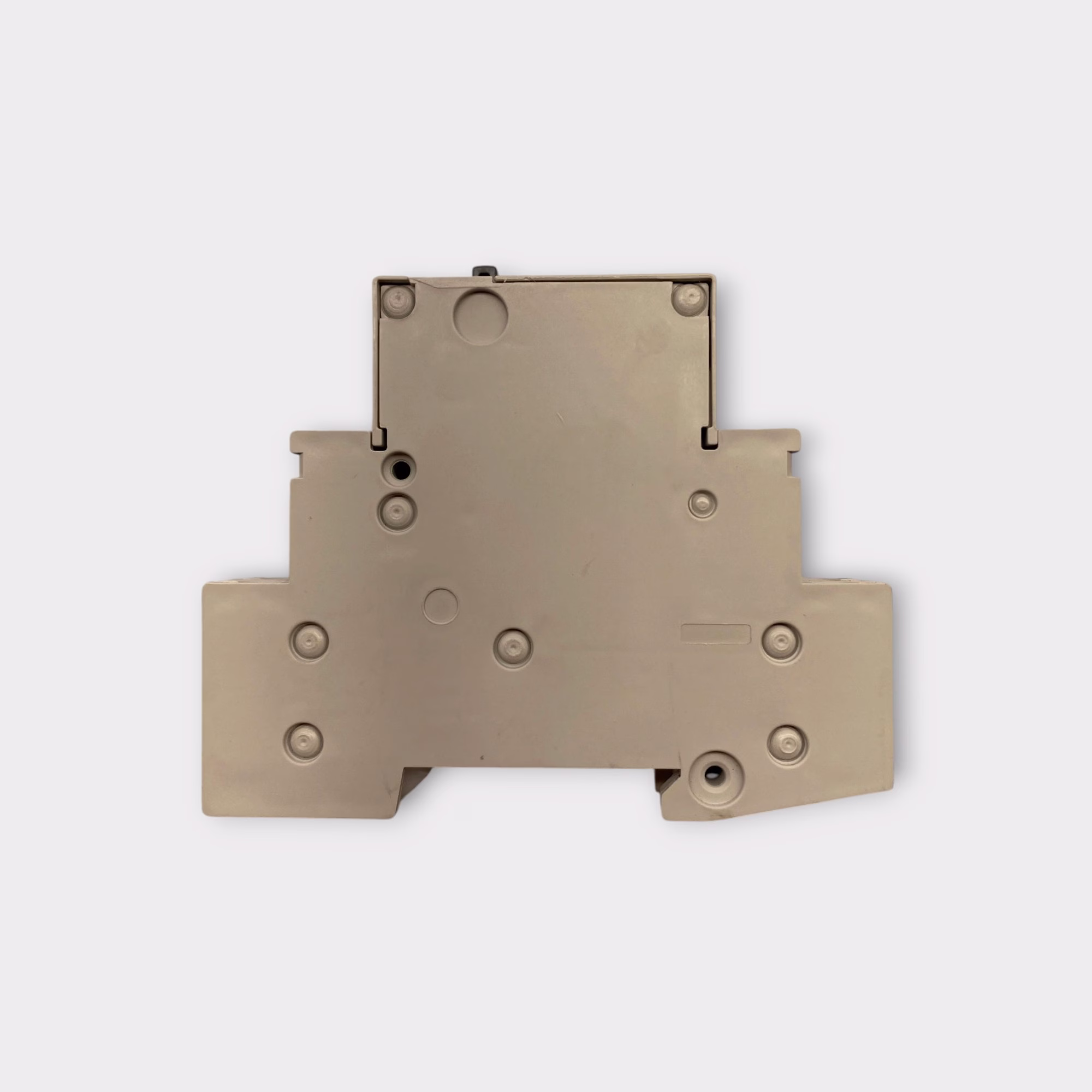

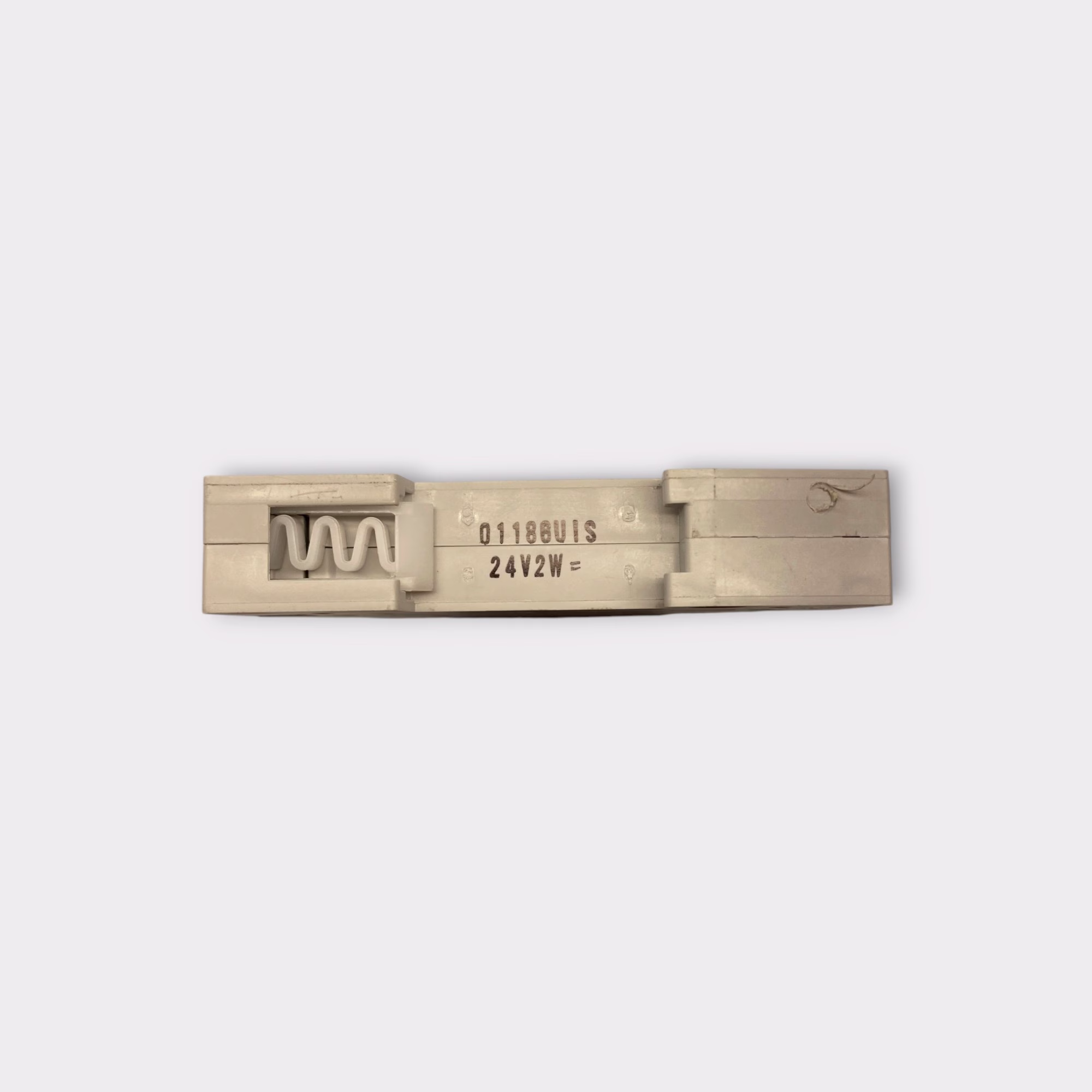

This listing includes the Siemens switching relay only. No original box, instructions, manuals, wiring, or additional accessories are included. Please review the photos for the item's cosmetic condition and configuration. Some switching relays have marker writing on product, this was done during staging. Maybe removable, but sold as is. Product is new never used.

Product Information:

- Manufacturer - Siemens
- Model Number - 5TT4217-2
- Series - SENTRON
- MPN - 5TT4217-2
- Product Type - Switching Relay
- Relay Design - Partially Electronic
- Contact Configuration - 2 Changeover (2 CO)
- Number of Changeover Contacts - 2
- Control Coil Voltage - 24V DC
- Rated Operational Current - 16A
- Rated Operating Voltage - 400V AC
- Operating Frequency - 50Hz
- Rated Surge Voltage Resistance - 4kV
- Electrical Endurance - 50,000 Operating Cycles
- Galvanic Isolation - Yes
- Coil Power Loss - 1.7W
- Power Loss at 16A - 1W Per Contact
- Protection Rating - IP20 with Connected Conductors
- Terminal Type - Screw Terminals
- Compatible Conductor Cross-Section - 1–6 mm²
- Mounting Type - DIN Rail
- Mounting Position - Any
- Modular Width - 1 Module
- Dimensions - 90 x 18 x 76 mm
- Installation Depth - 70 mm
- Net Weight - 150 g
- Operating Temperature - -10°C to +40°C
- Standard - EN 60947-5-1
- Country of Origin - Romania
- Condition - New Old Stock / New (Other)
- Quantity - 1

Included:

- Siemens 5TT4217-2 SENTRON Switching Relay Only

Not Included:

- Original Box
- Instructions / Manuals
- Wiring
- Additional Accessories
