Summary

This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new(other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy.

• This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

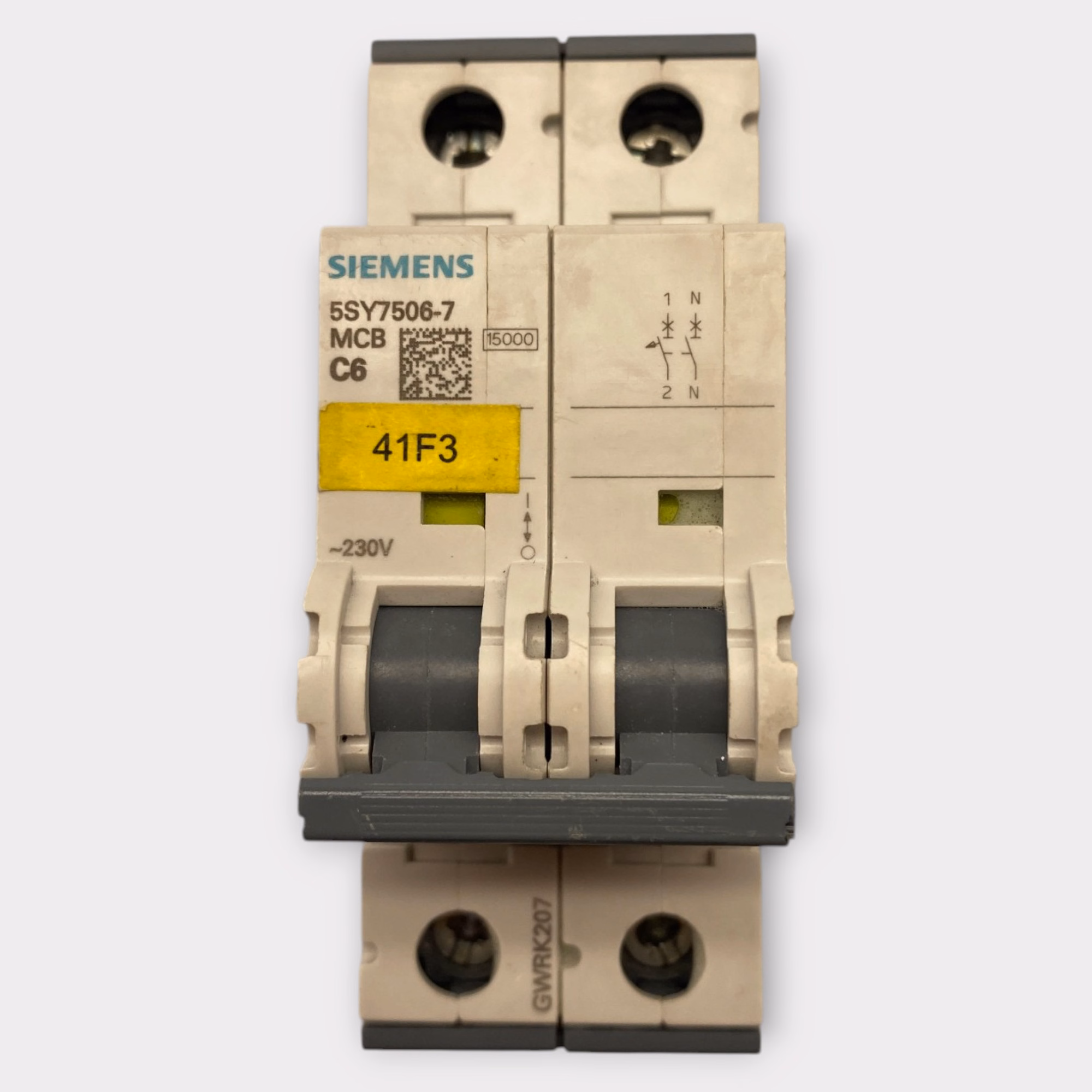

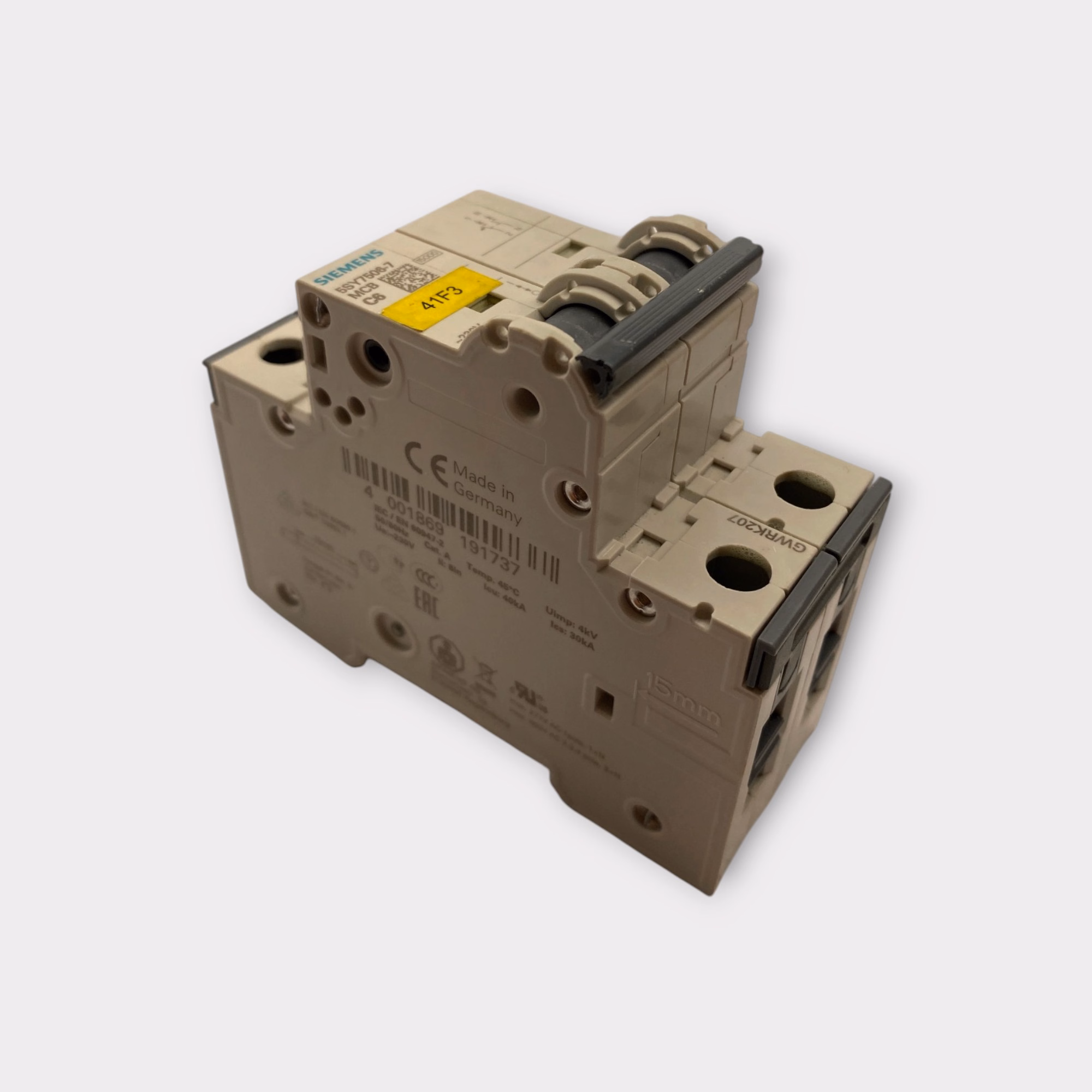

• Item includes the Siemens 5SY7506-7 miniature circuit breaker shown. No original box, instructions, or additional accessories are included.

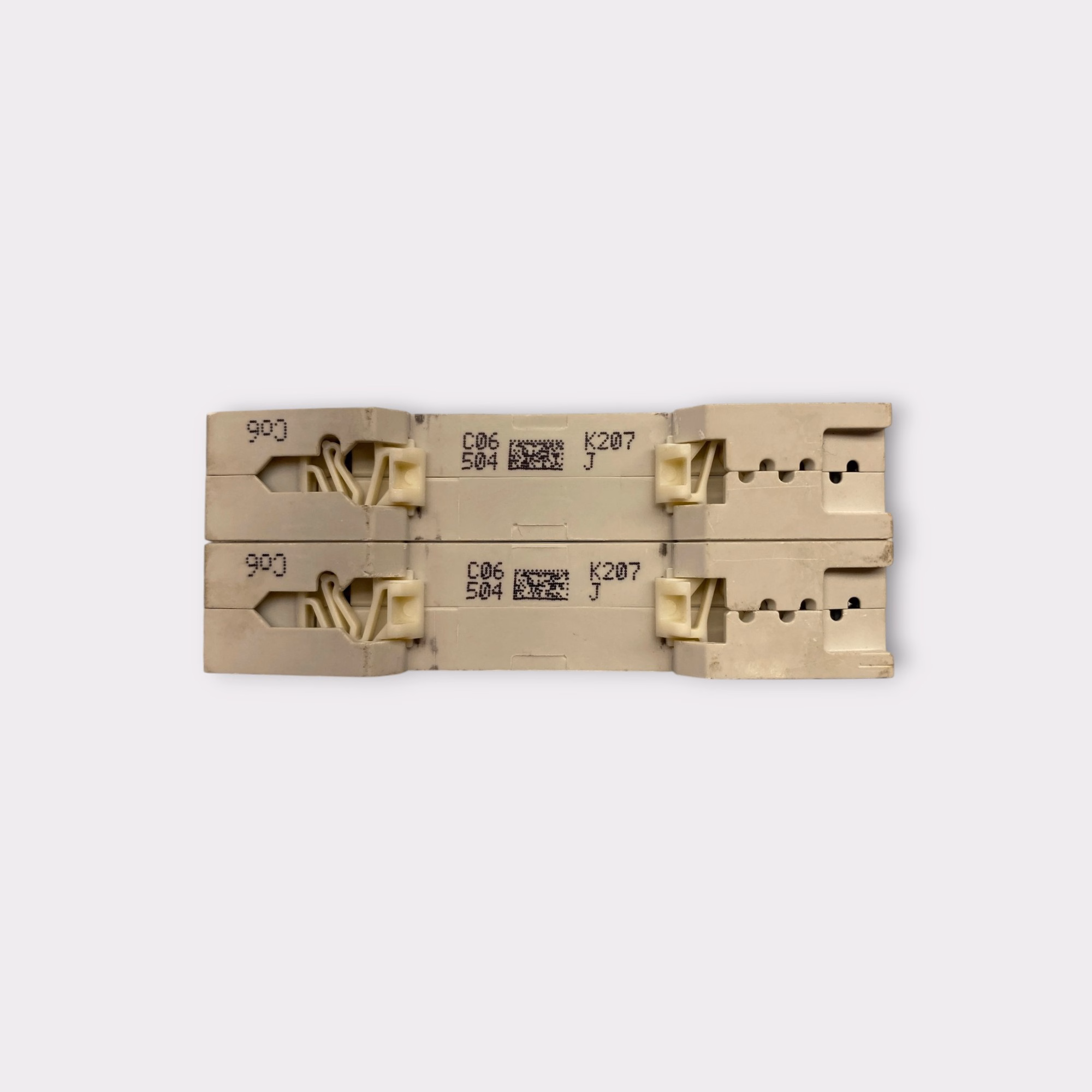

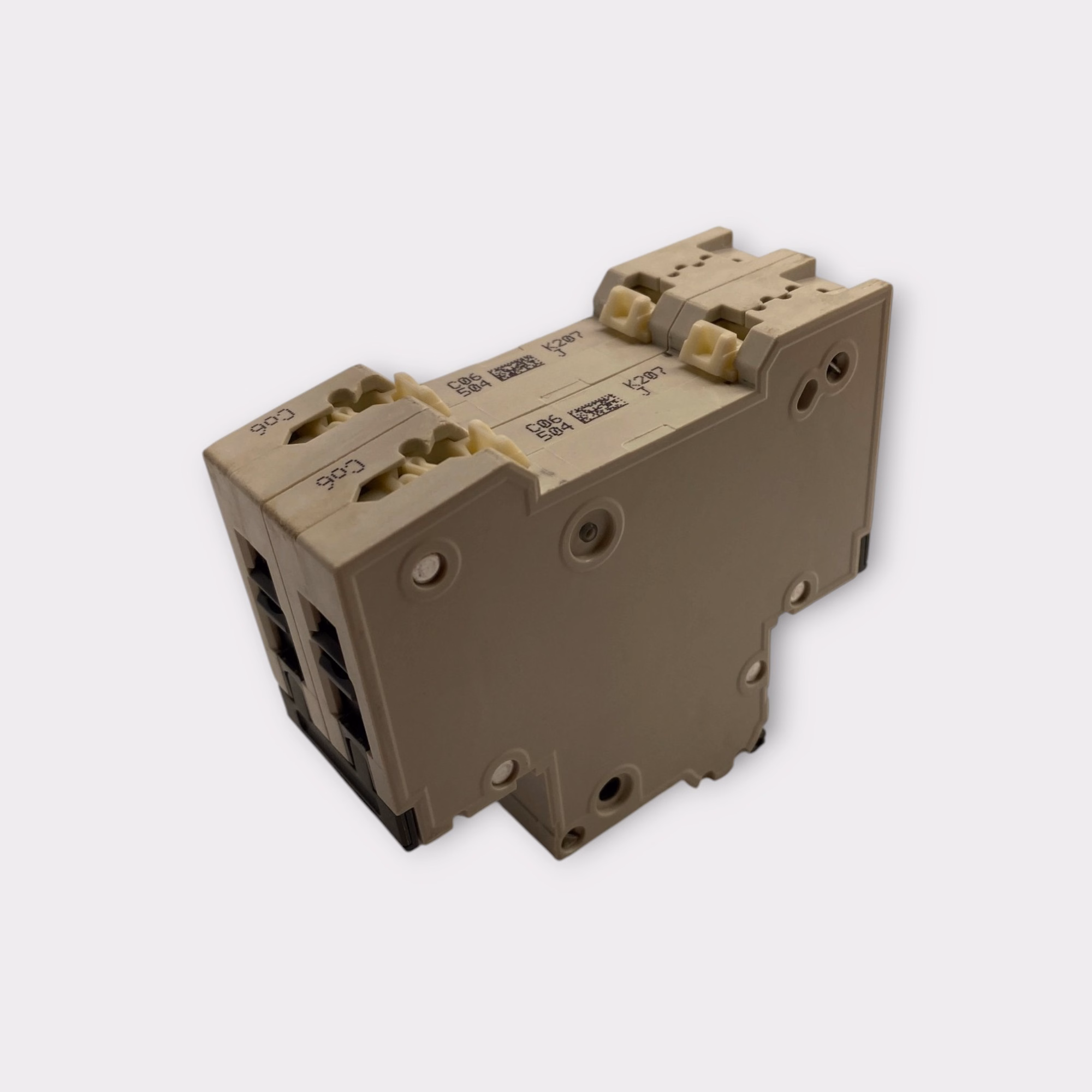

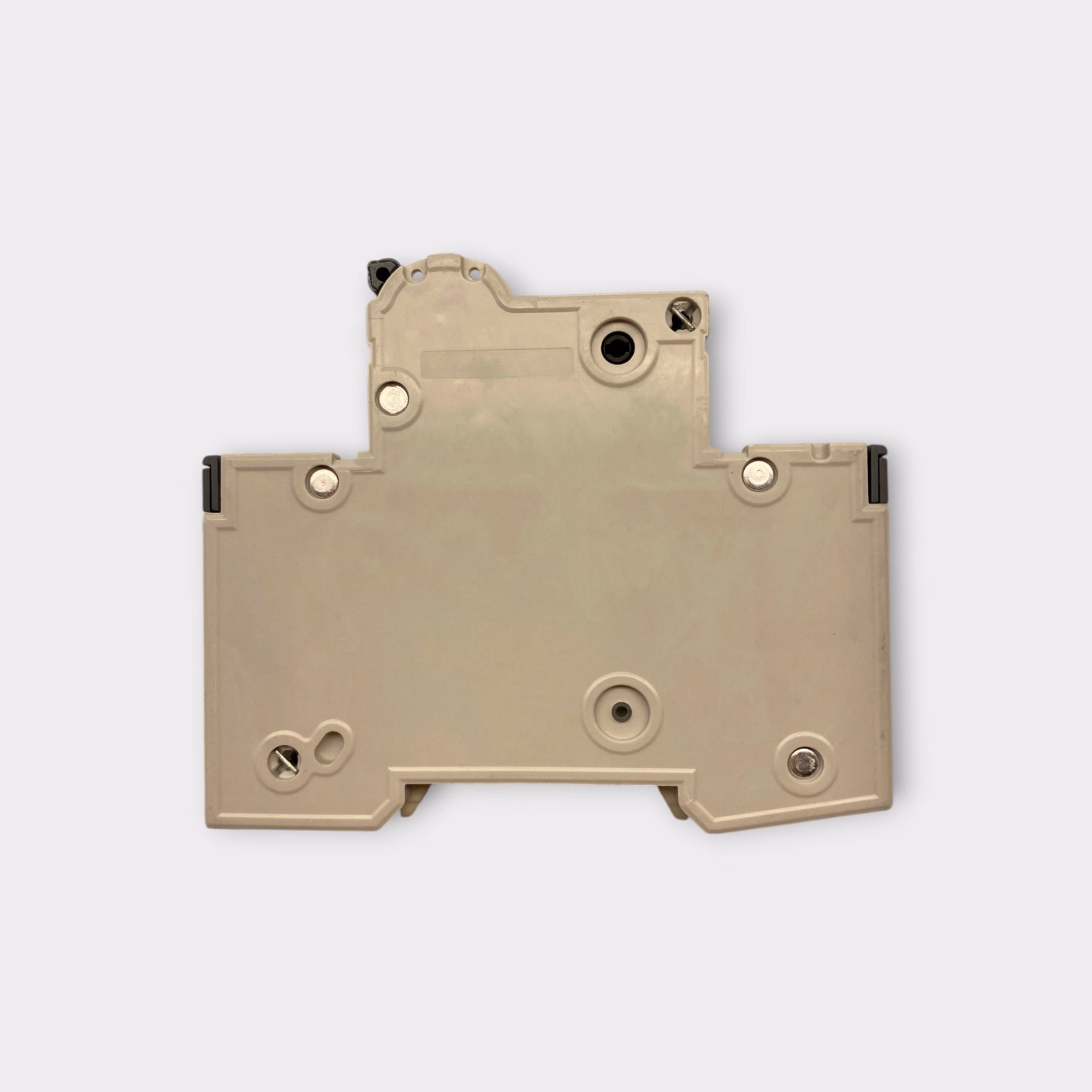

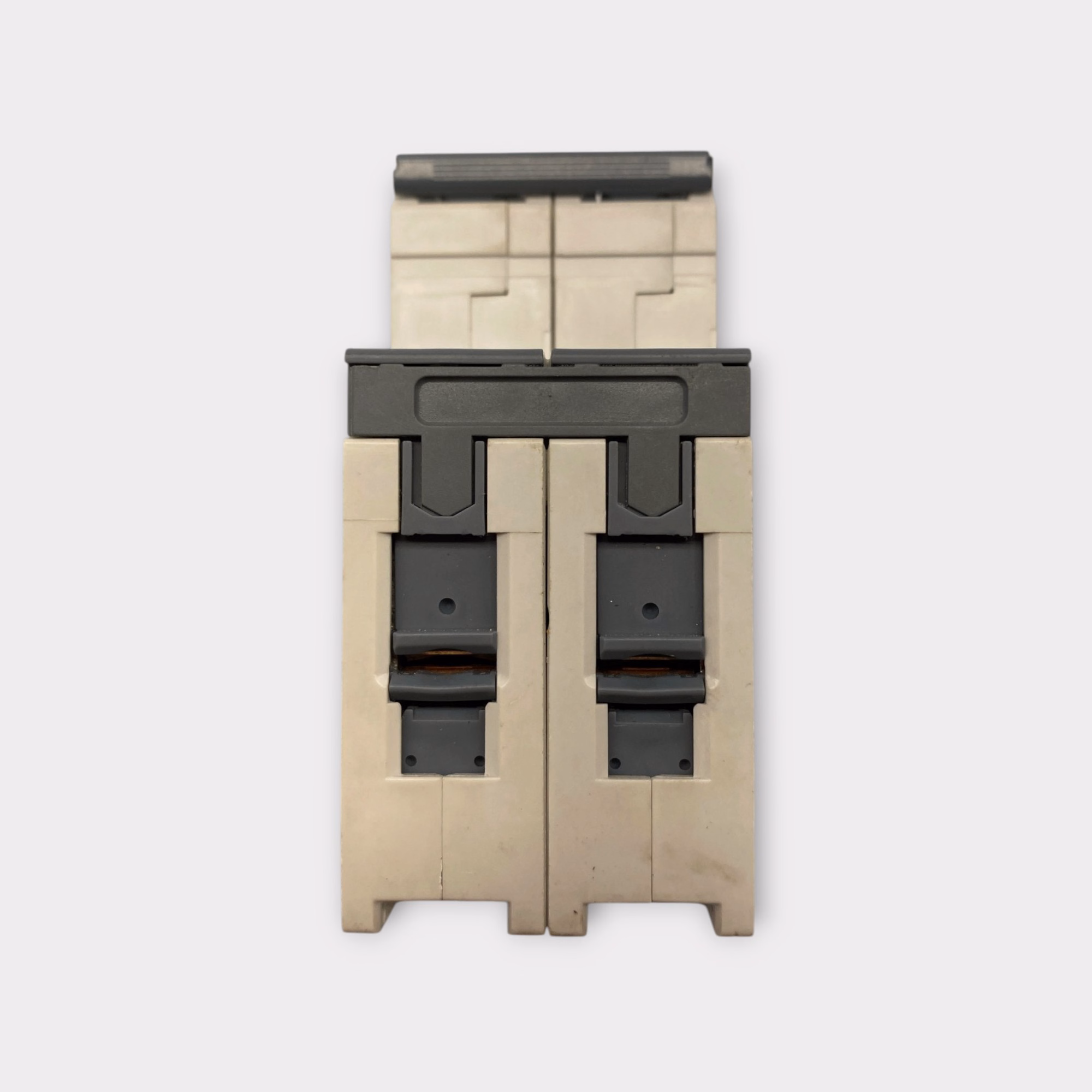

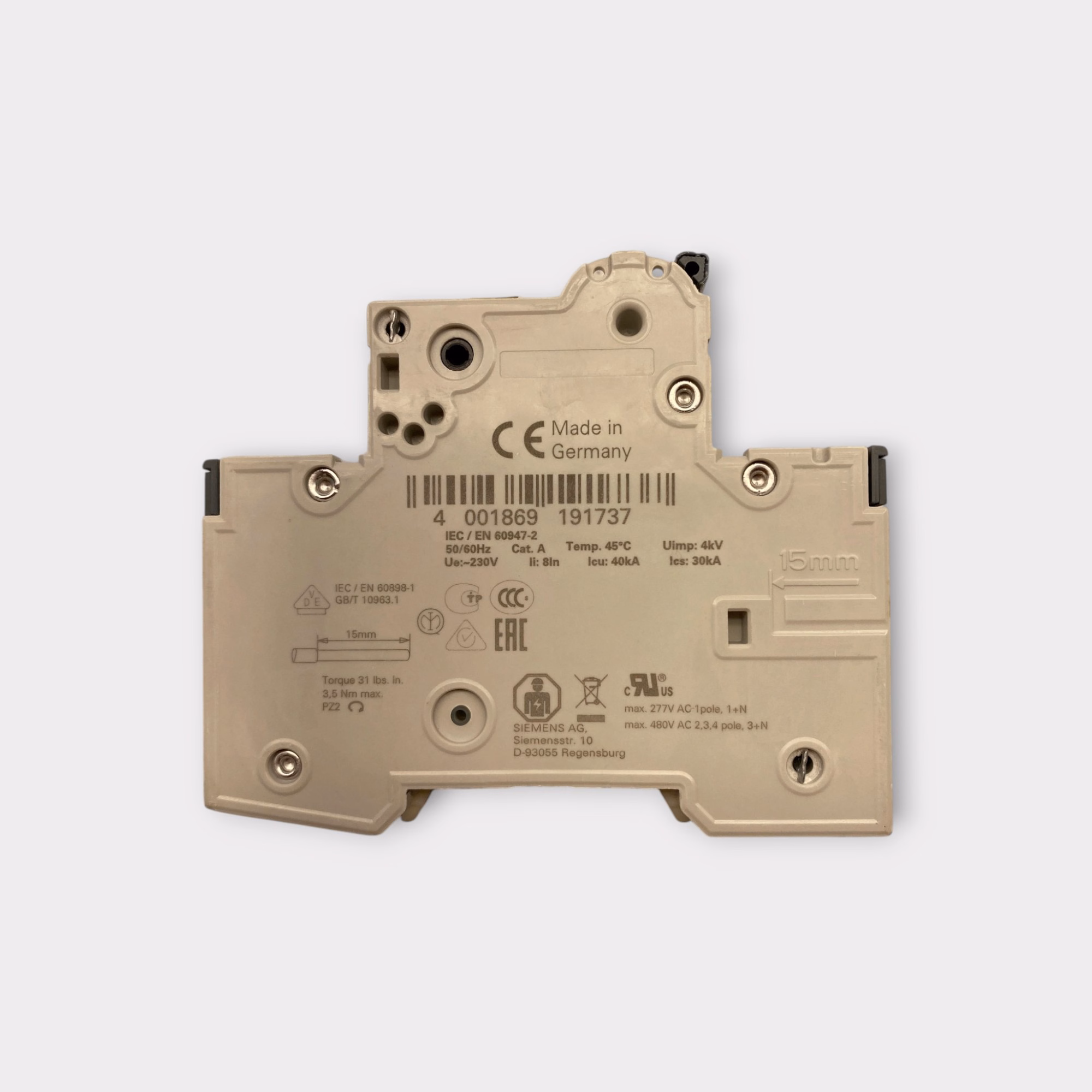

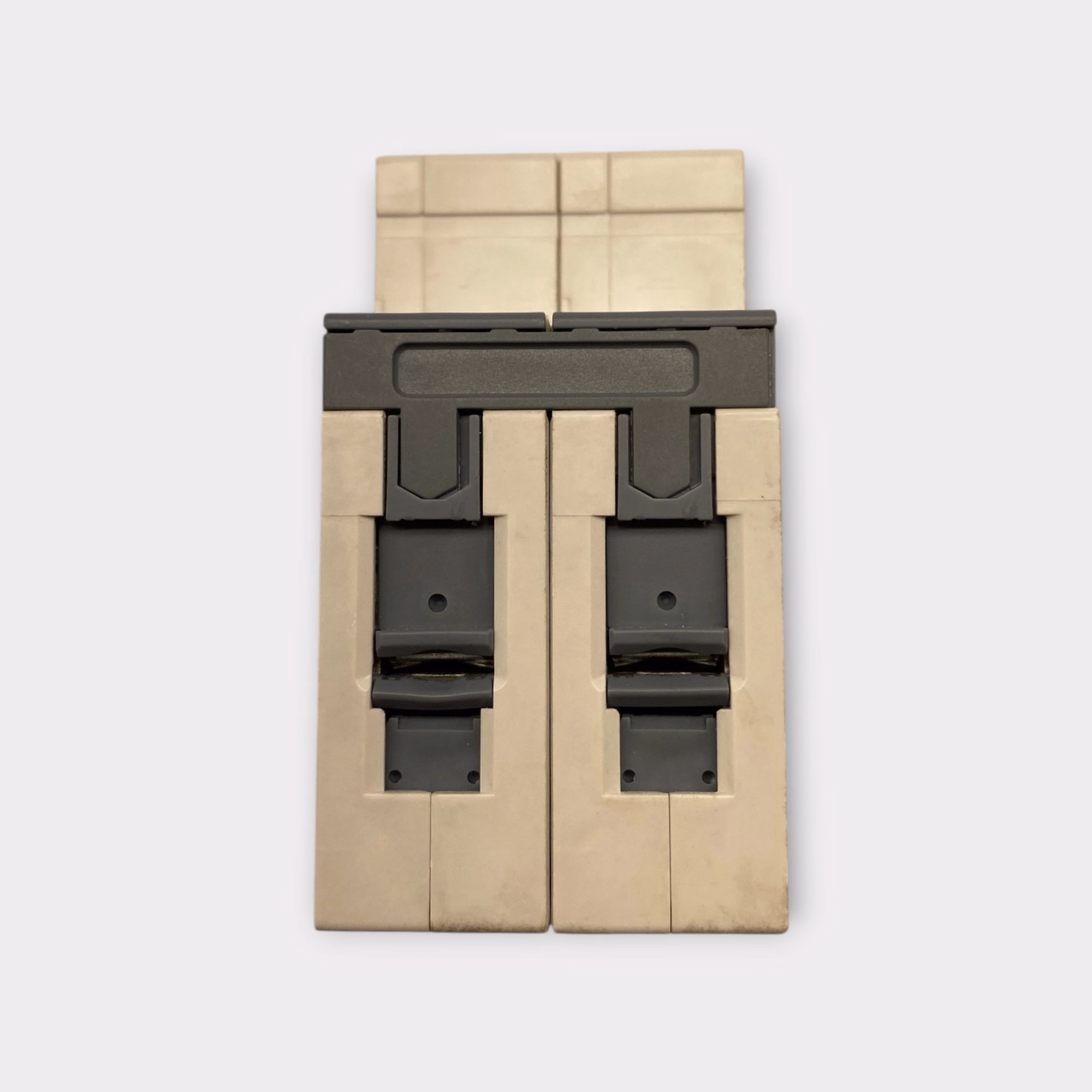

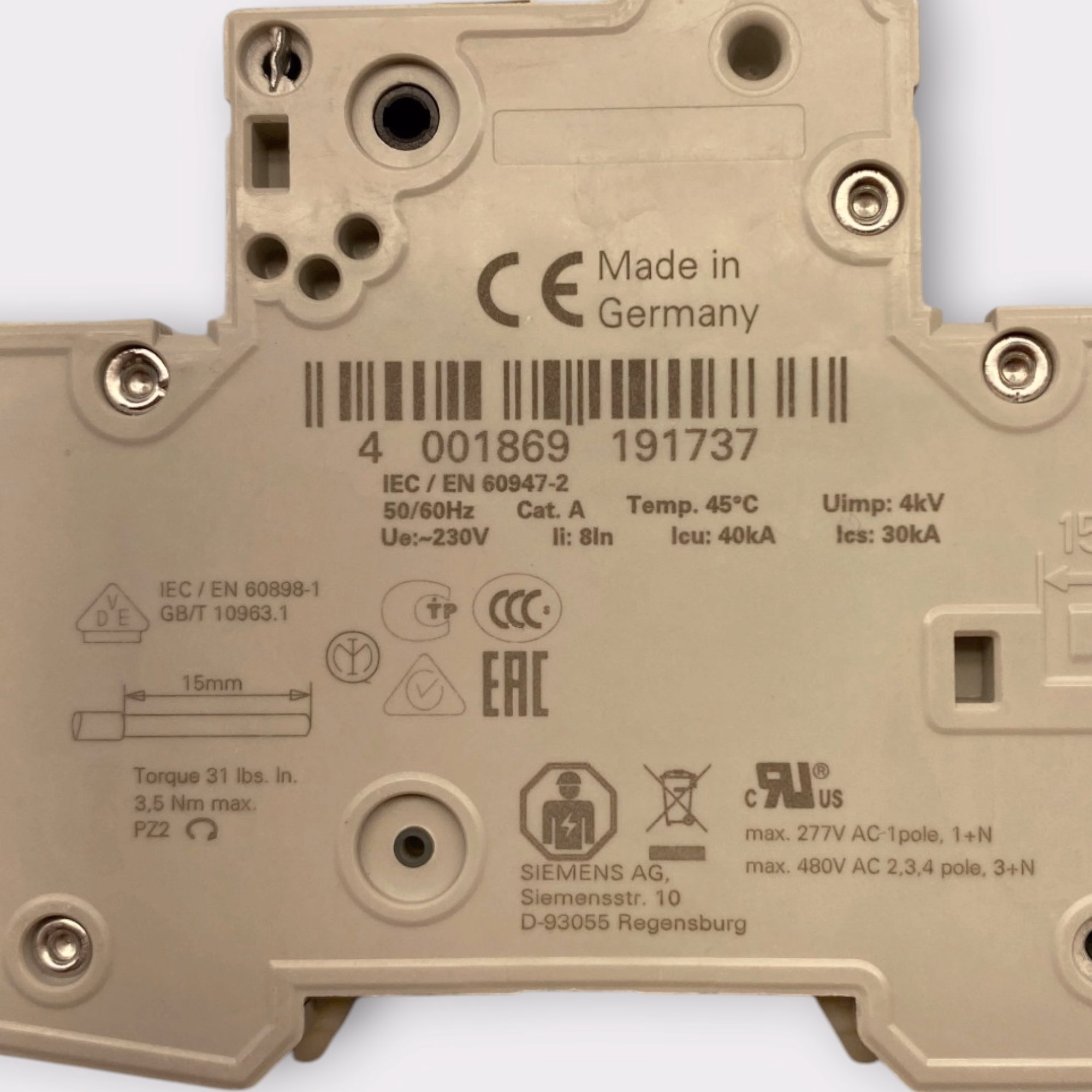

• Please review all photos for the exact item, condition, and components included.

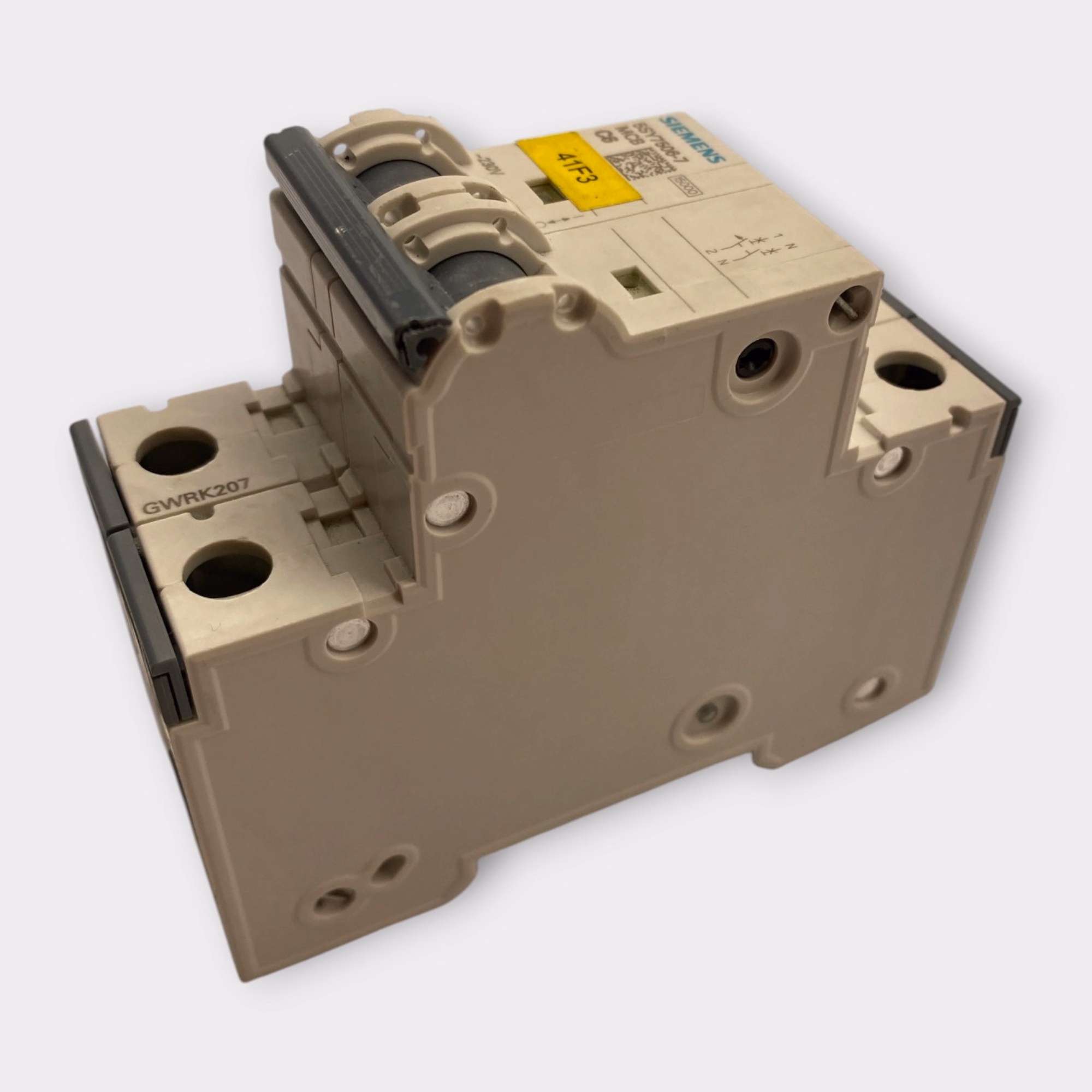

• Please note: Marker writing from the original staging process is present beneath the yellow identification sticker.

Product Description

The Siemens 5SY7506-7 SENTRON miniature circuit breaker provides overcurrent and short-circuit protection for electrical distribution systems. This 6A breaker features a C-curve trip characteristic, 1P+N configuration with switched neutral, and a rated operating voltage of 230V AC.

Designed for DIN rail installation, the 5SY7506-7 features a 15kA breaking capacity according to EN 60898-1, mechanically linked switching handles, and screw terminals for secure electrical connections.

Product Information

- Manufacturer - Siemens
- Model Number - 5SY7506-7
- Series - SENTRON 5SY7
- MPN - 5SY7506-7
- Product Type - Miniature Circuit Breaker (MCB)
- Rated Current - 6A
- Trip Curve - C
- Pole Configuration - 1P+N
- Total Number of Poles - 2
- Neutral Switching - Yes
- Rated AC Voltage - 230V
- Frequency - 50/60Hz
- Breaking Capacity (EN 60898-1) - 15kA
- Ultimate Breaking Capacity (IEC 60947-2) - 40kA
- Service Breaking Capacity (IEC 60947-2) - 30kA
- Rated Impulse Withstand Voltage - 4kV
- Energy Limiting Class - 3
- Protection Rating - IP20 with connected conductors
- Terminal Type - Screw Terminals
- Mounting Type - DIN Rail
- Width - 36mm
- Height - 90mm
- Depth - 76mm
- Installation Depth - 70mm
- EAN - 4001869191737
- Country of Origin - Germany
