Summary

This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new(other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy.

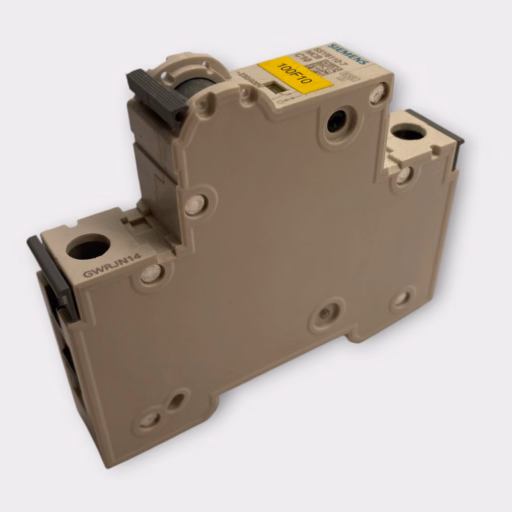

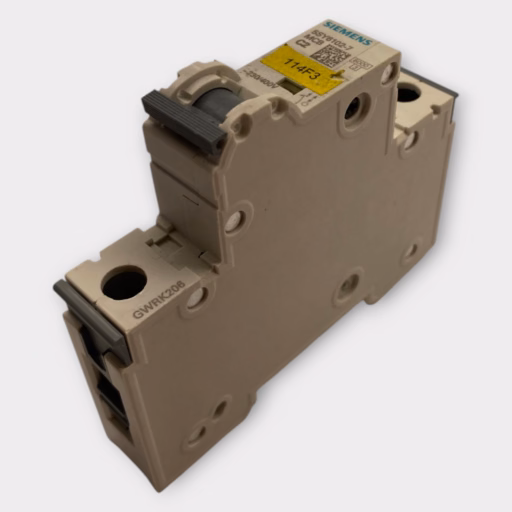

• This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

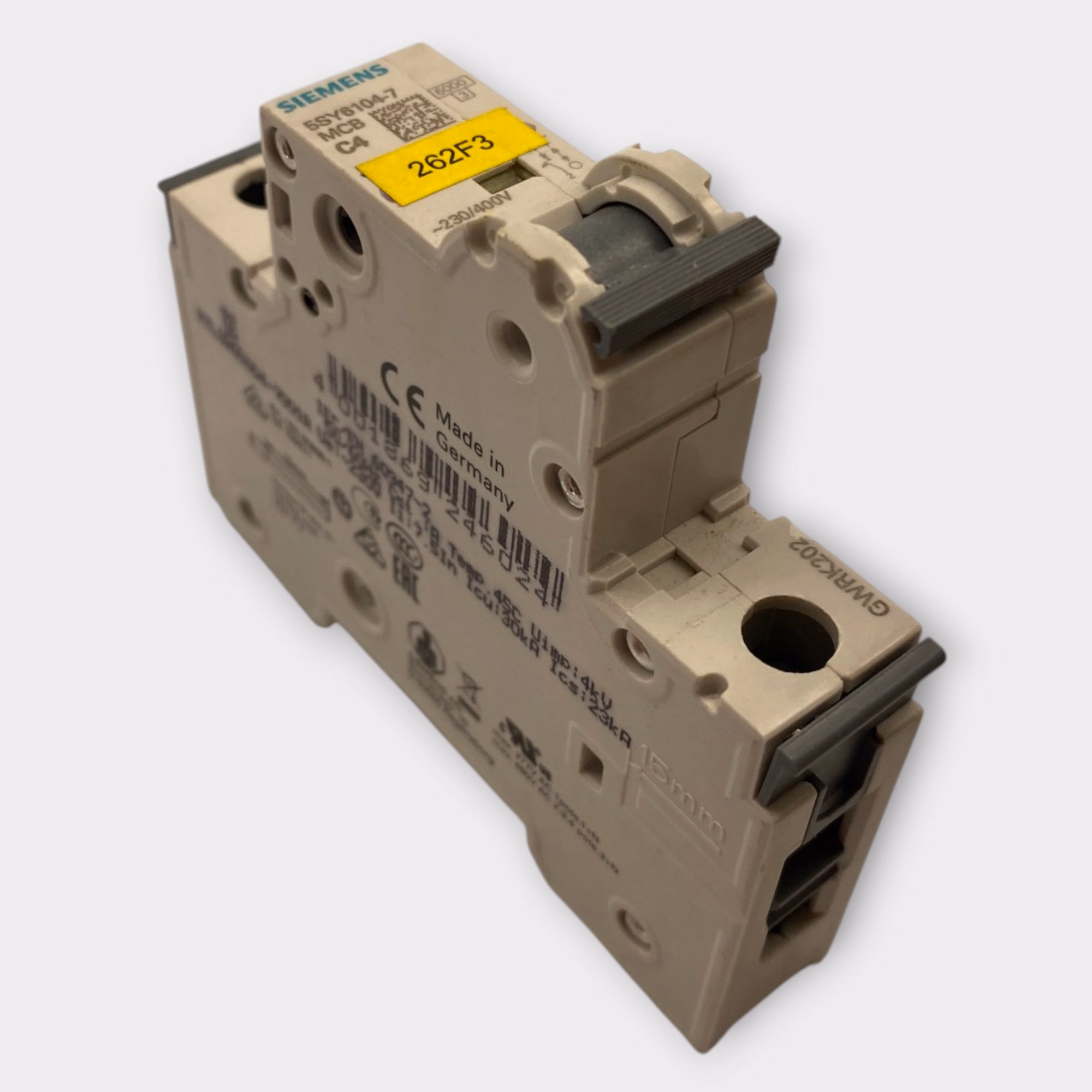

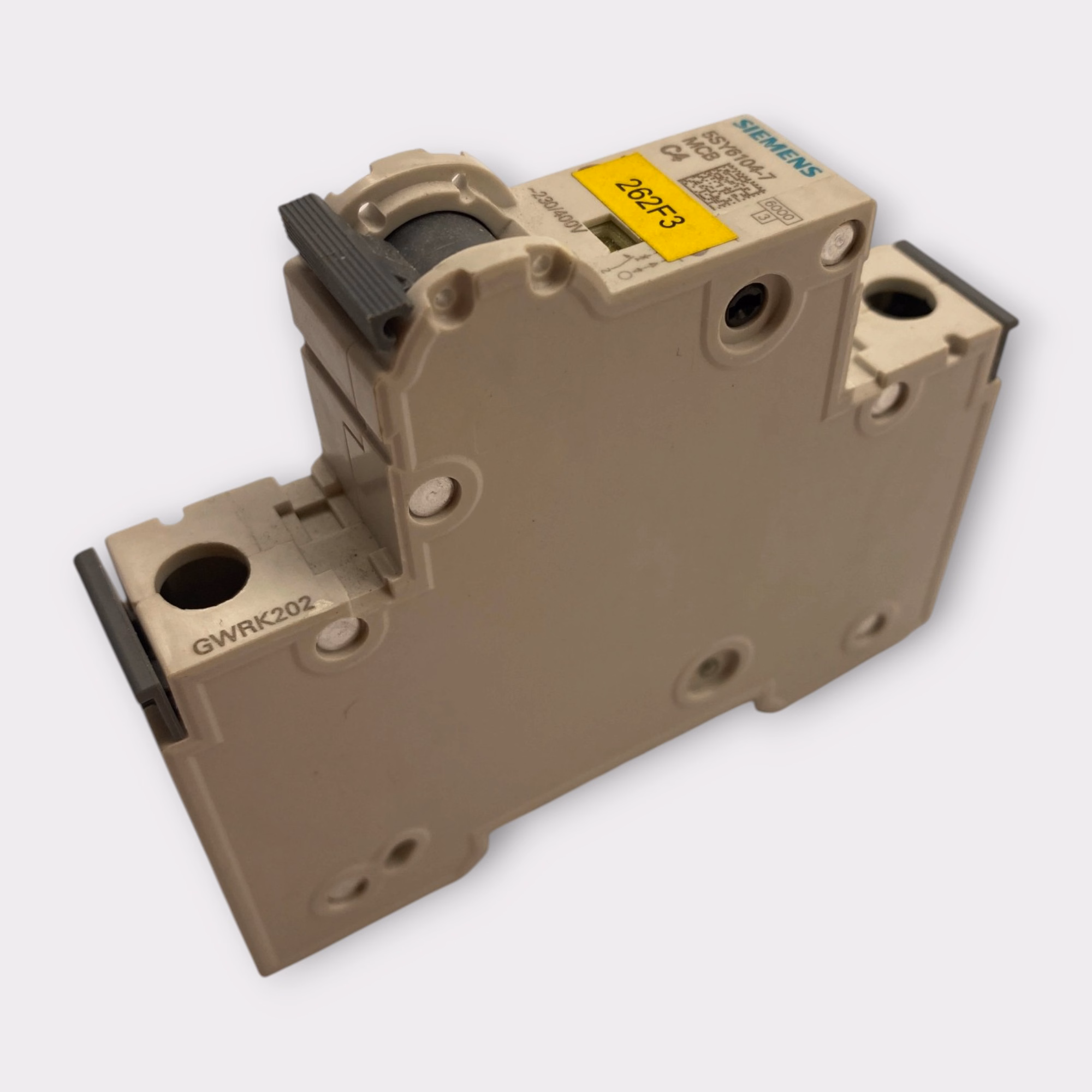

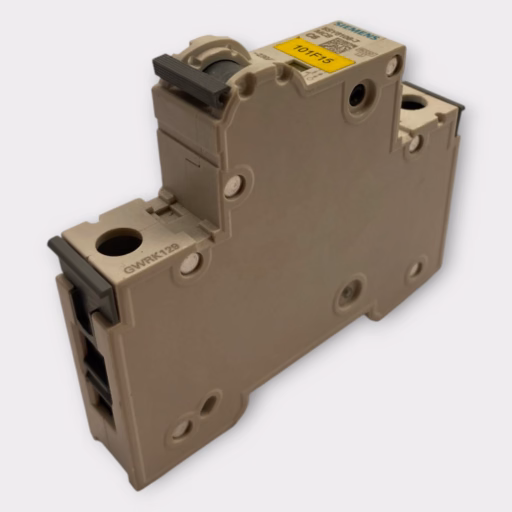

• Item includes the Siemens 5SY6104-7 miniature circuit breaker shown. No original box, instructions, or additional accessories are included.

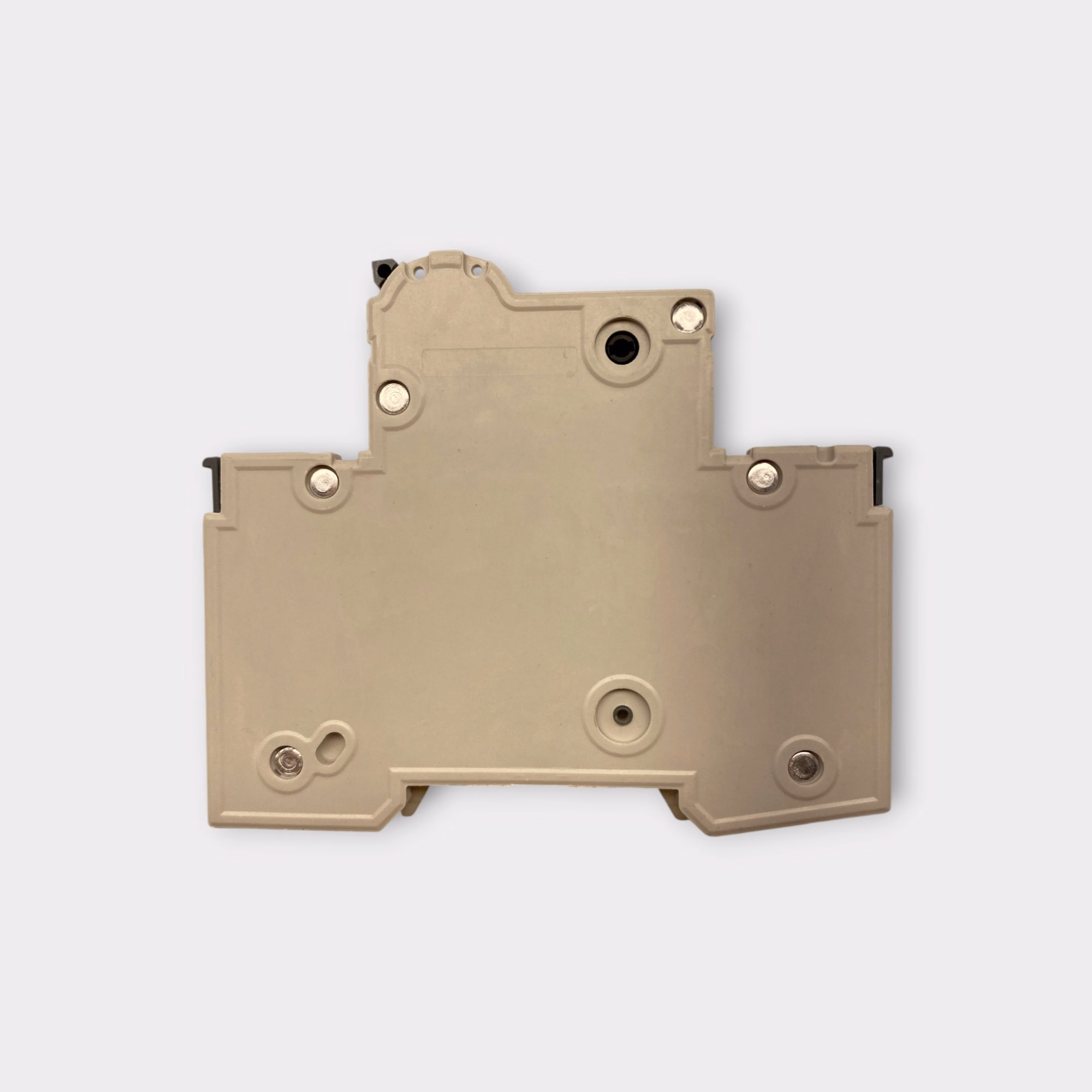

• Please review all photos for the exact item, condition, and components included.

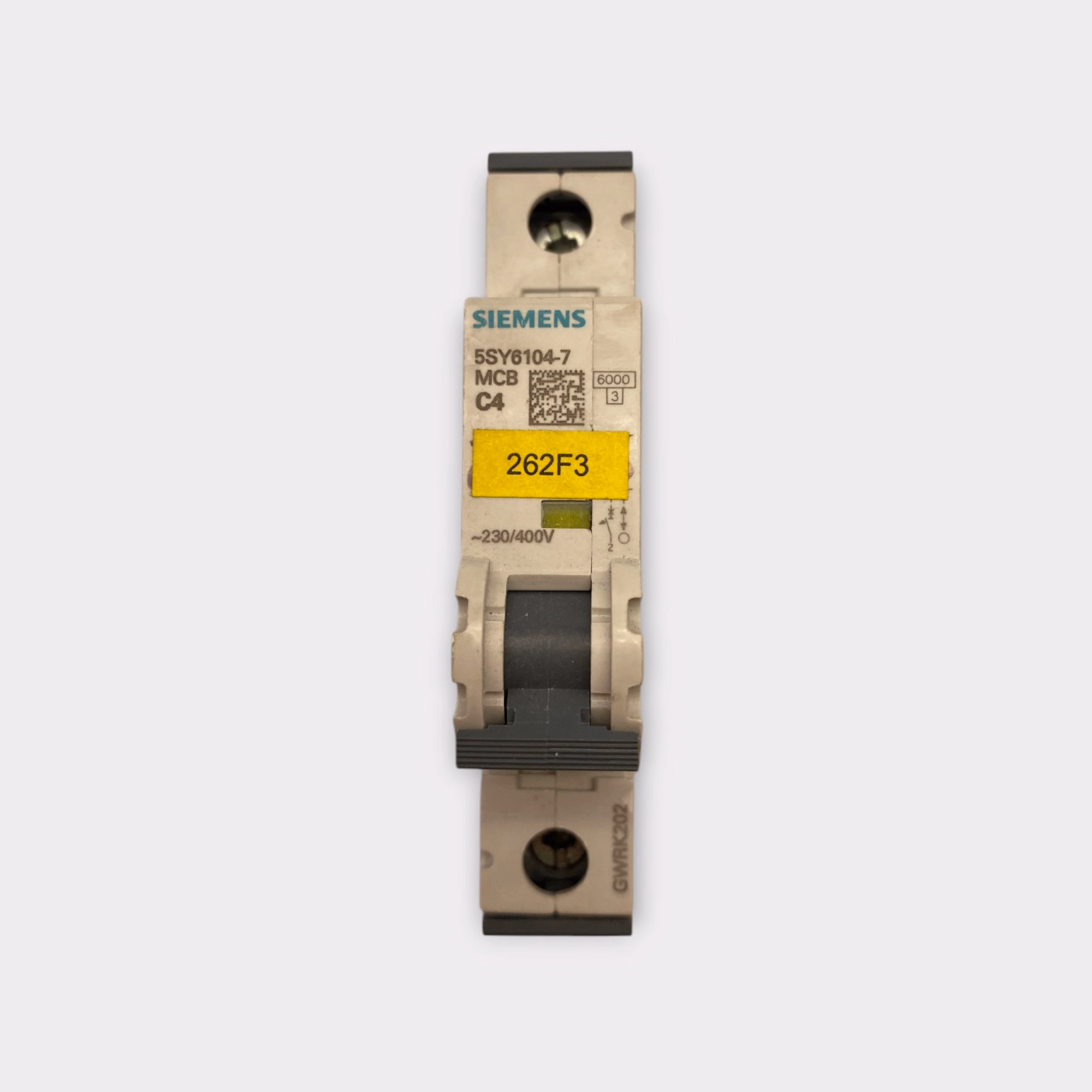

• Please note: Marker writing from the original staging process is present beneath the yellow identification sticker.

Product Description

Siemens 5SY6104-7 SENTRON miniature circuit breaker featuring a 4A rated current, C-curve tripping characteristic, and single-pole configuration. Rated for 230/400V AC operation with a 6kA breaking capacity according to IEC/EN 60898-1.

Designed for DIN rail installation, this compact circuit breaker provides overcurrent and short-circuit protection for electrical distribution panels and industrial control systems.

Product Information

- Manufacturer - Siemens
- Model Number - 5SY6104-7
- Series - SENTRON 5SY6
- MPN - 5SY6104-7
- Product Type - Miniature Circuit Breaker (MCB)
- Number of Poles - 1
- Rated Current - 4A
- Tripping Characteristic - C Curve
- Rated Operating Voltage - 230/400V AC
- Rated Frequency - 50/60Hz
- Breaking Capacity (IEC/EN 60898-1) - 6kA
- Energy Limiting Class - 3

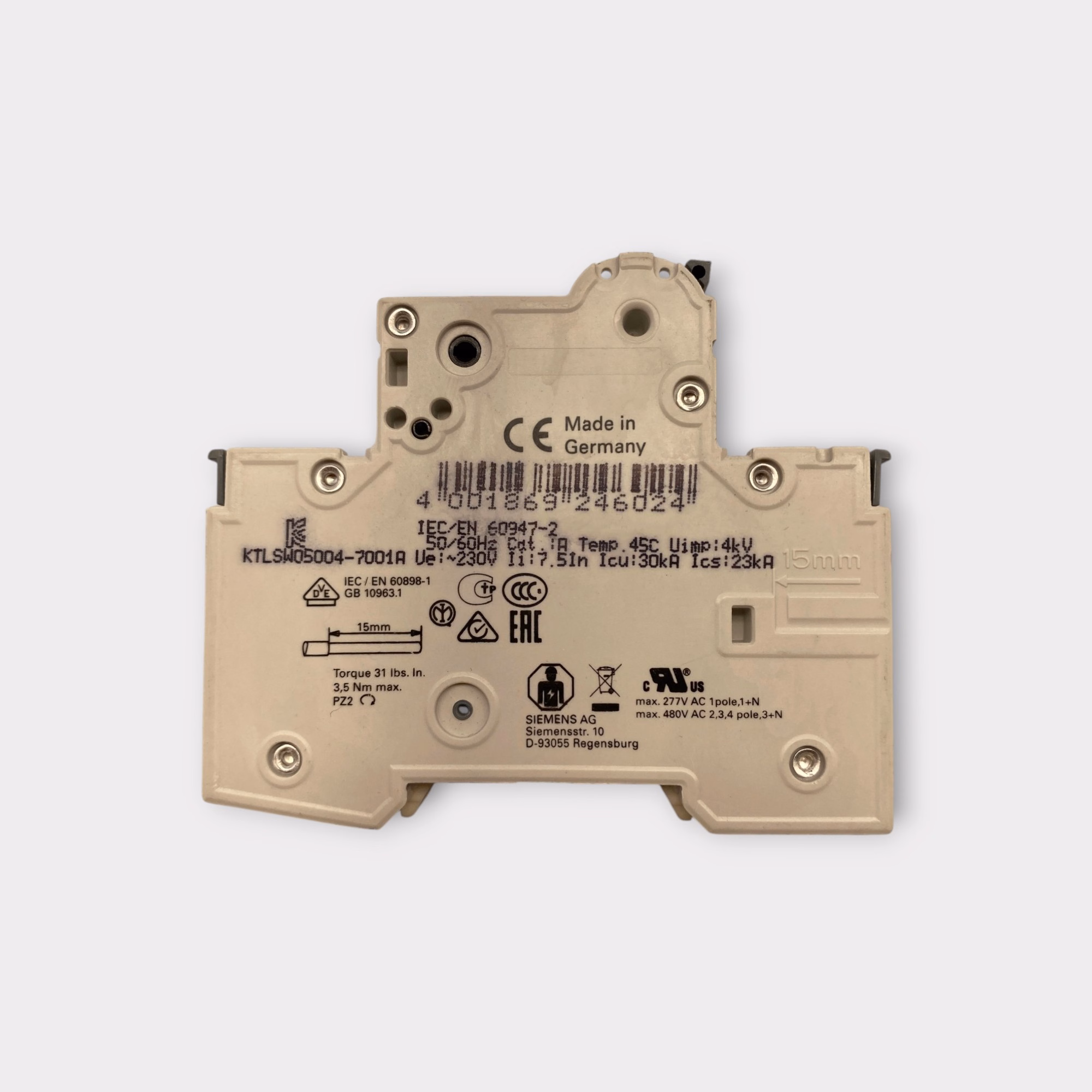

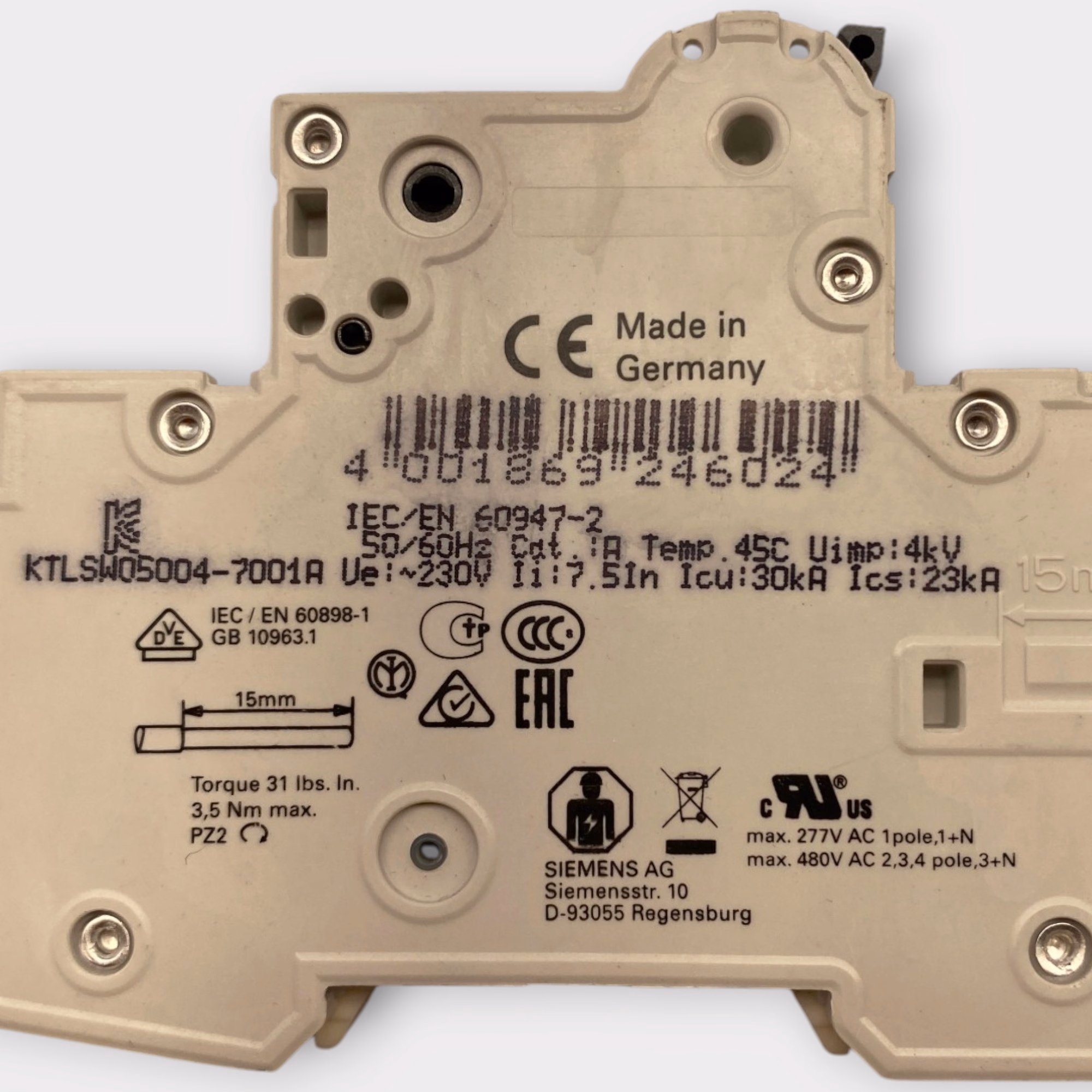

- Ultimate Breaking Capacity (IEC/EN 60947-2, Icu) - 30kA at 230V AC (As Marked)
- Service Breaking Capacity (Ics) - 23kA at 230V AC (As Marked)
- Rated Impulse Withstand Voltage - 4kV
- Connection Type - Screw Terminals
- Maximum Terminal Tightening Torque - 3.5 Nm

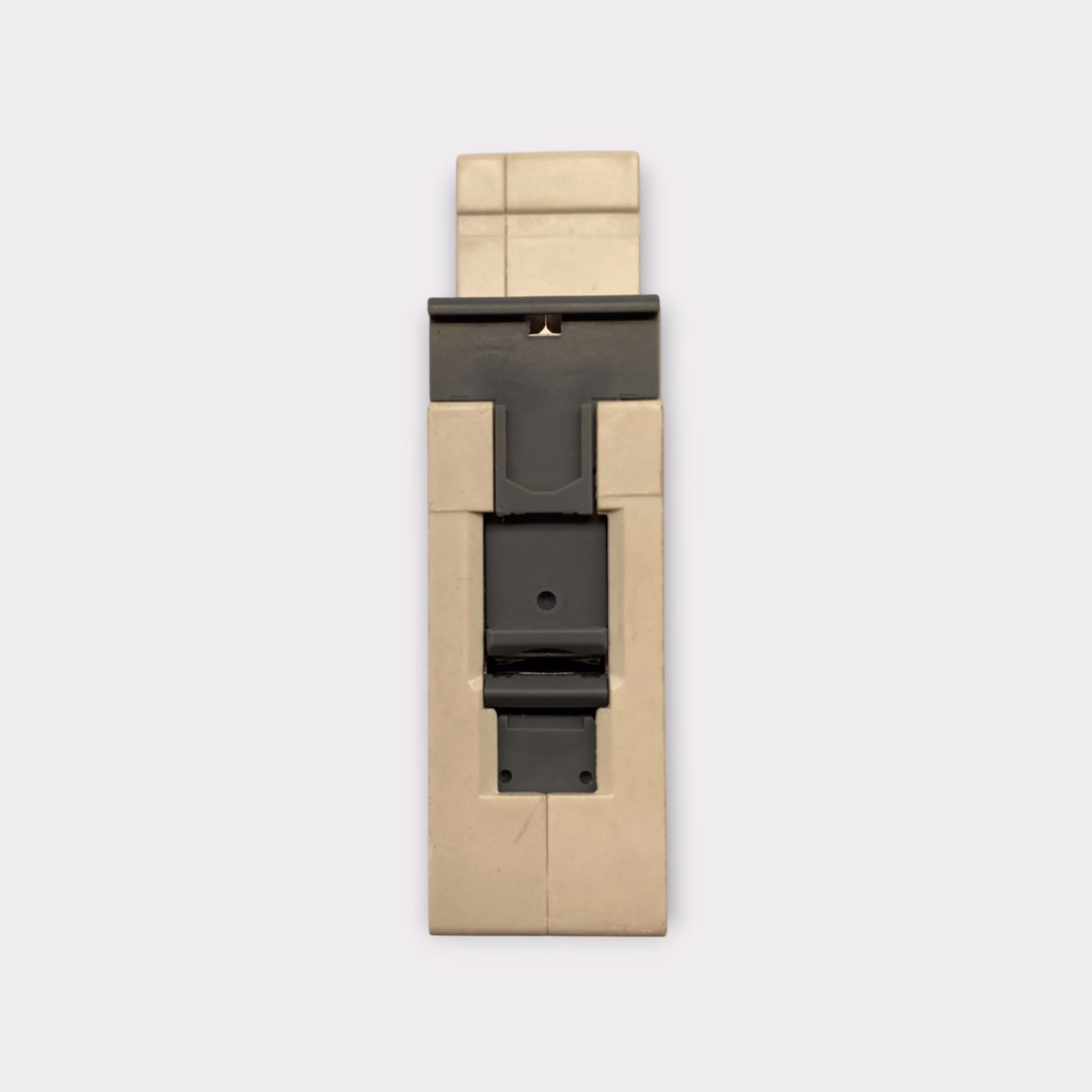

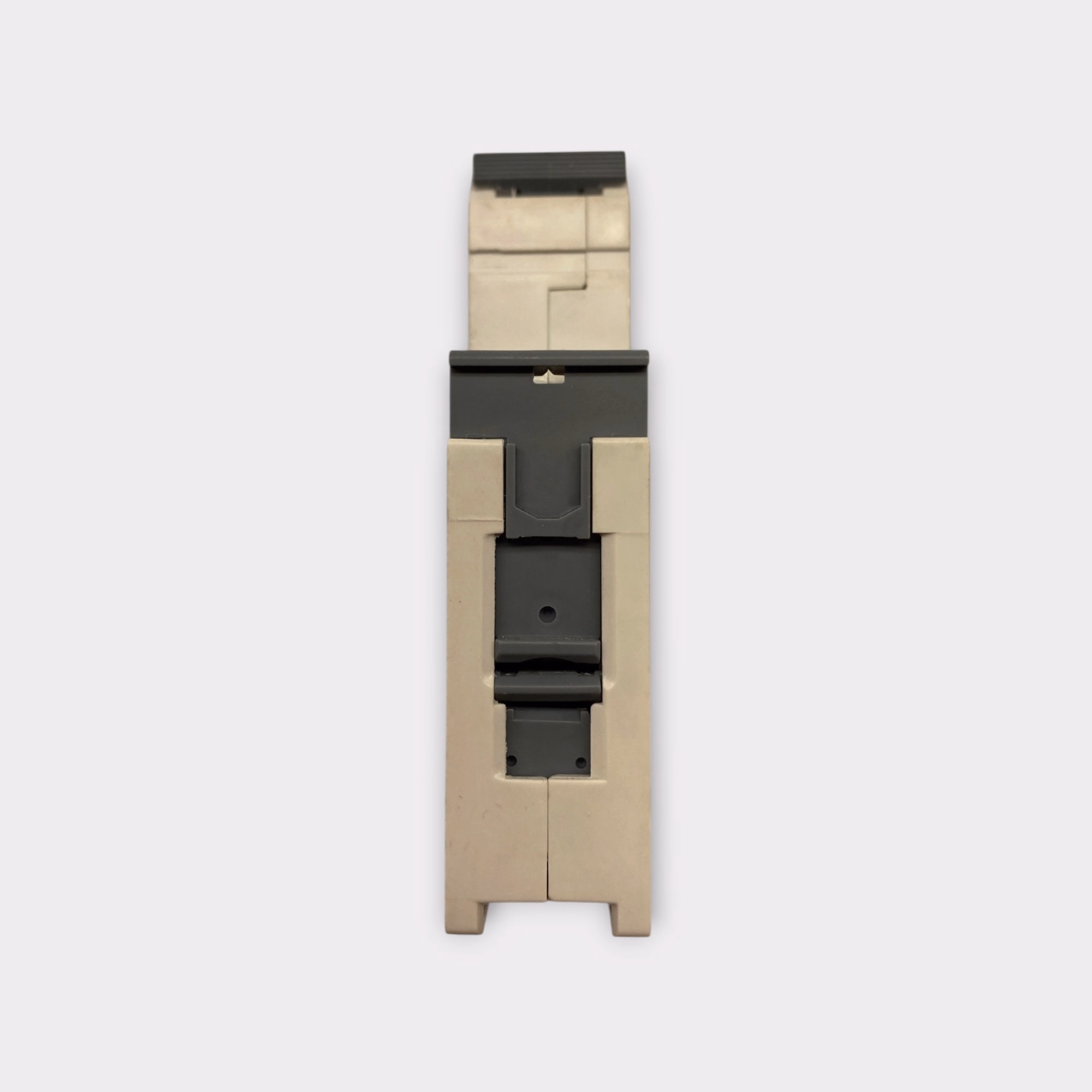

- Mounting Type - DIN Rail
- Standards - IEC/EN 60898-1, IEC/EN 60947-2
- Country of Origin - Germany
- EAN - 4001869246024
- Condition - New (Other) / NOS
- Quantity - 1 Circuit Breaker
- Included - Siemens 5SY6104-7 Miniature Circuit Breaker
- Not Included - Original Box, Instructions, or Additional Accessories
