Summary -

This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new(other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy.

• This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

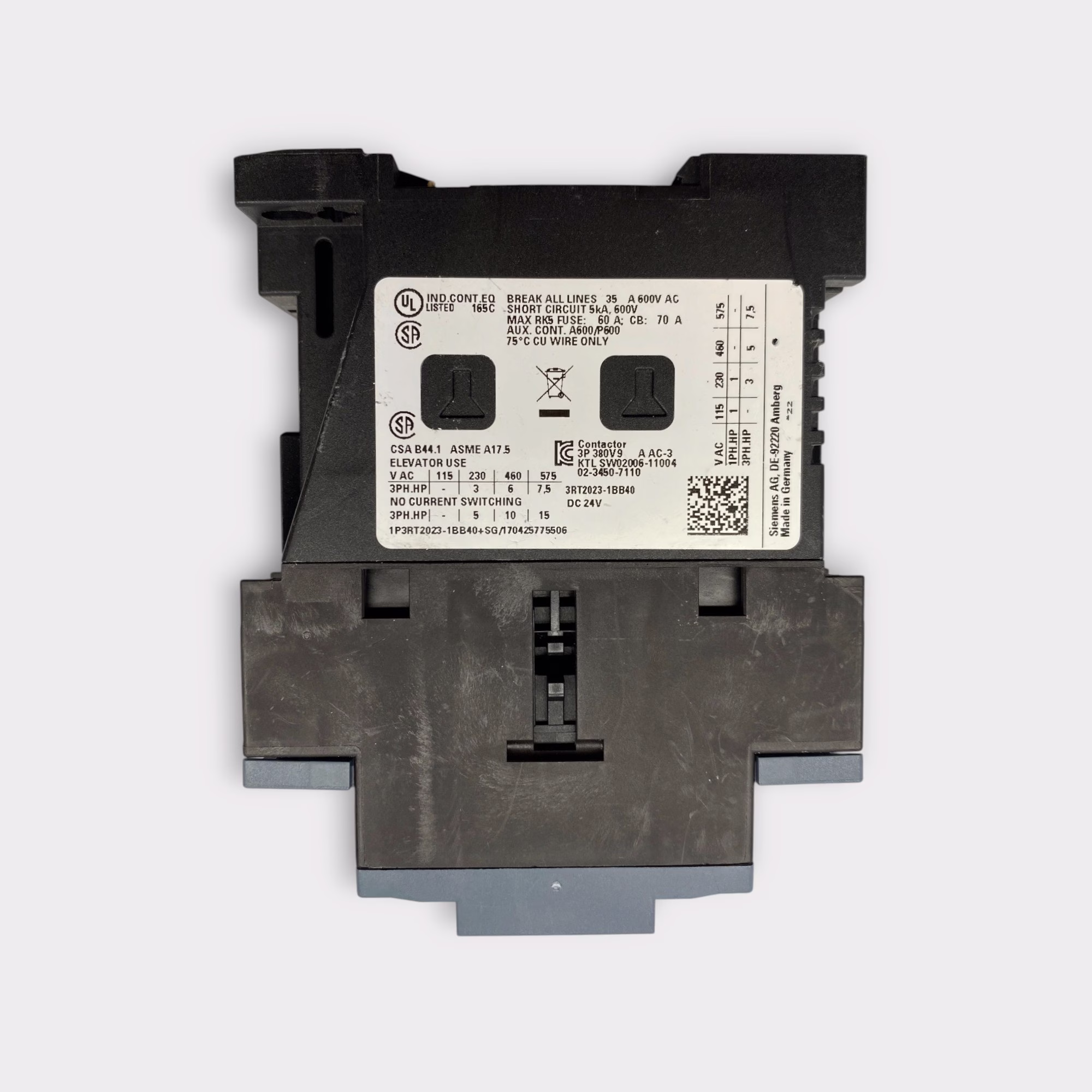

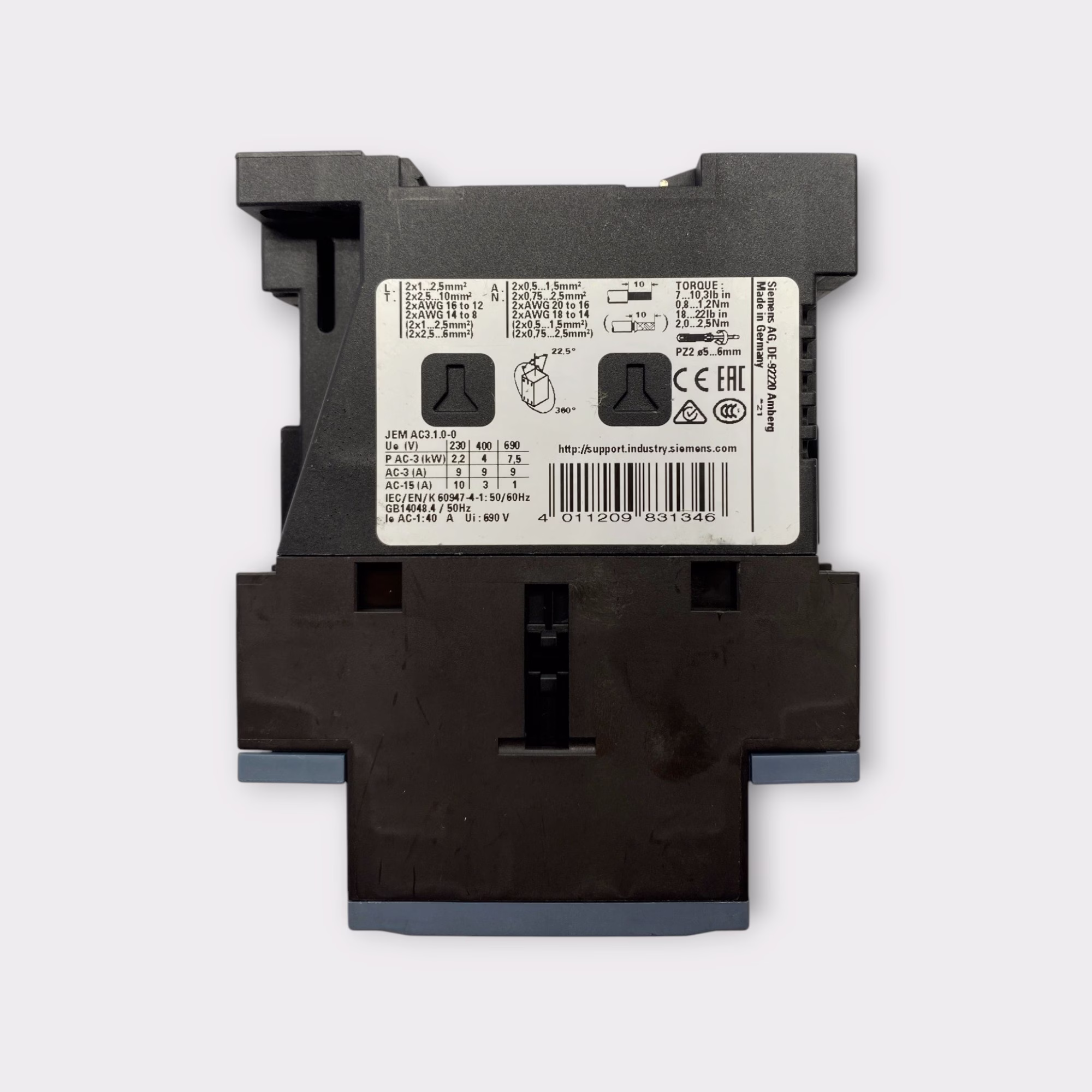

• Please review all photos for the cosmetic condition and exact configuration of the item being offered.
• This listing includes the Siemens contactor only. No original box, instructions, manuals, wiring, or additional accessories are included.

Product Description -

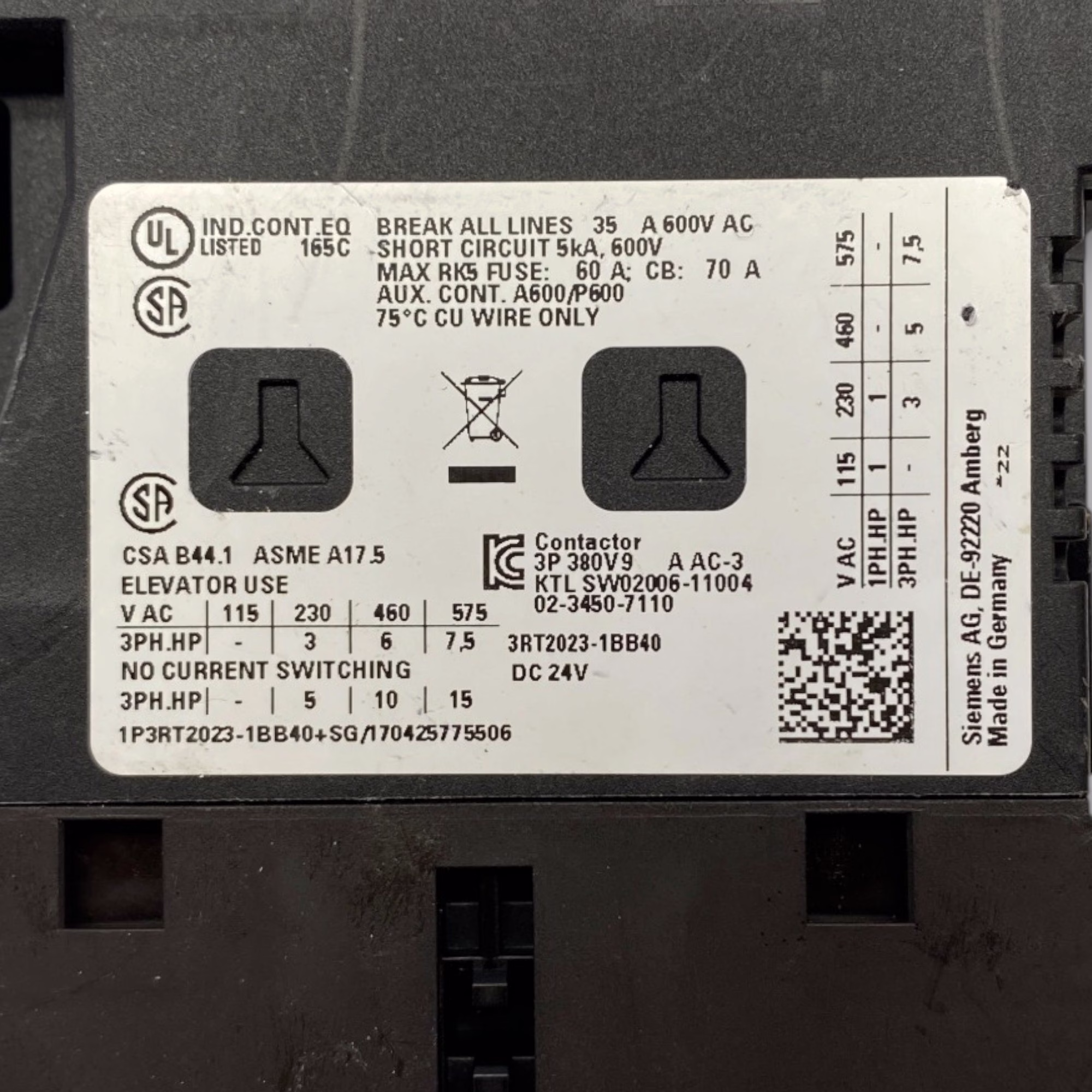

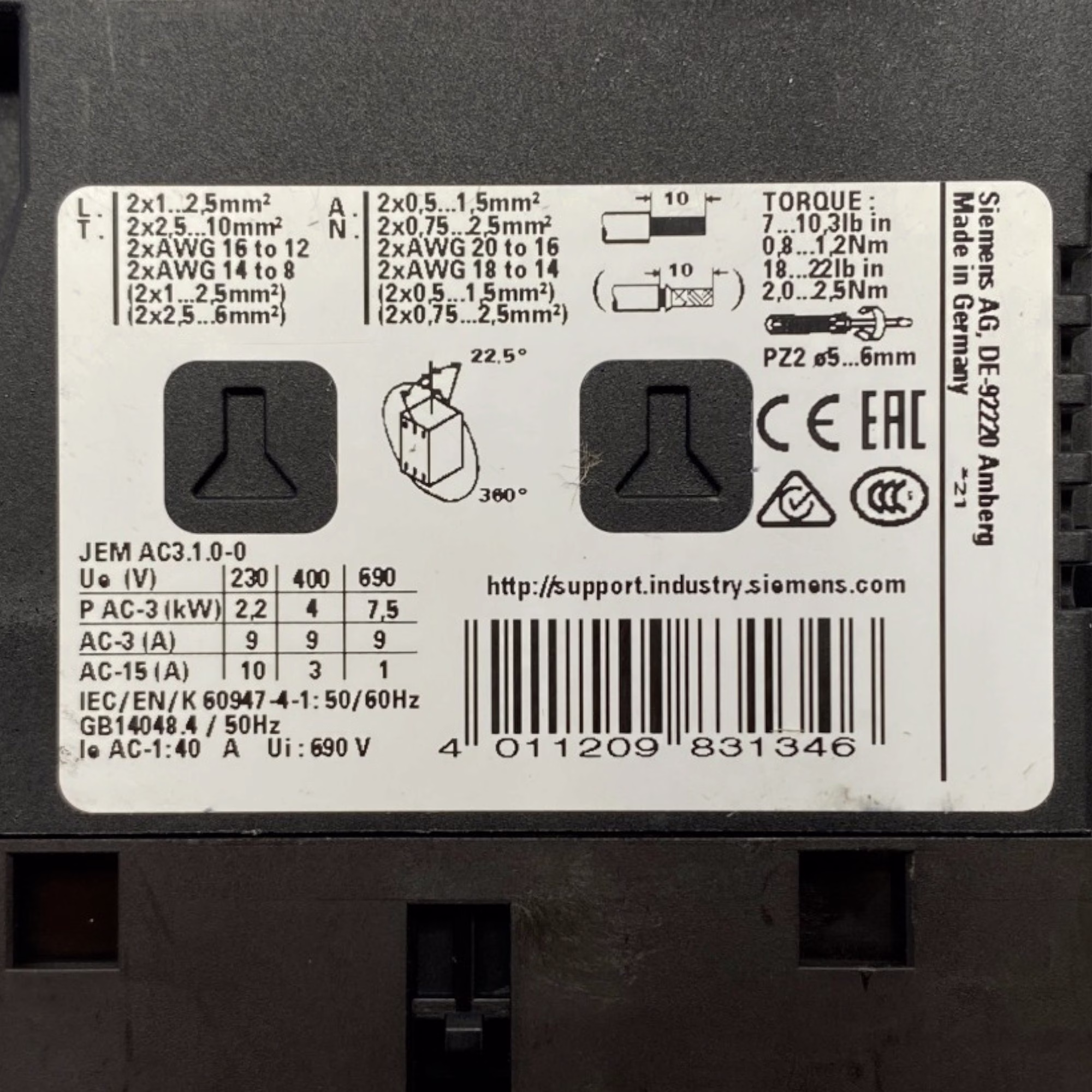

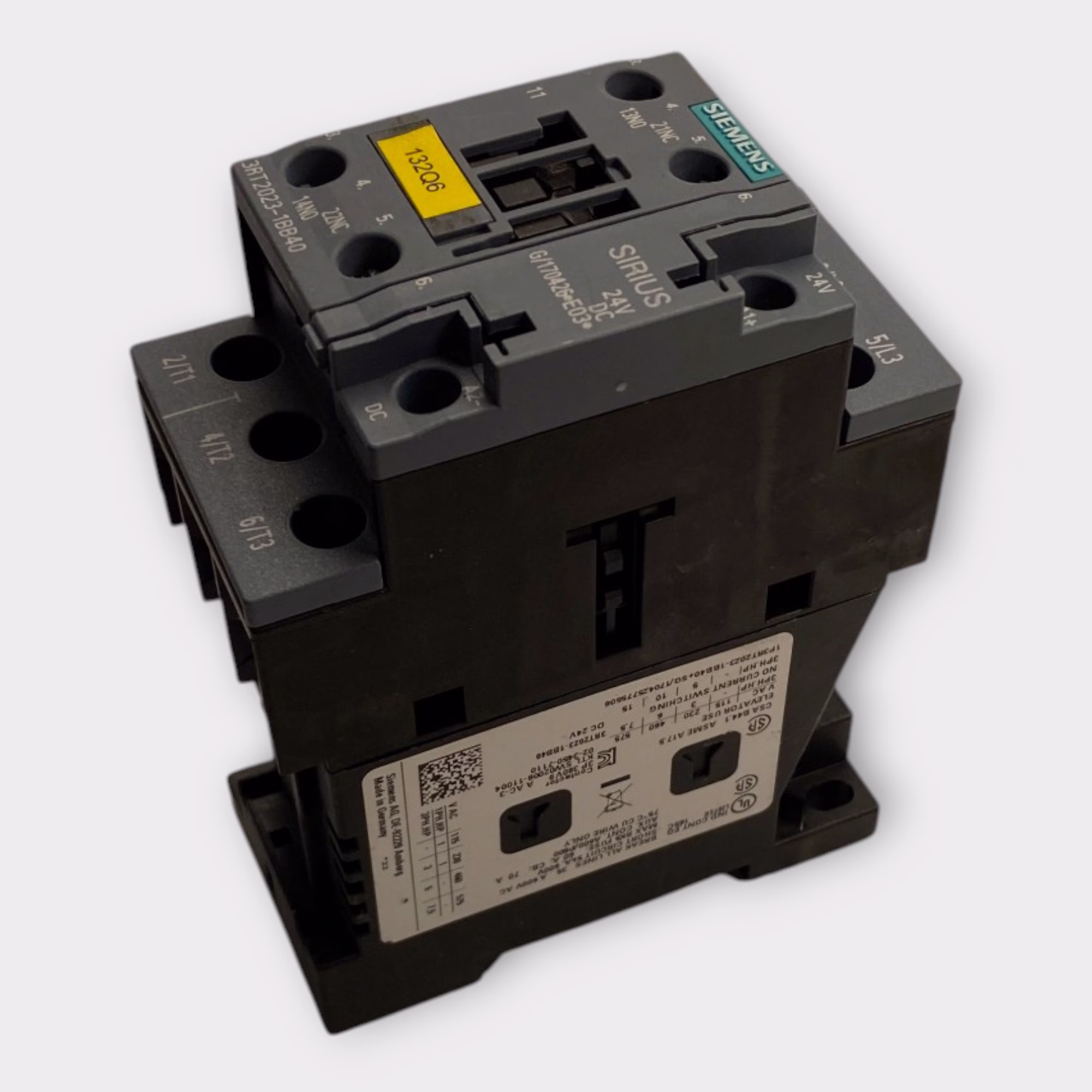

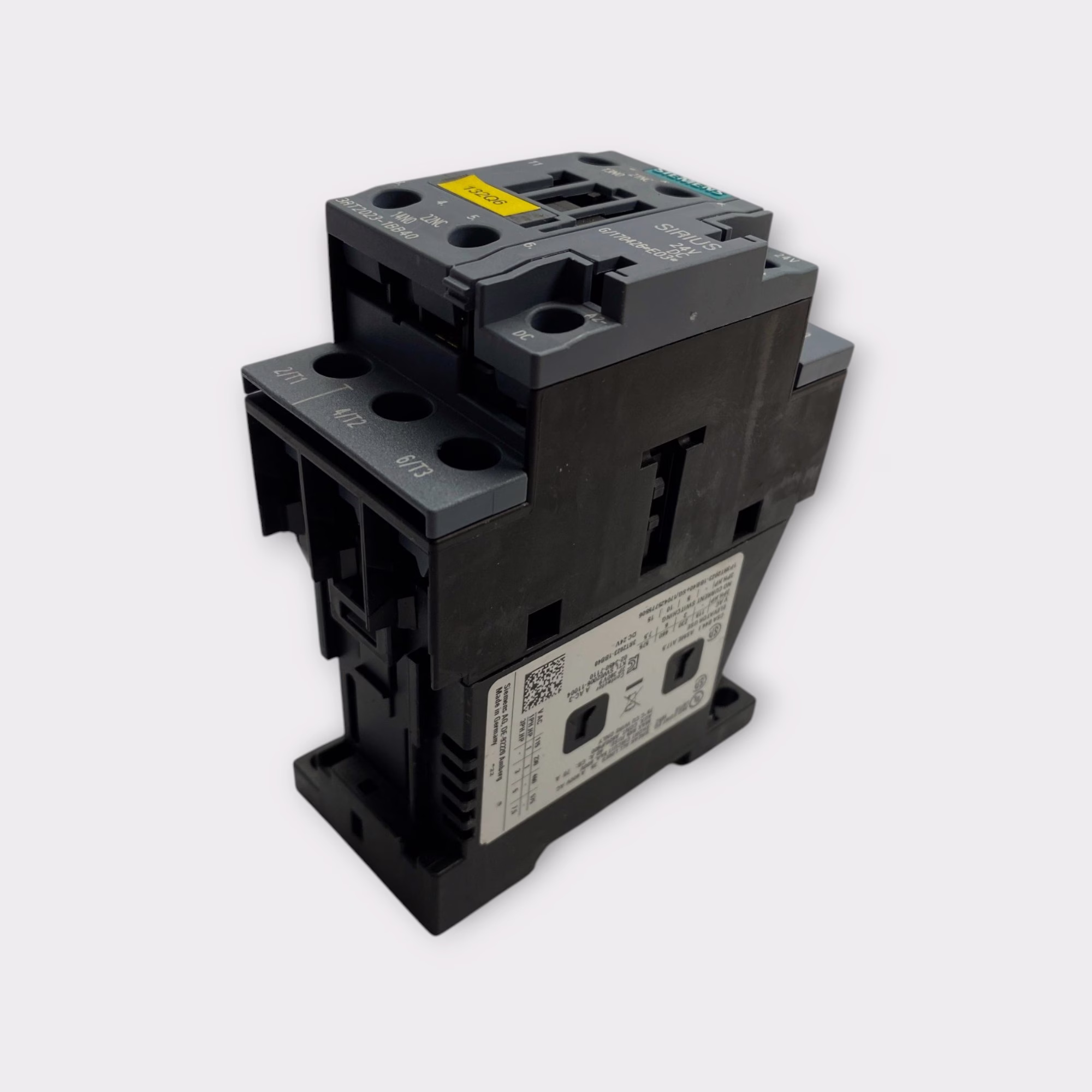

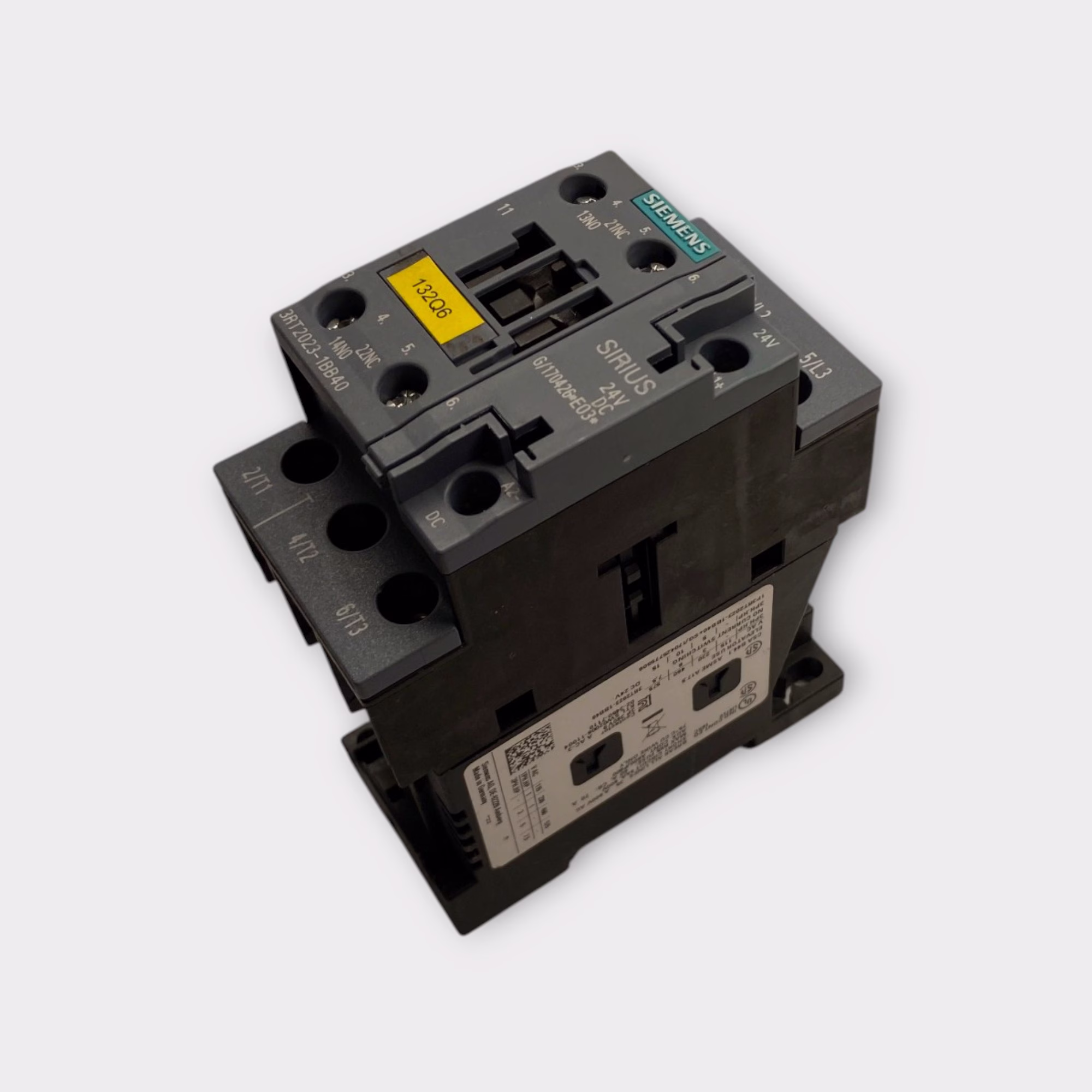

The Siemens 3RT2023-1BB40 is a SIRIUS 3RT2 series power contactor designed for industrial motor control, electrical switching, and automation applications.

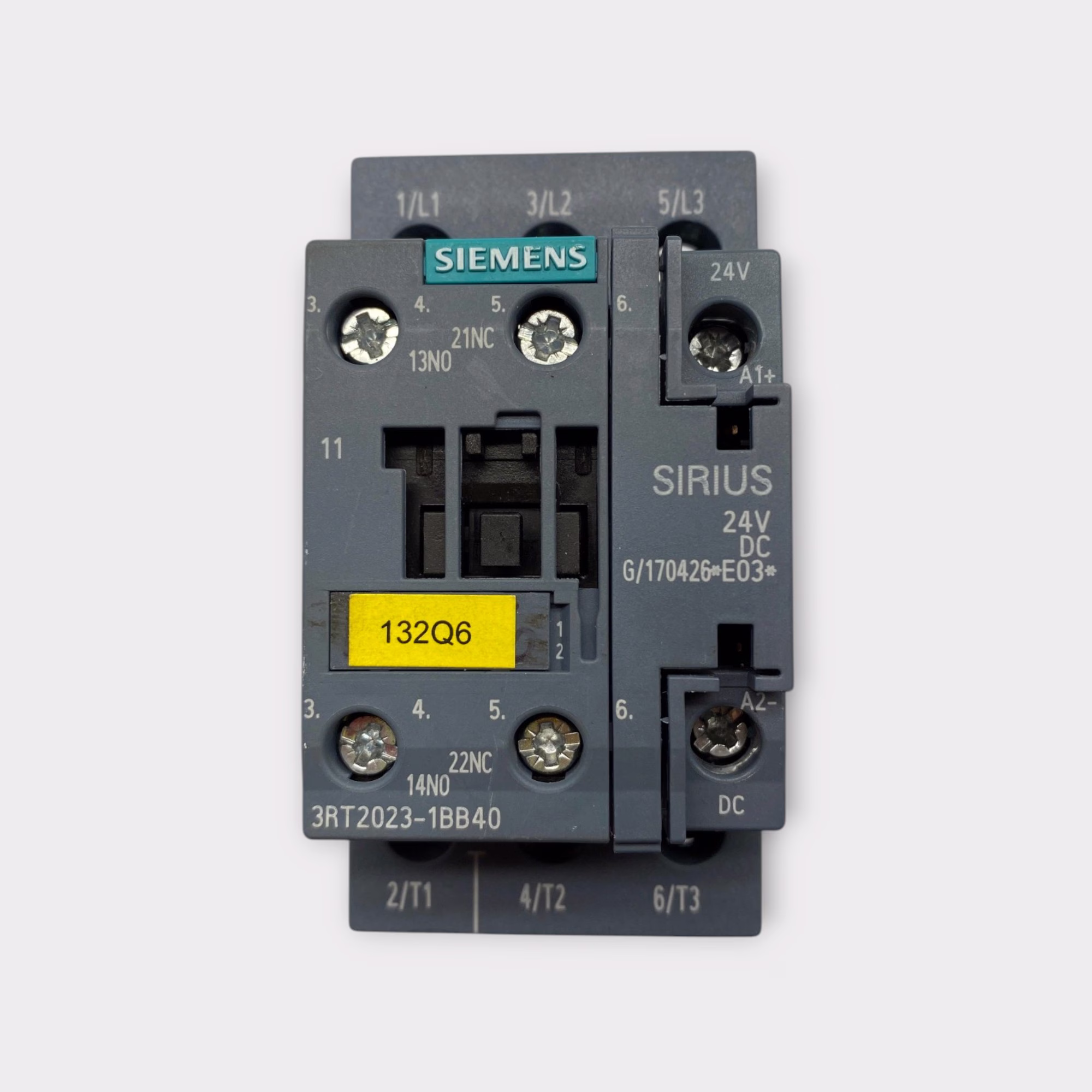

This S0-size contactor features three normally open main power contacts, a 24V DC control coil, and integrated auxiliary contacts consisting of 1 normally open and 1 normally closed contact. It is rated for 9A under AC-3/AC-3e utilization at 400V and supports three-phase motors rated up to 4 kW at 400V.

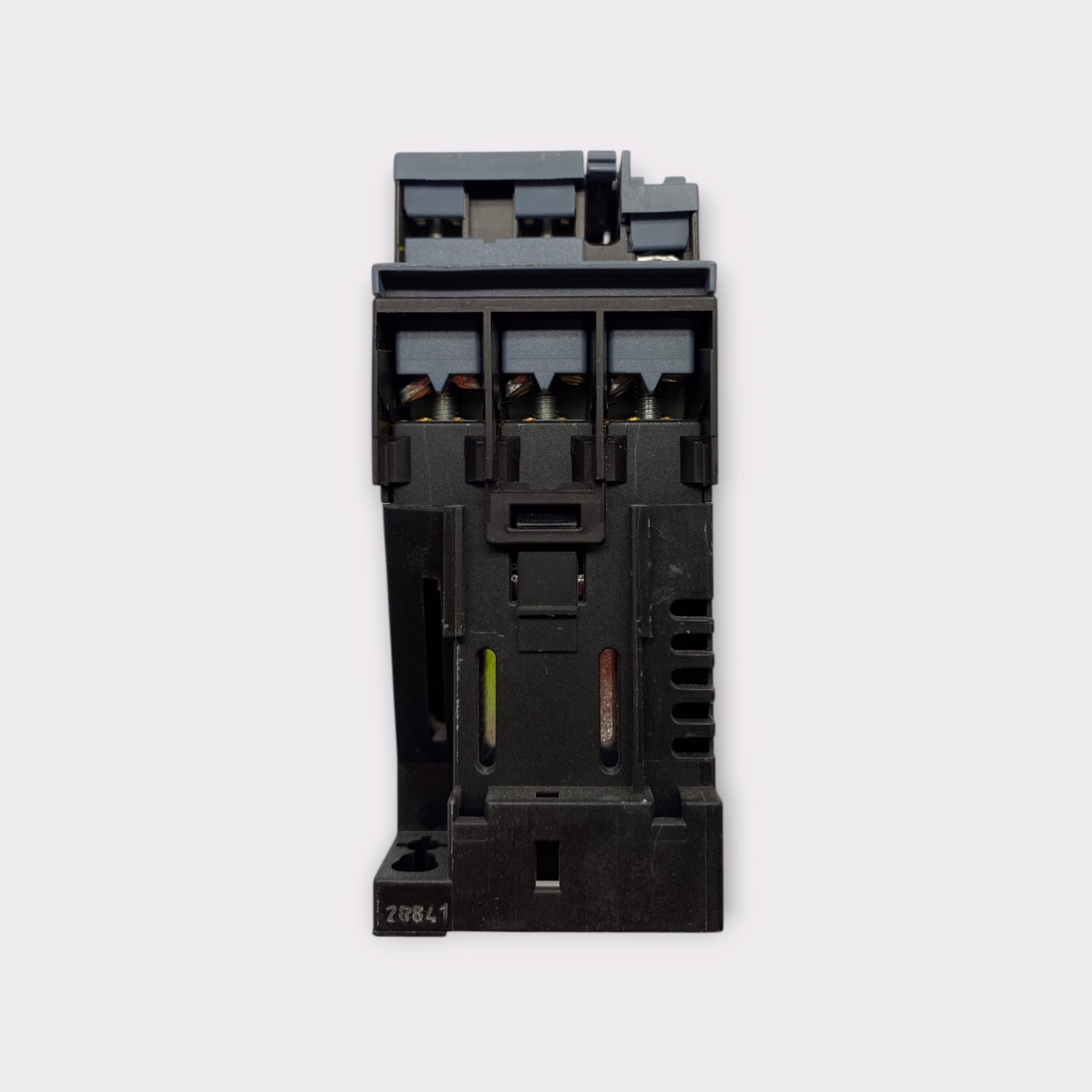

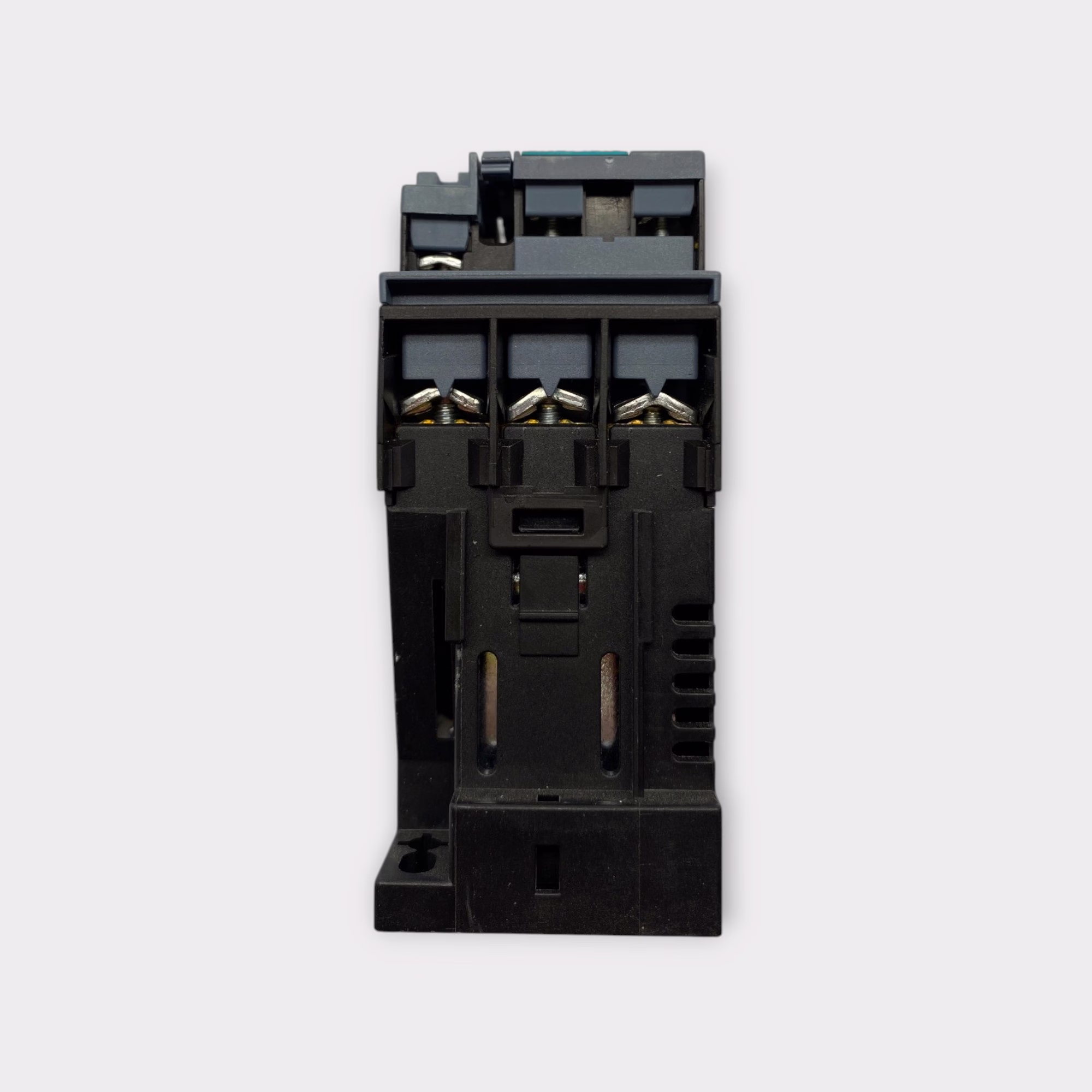

The unit features screw-type electrical terminals and a compact design suitable for mounting inside industrial electrical control panels.

Product Information:

- Manufacturer - Siemens
- Model Number - 3RT2023-1BB40
- Series - SIRIUS 3RT2
- MPN - 3RT2023-1BB40
- Product Type - Power Contactor
- Contactor Size - S0
- Number of Main Poles - 3
- Main Contact Configuration - 3 NO
- Auxiliary Contacts - 1 NO + 1 NC
- Control Coil Voltage - 24V DC
- Control Circuit Type - DC
- AC-3 Rated Current at 400V - 9A
- AC-3e Rated Current at 400V - 9A
- AC-3 Motor Power at 400V - 4 kW
- Rated Insulation Voltage - 690V
- Rated Impulse Withstand Voltage - 6 kV
- Main Circuit Connection - Screw Terminals
- Auxiliary / Control Connection - Screw Terminals

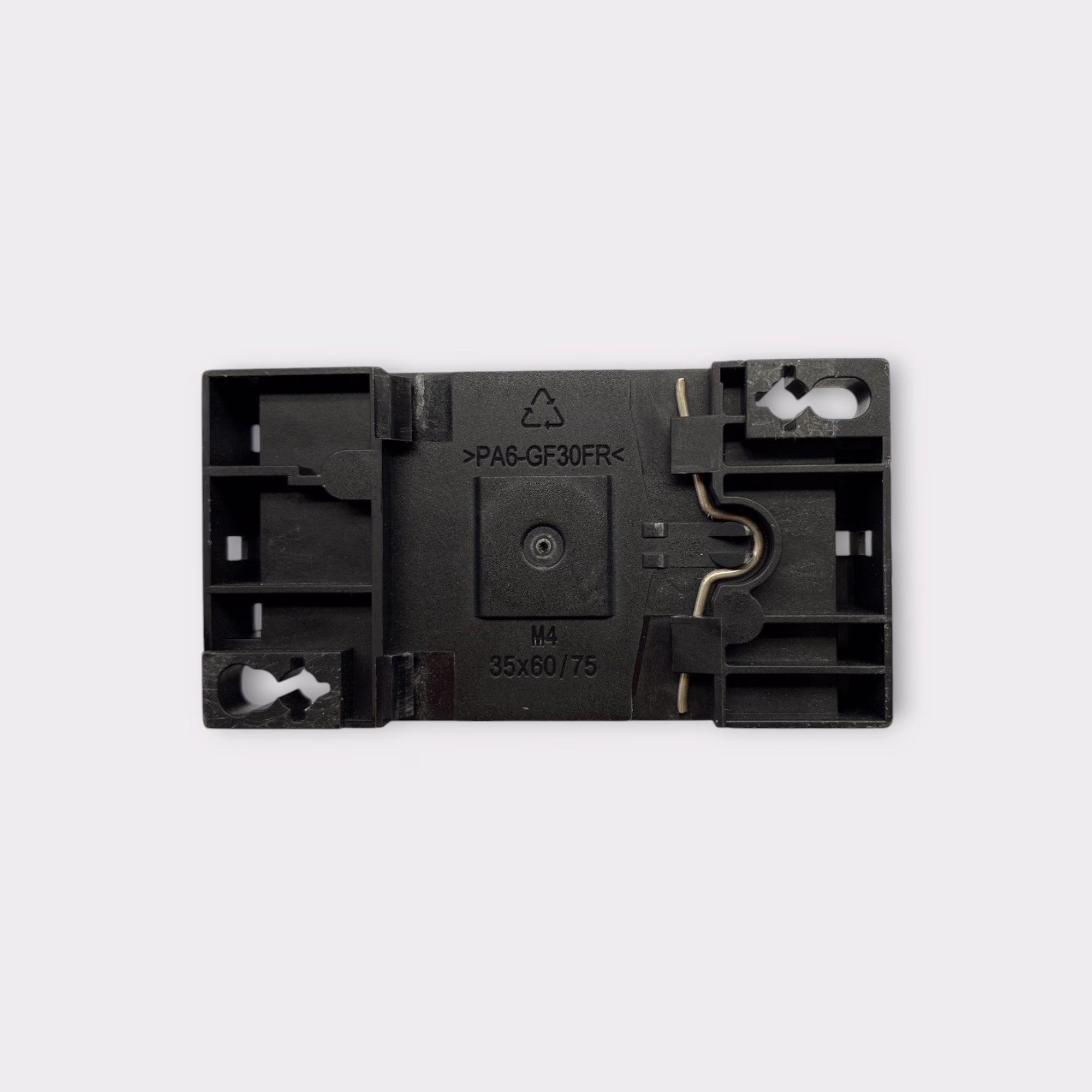

- Mounting - DIN Rail / Screw Mounting
- Operating Temperature - -25°C to +60°C
- Typical Mechanical Service Life - 10,000,000 Operating Cycles
- Net Weight - Approximately 596 g
- Condition - New Old Stock / New (Other)
- Quantity - 1
- Made in Germany

Included:

- Siemens 3RT2023-1BB40 SIRIUS Power Contactor Only

Not Included:

- Original Box
- Instructions / Manuals
- Wiring
- Additional Accessories
