Summary

This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new(other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy.

This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

Product Description

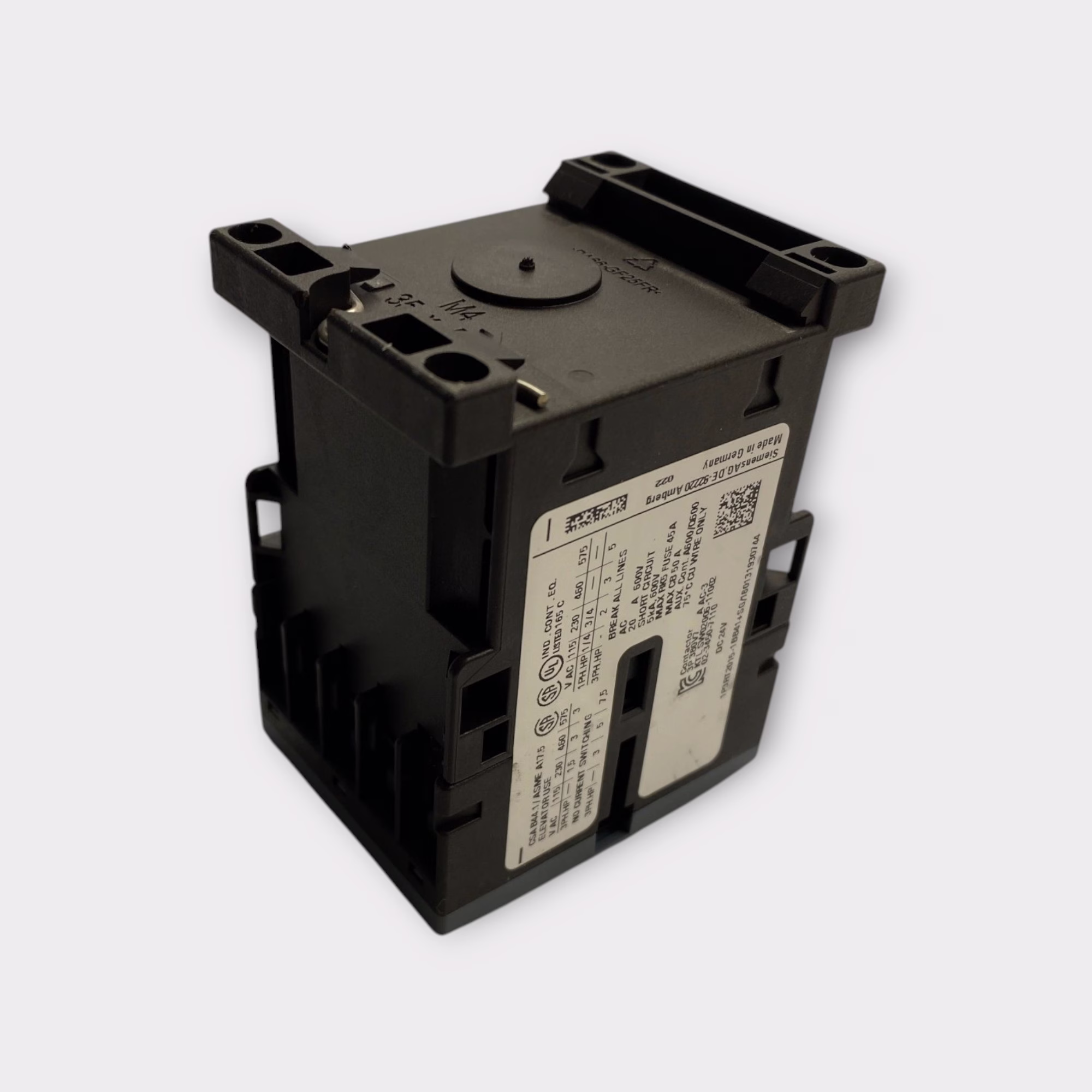

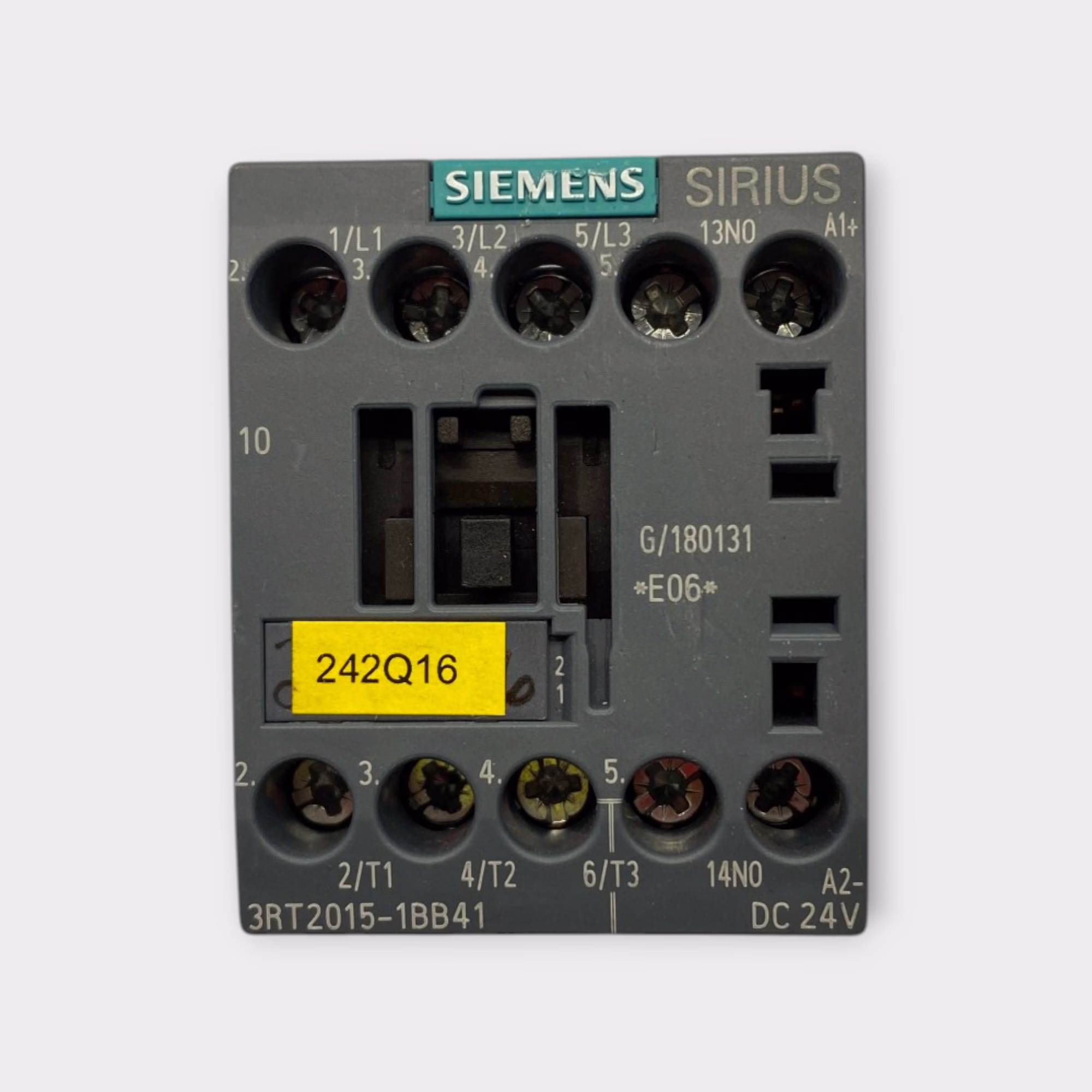

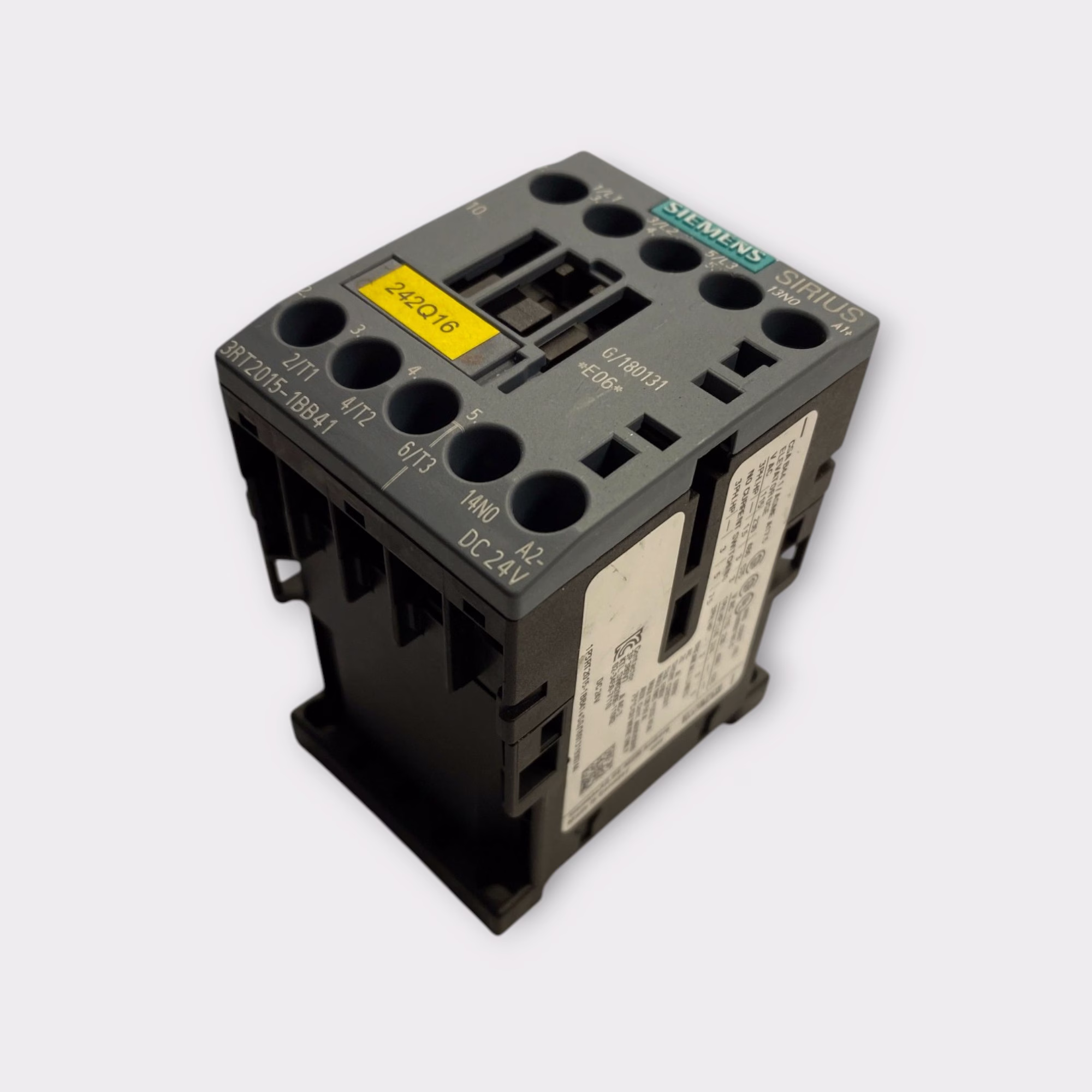

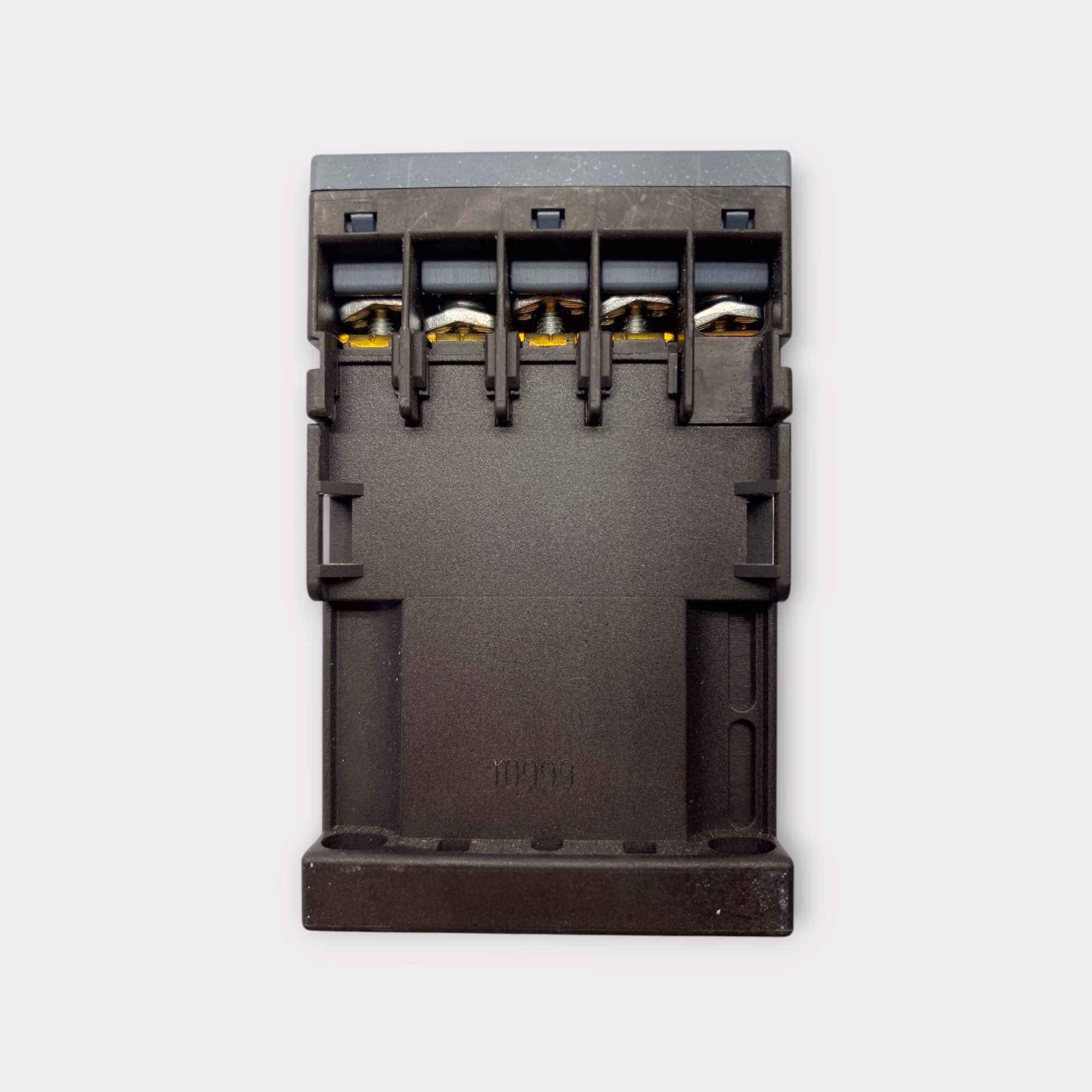

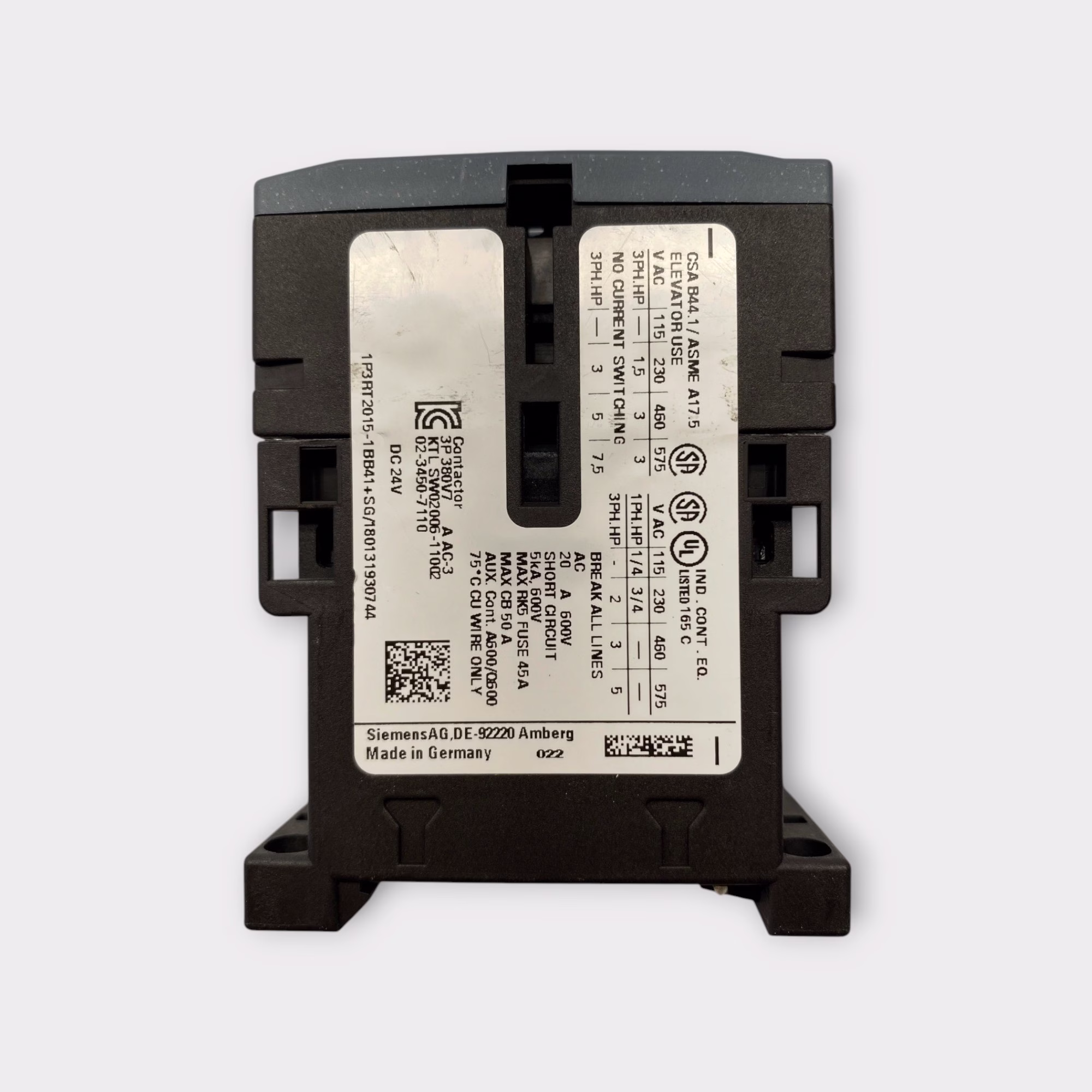

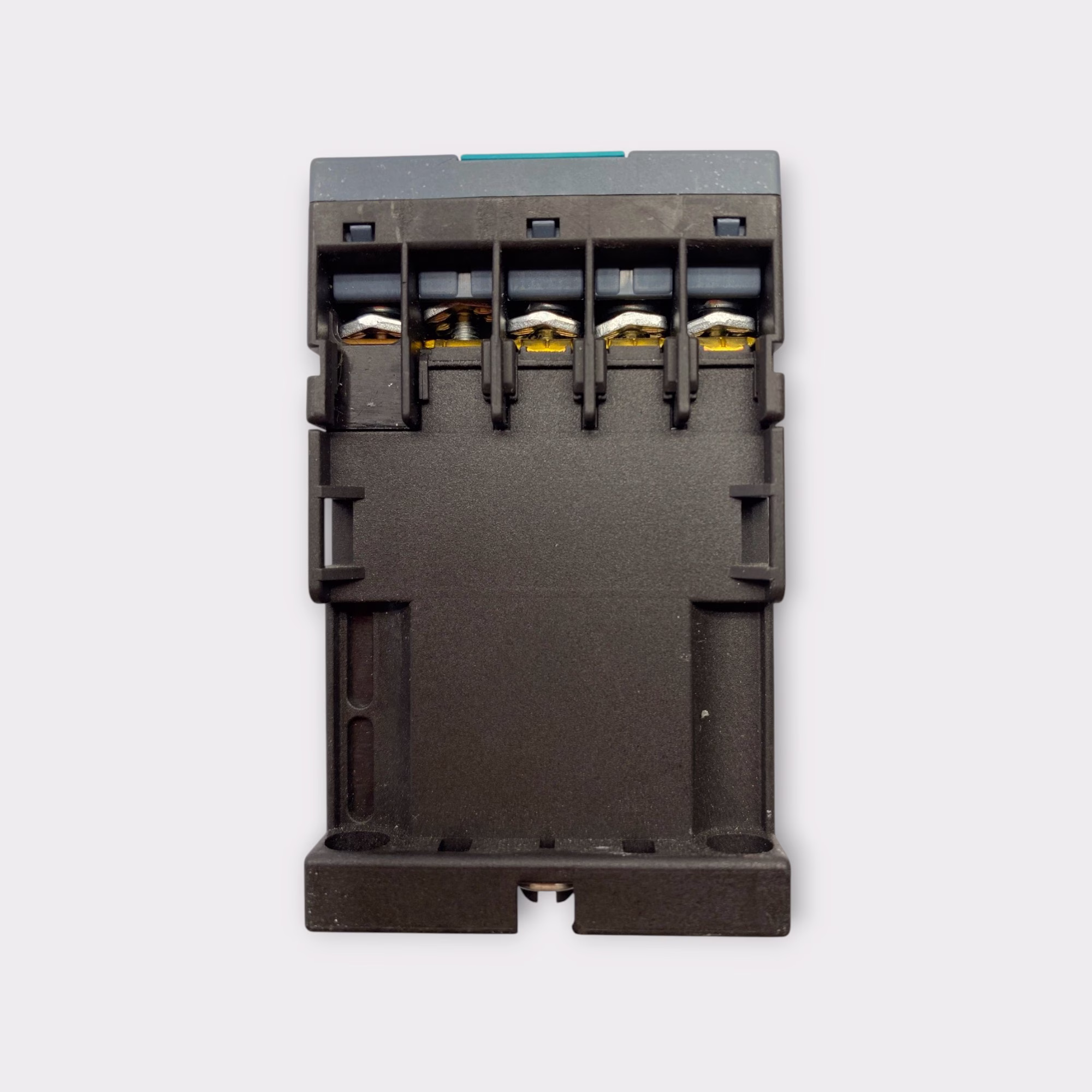

The Siemens 3RT2015-1BB41 is a SIRIUS 3RT2 power contactor designed for switching motors and other industrial electrical loads. This compact S00 contactor features three main poles, a 24V DC control coil, one integrated normally open auxiliary contact, and screw-type electrical terminals.

The contactor is rated for 7A at AC-3/AC-3e at 400V with a corresponding motor rating of 3 kW. It supports operating voltages up to 690V and can be mounted using screws or snapped onto a standard 35mm DIN rail.

This listing includes the Siemens contactor only. No original box, instructions, manuals, wiring, or additional accessories are included.

Product Information:

- Manufacturer - Siemens
- Model Number - 3RT2015-1BB41
- Series - SIRIUS 3RT2
- MPN - 3RT2015-1BB41
- Product Type - Power Contactor
- Contactor Size - S00
- Number of Main Poles - 3
- Main Contact Configuration - 3 NO
- Auxiliary Contacts - 1 NO
- Auxiliary NC Contacts - 0
- Control Coil Voltage - 24V DC
- Control Circuit Type - DC

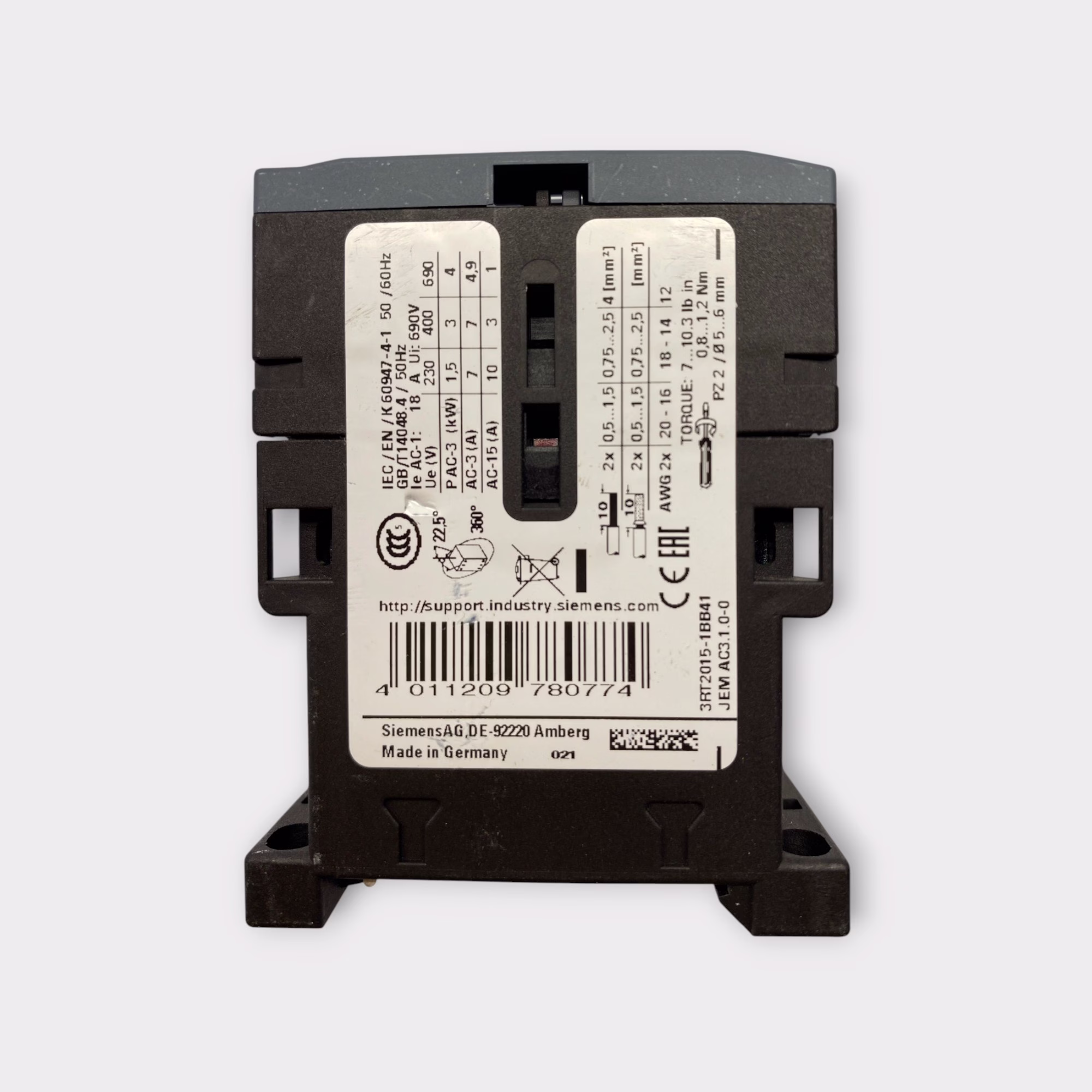

- AC-3 Rated Current at 400V - 7A
- AC-3e Rated Current at 400V - 7A
- AC-1 Rated Current at 400V / 40°C - 18A
- Maximum AC-3 Operating Voltage - 690V
- Maximum AC-3e Operating Voltage - 690V
- AC-3 Motor Power at 230V - 1.5 kW
- AC-3 Motor Power at 400V - 3 kW
- AC-3 Motor Power at 500V - 3 kW
- AC-3 Motor Power at 690V - 4 kW
- Coil Closing Power - 4W
- Coil Holding Power - 4W
- Insulation Voltage - 690V
- Main Circuit Terminals - Screw Type
- Auxiliary / Control Terminals - Screw Type

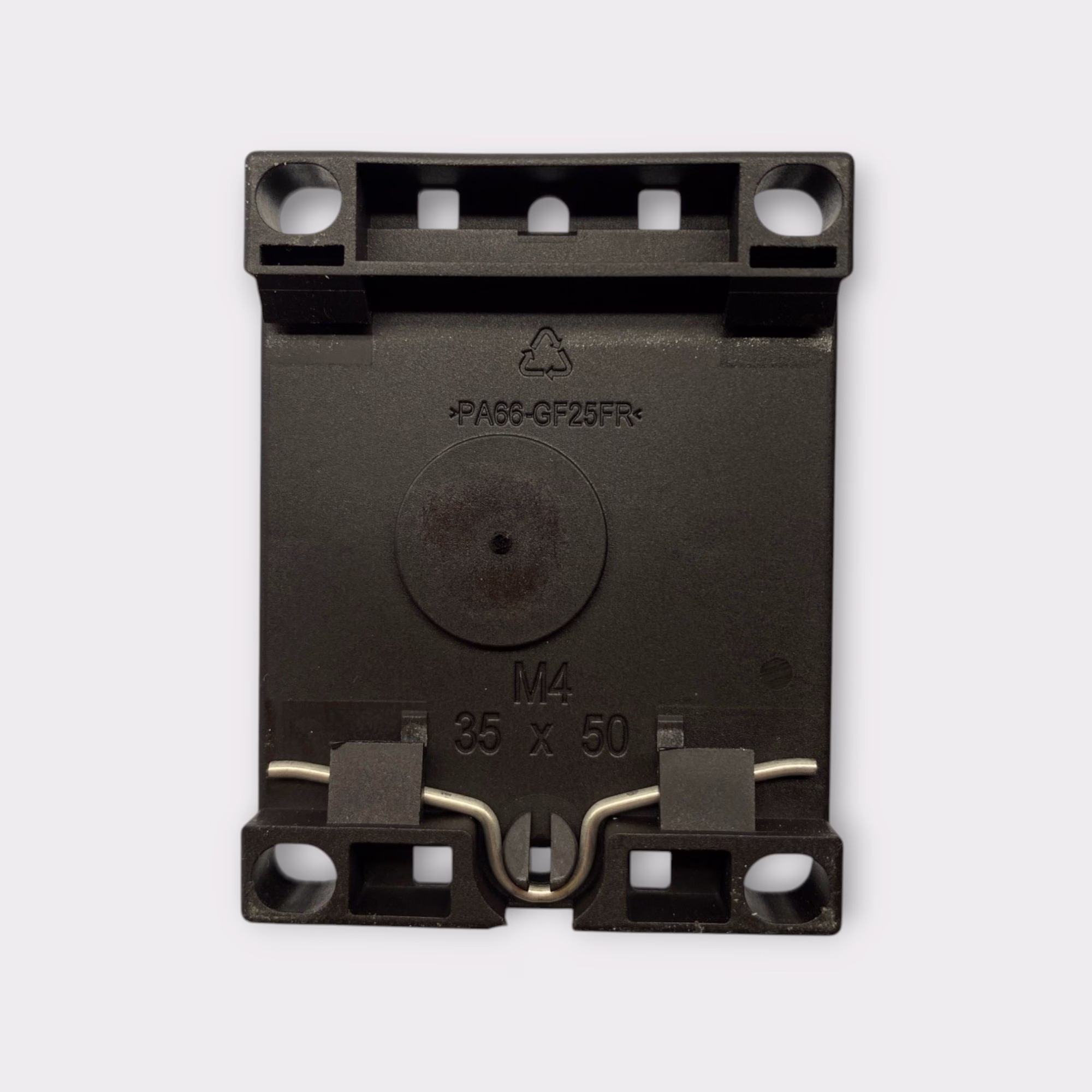

- Mounting - 35mm DIN Rail / Screw Mount
- DIN Rail Standard - DIN EN 60715
- Protection Rating - IP20
- Operating Temperature - -25°C to +60°C
- Dimensions - 58 x 45 x 73 mm
- Net Weight - Approximately 278 g
- Country of Origin - Germany
- Quantity - 1

Included:

- Siemens 3RT2015-1BB41 SIRIUS Power Contactor Only

Not Included:

- Original Box
- Instructions / Manual
- Additional Wiring
- Additional Accessories

NOTE: This listing is for the contactor only. No original box or instructions are included.
