Manufacturer: Schneider Electric
Model Number: LED Pilot Light / Indicator Light
Series: Harmony XB4
MPN: XB4BVB1, ZB4BV013, ZBV-B1
Listed Item Condition: Used
Summary

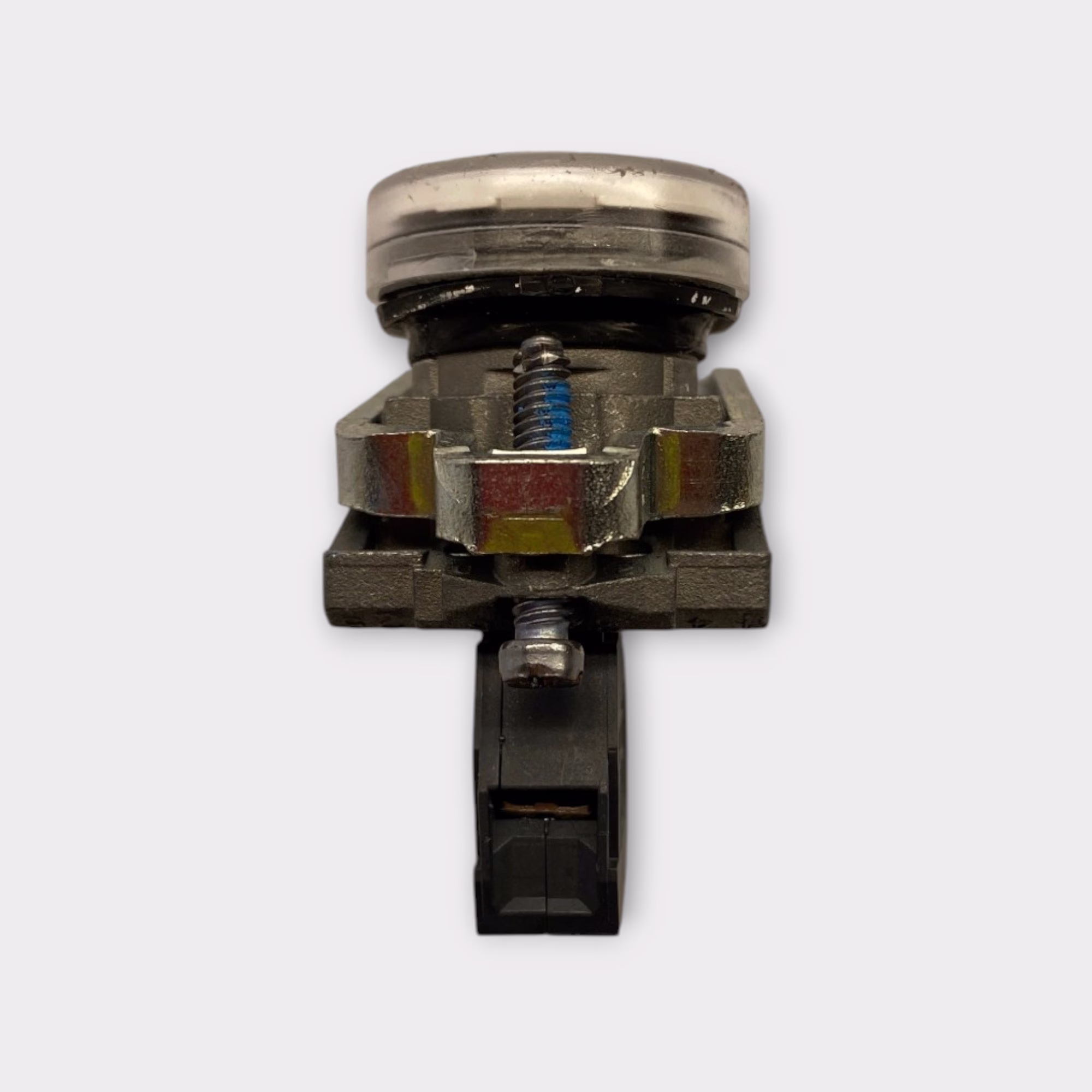

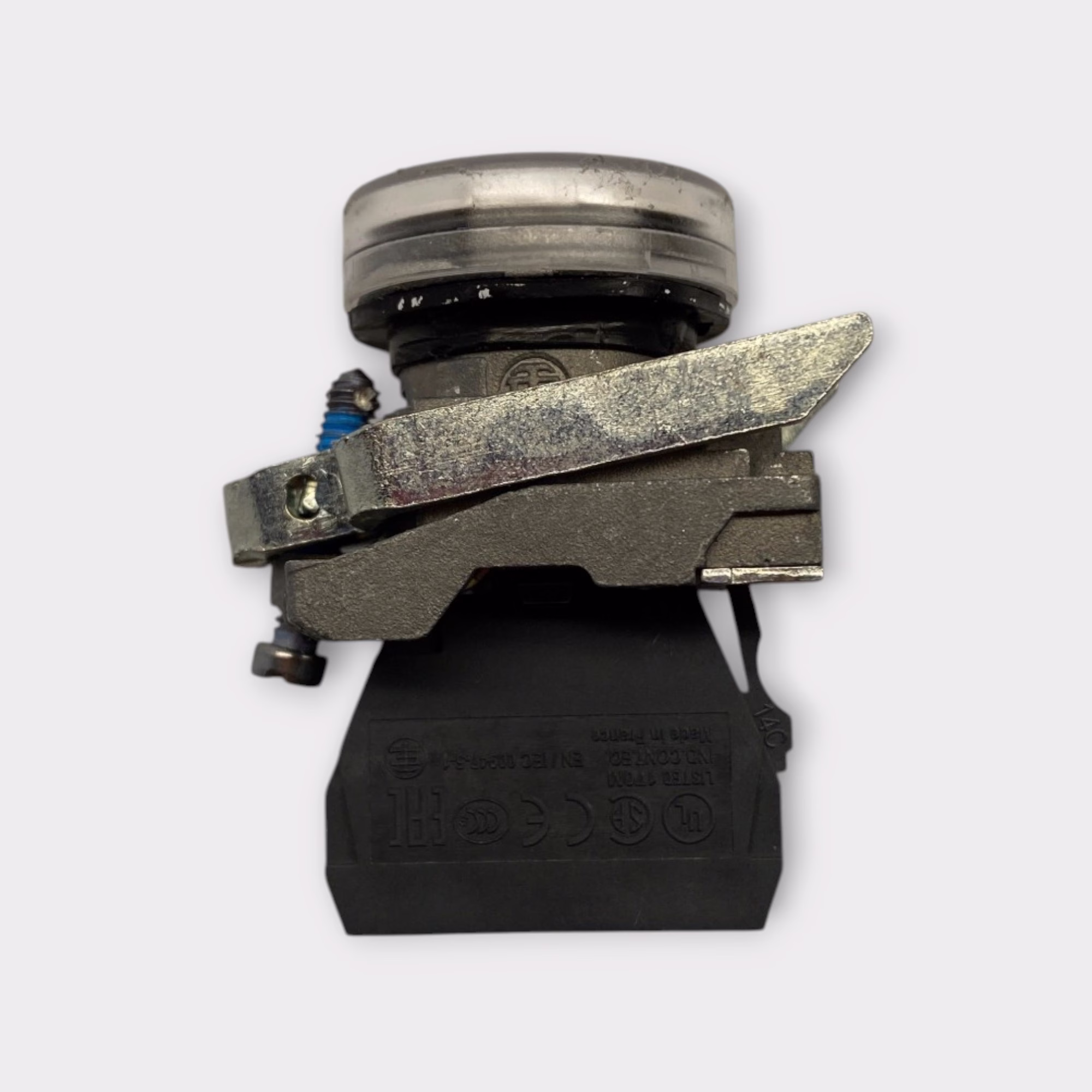

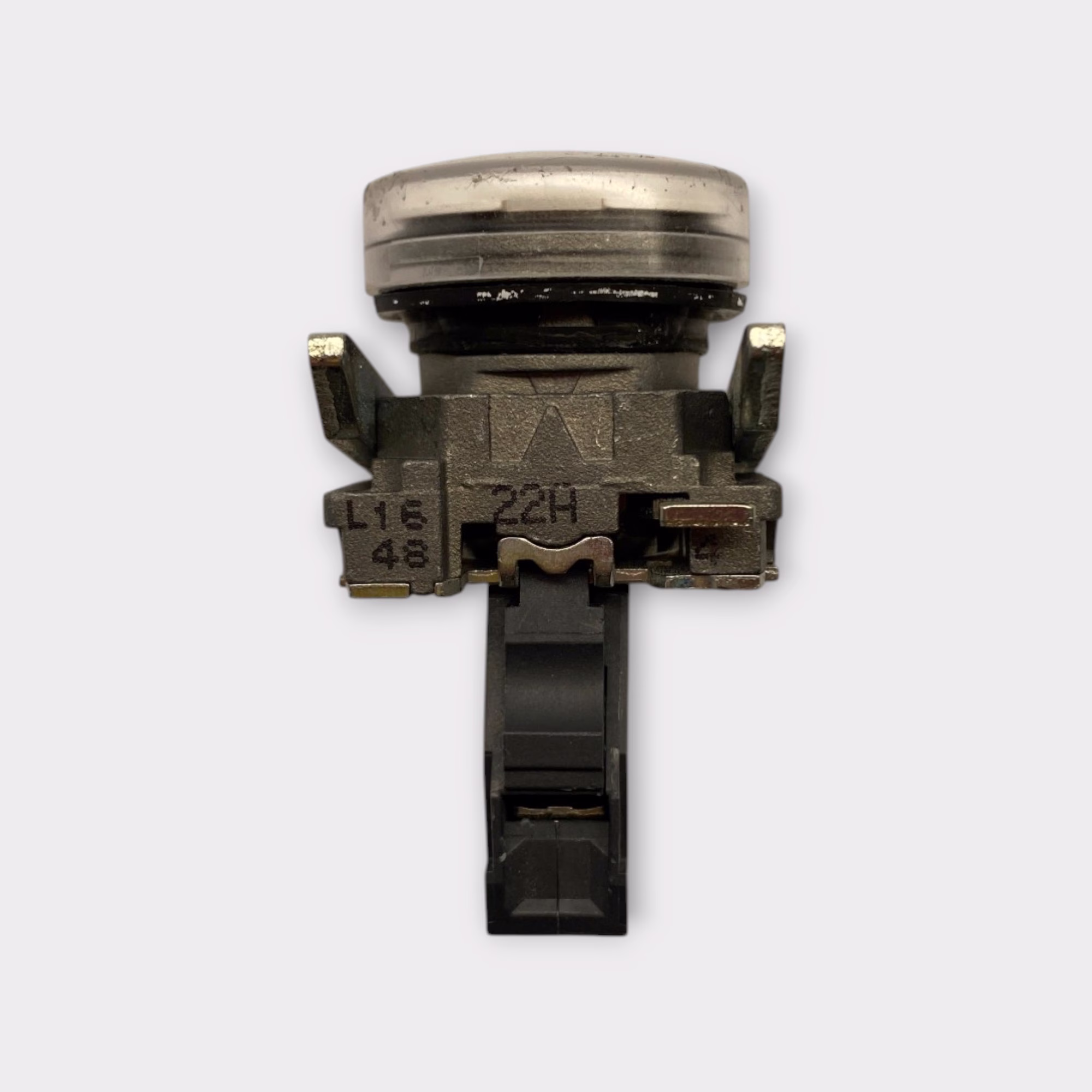

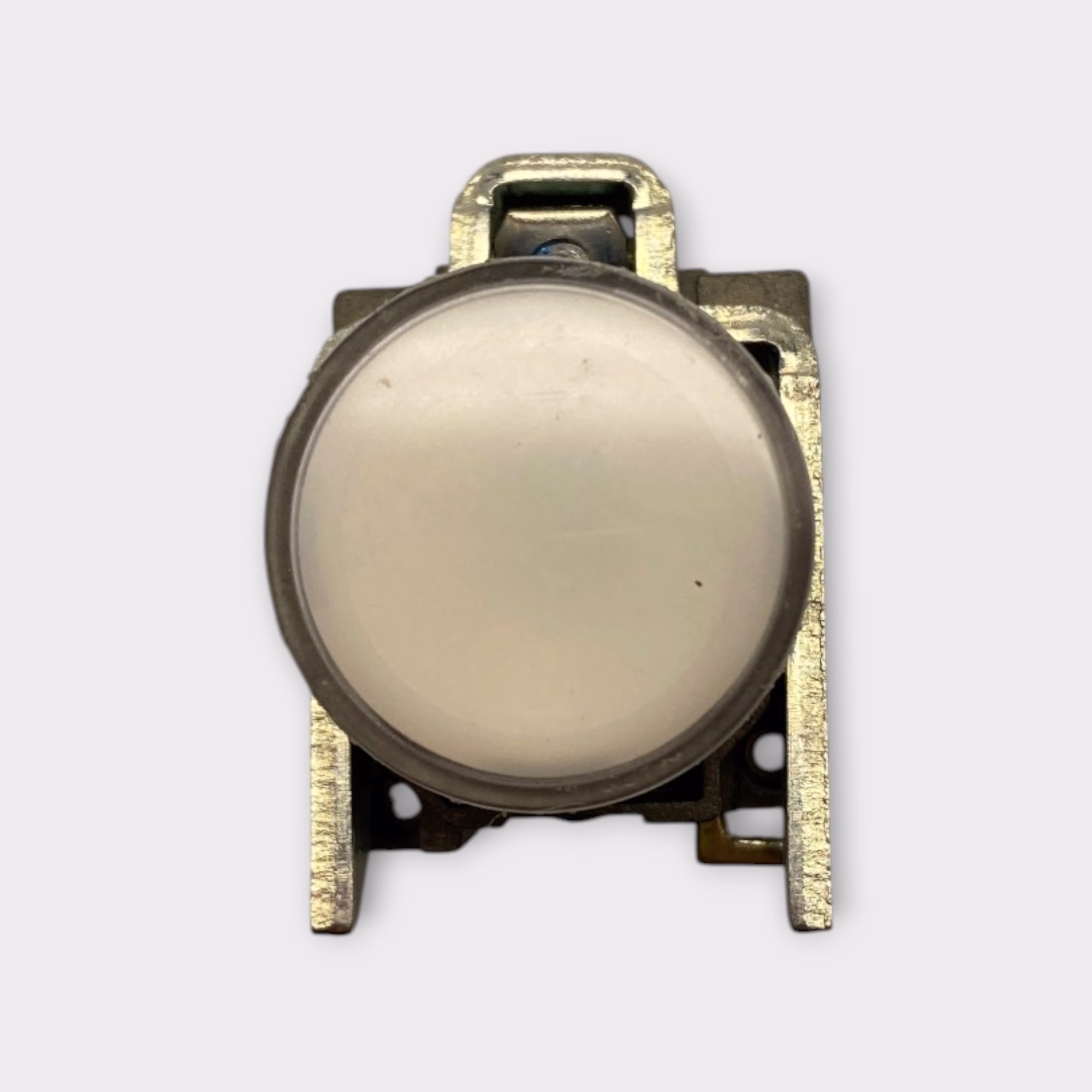

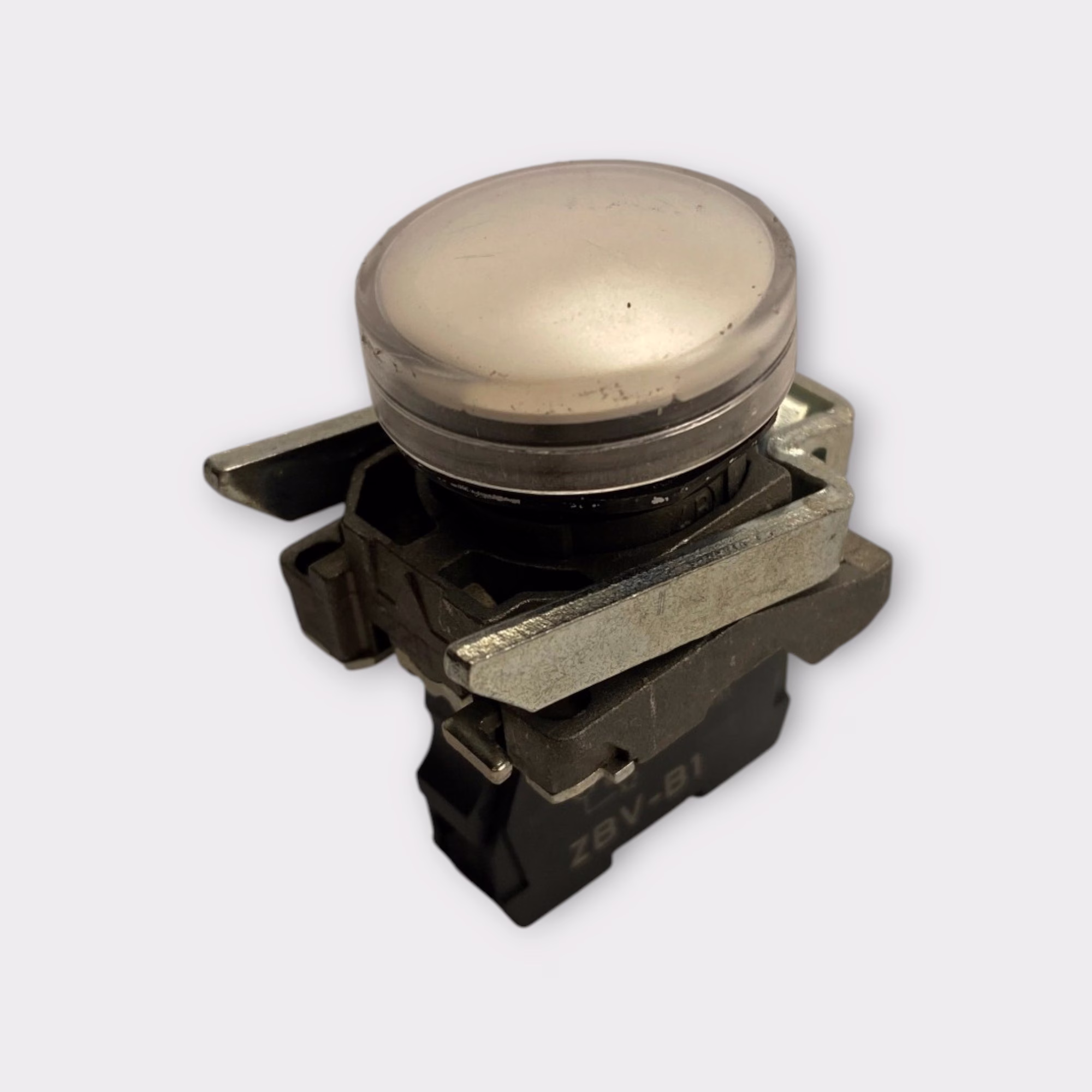

Schneider Electric XB4BVB1 Harmony XB4 white LED pilot light assembly for industrial control and signaling applications. This complete assembly comes with a ZBV-B1 24V LED light block attached to a ZB4BV013 white pilot light top with a plain lens and metal bezel.
This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.
Listing is for Indicator / Pilot Light Assembly only, does not include any instructions, installation screws, or original box.
Product Description
The Schneider Electric XB4BVB1 is a Harmony XB4 22mm white LED pilot light designed for industrial control panels, machinery, automation systems, and status indication applications. It operates on 24V AC/DC and provides steady white LED illumination through a plain round lens.

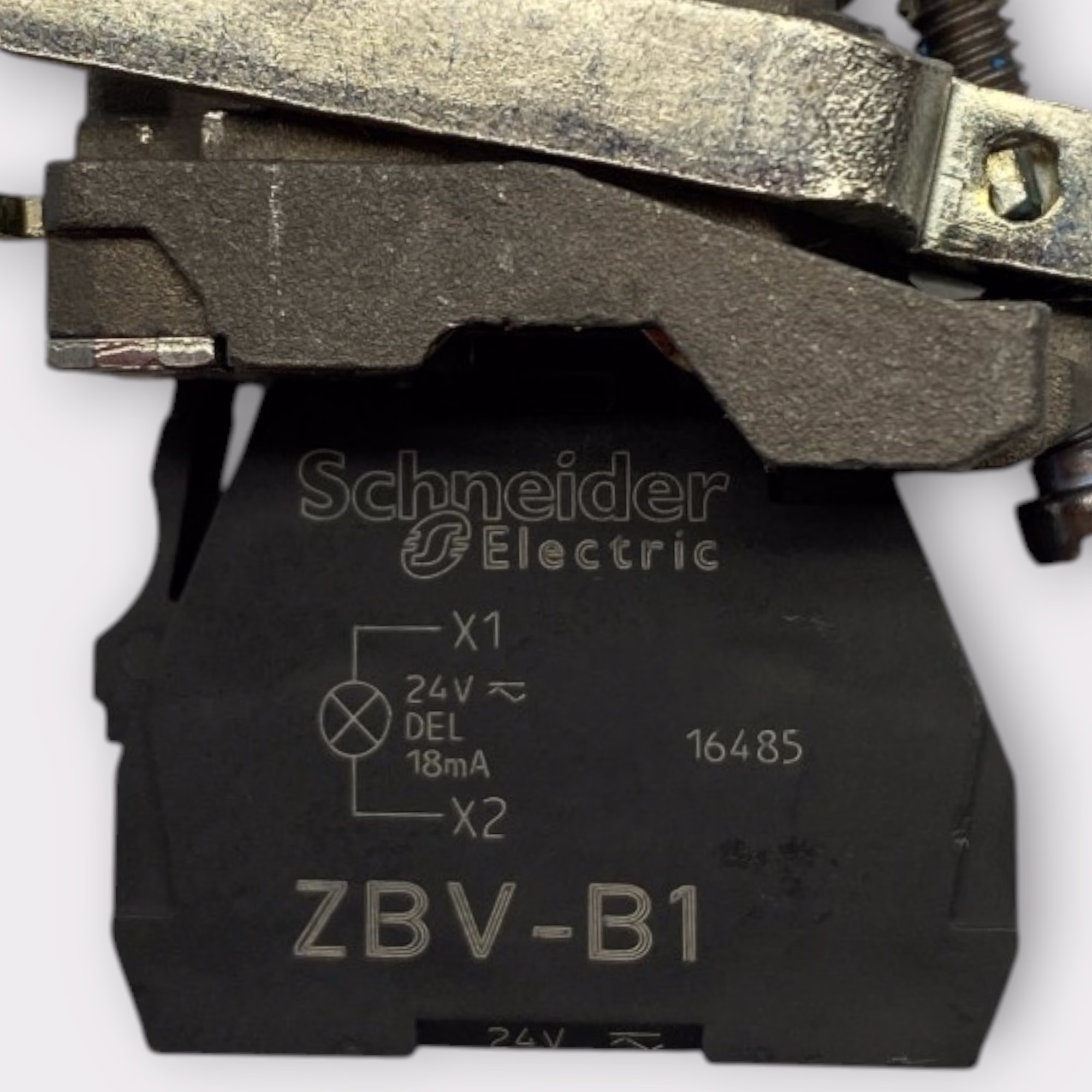

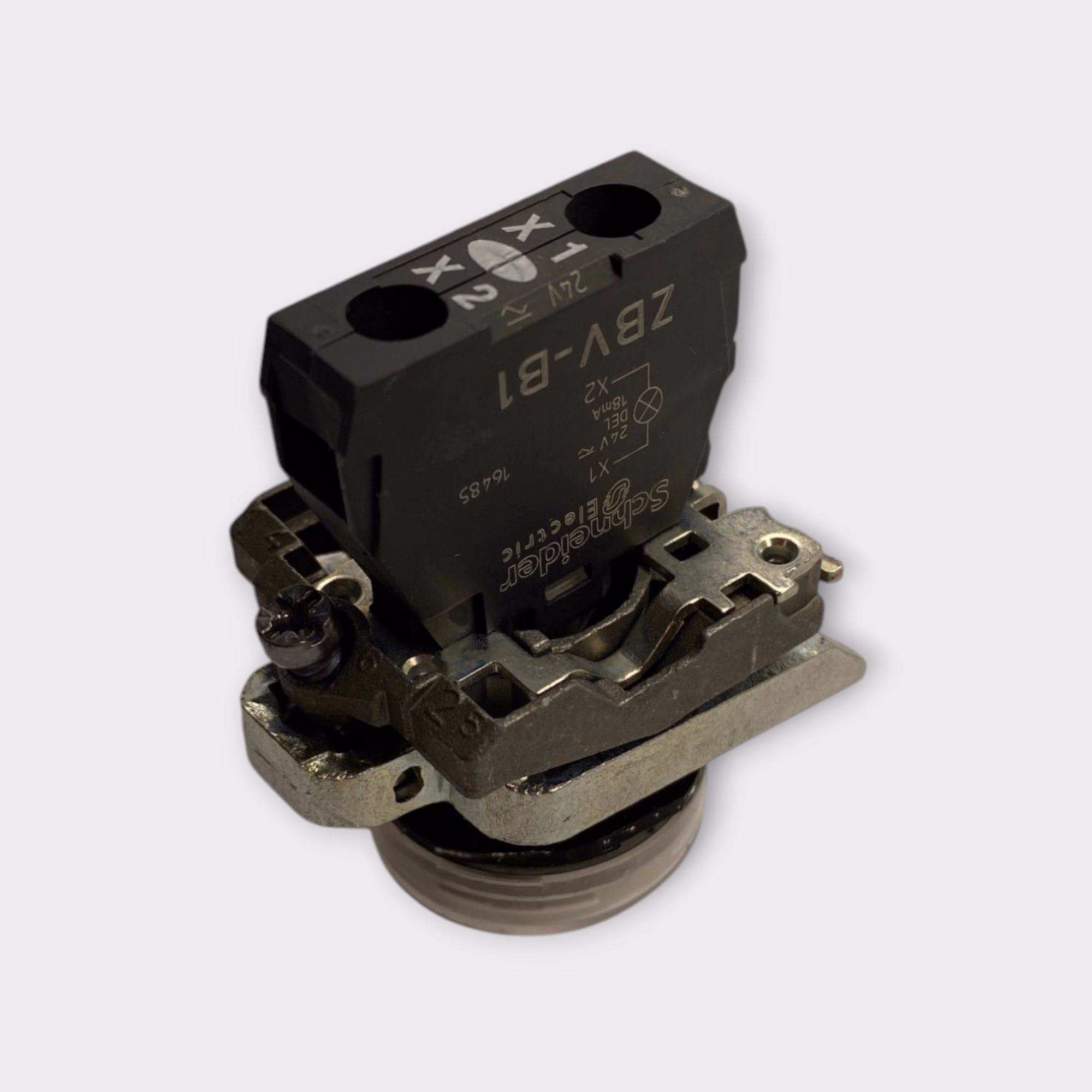

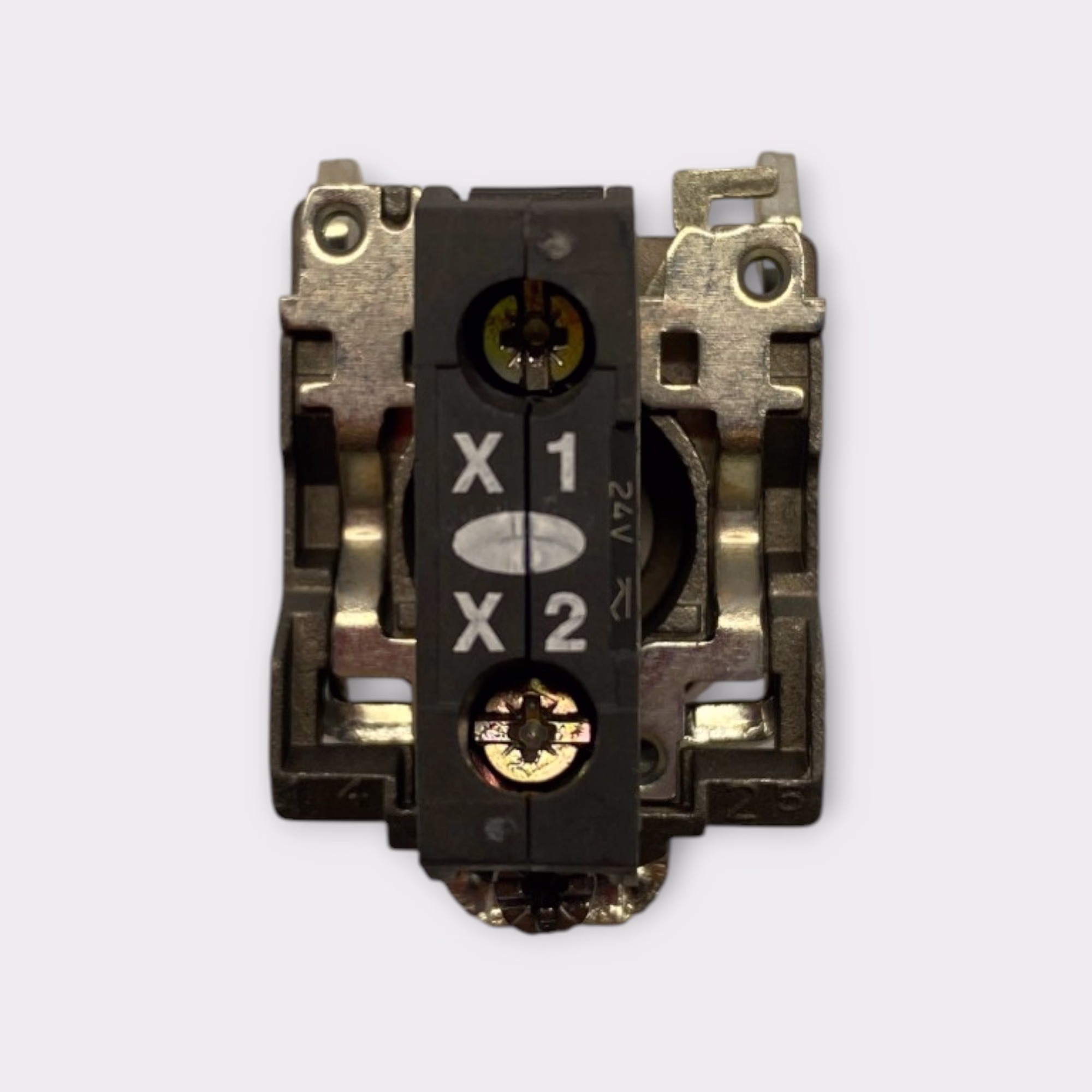

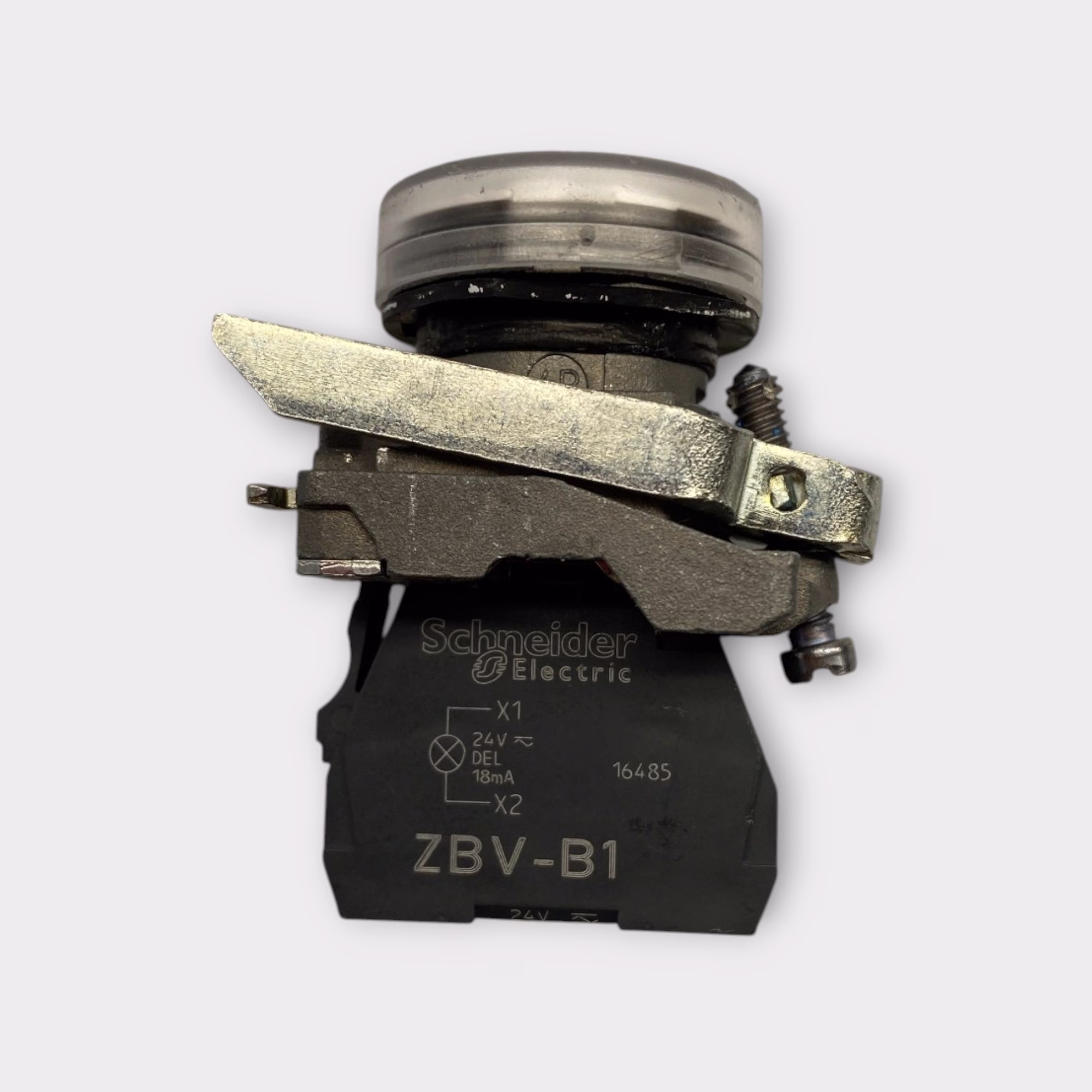

This complete assembly comes with a ZBV-B1 24V LED light block attached to a ZB4BV013 white pilot light top. The assembly includes the metal mounting/fixing hardware and uses X1/X2 screw-clamp terminals for electrical connection.
Product Information:
- Manufacturer - Schneider Electric
- Model Number - XB4BVB1
- Series - Harmony XB4
- MPN - XB4BVB1
- Product Type - LED Pilot Light / Indicator Light
- Complete Assembly - XB4BVB1
- Pilot Light Top - ZB4BV013
- Light Block - ZBV-B1
- Light Type - Universal LED
- Light Color - White
- Lens Color - White
- Lens Type - Plain Lens
- Head Shape - Round
- Signaling Type - Steady
- Rated Supply Voltage - 24V AC/DC
- Supply Frequency - 50/60Hz
- Current Consumption - 18mA
- Terminal Identification - X1 / X2
- Terminal Type - Screw Clamp
- Mounting Diameter - 22mm / 22.5mm
- Mounting Type - Panel Mount
- Bezel Material - Chromium-Plated Metal
- Fixing Collar Material - Zamak
- IP Rating - IP66 / IP67 / IP69 / IP69K
- NEMA Rating - NEMA 4X / NEMA 13
- LED Service Life - 100,000 Hours at Rated Voltage and 25°C
- Rated Insulation Voltage - 250V
- Rated Impulse Withstand Voltage - 4kV
- Approximate Dimensions - 47mm H x 30mm W x 54mm D
- Approximate Weight - 0.08kg / 0.18 lb
- Country of Origin - France
- Application - Industrial Control / Machinery / Automation / Status Indication
What's Included:
- Schneider Electric XB4BVB1 Harmony XB4 White 24V LED Pilot Light
