Schneider Electric illuminated Start/Stop push button switch assembly featuring green Start and red Stop controls with a center indicator light. Includes NO and NC contact blocks and a 24V illumination block for industrial machinery and control applications.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

Listing is for Switch only, does not include any instructions, installation screws, or original box.

Product Description

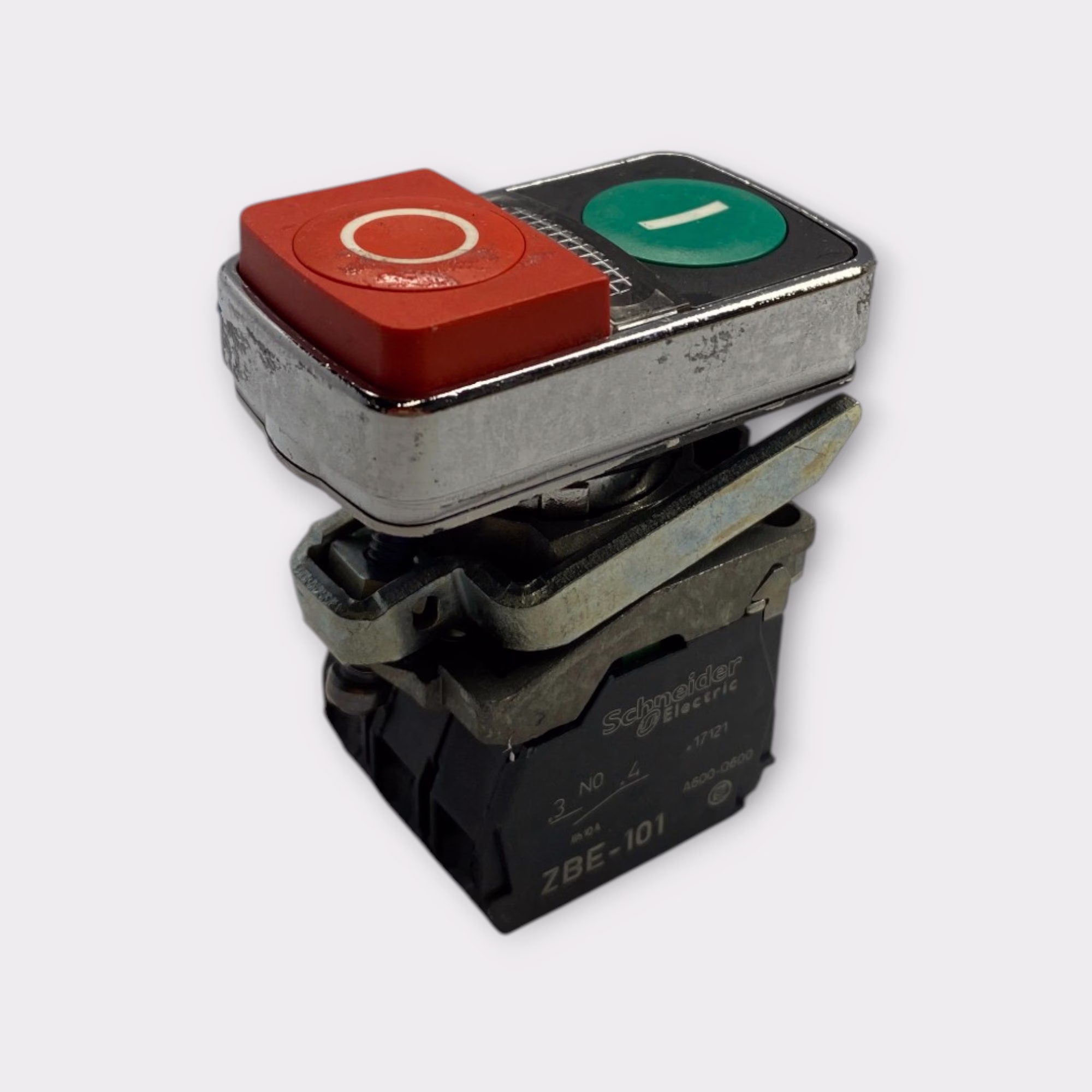

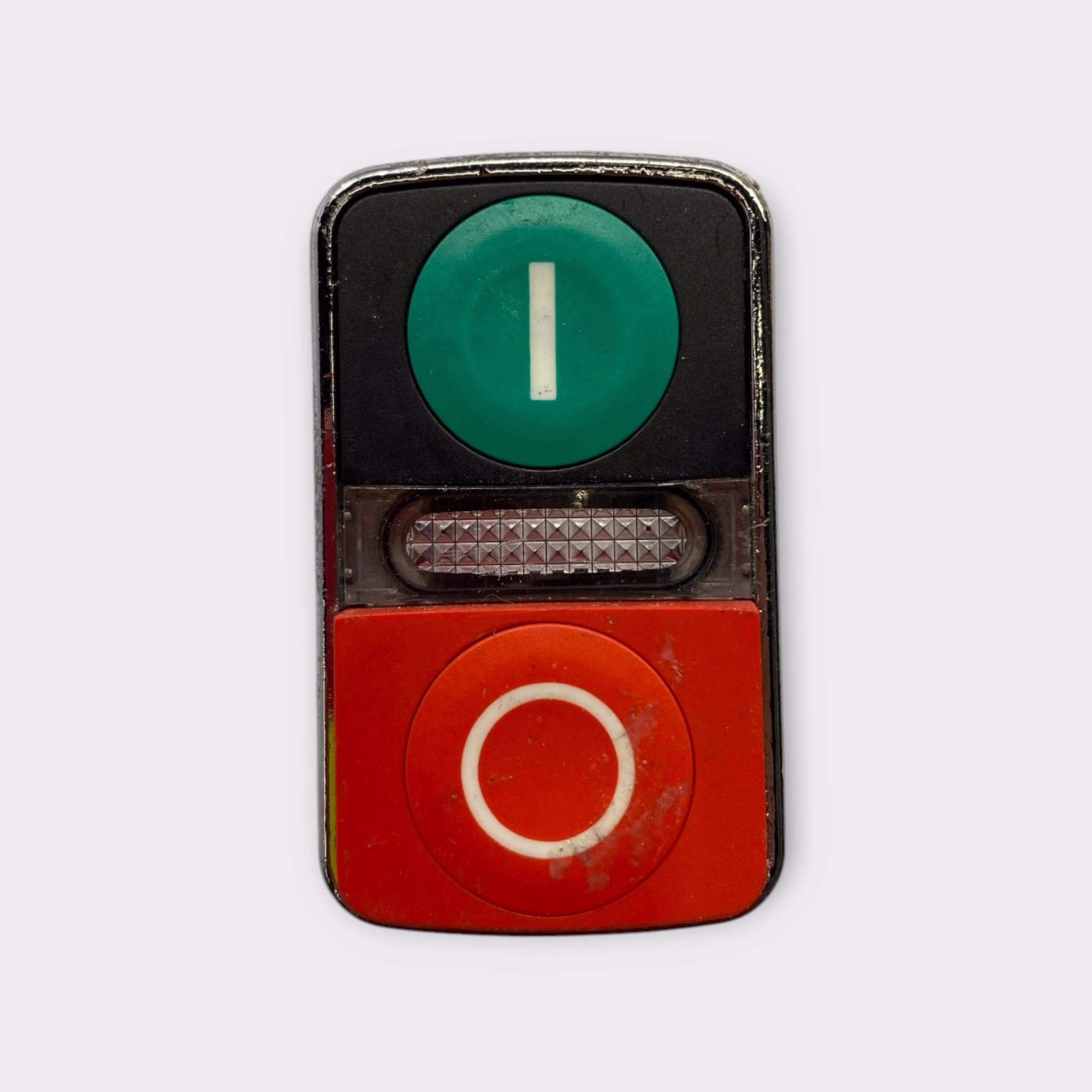

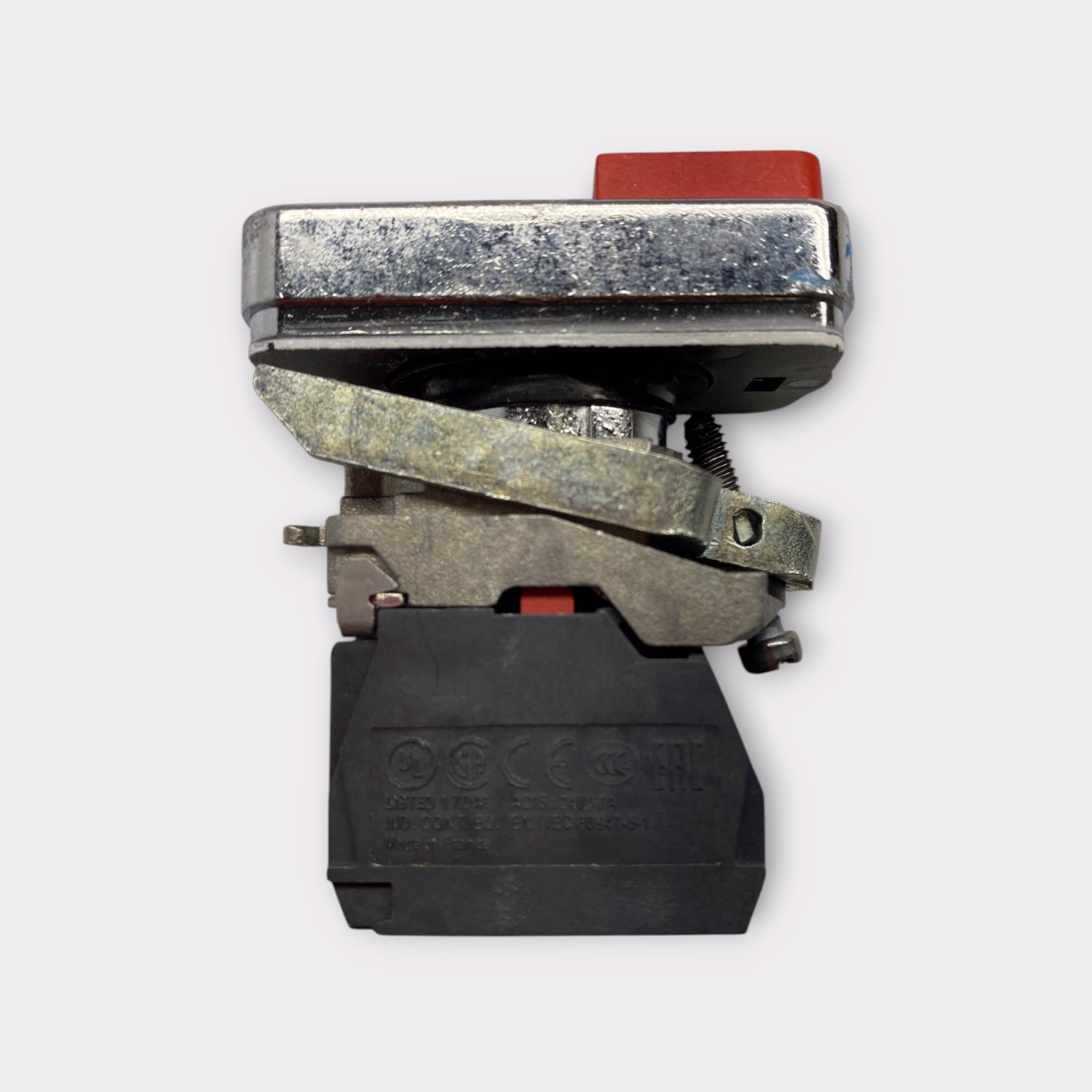

Schneider Electric Start/Stop push button control assembly with green Start and red Stop operators and integrated center indicator light. The assembly includes normally open and normally closed switching contacts along with a 24V illumination block for industrial and commercial control applications.

Product Information:

- Manufacturer - Schneider Electric

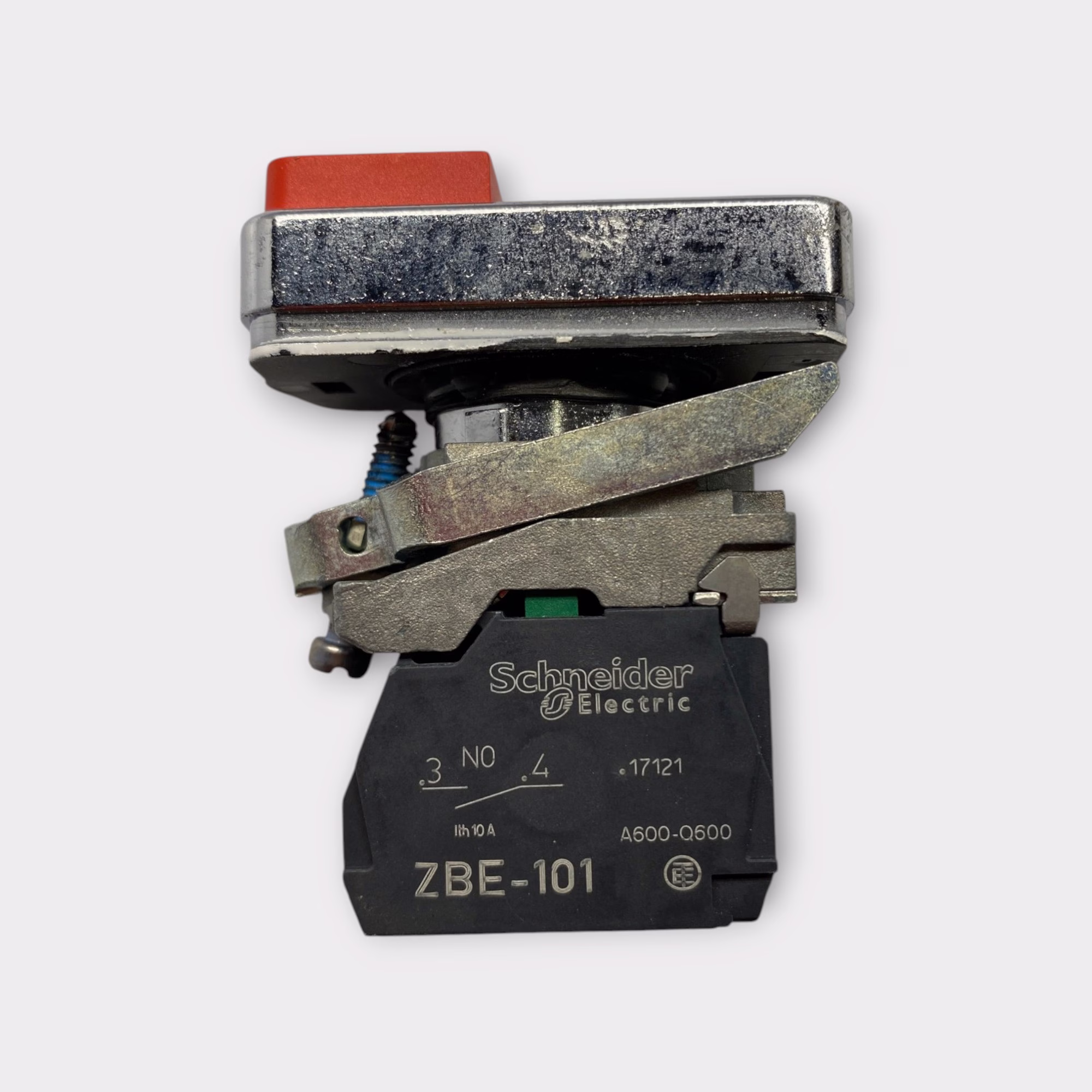

- Model Number - ZBE-101
- Series - Harmony ZBE
- MPN - ZBE-101
- Product Type - Illuminated Start/Stop Push Button Switch Assembly
- Control Function - Start / Stop
- Start Button - Green
- Stop Button - Red
- Indicator Light - Center Mounted
- Illumination Voltage - 24V
- Contact Configuration - 1 NO / 1 NC

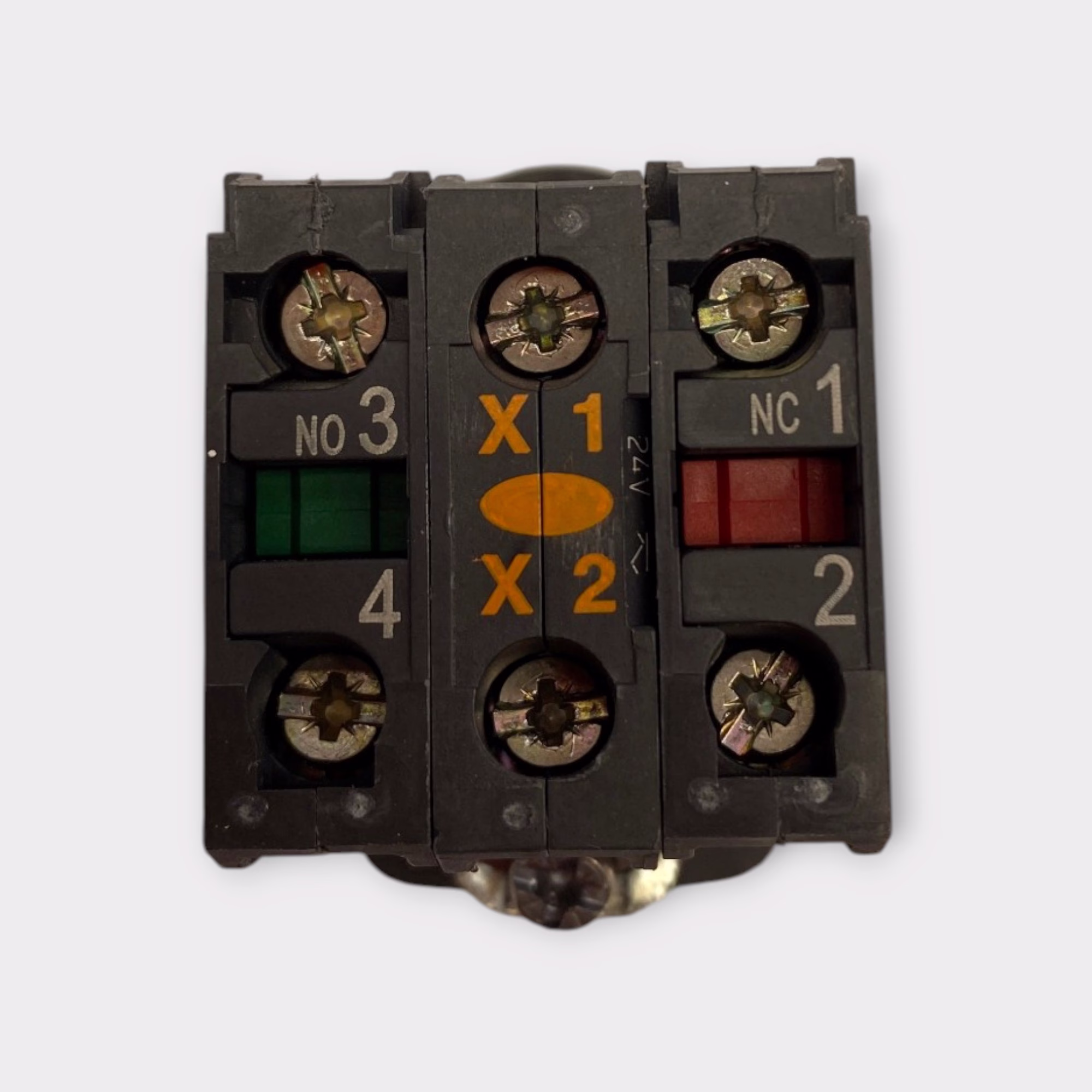

- Normally Open Contact Terminals - 3 / 4
- Normally Closed Contact Terminals - 1 / 2
- Illumination Terminals - X1 / X2
- ZBE-101 Contact Type - 1 NO
- ZBE-101 Contact Rating - A600 / Q600
- Conventional Thermal Current - 10A
- Rated Insulation Voltage - 600V
- Rated Impulse Withstand Voltage - 6kV
- AC Operational Current - 6A at 120VAC
- AC Operational Current - 3A at 240VAC
- AC Operational Current - 1.2A at 600VAC
- DC Operational Current - 0.55A at 125VDC
- DC Operational Current - 0.27A at 250VDC
- DC Operational Current - 0.1A at 600VDC
- Contact Material - Silver Alloy
- Contact Operation - Slow-Break
- Terminal Type - Screw Clamp
- Panel Mounting Size - 22mm
- Mounting Type - Panel Mount
- Compatible Series - Harmony XB4 / XB5
- Application - Industrial Machine Control / Start-Stop Control
- Country of Origin - France
