Summary

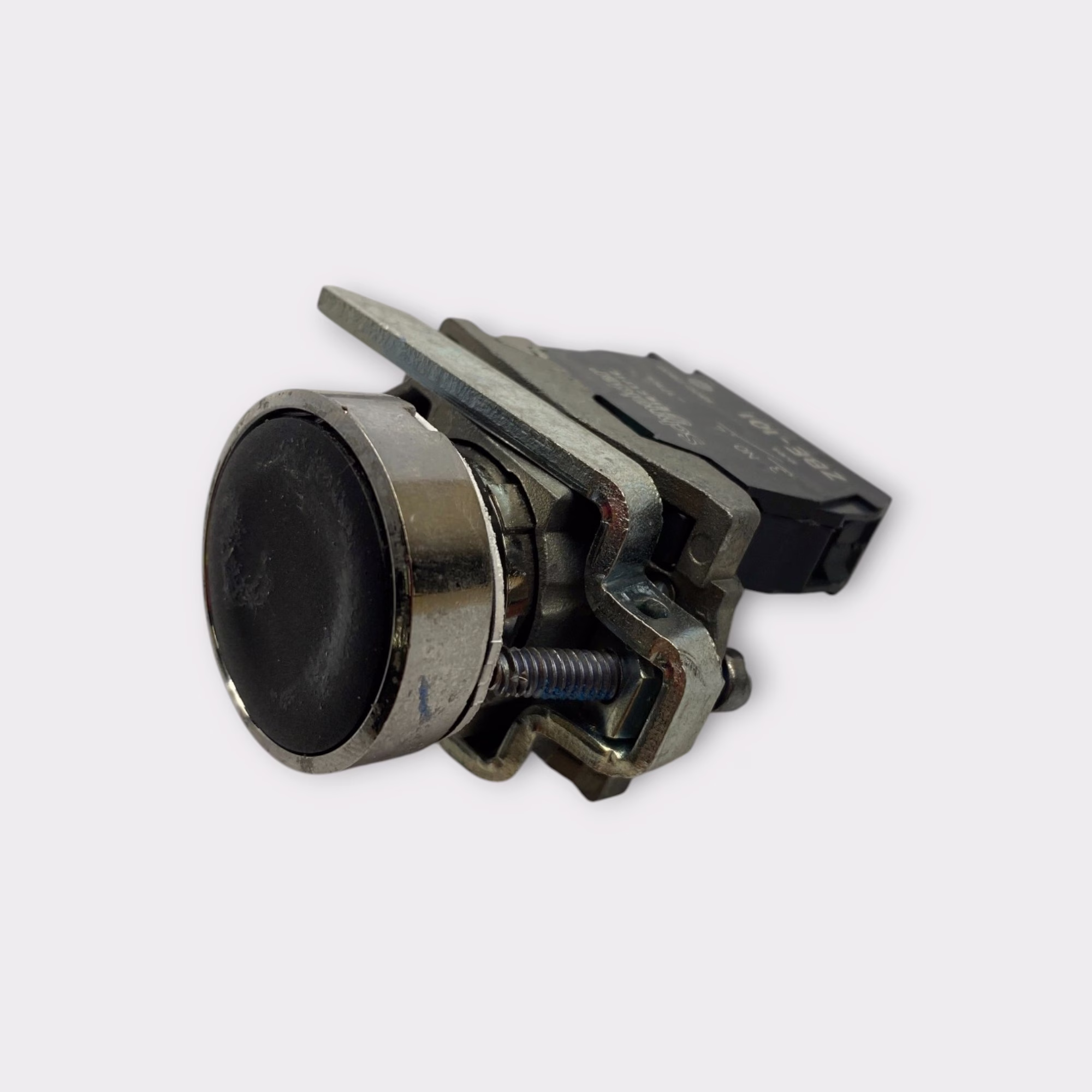

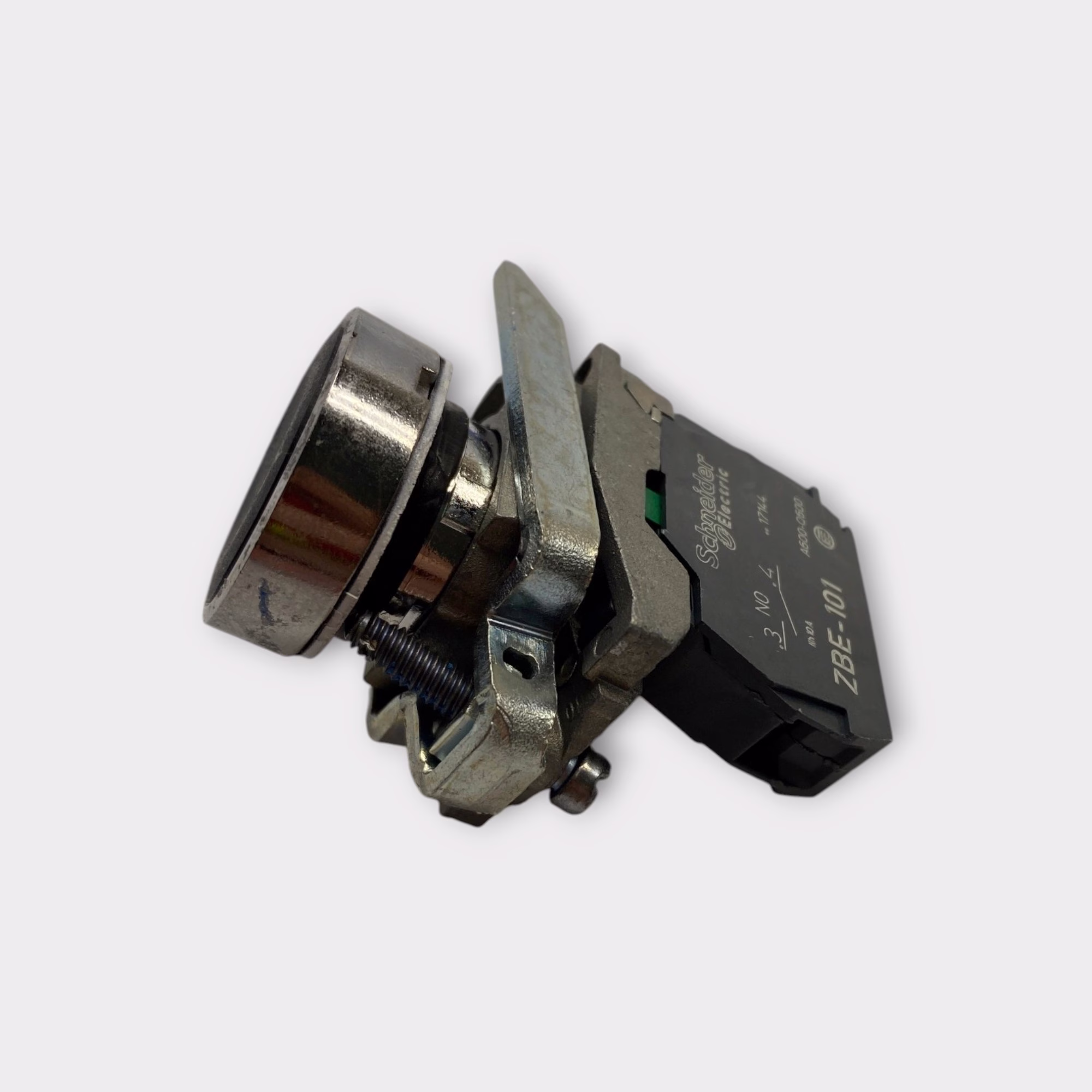

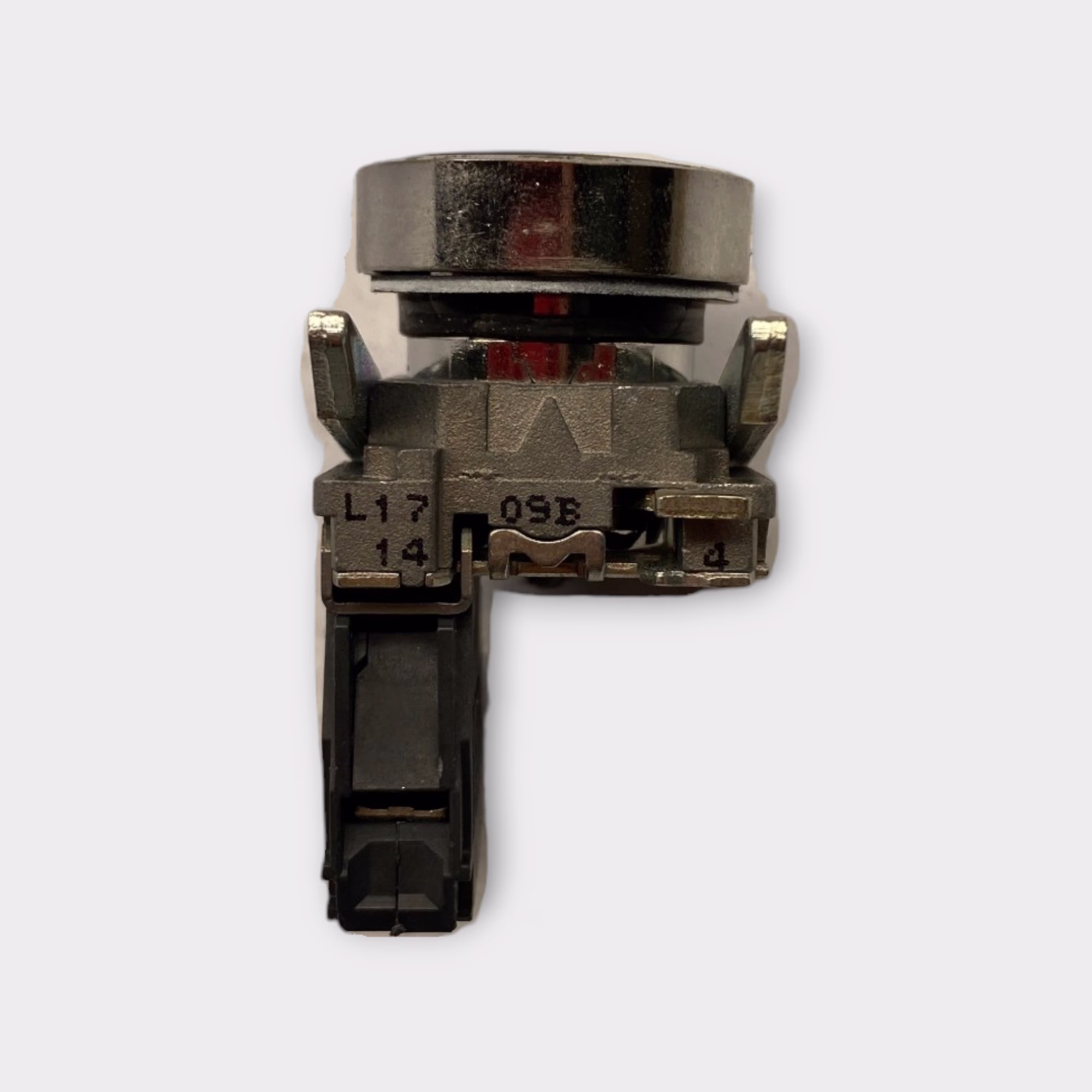

Schneider Electric ZB4BA2 Harmony XB4 black flush pushbutton assembly with ZBE-101 normally open contact block and metal mounting collar. Designed for 22mm industrial control panels, machinery, automation systems, and operator control stations.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

Listing is for switch only, does not include any instructions, installation screws, or original box.

Product Description

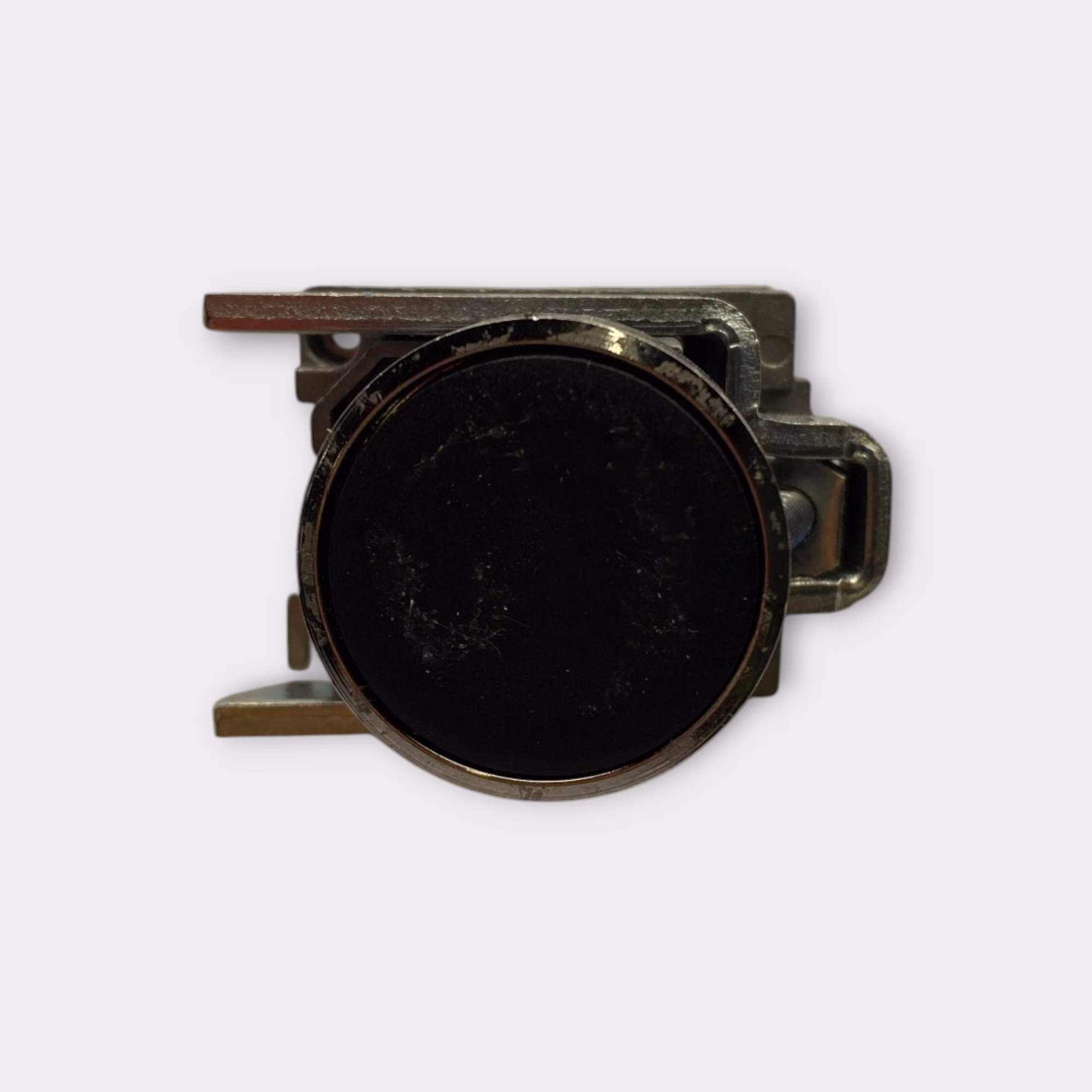

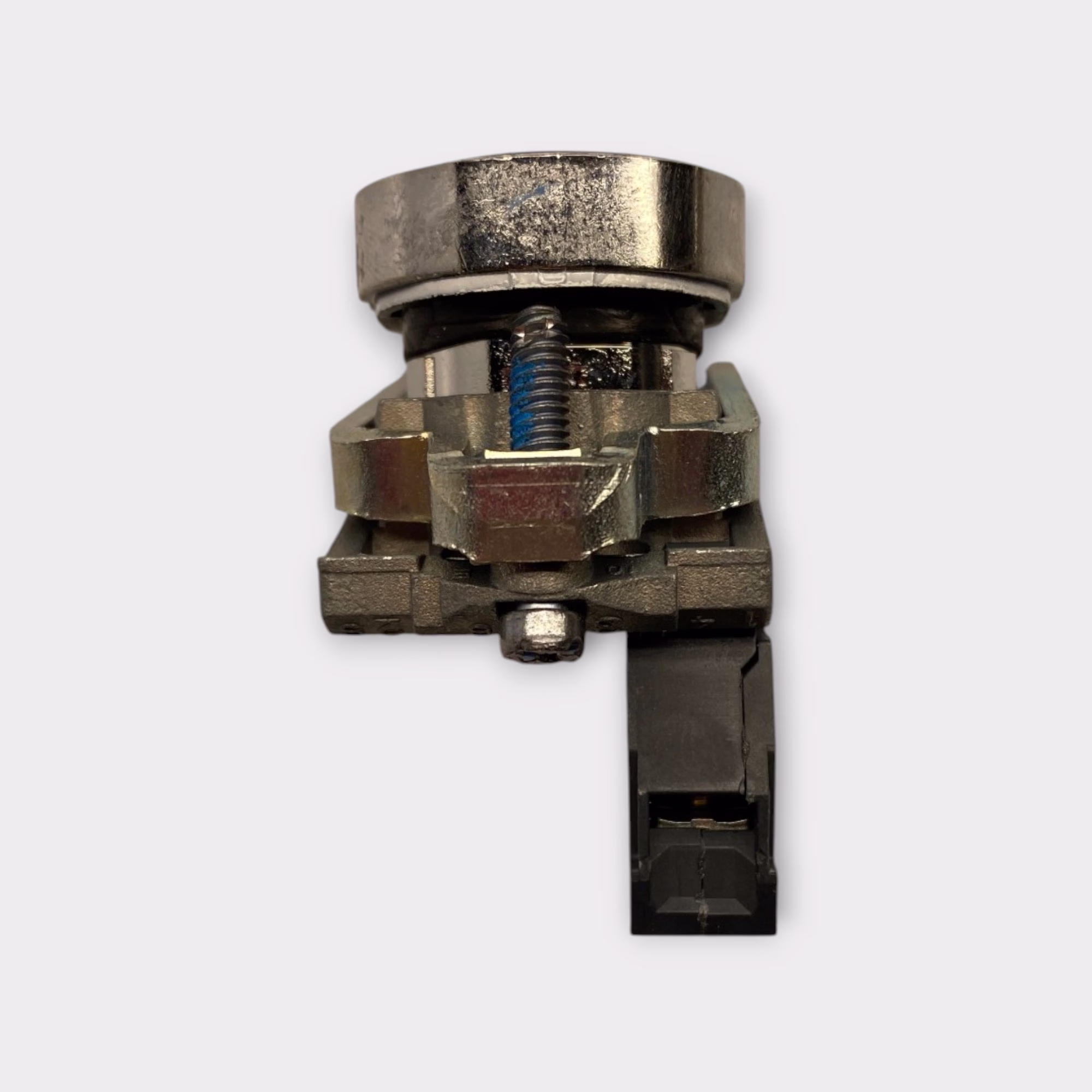

The Schneider Electric ZB4BA2 is a Harmony XB4 industrial pushbutton featuring a black unmarked flush operator, spring-return momentary action, and chromium-plated metal bezel.

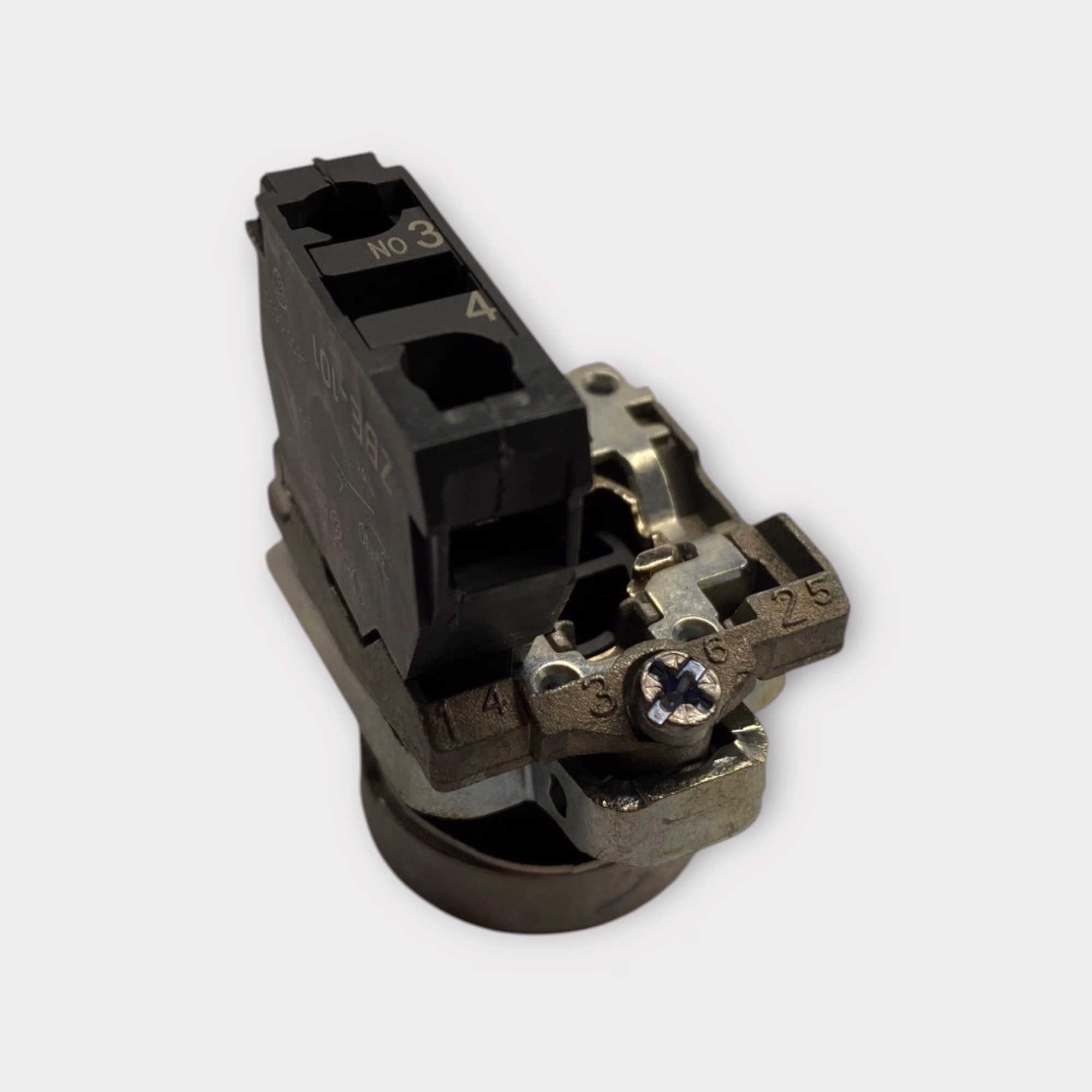

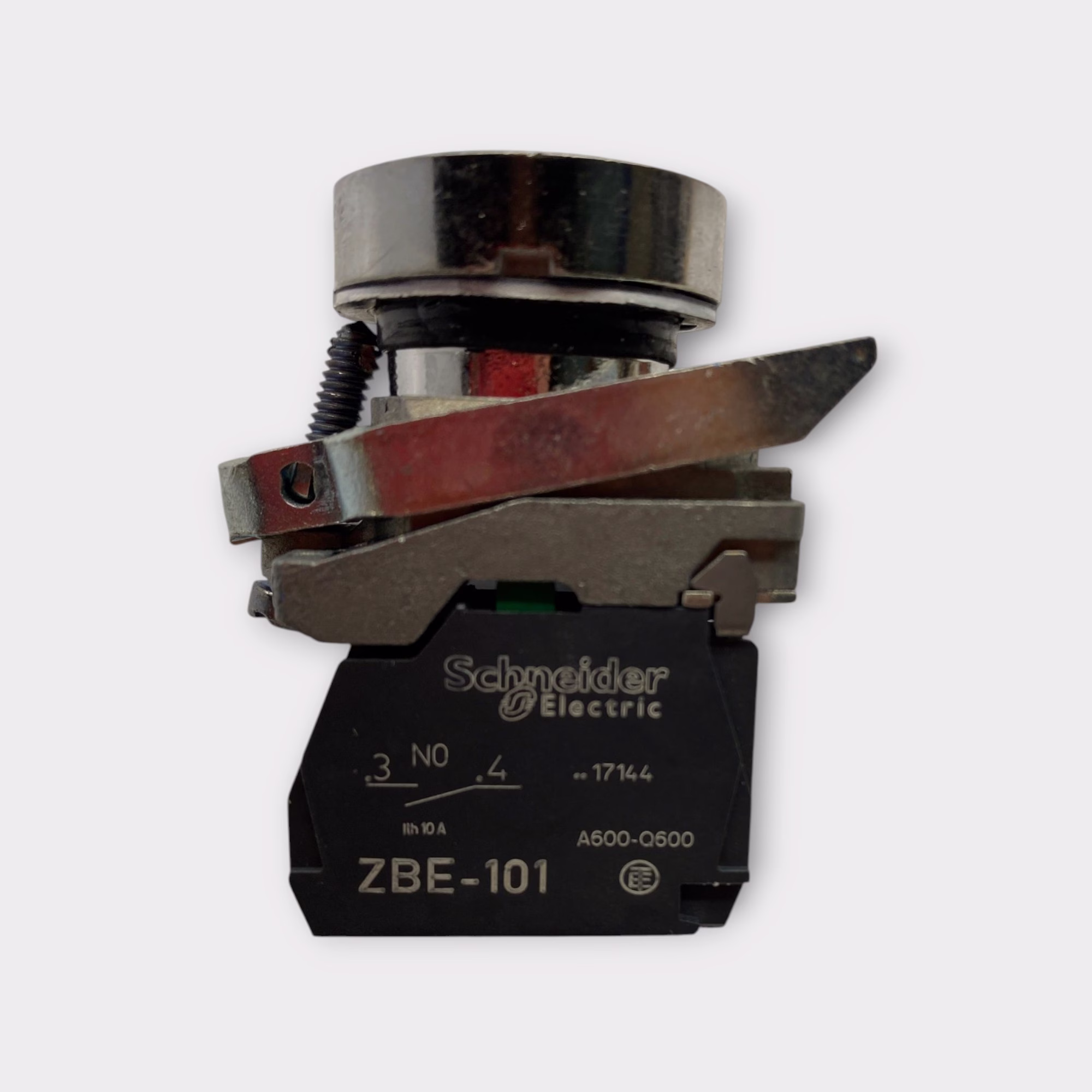

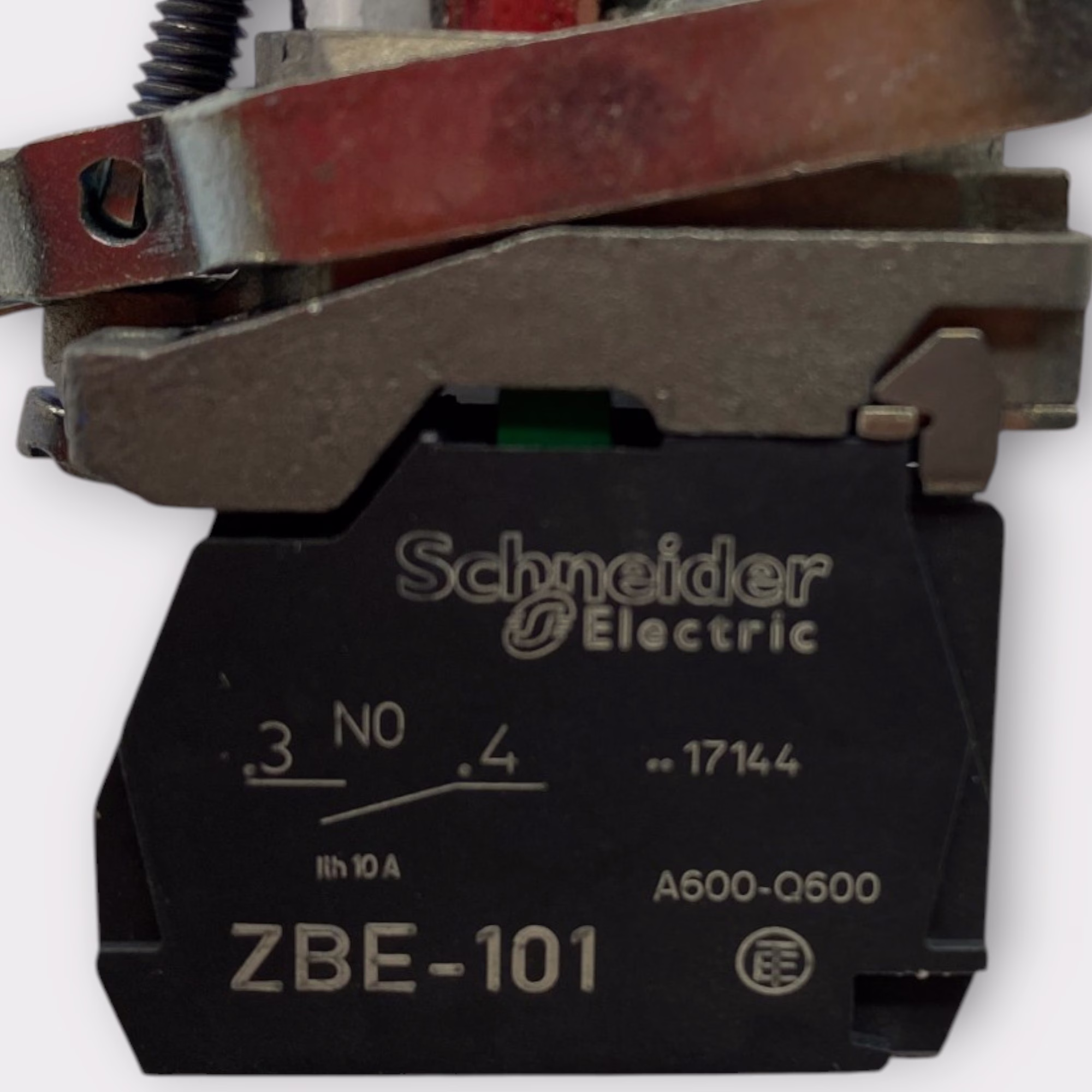

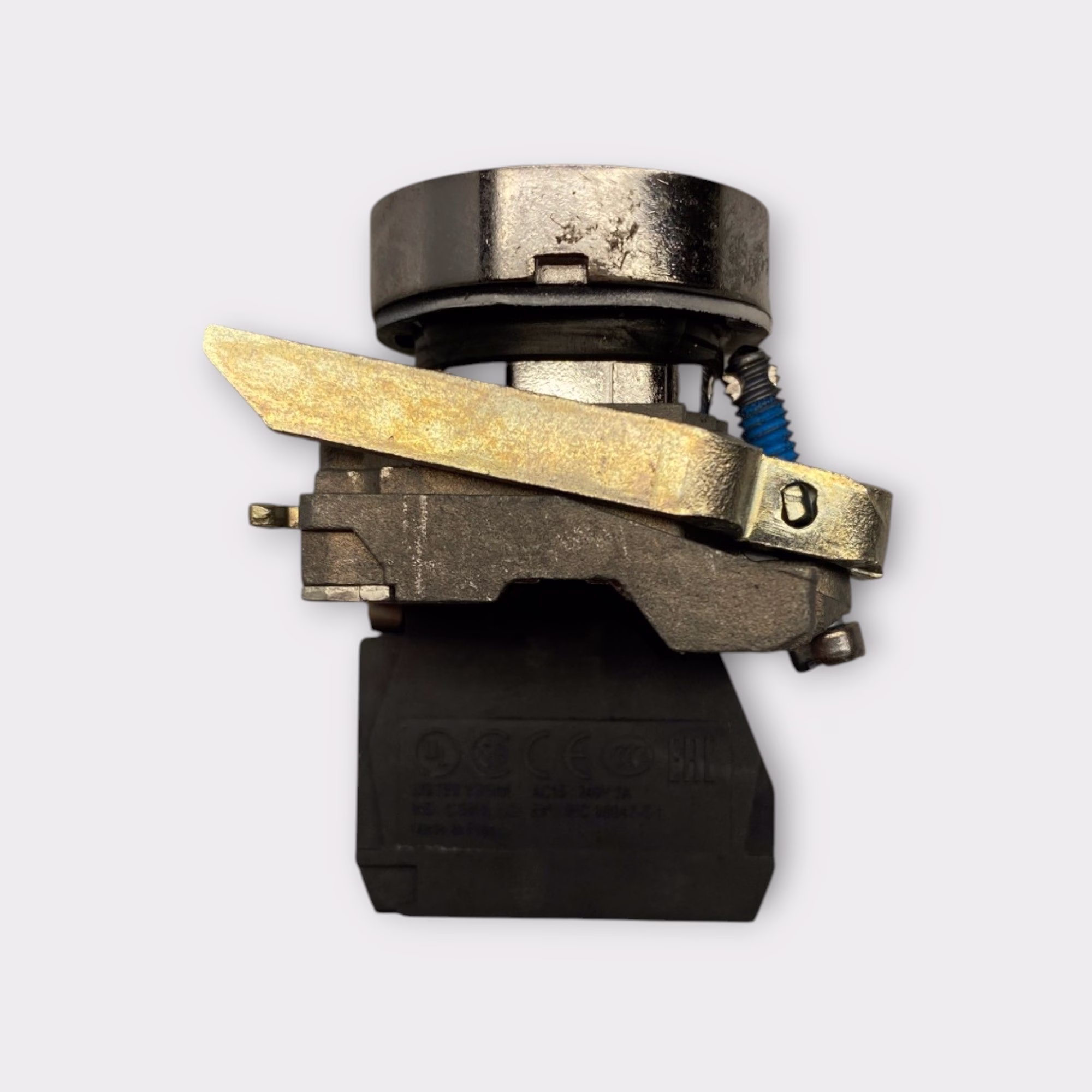

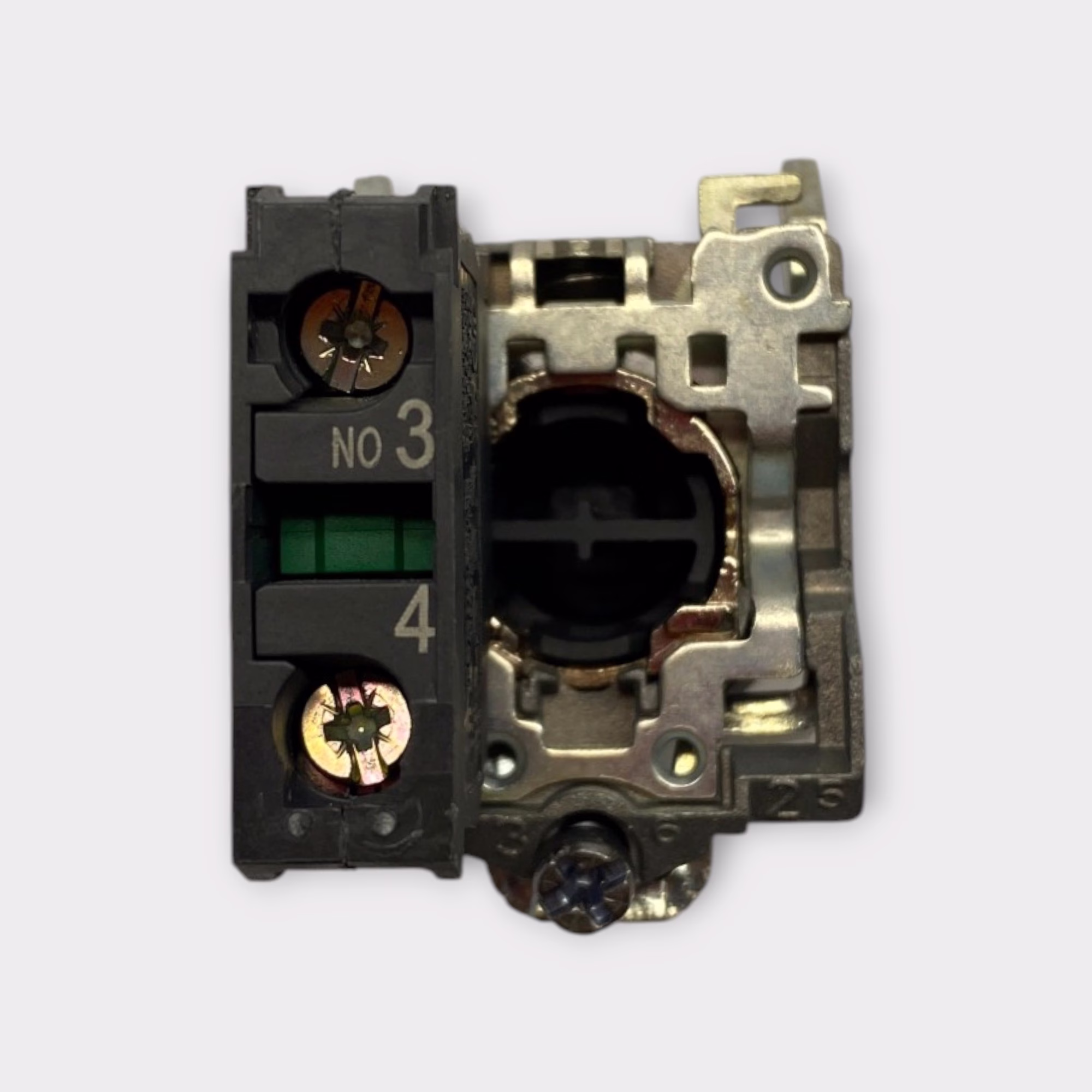

This complete assembly includes the metal mounting collar and Schneider Electric ZBE-101 single normally open contact block. The contact block uses terminals 3 and 4 and screw-clamp connections for integration into industrial control circuits.

Product Information:

- Manufacturer - Schneider Electric
- Model Number - ZB4BA2
- Series - Harmony XB4
- MPN - ZB4BA2
- Product Type - Industrial Pushbutton Assembly
- Operator Type - Pushbutton
- Pushbutton Style - Flush
- Operation - Spring Return / Momentary
- Button Color - Black
- Button Marking - Unmarked
- Illumination - Non-Illuminated
- Mounting Diameter - 22mm
- Bezel Material - Chromium-Plated Metal
- Mounting Collar - ZB4BZ009
- Contact Block Manufacturer - Schneider Electric
- Contact Block Model - ZBE-101
- Contact Configuration - 1 Normally Open (1NO)
- Contact Terminals - 3 / 4
- Contact Operation - Slow Break
- Conventional Thermal Current - 10A
- Contact Rating - A600 / Q600
- Terminal Type - Screw Clamp
- Application - Industrial Control / Machinery / Automation / Control Panels
