Summary

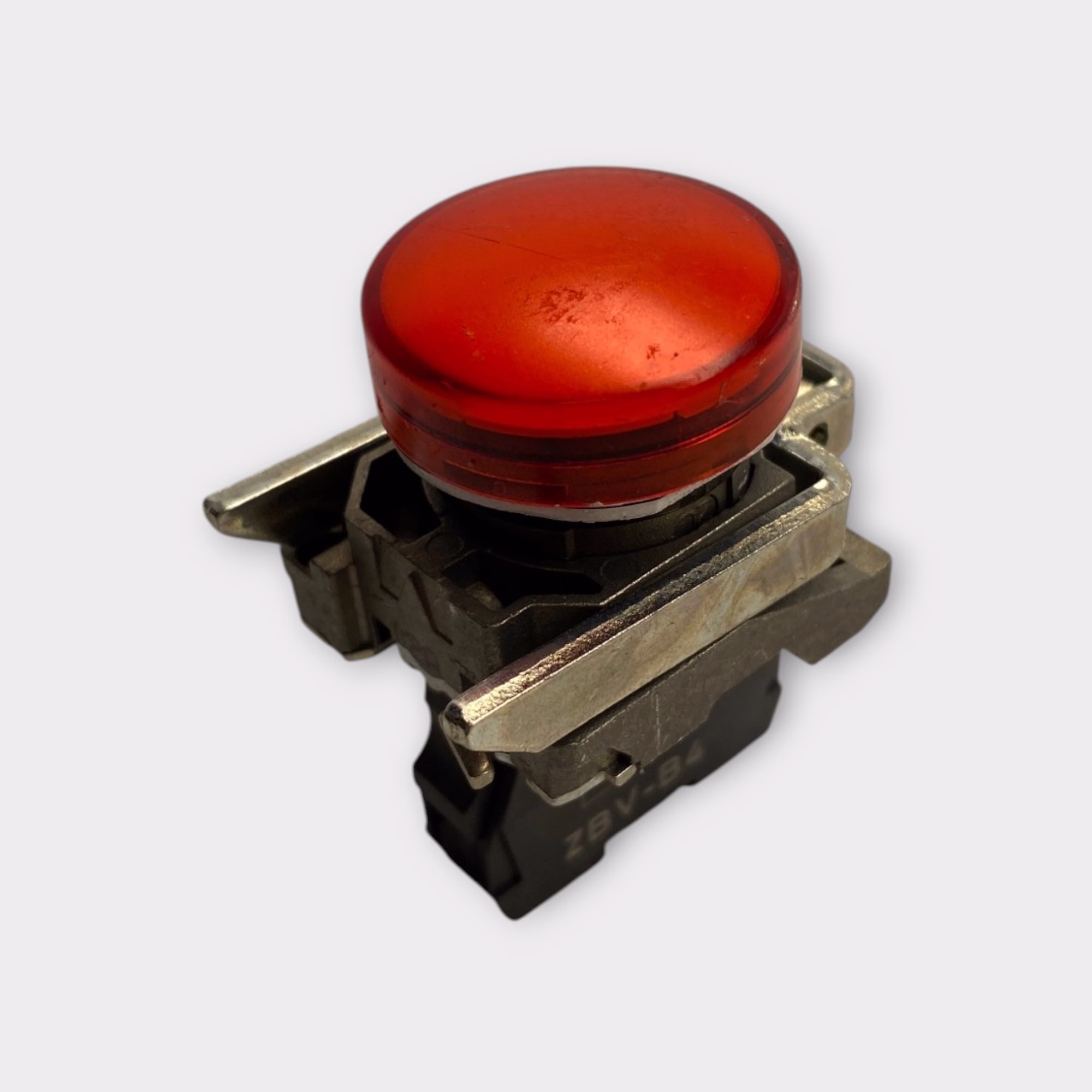

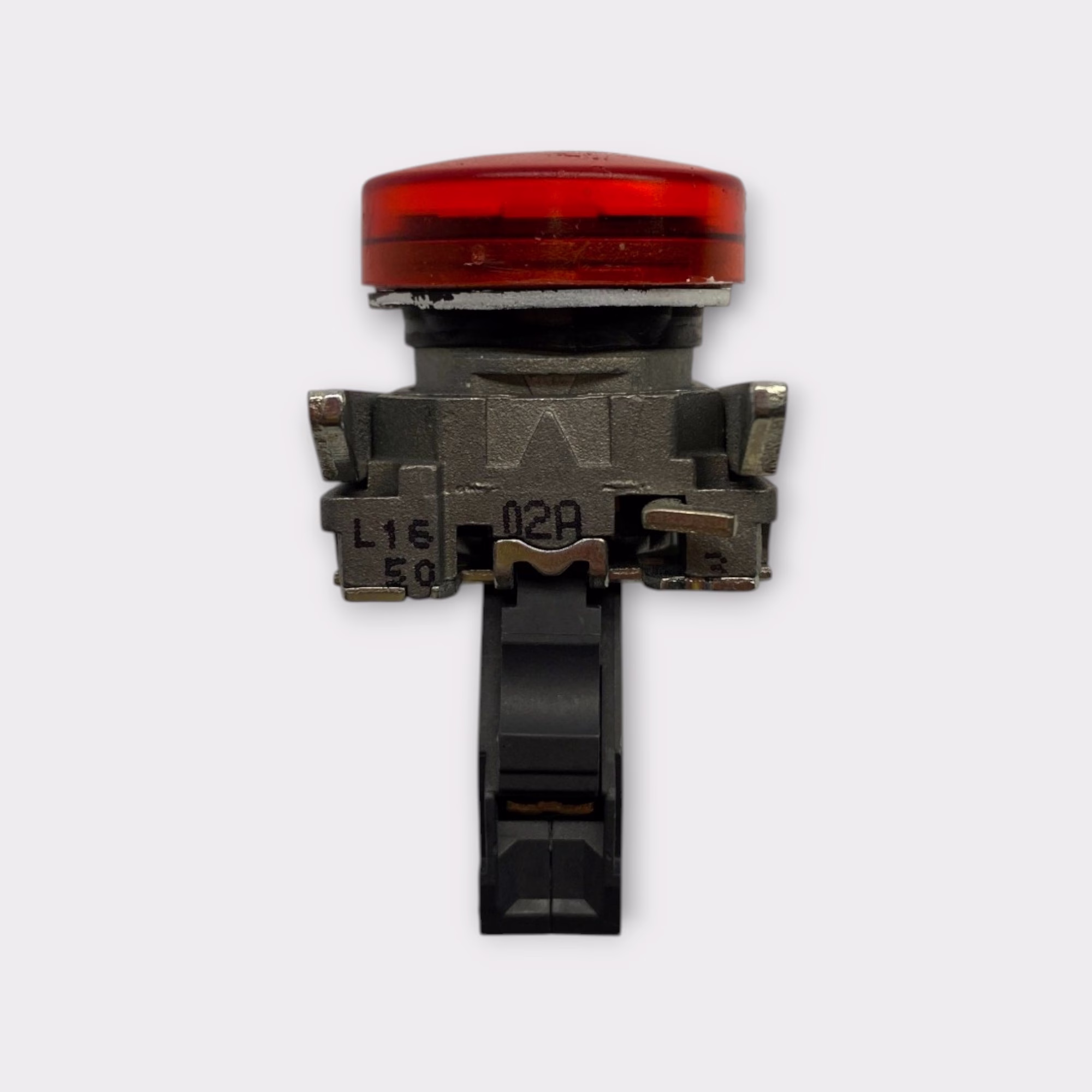

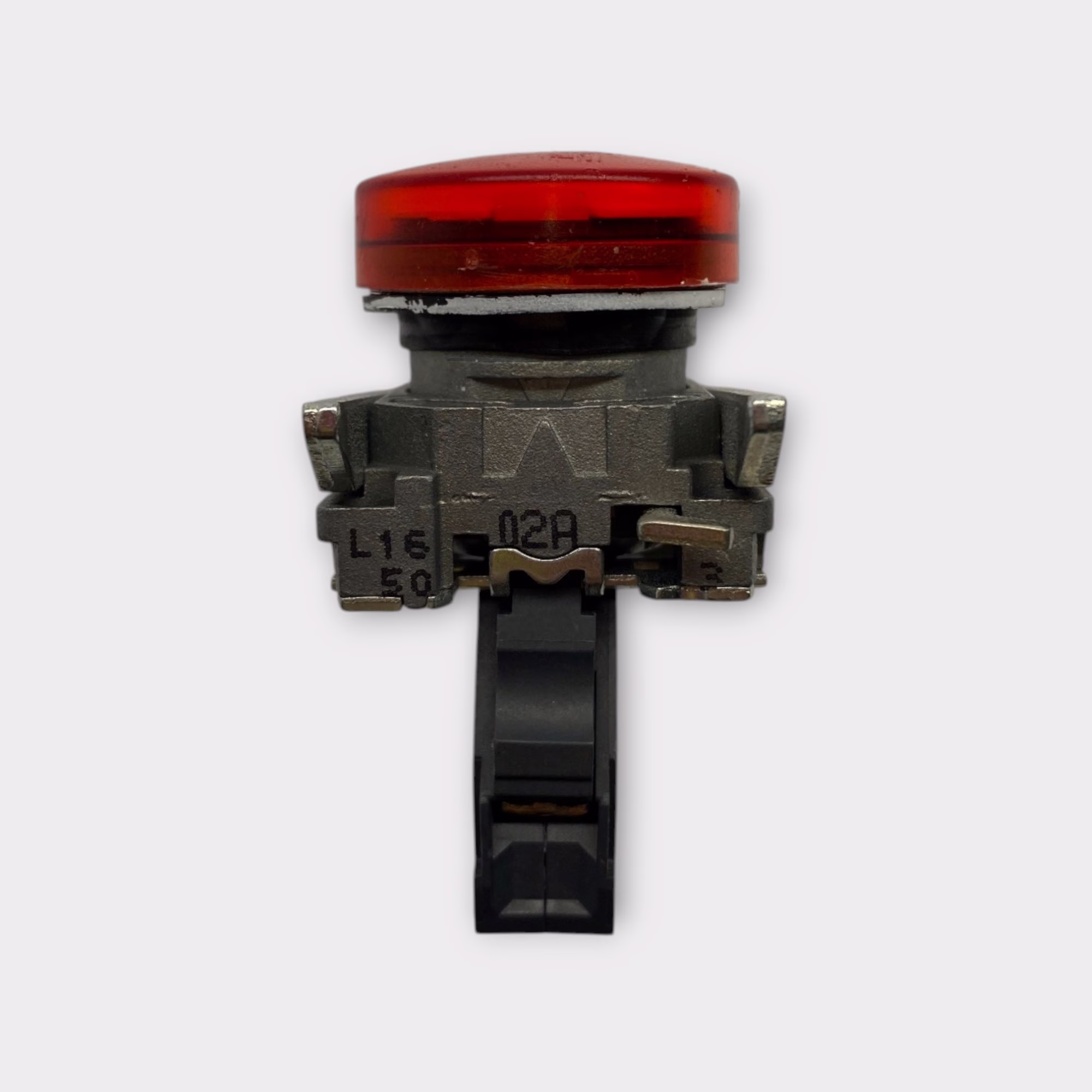

Schneider Electric XB4BVB4 Harmony XB4 red LED pilot light assembly for industrial control and signaling applications. This XB4BVB4 complete assembly includes a ZB4BV043 red pilot light top with a ZBV-B4 24V LED light block and metal mounting hardware.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition.

Listing is for indicator pilot light assembly only, does not include any instructions, installation screws, or original box.

Product Description

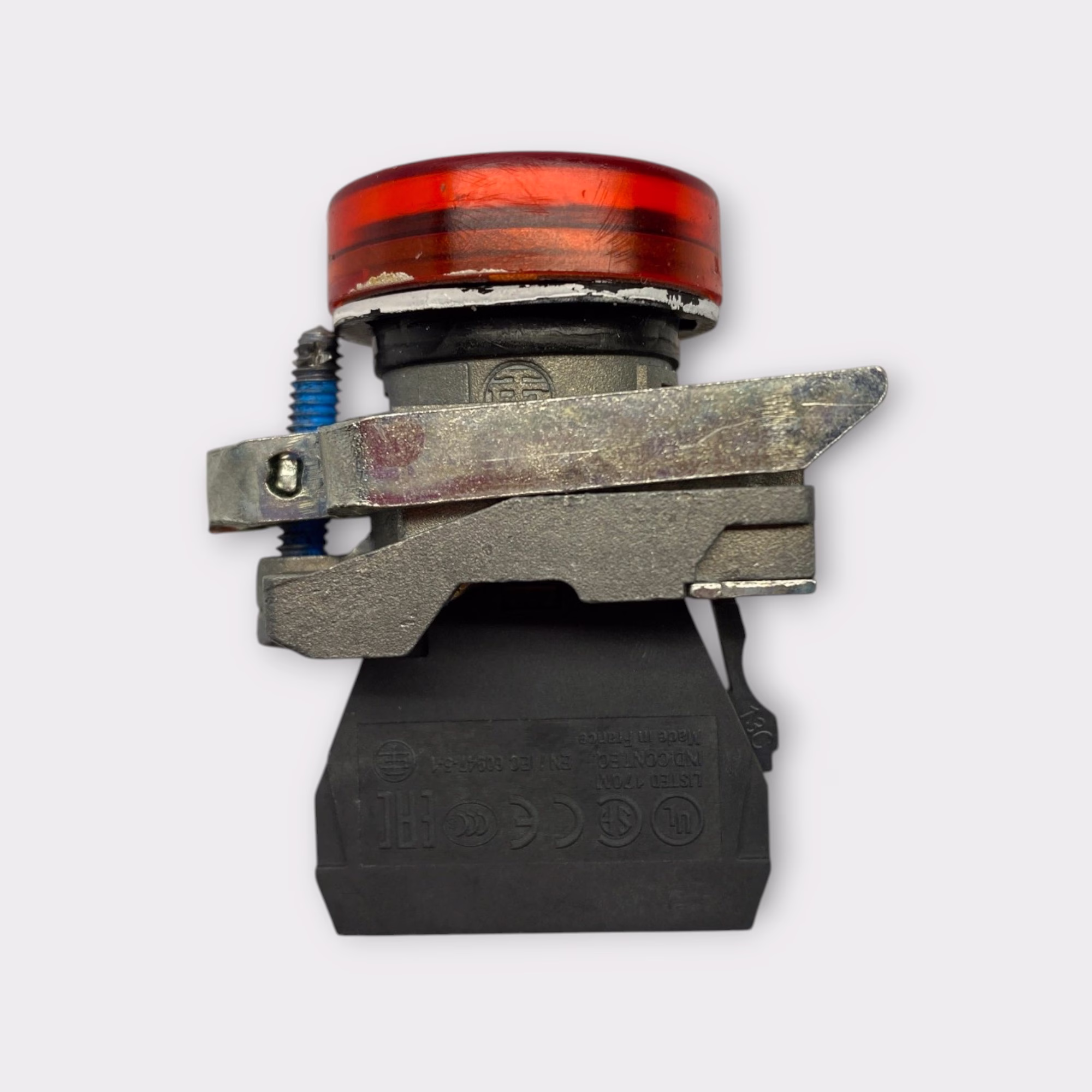

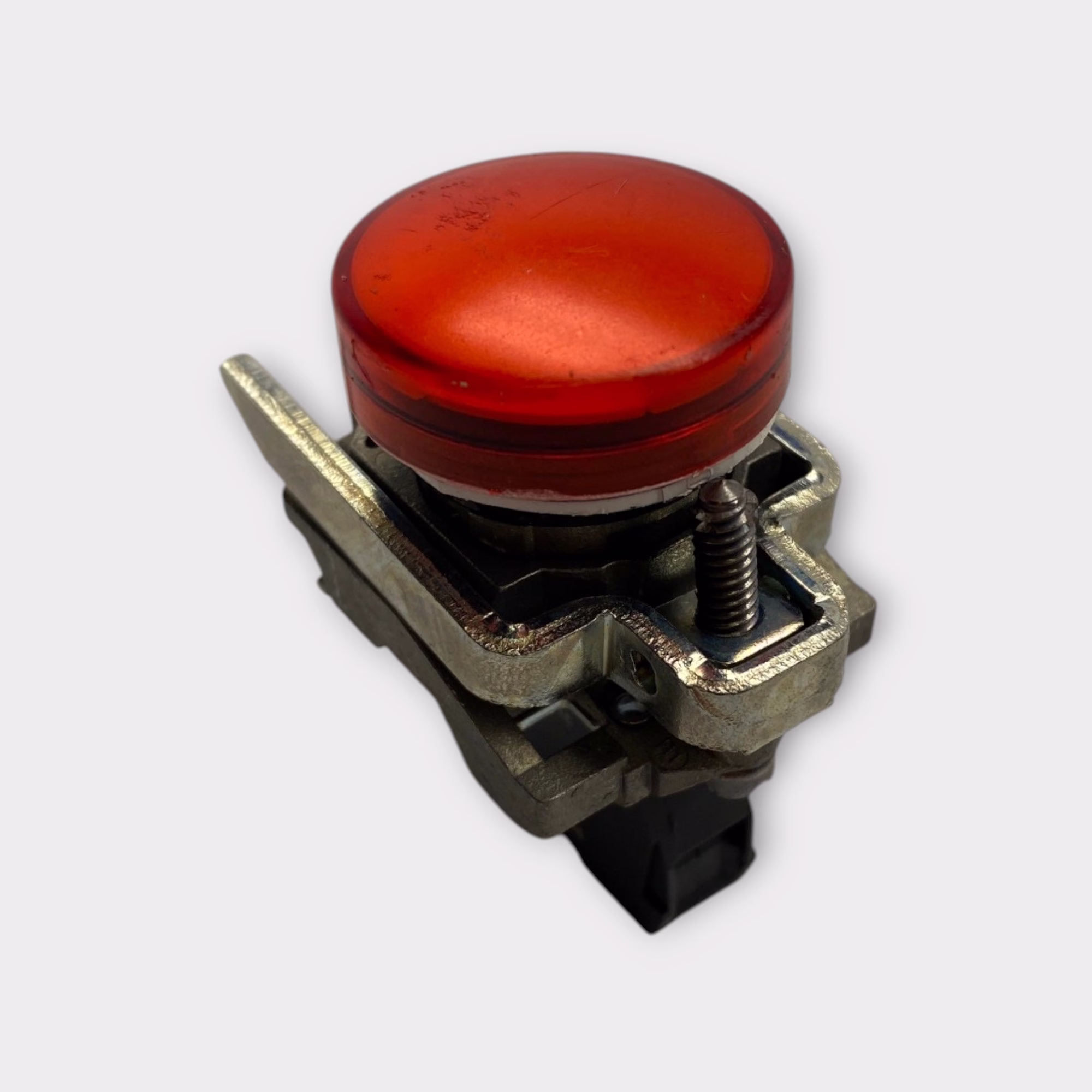

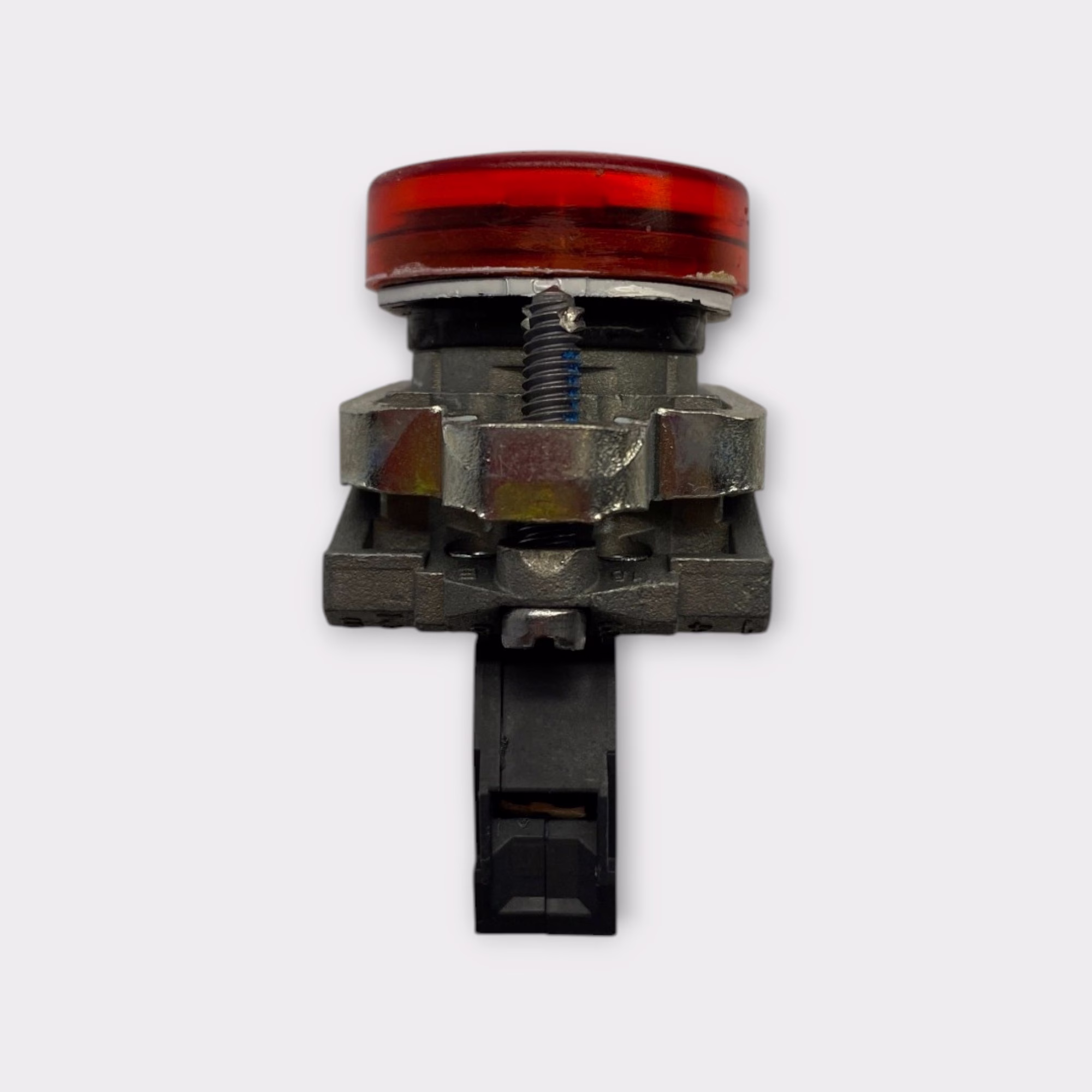

The Schneider Electric XB4BVB4 is a Harmony XB4 22mm red LED pilot light designed for industrial control panels, machinery, automation systems, alarm indication, and equipment status signaling. It operates on 24V AC/DC and provides red LED illumination through a plain round lens.

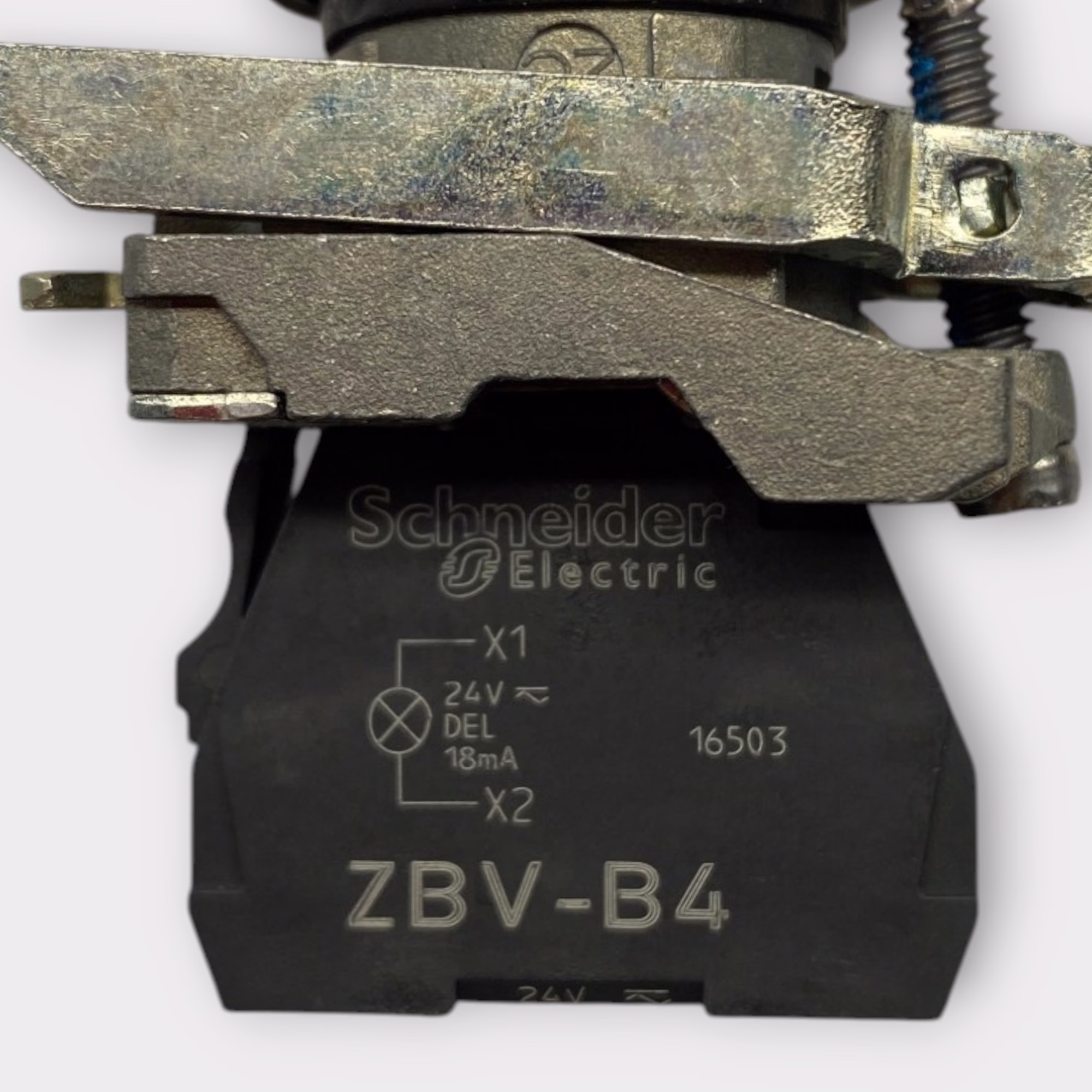

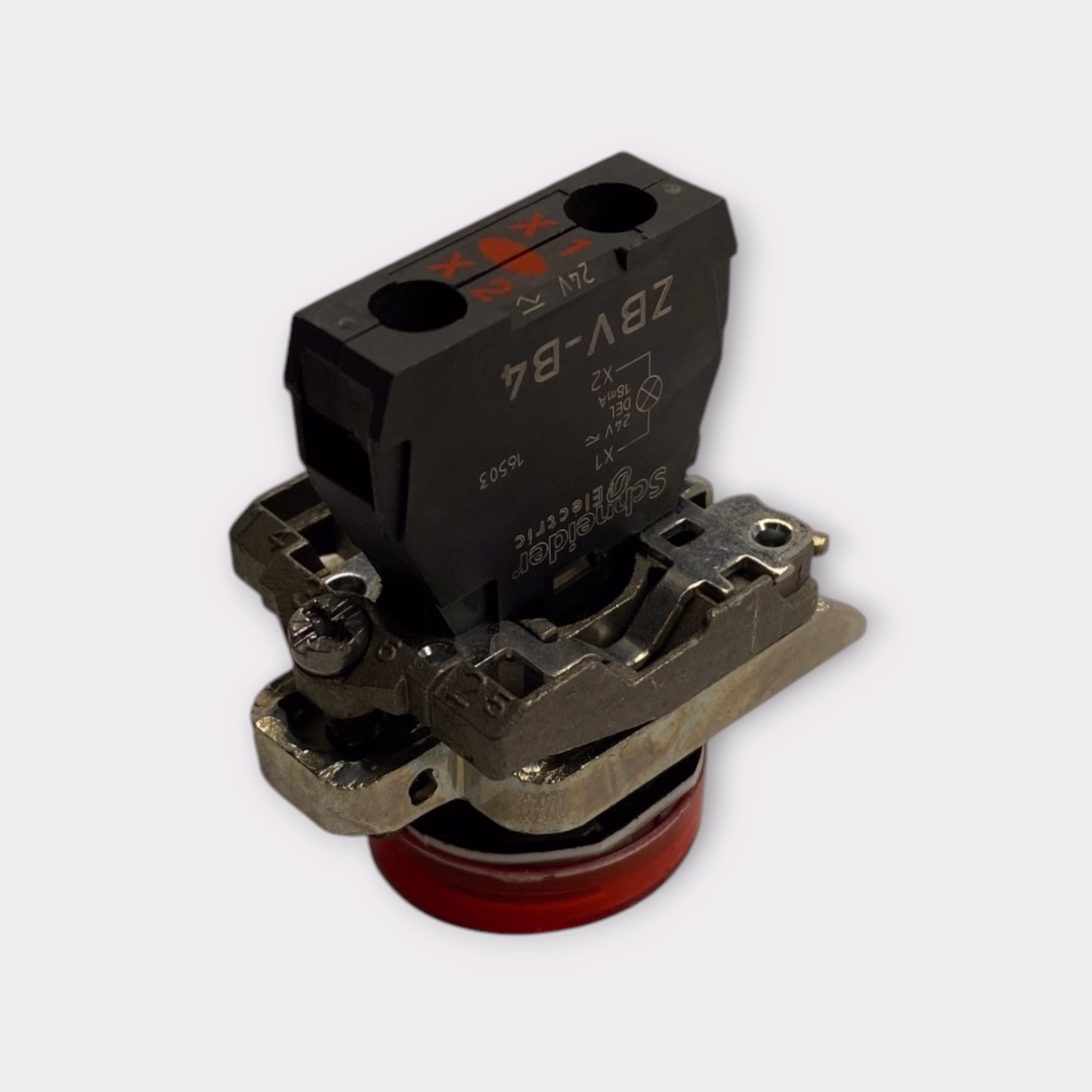

This XB4BVB4 complete assembly includes a ZB4BV043 red pilot light top with a ZBV-B4 24V LED light block. The assembly includes the metal mounting/fixing hardware and uses X1/X2 screw-clamp terminals for electrical connection.

Product Information:

- Manufacturer - Schneider Electric
- Model Number - XB4BVB4
- Series - Harmony XB4
- MPN - XB4BVB4
- Product Type - LED Pilot Light / Indicator Light
- Complete Assembly - XB4BVB4
- Pilot Light Top - ZB4BV043

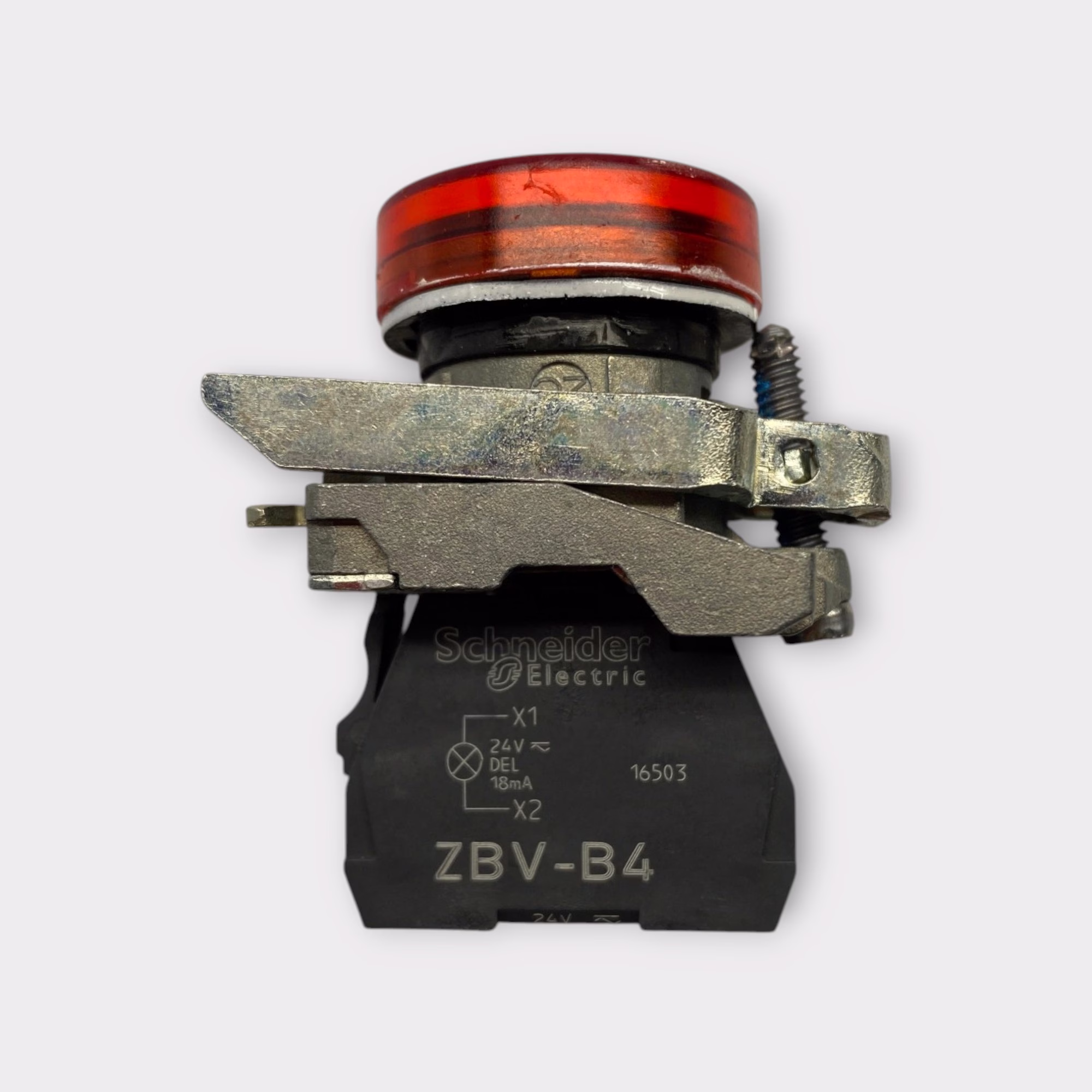

- Light Block - ZBV-B4
- Light Type - LED
- Light Color - Red
- Lens Color - Red

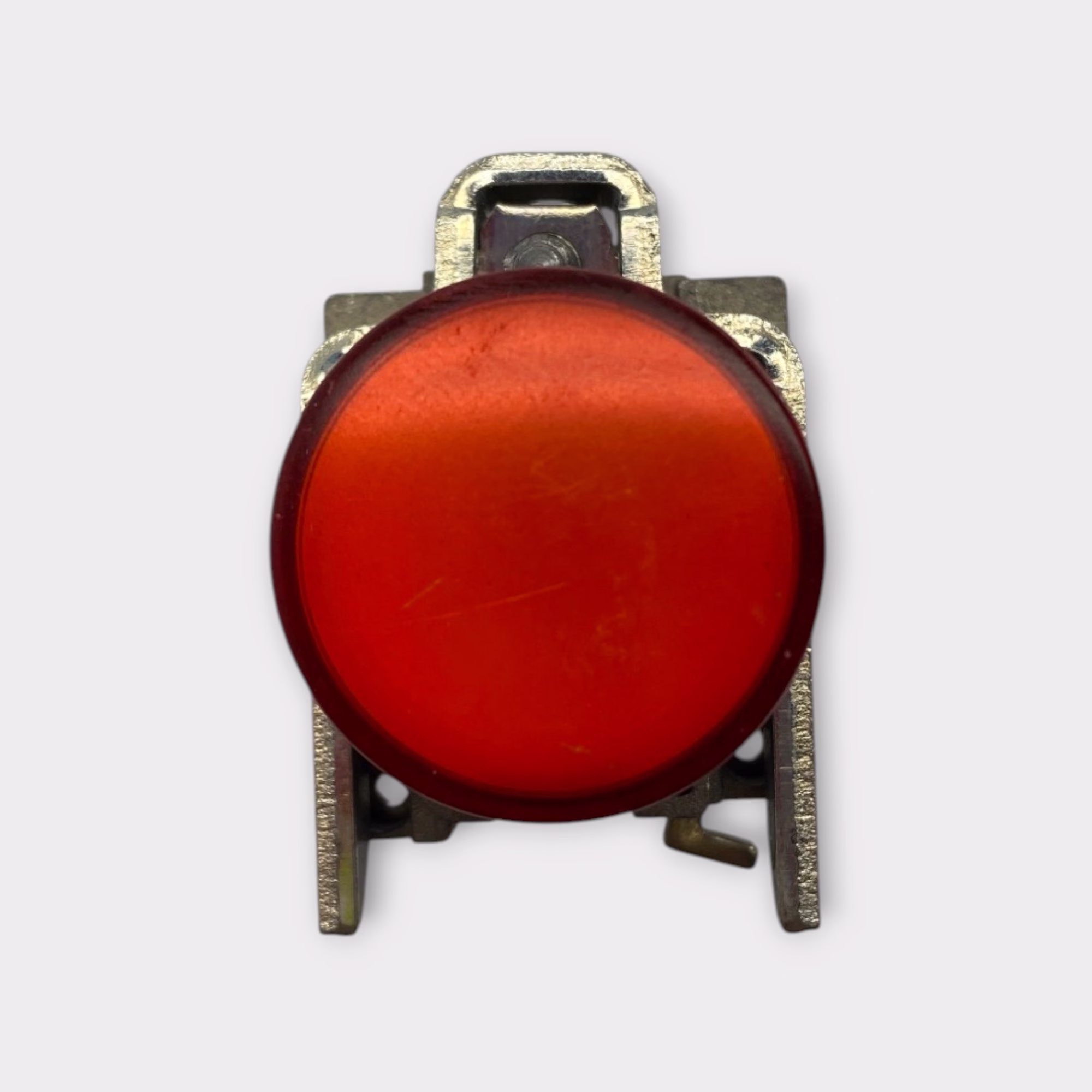

- Lens Type - Plain Lens
- Head Shape - Round
- Signaling Type - Steady
- Rated Supply Voltage - 24V AC/DC
- Current Consumption - 18mA

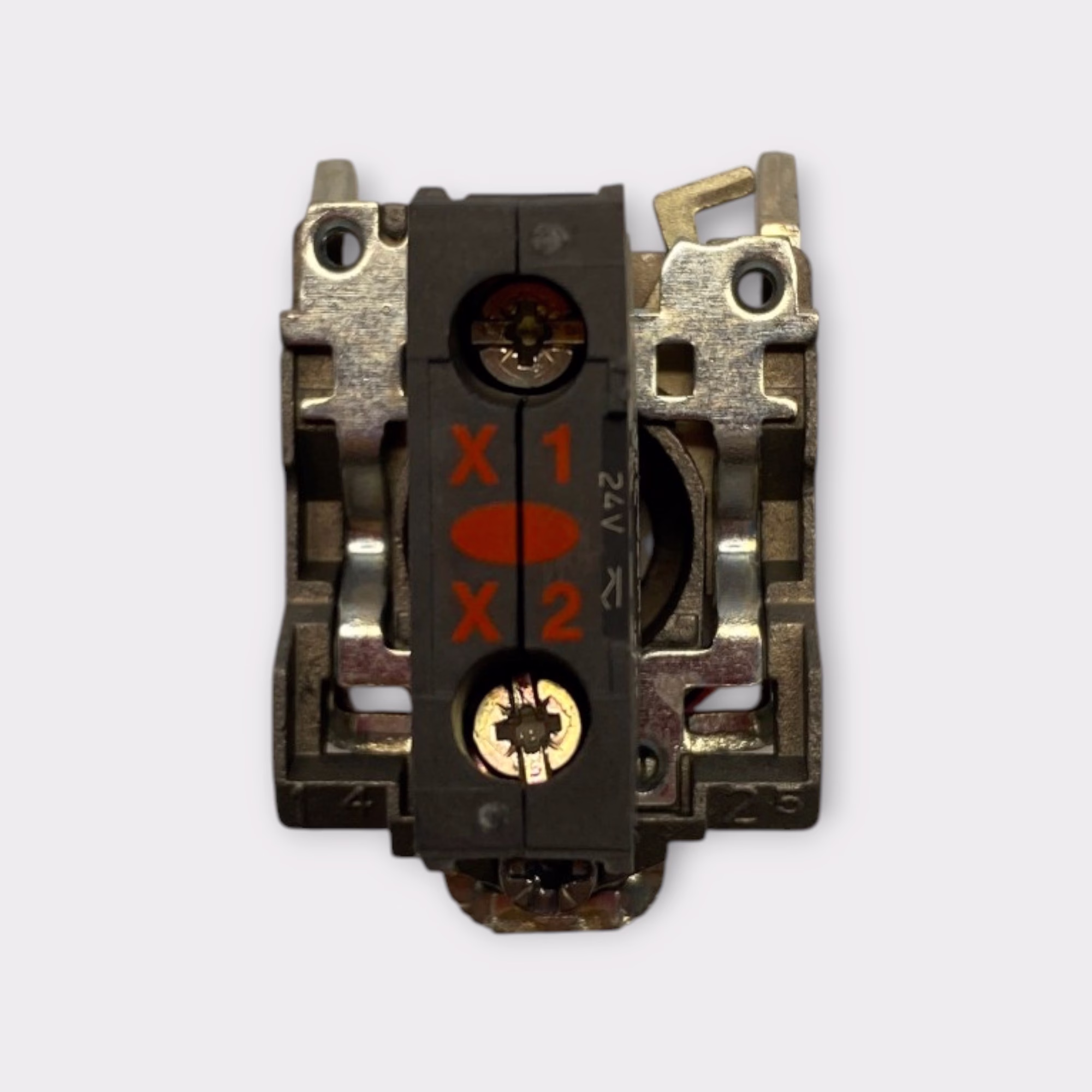

- Terminal Identification - X1 / X2
- Terminal Type - Screw Clamp
- Mounting Diameter - 22mm / 22.5mm
- Mounting Type - Panel Mount
- Bezel Material - Metal
- Fixing Collar - Metal
- Application - Industrial Control / Machinery / Automation / Alarm / Status Indication
