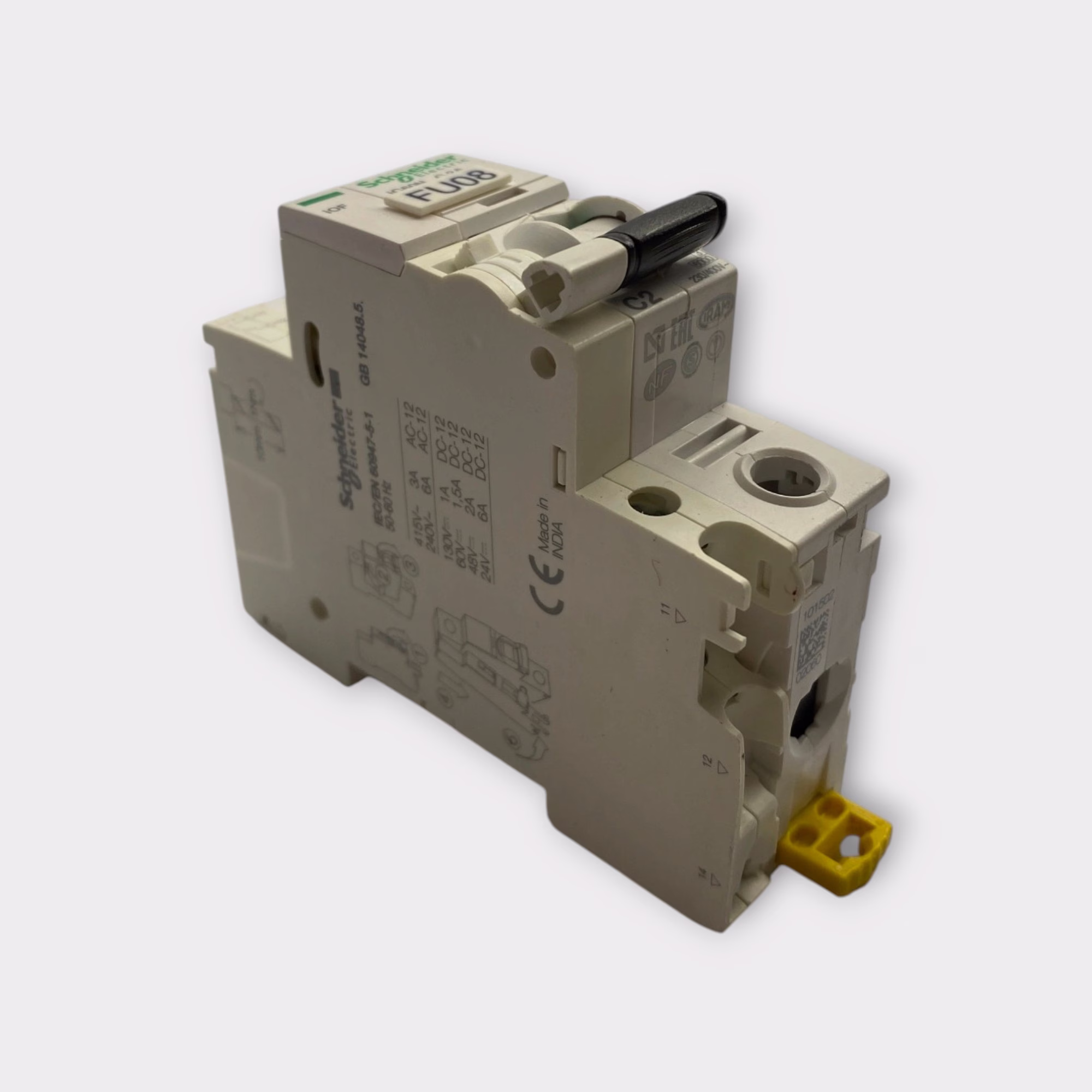

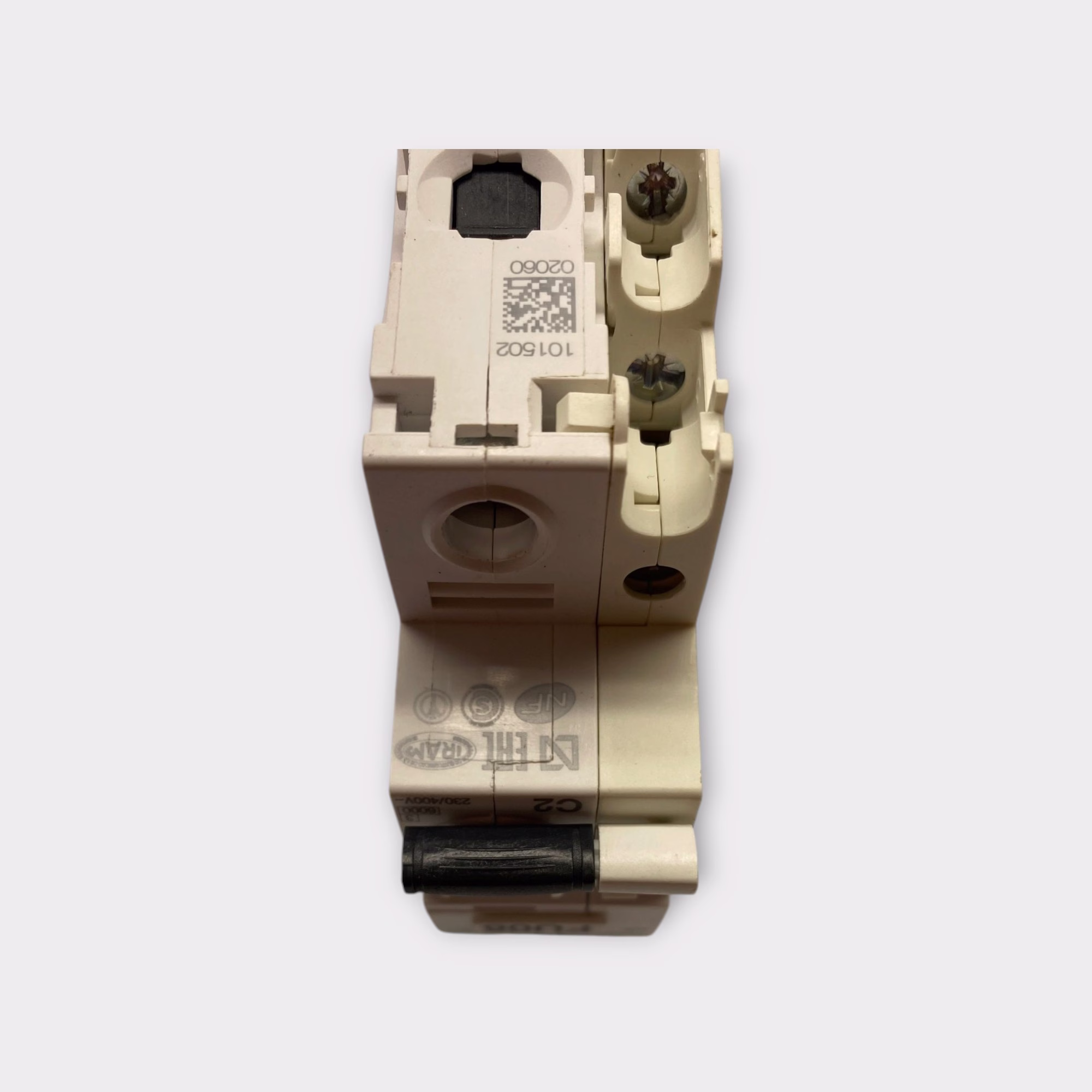

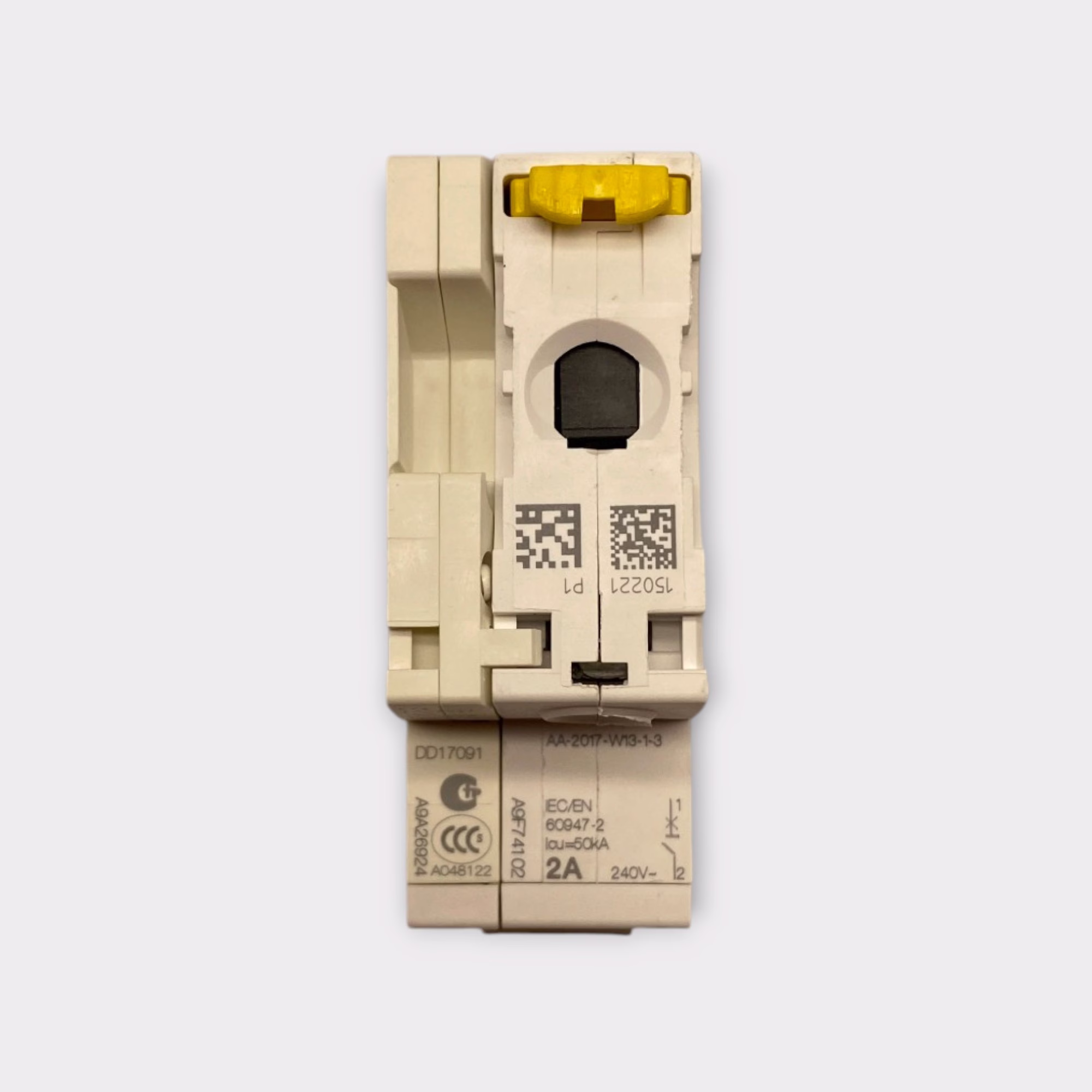

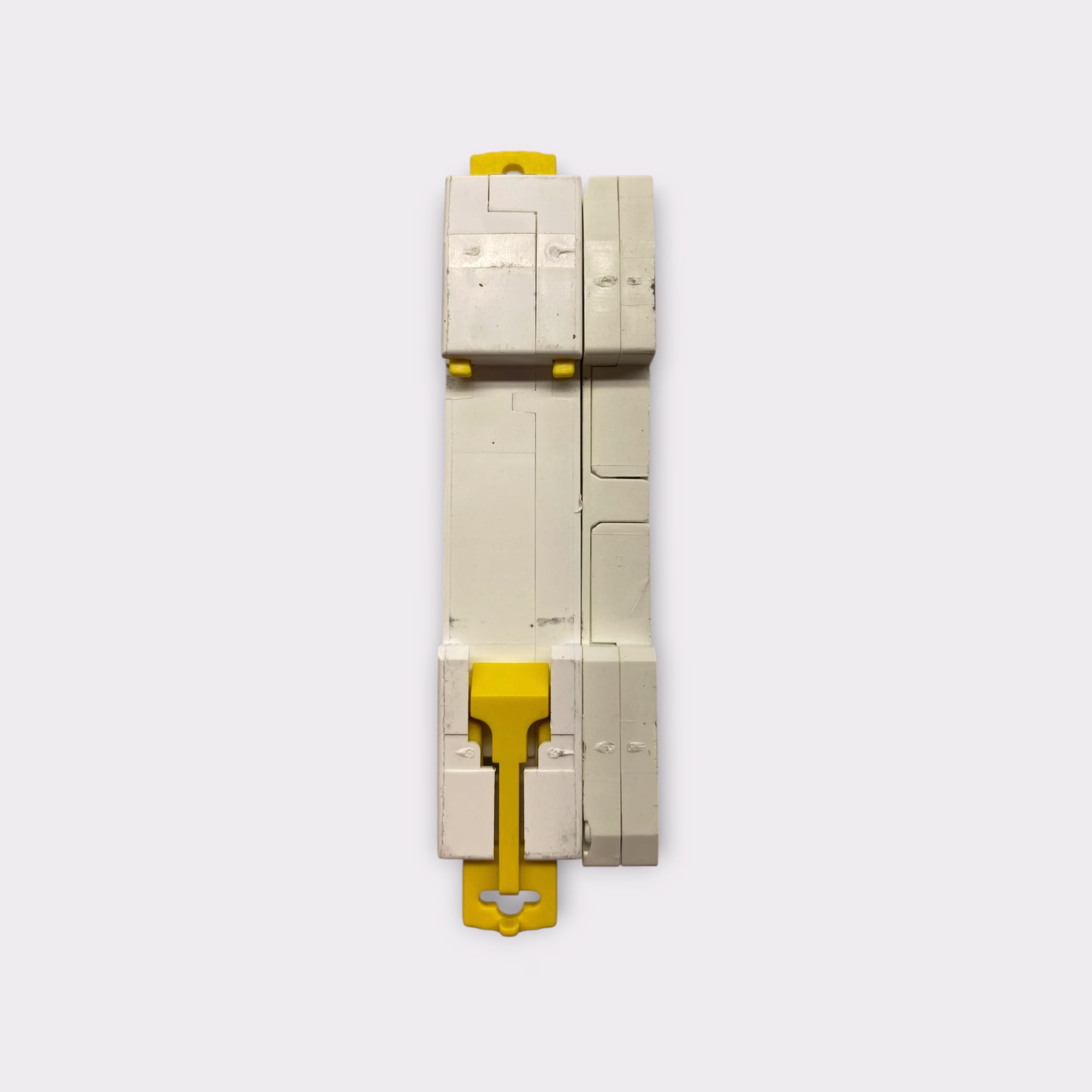

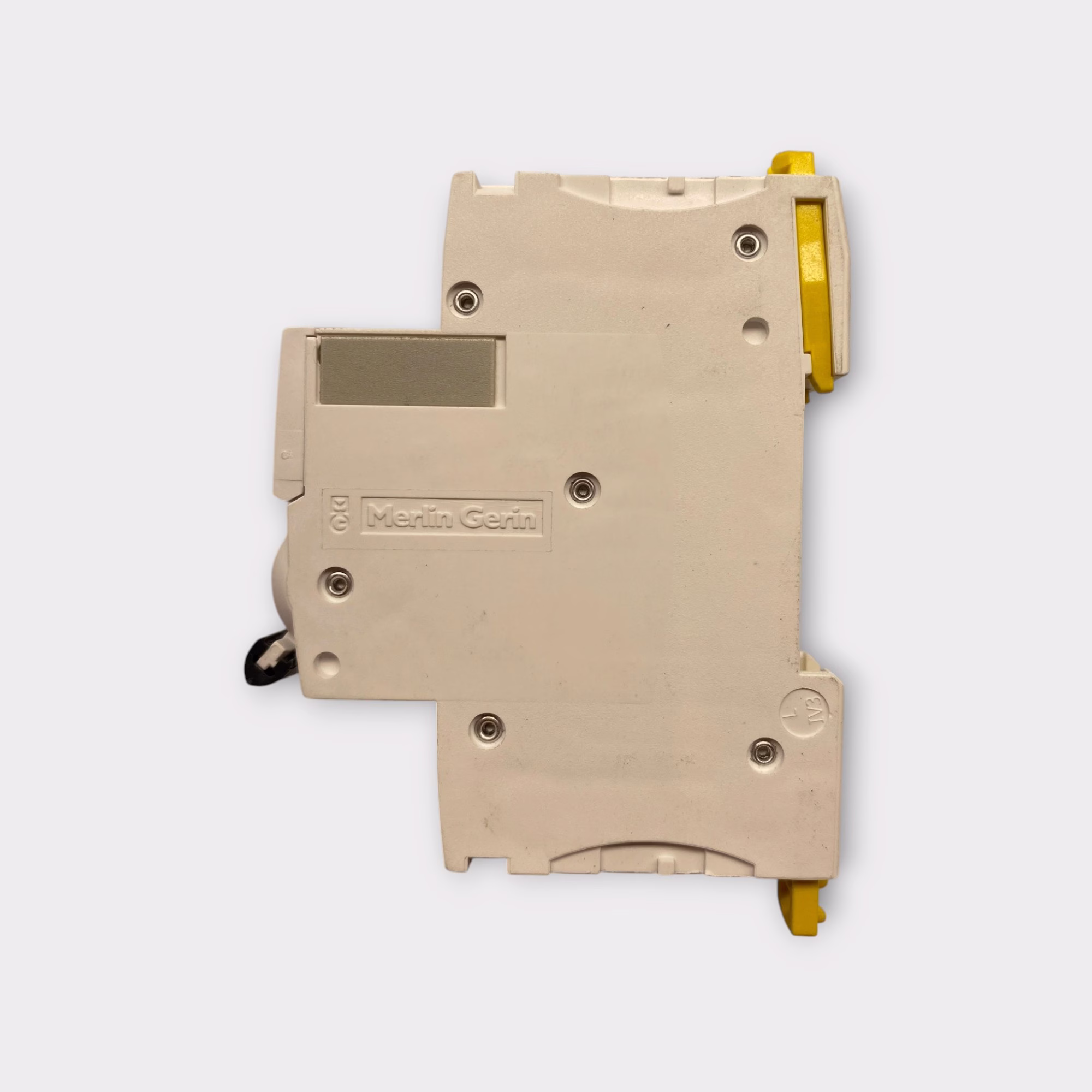

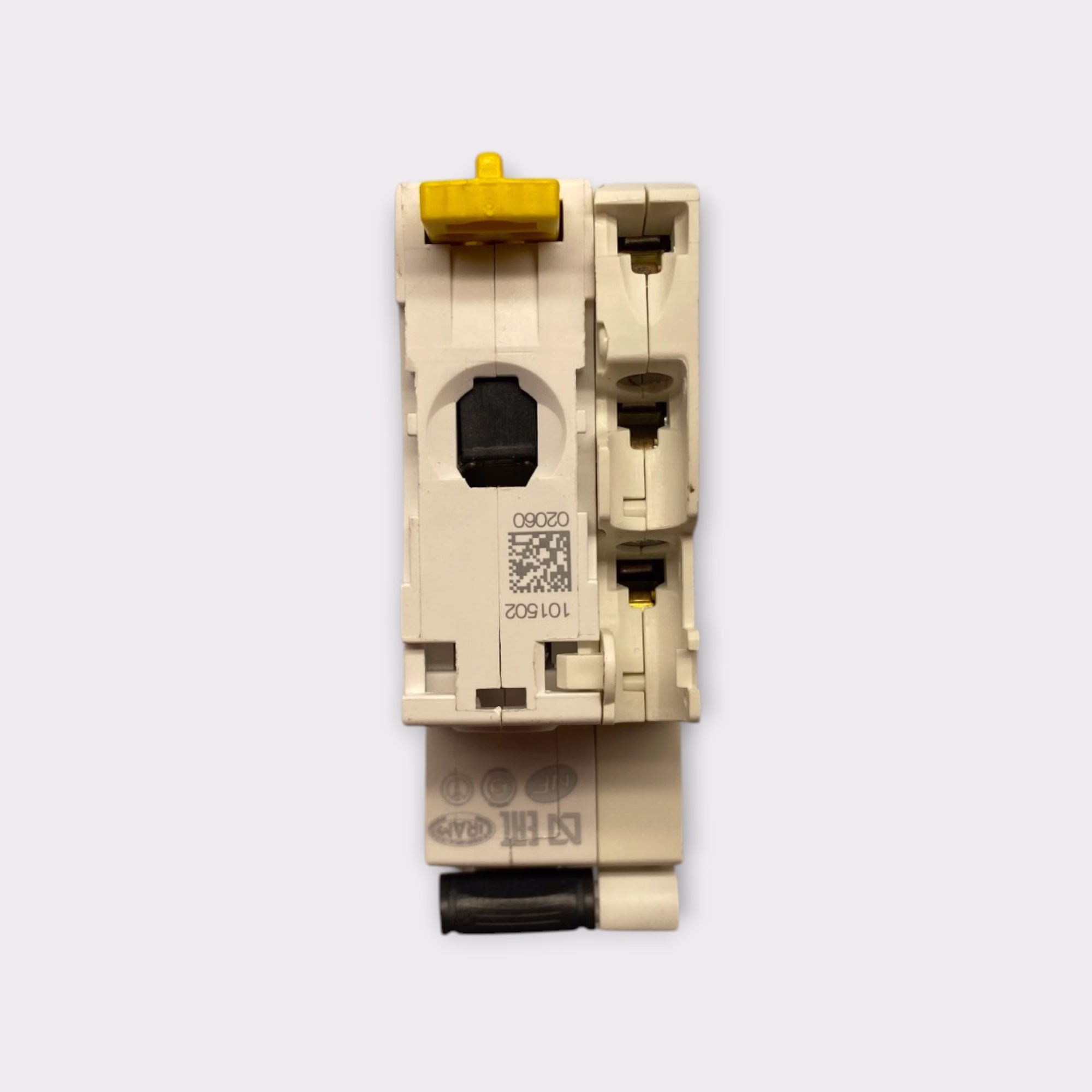

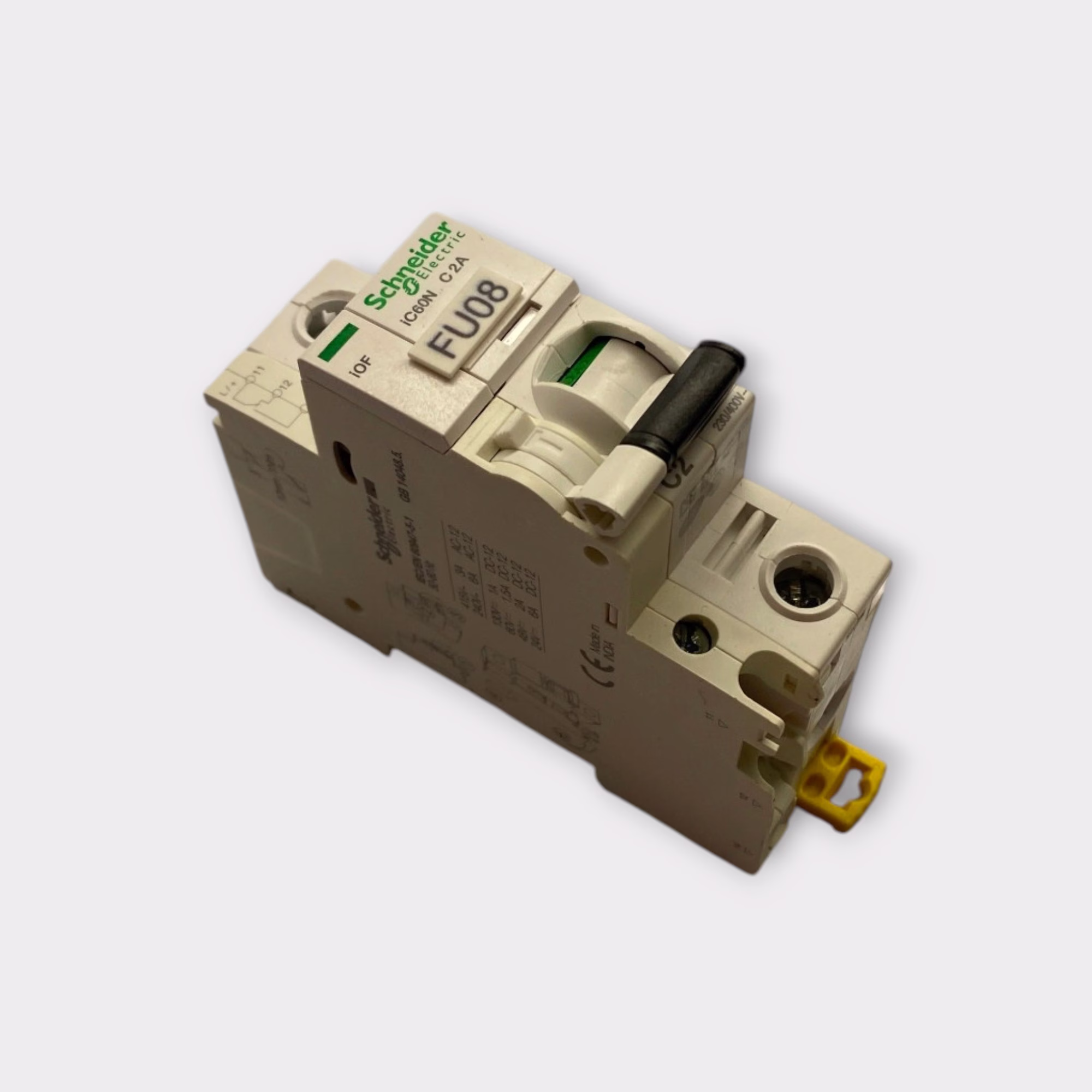

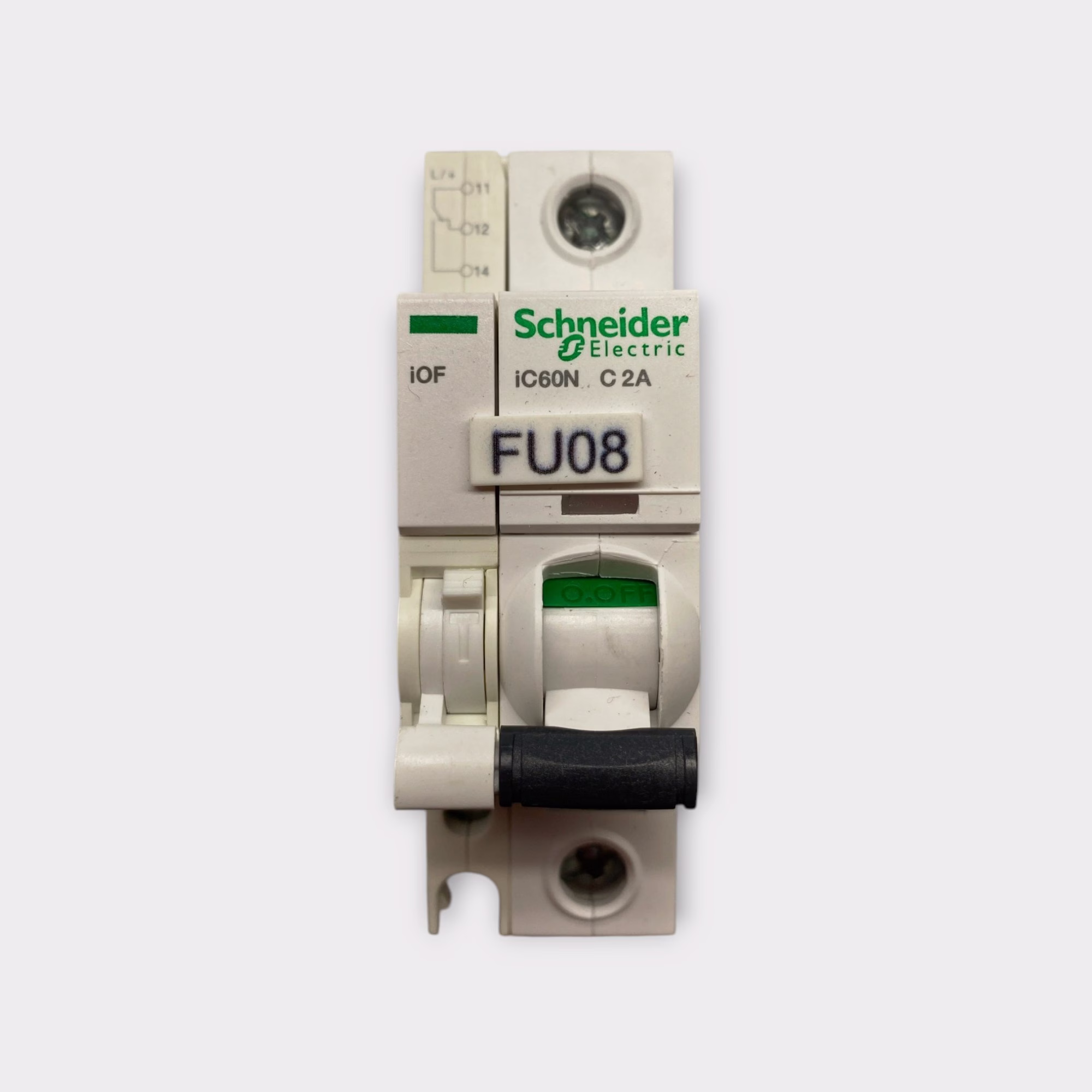

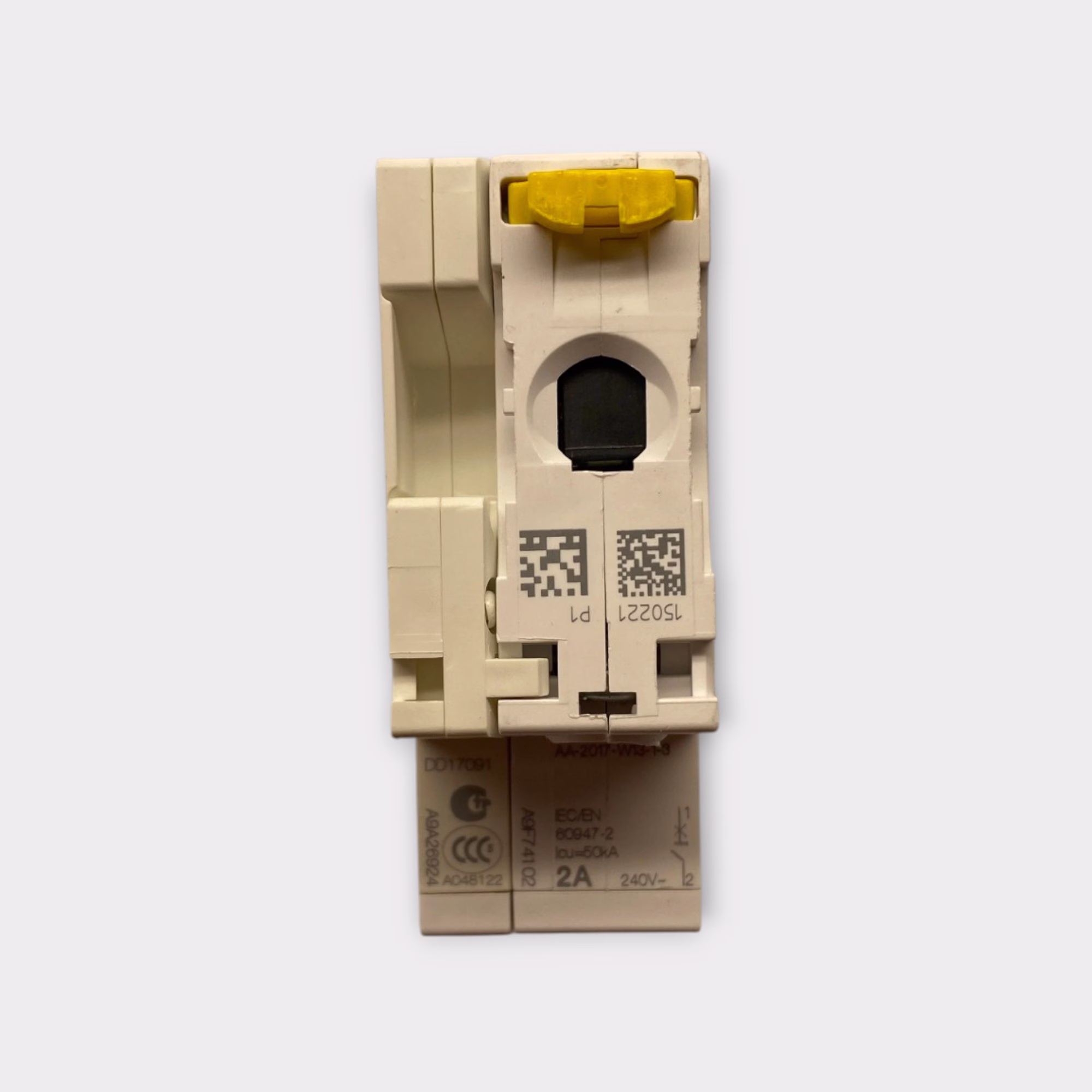

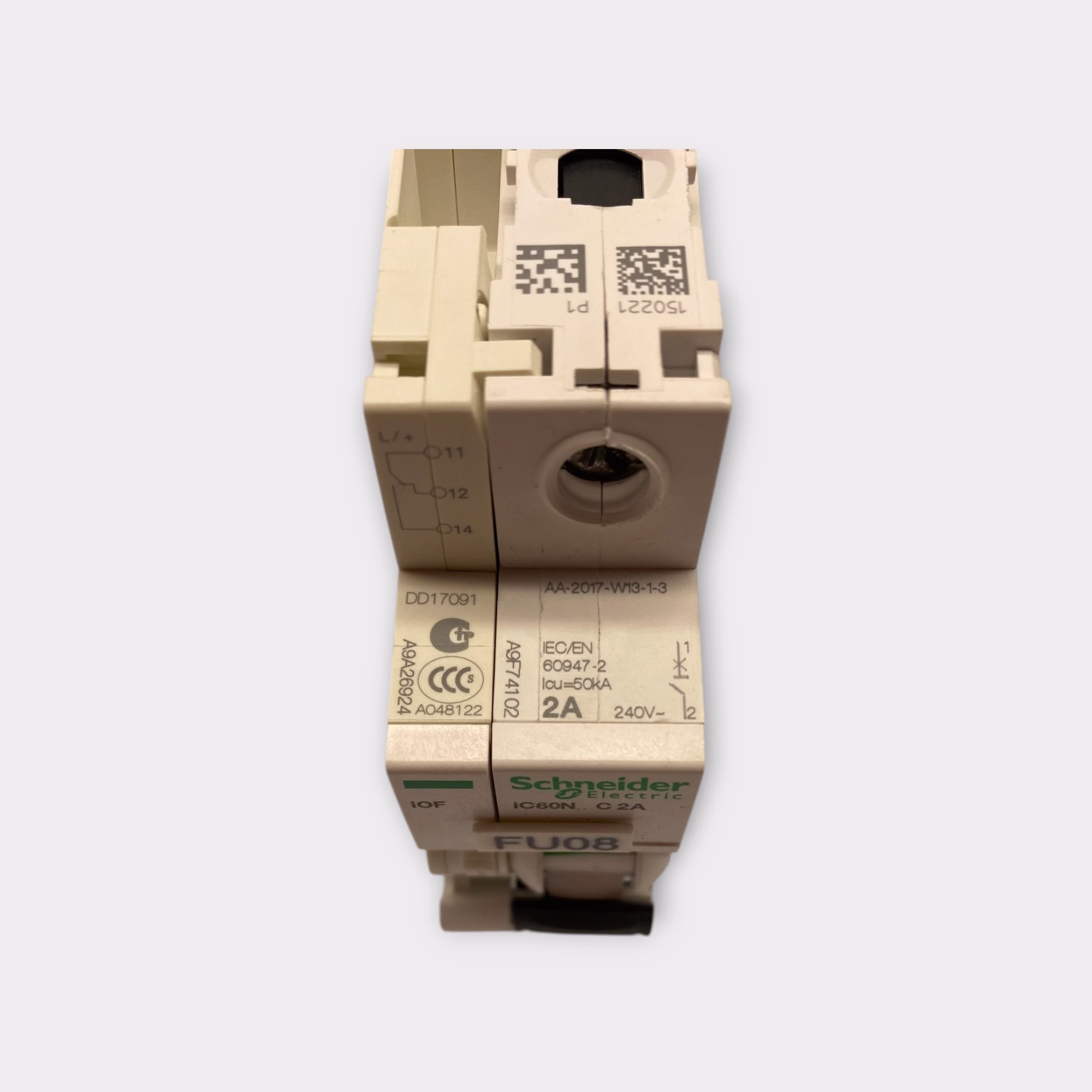

This listing is for a Schneider Electric Acti9 iC60N C2A miniature circuit breaker with iOF auxiliary open/closed indication contact. This assembly combines a 2A C-curve circuit breaker with an auxiliary contact for remote indication of the breaker's open or closed position. Includes only circuit breaker, no box or instructions, please view photos for condition. This is a multiple quantity listing and the unit that you e will receive may be different than the unit shown, but is in the same cosmetic condition.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

Product Information:
- Manufacturer - Schneider Electric
- Series - Acti9
- Circuit Breaker Model - iC60N
- Circuit Breaker Type - Miniature Circuit Breaker (MCB)
- Rated Current - 2A
- Trip Curve - C Curve

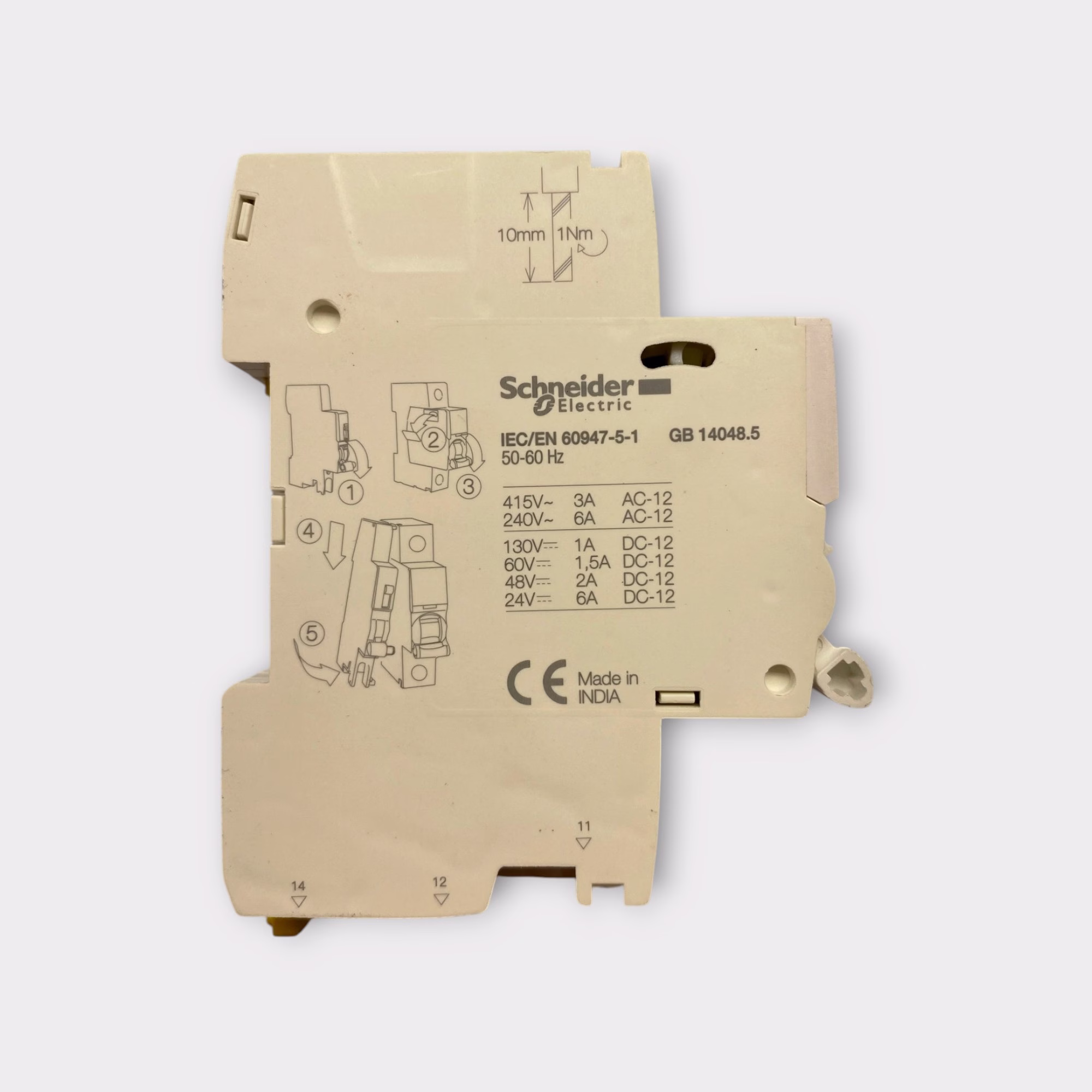

- Auxiliary Contact - iOF
- Auxiliary Contact Part Number - A9A26924
- Auxiliary Contact Configuration - 1 C/O
- Auxiliary Contact Terminals - 11 / 12 / 14

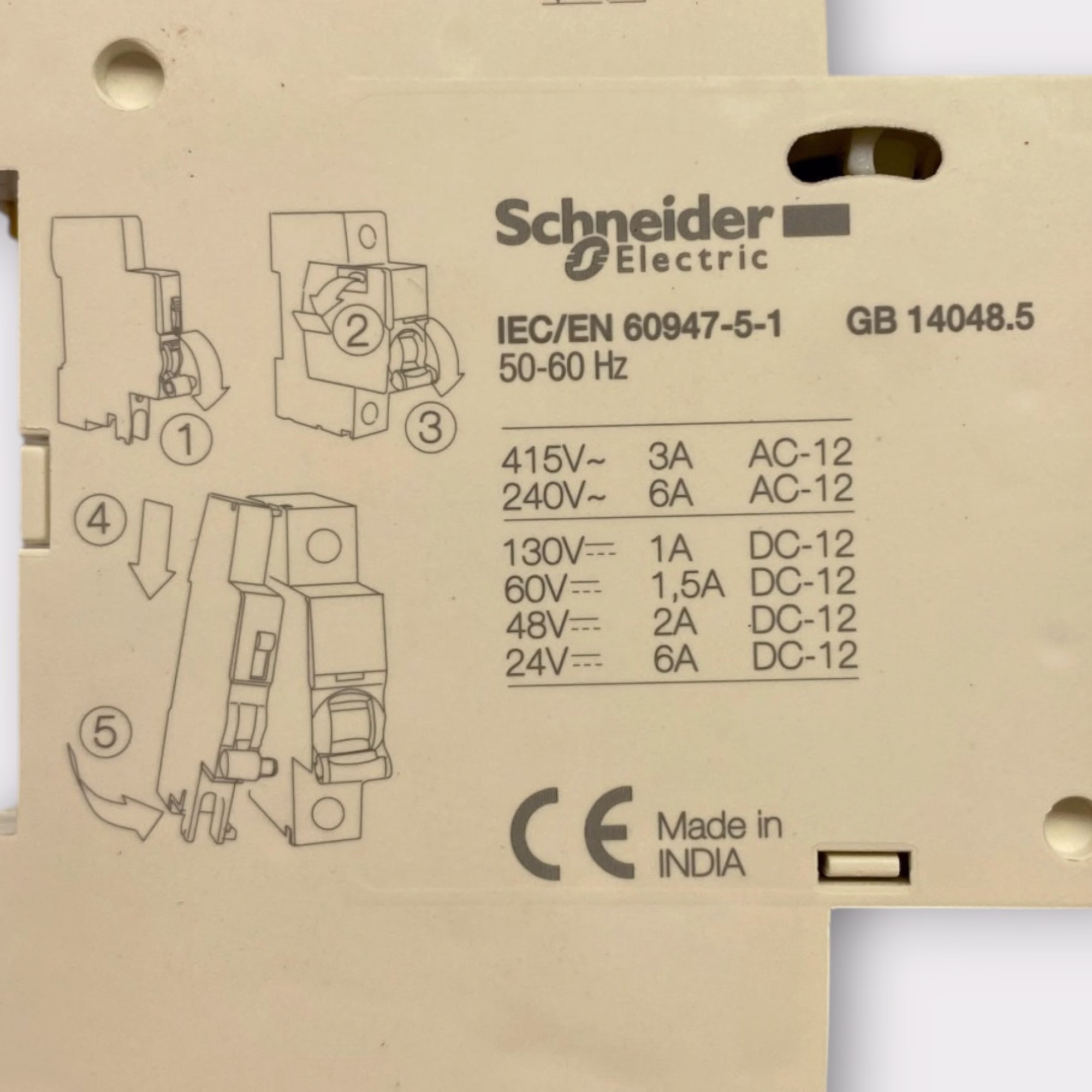

- AC-12 Rating - 6A at 240VAC
- AC-12 Rating - 3A at 415VAC
- DC-12 Rating - 6A at 24VDC
- DC-12 Rating - 2A at 48VDC
- DC-12 Rating - 1.5A at 60VDC
- DC-12 Rating - 1A at 130VDC
- Frequency - 50/60 Hz
- Auxiliary Standard - IEC/EN 60947-5-1
- Auxiliary Mounting - Clip-On
- Auxiliary Mounting Support - DIN Rail
- Auxiliary Width - 9mm
- Auxiliary Height - 86mm
- Auxiliary Depth - 73mm
- Auxiliary Net Weight - 32g
- Wire Stripping Length - 10mm
- Tightening Torque - 1 Nm
- Color - White
- Auxiliary Country of Origin - India
