Description
Manufacturer: Raymarine
Model Number: c125
Series: c-Series
MPN: E70013
Condition: Used
Additional Notes: This unit was originally a Raymarine e125, which would have included a touchscreen. The most common and well-known failures with the e1XX series are the touchscreen and digitizer. We have accumulated many of these e-series displays with bad touch and wanted to find a way to utilize them best. This display is what we came up with. We disconnected the digitizer, disabling the failed touch feature. This makes this unit essentially a c-Series display, which is identical but does not have touch compatibility.
This unit is fully compatible with any c-Series unit installed on your boat. It has all the same connections and uses the same cables. The only difference between this unit and your original c-Series unit is the following:
The boot-up page says e-Series instead of c-Series
After boot-up, c Series says, “Press ok to accept” and shows a picture of the push knob, while this display only shows the “accept” button on the screen – you must use the push knob.
This unit has a “touch lock” option on the homepage, but it does not serve any function since touch was disabled.
This unit has “touch alignment settings”, which also serves no purpose since touch was disabled.

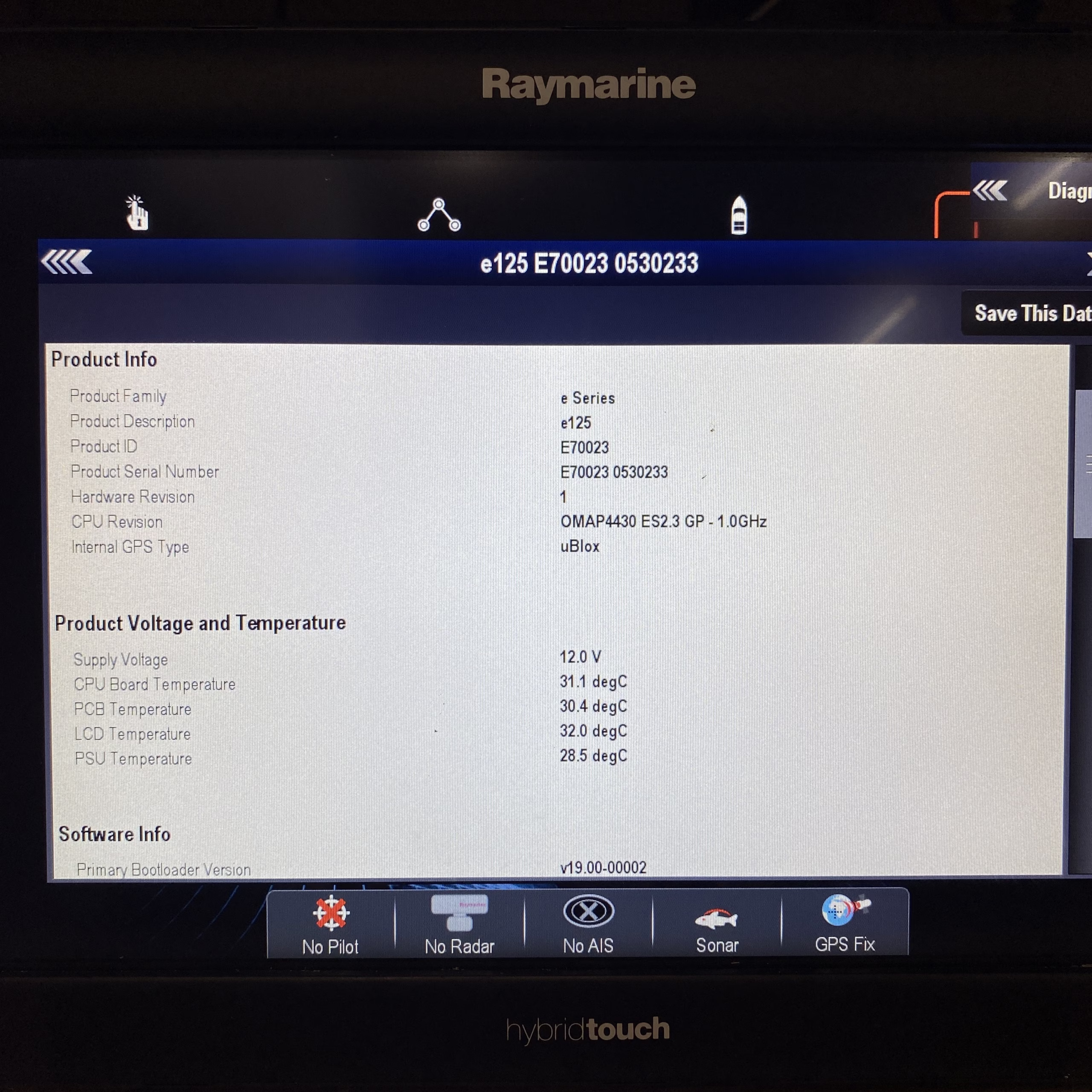

This unit’s diagnostics page shows the e-Series model number. This does not affect functionality in any way.
e-Series has a video in/out port, the c-series does not.

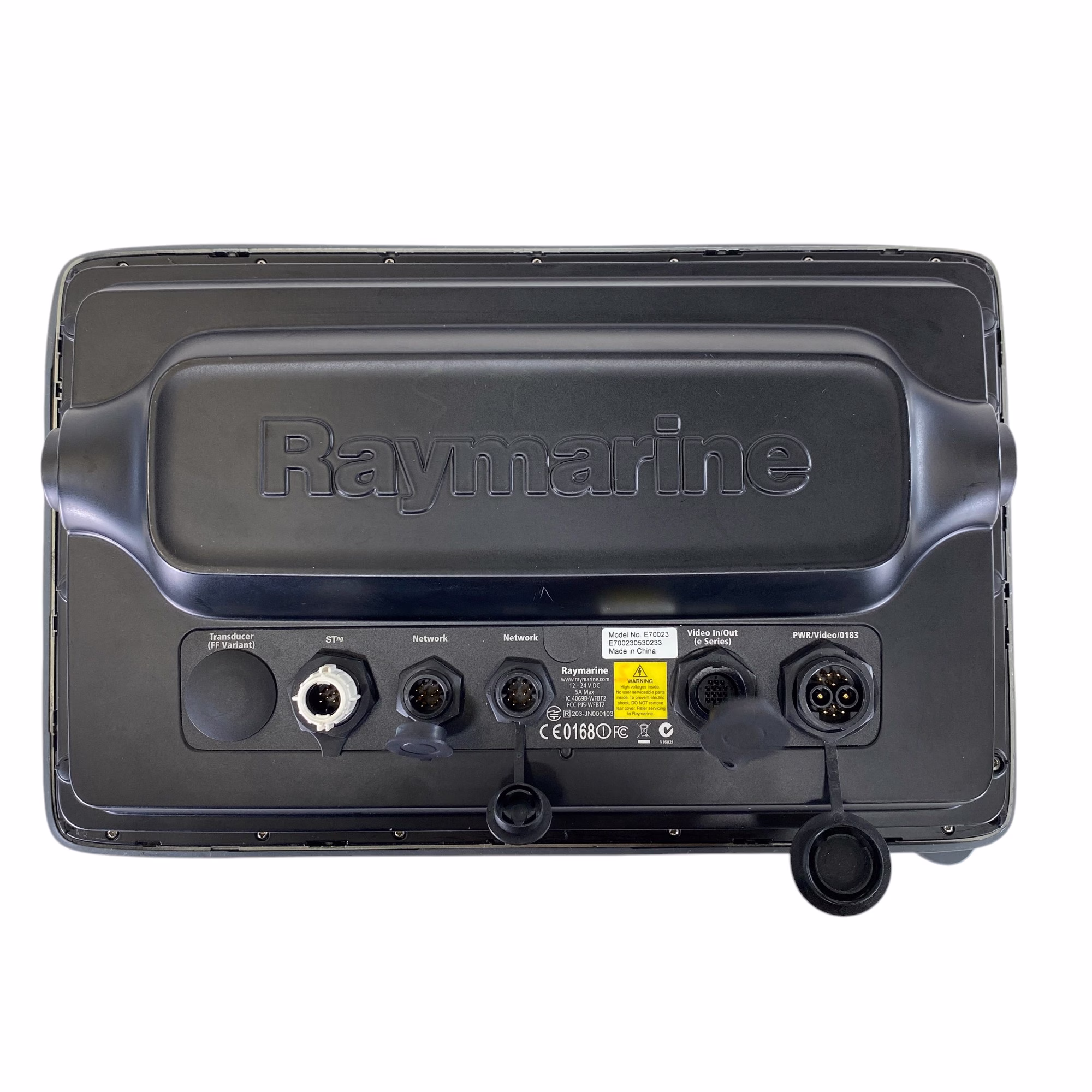

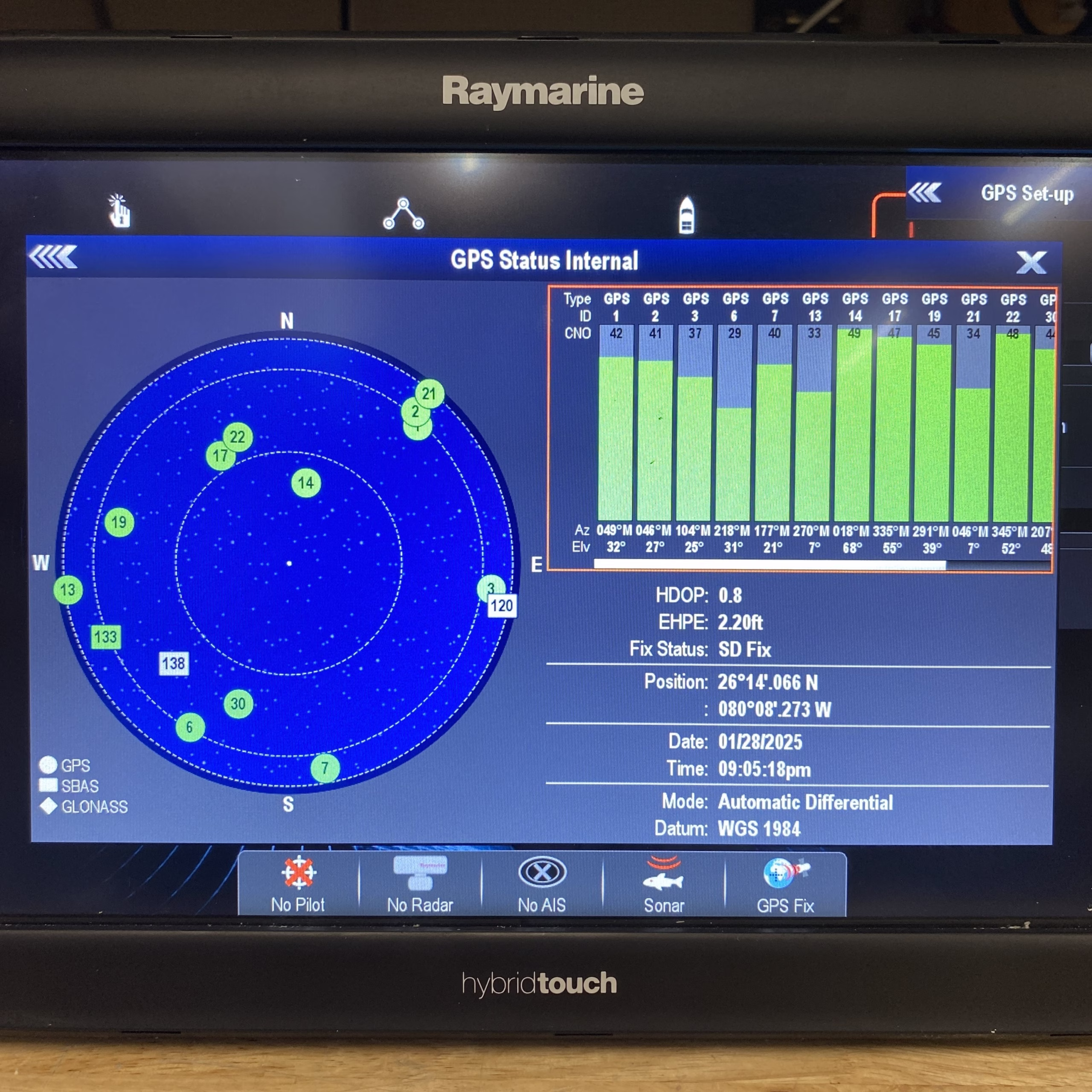

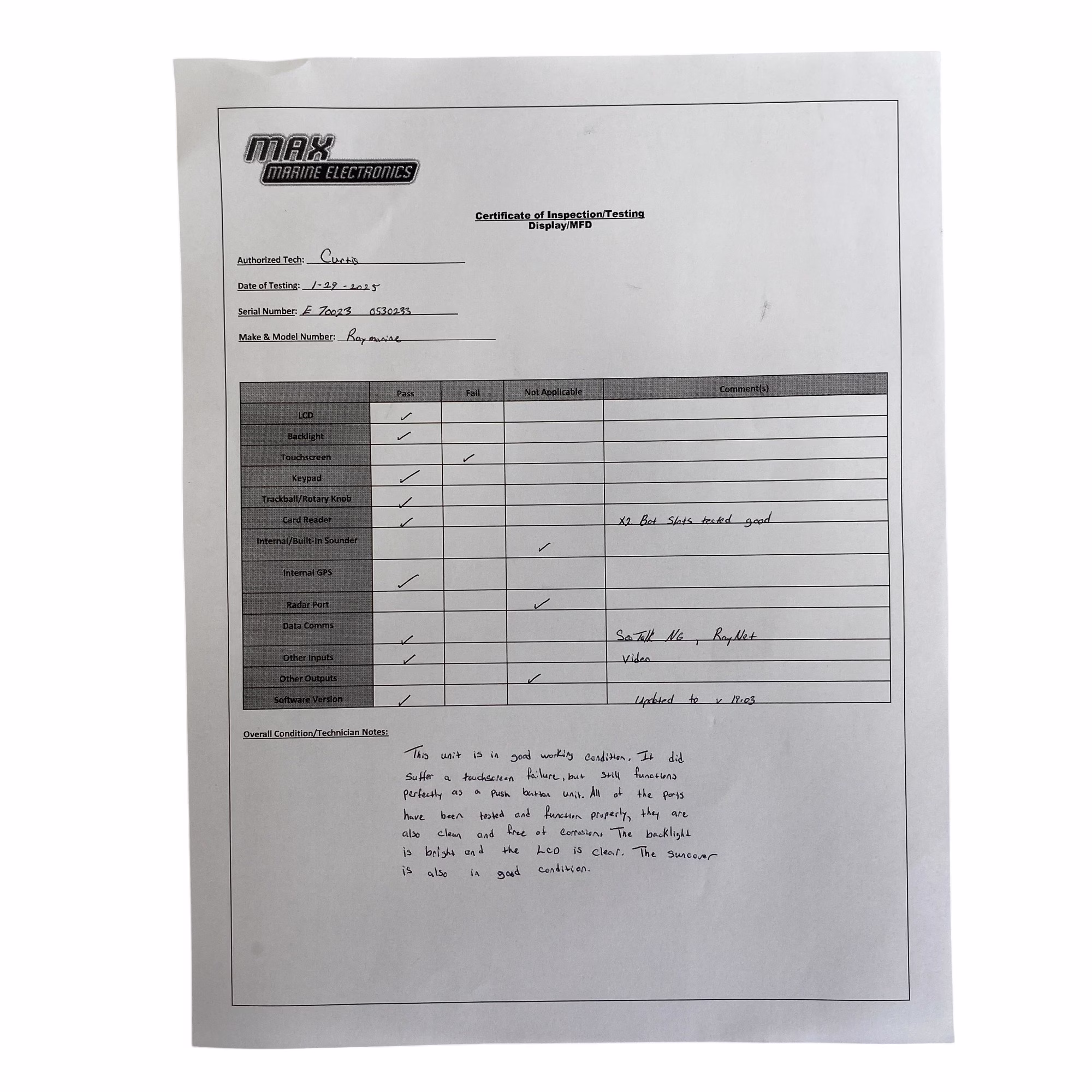

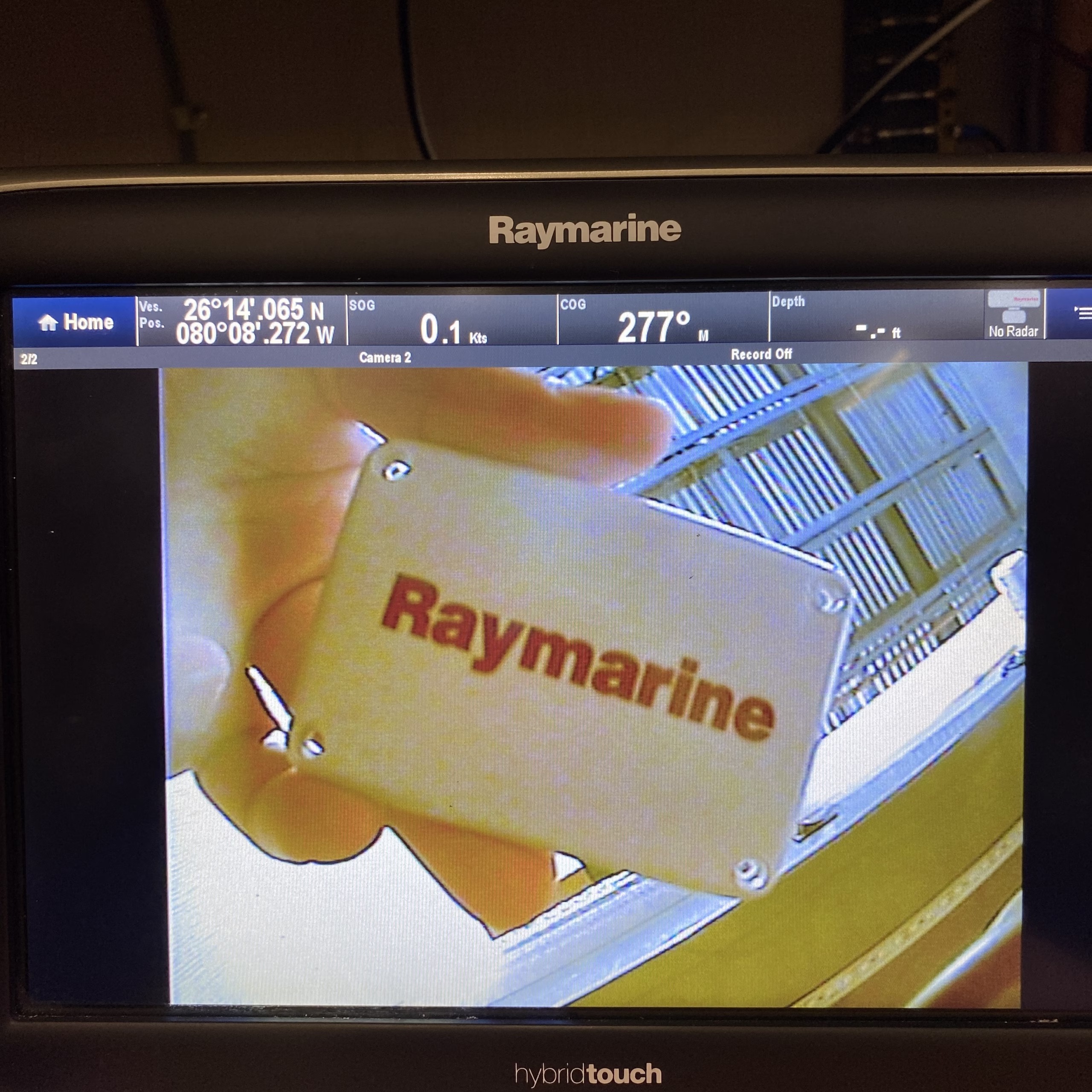

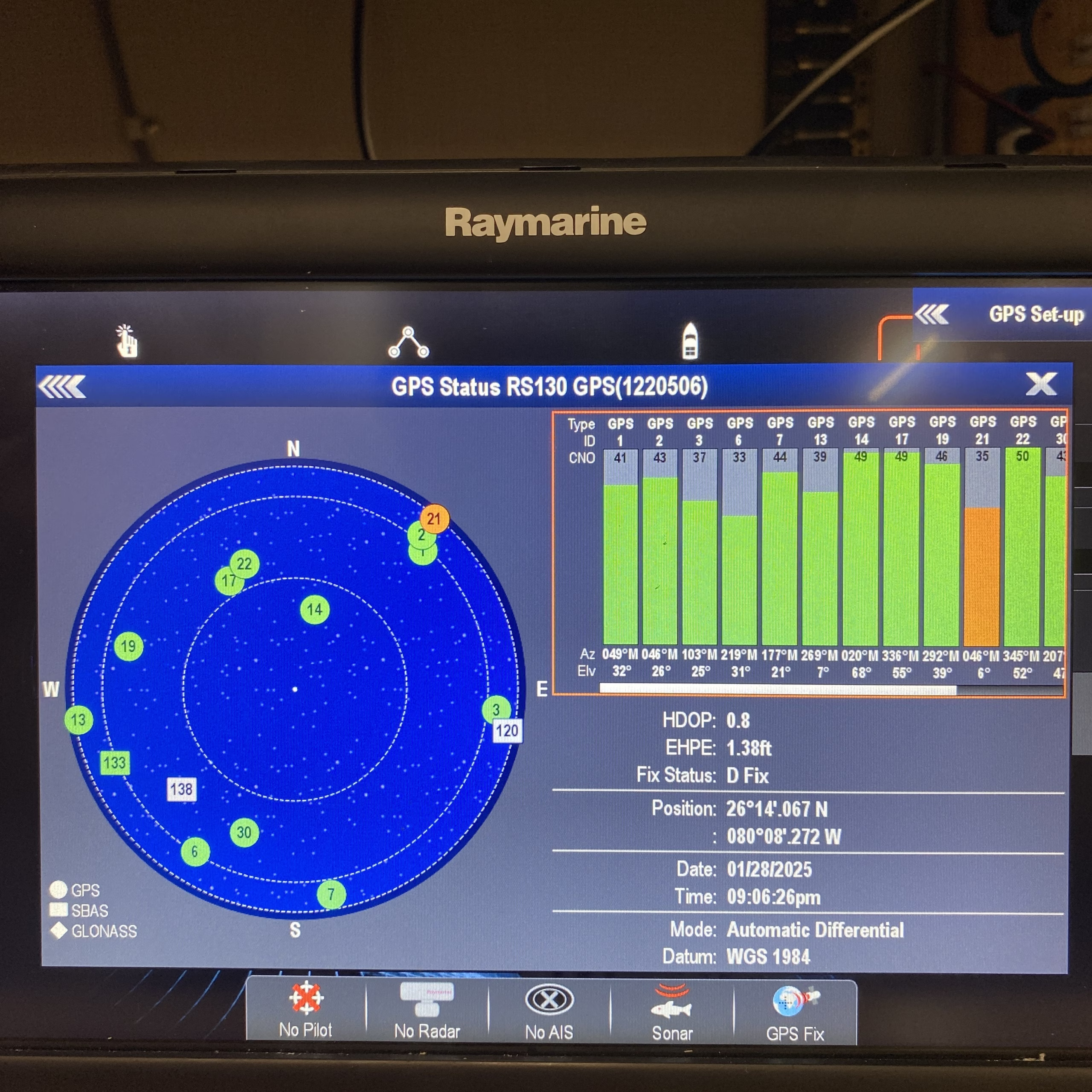

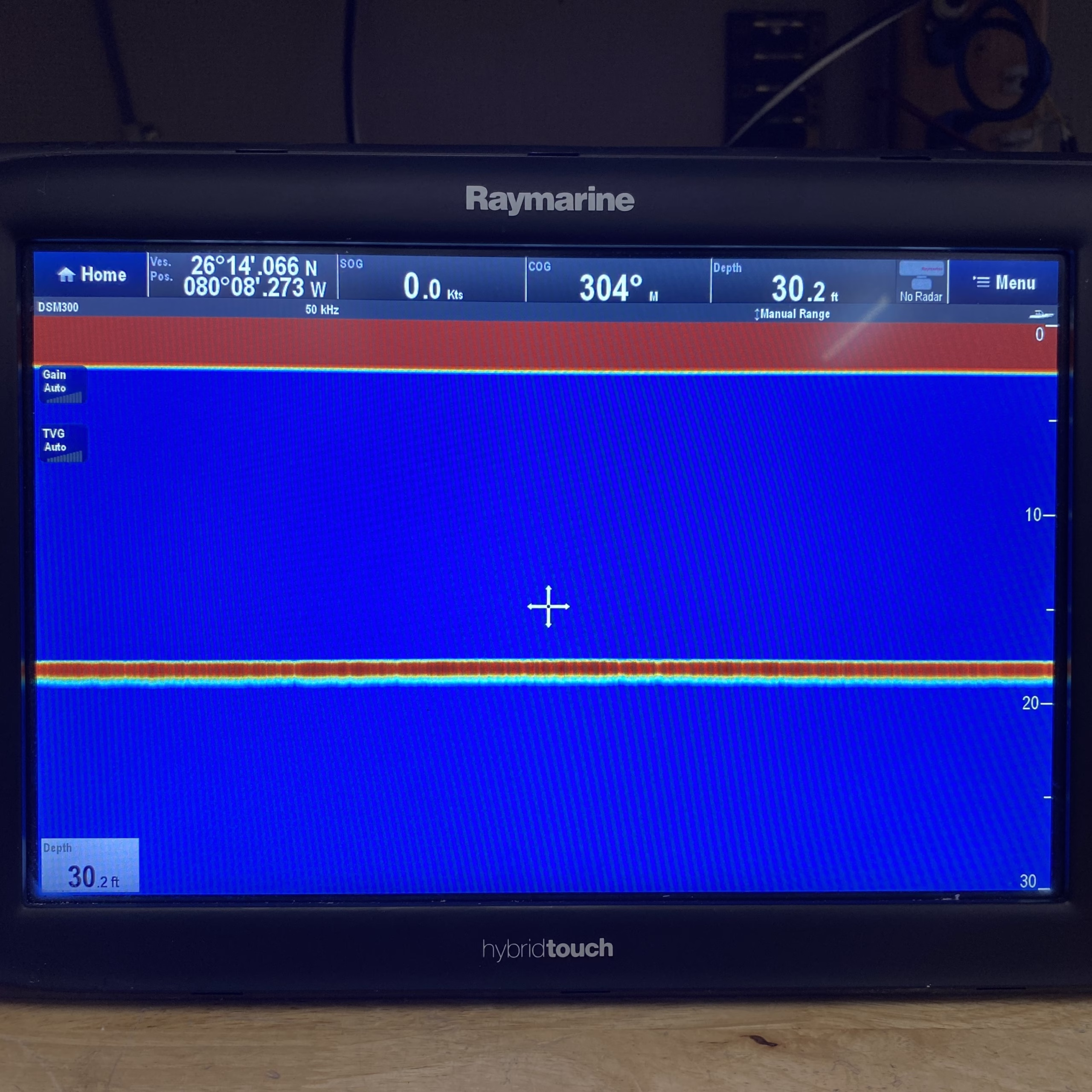

This unit suffered a touchscreen failure but operates perfectly by keypad. We’ve tested all features of this unit, including Video IN/OUT, SeaTalkNG, RayNet ports, and card reader slots. No chart card is included. All ports are intact with no corrosion, as shown in the photos. We’ve updated the OS to v19.03 LightHouse II for peak performance.
What’s Included:

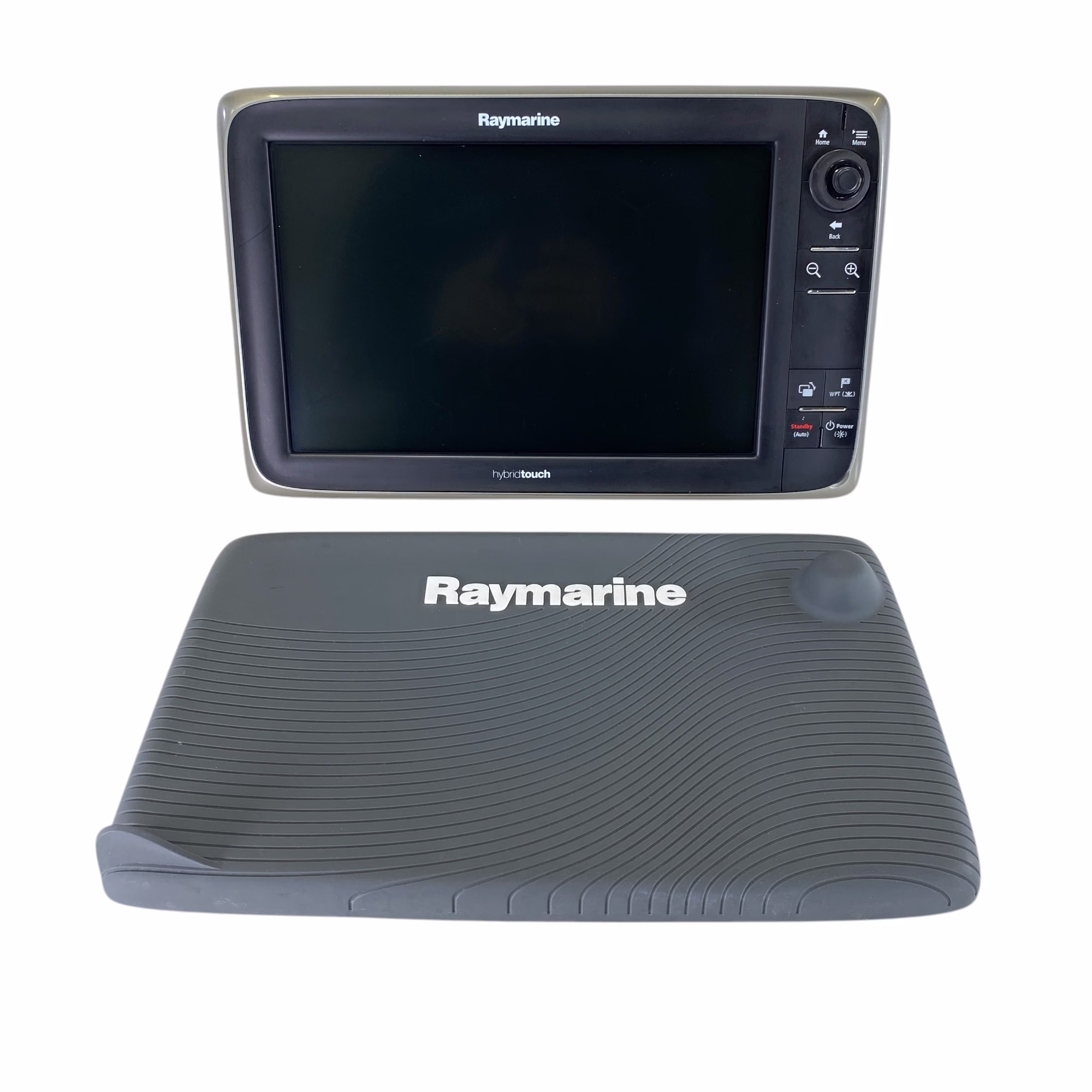

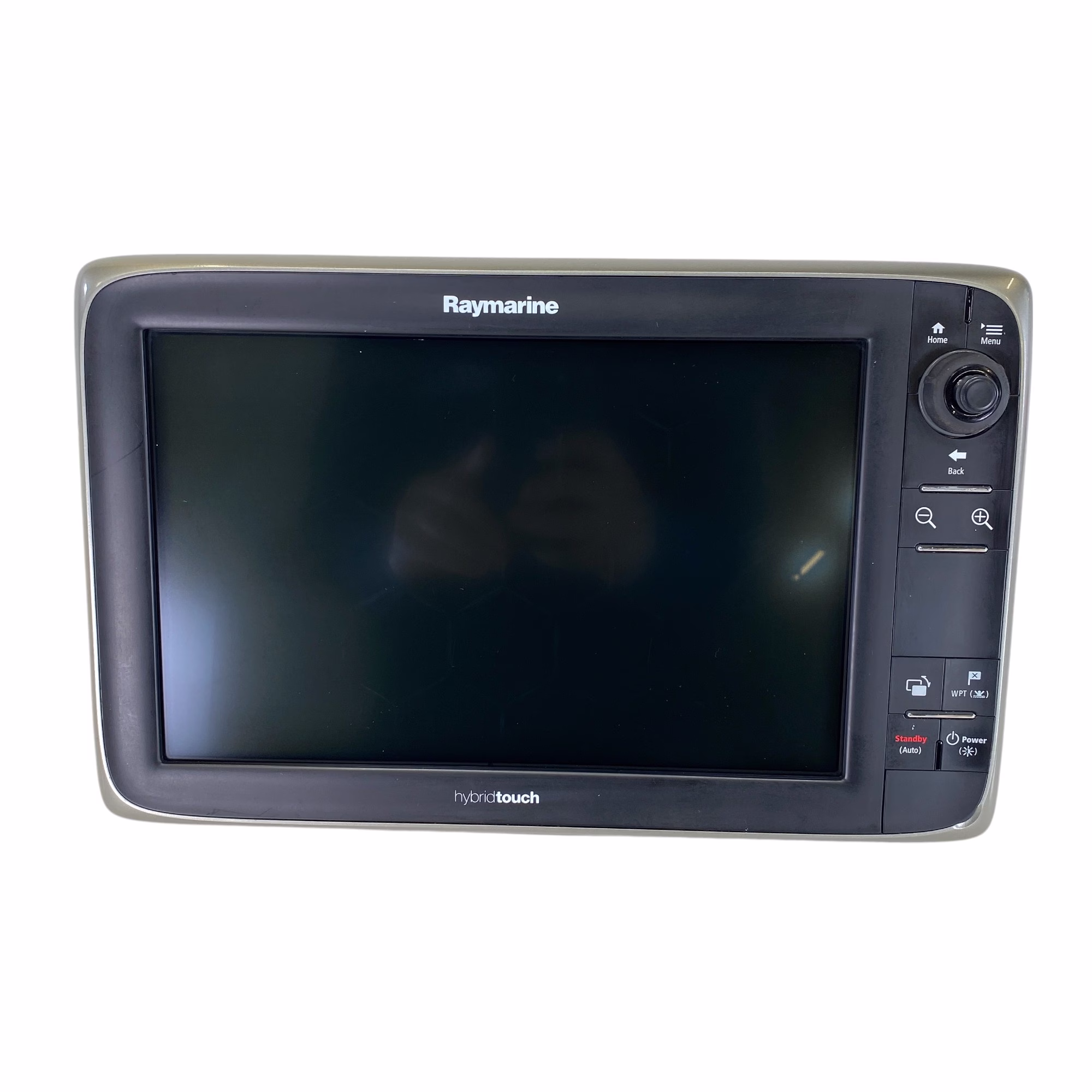

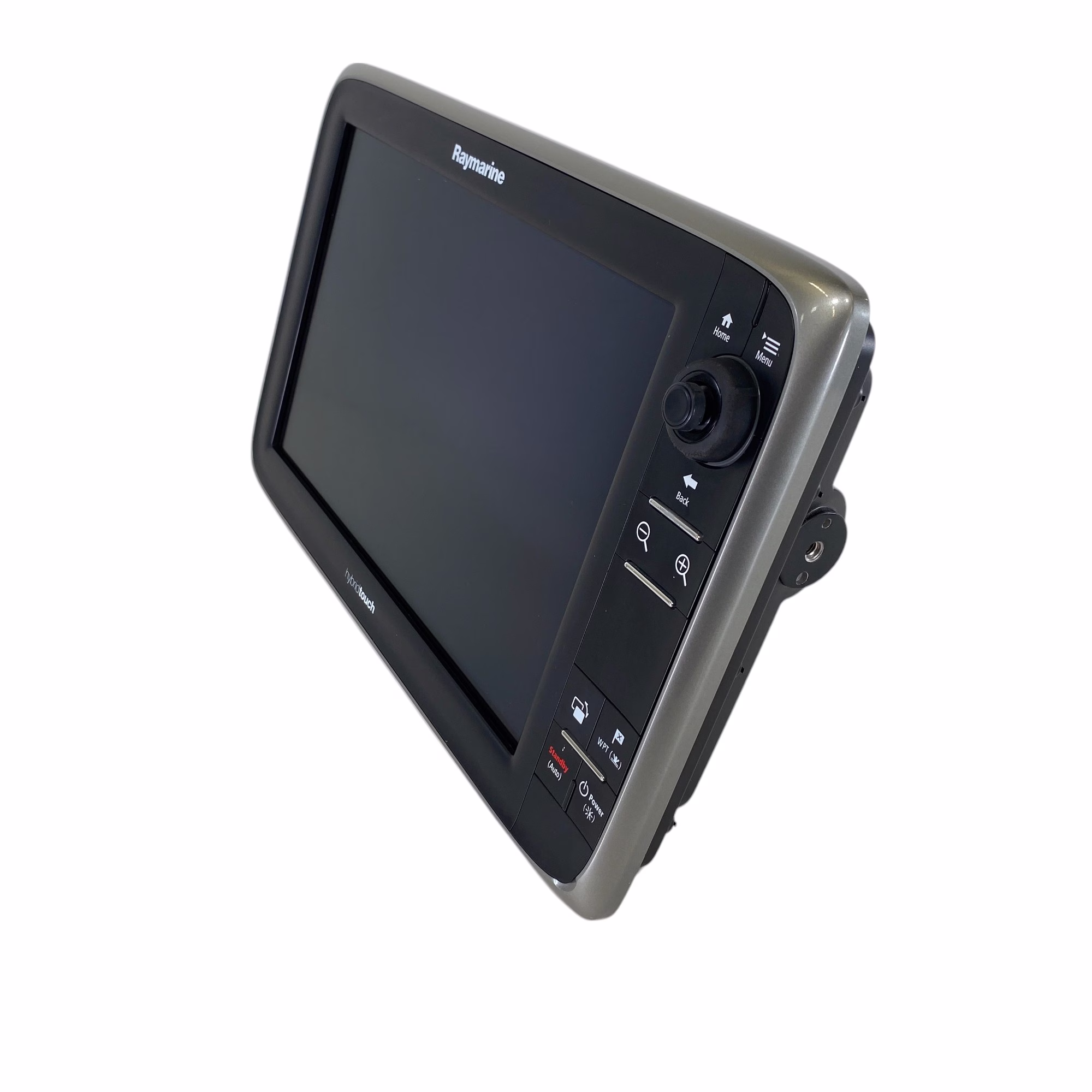

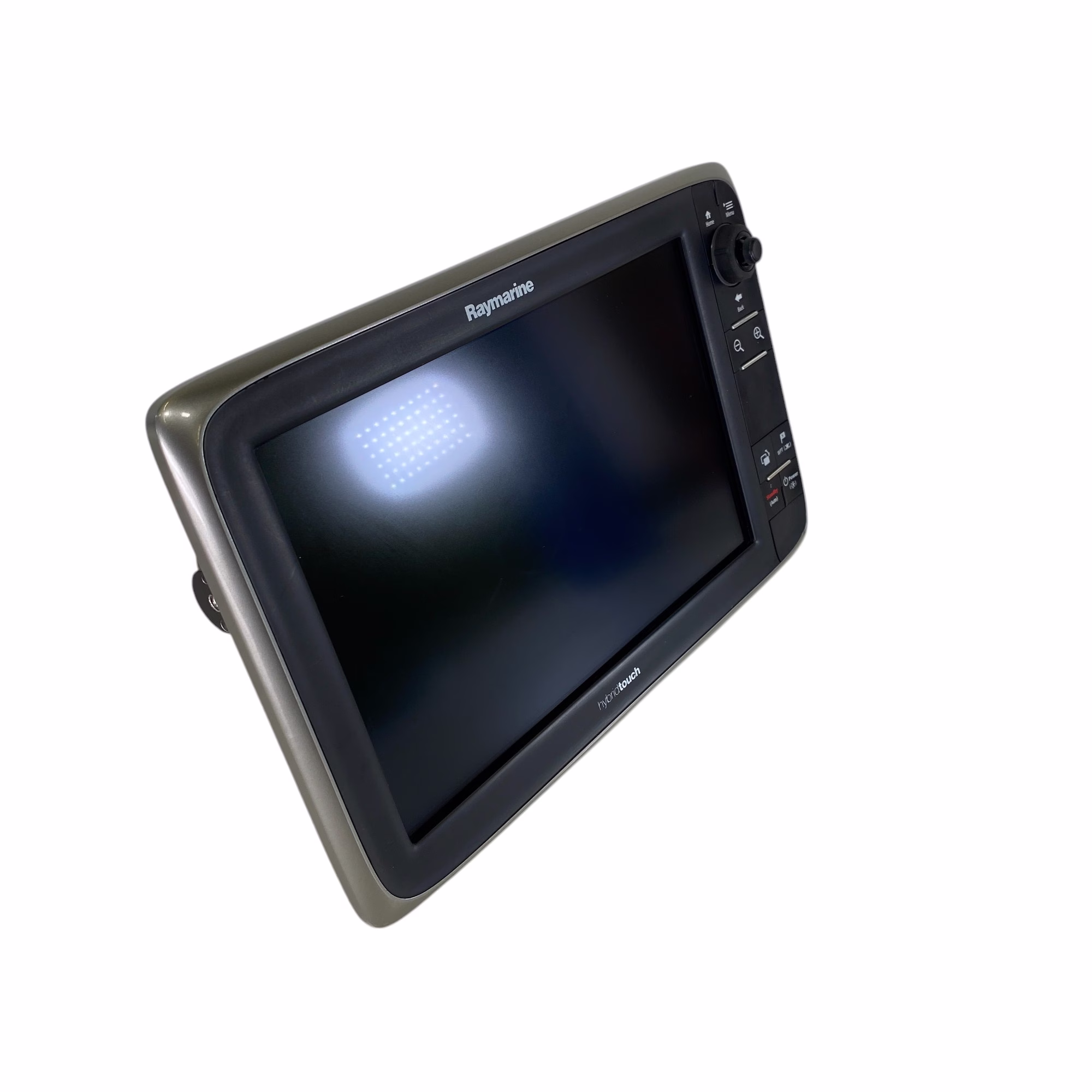

- Raymarine c125 Multifunction Display
- Raymarine c125 Gray Bezel

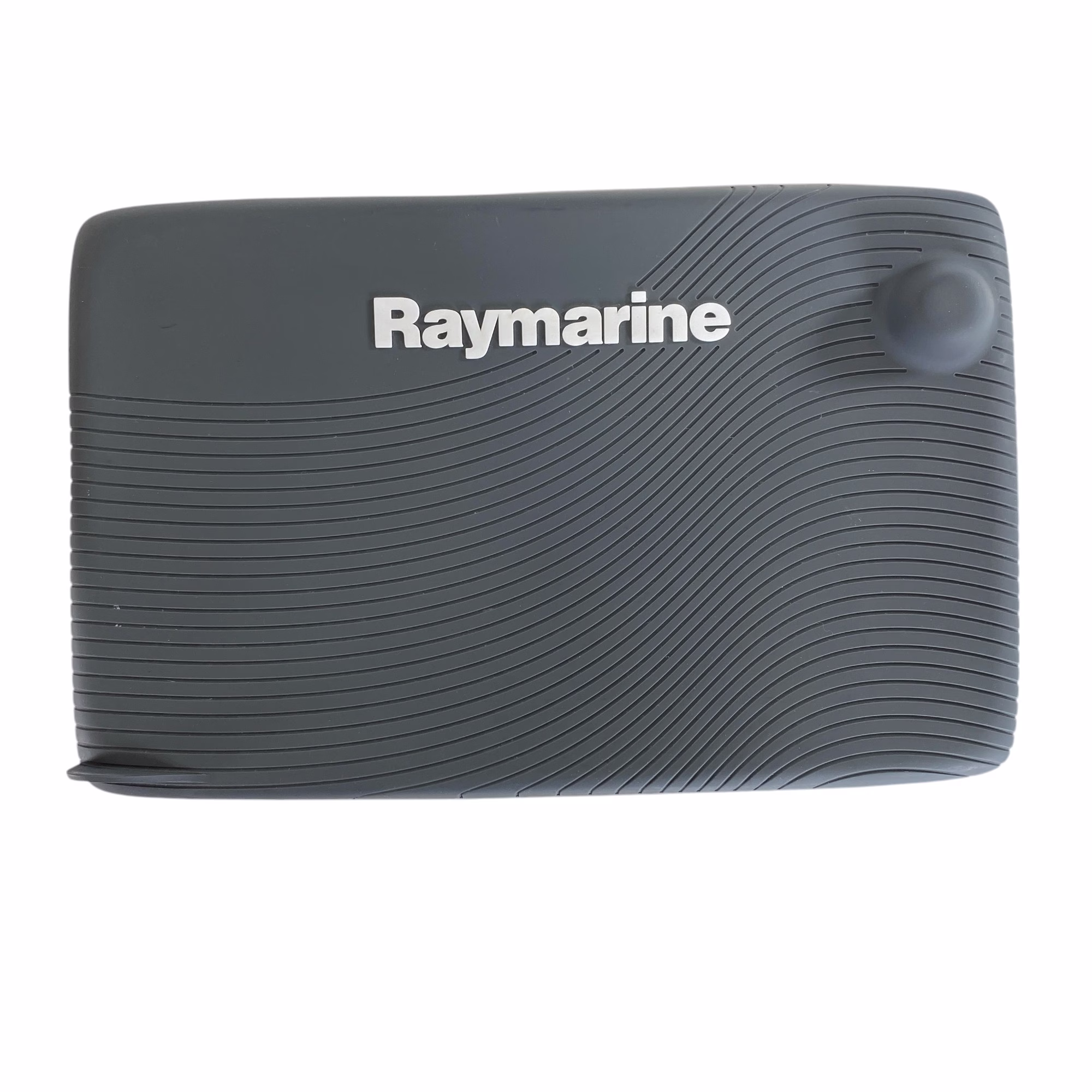

- Raymarine c125 Gray Rubber Sun Cover
Dimensions (L x W x H): 14 x 4 x 9 in, Weight: 8 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
