Manufacturer: Raymarine
Model Number: B175HW
Series: Transducer
MPN: A80320
Listed Item Condition: Used
Additional Notes: Airmar/Raymarine B175HW-12 Thru-Hull 12-degree, High-Wide Band CHIRP, 1000w
This has been tested with the Airmar TDT1000, which is the gold standard in transducer test equipment. Test Report Attached.
This transducer passed testing on the high CHIRP band; transducer is ready to install. Only 400 hours of runtime. It is used, we have done our best to clean it up and make it install-ready. It comes complete with install materials.

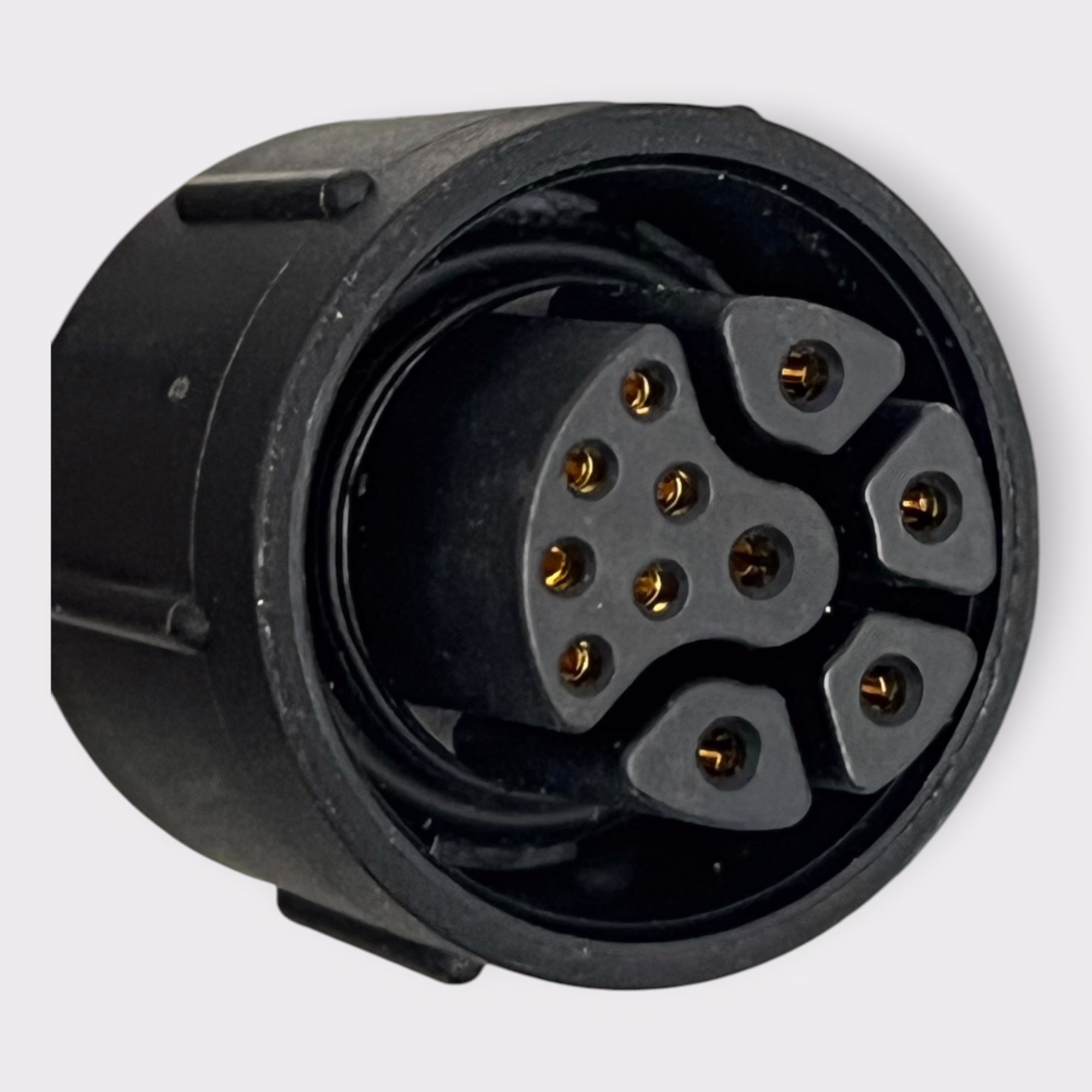

This transducer is a mix and match transducer with Raymarine’s 1kw CHIRP connector. Please note – Raymarine requires an additional cable for single channel CHIRP installs – if you are using just this transducer and not pairing it with another B175, use A80328. If you are using another B175 in conjunction with this one, use A102146.
If wiring to another brand/device, the easiest thing to do is to order the correct mix and match cable for your device. We can assist with telling you which part number to order.
This is for installation on deadrises of Fixed 12° tilted version for 8° to 16° hull deadrise
This item has a 30-day return and 90-day warranty from date of receipt. For more information on our store policies please refer to our terms and conditions.
Free shipping in the Contiguous United States.
What’s Included:

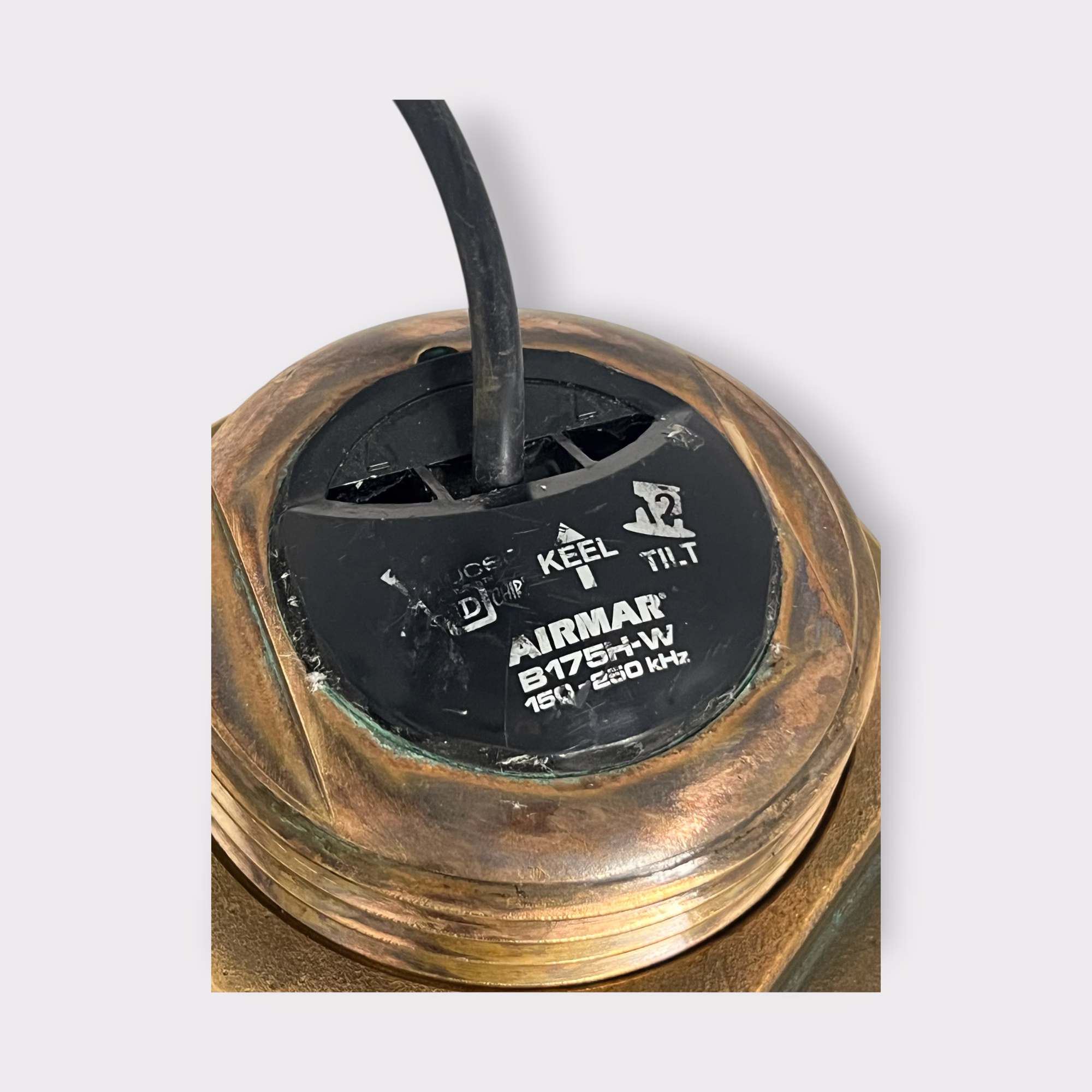

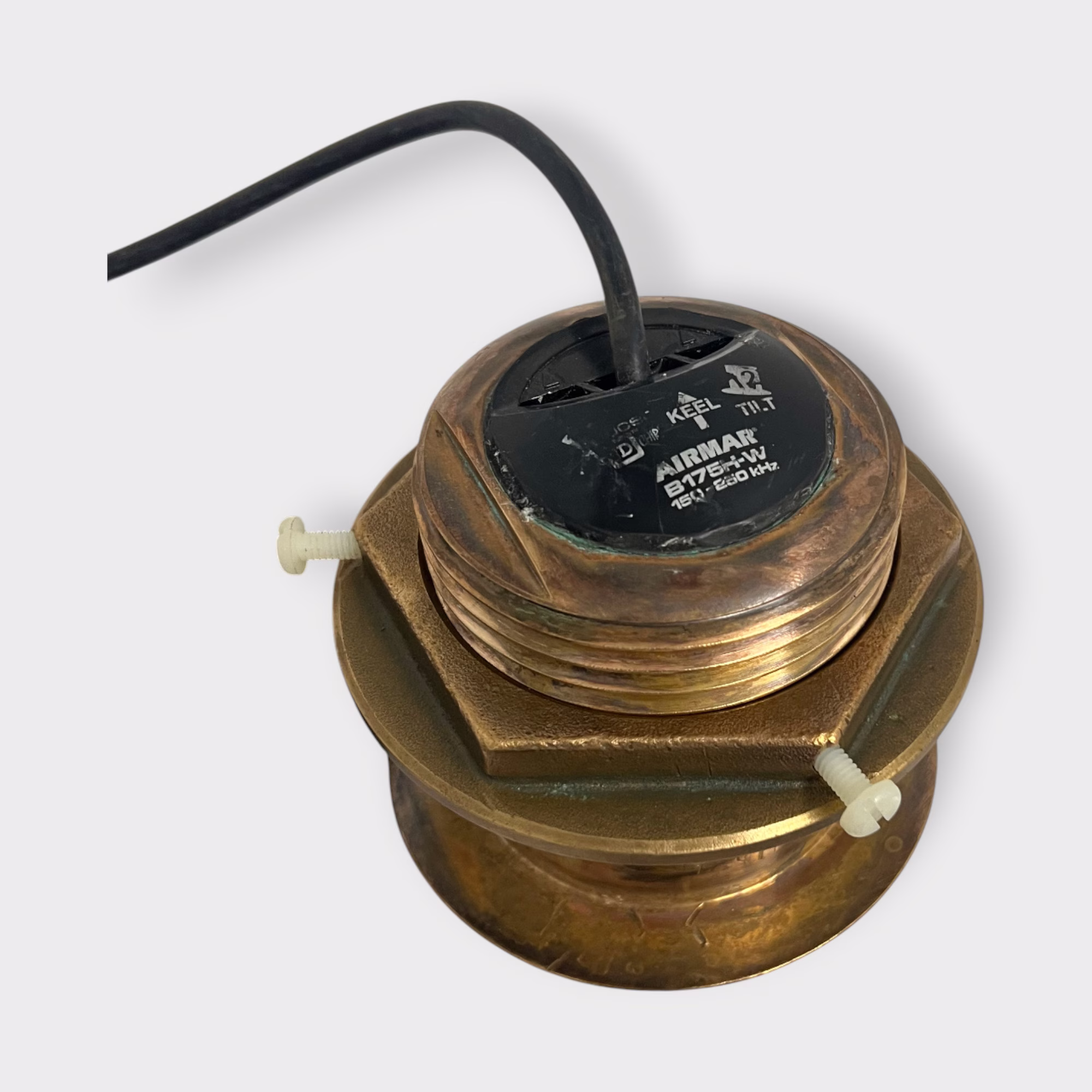

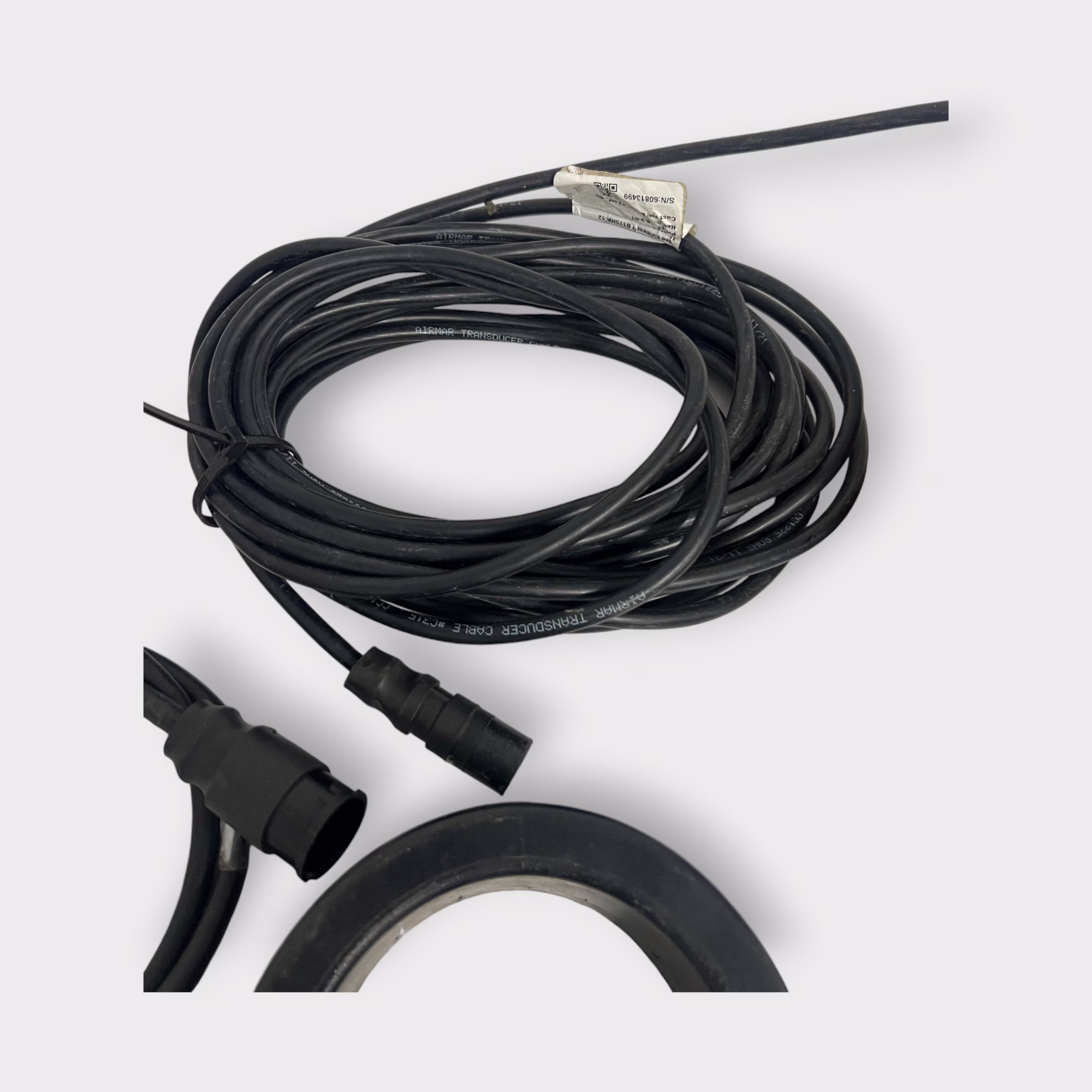

- B175HW-12 Raymarine CHIRP Transducer (B175HW-12-MM + MMC-11R-HM)
- Hull nut w/jam bolts

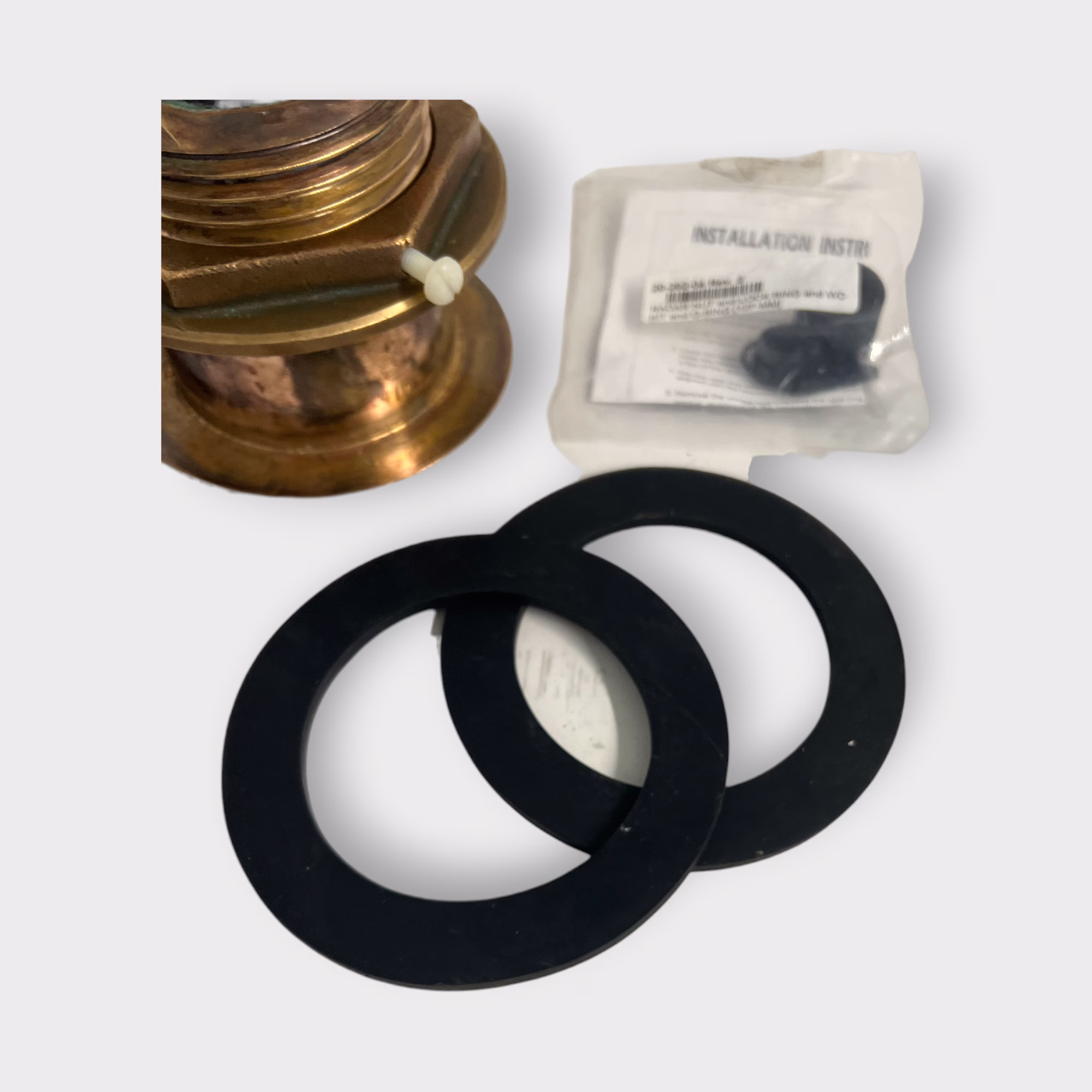

- 2x Rubber Washers

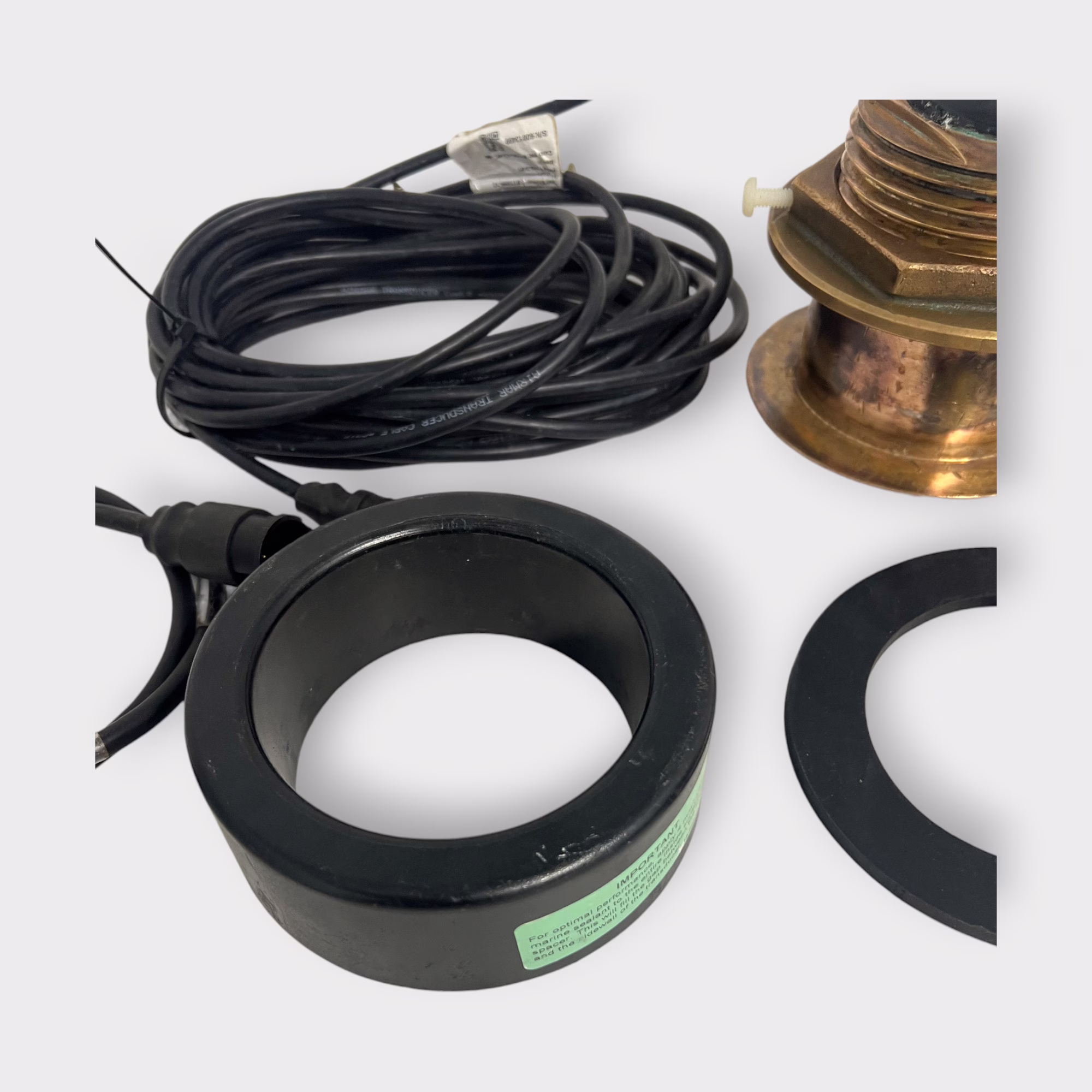

- Plastic Spacer
Compatible Parts: RVX1000, RVM1600, CP450, CP470, CP570, Axiom Pro RVX units, Axiom 2 Pro RVM Units
Dimensions (L x W x H): 12 x 12 x 12 in, Weight: 20 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout. Please be advised if the item is large or is a multi-piece shipment, shipping quotes may be inaccurate due to restrictions outside of our control, in those instances you will be contacted promptly.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
