Manufacturer: Raymarine
Model: 4kW 72″ Open Array
Series: Magnum
MPN: E70484
Condition: Used

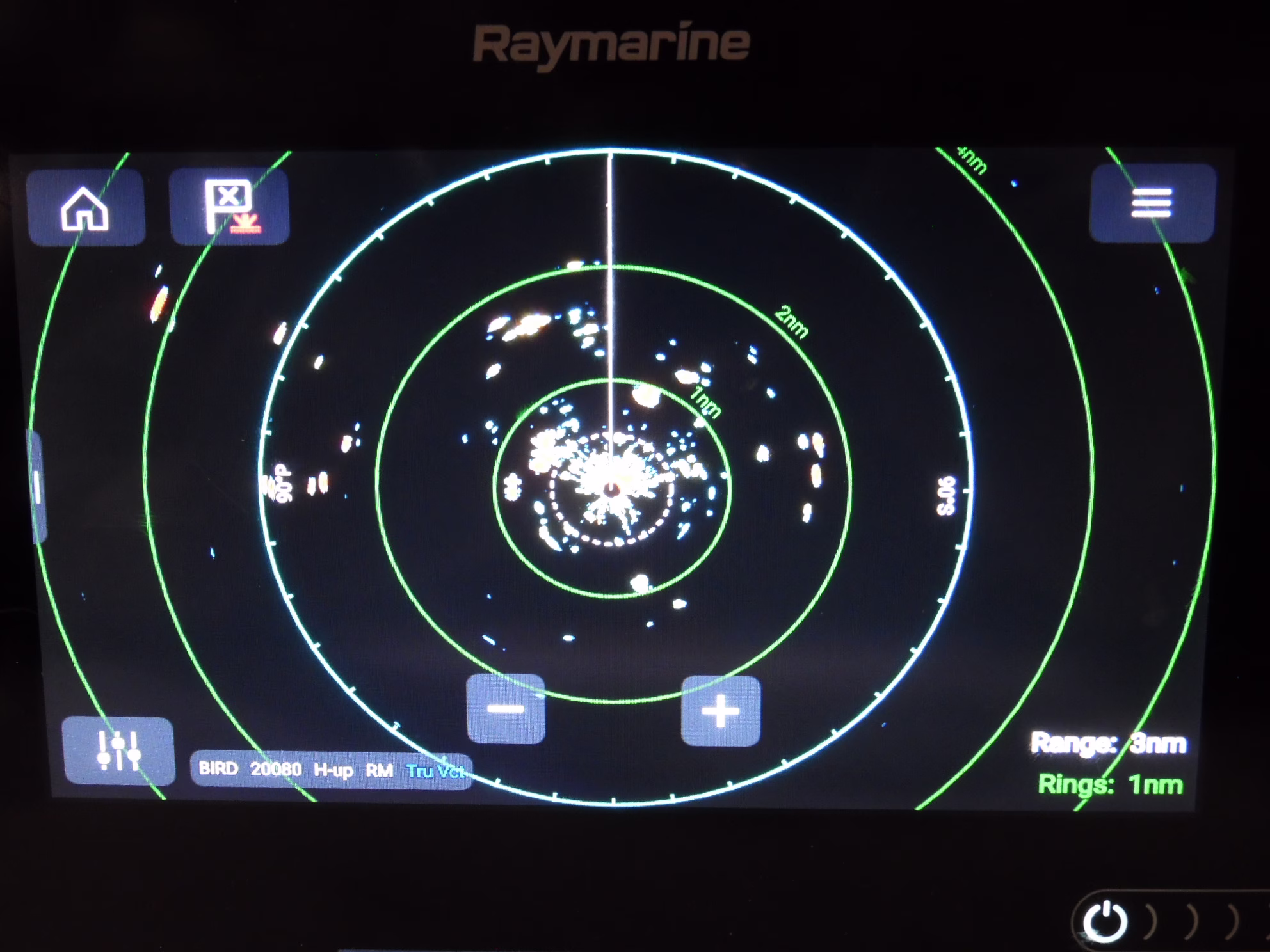

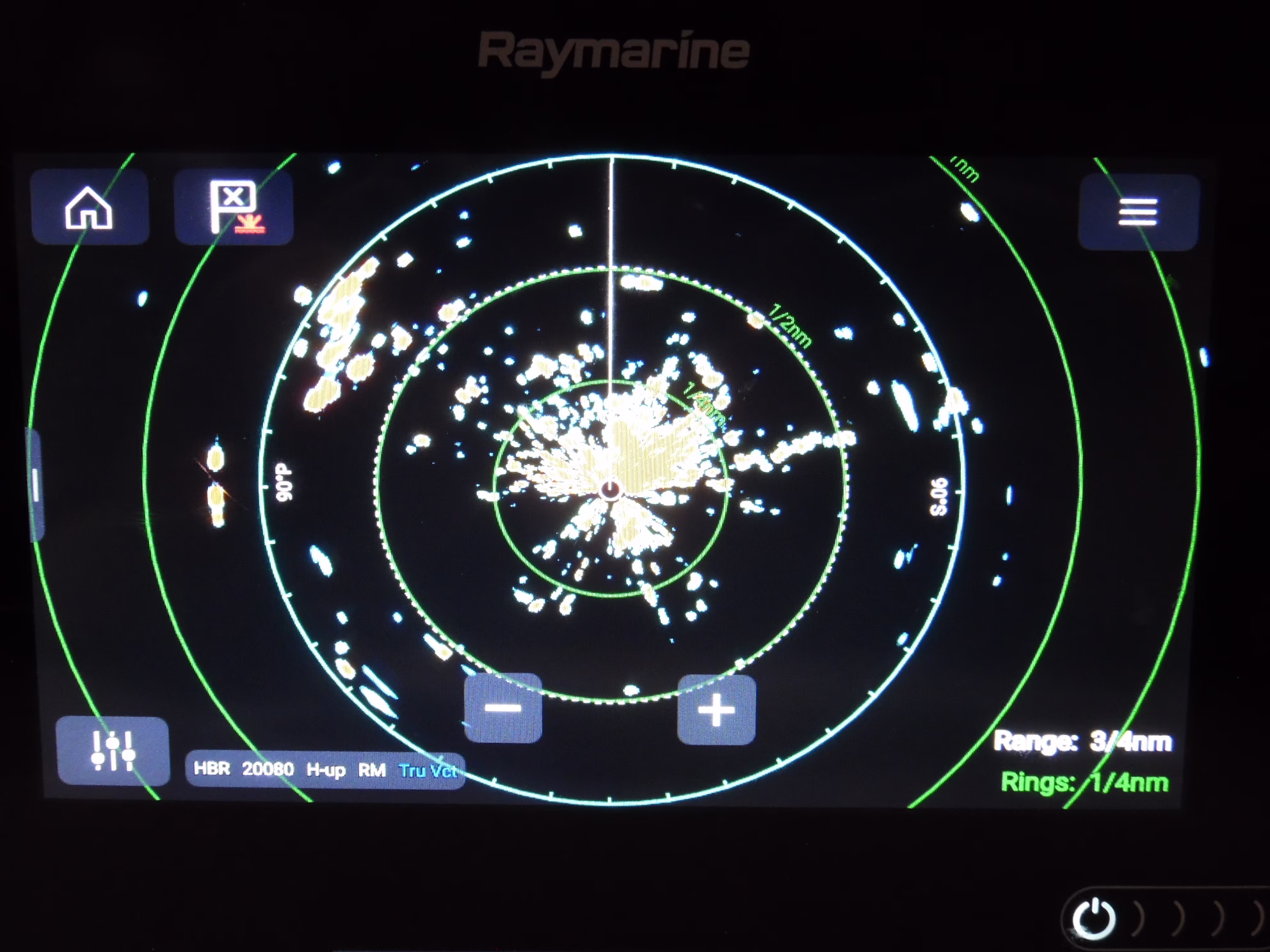

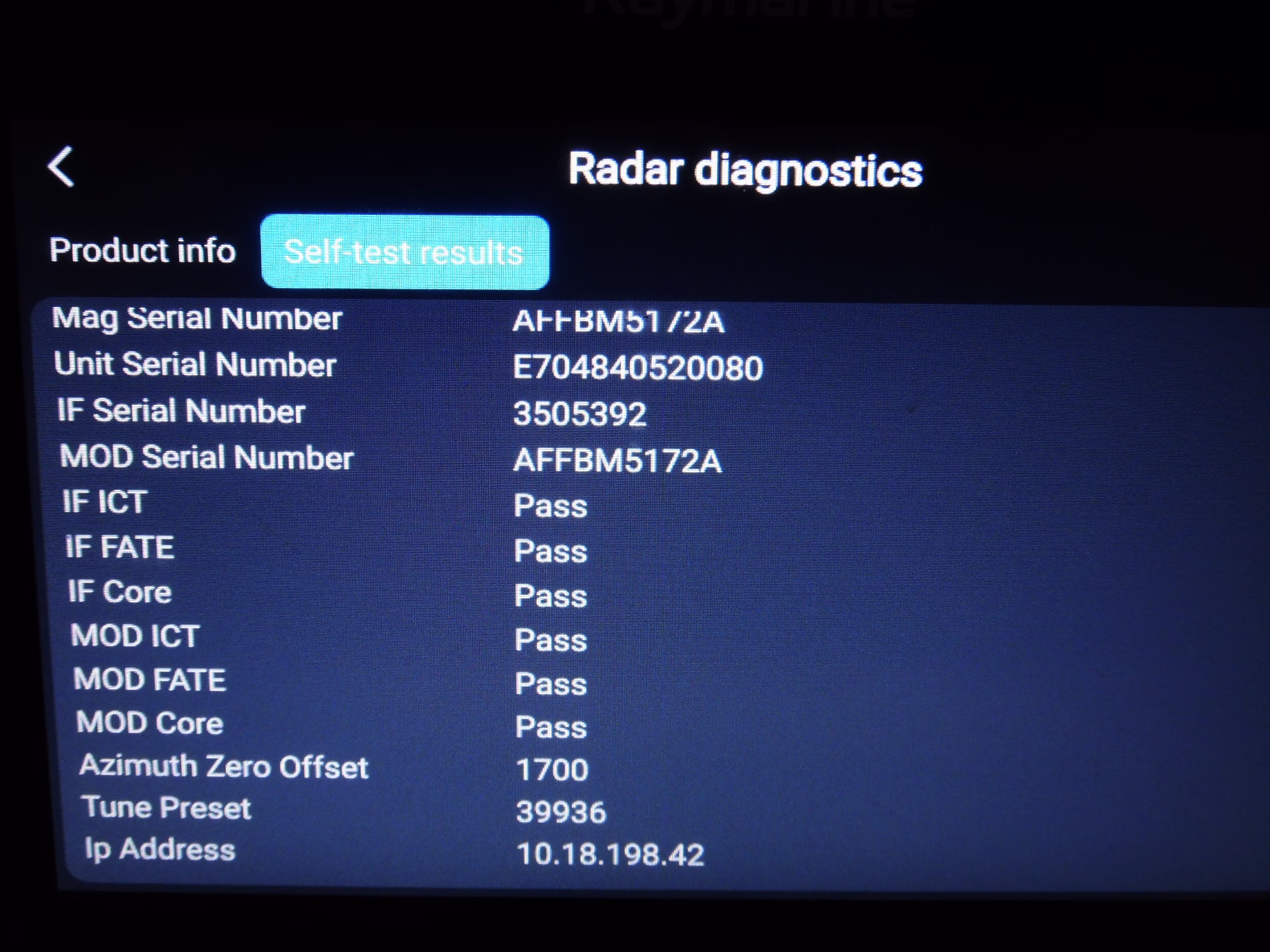

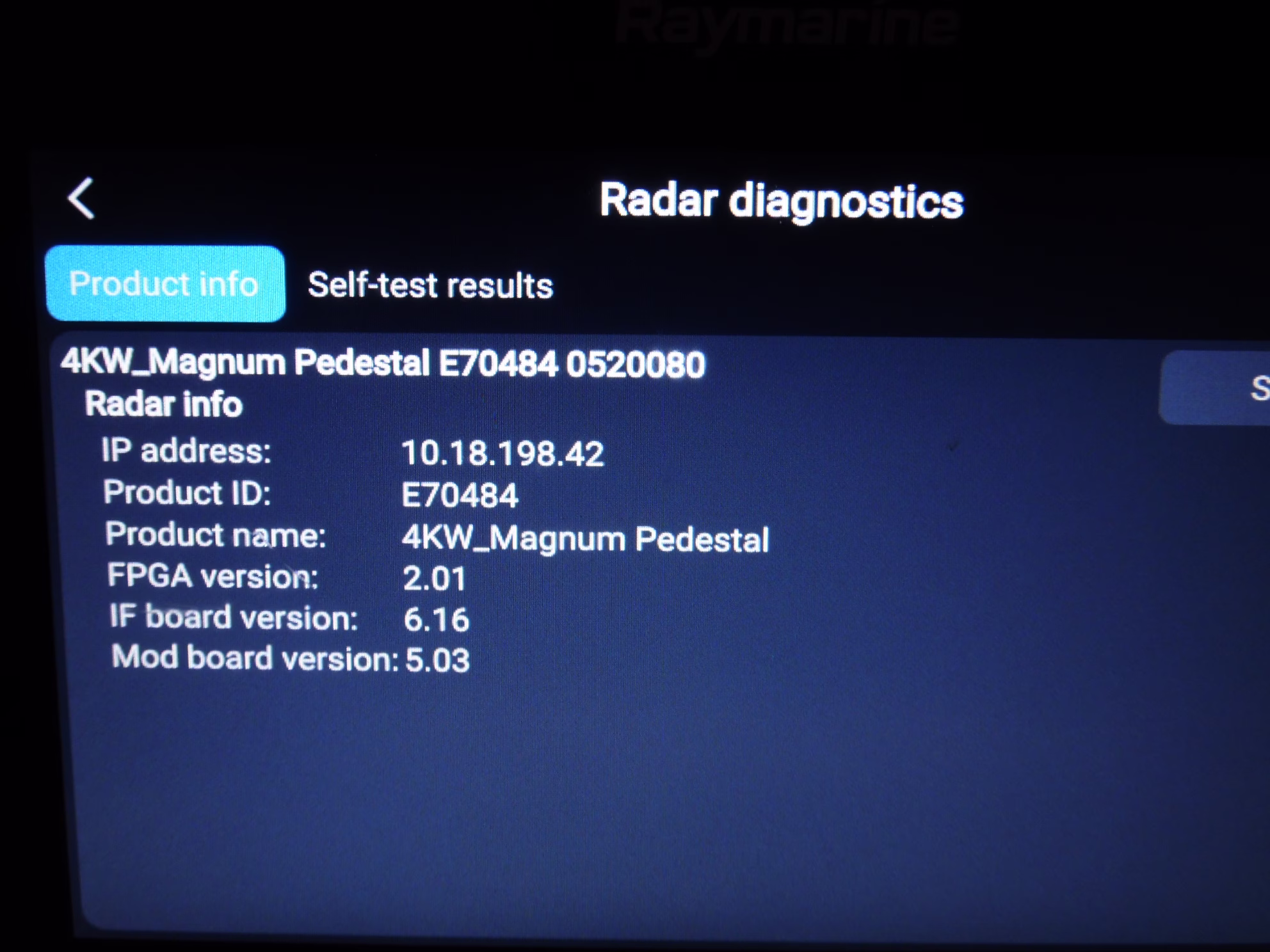

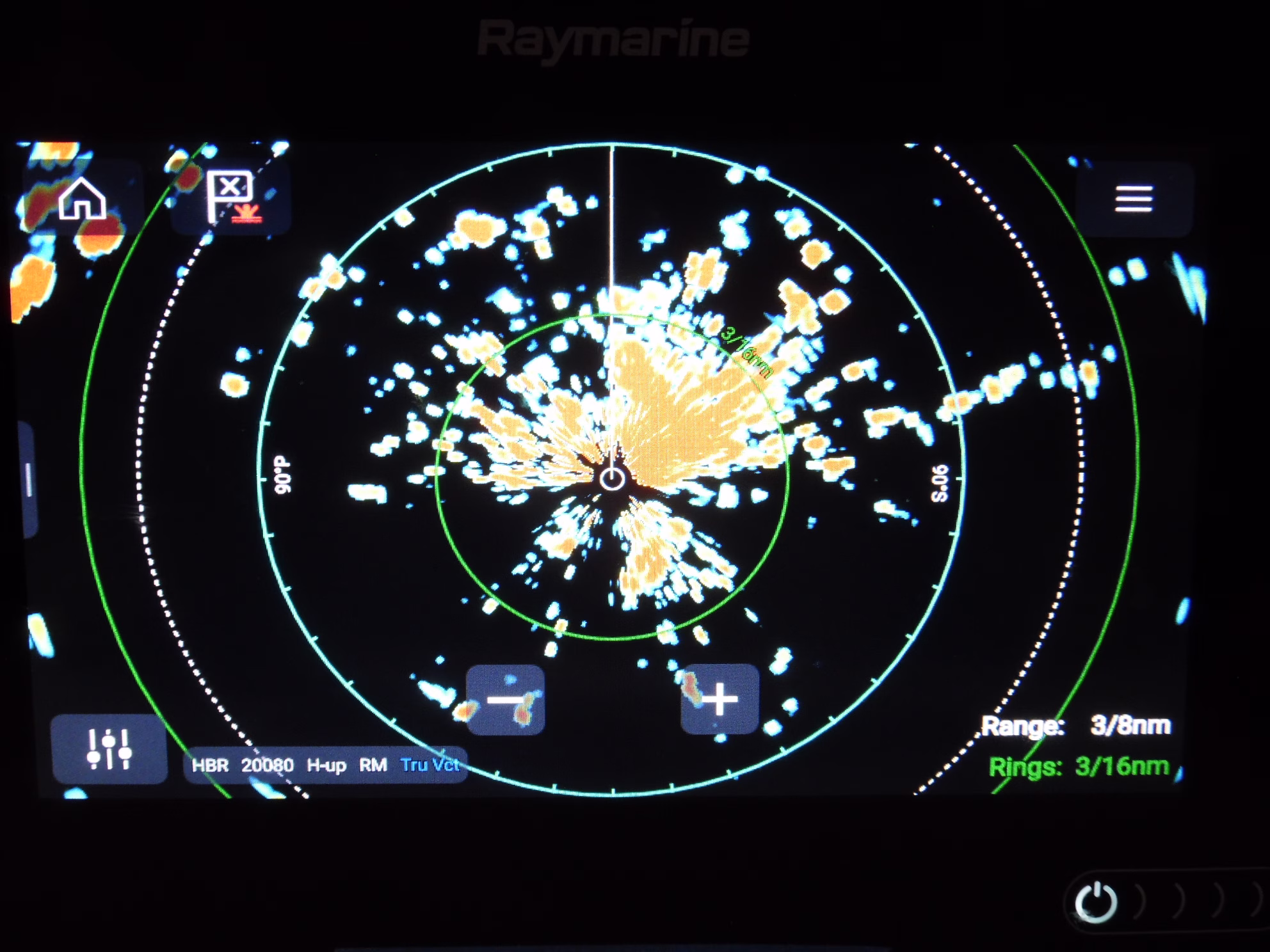

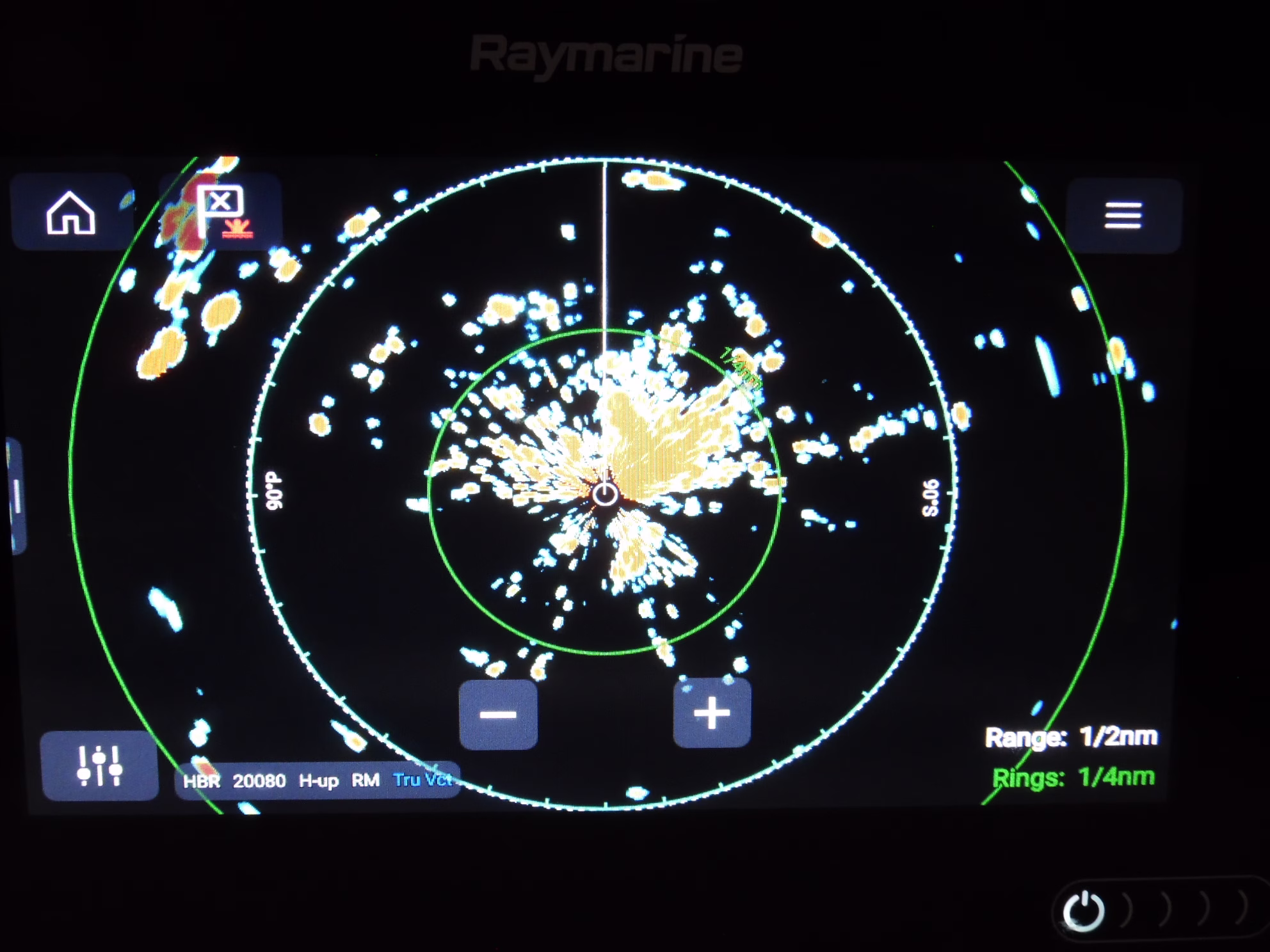

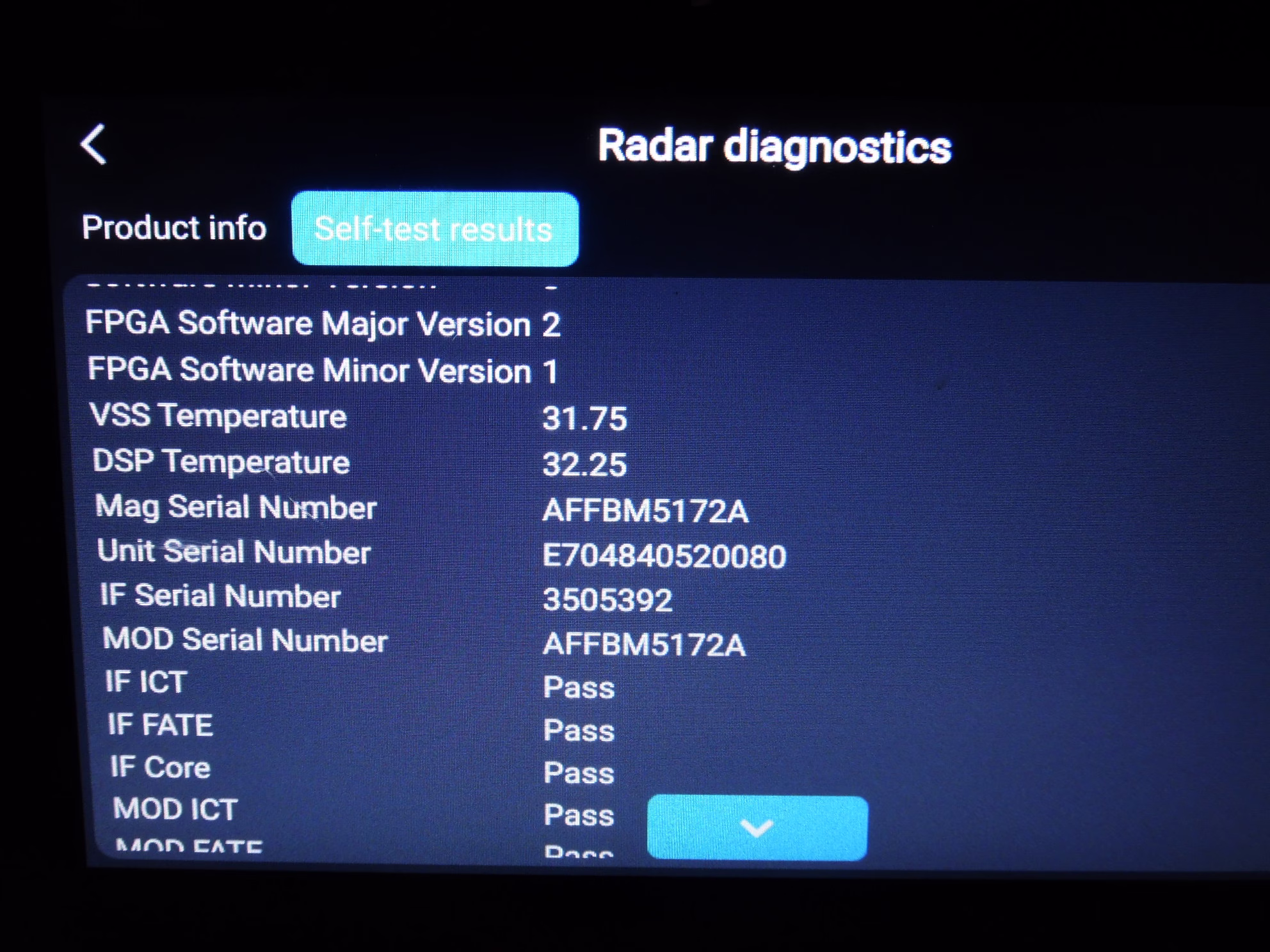

Additional Notes: This 4kW 72″ Magnum Radar System, including the VCM100, performs optimally. We successfully bench-tested all possible peripherals and confirmed functionality via an Axiom MFD (not included). The system has great echo returns at every range, including in “Bird-Mode,” and all self-tests passed!
**VERY LOW Magnetron Heater Hour Count: 333.9**

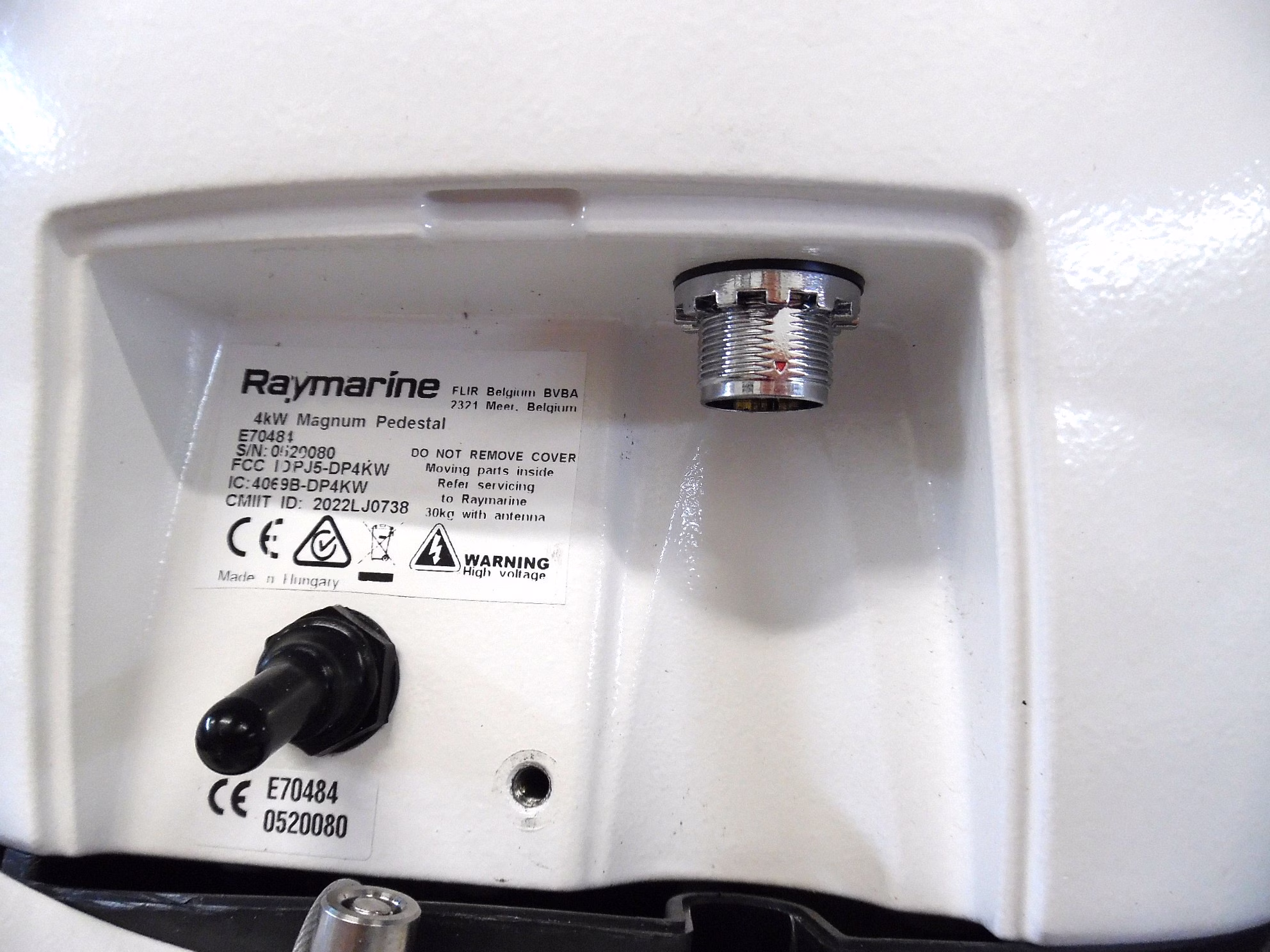

The switch functions properly, and the boot cover is NOT torn or compromised!

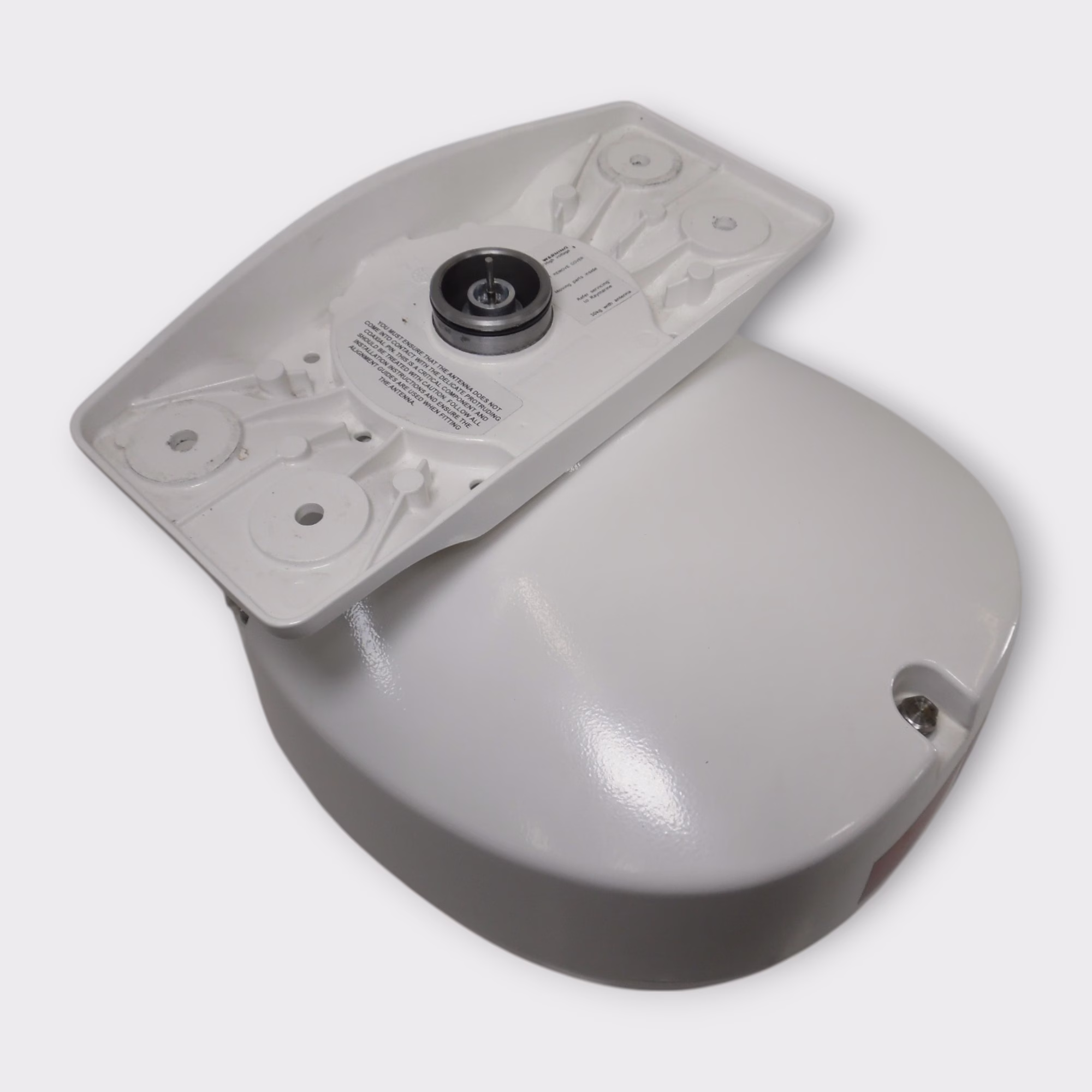

The pedestal’s powder coating is pristine, and the bottom plastic cover is NOT cracked and is in great shape!

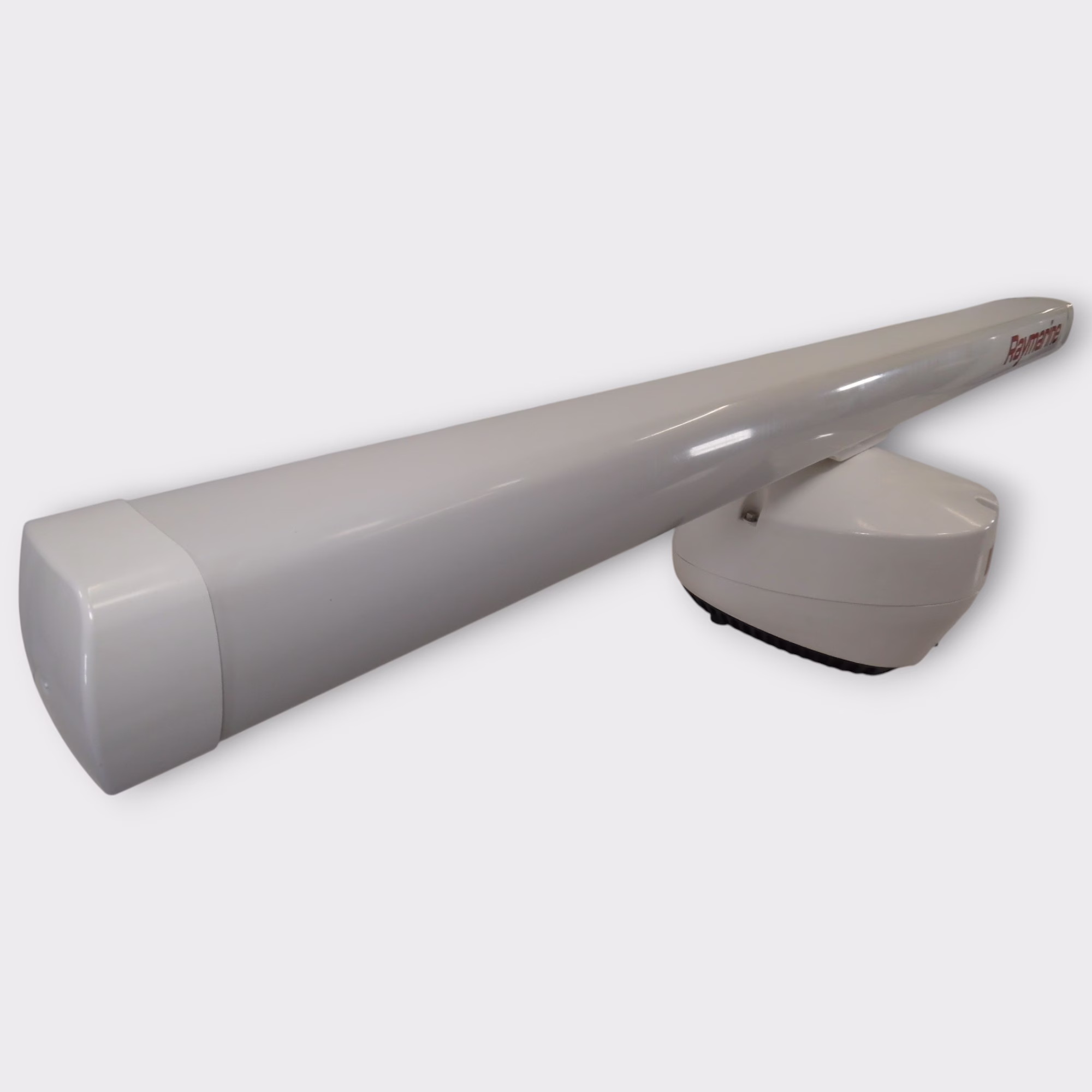

This system comes with a 72″ (6 ft.) antenna array that is in excellent shape, however, if this array is too small, we may have a 48″ (4 ft.) array available.
A NEW 10m radar cable is included! Most used cables have a common failure point where they connect to the radar port. The strain relief deteriorates, exposing the wires to moisture, which can then cause premature failure of the radar/cable or possibly an electrical short. However, 5m or 15m cables are available if your application requires a different length. Contact us directly to inquire about a smaller antenna array or a radar cable of a different length.
All included hardware has been run through a wire wheel and is rust and corrosion-free, allowing for quick and easy installation.
Overall, the system is outstanding cosmetically with no major blemishes!
Please see our photos to reference the condition, contents, and proof of functionality!

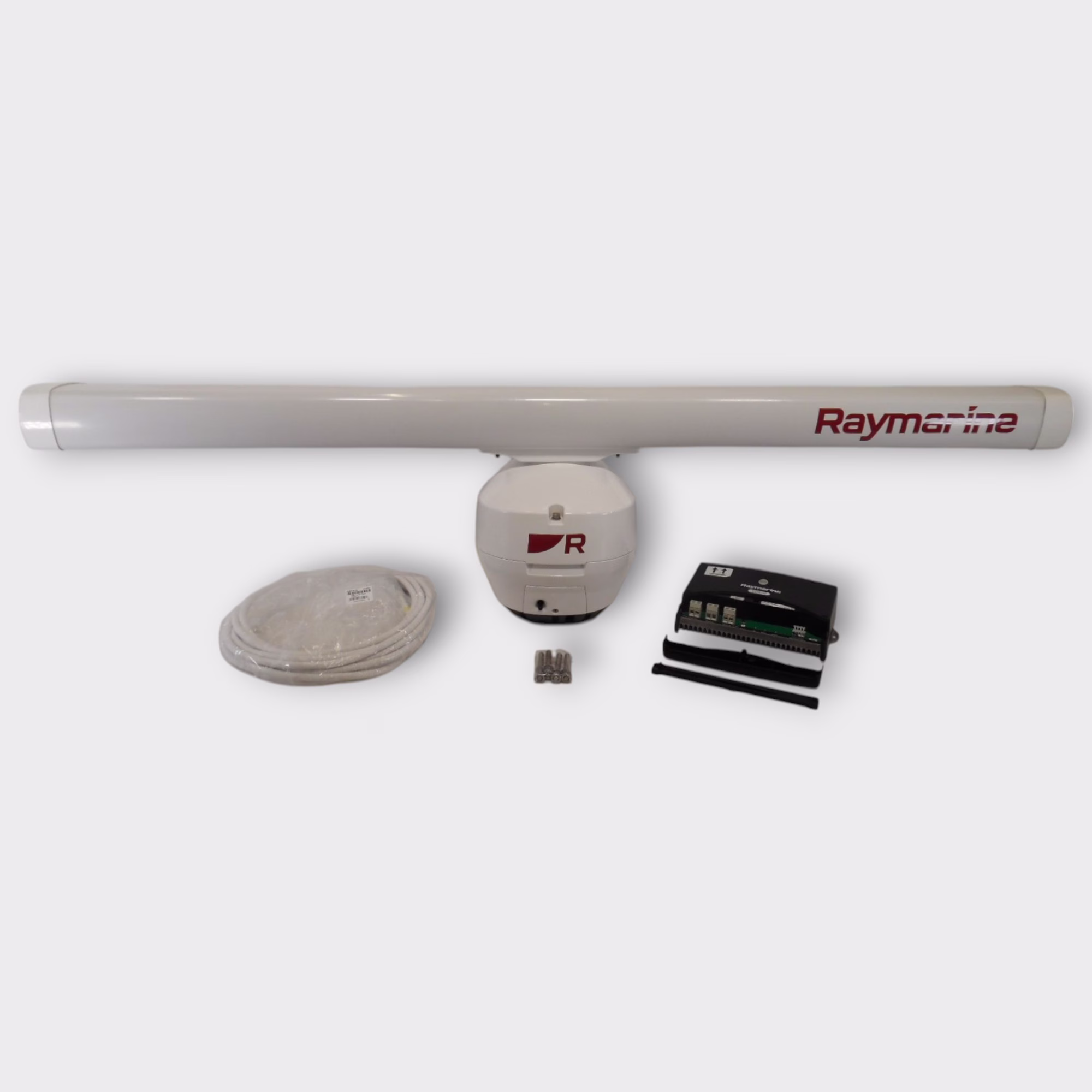

What’s Included:

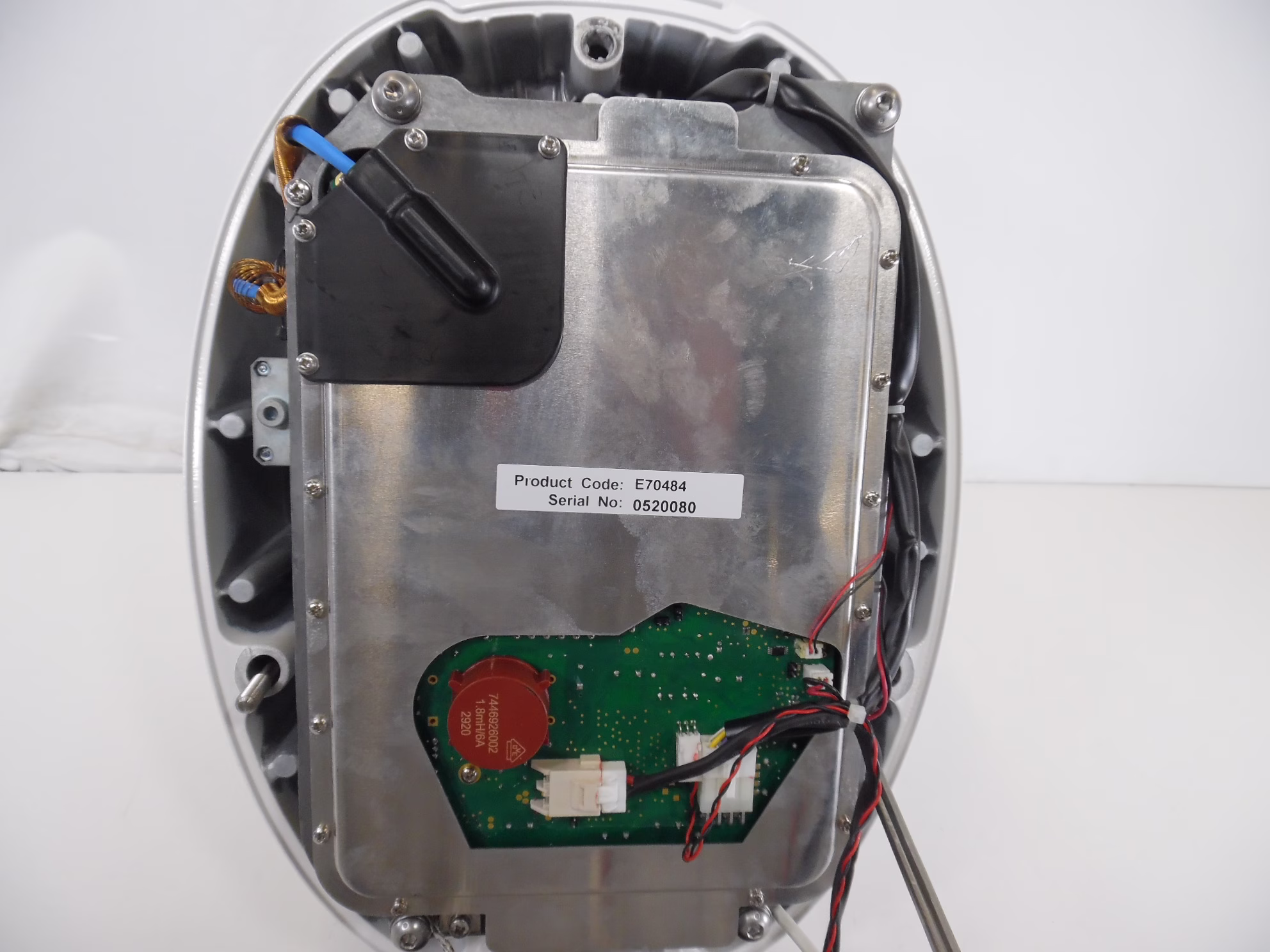

- Raymarine 4kW Magnum Pedestal – E70484

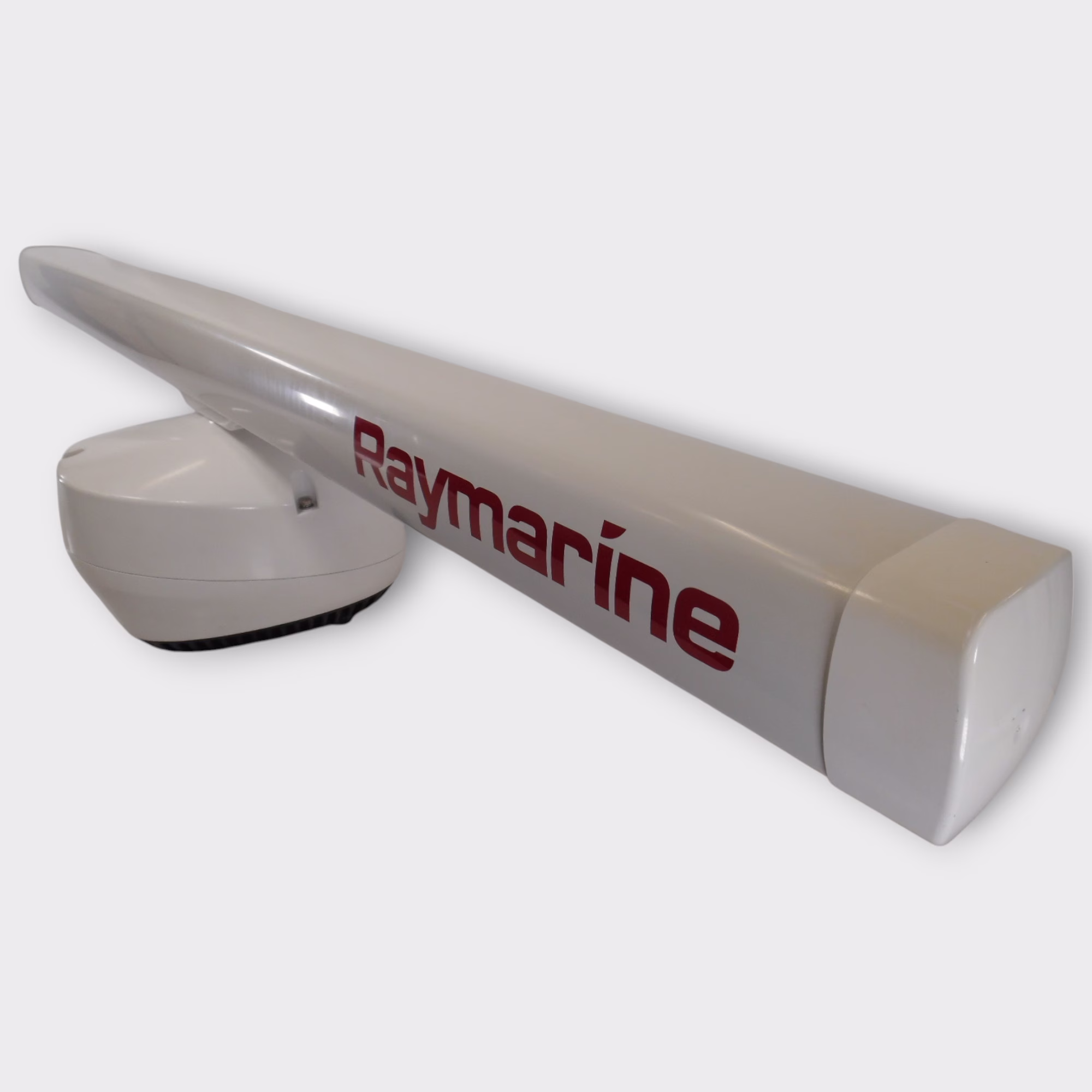

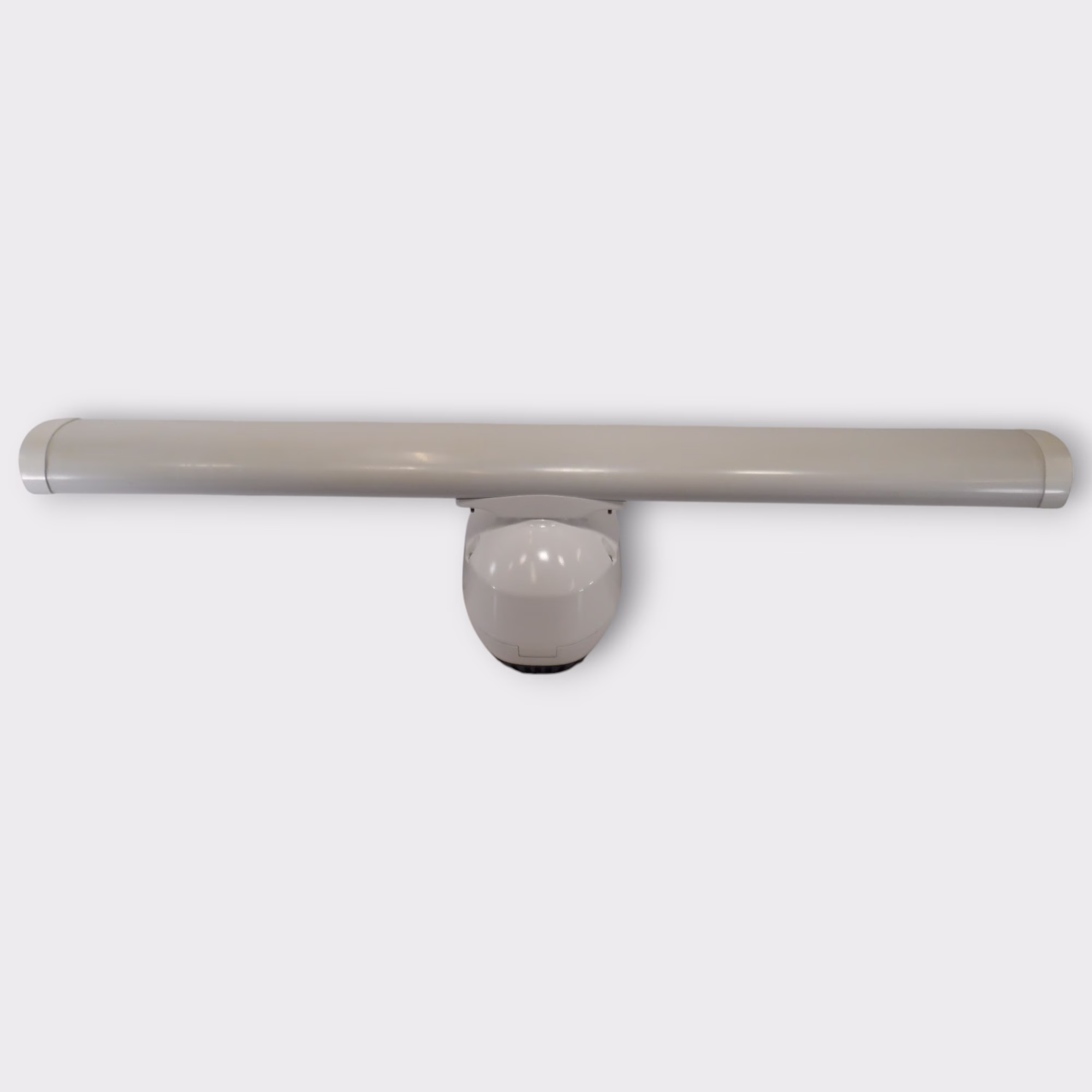

- 72″ (6 ft.) Magnum Antenna Array – E70491
- 10m Digital Radar Cable with RayNet Connector *NEW-IN-BAG!*

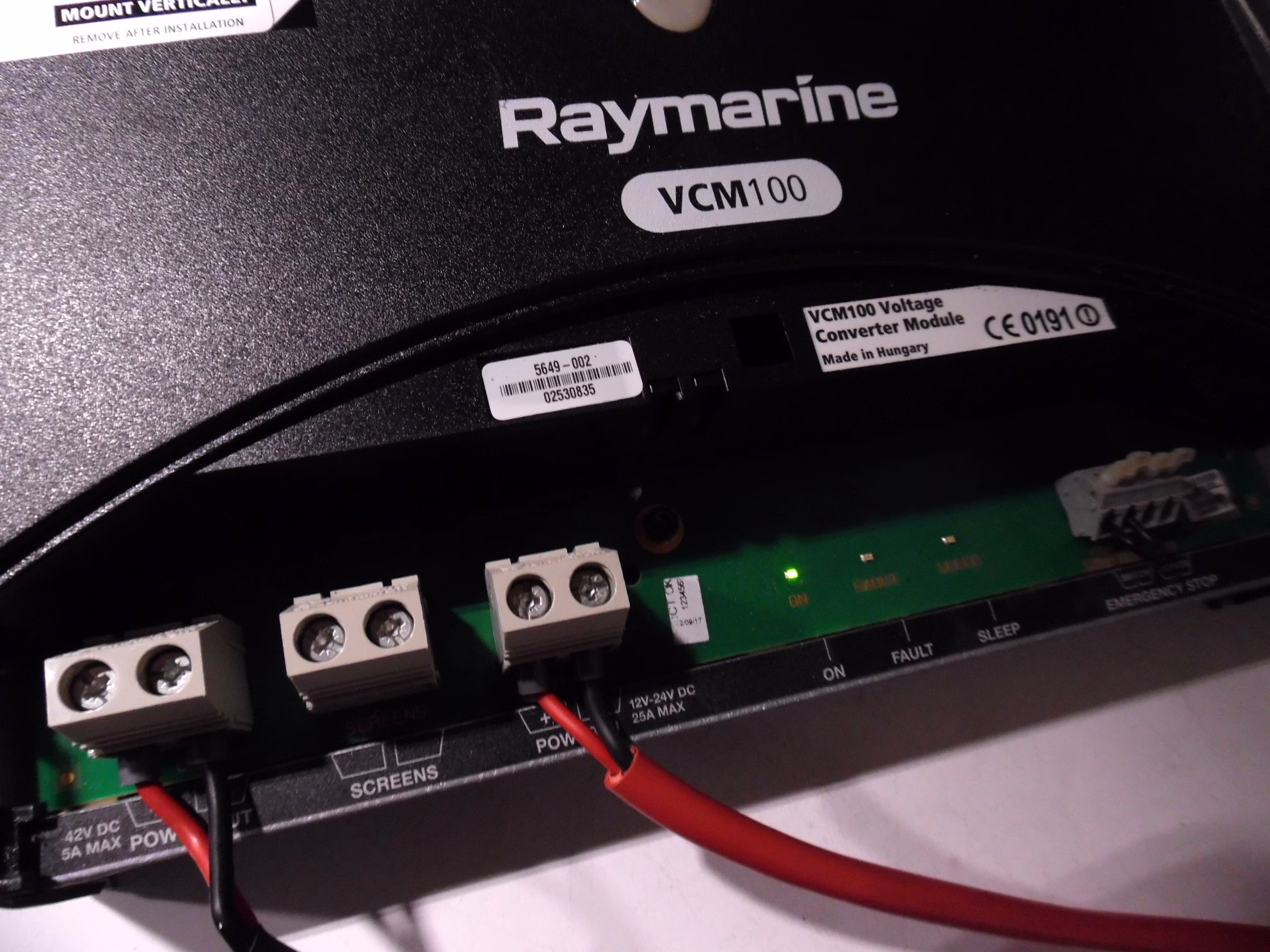

- VCM100 with Cable Clamp (for regulating power going to the radar)
- Mounting Hardware (x4) – M10 Stainless Steel Studs, M10, Plain Washers, M10 Spring Washers, and M10 Nuts
Compatible Parts: This is FULLY compatible with the E series Classic (i.e. E120, E80) displays, C & E Series Wide Displays (i.e. C90w, E140w), c & eSeries displays (i.e. e127, c95) as well as the newest generation of Axiom displays. Depending on the display on the vessel, additional cabling or cable adapters may be required for installation. These can be purchased through our online store.
Dimensions (L x W x H): 50 x 34 x 24 in, Weight: 75 lbs
Shipping Info: Check out will not be an option online before receiving a shipping quote. For buyers outside the contiguous United States, satellites, radars, other large, and multi-piece items/shipments need to be quoted in-house for an accurate shipping quote.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
