Manufacturer: Raymarine
Model: HD (Enhanced)
Series: Digital Open Array
MPN: E52069E
Condition: Used

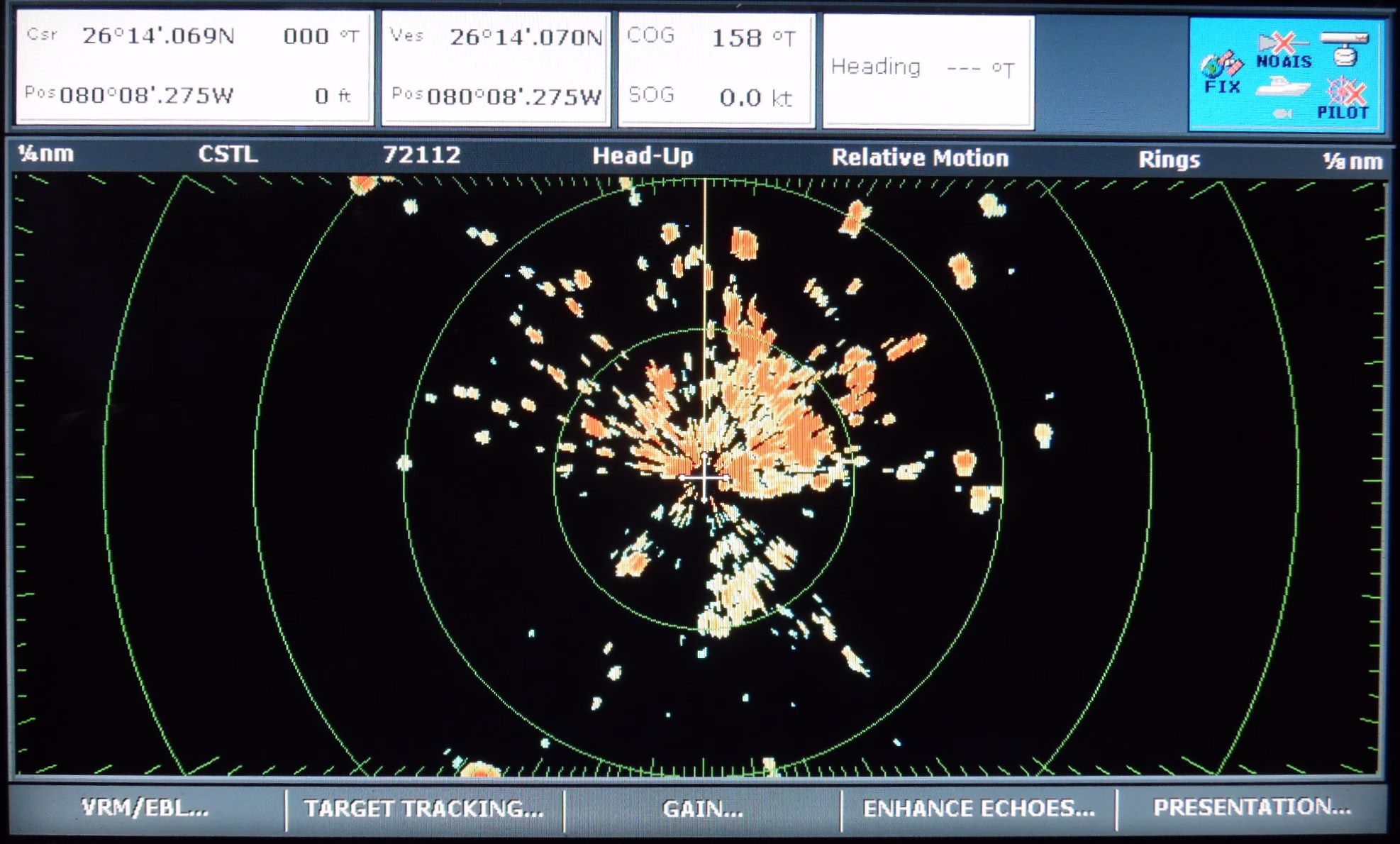

Additional Notes: This radar system, including the VCM100, is in excellent working condition as we successfully bench-tested the system and confirmed functionality via a C90W MFD (not included). Great target detection at various ranges and all self-tests successfully passed!
*The magnetron has a LOW 637.1 HOUR COUNT!!!!*
This is the Enhanced version of the HD Radar (software V3.23). With this revision, Raymarine implemented a hardware redesign to overcome start-up difficulties and added 48rpm, and Bird Mode features when connected to a Widescreen or newer model display. These features are NOT accessible on an E-Series Classic display.

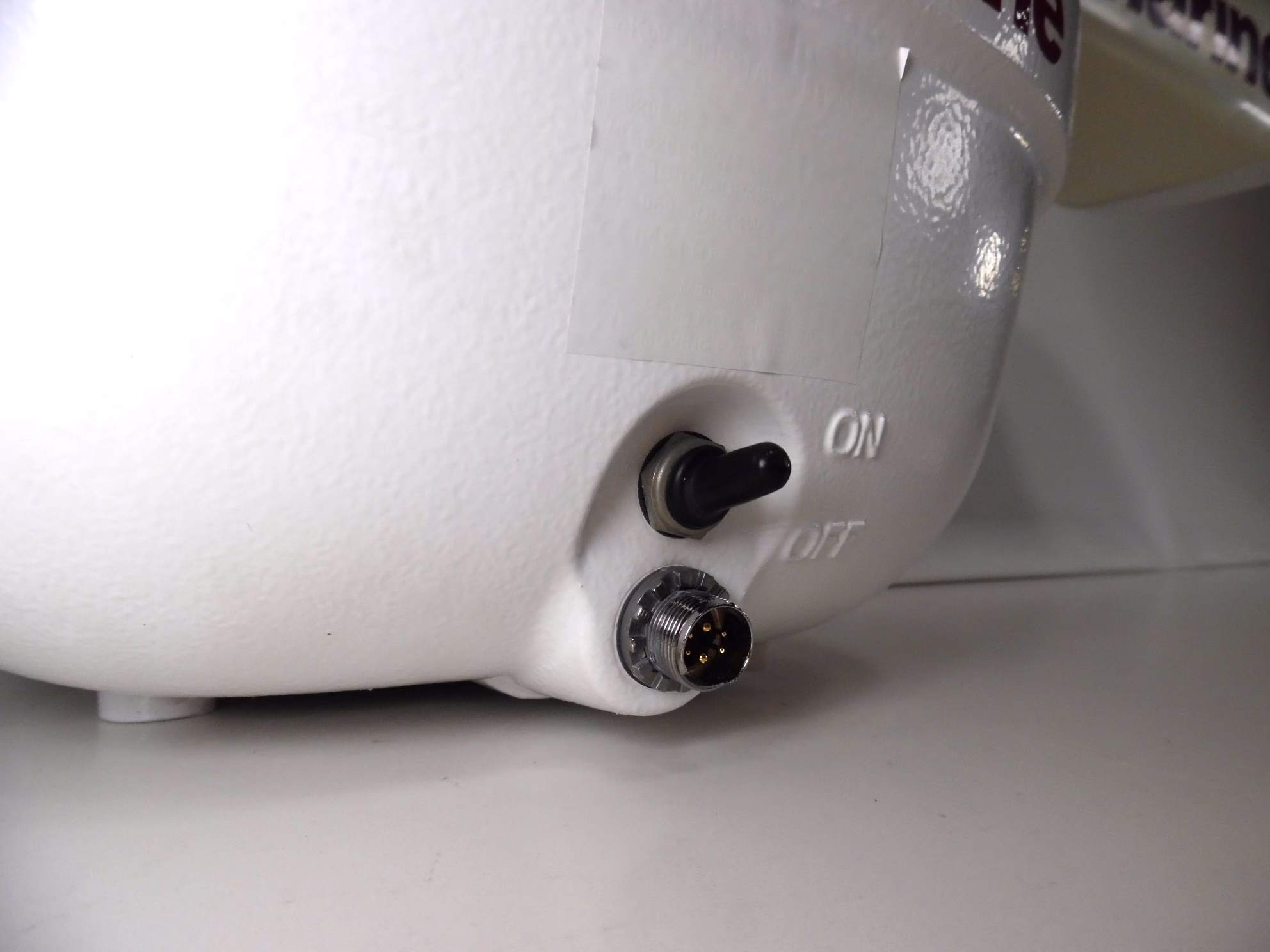

**Note: There is a slight chip in the radar port, however, this does NOT affect the functionality or ability of the cable to properly connect. Also, there is minor discoloration on this array that could not be removed during our detailing process and is factored into the sale price. The antenna is not cracked and is in overall great shape but we want to be as transparent as possible!**
We have removed and resealed the end caps with marine-grade silicon, so you won’t have to worry about water intrusion or these caps flying off the array when it’s spinning!
The system is in great overall cosmetic shape with no major blemishes or paint chipping. Please verify the condition and proof of functionality with our photos!
What’s Included:

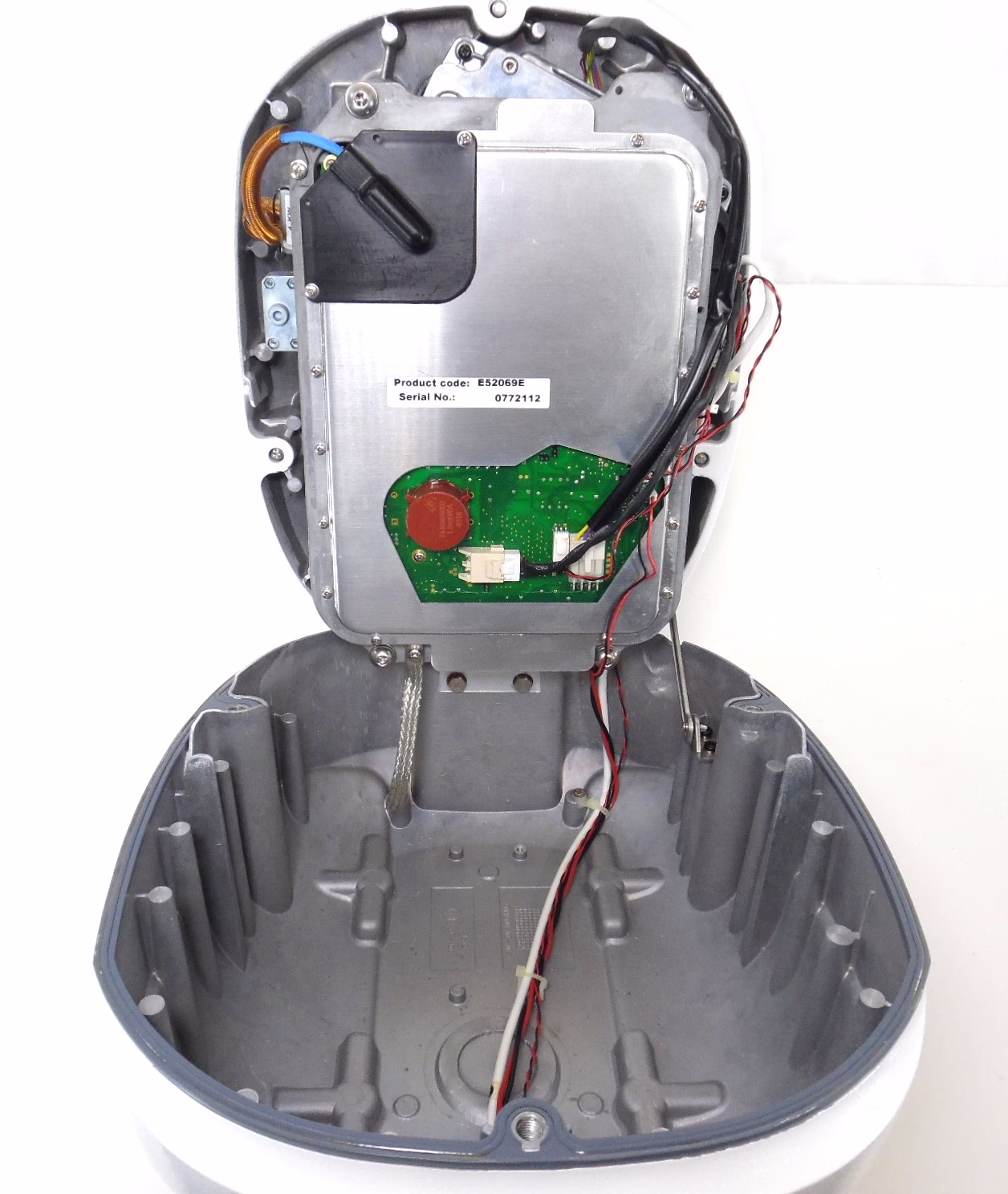

- Raymarine 4kW HD Digital Pedestal

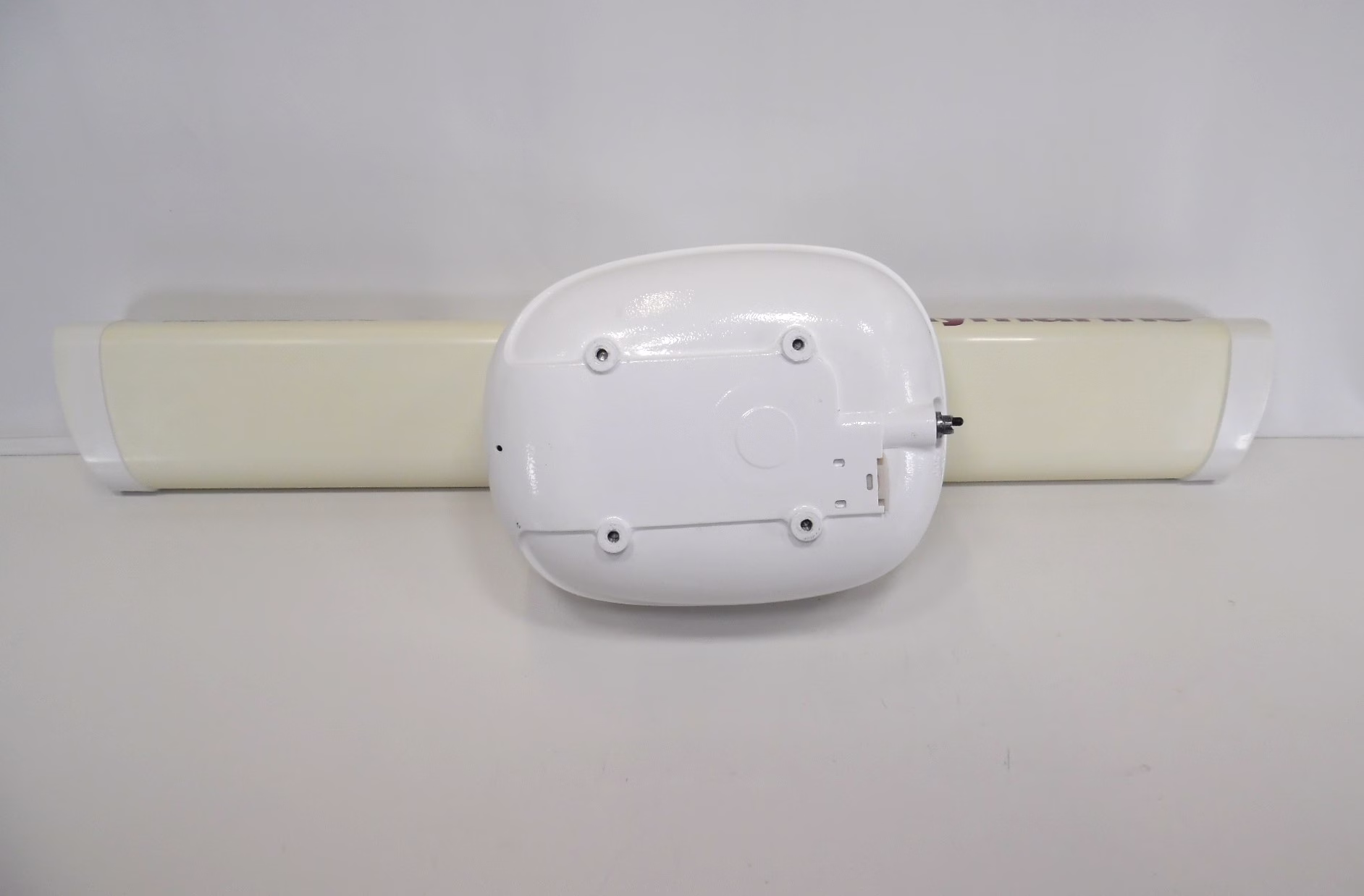

- 48″ HD Digital Antenna Array
- 5m Digital Radar Cable with RayNet connection – *New-in-Bag*
- VCM100 Voltage Converter Module (for regulating power going to the radar)
- Mounting Hardware (four threaded studs, lock & flat washers and nuts)
Compatible Parts: This is FULLY compatible with the E series Classic (i.e. E120, E80) displays, C & E Series Wide Displays (i.e. C90w, E140w), c & eSeries displays (i.e. e127, c95) as well as the newest generation of Axiom displays. Depending on the display on the vessel, additional cabling or cable adapters may be required for installation. These can be purchased through our online store.
Dimensions (L x W x H): 48 x 30 x 30 in, Weight: 75 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
