Description
Manufacturer: Raymarine
Model: 4kW Radar with 48″ Antenna
Series: HD (Enhanced) Digital Open Array
MPN: E52069E
Condition: Remanufactured
Additional Notes: This 4kW Enhanced HD Digital Open Array Radar System has been designated as an MME REFURB! Items that receive this designation have not only gone through our rigorous testing procedure but also addressed common failure points. Because of our vast experience with used marine electronics, we can identify potential failures, and we have developed fixes for these failure points to ensure that our customers are getting the best-used unit out there.
Within our extensive MME REFURB process, we have completely disassembled the radar pedestal for professional sandblasting, followed by powder coating with marine-grade paint far superior to what originally came on the unit. This unit is immaculate inside and out! It is then meticulously reassembled with clean rubber seals and new bearing grease.

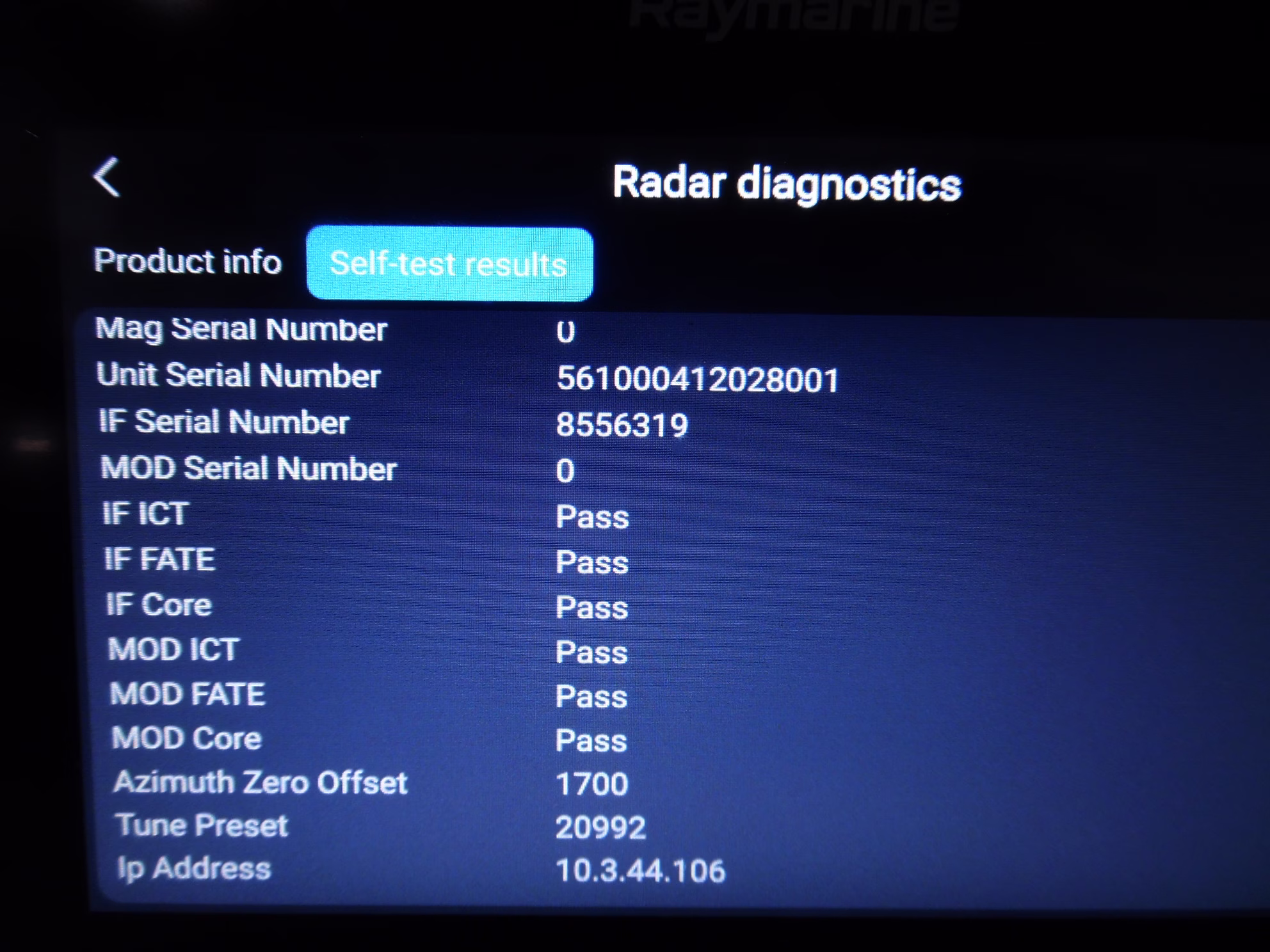

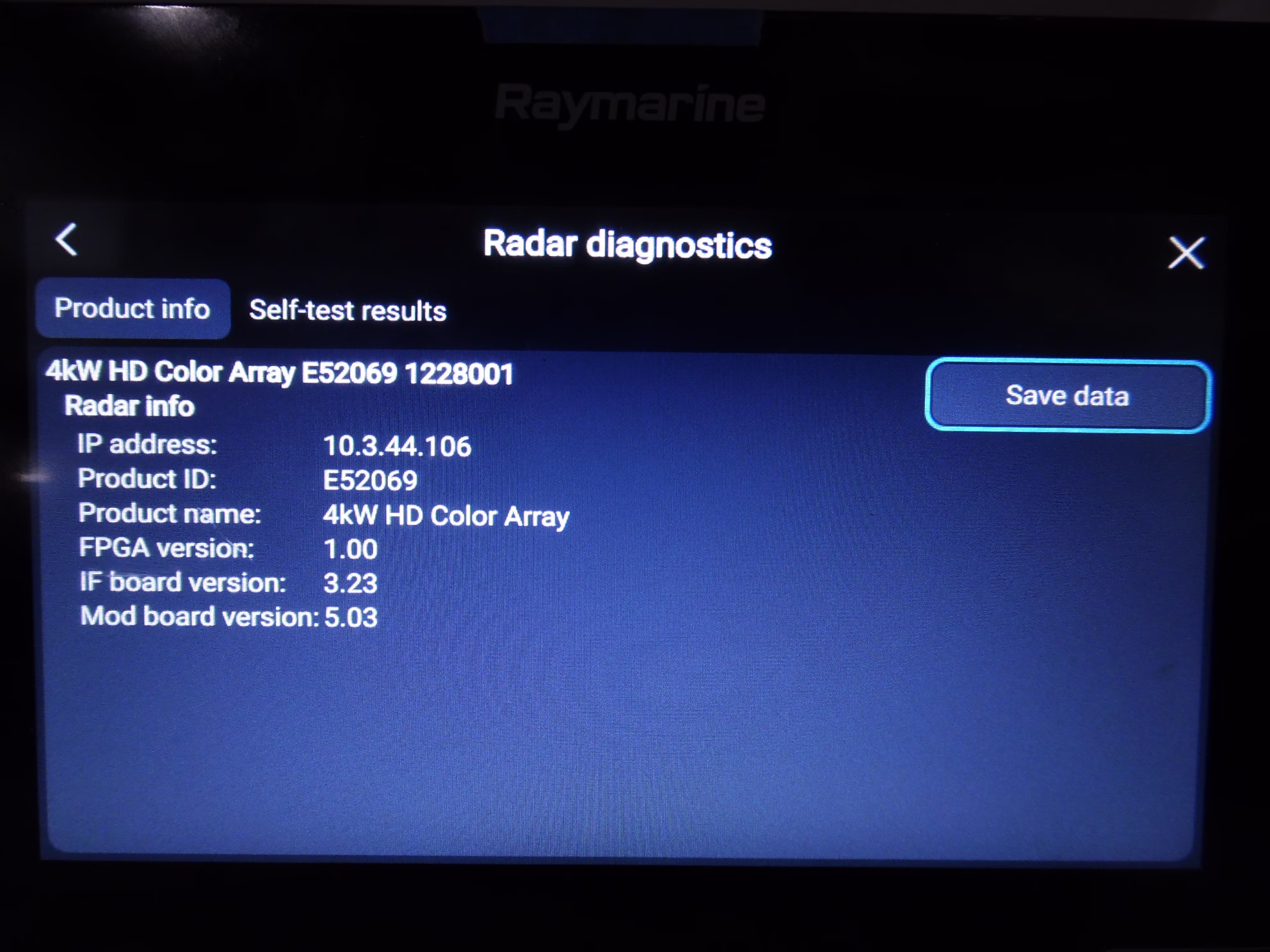

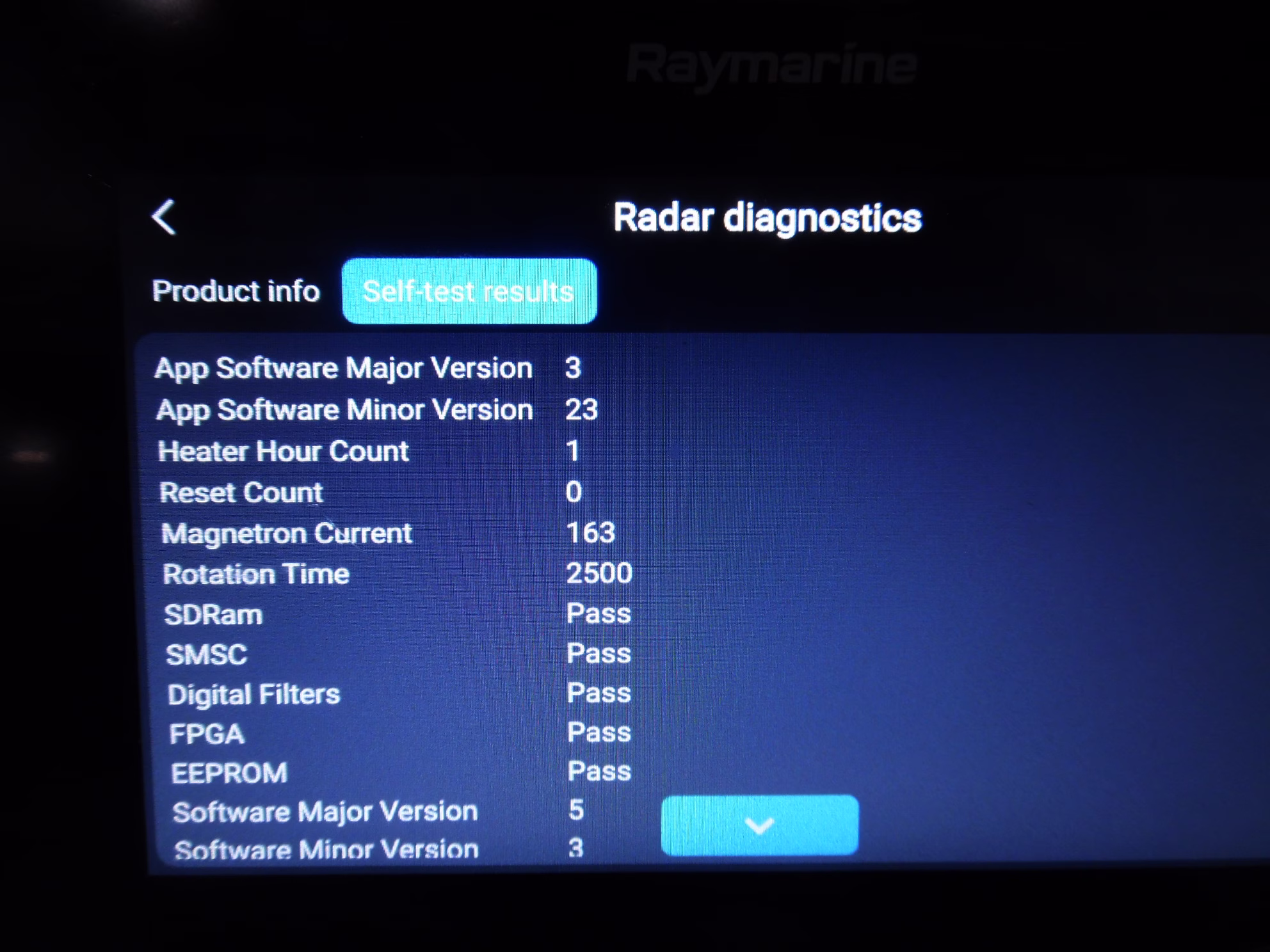

To cap off our MME REFURB process, we have installed a NEW Modulator Board directly from Raymarine and updated the software to the latest version! This radar was then put through rigorous testing for several hours to ensure the unit was in great overall working order! It performs optimally and acquires strong echo returns at all ranges in every mode, with all self-tests successfully passing!

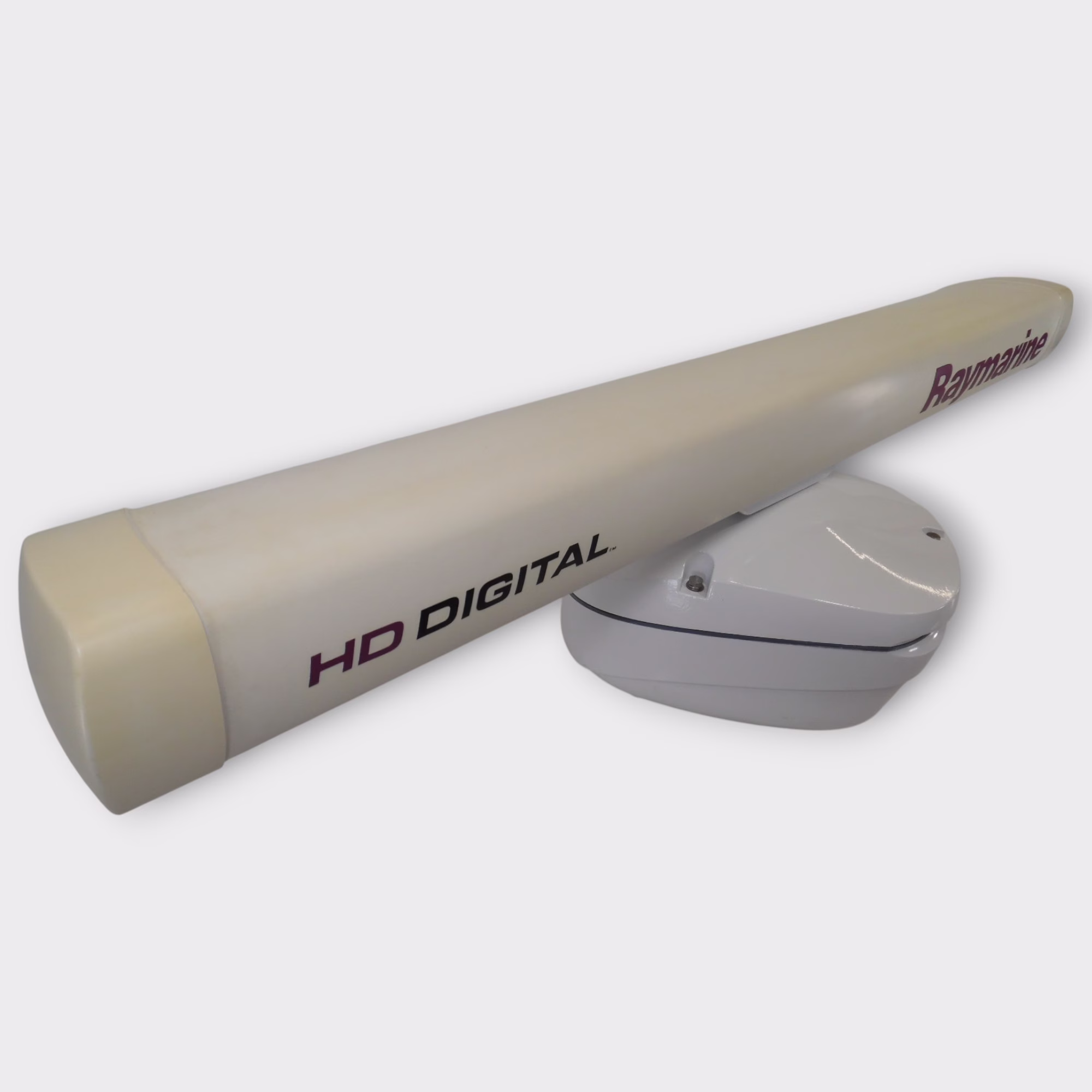

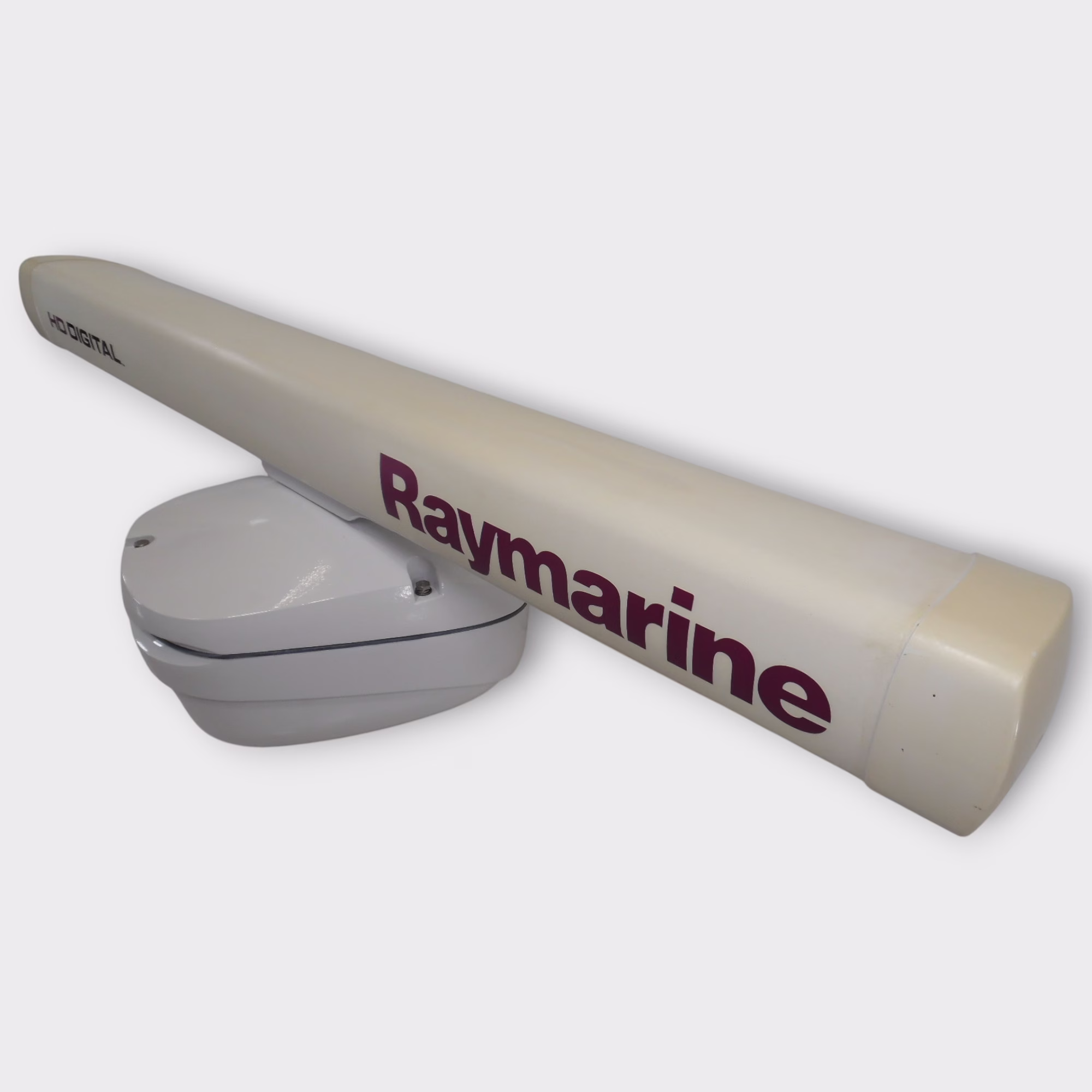

This radar’s antenna array’s end caps have been resealed, so you won’t have to worry about water intrusion or these caps flying off when it’s spinning. The decals are intact with a couple of very minor blemishes!

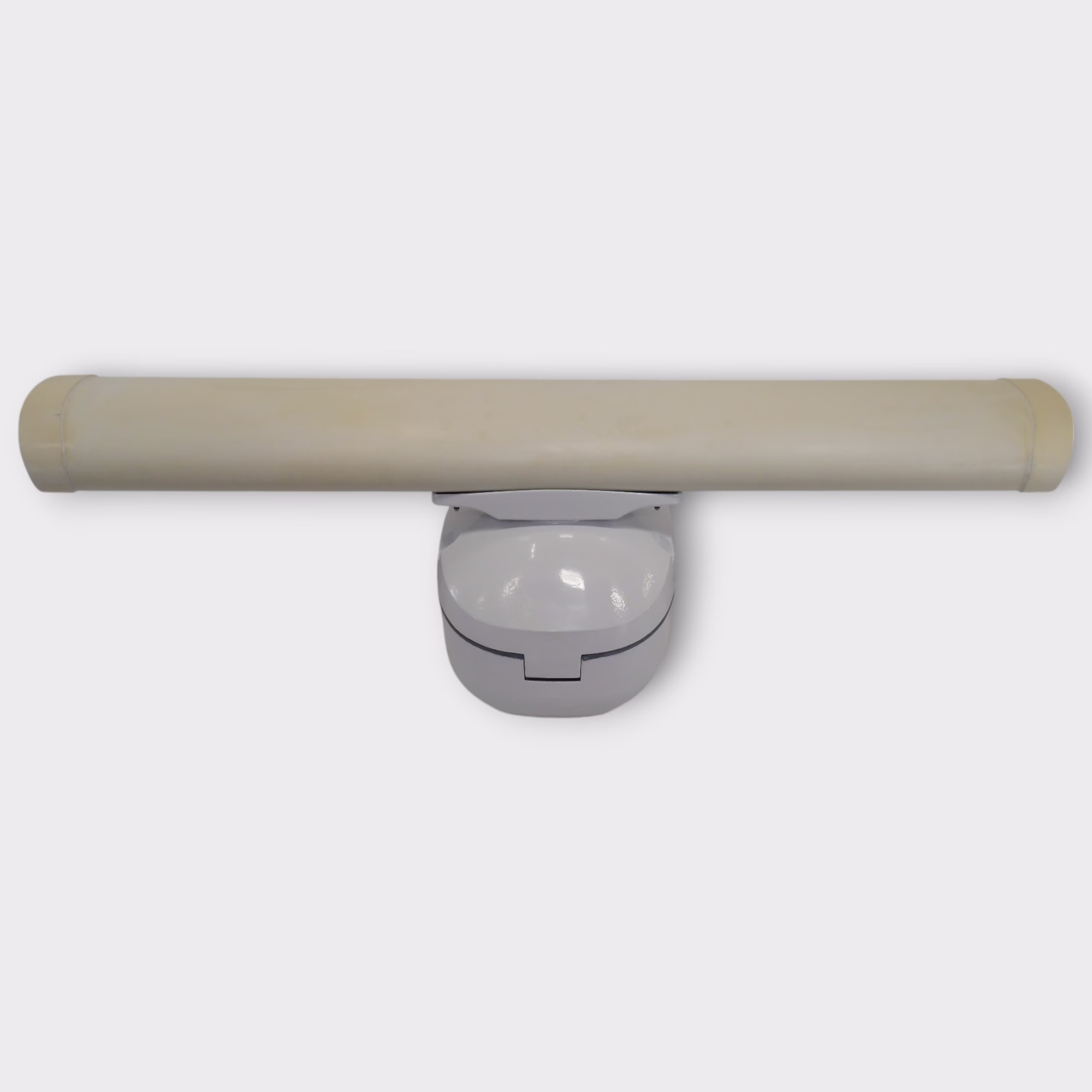

*There is minor discoloration on this array that could not be removed during our detailing process and is factored into the sale price. The antenna is not cracked and is in overall great shape, but we want to be as transparent as possible!*

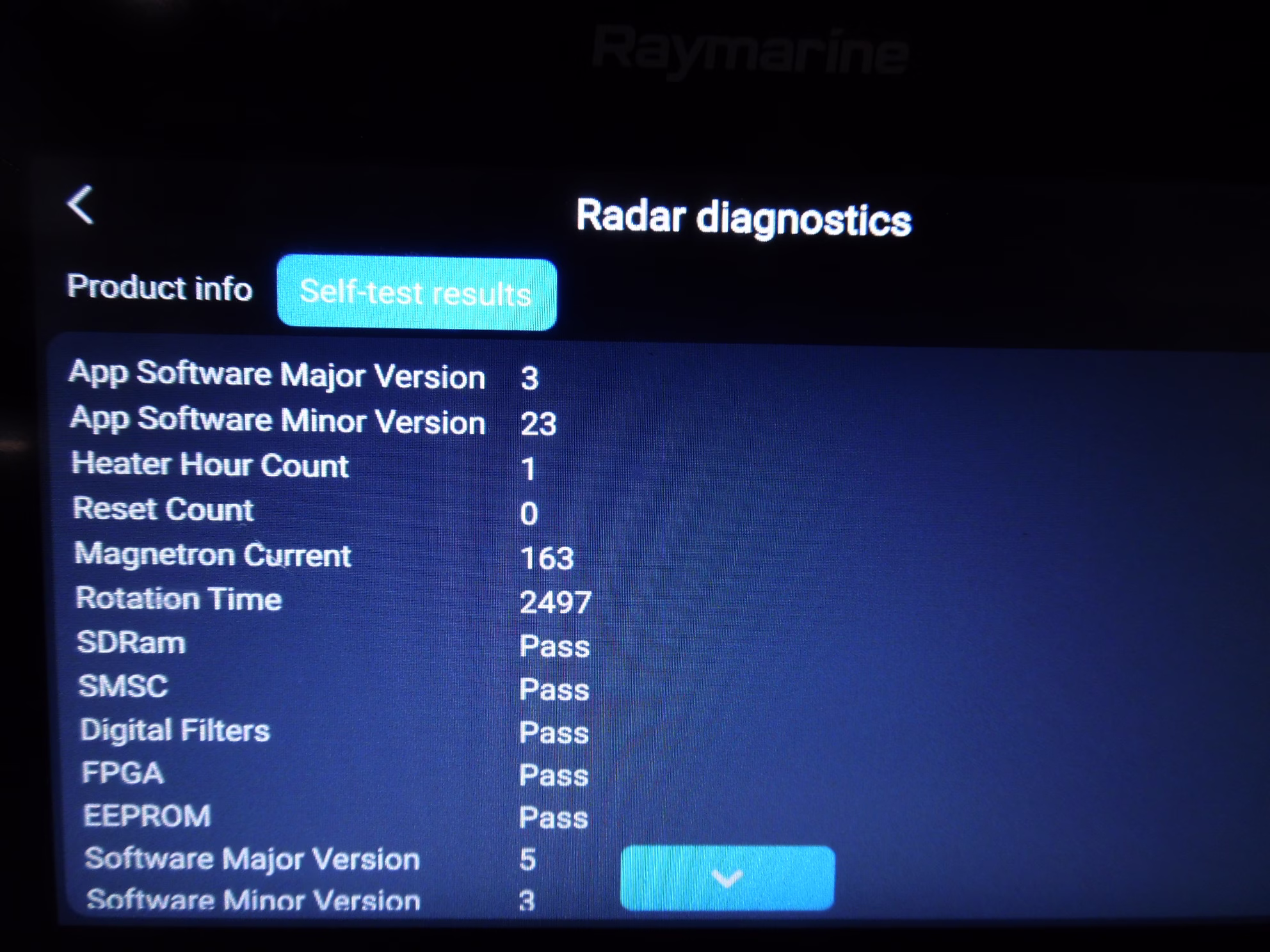

This radar was then put through rigorous testing for several hours to ensure it was in great overall working order and everything performed optimally! There are strong echo returns at all ranges, with every self-test successfully passing!

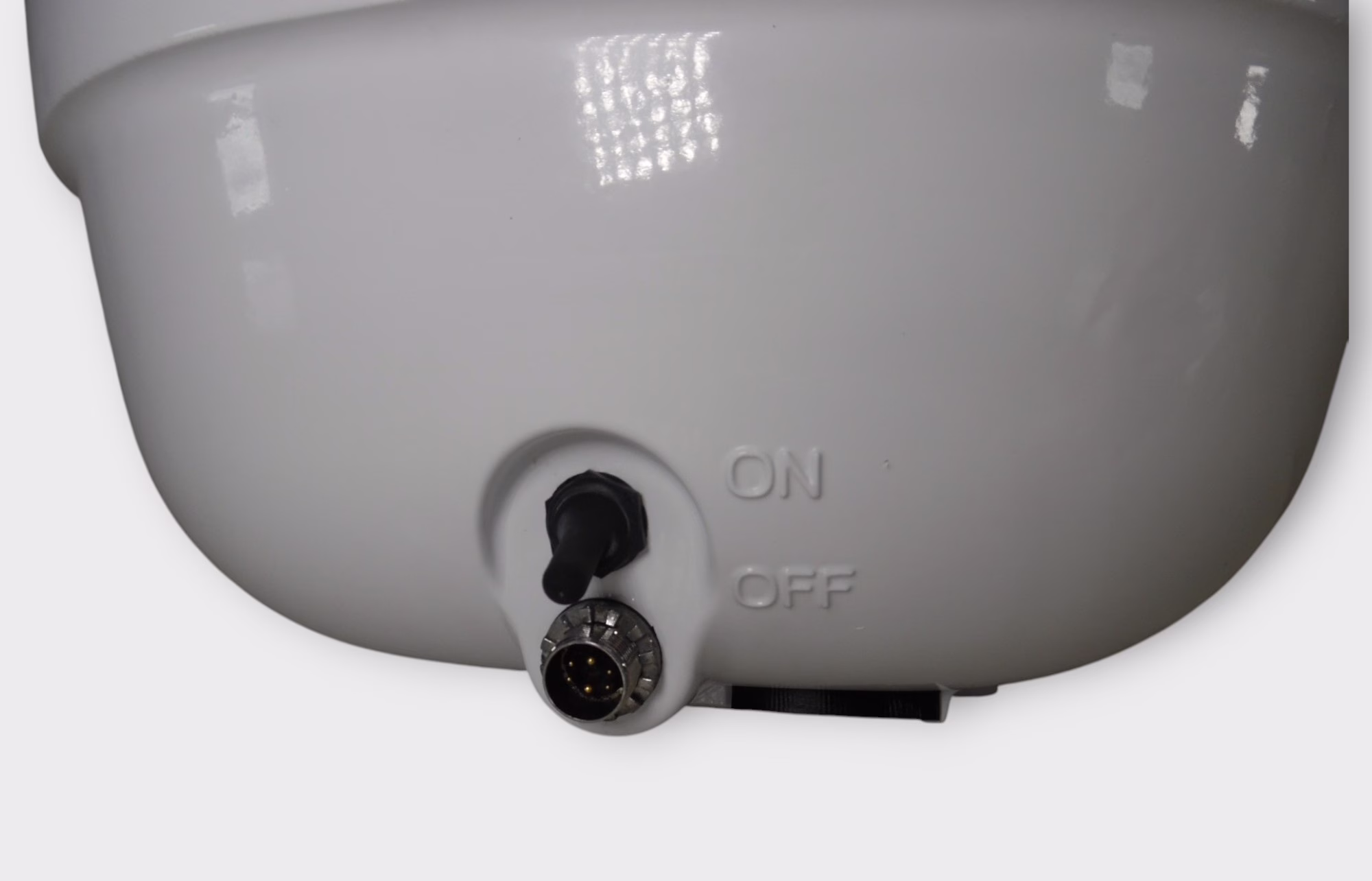

The switch boot cover is not compromised and functions properly!
A NEW 10m radar cable is included! Most used cables have a common failure point found where it connects to the radar port, and the strain relief deteriorates, exposing the wires to moisture, which can then cause premature failure of the radar/cable or possibly an electrical short.
This radar system comes with a 48″ (4 ft.) antenna array. If this array is too small, we may have a 6 ft. antenna array available. The included radar cable is 10m in length. If you need a different length radar cable, we may have a 15m or 5m available. Please reach out to us directly to inquire about a smaller antenna array or a different-length radar cable.
This is the Enhanced version of the HD Digital Radar. With this revision, Raymarine implemented a hardware redesign to overcome start-up difficulties and also added 48RPM and Bird Mode features when connected to a Widescreen or newer model display. These features are not accessible on an E-Series Classic display.
All included hardware has been run through a wire wheel and is clean for quick and easy installation.
Please reference our photos for the condition, contents, and proof of functionality!

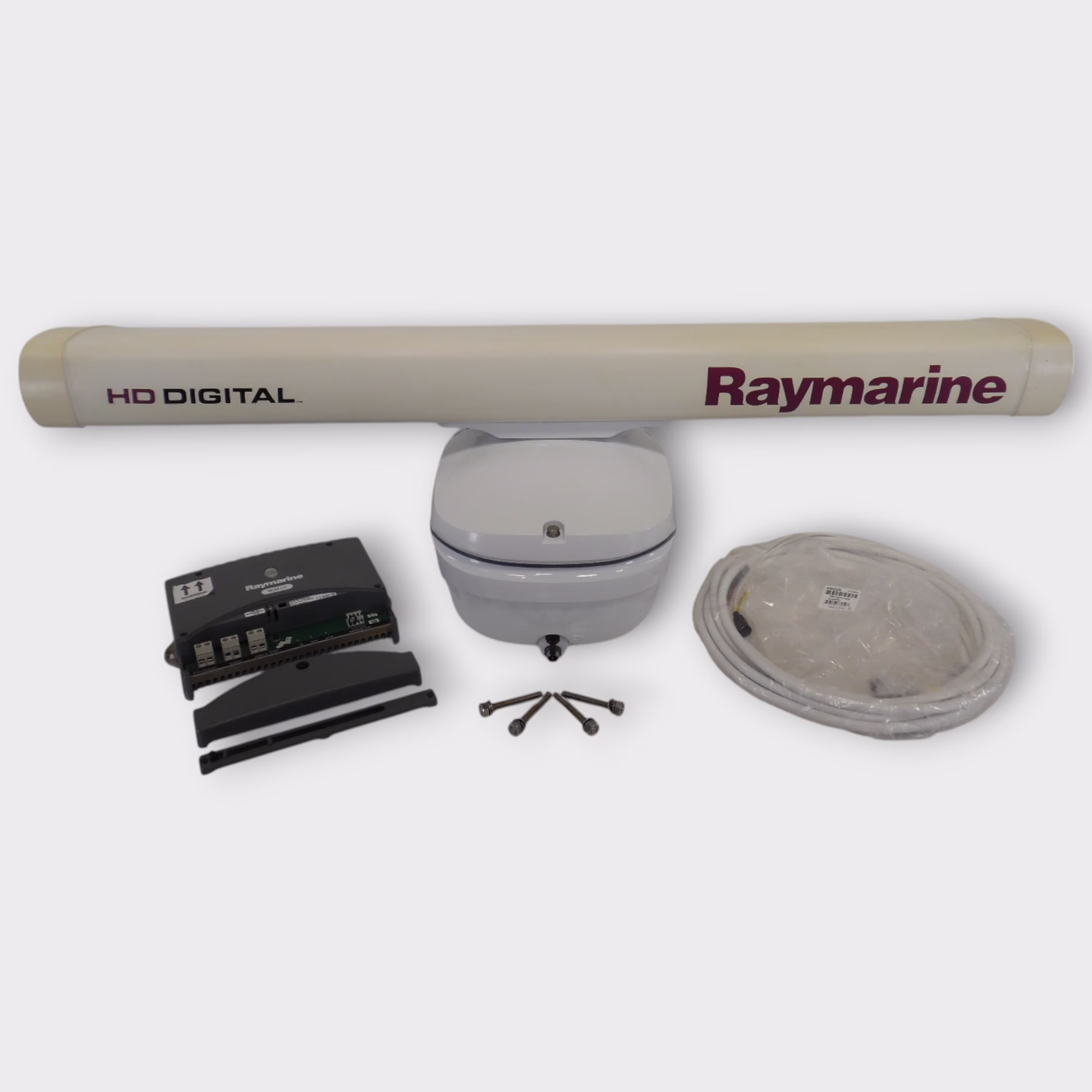

What’s Included:

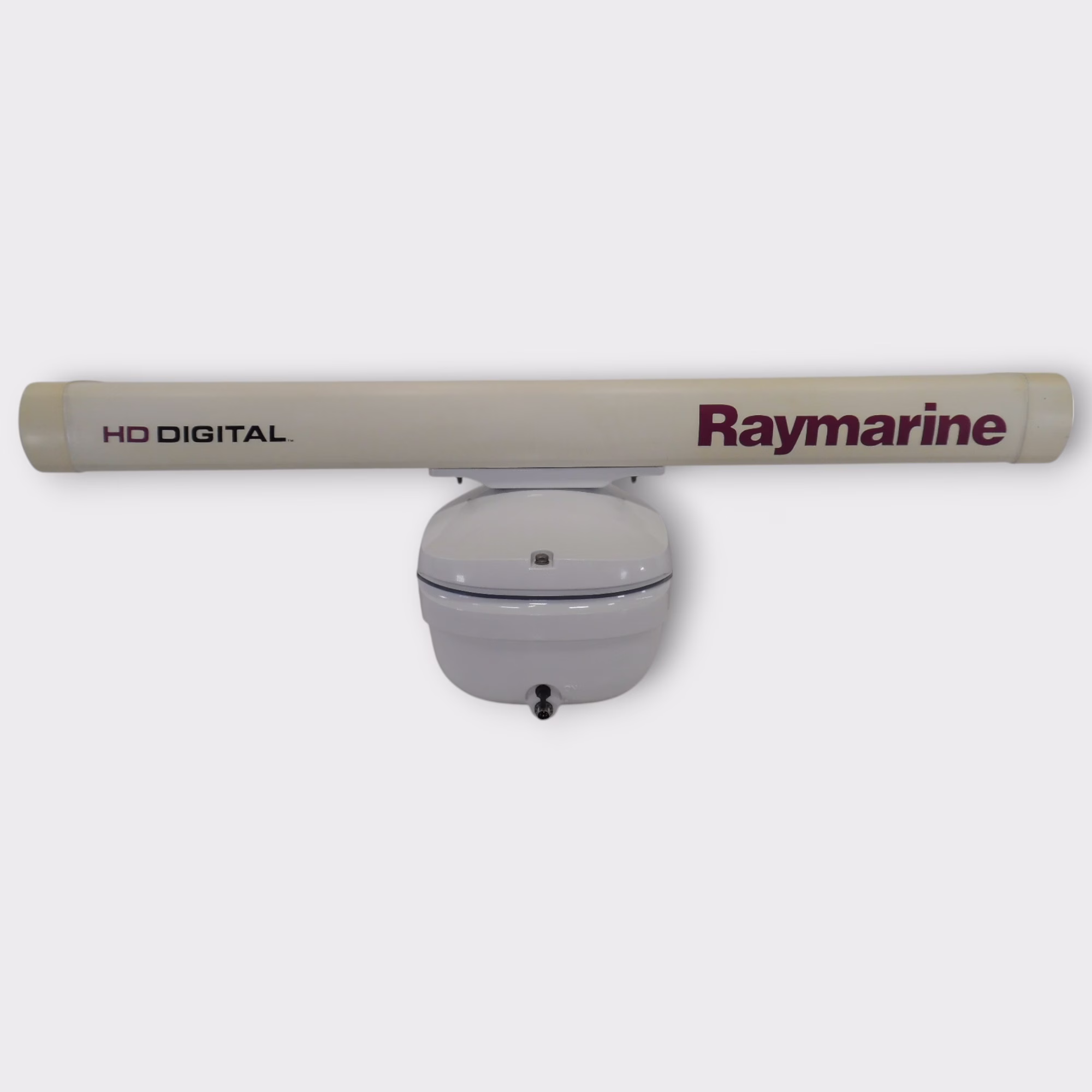

- Raymarine 4kW HD Digital Pedestal
- 48″ (4 ft.) HD Digital Antenna Array
- 10m Digital Radar Cable with RayNet connection
- VCM100 with Cable Clamp (for regulating power going to the radar)
- Mounting Hardware (x4) – M10 Stainless Steel Studs, M10, Plain Washers, M10 Spring Washers, and M10 Nuts
Compatible Parts: Raymarine E-Classic Series and newer displays. If you have a question about fitment, please ask before purchasing.
Dimensions (L x W x H): 50 x 30 x 30 in, Weight: 75 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
