Manufacturer: Raymarine
Model: 4kW Radar with 48″ Antenna
Series: HD (Enhanced) Digital Open Array
MPN: E52069E
Listed Item Condition: Used

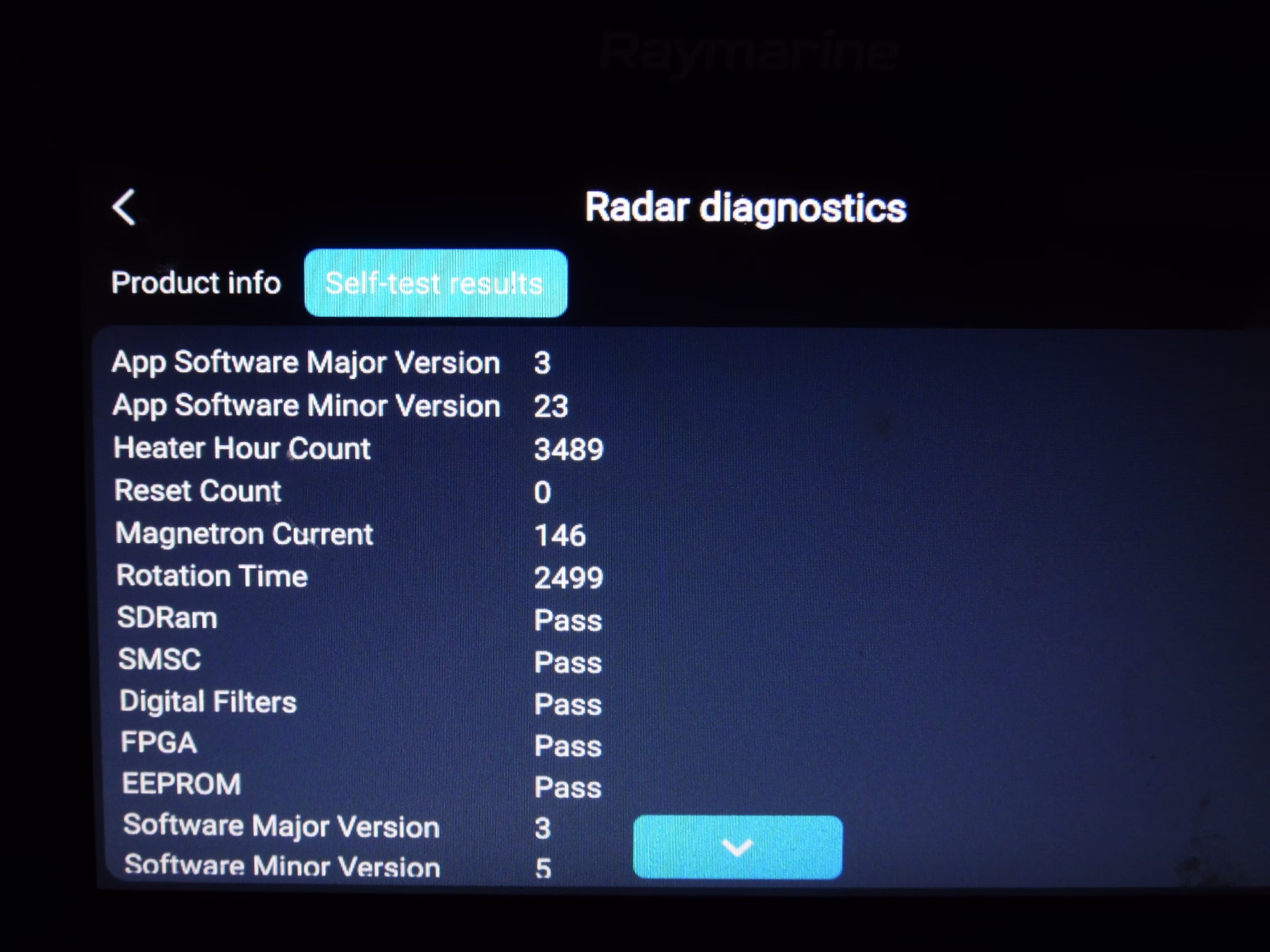

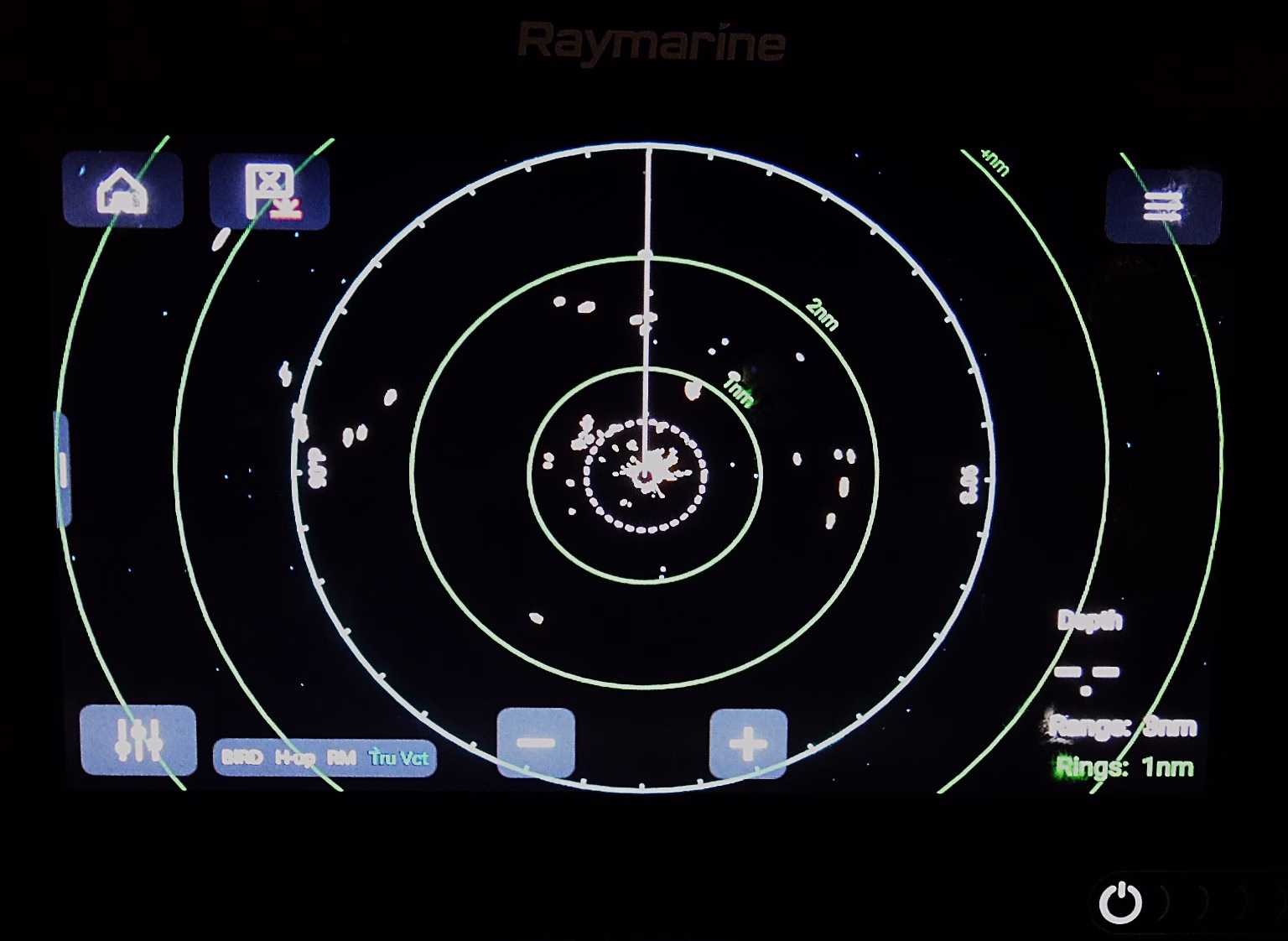

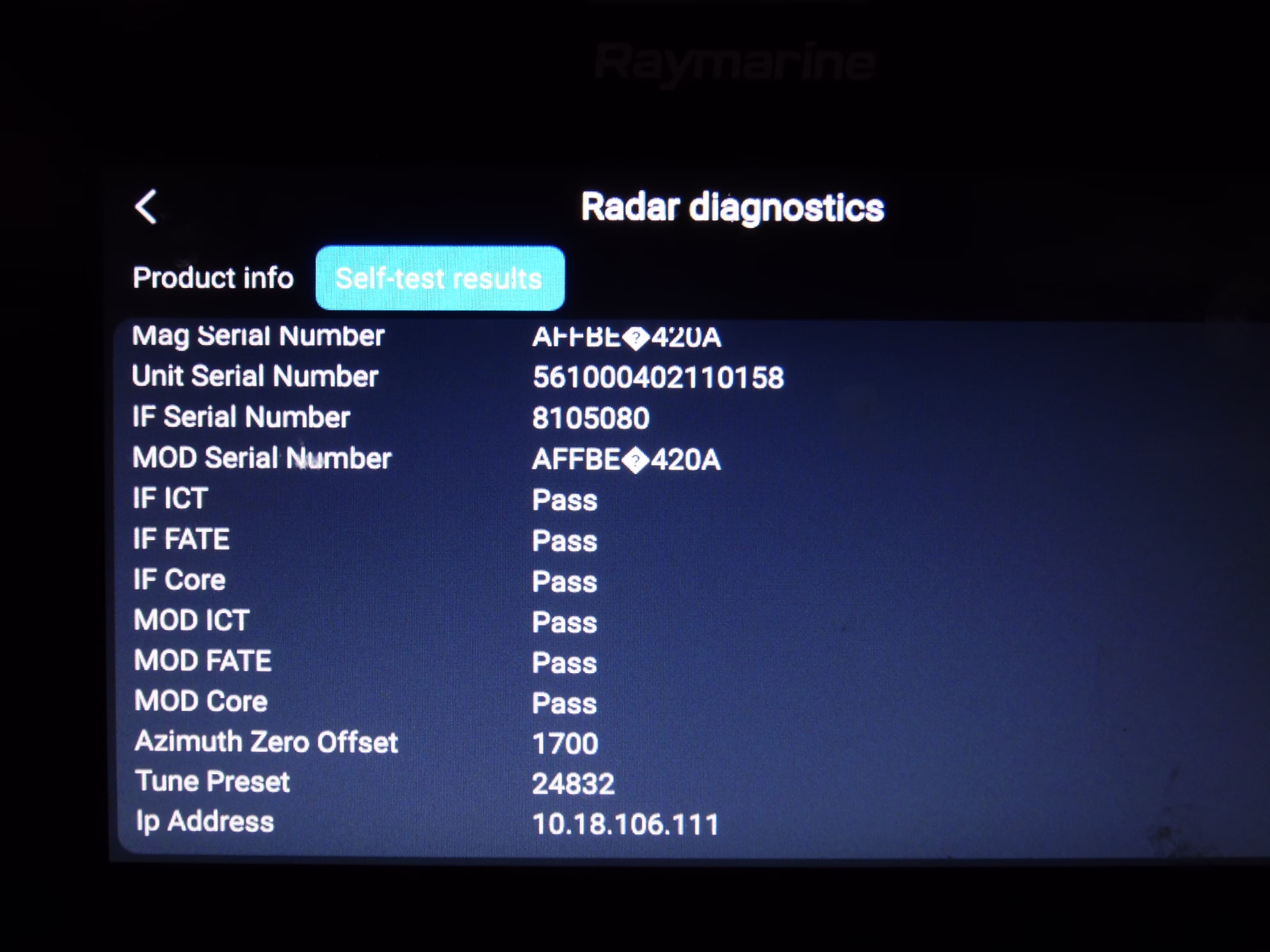

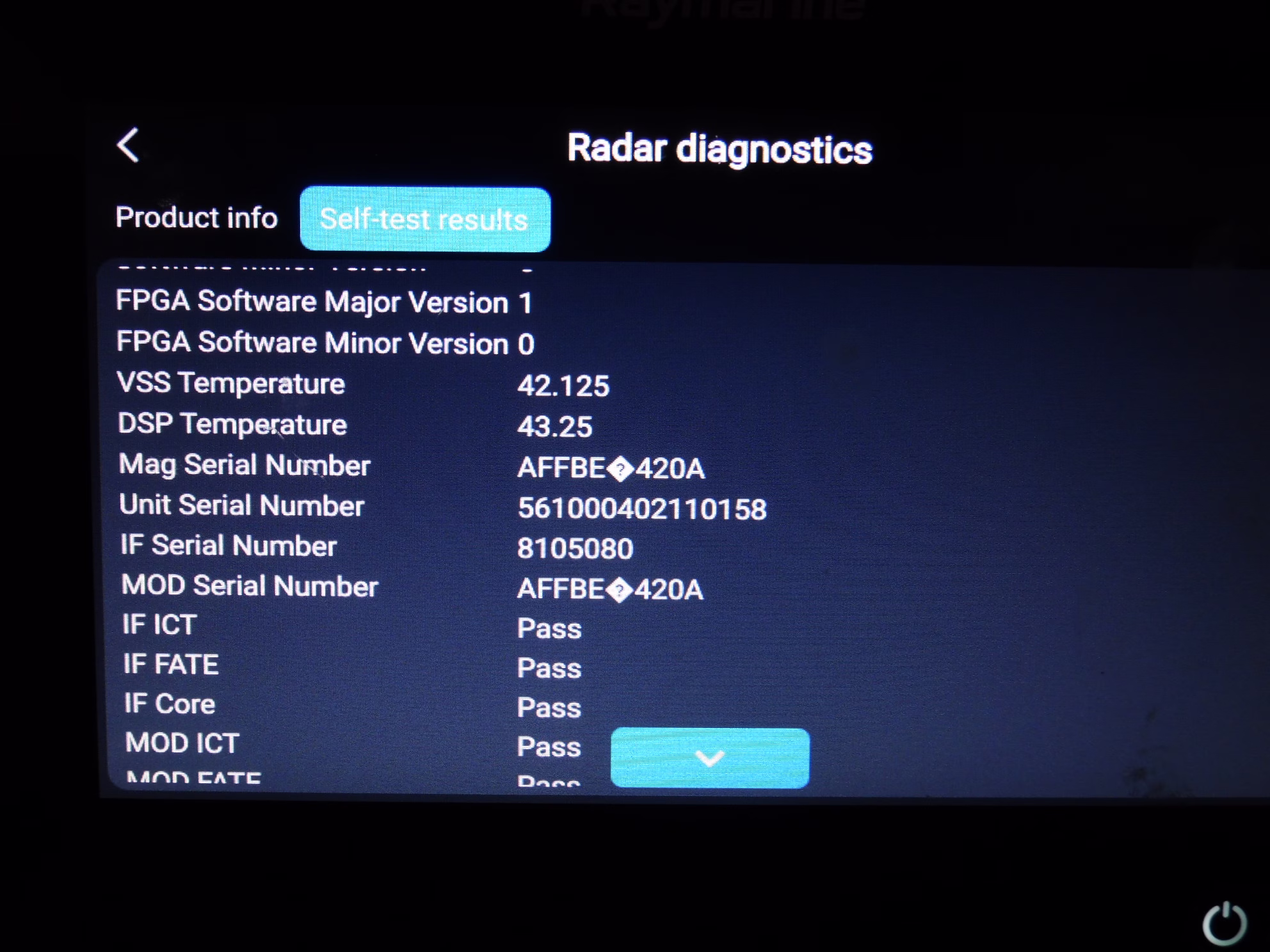

Additional Notes: This radar and the VCM 100 were rigorously tested for several hours to ensure they were in working order and everything performed optimally! There are strong echo returns at all ranges, and every self-test has passed successfully!!
*LOW Magnetron Heater Hour Count of: 348.9!*
The switch functions properly, and the boot cover is not torn or damaged!
There is NO corrosion radar cable connector, and all the pins are intact.
A NEW 15m radar cable is included! Most used cables have a common failure point found where it connects to the radar port, and the strain relief deteriorates, exposing the wires to moisture, which can then cause premature failure of the radar/cable or possibly an electrical short. If you need a different length radar cable, we may have a 5m or 10m available. Please reach out to us directly to inquire about a larger antenna array or a different-length radar cable.

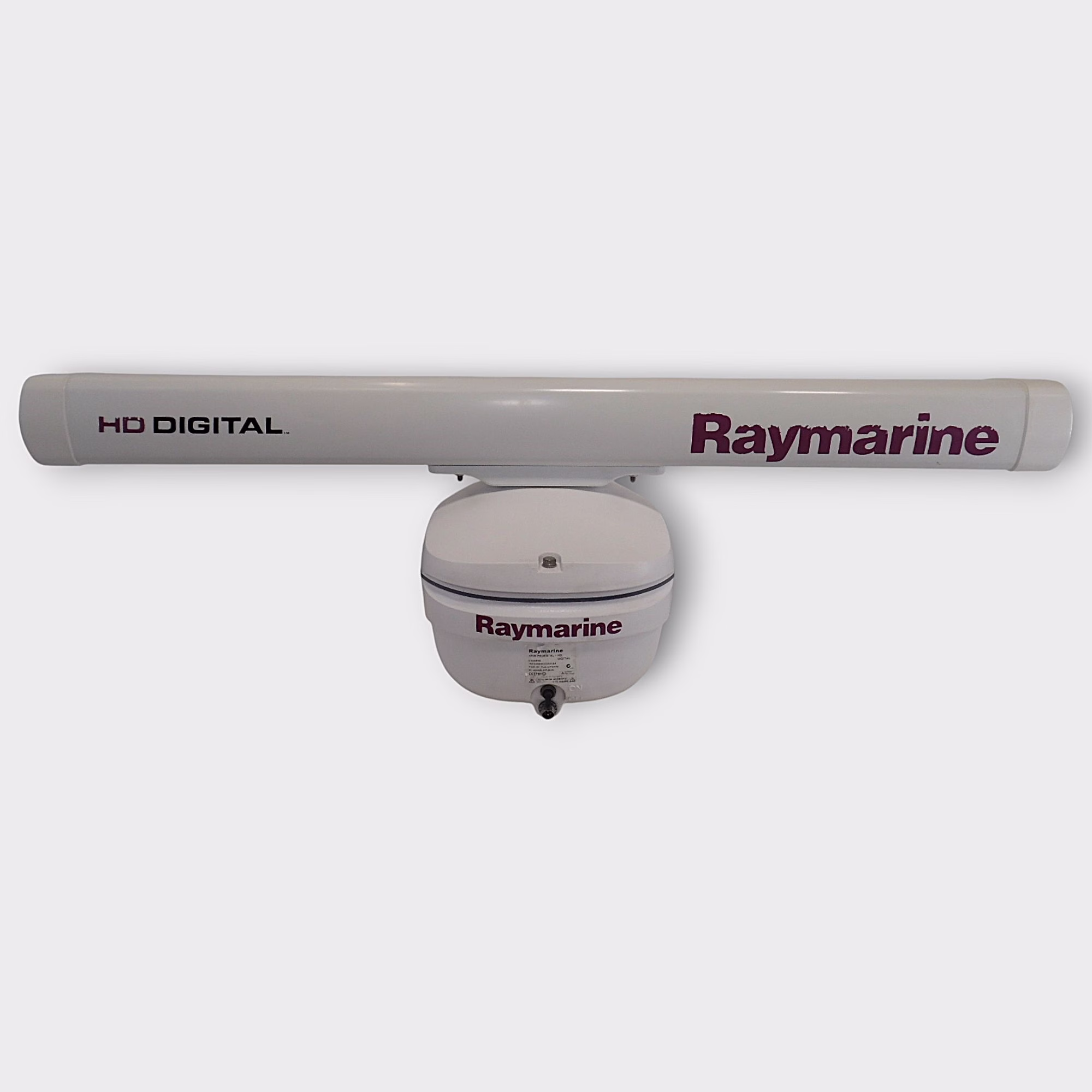

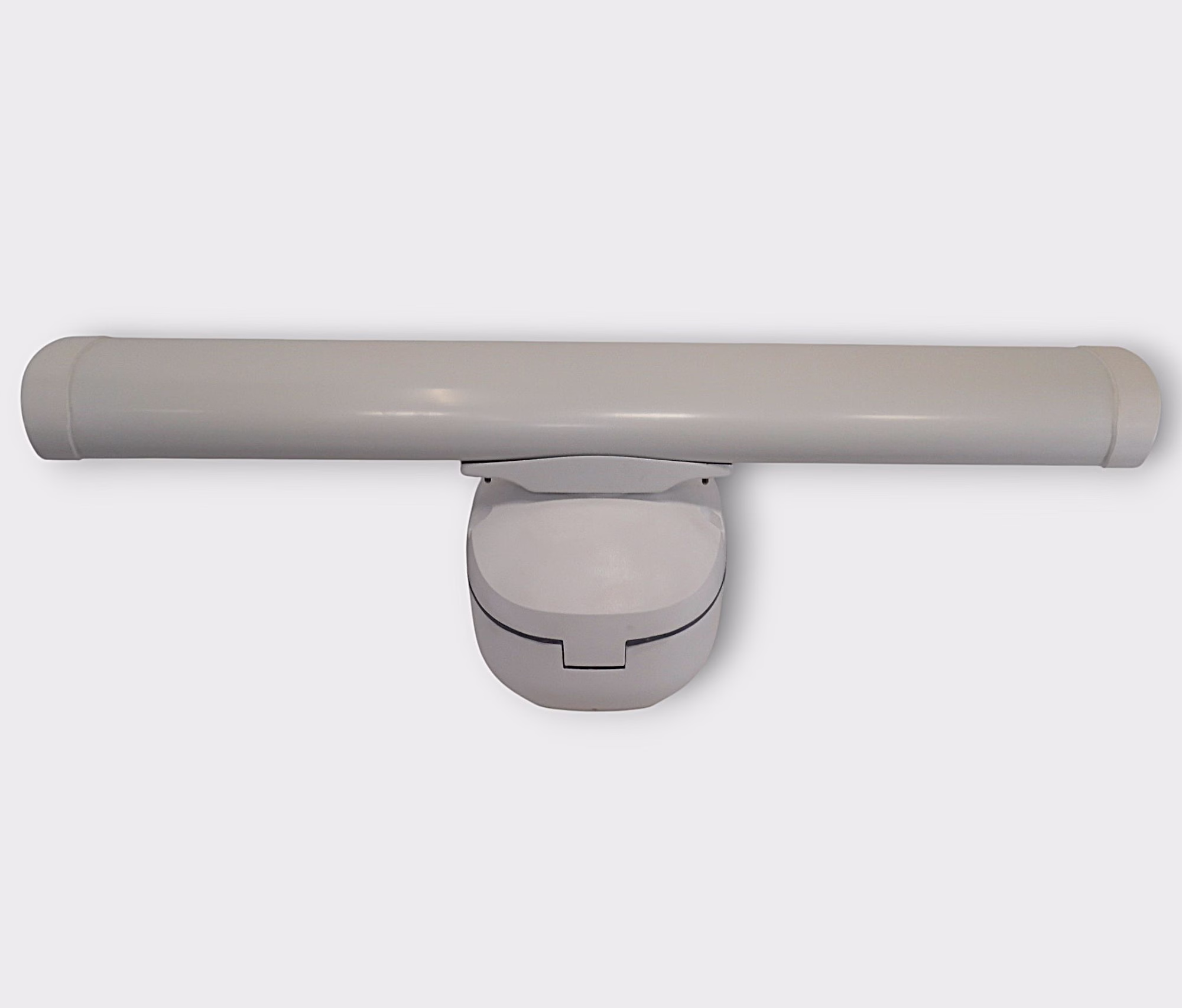

This radar system comes with a 48″ (4 ft.) antenna array with the end caps resealed during our detailing process. If this array is too small, we may have a 6 ft. antenna array available.
**There are a few small blemishes to the Array’s decals; however, they are mainly intact and still legible!**
This is the Enhanced version of the HD Digital Radar. With this revision, Raymarine implemented a hardware redesign to overcome start-up difficulties and also added 48RPM and Bird Mode features when connected to a Widescreen or newer model display. These features are not accessible on an E-Series Classic display.
All included hardware has been run through a wire wheel and is clean for quick and easy installation.

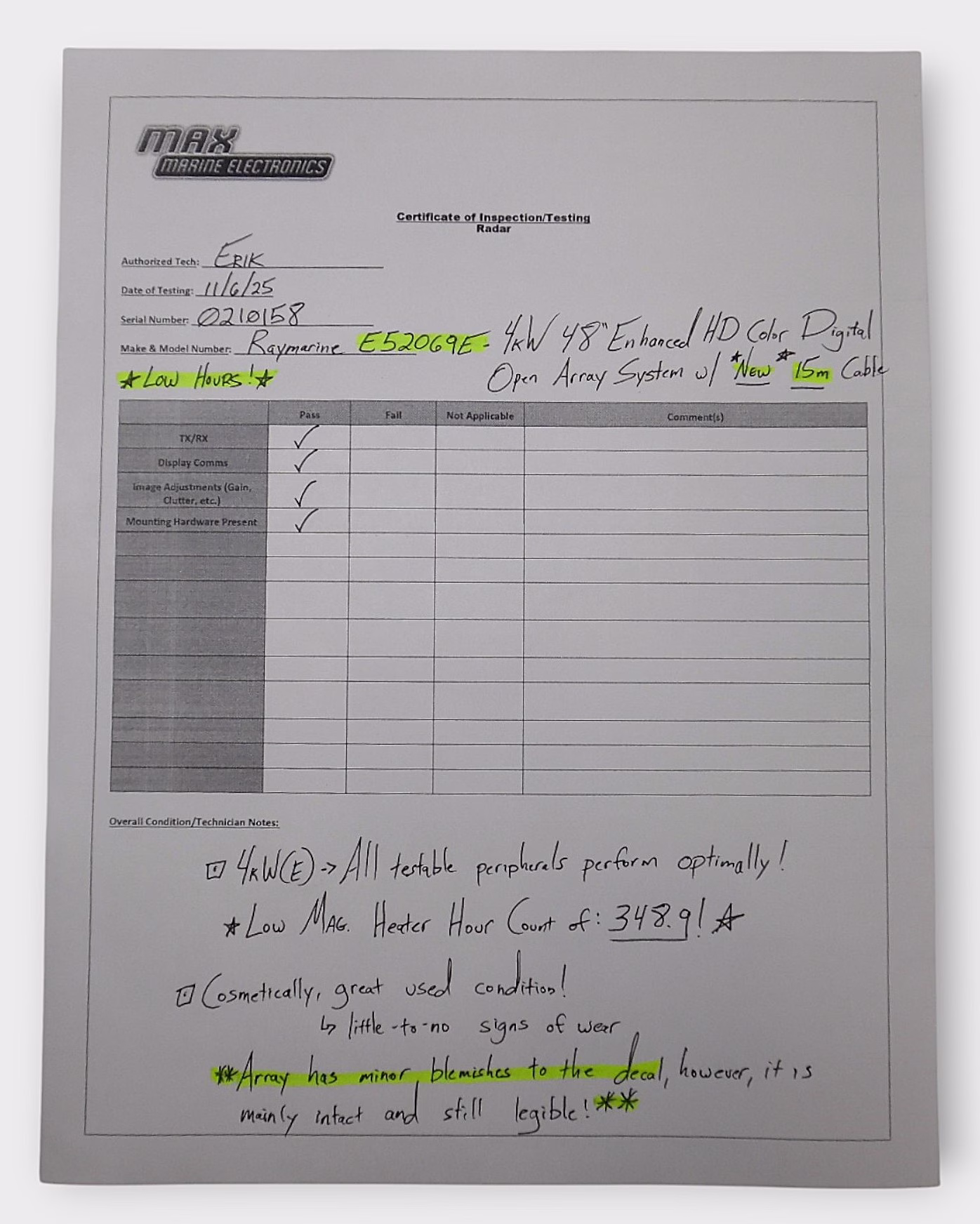

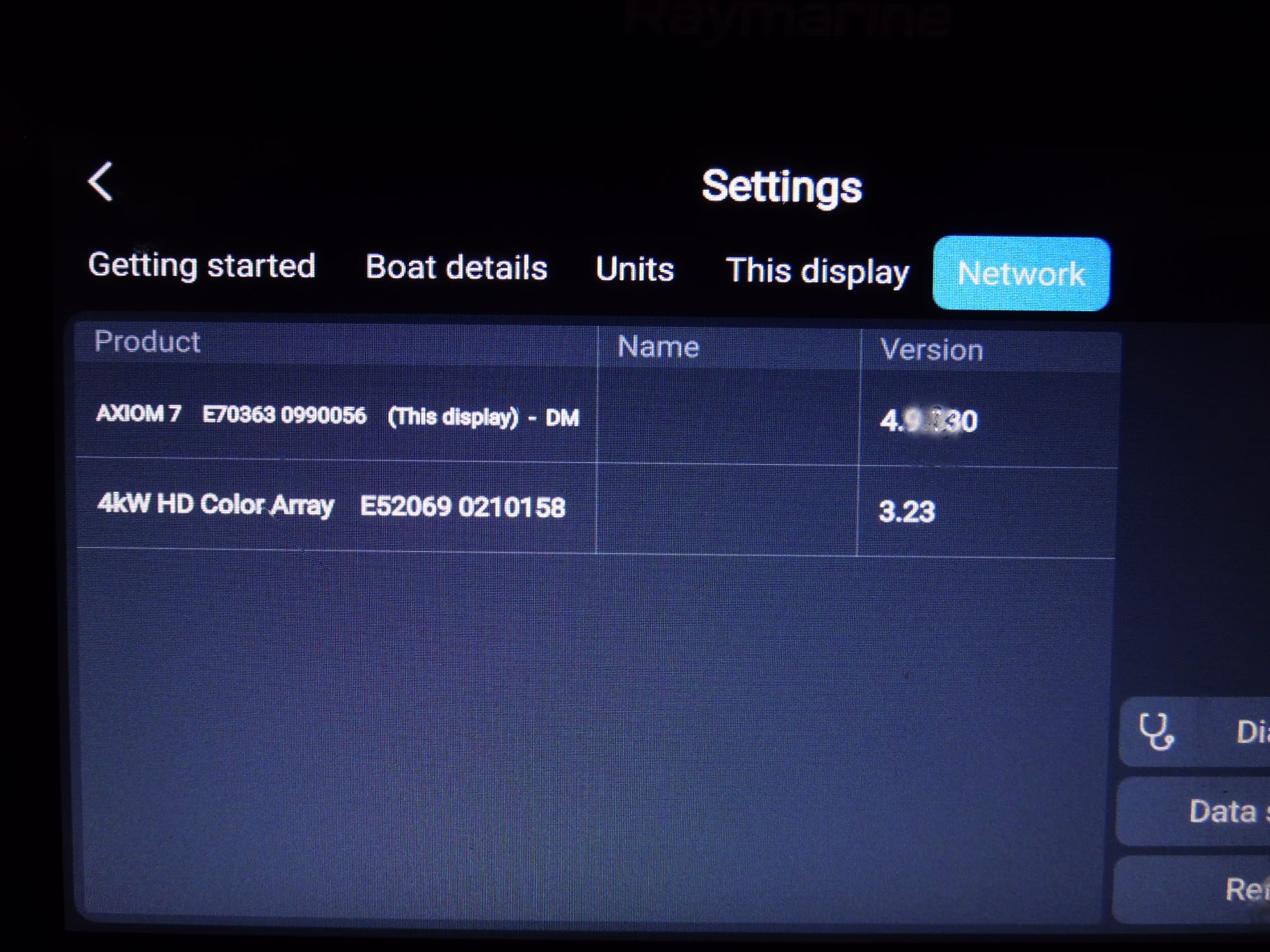

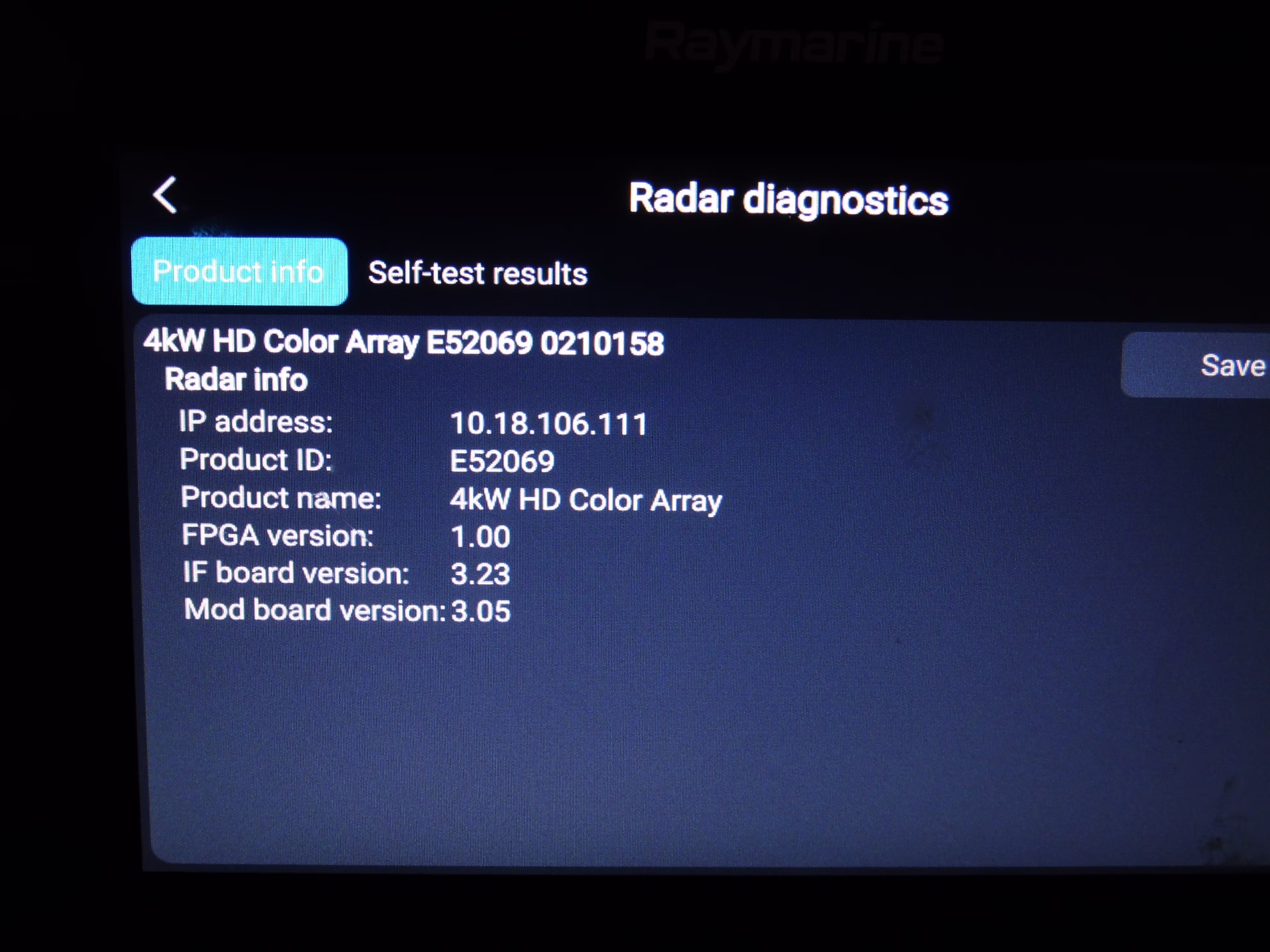

Please reference our photos for the condition, contents, and proof of functionality!

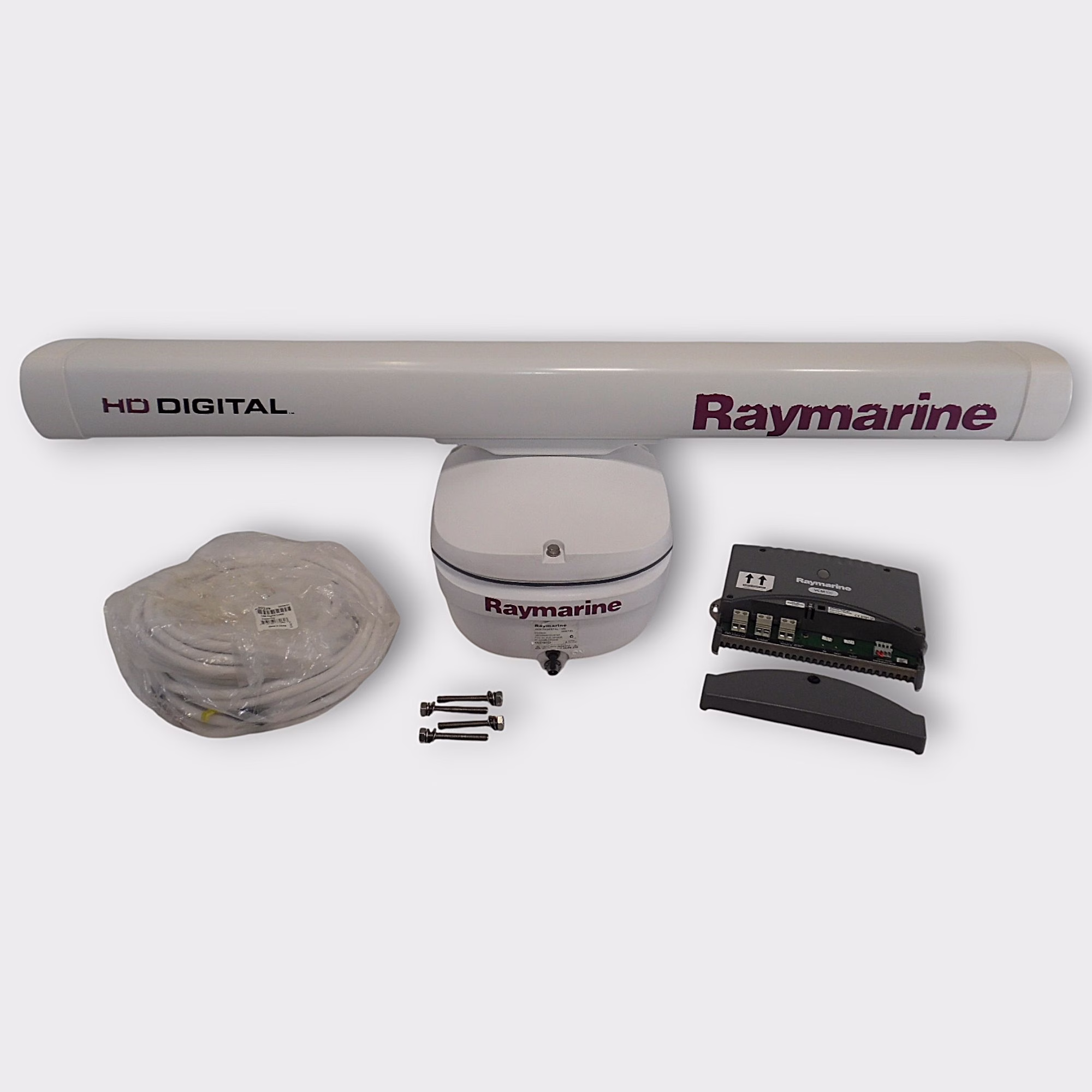

What’s Included:

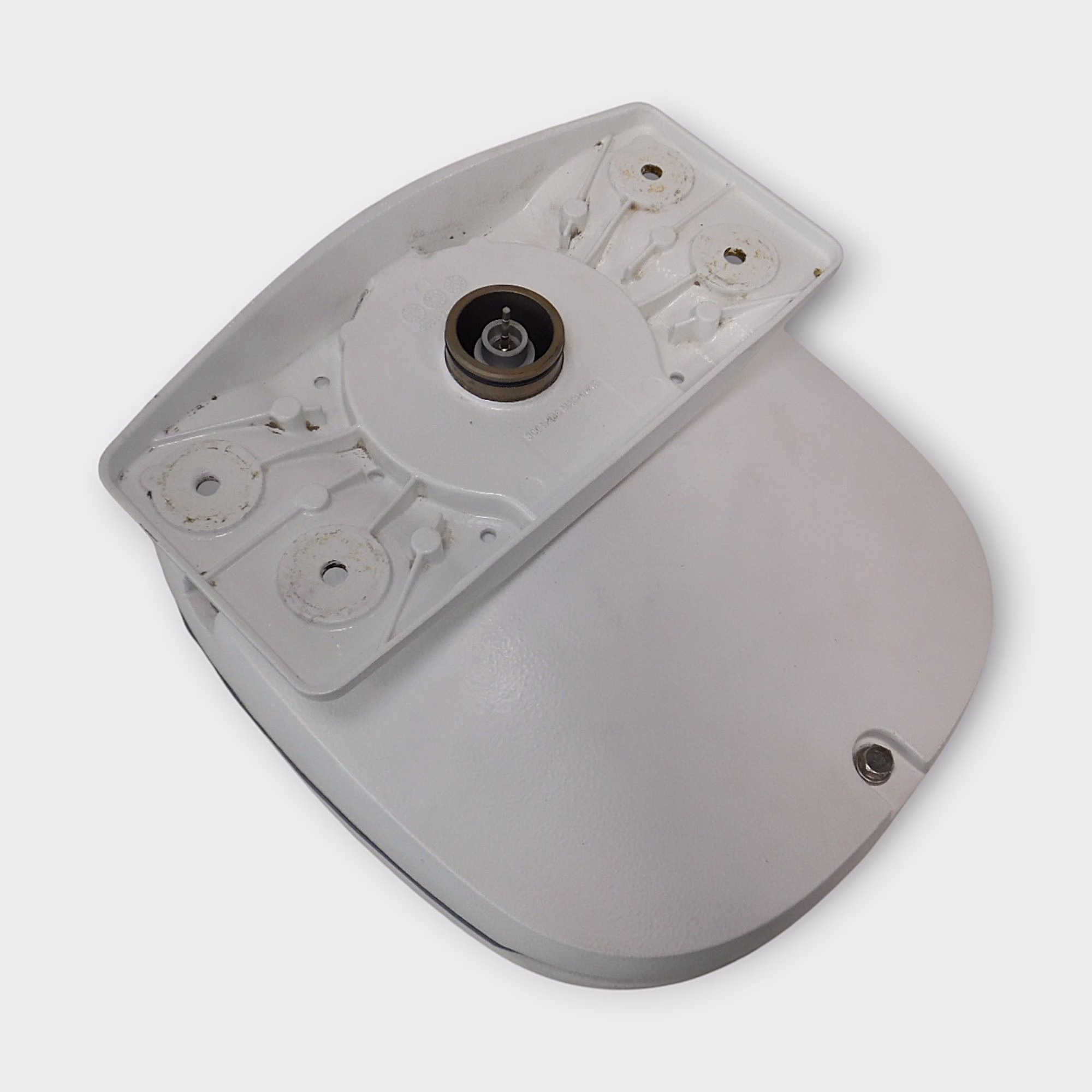

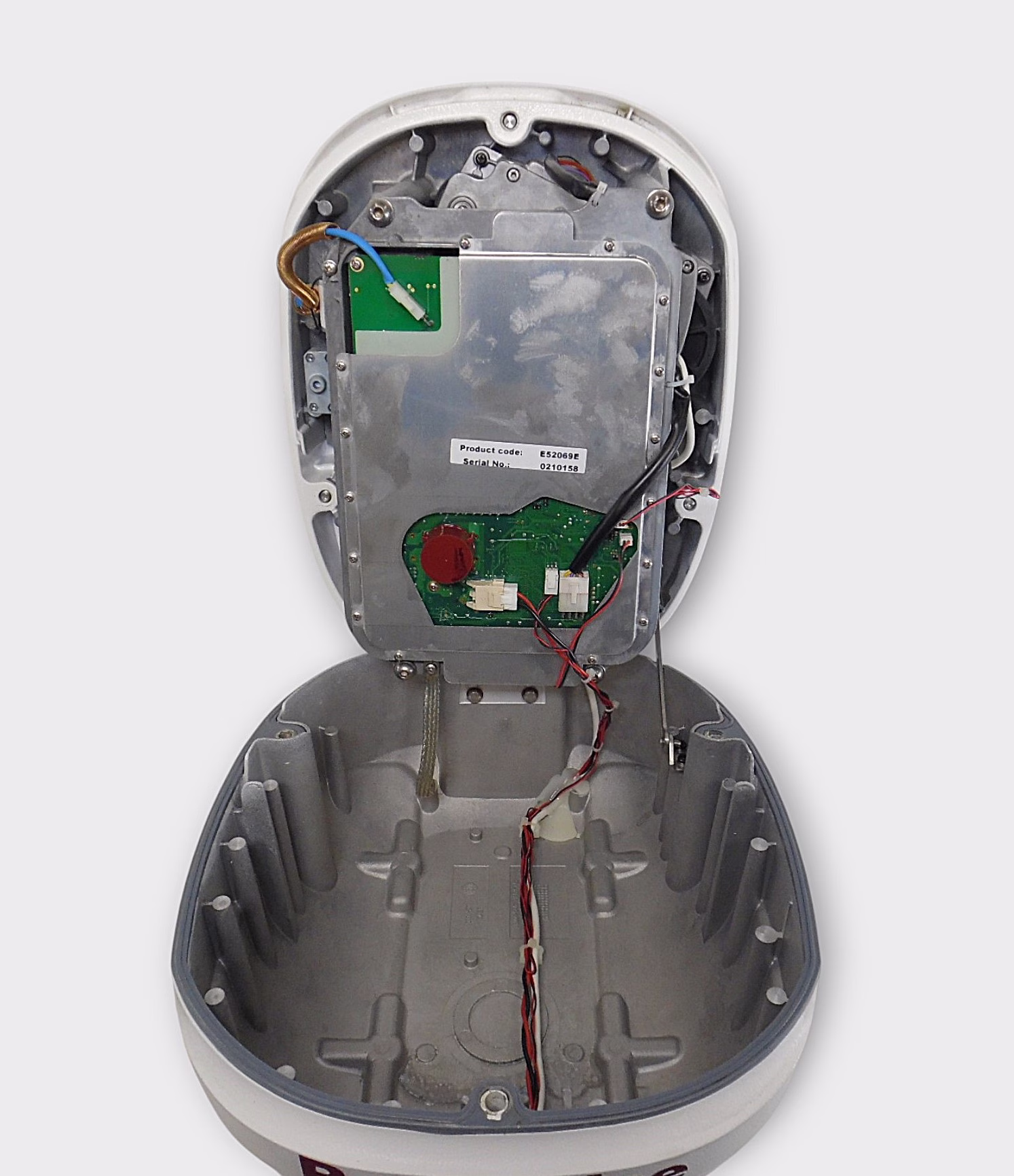

- Raymarine 4kW Enhanced HD Color Digital Pedestal – E52069E
- 48″ HD Digital Antenna Array – E52083

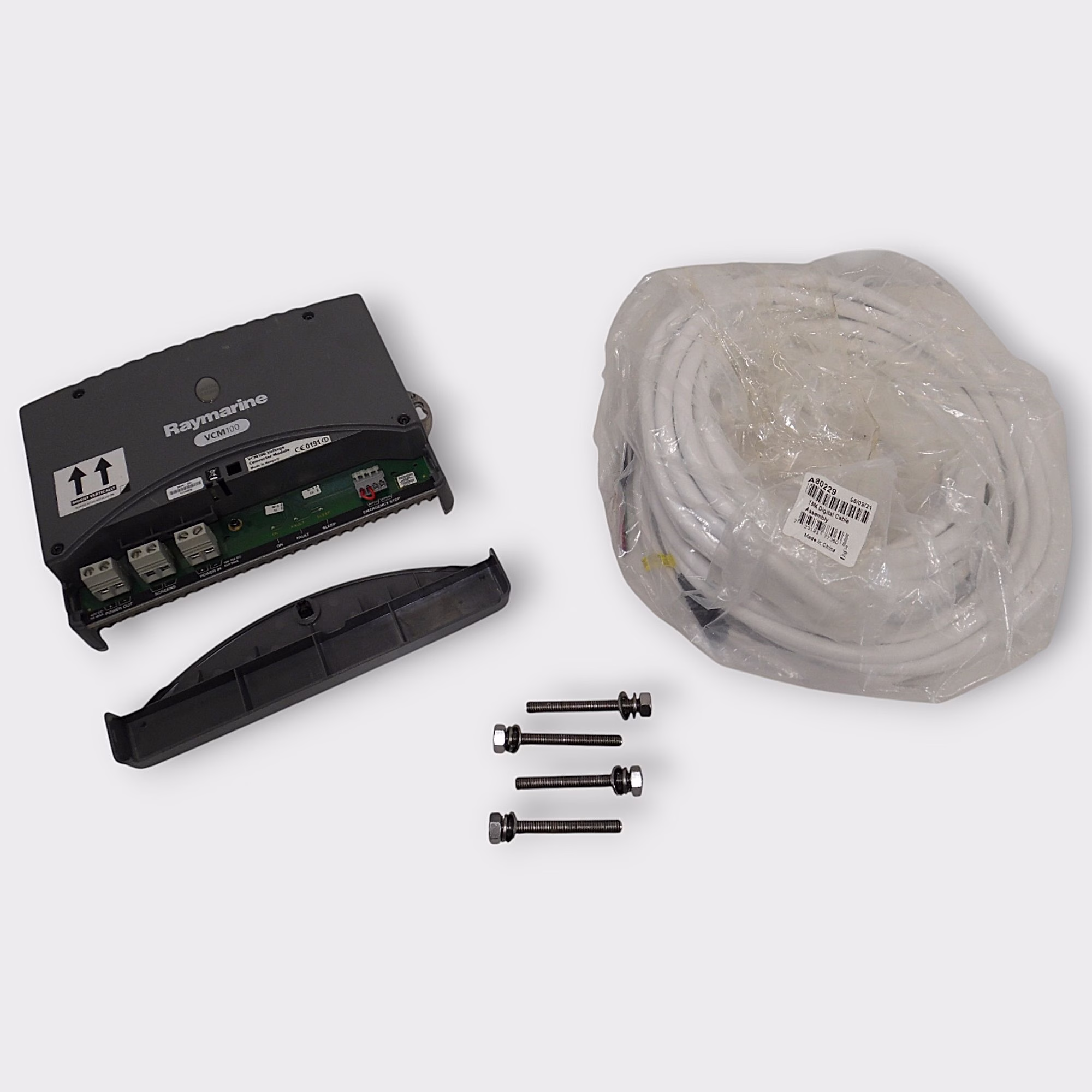

- 15m Digital Radar Cable with RayNet connection – A80229 *New-in-Bag*
- VCM100 (for regulating power going to the radar)
- Mounting Hardware (x4) – M10 Stainless Steel Studs, M10, Plain Washers, M10 Spring Washers, and M10 Nuts
Compatible Parts: Raymarine E-Classic Series and newer displays. If you have a question about fitment, please ask before purchasing.
Dimensions (L x W x H): 50 x 30 x 30 in, Weight: 75 lbs
