Manufacturer: Raymarine
Model: 12kW Radar with 72″ Antenna
Series: Super HD Color Digital Open Array
MPN: E52082
Listed Item Condition: Remanufactured
Additional Notes: This 12kW SuperHD Digital Open Array Radar System has been designated as an MME REFURB! Items that receive this designation have gone through our rigorous testing procedure and addressed common failure points. Because of our vast experience with used marine electronics, we can identify potential failures and have developed fixes for these failure points to ensure that our customers get the best-used unit out there.
**This is the NON-Enhanced version of the HD Radar and does NOT feature Bird Mode when connected to a Widescreen or newer model display.**

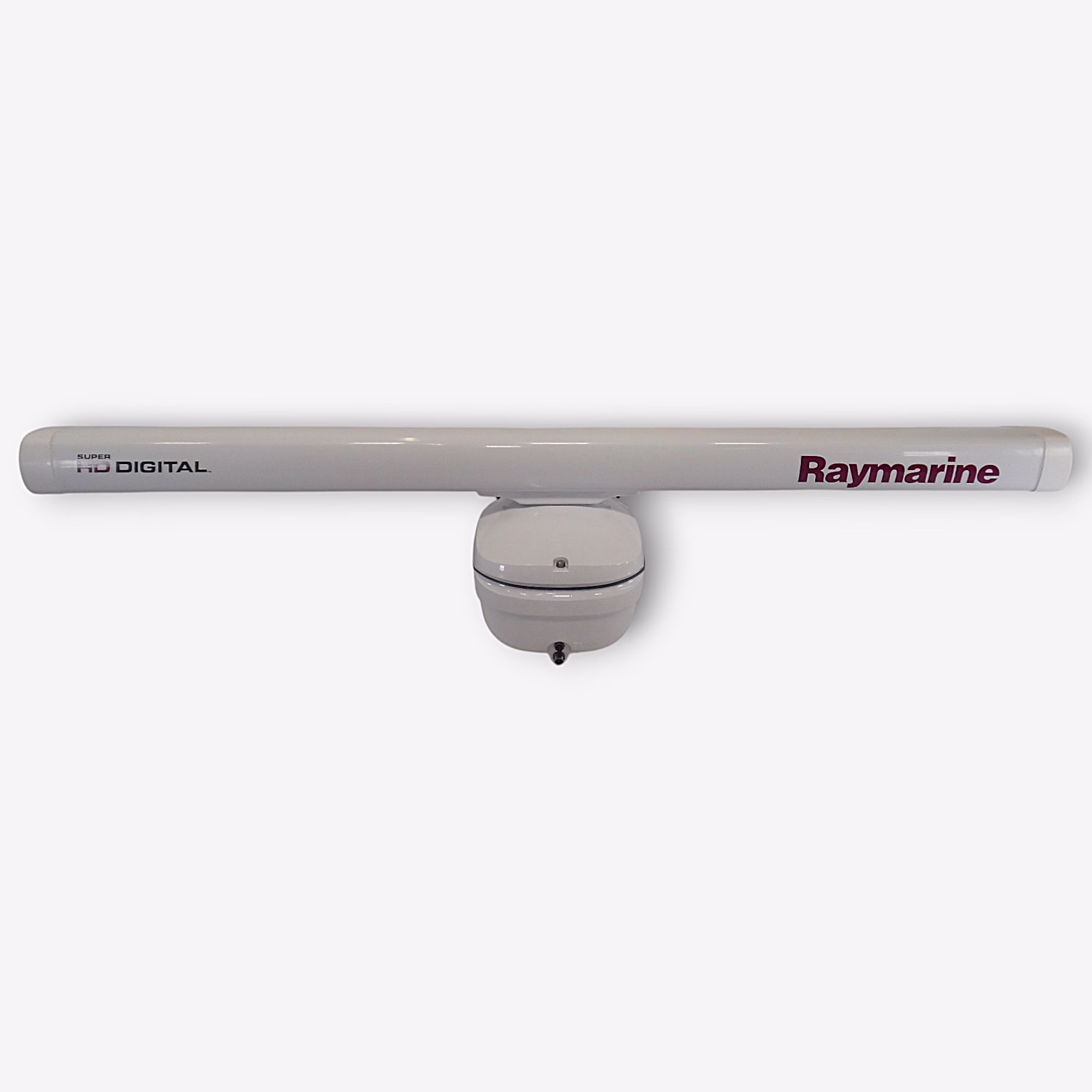

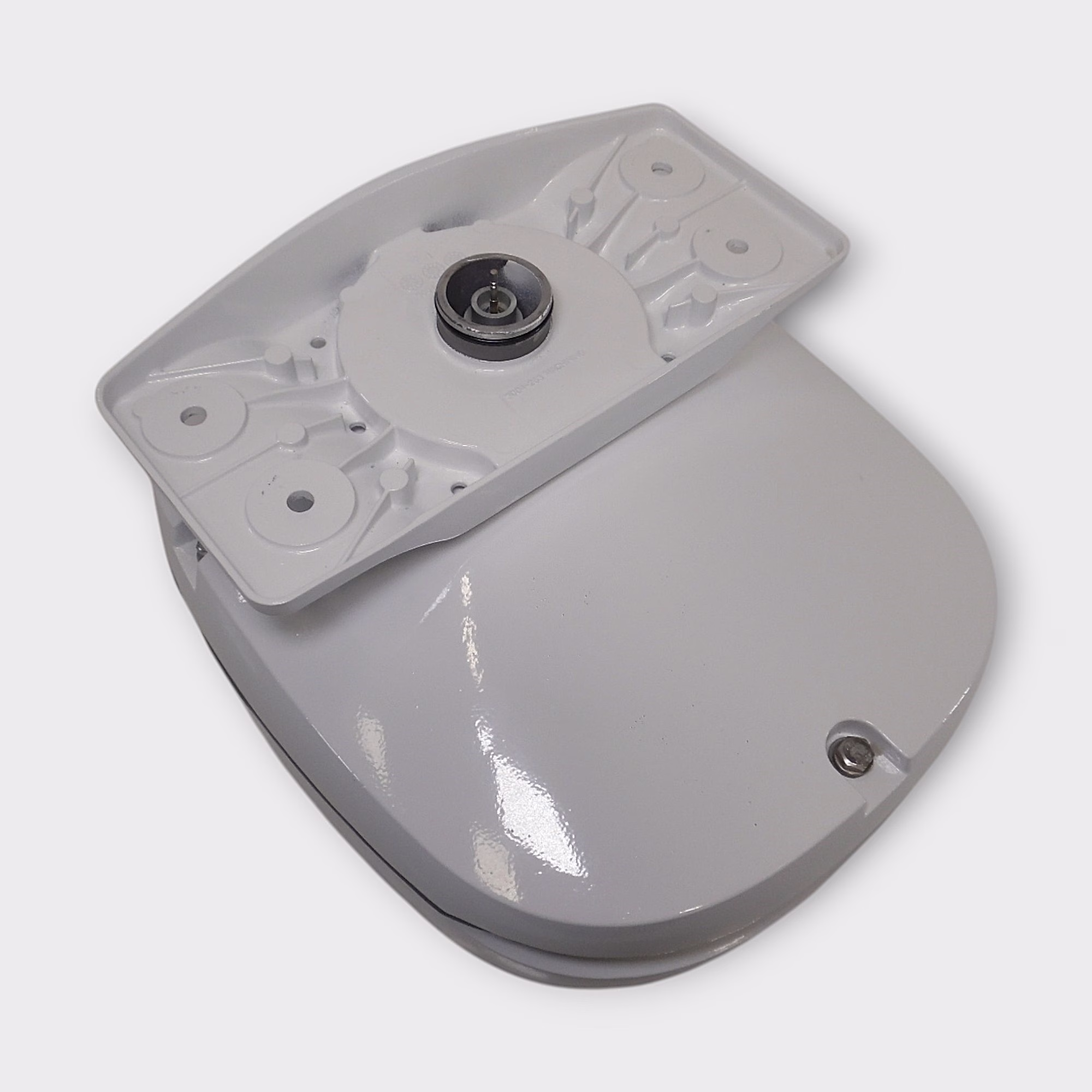

Within our extensive MME refurbishment process, we have completely disassembled the radar pedestal for professional sandblasting, followed by powder coating with marine-grade paint that is superior to the original finish. This unit is immaculate inside and out! It is then meticulously reassembled with clean rubber seals and new bearing grease. This radar’s antenna array has been disassembled to tighten up the internal core and then reassembled with sealed end caps. You won’t have to worry about water intrusion or these caps flying off the array when it’s spinning.

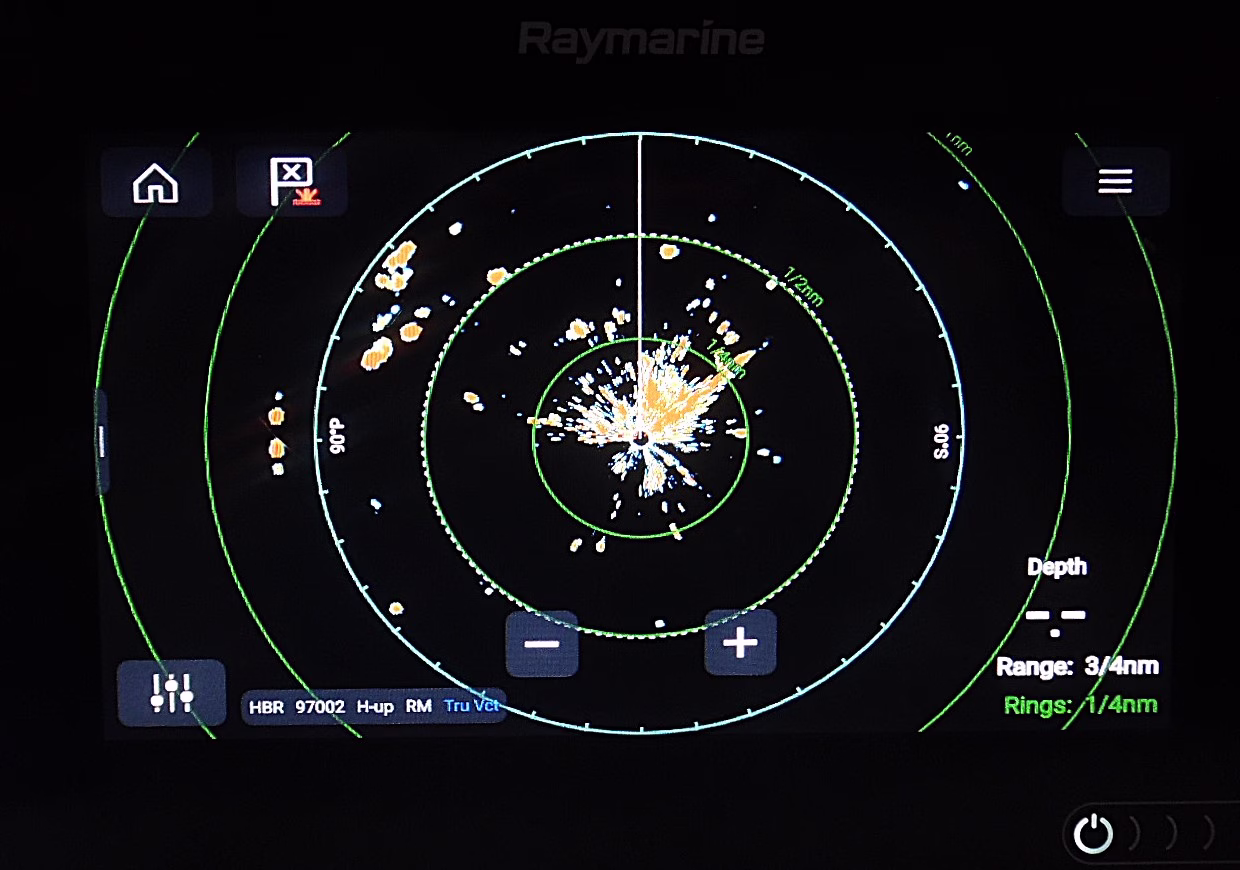

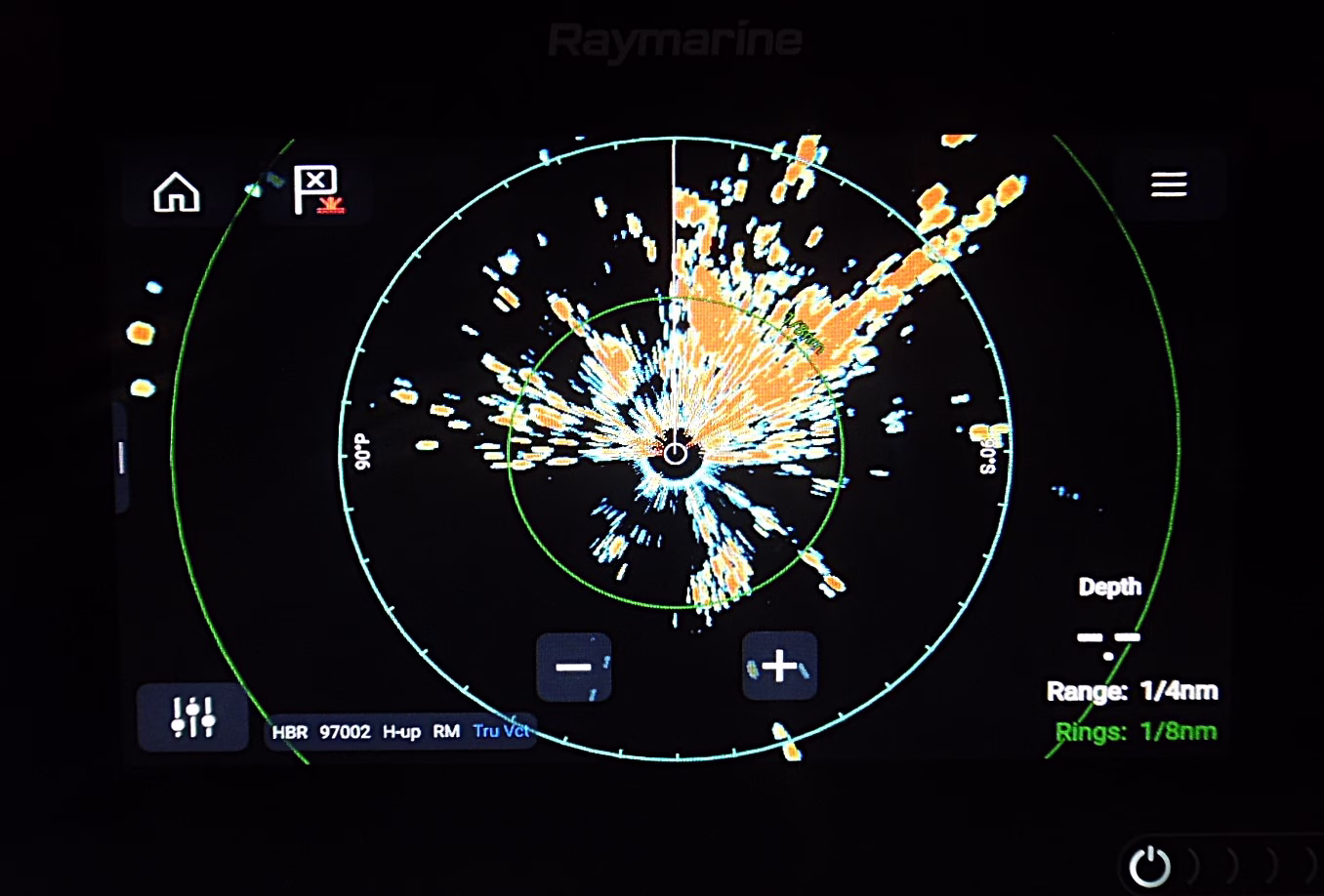

This radar system, including the VCM100, is in excellent working condition as we successfully bench-tested the system and confirmed functionality via an MFD (not included). Great target detection at all ranges and every self-test passed!
*Very LOW Magnetron Heater Hour Count: 675.3!*

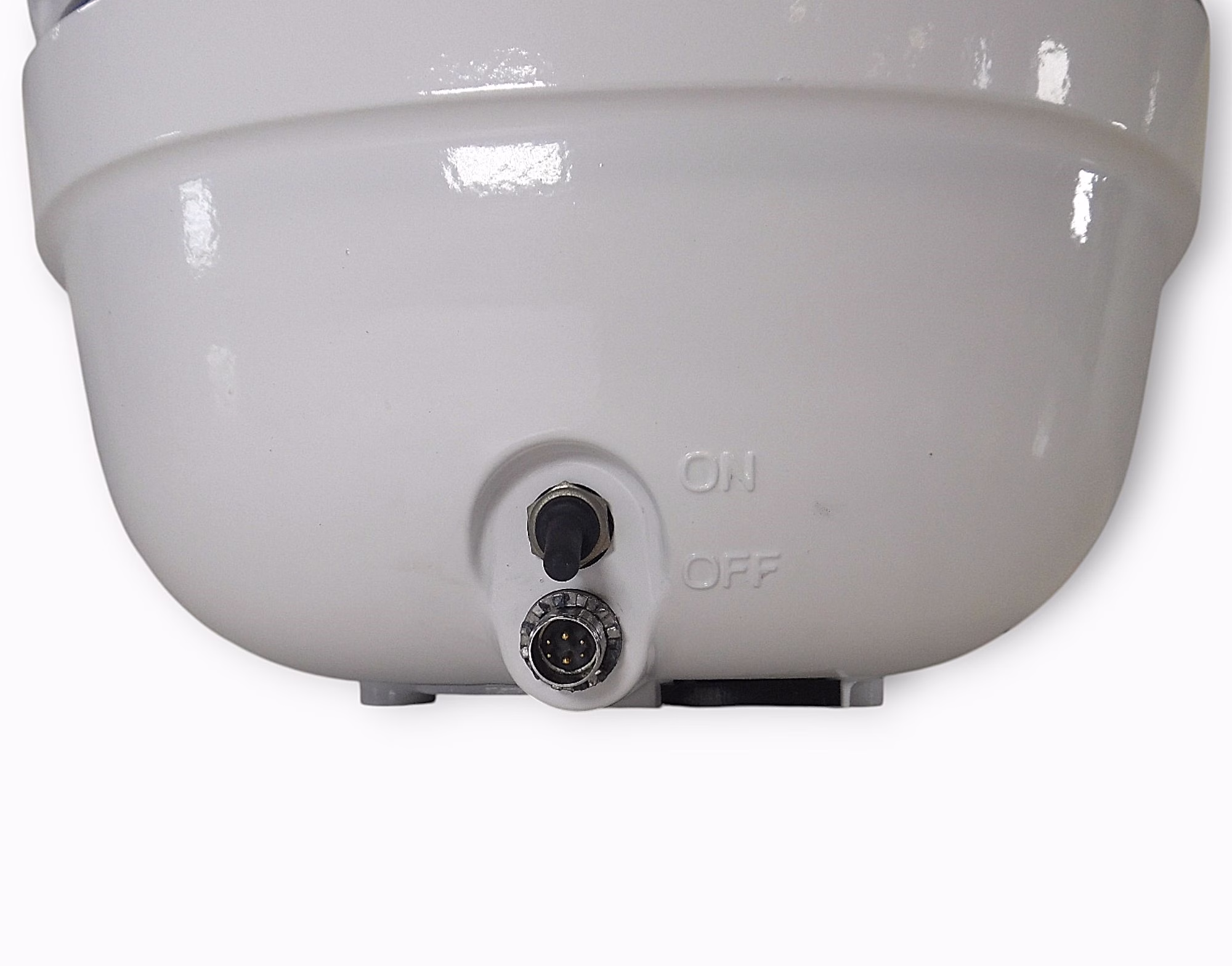

The radar port has no bent pins or corrosion, and the switch boot cover is intact, functioning properly.
A NEW 15m radar cable is included! Most commonly used cables have a common failure point, typically where they connect to the radar port, and the strain relief deteriorates, exposing the wires to moisture, which can then cause premature failure of the radar/cable, or possibly an electrical short.

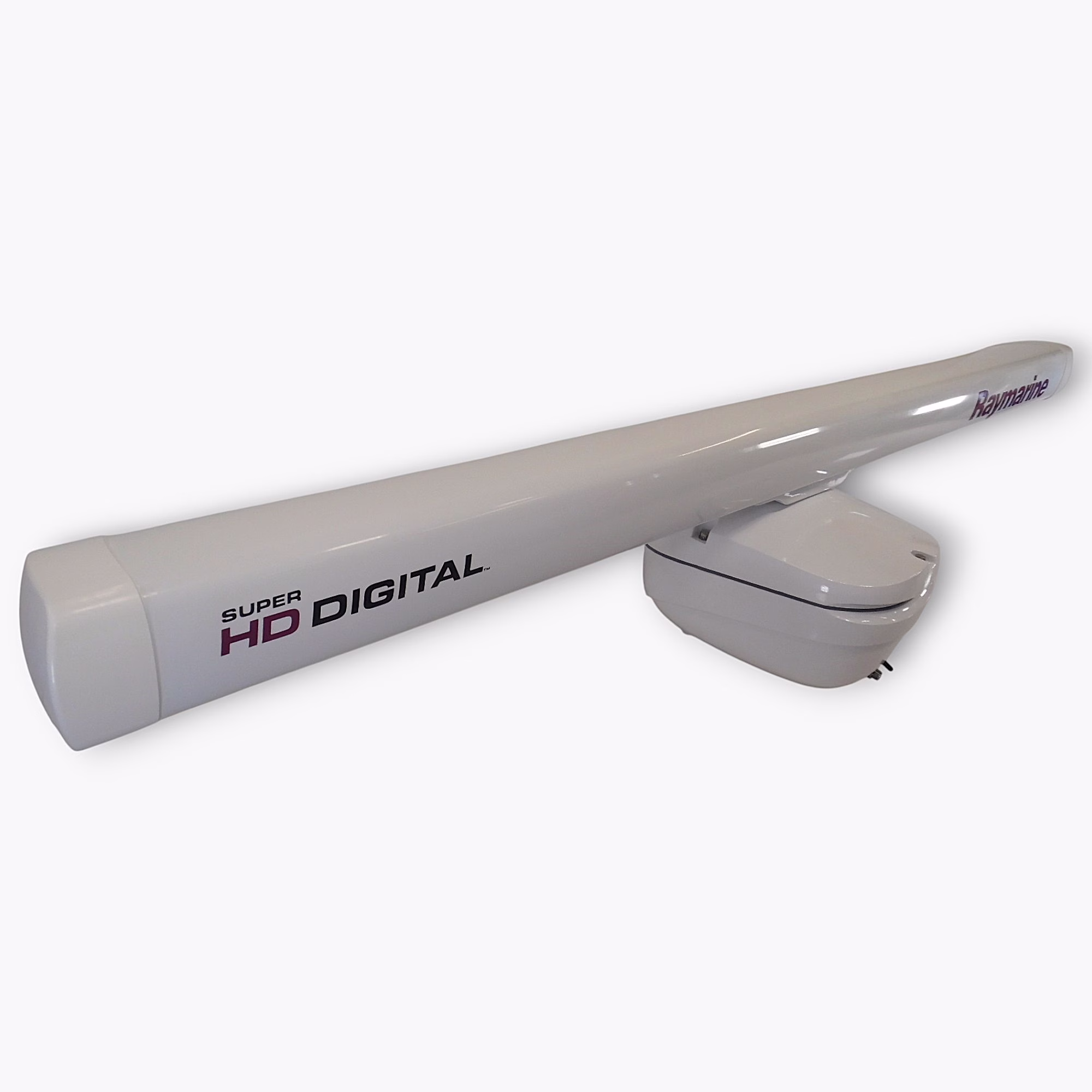

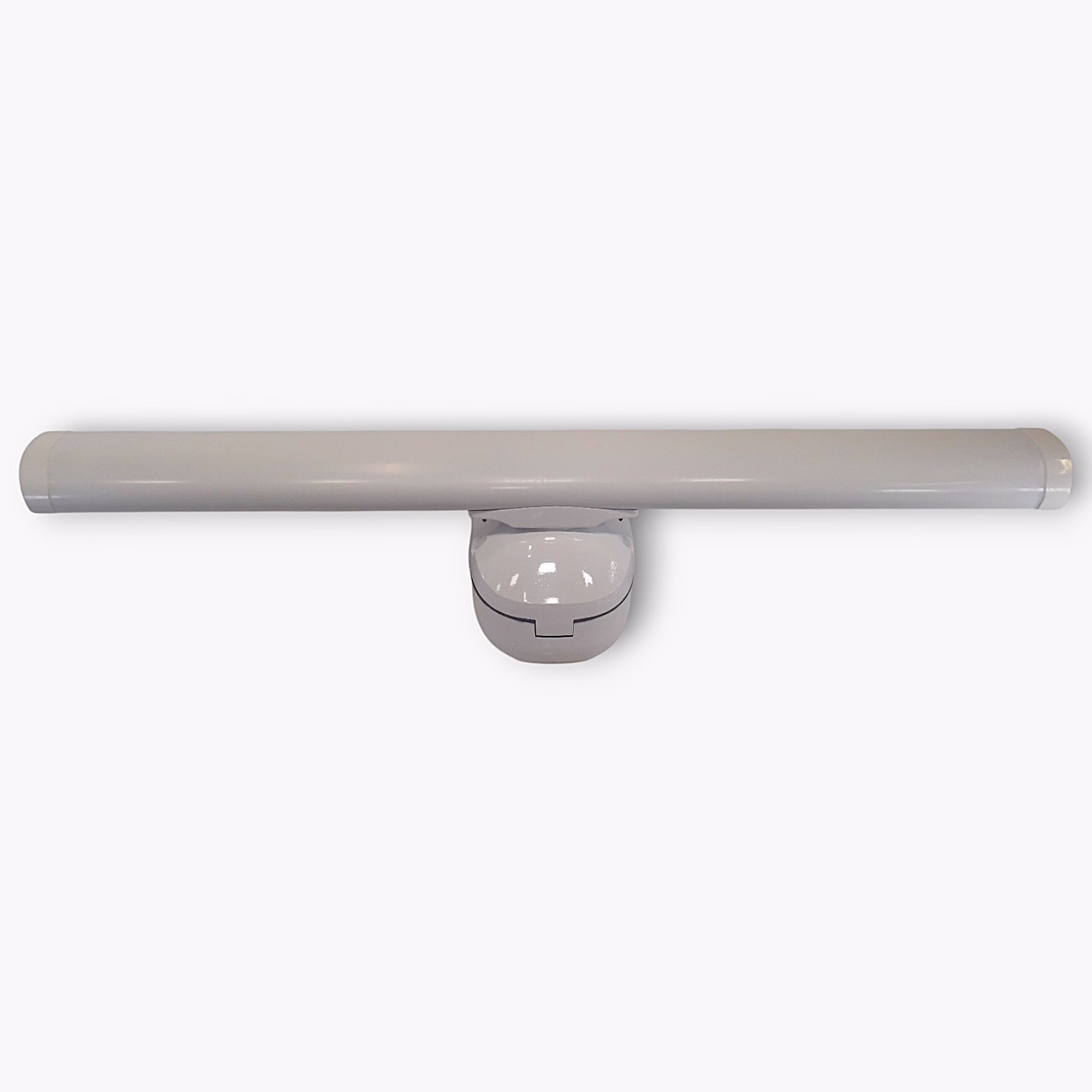

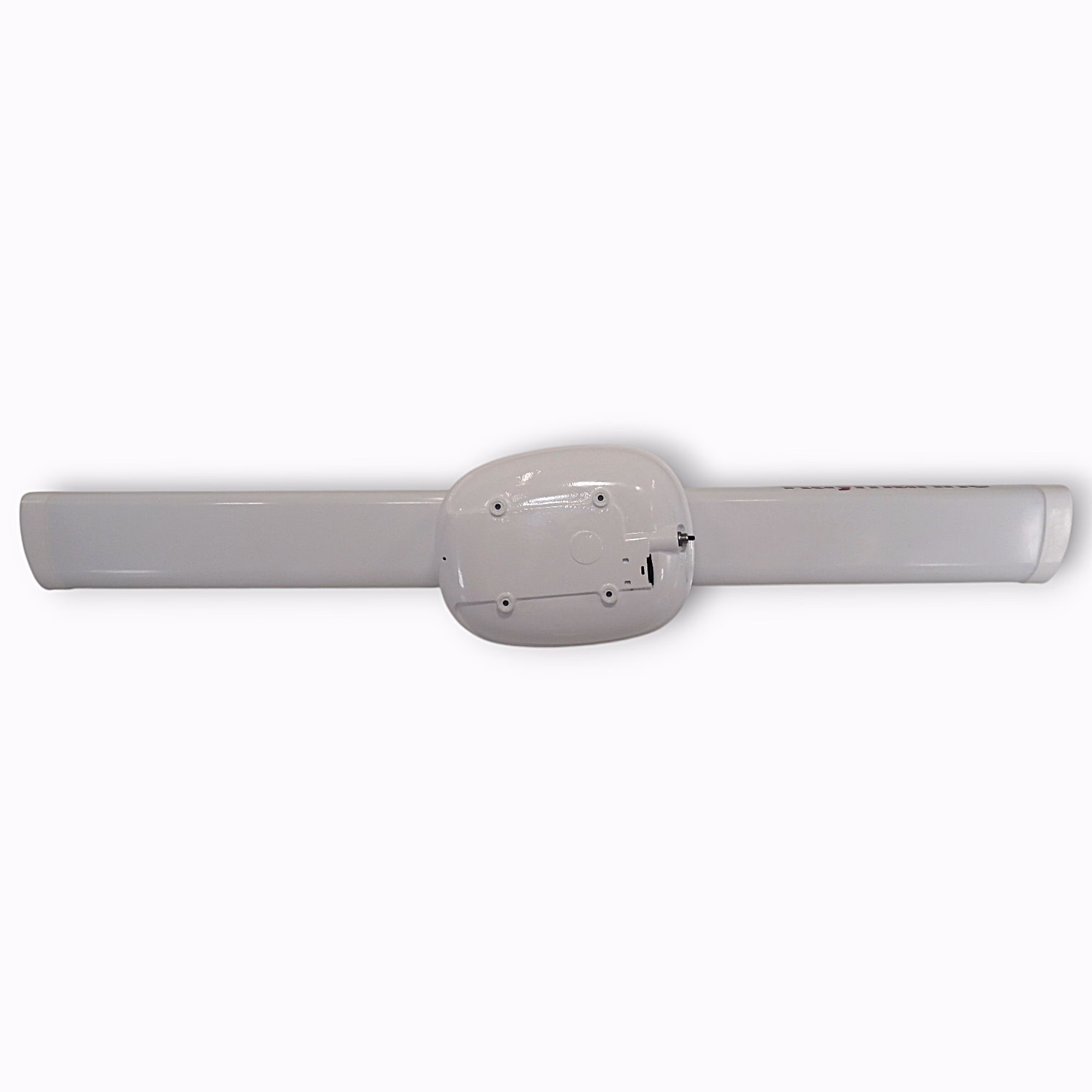

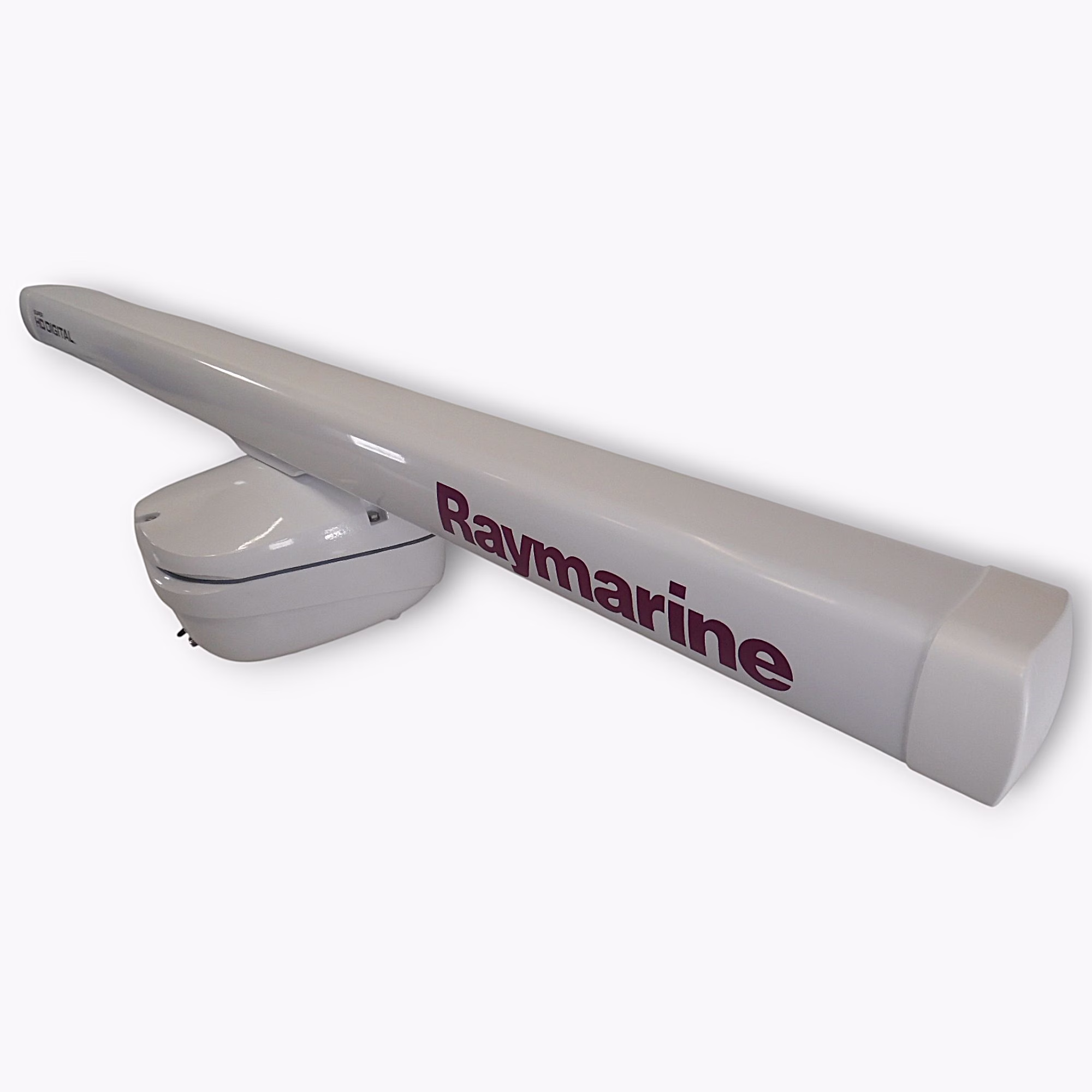

This radar system comes with a 72″ (6 ft.) antenna array with the end caps resealed during our detailing process. If this array is too large, we may have a 4 ft. antenna array available. The included radar cable is 15m in length. If you need a different length radar cable, we may have a 5m or 10m available. Please reach out to us directly to inquire about a smaller antenna array or a different-length radar cable.
All included hardware has been run through a wire wheel and is clean for quick and easy installation.
Please reference our photos for the condition, contents, and proof of functionality!

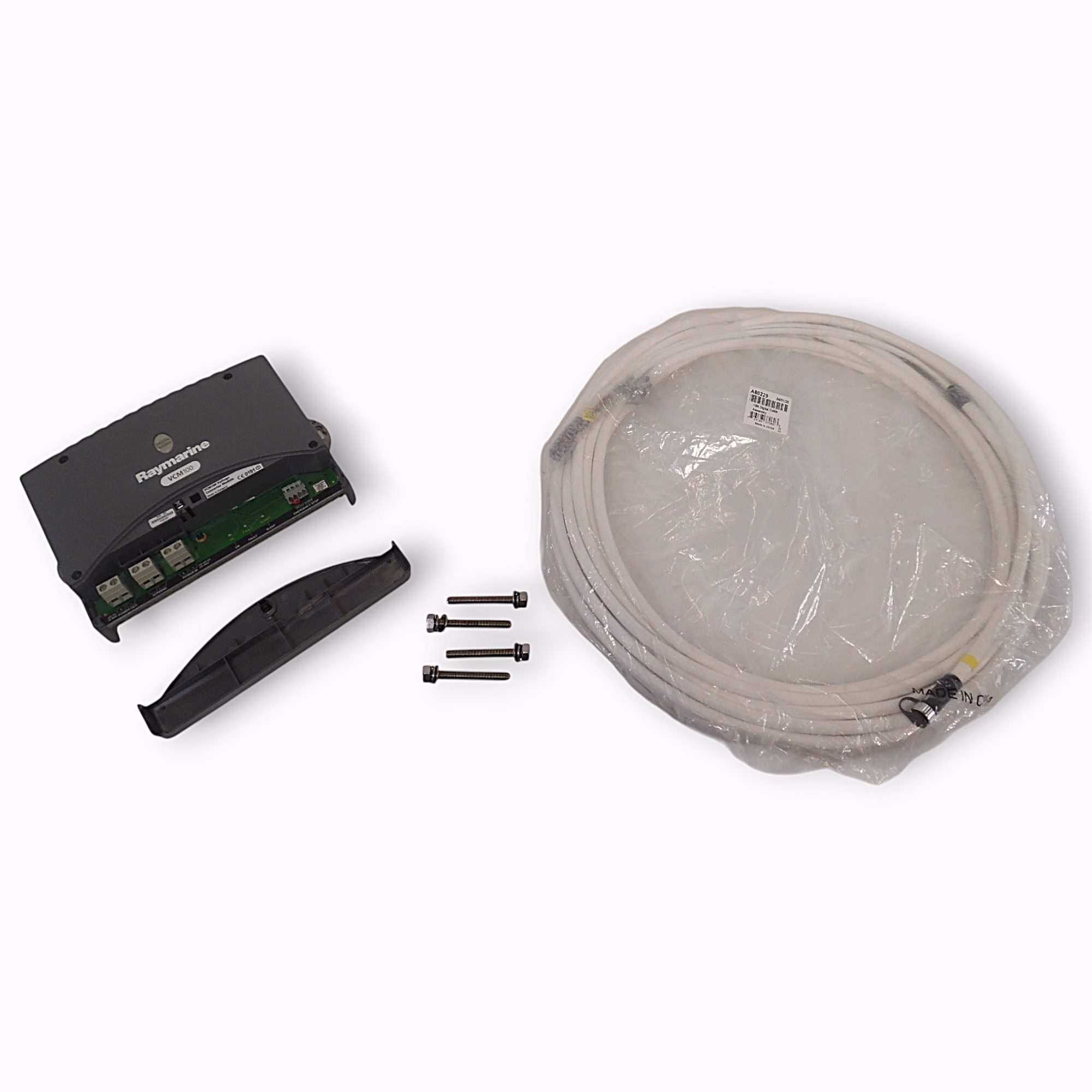

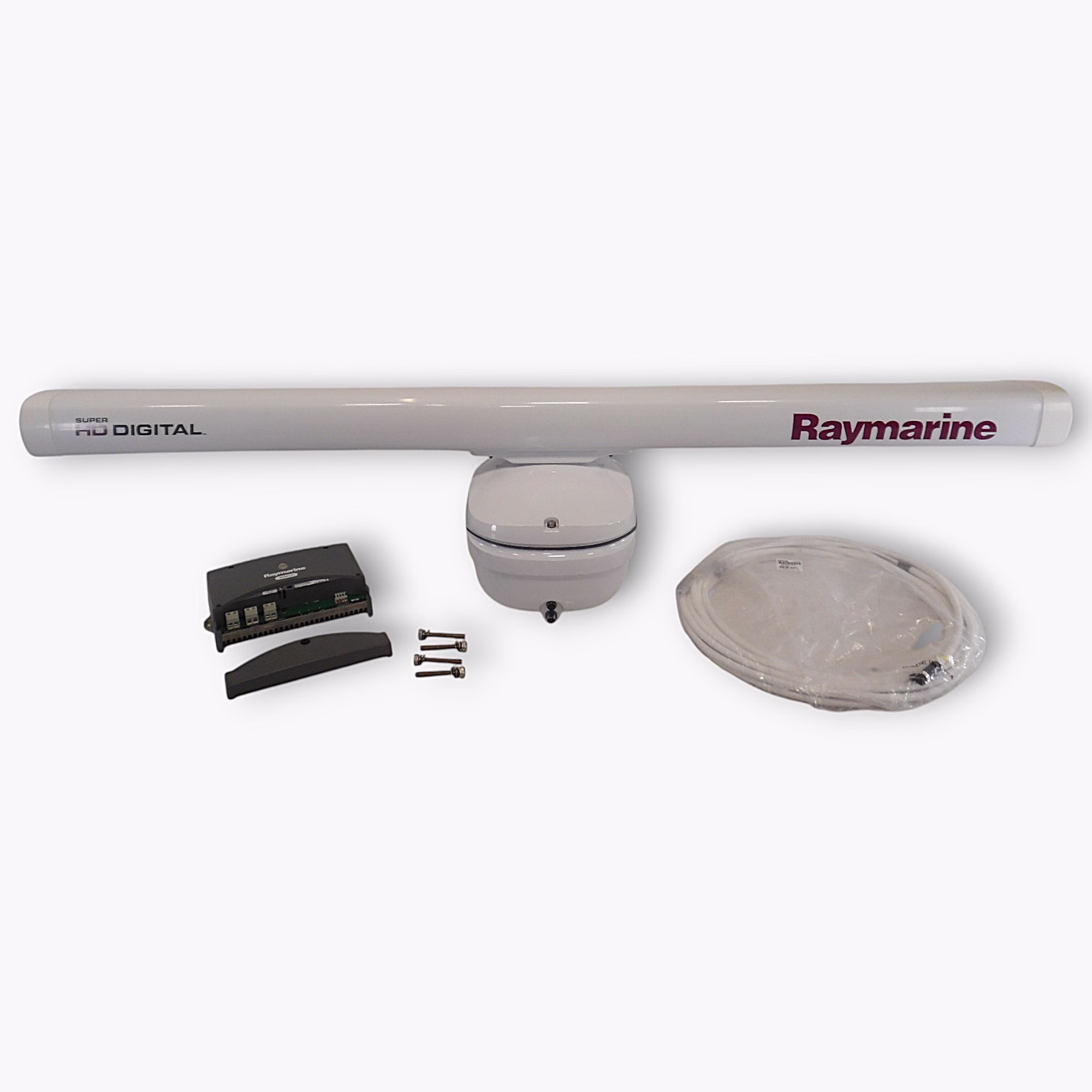

What’s Included:
- Raymarine 12kW Super HD Digital Pedestal E52082 *MME REFURBISHED!*
- 72″ SuperHD Digital Antenna Array *MME REFURBISHED!*
- 15m Digital Radar Cable with RayNet connection A80229 *NEW-IN-BAG!*
- VCM100 (for regulating power going to the radar)
- Mounting Hardware (x4) – M10 Stainless Steel Studs, M10, Plain Washers, M10 Spring Washers, and M10 Nuts
Compatible Parts: This is FULLY compatible with the E series Classic (i.e. E120, E80) displays, C & E Series Wide Displays (i.e. C90w, E140w), c & eSeries displays (i.e. e127, c95) as well as the newest generation of Axiom displays. Depending on the display on the vessel, additional cabling or cable adapters may be required for installation. These can be purchased through our online store.
Dimensions (L x W x H): 75 x 22 x 22 in, Weight: 80 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
Terms:
All items sold at Max Marine Electronics come as you see in the pictures provided, with only the parts and accessories stated in the description section named “What’s Included”. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE DESCRIPTION WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times when a display is used only to show the item being sold is functional and working properly. In this case, these displays are not included. If you have any questions feel free to send a message or call Max Marine Electronics Inc, Pompano Beach, Florida. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.
