Summary

• Phoenix Contact UT 2,5 RD (3045062) red DIN rail feed-through terminal blocks, sold as a pack of 5 with 2 Phoenix Contact D-UT 2,5/10 (3047028) gray end plates included. These CLIPLINE complete UT Series terminal blocks feature screw-clamp connections, a 2.5 mm² nominal conductor cross-section, and a 24 A / 1000 V IEC electrical rating for industrial electrical control and distribution applications.
• Each terminal block provides two conductor connection points on a single level, allowing conductors to be connected at a common electrical potential within a compact DIN rail terminal assembly.
• This listing includes 5 Phoenix Contact UT 2,5 RD red terminal blocks and 2 D-UT 2,5/10 gray end plates only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Phoenix Contact UT 2,5 RD is a red CLIPLINE complete UT Series feed-through terminal block designed for secure electrical connections in industrial control panels, automation systems, machinery, and electrical distribution applications.
• Each terminal block features two screw-clamp conductor connections on a single level, allowing conductors to be connected at one common electrical potential.
• The screw connection system incorporates Phoenix Contact's patented Reakdyn principle, designed to provide maintenance-free, vibration-resistant electrical connections.
• Designed for standard NS 35/7.5 and NS 35/15 DIN rails, these terminal blocks feature a compact 5.2 mm housing width and support standardized CLIPLINE complete bridging, marking, and testing accessories.
• The UT 2,5 RD supports a nominal conductor cross-section of 2.5 mm² and features manufacturer-specified IEC ratings of 1000 V and 24 A. The conductor connection range extends from 0.14 mm² to 4 mm², depending on conductor type and termination method.
• The red insulating housing is manufactured from polyamide (PA) and features a UL 94 V-0 flammability classification, providing electrical insulation and durability for industrial environments.
• The red housing allows for color-coded terminal arrangements and circuit identification within industrial electrical installations.

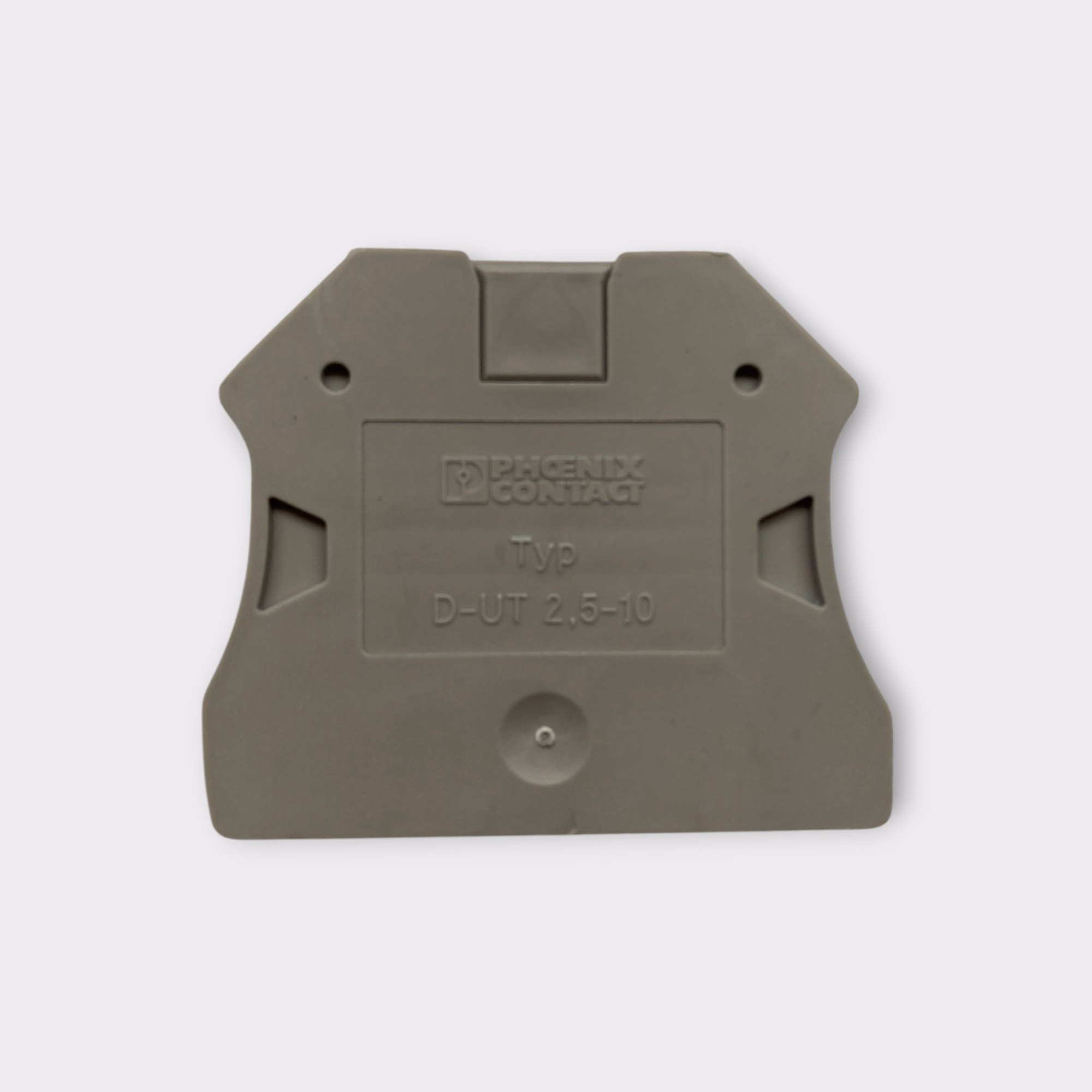

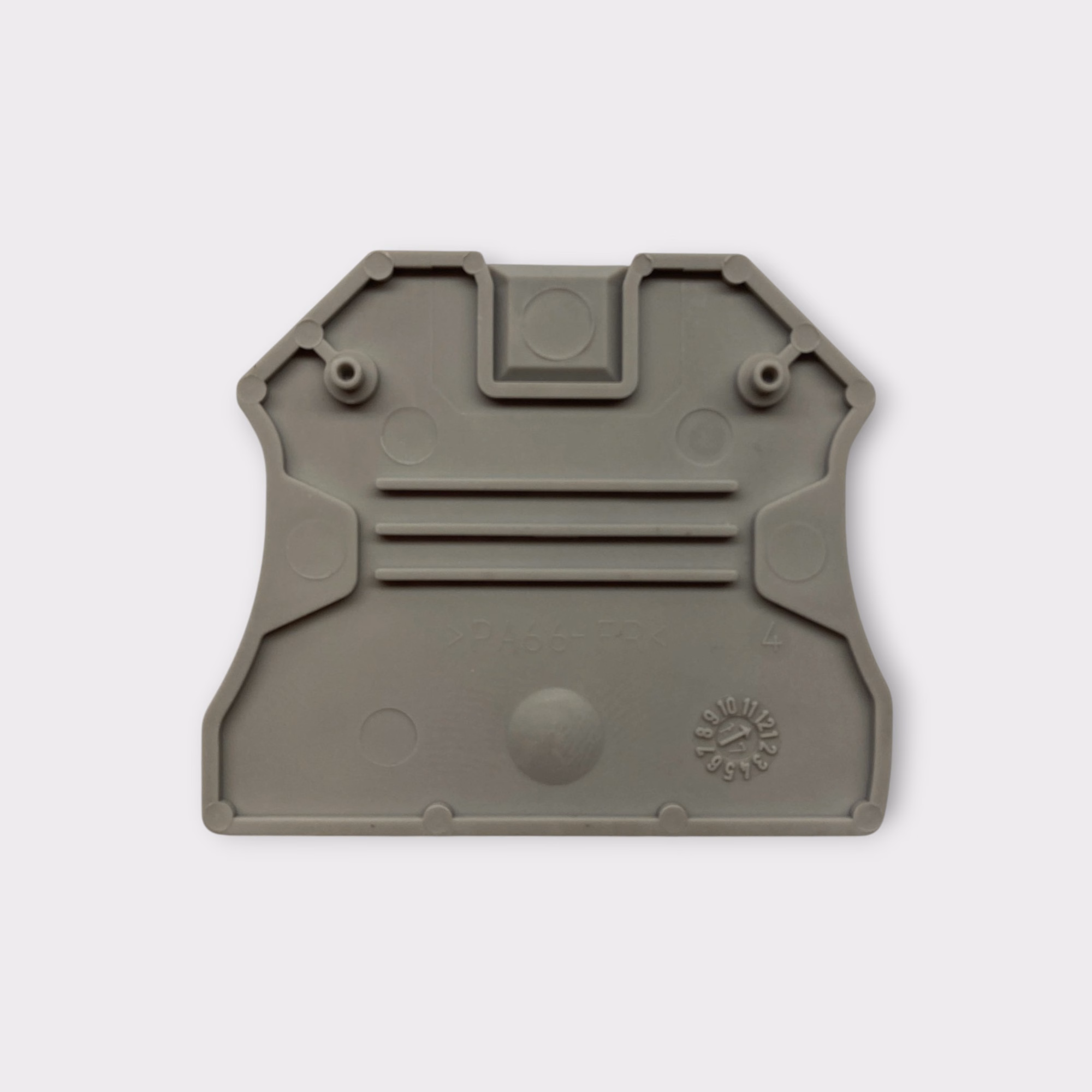

• This 5-pack includes two Phoenix Contact D-UT 2,5/10 gray end covers, designed to cover exposed sides of compatible UT Series terminal block assemblies.
• The included end plates are manufactured from polyamide insulating material and feature a 2.2 mm thickness, providing insulation and separation within terminal strip assemblies.
• These terminal blocks are suitable for industrial automation, electrical distribution cabinets, machinery wiring, control panel assemblies, and compatible marine electrical installations.

Product Information

Terminal Blocks

- Brand: Phoenix Contact
- Model: UT 2,5 RD
- Series: CLIPLINE complete UT Series
- MPN: 3045062
- Type: Feed-Through Terminal Block
- Number in Pack: 5 Terminal Blocks
- Number of Ports: 2 Per Terminal Block
- Number of Poles: 1
- Number of Levels: 1
- Connector Style: DIN Rail Terminal Block
- Termination Type: Screw Clamp
- Compatible Mounting Type: DIN Rail
- Compatible DIN Rails: NS 35/7.5 / NS 35/15
- Material: Polyamide (PA)
- Color: Red (RAL 3001)
- Nominal Conductor Cross-Section: 2.5 mm²
- Compatible Wire Gauge (AWG): 12–26 AWG
- Solid Conductor Range: 0.14–4 mm²
- Flexible Conductor Range: 0.14–4 mm²
- Flexible Conductor with Ferrule Range: 0.14–2.5 mm²
- Current Rating (IEC): 24 A
- Voltage Rating (IEC): 1000 V
- Current Rating (UL/CSA): 20 A
- Voltage Rating (UL/CSA): 600 V
- Rated Surge Voltage: 8 kV
- Screw Thread: M3
- Tightening Torque: 0.5–0.6 Nm
- Stripping Length: 9 mm
- Item Length (Depth on NS 35/7.5): 47.5 mm
- Item Width: 5.2 mm
- Item Height: 47.7 mm
- Depth on NS 35/15 Rail: 55 mm
- Operating Temperature Range: -60°C to +110°C
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-1
- Country/Region of Manufacture: Germany
- EAN / GTIN: 4017918975401

End Plates

- Brand: Phoenix Contact
- Model: D-UT 2,5/10
- Series: CLIPLINE complete UT Series
- MPN: 3047028
- Type: End Cover / Terminal Block End Plate
- Number in Pack: 2 End Plates
- Compatible Model: Phoenix Contact UT 2,5 RD
- Material: Polyamide (PA)
- Color: Gray (RAL 7042)
- Item Length (Depth): 39.8 mm
- Item Width (Thickness): 2.2 mm
- Item Height: 47 mm
- Operating Temperature Range: -60°C to +110°C
- Flammability Rating: UL 94 V-0
- Country/Region of Manufacture: Germany
- EAN / GTIN: 4017918960346

Package Contents

- 5x Phoenix Contact UT 2,5 RD Red Feed-Through Terminal Blocks (3045062)
- 2x Phoenix Contact D-UT 2,5/10 Gray End Plates (3047028)

Total: 7 Components, Sold as One 5-Pack Terminal Block Listing with 2 Gray End Plates.
